CHAPTER 1 INTRODUCTION
Preface
The motherboard is a LPX form factor high performance all in one mainboard. It is developed
around the pentium microprocessor with 64 bit access to data transfer and MMX technology. It
includes Intel 82430TX system chipset, S3 86C375 Virge/DX Integrated Graphics Accelerator,
Winbond W83977F super I/O chip, Optional ESS 1869 Sound System.
Features
Processor
?? Intel Pentium/MMX, Cyrix 6x86/6x86L/6x86MX and AMD K5/K6 CPU.
?? The mainboard can run with following speeds:
90, 100, 110, 120, 133, 150, 166, 200, 233 and 266 MHz
Chipset
?? Intel 82439TX System Controller
?? Intel 82371AB PCI ISA IDE Xcelerator
?? S3 86C375 Virge/DX Integrated Graphics Accelerator
?? Winbond W83977F Super I/O Controller
?? ESS 1869 Audio-Drive Sound Controller (Optional)
Cache Size
?? Built in 512KB Synchronised Pipelined Burst Mode SRAM to achieve the high Pentium
system performance.
Main Memory
?? Support Mixed Memory Technologies: Extend Data Output (EDO), Standard Page Mode
(SPM) and Fast Page Mode (FPM) can work together.
?? Memory configurations from 8MB to 256MB are possible using combination of 1M*32 to 8*32
SIMM module (32 bit no-parity 72-pin SIMM module).
Graphics Controller
?? Built-in an enhanced 64-bit BITBLT graphics engine with VGA feature connector on board.
?? PCI 2.1 compliance, and PCI multimedia design Rev 1.0 support.
?? On board 2MB Video RAM, can be expanded to 4MB (GOI-66I Text Board).
Multi I/O
?? On board Multi-I/O supports two serial, one parallel ports and floppy drive controller.
?? Serial ports are 16550 Fast UART compatible.
?? Parallel port has EPP and ECP capabilities.
?? PS/2 keyboard and PS/2 mouse connector is provided.
?? IrDA or Fast IR is provided.

Chapter 1
2
Fig. 1 Key Components of the Mainboard

Introduction
3
PCI IDE
?? On board supports PCI Master IDE Controller, two connectors support up to four IDE devices
such as HDD, CD ROM drive and Tape Back-up drives LS-120, etc.
?? PCI Master IDE controller supports PIO Mode 3 and 4 devices, I/O data transfer rate can be
up to 17Mb/s.
?? Ultra DMA Mode supported. Transfer rate can be up to 33MB/s.
Sound Controller
?? Compatible with all major PC sound standards, including Sound Blaster?Pro, MPU-401 and
Windows Sound System?.
?? Plug-and-Play support for Audio, Joystick, FM Controller, MPU-401.
?? Wave Audio support sample rates from 4KHz to 44KHz.
?? Full-duplex monophonic mode, half-duplex stereo mode.
?? 3D stereo sound effect supported.
?? Optional wavetable connector is provided.
System BIOS
?? Award BIOS (128/256KB Flash EPROM).
Slots
?? One extension slot for dedicated extension card to provide ISA, and PCI interface.
LPX Form Factor
?? 200mm (W) x 248mm (L) 4 Layer
Environment
Working Specifications
Actual Field MTBF (hours) 104,515 hours
Preventive Maintenance Not Required
Environmental Limits
Operating Non-operating
Temperature 0 to 50 degree Celsius -10 to 65 Degree Celsius
Relative Humidity
(without condensation) 8 to 85% 5 to 95%
Altitude 10,000ft 40,000ft
Vibration 1,000Hz
Electricity 4.75 ?5.25V

Chapter 1
4

5
CHAPTER 2 JUMPER SETTINGS
2.1 JUMPERS PRESENTATION
Pins 1 and 2 are shorted with a jumper cap.
1 2 3
Pins 2 and 3 are shorted with a jumper cap.
1 2 3
The jumper is shorted when the jumper cap is placed
over the two pins of the jumper.
The jumper is open when the jumper cap is removed
from jumper.
2.2 CPU TYPE
2.2.1 INTEL PENTIUM CPU
The pentium processors have different operation voltage. In order to using the CPU
Voltage correctly, the following is the marking for identify the CPU type.
Fig. 2a CPU Description
(Bottom Side)
Description :
X = Voltage Specification (S or V) Y = Timing Specification (S or M)
S = Standard Voltage (3.4V) S = Standard EDS timings
V = VRE 3.4 -3.6V (3.5V) M = Min Valid Delay Spec.
Z = Dual Processing Support ( S or U)
S = Support DP/MP/UP
U = Not tested to support DP

Chapter 2
6
2.2.2 INTEL PENTIUM w/ MMX?TECH (P55C) CPU
The Intel Pentium w/ MMX?Tech (P55C) CPU is offered with dual voltage supply -
2.8V for core and 3.3V (I/O) interface. The following is the marking for identify the
CPU type. (The following diagram is provided as an example only. It does not
necessarily indicate a valid product marking.)
Fig. 2b CPU Description
(Top Side)
2.2.3 AMD-K6 CPU
The AMD-K6 CPU family require dual voltage power for operation. The AMD-K6/166,
200 require a voltage of 2.9V core and 3.3V I/O. The AMD-K6/233 require a voltage of
3.2V core and 3.3V I/O. (The following diagram is provided as an example only. It does
not necessarily indicate a valid product marking.)
Fig. 2c CPU Description
(Top Side)
Operating Voltage I/O Voltage Core Voltage
2.1V 3.3V 2.1V
2.9V 3.3V 2.9V
3.2V 3.3V 3.2V

Jumper Settings
7
2.2.4 AMD-K5 CPU
The AMD-K5 family CPU operates on different operation voltage depending on the
CPU type. The operating voltage can be known through the marking on the surface of
the CPU. (The following diagram is provided as an example only. It does not necessarily
indicate a valid product marking.)
Fig. 2d CPU Description
(Top Side)
2.2.5 CYRIX 6x86 CPU
The Cyrix 6x86 has different nominal voltage depends on different lot. Please refer to the
CPU marking.
Fig. 2e CPU Description
(Top Side)
Marketing Recommended Nominal Voltage
3.3V or 3.52V 3.52V
028 3.52V
016 3.3V
Blank 3.52V

Chapter 2
8
2.2.6 CYRIX 6x86L CPU
The Cyrix 6x86L has different I/O and core voltage. Please refer to the CPU marking.
Fig. 2f CPU Description
(Top Side)
2.2.7 CYRIX 6x86MX CPU
The Cyrix 6x86MX has different I/O and Core Voltage. Please refer to the CPU
marking.
Fig. 2g CPU Description
(Top Side)
I/O Voltage Core Voltage
Cyrix 6x86MX 3.3V 2.9V
Cyrix 6x86L 3.3V 2.8V

Jumper Settings
9
2.3 GRAPHICAL DESCRIPTION OF JUMPER
SETTINGS

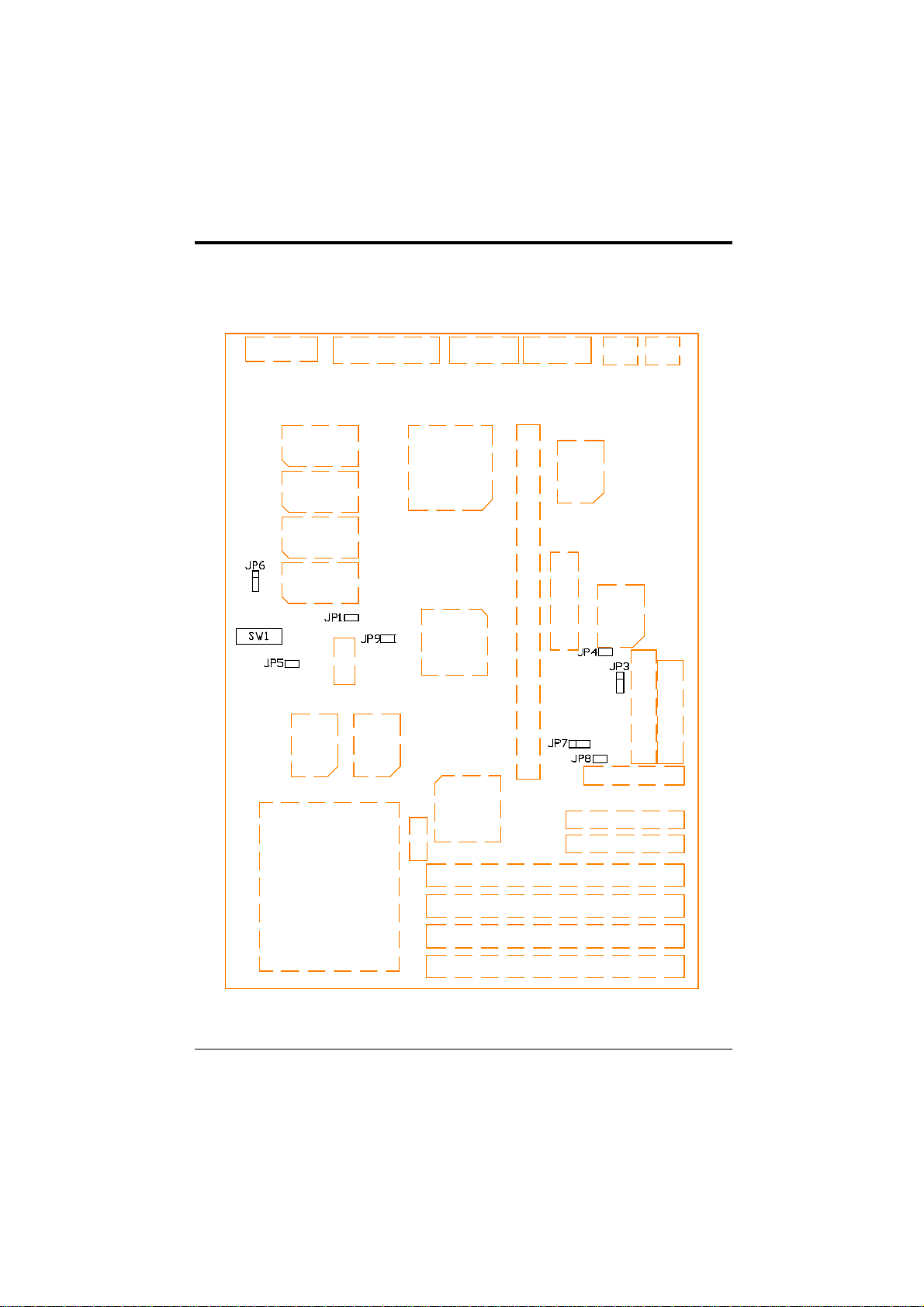

Fig. 3 Jumper Location of the mainboard

Chapter 2
10
2.4 CPU VOLTAGE
2.4.1 CPU VOLTAGE AUTO SELECTION
The CPU voltage auto detection is developed on this motherboard. Set the SW1-1 and 2,
JP5 at OFF position to enable the auto detection.
Note: SW1-1,2 and JP5 should be set at OFF and BIOS “CPU core voltage” as
Auto.
Fig. 4
2.4.2 CPU VOLTAGE BIOS SELECTION
The CPU Voltage can be selected through BIOS setup “CPU Core Voltage Selection”.
It can be set as following table:
2.8 Intel MMX (P55C); 6x86L
2.9 AMD K6/166,200; 6x86MX
3.2AMD K6/233, 266
3.3 Intel Pentium
3.52 6x86; AMD K5
Table 1
Note: SW1-1,2 and JP5 should be set at OFF(see Fig.4) when you select the
voltage through BIOS.
ON
1 2
JP5

Jumper Settings
11
2.4.3 CPU VOLTAGE MANUAL SELECTION
The CPU Core Voltage can be selected by SW1-1, 2 and JP5 when the BIOS “CPU
Core Voltage” be set as Disabled.

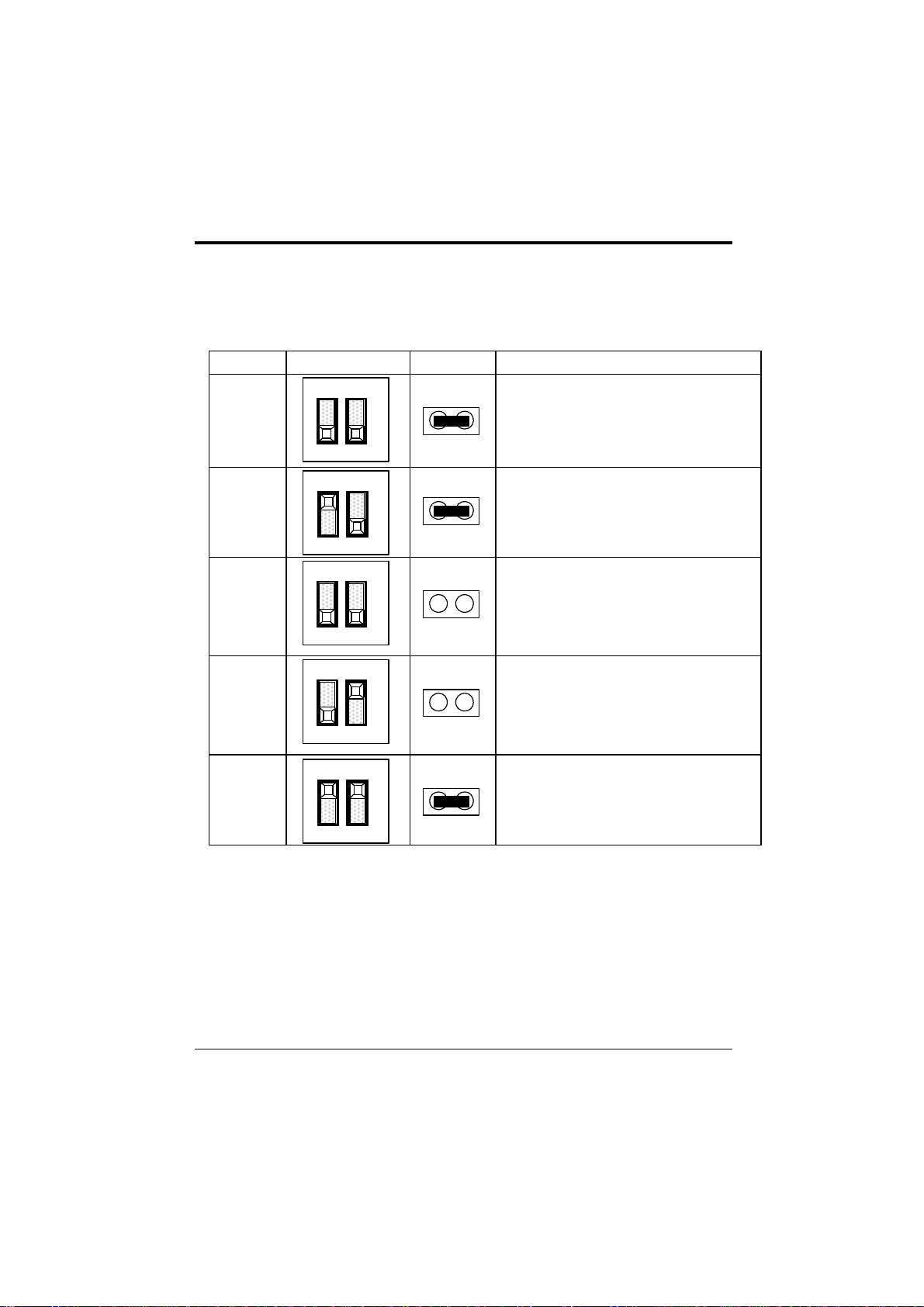

Voltage SW1 JP5 CPU Type
2.8V
Intel Pentium w/MMX (P55C); 6x86L
2.9V
AMD K6/166,200; 6x86MX
3.2V
AMD K6/233, 266
3.3V
Intel Pentium (P54C)
3.5V
6x86; AMD K5
Table 2
1 2
ON
1 2
ON
1 2
ON
1 2
ON
1 2
ON

Chapter 2
12
2.5 CPU EXTERNAL (BUS) FREQUENCY SELECTION
(SW1-6,7,8)
These switches tell the clock generator what frequency to send to the CPU. The Bus
clock times the Bus Ration equals the CPU’s Internal frequency.
2.6 CPU TO BUS FREQUENCY RATION (SW1-3,4,5)
These jumpers set the frequency ration between the Internal frequency of the CPU and
the External frequency (called the Bus clock) within the CPU. These must be set
together with the above jumpers CPU External (Bus) Frequency Selection.
Fig 5
CPU Type Freq. Ration Bus Freq. Ration Setting Bus Freq. Setting
Freq. SW1-3 SW1-4 SW1-5 SW1-6 SW1-7 SW1-8
Intel Pentium 90MHz 1.5x 60MHz OFF OFF OFF ON OFF OFF
Intel Pentium 100MHz 1.5x 66MHz OFF OFF OFF OFF ON OFF
Intel Pentium 120MHz 2.0x 60MHz ON OFF OFF ON OFF OFF
Intel Pentium 133MHz 2.0x 66MHz ON OFF OFF OFF ON OFF
Intel Pentium 166MHz 2.5x 66MHz ON ON OFF OFF ON OFF
Intel Pentium 200MHz 3.0x 66MHz OFF ON OFF OFF ON OFF
Intel Pentium w/MMX 166MHz 2.5x 66MHz ON ON OFF OFF ON OFF
Intel Pentium w/MMX 200MHz 3.0x 66MHz OFF ON OFF OFF ON OFF
Intel Pentium w/MMX 233MHz 3.5x 66MHz OFF OFF OFF OFF ON OFF
Cyrix 6x86L-PR150 120MHz 2.0x 60MHz ON OFF OFF ON OFF OFF
Cyrix 6x86L-PR166 133MHz 2.0x 66MHz ON OFF OFF OFF ON OFF
Cyrix 6x86L-PR200 150MHz 2.0x 75MHz ON OFF OFF OFF OFF ON
Cyrix 6x86MX-PR166 150MHz 2.5x 60MHz ON OFF OFF ON OFF OFF
Cyrix 6x86MX-PR200 150MHz 2.0x 75MHz ON OFF OFF OFF OFF ON
AMD-K5-PR120 120MHz 2.0x 60MHz ON OFF OFF ON OFF OFF
AMD-K5-PR133 133MHz 2.0x 66MHz ON OFFOFF OFF ON OFF
AMD-K5-PR166 166MHz 2.5x 66MHz ON ON OFF OFF ON OFF
AMD-K6/166 166MHz 2.5x 66MHz ON ON OFF OFF ON OFF
AMD-K6/200 200MHz 3.0x 66MHz OFF ON OFF OFF ON OFF
AMD-K6/233 233MHz 3.5x 66MHz OFF OFF OFF OFF ON OFF
AMD-K6/266 266MHz 4.0x 66MHz ON ON ON OFF ON OFF
ON
3 4 5 6 7 8

Jumper Settings
13
Table 3

Chapter 2
14
2.7 JP7 -CLEAR CMOS DATA
JP7 is used to clear the content of the CMOS Data in the RTC

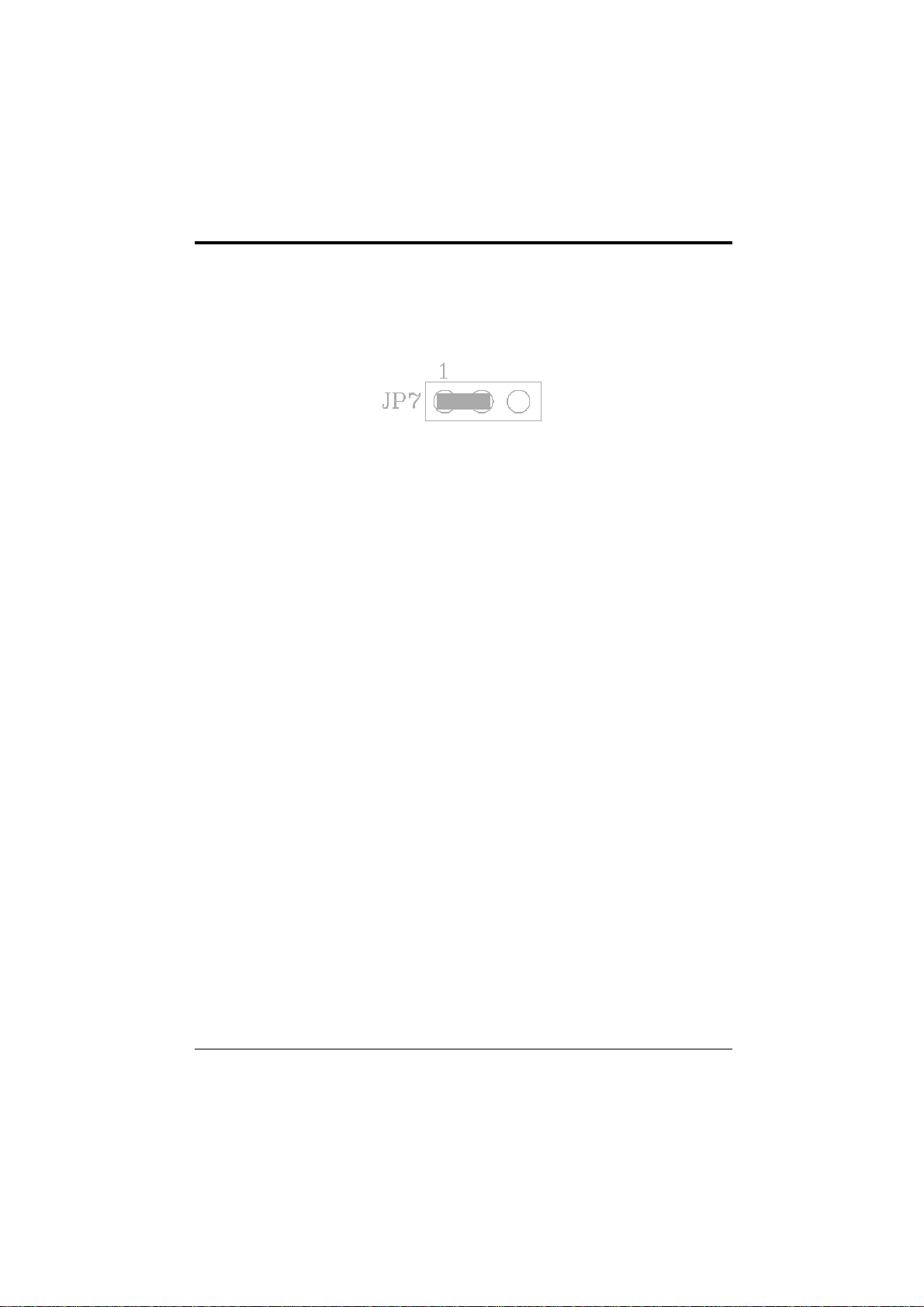

1. Normal Mode
Fig. 6a

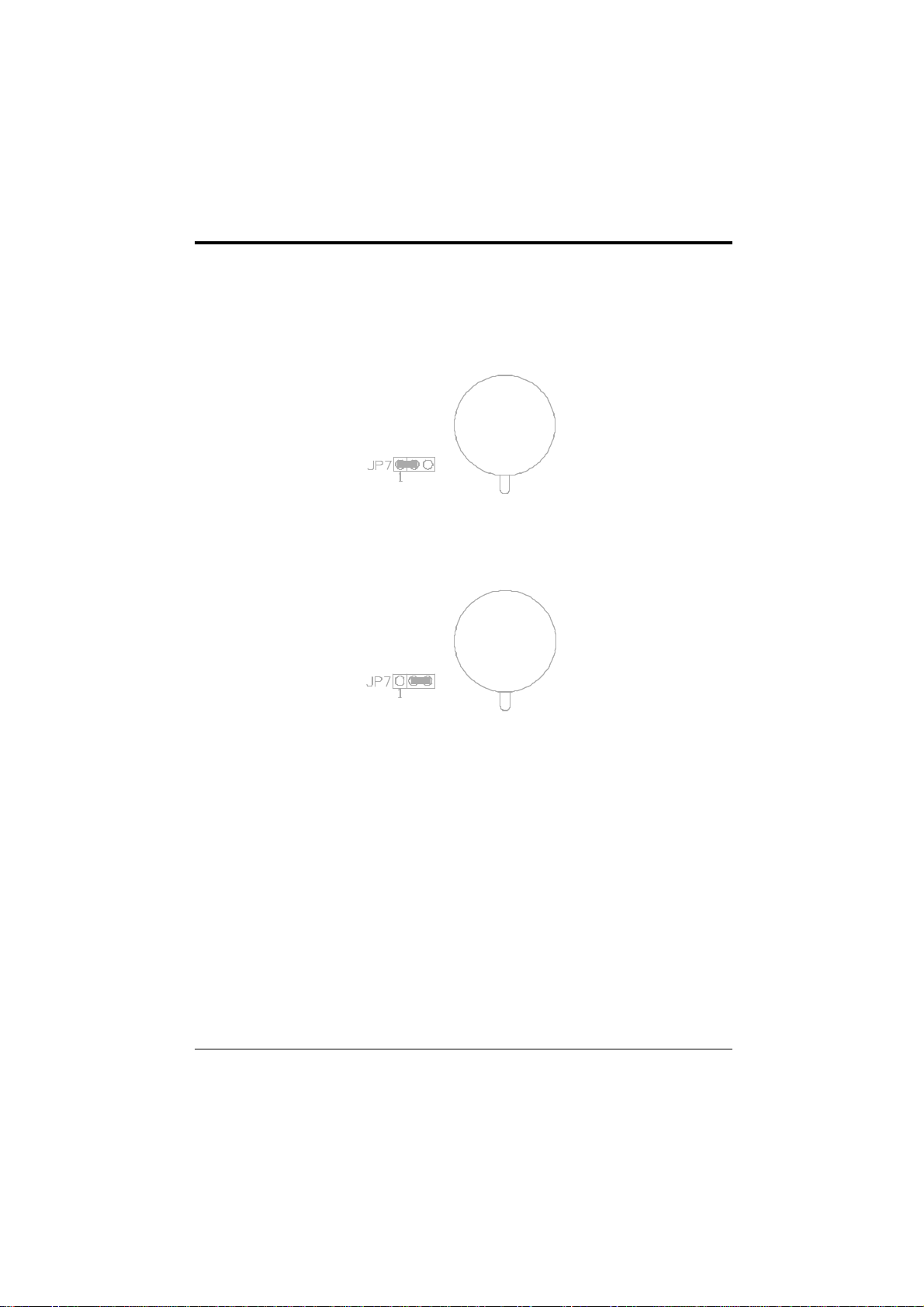

2. Reset Content of RTC
Fig. 6b
