DTK PRM-0080I User manual
PRM-0080I VBX
High Performance
Pentium II PCI Mainboard
User’s Guide
Edition 1.00
©1998 DTK Computer, Inc.
P/N: 155100-8692
I
WARNING
For the system to operate normally, please make sure J6 of the mainboard is set as below. Refer
to Fig. 2 in this manual for the location J6.
If J6 is shorted to 2-3, no CMOS data can be retained.
CAUTION
The motherboard is an electrostatic sensitive device. Don’t open or handle except at a static-
free workstation.
POWER OFF
It needs to hold the power switch 4 seconds to turn off the power.
Windows, MS-DOS, and MS Word are trademarks of Microsoft Corporation.
Novell, Netware are trademarks of Novell, Inc.
Lotus, 1-2-3, and Symphony are trademarks of Lotus Development Corporation.
PC, AT, PC-DOS, OS/2 and Presentation Manager are trademarks of IBM Corporation.
UNIX is the trademark of AT&T.
Intel i82440LX and Pentium II are registered trademark of Intel Corporation.
All other brand and product names are trademarks or registered trademarks of their respective
companies.
The information presented in this publication has been carefully checked for reliability; however,
no responsibility is assumed for inaccuracies, whereas, specification is subjected to change
without notice.
II
CONTENTS
CHAPTER 1 INTRODUCTION 5
CHAPTER 2 JUMPER SETTINGS 7
2.1 JUMPERS PRESENTATION 7
2.2 GRAPHICAL DESCRIPTION OF JUMPER SETTINGS 8
2.3 J4 - CPU CLOCK SPEED 9
2.4 J6 - CLEAR CMOS DATA 9
2.5 J2 - VOLTAGE SELECTION FOR SYSTEM ROM 10
2.6 MEMORY CONFIGUARTION 10
CHAPTER 3 CONNECTOR CONFIGURATION 11
3.1 JP1 - IrDA CONNECTOR 12
3.2 JP8 - ATX POWER SUPPLY CONNECTOR 12
3.3 JP10 - FLOPPY DRIVE CONTROLLER 12
3.4 JP11, JP12 - PRIMARY/SECONDARY IDE CONNECTORS 13
3.5 JP13 - HDD LED 13
3.6 JP14 - POWER ON/OFF SWITCH 13
3.7 JP15 - POWER LED 13
3.8 JP16 - RESET 13
3.9 JP17 - SPEAKER 14
3.10 JP18 – LAN WAKE UP CONNECTOR 14
3.11 JP20 – SB LINK CONNECTOR 14
3.12 CPU FAN, SYSTEM FAN - FAN CONNECTOR 15
3.13 PS/2 KEYBOARD CONNECTOR 15
3.14 PS/2 MOUSE CONNECTOR 15
3.15 UNIVERSAL SERIAL BUS PORT 0 & 1 16
3.16 SERIAL PORT COM1 & COM2 16
3.17 PARALLEL PORT CONNECTOR 16
3.18 RETENTION MECHANISM KITS INSTALLATION GUIDE 16
CHAPTER 4 AWARD BIOS SETUP GUIDE 22
4.1 AWARD BIOS SETUP 22
4.2 STANDARD CMOS SETUP 24
4.3 BIOS FEATURES SETUP 25
4.4 CHIPSET FEATURES SETUP 27
4.5 POWER MANAGEMENT SETUP MENU 29
4.6 PCI CONFIGURATION 31
4.7 INTEGRATED PERIPHERALS SETUP MENU 33
4.8 LOAD SETUP DEFAULTS MENU 35
4.9 SUPERVISOR PASSWORD 35
4.10 USER PASSWORD 36
4.11 IDE HDD AUTO DETECTION 36
4.12 SAVE & EXIT SETUP MENU 36
1
CHAPTER 1 INTRODUCTION
Preface
The motherboard is a 4 layer, ATX form factor high performance PCI/AGP mainboard. It
includes VIA Apollo Pro chipset, Winbond W83977TF Super I/O controller.
Features
Processor
•Intel Pentium II and Celeron series.
•The mainboard can run with following speeds: 233-450MHz
Chipset
•VIA VT82C691 (PCI A.G.P. Controller)
•VIA VT82C596 (PCI ISA IDE Xcelerator)
•Winbond W83977TF (Super I/O Controller)
•Optional Winbond W83781D (System Voltage & Temperature Monitoring IC)
Main Memory
•Memory configurations up to 768MB SDRAM.
•DIMM socket for 3.3V SDRAM (PC/100 DIMM) or EDO (For 66MHz Front Size Bus
CPU Only).
•ECC Function ensures data correction and integrity.
Multi I/O
•On board Multi-I/O supports two serial, one parallel ports and floppy drive controller.
•Serial ports are 16550 Fast UART compatible.
•Parallel port has EPP and ECP capabilities.
•PS/2 keyboard and PS/2 mouse connector is provided.
•IrDA supported.
•USB supported.
Accelerated Graphics Port (AGP) Interface
•A.G.P. specification compliant
•A.G.P. 66/133MHz devices supported
PCI IDE
•On board supports PCI Master IDE Controller, two connectors support up to four IDE
devices such as HDD, CD ROM drive and Tape Back-up drives, etc.
•PCI Master IDE controller supports PIO Mode 3 and 4 devices, I/O data transfer rate can be
up to 16.6MB/s.
•Ultra DMA Mode supported. Transfer rate can be up to 33MB/s.
Chapter 1
2
System BIOS
•Award BIOS (128KB Flash EPROM).
Slots
•One AGP slot
•Four PCI slots (1 shared)
•Two ISA slots(1 shared)
Form Factor
•Full ATX Size (305mm x 180mm) 4 Layer
Fig. 1 Key Components of the Mainboard
SLOT 1
PCI 1
PCI 2
PCI 3
PCI 4
SYSTEM BIOS
ISA SLOT 1
ISA SLOT 2
Battery
DIMM 1
DIMM 2
DIMM 3
FDD
IDE 0 IDE 1
ATX POWER
CONNECTOR
USB
Parallel
COM 2 COM 1
W83977TF
AGP SLOT
9,$
97&
9,$
97&
:'
36 0286(
.(<%2$5'
3
CHAPTER 2 JUMPER SETTINGS
2.1 JUMPERS PRESENTATION
Pins 1 and 2 are shorted with a jumper cap.
1 2 3
Pins 2 and 3 are shorted with a jumper cap.
1 2 3
The jumper is shorted when the jumper cap is placed
over the two pins of the jumper.
The jumper is open when the jumper cap is removed
from jumper.
Jumpers Convention
Different color of jumper caps (mini-jumpers) are used on the board to represent
different usage of the jumpers:
Red: CPU Clock setting
Black: Other
Chapter 2
4
2.2 GRAPHICAL DESCRIPTION OF JUMPER
SETTINGS
Fig. 2 Jumper Location of the mainboard
Jumper Settings
5
2.3 J4 - CPU CLOCK SPEED
The table below summaries the Pentium II Processor frequence and settings of each
jumper of the motherboard.
CPU Freq. Front Size
Bus Freq. Ratio Rating Setting
233MHz 66MHz
Pentium II 350MHz 100MHz 3.5x J4: 1-2 open
3-4 open
5-6 close
266MHz 66MHz
Pentium II/
Celeron 400MHz 100MHz 4.0x J4: 1-2 close
3-4 close
5-6 open
300MHz 66MHz
Pentium II/
Celeron 450MHz 100MHz 4.5x J4: 1-2 open
3-4 close
5-6 open
Pentium II/
Celeron 333MHz 66MHz 5.0x J4: 1-2 close
3-4 open
5-6 open
Celeron 366MHz 66MHz 5.5x J4: 1-2 open
3-4 open
5-6 open
Table 1: Jumper Setting
Reserve for future support
2.4 J6 - CLEAR CMOS DATA
J6 is used to clear the content of the CMOS Data in the RTC (build in PIIX4E chip).
Table 2: Clear CMOS Data
Chapter 2
6
2.5 J2 - VOLTAGE SELECTION FOR SYSTEM ROM
J2 is used to select the operation voltage of the system ROM.
Table 3: Voltage Selection for System ROM
2.6 MEMORY CONFIGUARTION
When 100MHz Front Size Bus Pentium II Processor is used. SDRAM DIMMs with
PC/100 specification and Serial Presence Defect (SPD) data structure are required.
For 66MHz Front Size Bus Pentium II Processor, SDRAM or EDO DIMM may be
used. Don’t use both SDRAM and EDO DIMM at the same time.
To enable the Error Checking and Correction (ECC) feature of the chipset. ECC
DIMM has to be used and the “DRAM Data Integrity Mode” on BIOS Chipset
Features Setup Menu has to be set to “ECC”.
Three DIMM sockets are provided for the 3.3V SDRAM or EDO:
DIMM1 - used memory rows 0 and 1
DIMM2 - used memory rows 2 and 3
DIMM3 - used memory rows 4 and 5
Table 4 provides the typical memory configurations supported by the mainboard.
Rows 0/1 (DIMM1) Rows 2/3 (DIMM2) Rows 4/5 (DIMM3)
Installed None None
None Installed None
None None Installed
Installed Installed None
Installed None Installed
Installed None None
None Installed Installed
None Installed None
None None Installed
Installed Installed Installed
Table 4
The maximum memory size is up to 768MB. The size of each DIMM can be 8MB,
16MB, 32MB, 64MB, 128MB or 256MB.
7
CHAPTER 3 CONNECTOR
CONFIGURATION
Once the mainboard has been fastened into system case, the next step is to connect the internal
cables. The internal cables are wire leads with plastic female connectors that attach to the
connectors. The mainboard connectors have varying numbers of pins and are the points of
contact between the mainboard and other parts of the computer.
Fig 3 Connector Location
Chapter 3
8

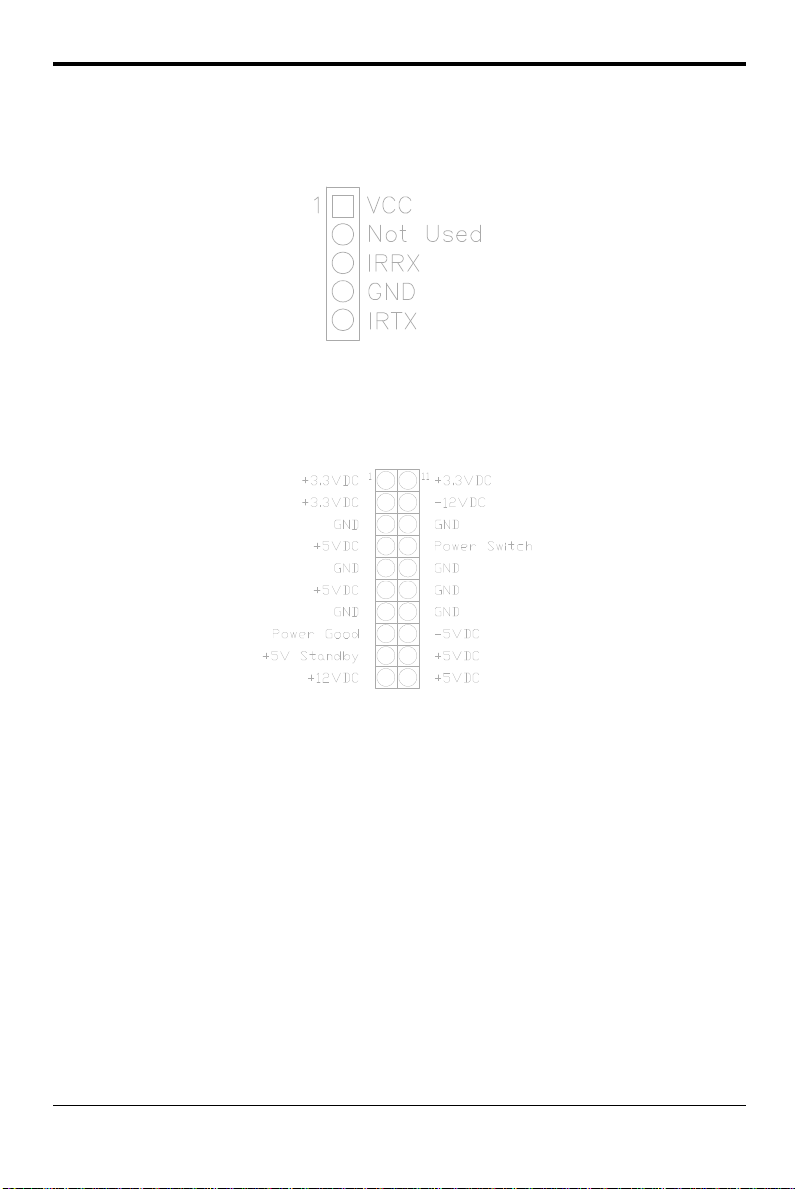

3.1 JP1 - IrDA CONNECTOR
JP1 is an IrDA connector that uses UART2 as interface of IrDA Infrared and HP
SIR.
Fig. 4 IrDA Connector
3.2 JP8 - ATX POWER SUPPLY CONNECTOR
Fig. 5 ATX Power Supply Connector
3.3 JP10 - FLOPPY DRIVE CONTROLLER
This connector supports the floppy drive ribbon cable. After connecting the single
end to the board, connect the two plugs on the other end to the floppy drive.
Connector Configuration
9
3.4 JP11, JP12 - PRIMARY/SECONDARY IDE
CONNECTORS
These connectors support the provided IDE hard disk ribbon cable. After
connecting the single end to the board, connect the two plugs on the other end to
your hard disk or other device.
3.5 JP13 - HDD LED
JP13 is usually connected to a HDD LED on front of the system case. If the HDD is
in operation, the indicator lights during operation.
Fig. 6 HDD LED
3.6 JP14 - POWER ON/OFF SWITCH
It is used to switch on or off the ATX power supply. The power is turned on by
short the power switch once. It needs to hold the power switch about 4 seconds to
turn it off when it has not start to display.
3.7 JP15 - POWER LED
Attach the power led cable to this connector. If the system is power on, the indicator
lights.
Fig. 7 Power LED
3.8 JP16 - RESET
Attach the Reset switch cable to this connector. The Reset switch restarts the
system.
Chapter 3
10
3.9 JP17 - SPEAKER
JP17 is a four pins connector, which is used to connect the system speaker.
Fig. 8 Speaker
3.10 JP18 – LAN WAKE UP CONNECTOR
JP18 is used to connect to the Network Card which support the LAN wake up
feature.
Fig. 9 LAN Wake Up Connector
3.11 JP20 – SB LINK CONNECTOR
In order to migrate the legacy Sound Blaster compatible audio to the PCI bus, some
Audio Card may incorporate a pair of PC/PCI request/grant sideband signals to
interface to the PCI bus. This connector is provided for Creative PCI sound cards
SB Link connection.
Fig. 10 SB Link Connector
Connector Configuration
11
3.12 CPU FAN, SYSTEM FAN - FAN CONNECTOR
These FAN connectors are used to connect with the CPU Fan or the Chassis Fan
Power cable.
Fig. 11 FAN Connector
Fig. 12 I/O Connector
3.13 PS/2 KEYBOARD CONNECTOR
This connector is a six-pin female mini DIN connector using a PS/2 plug. If a
standard AT size keyboard plugs, you may use the DIN to mini DIN adaptor.
3.14 PS/2 MOUSE CONNECTOR
This connector is a six-pin female mini DIN connector using a PS/2 plug. Plug the
jack on the PS/2 keyboard cable into this connector.
Chapter 3
12
3.15 UNIVERSAL SERIAL BUS PORT 0 & 1
These connectors are two four pin female sockets which are available for connecting
USB device.
3.16 SERIAL PORT COM1 & COM2
This is a D-Type 9 pin male connector for pointing devices or other serial devices.
3.17 PARALLEL PORT CONNECTOR
This is a D-Type 25 pin female connector.
3.18 RETENTION MECHANISM KITS INSTALLATION
GUIDE
Retention Mechanism Kits includes following components:
1. Retention mechanism Assembly
Fig. 13
Connector Configuration
13
2. Retention Mechanism Attach Mount
Fig. 14
3. Heatsink Top Support
Fig. 15
4. Heatsink Support Base
Fig. 16
Chapter 3
14
5. Top Holder for Celeron
Fig. 17
Before the installation of RM Kits find the six holes on the motherboard for RM installation.
The hole position and usage is as following:
Fig. 18
Installation Guide for Pentium II
1. Mount the two RM Attach Mounts onto the motherboard from bottom side. These
mounts will be used to attach the RM Assembly.
2. Put the RM Assembly on the Slot 1 and use the four screws to fix RM Assembly to the
RM Attach Mount.
Connector Configuration
15

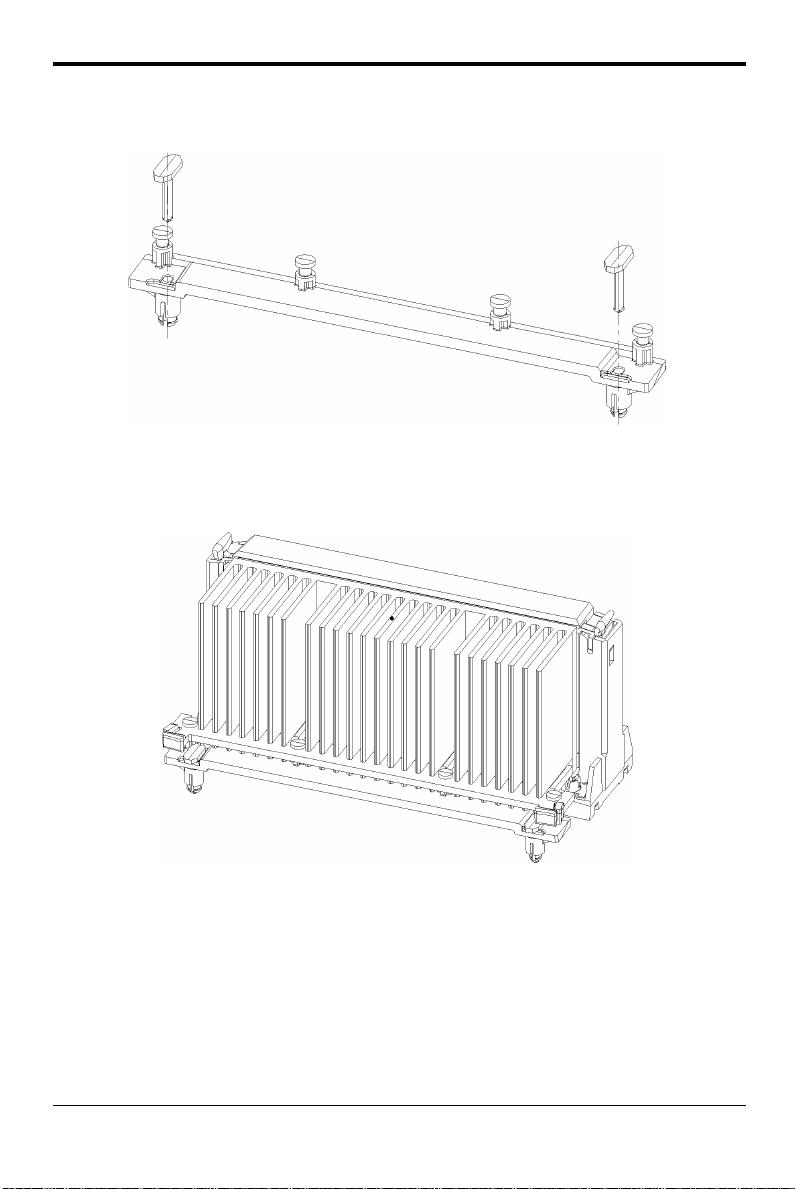

3. Install the Heatsink Support Base onto the motherboard, insert the two plastic nail to the
hole in the Heatsink Support Base as following diagram:
Fig. 19
4. Insert the Heatsink Top Support to the Pentium II Heatsink and the Heatsink Support
Base as the following diagram:
Fig. 20
Chapter 3
16

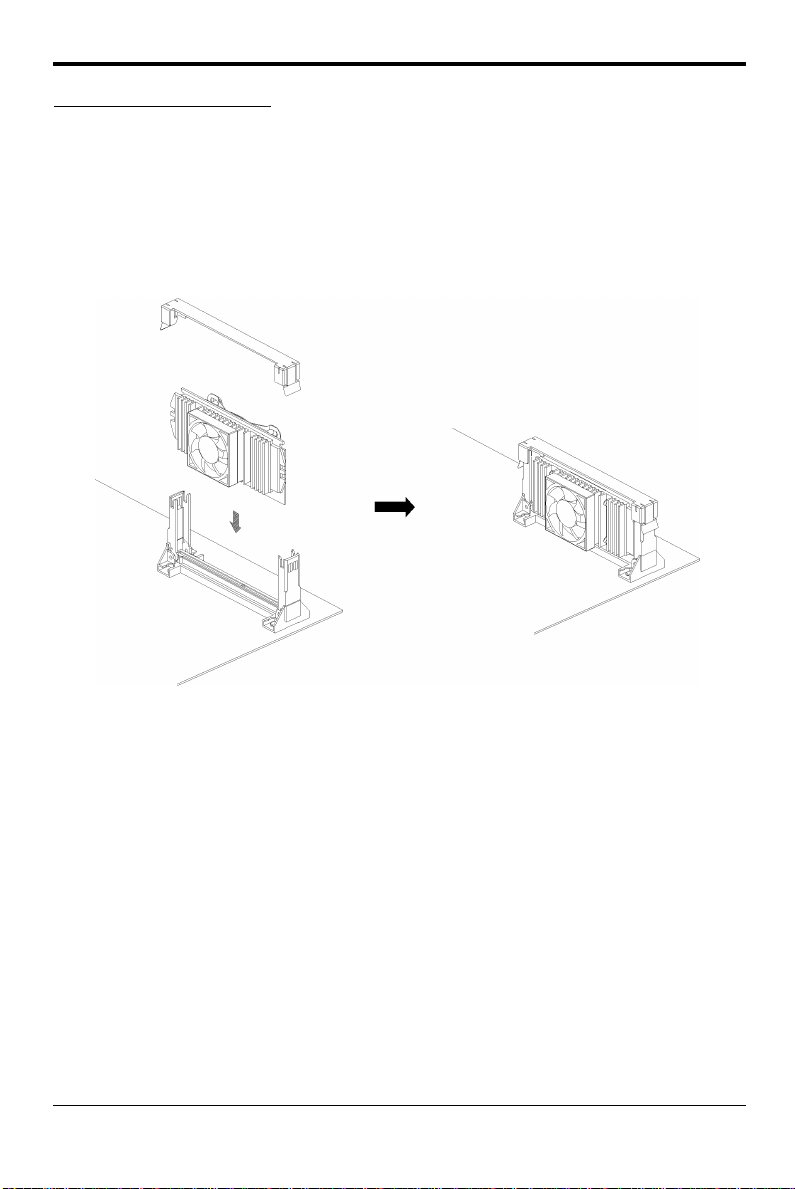

Installation Guide for Celeron
1. Mount the two RM attach Mounts onto the motherboard from bottom side. These mounts
will be used to attach the RM Assembly.
2. Put the RM Assembly on the Slot 1 and use the four screws to fix RM Assembly to the
RM attach Mount.
3. Insert the Top Holder for Celeron as the following diagram:
Fig. 21
Other manuals for PRM-0080I
2
Table of contents
Other DTK Motherboard manuals
