Duke TSC User manual

Installation Instructions
TSC - TSCM Retrot
KIT #600531
Control Replacement
Humidity Probe Replacement
This manual is Copyright © 2018 Duke Manufacturing Co. All rights reserved.
Reproduction without written permission is prohibited. Duke is a registered
trademark of the Duke Manufacturing Co.
Duke Manufacturing Co.
2305 N. Broadway
St. Louis, MO 63102
Phone: [phone]
Toll Free: 1-800-735-3853
Fax: [phone]
www.dukemfg.com P/N 514158
REV B 4/12/2018
CAUTION: Please read this manual completely before attempting
to install, operate or service this equipment

2
Installation and Operation of: TSC - TSCM Retrot
IMPORTANT SAFETY INSTRUCTIONS
Throughout this manual, you will nd the following safety words and symbols that signify
important safety issues with regards to operating or maintaining the equipment.
Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
CAUTION
Indicates Important Information
Indicates electrical shock hazard which, if not avoided, could
result in death or serious injury and/or equipment damage.
Indicates hot surface which, if not avoided, could result in
minor or moderate injury.
TABLE OF CONTENTS
Safety Instructions ................................................................................................................................................. 2
Tools Needed and Parts Included..................................................................................................................... 4
Removal of Old Control Panel............................................................................................................................ 5
Installation of New Control Panel..................................................................................................................... 6
Humidity Probe Replacement ........................................................................................................................... 8
Installing new Sensor............................................................................................................................................ 9
Closing up Unit......................................................................................................................................................11
Operating Instructions .......................................................................................................................................12
Care and Cleaning................................................................................................................................................17
Programming Controls.......................................................................................................................................18
Troubleshooting ...................................................................................................................................................21
Wire Diagram ........................................................................................................................................................22

3
Installation and Operation of: TSC - TSCM Retrot
In addition to the warnings and cautions in this manual, use the following guidelines for
safe operation of the unit.
• Read all instructions before using equipment.
• For your safety, the equipment is furnished with a properly grounded cord connector. Do
not attempt to remove or disconnect the grounded connector.
• Install or locate the equipment only for its intended use as described in this manual.
• Do not use corrosive chemicals on this equipment.
• Do not operate this equipment if it has a damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped.
• This equipment should be serviced by qualied personnel only. Contact the nearest
Duke authorized service facility for adjustment or repair.
• Do not block or cover any openings on the unit.
• Do not immerse cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow cord to hang over edge of table or counter.
The following warnings and cautions appear throughout this manual and should be
carefully observed.
• Turn the unit o, disconnect the power source and allow unit to cool down before
performing any service or maintenance on the unit.
• The procedures in this manual may include the use of chemical products. You must read
the Material Safety Data Sheets before using any of these products.
• The unit should be grounded according to local electrical codes to prevent the
possibility of electrical shock. It requires a grounded receptacle with dedicated electrical
lines, protected by fuses or circuit breaker of the proper rating, in accordance with all
applicable regulations.
• Disposal of the unit must be in accordance with local environmental codes and/or any
other applicable codes.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety.

4
Installation and Operation of: TSC - TSCM Retrot
TOOLS NEEDED FOR INSTALLATION
PARTS INCLUDED IN KIT
Phillips Screw Driver
Needle Nose Pliers
11/32 Socket and Rachet Corless Drill
512418 ESD Wrist Strap
512009 Asembly RH
512018 Drill Template
512011 Gasket
120037 RH Sensor
120179 Control Assembly
512014 RH Bracket
155680 Nut
ELC-001055 Wire Diagram

5
Installation and Operation of: TSC - TSCM Retrot
GETTING STARTED
TURN OFF LINE SUPPLY POWER TO THE TSC OVEN AT MAINS
SUPPLY CIRCUIT BREAKER. FOLLOW LOCK OUT / TAG OUT
PROCEDURES.
An ESD Wrist Strap is required when coming in contact with Touchpad
Controller.
REMOVAL OF OLD CONTROL PANEL
Step 1
Verify line power to the unit is disconnected and
arrange for access to the rear of the unit.
Step 2
Loosen, but do not remove the bottom and rear
screws on each side of the slide out. Remove top left
and top right screws. DO NOT DISCARD
Remove
Loosen
Step 3
Slide the control panel forward and tilt down.
Step 4
Connect ESD Wrist strap to Unit in location shown.
Attach
ESD Strap
to flange
Step 5
Place ESD strap on wrist and tighten. Strap must be
tight around wrist to be eective.
Step 6
Diconnect all wire harnesses from control board.
Step 7
Remove front panel. Remove two (2) screws one at
each end of control panel. Discard front panel.
REMOVE
NOTE: Retain screws to install new panel.

6
Installation and Operation of: TSC - TSCM Retrot
INSTALLATION OF NEW PANEL
Step 1
Unpack new control making sure ESD protocol is
followed. Check for any damage.
Step 3
Using the two (2) Screws removed in step 7 of
removal install new panel.
NOTE: Do not tighten screws.
NOTICE:
More of the low voltage components are located on
the front panel.
Step 8
Remove two white wires from the left side of the
relay on the back wall of the control cavity. Cut re-
moved wires and discard.
REMOVAL OF OLD CONTROL PANEL  continued
Step 9
Remove two wires from the beeper in the upper left
corner of the control cavity.
Step 2
The control is shipped with a protection cover on the
back. This needs to be removed and discarded.
REMOVE
Back Panel RELAY
CONNECTIONS
STEP 6
BEEPER
CONNECTIONS
STEP 5

7
Installation and Operation of: TSC - TSCM Retrot
Step 4
Connect the main power harness to the control
board.
Green board on right side. See Below.
Step 7
Connect the RTD’s from the unit to the RED PCB
board to the left of the touch screen (two (2) four (4)
pin connectors).
NOTE: See below
One marked P for Proofer- Second Position
One marked O for Oven - Third Position
INSTALLATION OF NEW PANEL - continued
Step 6
From the new control board connect the two white
wires to the relay on the back wall of the control
cavity.
123
PO
Step 5
Connect the brown and red wires to the beeper in
the upper left hand corner of the control cabinet.
The red wire must be connected to the red terminal of the
beeper or it will not work.
CAUTION
Beeper and Relay Harness
Main power harness
Oven and Proofer RTD’s

8
Installation and Operation of: TSC - TSCM Retrot
HUMIDITY PROBE REPLACEMENT
Step 1
Verify line power to the unit is disconnected and
arrange for access to the rear of the unit.
Step 2
Remove the three (3) screws holding the back
electrical panel, set panel and screws aside.
REMOVE
Step 3
Loosen the top center screw (with keyhole slot)
holding the back lower panel in place.
Step 4
Remove the other eighteen (18) screws holding the
back panel in place and set panel aside.
NOTICE:
LOOKING FROM THE BACK OF THE UNIT, IF YOUR
UNIT DOES NOT HAVE A HUMIDTY SENSOR ON
THE LEFT SIDE OF THE CAVITY CONTINUE ON.
NOTE: UNIT ABOVE DOES NOT HAVE SENSOR.
IF UNIT HAS A SENSOR THEN SKIP TO STEP 7 ON
NEXT PAGE .
SENSOR
LOCATION
PREPING UNIT FOR NEW SENSOR
LOOSEN Step 5
Remove wire racks, false bottom panel, & right side
plenum duct assembly by removing screws on both,
front and rear, and at top of air duct if installed.
REMOVE

9
Installation and Operation of: TSC - TSCM Retrot
HUMIDITY PROBE REPLACEMENT  continued
Step 6
Next align drill template 512018 to the upper
rear corner of the right hand side of the unit.
(See illustration below) Use the tape to secure the
template in place. Drill holes to appropriate size as
indicated on the template. Skip to Installing new
sensor.
Do not force bit through as this may damage outer
nished panel. Remove all shavings from unit
interior.
CAUTION
Step 7
Remove the old RH sensor assembly from the unit
by removing the two Keps nuts with a 11/32 socket.
Discard old sensor and bracket.
INSIDE OF
CABINET.
GASKET
Step 1
Install the new 120037 RH Assembly probe to
the new 512009 TSC Humidity Sensor Assembly
(included in kit) and install the probe onto the
bracket. Using screw driver to tighten screws enough
to maintain sensor position.
NOTE: Do not overtighten you may damage
sensor. See diagram to the right for sensor bracket
alignment location.
ALIGN EDGE OF BULB WITH
EDGE OF HEM ON BRACKET
WHEN INSTALLING BULB
INSTALLING NEW SENSOR

10
Installation and Operation of: TSC - TSCM Retrot
HUMIDITY PROBE REPLACEMENT  continued
Step 2
Install the studded bracket of the 512014 assembly
into the drilled holes from inside of the unit. Using
tape to hold the studded bracket in place.
NOTE: Do not cover the center hole where the
Humidity probe will go through.
From the rear of the unit install the gasket over the
studs. Next install the probe thru the hole of gasket
and bracket taped to the liner wall. Install Keps nuts
using Ratchet and 11/32 socket and tighten until you
get a snug t to seal the hole. See diagram below for
how the assembly should look from the rear of the
unit.
INSIDE OF
CABINET.
GASKET
Step 3
Route the three pin connector end of the new
RH Assembly through the lower wiring feed and
through the rear wall of the controls section to the
front of the TSC Oven control cavity.
Step 4
Connect the three pin connector of the RH sensor in
the three pin conection on the red PCB board.
PORH

11
Installation and Operation of: TSC - TSCM Retrot
CLOSING UP UNIT
Step 3
Place back panel on unit and secure with the
eighteen (18) screws. Tighten once all are started.
Step 4
Replace back electrical panel shield with three (3)
screws
INSTALL
INSTALL
Step 1
Install right side panel with screws. Replace false
bottom tray and shelving.
Step 6
Tilt up and slide back the control panel. Replace the
Top 2 screws and tighten all 8 screws on both sides.
NOTE: Verify wiring is not trapped, pinched or visible
under the controls panel after fully slid into position.
Install
Tighten
Step 8
Reconnect power or remove Lockout/Tagout on unit.
Step 9
Turn on unit and verify operation.
Step 7
Slide unit back into place.
Step 2
Clean any dirt or grime o the wire diagram on the
inside of the back cover. Peal backing o new wire
diagram and cover old diagram.
Step 5
In front control panel bundle any old unused wires
and secure inside control cavity.

12
Installation and Operation of: TSC - TSCM Retrot
AUDIBLE ALARMS
The Oven/Proofer has various audible alarms.
1 chirp Keystroke acknowledgement
3 short chirps Oven and Proofer up-to-temperature notication
4 beeps (Continuous until cleared) Oven door open alarm
3 long chirps Proofer stagger load alarm
3 beeps (Continuous until cleared) Proofer end of cycle
2 beeps (Continuous until cleared) Oven end of cycle
OPERATING INSTRUCTIONS
Touch Screen Denitions

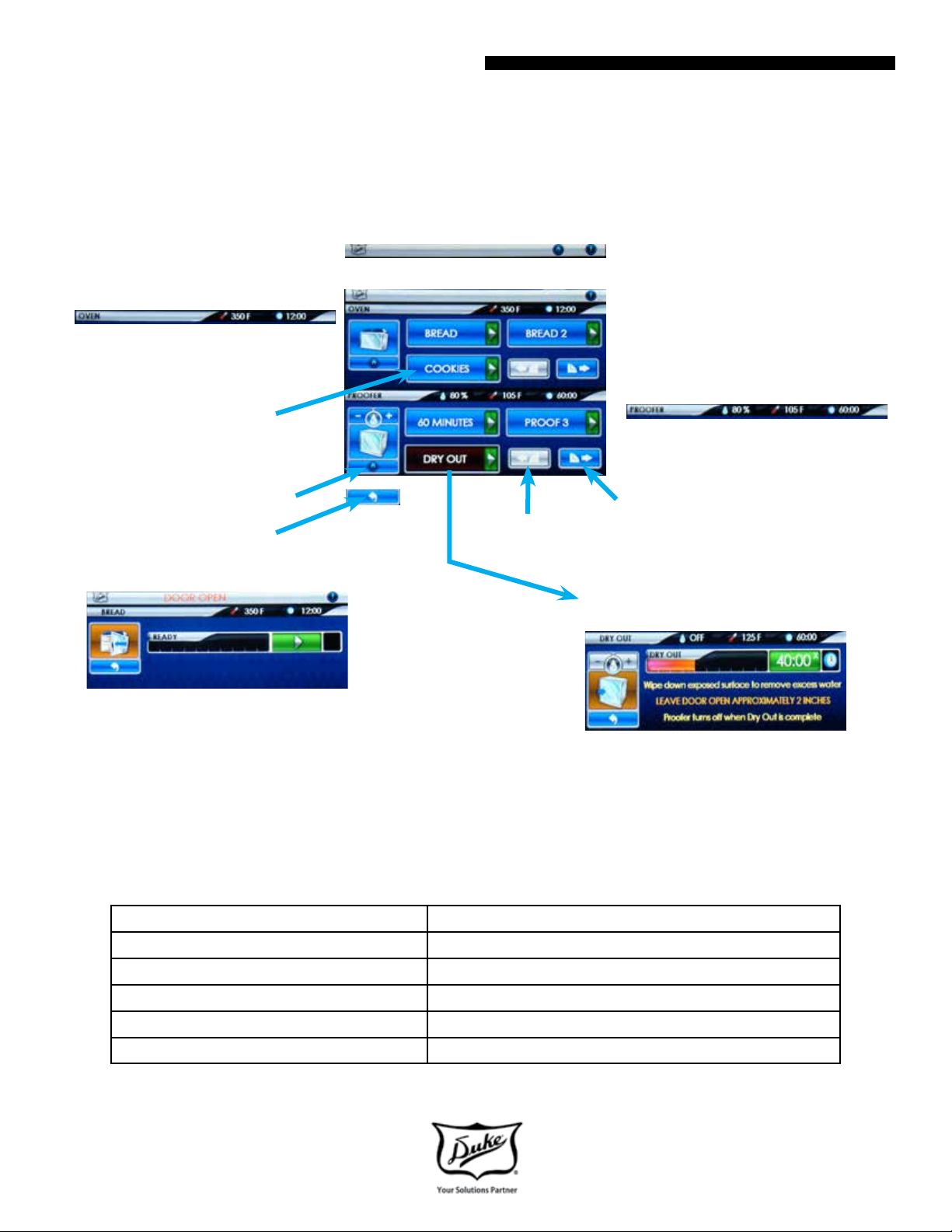

Main Tool Bar
Screen Sleep Button* Info Button
Oven Recipe Information Bar
Recipe
Temp
Recipe
Time
Proofer Recipe Information Bar
Recipe
Humidity
Recipe
Temp
Recipe
Time
Page
Forward
Page Back
Follow instructions on screen.
Touch to start Dry-Out cycle at end
of use for each day.
Recipe
Name
With oven door open, DOOR OPEN
will ash in the Main Tool Bar and
oven icon background is orange.
Door Open
Power
Button or
Back
* Screen Sleep
Button only
available when
Oven and Proofer
are o

13
Installation and Operation of: TSC - TSCM Retrot
1. Turn power on to the unit with the power switch
on the left side of the unit. Boot Screen is displayed
and automatically transitions to the Main Screen.
2. Turn the Oven and Proofer ON by touching the
and buttons located at the left of
the touch screen. The Oven, Proofer and Recipe
Buttons will turn to BLUE background. The
Oven and Proofer lights will turn on and start
preheating.
3. Check to make sure that the oven and proofer
fans are running.
4. Open the oven door; the oven fan should stop.
5. Close the door; the fan should resume.
6. Allow the oven and proofer to pre-heat for at
least 30 minutes. An audible alarm will sound
(3 short chirps) when the oven and/or proofer
reach the ready state. Your Duke Proofer Oven is
now ready to operate.
If there are any problems refer to the Trouble
Shooting section of this manual.
DAILY OVEN/PROOFER STARTUP

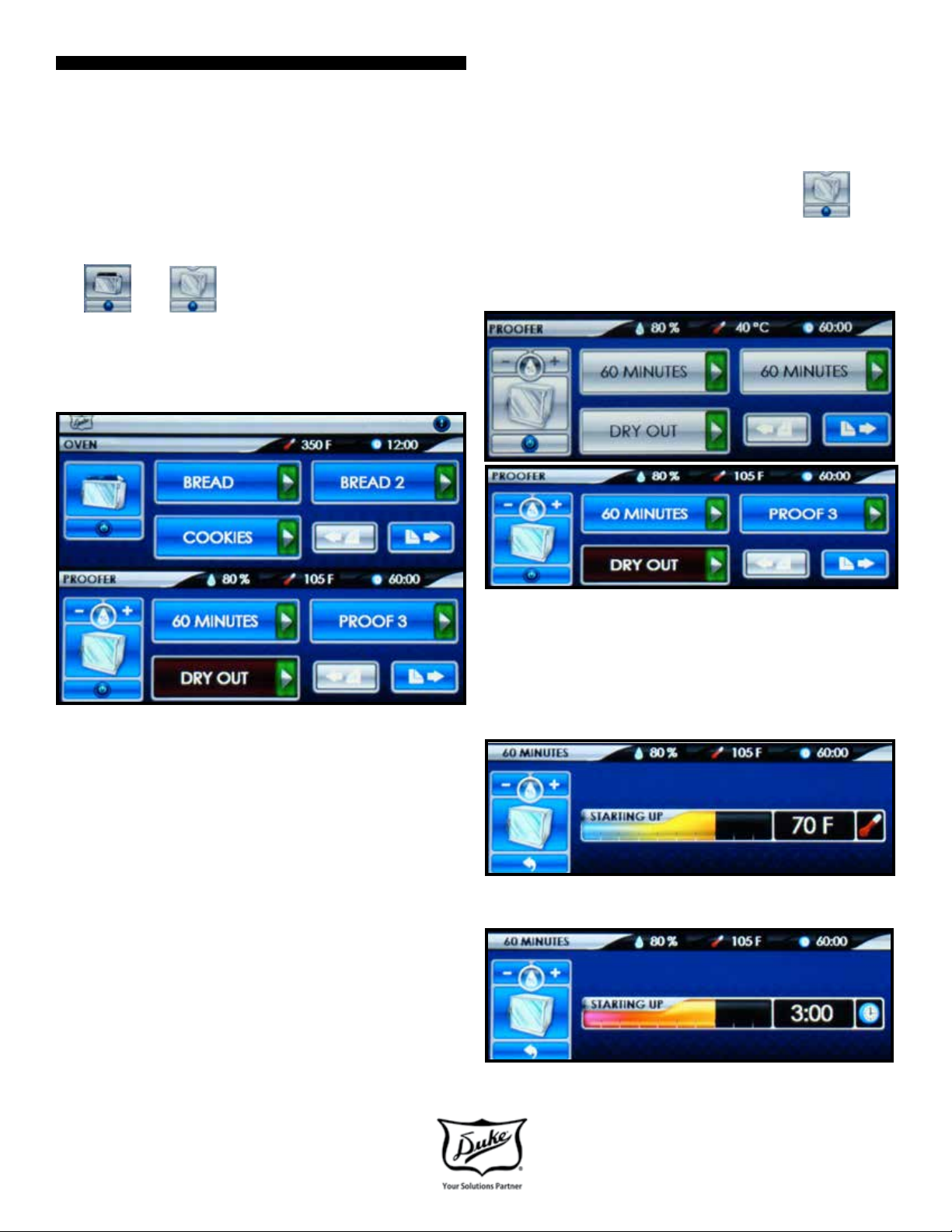

Figure: Main Screen
OPERATING INSTRUCTIONS  continued
1. Turn the proofer ON by touching the
button or the desired RECIPE button. The
Proofer and Recipe Buttons will turn to BLUE
background. The Proofer lights will turn on and
proofer will start preheating.
PROOFER OPERATING INSTRUCTIONS
Figure: Proofer Main Screen
2. Proofer will preheat for 10 minutes after
reaching setpoint to ensure proper proong
conditions. An audible alarm will sound (3 short
chirps) when the proofer reaches the ready
state.
Figure: Proofer Starting Up Screen
(10 Minute Starting Up Timer)
Figure: Proofer Starting Up Screen
(If under temperature set point)

14
Installation and Operation of: TSC - TSCM Retrot
4. Watch for a light fog to appear on the interior
door glass; the proofer is ready to be loaded
with dough.
5. Increase humidity, if door glass does not fog as
the humidity is set too low; press button of
the (Relative Humidity). The RH% will
increase on the Proofer Recipe Information Bar.
6. Decrease humidity if water is running down
door glass as the humidity is set too high; press
button of the (Relative Humidity).
The RH% will decrease on the Proofer Recipe
Information Bar.
7. Load the rst proofer section with dough and
touch UPPER, MIDDLE or LOWER Start Timer
, depending on where dough is loaded.
This will prevent over-proong of the dough
remaining in proofer after the rst load has been
moved to the oven. The remaining time will be
displayed in the button area and the progress
bar will change to visually show elapsed and
remaining proof time.
Since the proofer can hold more pans than the
oven can bake, an alarm beeps and LOAD NEXT
TRAY is displayed in the Main Tool Bar 1/3rd of
the time thru the proofer cycle so that loads
can be staggered. Load the next proofer section
with dough and touch Start Timer for the
respective section.
NOTE: You can cancel an active timer with touch
and hold for 2 to 3 seconds on the count down
timer.
8. When the proof is complete, an alarm for the
respective timer will beep to alert the operator
which level is ready to be moved to the oven.
Touch the Timer to cancel the alarm.
Figure: Proofer Running Screen
Figure: Proofer Complete Alarm Screen
Figure: Proofer Recipe Ready Screen to Start
3. Once a Proofer recipe has been selected (i.e.
60 MINUTES ) and the display has changed to
the Proofer Recipe Ready to start 1/3rd Timers
screen, the proofer's humidity should be visually
veried before loading.
OPERATING INSTRUCTIONS  continued

15
Installation and Operation of: TSC - TSCM Retrot
9. You can add 5 minutes to proong time by
touching the button adjacent to any of the
respective count down timers. This can be done
at any time during the proof or at the end of a
proong cycle. You must add time in 5 minute
increments.
10. Adjust the time, if necessary, depending on type
of dough and desired results.
11. Bake bread when dough rises to desired size.
NOTE: Excessive humidity on the door glass is
probably caused by a humidity setting that is too
high or by having the humidity on when there is
no dough loaded in the proofer.
OPERATING INSTRUCTIONS  continued
OVEN OPERATING INSTRUCTIONS
1. Turn the oven ON by touching the
button or the desired RECIPE button. The
oven lights will turn on and the Oven will start
preheating. An audible alarm will sound (3 short
chirps) when the oven reaches the ready state.
Figure: Oven Main Screen
1. Allow the oven to preheat 20–30 minutes and
keep the oven door closed, except during
loading and unloading.
2. Once an Oven recipe has been selected (i.e.
BREAD ), the display will change to the Oven
Recipe Ready to Start screen (if preheating is
complete).
Figure: Oven Recipe Preheat Screen
(if under temperature setpoint):
Figure: Oven Recipe Ready to Start
1. Load the oven with dough and touch the start
timer button. The remaining time will be
displayed in the button area and the progress
bar will change to visually show elapsed and
remaining bake time.
NOTE: You can cancel an active timer with press and
hold for 2 to 3 seconds on the count down timer.
Figure: Oven Count Down Timer

16
Installation and Operation of: TSC - TSCM Retrot
OPERATING INSTRUCTIONS  continued
1. When the bake is complete, an alarm will beep
to alert the operator. Touch the Timer or
open the oven door to cancel the alarm.
Figure: Oven Bake Complete Alarm
1. You can add 1 minute to baking time by
touching the button adjacent to the count
down timer. This can be done at any time during
the bake or at the end of a baking cycle. You
must add time in 1 minute increments.
2. Adjust the time, if necessary, depending on type
of dough and desired results.
BAKING TIPS
• Always select the oven recipe and allow preheat
time prior to loading product. Only load when
the Oven Recipe Ready to Start Timers screen is
displayed. Load the oven with six pans of dough
and touch the start button.
• If the bread color is uneven, reduce temperature
and extend bake time in recipe (see
Programming Controls).
• If the bread is too dark, reduce the bake time in
the recipe (see Programming Controls). If the
bake time is reduced and the bread is still too
dark, reduce the temperature by 15° F (10° C)
and bake longer.
• When baking partial loads, center the pans in
the oven and start loading at the bottom shelf
and work up to the top.
• Opening oven door allows heat to escape. Under
normal conditions, quick loading and unloading
will not be a problem. If door is left open too
long, oven performance will be aected.
NOTE: The Proofer Oven has a "Default" run
mode. This mode is only active when there is a
Touchscreen control communication error and
with power to the balance of the controls. This
mode allows for your Proofer Oven to mantain
approximately 350° F (177° C) in the baking oven
and approximately 105° F (41° C) and 80%RH in
the proofer. When the Proofer Oven is operating in
this mode, you will witness the Proofer and Oven
lights blinking o for approximately 2 seconds
every minute. This mode allows you to continue
using your Proofer Oven for baking and proong
until the unit is properly serviced.
The "Default" run mode is disabled with an open
oven door.

17
Installation and Operation of: TSC - TSCM Retrot
CARE AND CLEANING
WARNING
PROOFER OVEN INTERIOR AND RACKS ARE
VERY HOT AND COOL SLOWLY.
ALLOW TO COOL BEFORE HANDLING.
CAUTION
ELECTRICAL SHOCK HAZARD:
DO NOT WASH WITH WATER JET OR HOSE.
CAUTION
DO NOT USE OVEN CLEANERS, CAUSTIC
CLEANERS, DEGREASERS, ACIDS, AMMONIA
PRODUCTS, ABRASIVE CLEANERS, STEEL
WOOL, OR ABRASIVE PADS CONTAINING
IRON. THESE CAN DAMAGE THE STAINLESS
STEEL, DOOR GASKETS AND PLASTIC
SURFACES.
DAILY CLEANING INSTRUCTIONS
1. Empty and clean Drip Pan with clean damp
cloth.
2. Clean stainless steel exterior with stainless
steel cleaner or polish, or with hot soapy water
followed by a clean water rinse.
3. Clean oven and proofer doors with a glass
cleaner.
4. Clean oven and proofer interiors with a damp
cloth. If heavy soil areas exist clean with hot
soapy water and follow with clean damp cloth.
5. Run Dry Out cycle. Touch DRY OUT on the
main screen.
• Follow instructions given on screen after
touching DRY OUT . This special function
allows automatic water dry out after daily
proofer use is completed.
Proofer will turn o when DRY OUT is complete.
NOTE: DRY OUT is a 60 Minute cycle with extra
heat and without water to dry out the Proofer for
cleaning.
Figure: Proofer Main Screen
Figure: Proofer DRY OUT Screen

18
Installation and Operation of: TSC - TSCM Retrot
PROGRAMMING CONTROLS
RECIPE EDIT PROGRAMMING INSTRUCTIONS
1. Touch the button and then enter pin code
5 6 7 8 and Touch the button when
prompted.
2. Touch the button for the recipe you want to edit
(i.e. BREAD ).
NOTE: The 6 oven recipes are listed in the top 3
rows and the 6 proofer recipes are listed in the
bottom 3 rows.
3. To edit Time, Temperature or Humidity (Proofer
Only), touch the or button adjacent to
the eld you want to change. Touch the
button to save the changes.
NOTE: You must touch the button in each
eld to save the changes you made.
FIGURE: Recipe Edit Selection Screen
Figure: Main Tool Bar
Figure: Special Functions Screen
To access the SPECIAL FUNCTIONS, touch
button on the Main Tool Bar.
4. To edit the recipe name, touch the button for
the EDIT RECIPE NAME screen.
NOTE: Typing will add letters/characters to the
end of the text.
PRESS:
• TO TOGGLE THE KEYBOARD BETWEEN
THE UPPER/LOWER CASE CHARACTER SET.
• , AND FOR THE NUMBER AND
SYMBOL KEYBOARDS.
• TO SPACE
• TO CLEAR ALL TEXT
• TO DELETE/BACKSPACE

19
Installation and Operation of: TSC - TSCM Retrot
Figure: Edit Recipe Name Screen
PROGRAMMING CONTROLS  continued
5. Touch the button to save the changes and
return to the RECIPE EDIT Screen. If no changes
are required touch the button to go back
to the RECIPE EDIT Screen.
NOTE: You must touch the button to save the
changes you made.
6. When complete, touch the button to go
back to the previous screen. Press multiple times
to return to the main screen.
CONFIG CONFIGURATIONS
1. Touch the button and then enter pin code
2 3 4 5 and Touch the button when
prompted.
2. Touch the button for the setting you want to edit.
• DATE/TIME – Touching will display DATE/
TIME edit screen. Touch the or button
adjacent to the eld you want to change. Touch
the button to save the changes.
• LANGUAGE – Touching will display a list of
included languages. Touch the preferred
language button to select.
• C/F SELECT – Touching will toggle between
CENTIGRADE MODE ENABLED and FAHRENHEIT
MODE ENABLED.
• DEFAULT RECIPE – Touching will reload factory
defaults.
• SYSTEM STATUS – Touching will display Proofer
Oven status.
Figure: Congurations Screen

20
Installation and Operation of: TSC - TSCM Retrot
FILES FILE MANAGEMENT
1. Touch the button and then enter pin code 3 4
5 6 and Touch the button when prompted.
2. Insert USB drive with the le, until seated, into the
USB Host Device.
3. Select le operation from list and follow
instruction on the display screen.
Figure: Inserting USB Drive Into USB Host Device
Figure: File Management Screen
PROGRAMMING CONTROLS  continued
