Installation Manual
for
Erin Gazebo
2.5m x 2.5m
H4-GS2525E
Unique Product Reference Number.
www.dunsterhouse.co.uk
Please read the installation manual thoroughly before starting to assemble the
2.5mx2.5m Erin Gazebo.
For the installation of this product we recommend it is completed by a minimum of
2 people.
V4

Queries Procedure
Important Information
Please retain all documentation with regards to your purchase.
In the unlikely event that you need to contact us, please do so in writing to:
Email: [e-mail]
Post: FAO Customer Services, Dunster House Ltd - Factory 1, Caxton Road, Bedford, MK41 0LF
Our Customer Services department is open 9:00 - 17:00, Monday to Friday. Please include your Sales Order number
starting with SO or your postcode so we can locate your order.
The nature of timber
The timber provided for this product is a soft wood which has been kiln dried and is pressure treated for protection
against rot and insect infestation.
Timber is a natural product and inherent properties can include knots, knot holes, imperfections, cracks and warping.
Due to the inherent properties of timber we make no guarantees that the timber you receive for your product will be
free from these natural properties. We will not replace any components for any of the following reasons:
•Timber that contains knots where they do not influence the structural stability of the product
•Cosmetics appearances - colour variations
•Timber that has shakes, cracks, gaps or sap which do not influence the structural strength of the product
•Timber that has been covered or buried underground
•Twisted timber that can be installed
•Queries arising from a neglectful manner during assembly or as a result of incorrect assembly
•Queries due to modifications by the owner causing the timber to deform
Any valid queries will be satisfied by the exchange or replacement of the defective parts only on a supply only basis.
Colour transfer
This product has been pressure treated with wood preservative and a brown colour additive. Consideration should be
given to the propensity of the material to stain light colour adjacent surfaces, such as paving flags, render or coated
timber surfaces. We recommend contact between the timber and these surfaces is limited, and careful consideration to
storing the product prior to assembly should be taken in order to prevent such discolouration.
Assembly Preparation
This product has been designed for self-assembly and recommend that assembly is carried out by two DIY competent
people. It is important that the assembly instructions are followed carefully and we recommend that the assembly
instructions are read through in their entirety prior to assembly to allow you to familiarise yourself first.
We recommend ensuring that the product is assembled in an appropriate location and on an appropriate base for
the product. It is imperative that the product is installed square, level and plumb.
To assemble your product we recommend that you have the following:
•Stepladder
•Drill and 3mm drill bit
•Spirit level
•Tape measure
•Screwdriver
•Rubber mallet
•Gloves - if you wish for extra protection when handling pressure treated timber
All screw holes need to be pre-drilled using a 3mm drill bit (not provided) to avoid timber splitting.
Pressure treated products do not need to be treated immediately or have a timber preservative applied.
Pressure treatment does not mean that the timbers are waterproof, so you may wish to apply a water repellent.
Page 1

70x70x1965.A
4x Pressure treated
Post
70x35x650.C
8x Pressure treated
Post support
50x35x334.A
8x Pressure treated
Timber dome support
35x35x2118
2x
Temporary post
65x35x2300.A.ML
1x Pressure treated
Beam
Page 2
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5m x 2.5m Erin Gazebo - Components list
70
1965
35
2118
35
35
70
650
70
334
50
2300
35
2300 35
65
65x35x2300.A
3x Pressure treated
Beam
35
65
2500 15
121
F2.2500.A
4x Pressure treated
Shiplap

70x35x880
1x
Temporary post
70x35x2095
1x
Temporary post
Dome 875x875
1x
Page 3
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5m x 2.5m Erin Gazebo - Components list
ACCESSORIES
DESCRIPTION QTY
100mm screws 16
70mm screws 48
60mm screws 28
35mm screws 36
20mm screws 28
Washer-cap 16
(SMB092) 70mm timber post
metal support 4
Installation Manual 1
880 35
2095 35
70
70
ROOF PANEL 2.5x2.5
4x Pressure treated
2283 84
823
Plastic Frame 875x875
1x
875
875
235
875
875
35

16x 35mm screws4x 70x70x1965.A
Page 4
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5m x 2.5m Erin Gazebo
Step 1 - required components
Insert the post 70x70x1965.A into the metal bracket
(SMB092) and secure by screwing through the post
using 4x35mm screws per bracket. (x4)
Make sure all of the brackets are facing the same
direction.
Remember to pre-drill all screws.
1965 70
70
4x SMB092
70x70x1965.A
Notch
A
A
SMB092 - 70mm Timber Post Metal Support
35mm screws

16x 70mm screws
B
B
C
Page 5
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5m x 2.5m Erin Gazebo
Step 2 - required components
Position the beams 65x35x2300.A and 65x35x2300.A.ML flush on top of the posts
70x70x1965.A. Fix the beams into position using 2x70mm screws per end.
Ensure that the notches on 70x70x1965.A are facing inside the gazebo in all 4
corners.
70x70x1965.A
70x70x1965.A
70x70x1965.A
70x70x1965.A
65x35x2300.A
65x35x2300.A.ML
65x35x2300.A
70mm screws
3x 65x35x2300.A 35
65
2300
35
65
2300
1x 65x35x2300.A.ML
C
Notch facing inside

D
D
Page 6
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5m x 2.5m Erin Gazebo
Step 2 cont. After assembling the beams 65x35x2300.A to posts 70x70x1965.A, use a tape measure to check the
distance of the top and bottom diagonals. Make sure they are all the same before continuing with
the installation.
=
=
If they are different check with the spirit level to find out where the structure is unlevel. Sligthly move the posts if it is
necessary and make sure you screwed the beams properly, with the top and the side flush to the posts.
2
1
6
0
2
1
6
0
Some components have been removed for
illustration purposes only.
Top view
Flush to the top
Flush to the side

24x 70mm screws
E
8x 70x35x650.C 8x 100mm screws
E
Page 7
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5m x 2.5m Erin Gazebo
Step 3 - required components
650 30
70
70mm
screw
(screw A)
70x35x650.C
70x35x650.C
70x35x650.C
70x35x650.C
100mm screw
We recommend to fix one post support 70x35x650.C per
corner (Fig. 1) to make sure the structure remains level and
screw just 2x 70mm screws, one on the top (screw A) into
the beams 65x35x2300.A / 65x35x2300.A.ML and one on the
bottom (screw B) into the posts 70x70x1965.A.
Check that the dimensions indicated on the diagram (Fig. 1),
(460mm and 525mm), are consistent for all post supports on
all 4 corners.
After checking the structure is still level you can now screw
the rest of 70mm screws and 100mm screws and also fix
the remaining post supports 70x35x650.C.
525
460
70mm
screw
70mm
screw (B)
Fig. 1
65x35x2300.A
65x35x2300.A.ML
70x70x1965.A

4x Roof panel
F
Page 8
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5m x 2.5m Erin Gazebo
Step 4 - required components
View from underneath, looking up
View from top of the roof
Position the first roof panel into the notch of the post
70x70x1965.A and hold it in place by using one of the
temporary posts 35x35x2118.
Position the second roof panel next to the
first one, also fitting into the notch on the
post 70x70x1965.A, and then move the
temporary post to the joint between both
roof panels to hold them at the same time
as shown below.
823
84 2x 35x35x2118
35
35
2118
2283
Notch
ROOF PANEL
35x35x2118
Second roof panel First roof panel
35x35x2118
ROOF PANEL
First roof panel

Page 9
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5m x 2.5m Erin Gazebo
Step 4 cont. Position the third roof panel next to the second one and hold it in position by
moving the temporary post 35x35x2118 from the corner joint.
Position the fourth and
last roof panel.
Make sure all the panels
properly fit on top of the
structure. Use the rubber
mallet if necessary to
adjust the roof panels.
Important:
Keep in place the
35x35x2118 temporary
posts.
Third roof panel First roof panel
35x35x2118
Second roof panel
ROOF PANEL
35x35x2118
Fourth roof panel
ROOF PANEL

12x 60mm screws
Page 10
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5m x 2.5m Erin Gazebo
Step 5 - required components
View from underneath, looking up
View from the top of the roof
Once all four roof panels are
positioned correctly, screw
them together by using
3x60mm screws. Screw
through one purlin to the
other as shown below in view
H.
Do not forget to pre-drill
before screwing.
You will need to repeat this
action x3 for the rest of the
joints.
You can now remove the
35x35x2118 temporary posts.
60mm screws
Joint Joint
Joint
Joint

8x 70mm screws8x 100mm screws
Page 11
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5m x 2.5m Erin Gazebo
Step 6 - required components
View from underneath, looking up
View from top of the roof
Secure the roof by screwing through the
beams 65x35x2300.A & 65x35x2300.A.ML
using 2x100mm screws, two per each
corner.
Fix the roof to the middle of the beams
65x35x2300.A and 65x35x2300.A.ML by
screwing through the beam into the
middle support, using 2x70mm screws per
panel.
This step is required for all roof panels.
100mm screws
70mm screws

20x 35mm screws
1x 70x35x880 1x 70x35x2095
Page 12
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5m x 2.5m Erin Gazebo
Step 7 - required components
Position the Shiplap F2.2500.A around the edge of
the roof leaving a small gap of approximately 2mm
as shown below.
Secure the Shiplap F2.2500.A by screwing through
into the beam 65x35x2300.A using 5x35mm screws
per component. (x4)
Step 8 - required components
View from underneath, looking up
2095 35
70
880 35
70
70x35x880
Before you start assembling the dome on the top of the roof,
position the temporary post 70x35x880 and 70x35x2095 to
secure the roof against the weight.
Position 70x35x880 in
the middle of the
aperture holding both
sides of the roof, and
use 70x35x2095 to
support the roof for
this process.
35mm
screws
View from top of the roof
4x F2.2500.A
2500 15
121
2
F2.2500.A

12x 20mm screws 1x PLASTIC FRAME 875x875
16x 60mm screws 8x 50x35x334.A
Page 13
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5m x 2.5m Erin Gazebo

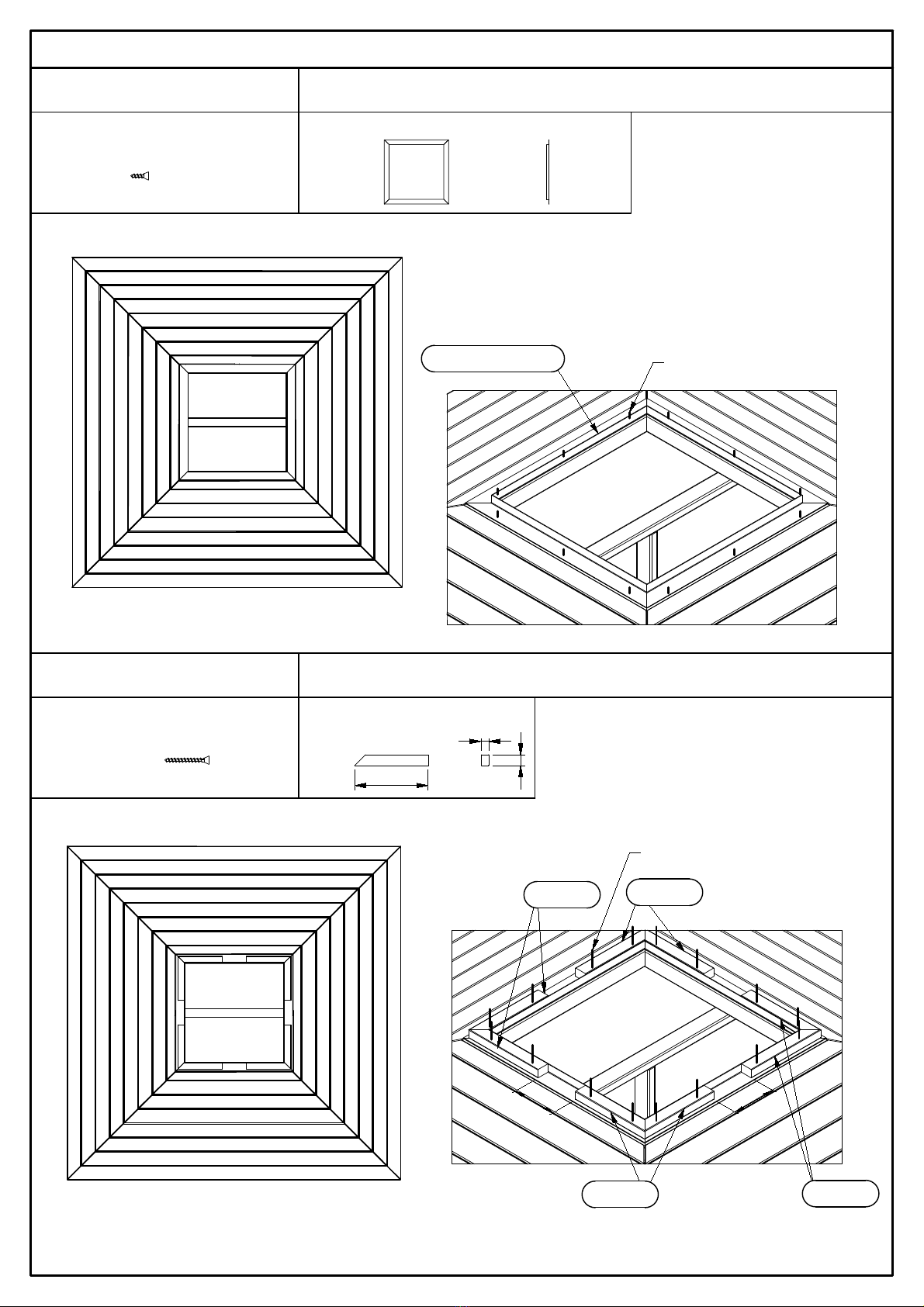

Step 9 - required components
Step 10 - required components
View from top of the roof
Position the Plastic frame on
top of the roof. Then fix the
frame to the roof by using
12x20mm screws, 3 per side.
If you have chosen roof felt to cover the roof, you should fit it
under the plastic frame and seal all the joints by using silicone
(not provided) to avoid any leaks.
Note: Periodically check the silicone and replace if necessary.
View from top of the roof
After fixing the plastic frame, add two timber
dome supports 50x35x334.A per corner. Make
them flush with the L shape side of the plastic
frame and screw by using 2x60mm screws per
component as shown in the diagram.
334
35
50
1
8
1
1
8
1
PLASTIC FRAME 875x875 20mm screws
50x35x334.A
50x35x334.A
50x35x334.A
50x35x334.A
60mm screws

L
16x Washer-cap
16x 20mm screws
L
Page 14
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5 x 2.5m Erin Gazebo
Step 11 - required components
Position the dome on top of the roof. Ensure the
dome is centralised on the 50x25x334.A timbers,
with an equal overhang on each side. Fix into
place by using 16x20mm screws, four per corner.
Notice! The dome is made of a fragile material
and it could crack when you are screwing. We
recommend special care to taken with this step.
20mm screws
Use one washer-cap per screw and position them on
the top of the dome as shown.
Once again, seal all the edges by using silicone to
ensure no future leaks.
Once the dome has been installed, the gazebo is completely assembled. You can now remove the
temporary posts and start to enjoy your Erin Gazebo.
1x Dome 875x875
Dome
Dome
Washer-cap
20mm screw

Page 15
All dimensions are approximate and subject to the limitations of the material used and the methods of manufacture
2.5 x 2.5m Erin Gazebo - Roof felt fitting instructions
Fully cover the roof with the plastic waterproof membrane leaving a minimum of 30mm overhang. Use a staple gun or tacks
to secure the membrane to the roof boards.
Cut the 1st roll of felt into 4 equal pieces (Fig. 1).
Starting at the lowest edge of the roof, cut the felt at an angle alongside the ridge (Fig. 2). Overhang felt at the bottom of
the roof by approximately 30mm (Fig.5). Use 10mm clout nails at approximately 50mm centers for the bottom row, the
upper rows at 200mm centers horizontally and 300mm centers vertically, up to the top roof board.
Continue laying the remainder felt (Fig.3) and nail into the Shiplap as per the 1st layer of felt.
For each of the 4 ridges, using the 2nd roll of felt, cut a length of the felt in half and nail alongside the ridge, overlapping by
approximately 250mm. Use 10mm clout nails at approximately 50mm centers (Fig.4).
Trim as required, should you wish.
Ridge felt
Felt
30
Shiplap
Fig.2
Fig.3
Fig.4
Fig.5
500
required components:
•Roll of felt
•Clout Nails
2.5m
1m
2.5m
2.5m
10m
Fig.1
2.5m
Cut felt at
an angle
Felt
Cut felt at
an angle
