INSTALLATION MANUAL

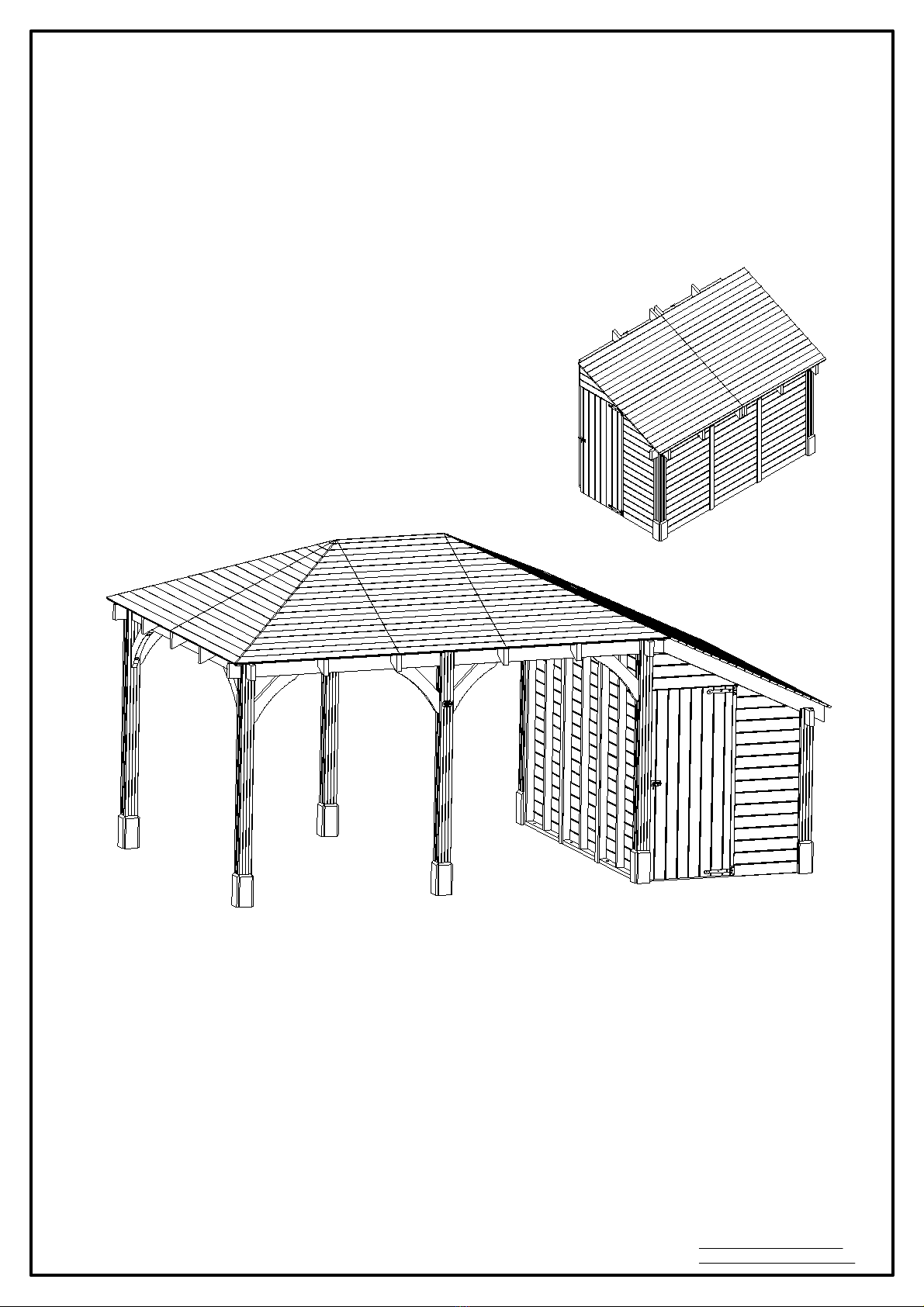

Leviathan SideShed 1.5m x 3.0m
P5-1530SS
Please note:
1. Please read this manual carefully and in conjunction with the main gazebo manual before proceeding with
the construction of your SideShed. Build your SideShed at the same time as the main gazebo.
2. If you have bought shingles, please use our shingle installation instructions included in the main gazebo
manual.
3. Fixings are supplied with your SideShed.
4. This manual shows installation on the right side of your main gazebo, but can be installed on the left by
swapping relevant panels.
Unique Product Reference Number:
__________________________________
Manufacturer:
Dunster House Ltd.
Caxton Road
Bedford
Bedfordshire
England
MK41 0LF
Customer Service Department:
[e-mail]
www.dunsterhouse.co.uk

Queries Procedure
Important Information
You will need
Please retain all documentation relating to your purchase.
In the unlikely event that you need to contact us, please do so in writing to:
Email: [e-mail]
Post: Dunster House Ltd, Caxton Road, Elms Farm Industrial Estate, Bedford, MK41 0LF, England.
Our Customer Service department is open 9 a.m. to 5 p.m. Monday to Friday. Please include your Sales Order (SO)
number or post code in any correspondence with Customer Service to enable them to locate your file.
The Nature of Wood
The wood provided for your garden building is softwood which has been kiln dried and is pressure treated for
protection against fungal decay and insect infestation. Wood is a natural product which may have knots, knot holes,
imperfections, cracks and warping.
Due to the inherent properties of wood we make no guarantees with regards to the above, nor will replace any
lengths of timber for any of the following reasons:
•Any timber that contains knots where they do not influence the structural stability of the product.
•Cosmetic appearances - colour variations e.g. caused by the structure or age of the product.
•Timber that has shakes, cracks or gaps that do not influence the structural strength of the product.
•Any timber that has been covered or buried underground.
•Twisted timber that can be installed.
•Queries arising from a neglectful manner of construction be in the foundation or erection of the product.
•Queries due to modifications by the owner causing timber to deform.
Any valid queries will be satisfied by the exchange or replacement of the defective parts only.
Your Gazebo has been designed with the self build in mind. However, it is important that the assembly
instructions are followed carefully.
Precautions:
•Always use working gloves.
•It is essential to have an assistant.
•All screw holes need to be pre-drilled using a 3mm drill bit (not provided) to avoid timber splitting.
The Gazebo is pressure treated so you will not need to treat it immediately or apply a preservative.
Pressure treatment does not mean that the timbers are waterproof, so you may wish to apply water repellent.
Water repellent can also be applied to timbers treated with a preservative.
Colour Transfer
This product has been pressure treated with wood preservative and a brown colour additive. Consideration should
be given to the propensity of the material to stain light colour adjacent surfaces, such as paving flags, render or
coated timber surfaces. We recommend contact between the timber and these surfaces is limited, and careful
consideration to storing the product prior to assembly should been taken in order to prevent such discolouration.
2 People Measuring Tape Spirit Level Drill/Driver
Gloves Ladder Hammer Utility Knife
Mallet Pozidriv bits 3mm Drill bit Saw
Socket Set Spanner 16mm Masonry Drill Bit (Wall panels only)

LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
2400120010MFP BoardMFP- 2400x1200x101
240030510MFP BoardMFP- 2400x305x101
150539010MFP BoardMFP- 1505x390x101
LNG_mm
WIDTH_mmTHK_mm
DESCRIPTION
PART NUMBER
QTY
15979519Roof BoardF.159738
LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
15973719
Roof Board
F.3715972
LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
1525120120Post120X120X1525.A2
Page 3

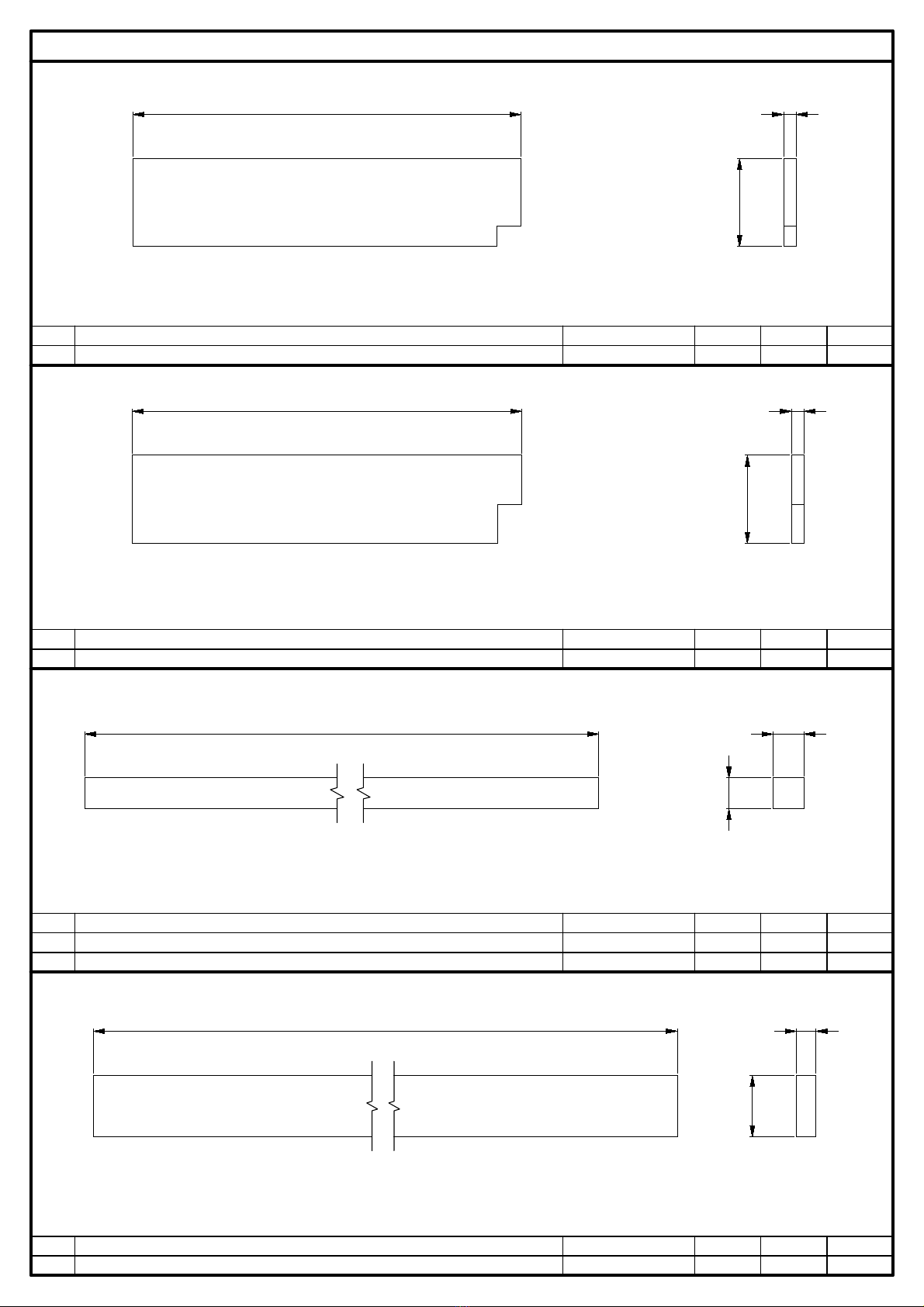

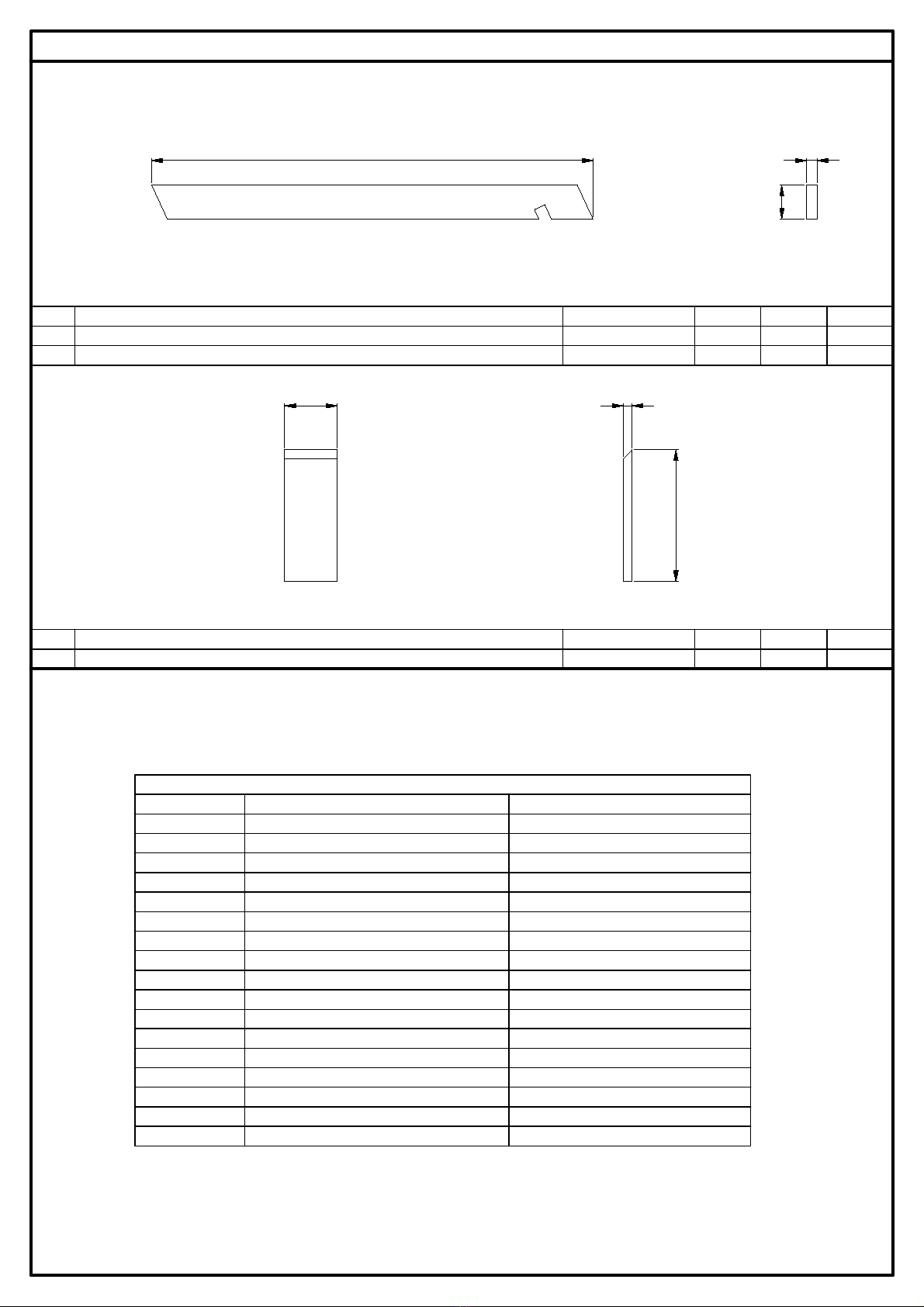

Components required for Leviathan SideShed 1.5m x 3.0m
LNG_mm THK_mm
THK_mm
WIDTH_mm
LNG_mm
THK_mm
WIDTH_mm
LNG_mm
LNG_mm
THK_mm
WIDTH_mm
WIDTH_mm

LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
17563515PSEGAZ-PT153517561
LNG_mm
WIDTH_mmTHK_mm
DESCRIPTION
PART NUMBER
QTY
212070
15Trim
15x70x21202
138570
15Trim
15x70x13852
LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
18037015Trim15x70x1803.A1
LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
66514020Cover Trim20x140x6652
62214020Cover Trim20x140x6222
4514020Cover Trim20x140x451
Page 4

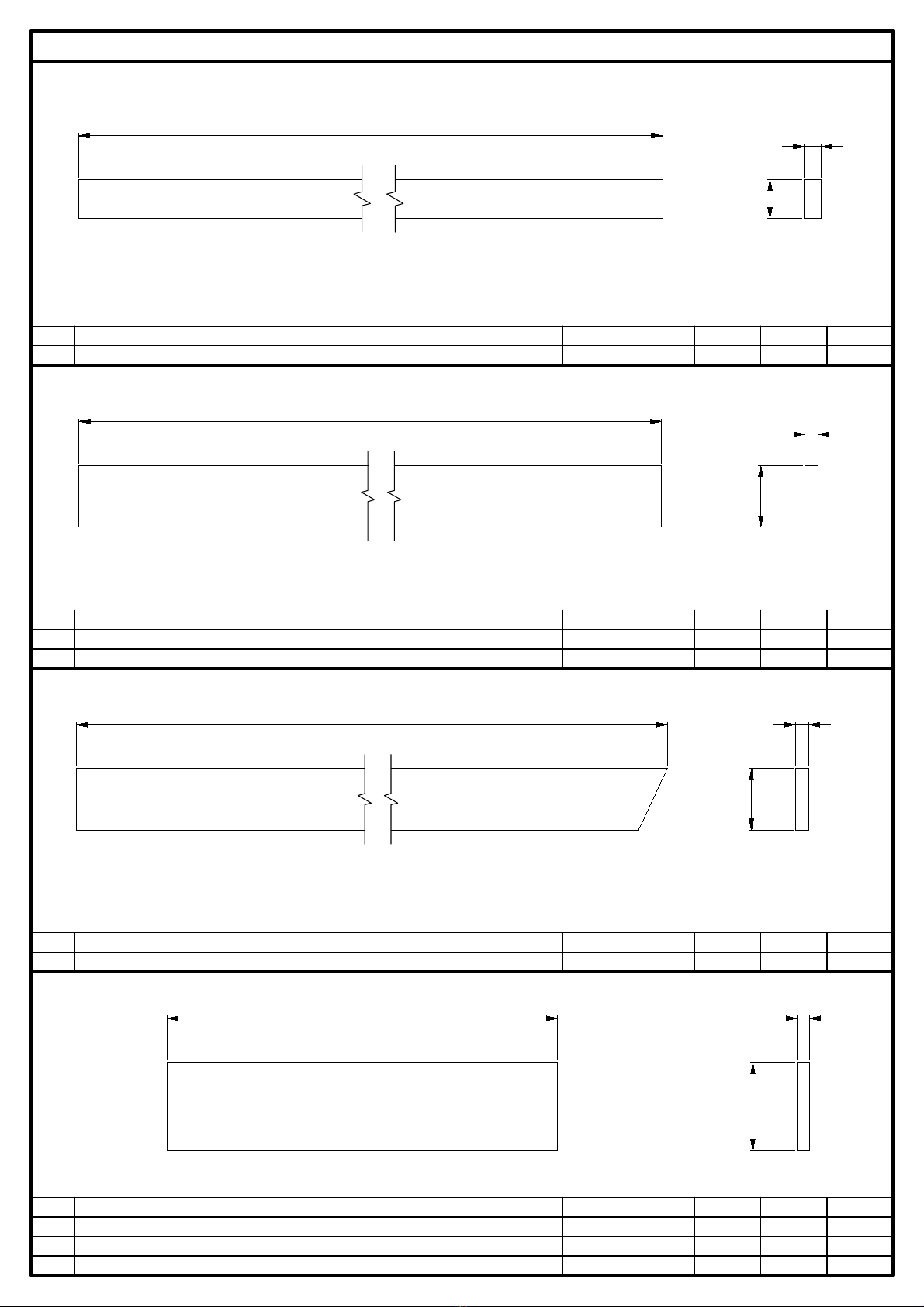

Components required for Leviathan SideShed 1.5m x 3.0m
THK_mm
WIDTH_mm
LNG_mm
THK_mm
LNG_mm
WIDTH_mm
THK_mm
WIDTH_mm
LNG_mm
THK_mm
WIDTH_mm
LNG_mm

LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
61814020Cover Trim20x140x618.A2
LNG_mm
WIDTH_mmTHK_mm
DESCRIPTION
PART NUMBER
QTY
62014020Cover Trim20x140x620.B2
LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
14703535Bearer35x35x147012
12503535Bearer35x35x12501
LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
320014045Beam45x140x32001
Page 5
Components required for Leviathan SideShed 1.5m x 3.0m
LNG_mm THK_mm
WIDTH_mm
LNG_mm THK_mm
WIDTH_mm
LNG_mm THK_mm
WIDTH_mm
LNG_mm
WIDTH_mm
THK_mm

LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
197714045
Rafter
45x140x19774
180714045Rafter45x140x18072
LNG_mm
WIDTH_mmTHK_mm
DESCRIPTION
PART NUMBER
QTY
30012020
Post Trim
20x120x300.A
4
FIXINGS PARTS LIST
DESCRIPTIONPART NUMBERQTY
Shank NailsNail 40mm120
C/SK Wood ScrewSCREW 100 mm40
C/Sk Wood ScrewSCREW 60 mm123
C/SK Wood Screw35mm Screw194
C/SK Wood ScrewSCREW 15mm2
M10 x 150mm BoltM10 x 150mm Bolt2
M10 x 110mm BoltM10 x 110mm Bolt
4
Plain Washer M10 x 20mmM10 Plain Washer18
Hex Nut
M10 Nut6
Coach BoltM6 x 60mm Coach Bolt
4
M6 Washer - 25mmM6 Washer
4
Hex Nut
M6 Nut
4
DOOR HINGEDOOR HINGE2
Simpson BracketH2.5 Bracket
3
M10 Shield Ground AnchorM10 Shield Anchor
6
M10 x 110 Hex BoltM10x110mm Hex Head Bolt for Shield Anchor
6
Shootbolt (WRG100 48x100)Shootbolt (WRG100 48x100)
1
Page 6
Components required for Leviathan SideShed 1.5m x 3.0m
THK_mm
WIDTH_mm
LNG_mm
LNG_mm
WIDTH_mm THK_mm

LNG_mm
WIDTH_mmTHK_mm
DESCRIPTION
PART NUMBER
QTY
212090885P5 PanelCP1 -
84x910x2120 -
P5 PANEL
3 LNG_mm
WIDTH_mmTHK_mm
DESCRIPTION
PART NUMBER
QTY
138590850P5 PanelCP1 -
50x908x1385
3
LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
178662050P5 PanelCPSS21
LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
178662050P5 PanelCPSS11
Page 7

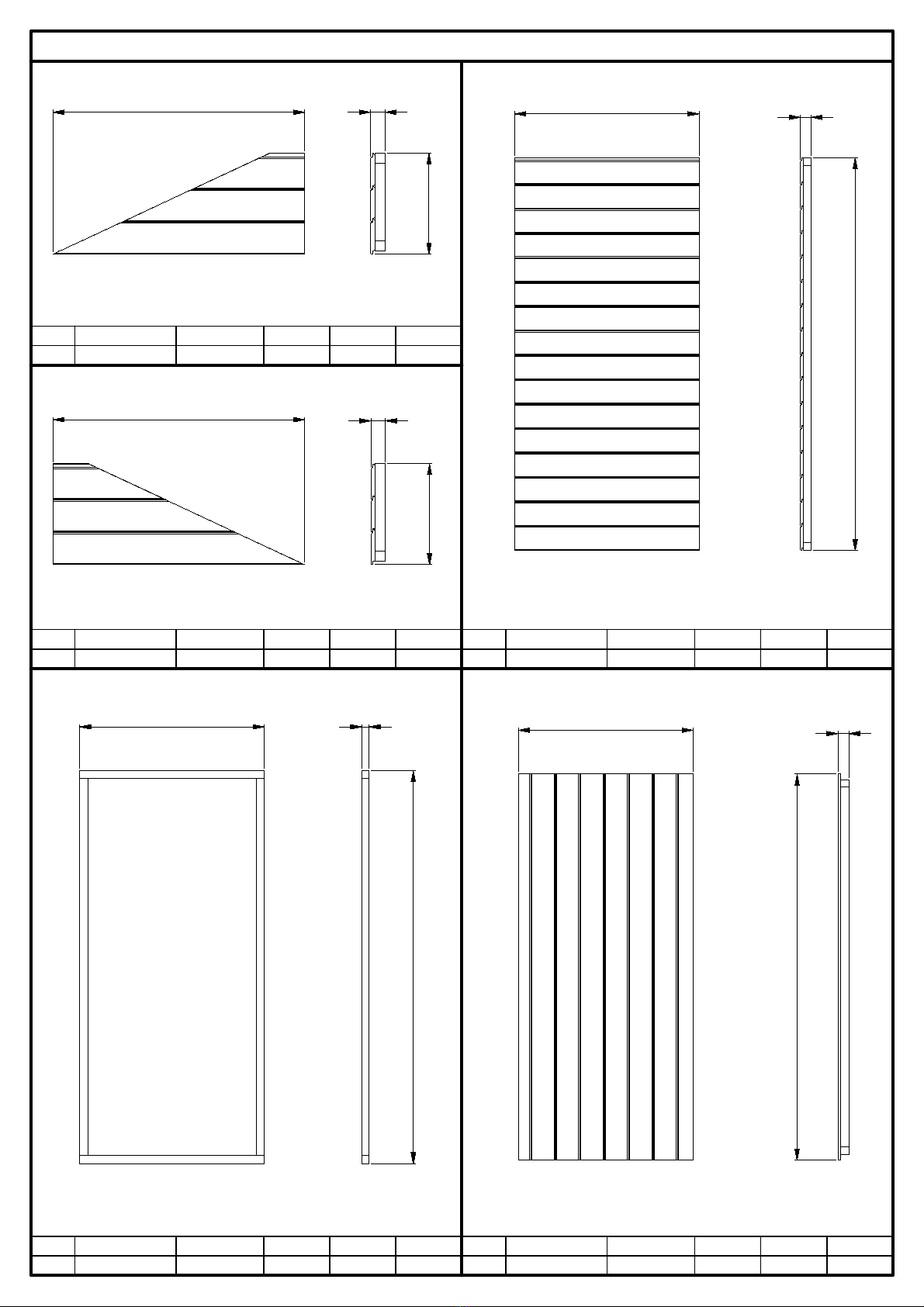

Components required for Leviathan SideShed 1.5m x 3.0m
WIDTH_mm THK_mm
LNG_mm
THK_mmWIDTH_mm
LNG_mm
THK_mm
LNG_mm
WIDTH_mm THK_mm
LNG_mm
WIDTH_mm

LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
175679350P5 Door PanelCPSS71
LNG_mm
WIDTH_mmTHK_mm
DESCRIPTION
PART NUMBER
QTY
178683850P5 PanelCPSS5
1
LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
83834450P5 PanelCPSS31
LNG_mm
WIDTH_mmTHK_mm
DESCRIPTION
PART NUMBER
QTY
83834450P5 PanelCPSS4
1
LNG_mmWIDTH_mmTHK_mmDESCRIPTIONPART NUMBERQTY
178683835P5 PanelCPSS61
Page 8
Components required for Leviathan SideShed 1.5m x 3.0m
LNG_mm THK_mm
WIDTH_mm
LNG_mm THK_mm
WIDTH_mm
WIDTH_mm THK_mm
LNG_mm
WIDTH_mm THK_mm
LNG_mm
WIDTH_mm THK_mm
LNG_mm

Components Required
PART NUMBER
QTY
CP1 - 50x908x13853
120X120X1525.A2
45x140x3200
1
SCREW 100 mm4
SCREW 60 mm30
Assembly Steps for Leviathan SideShed 1.5m x 3.0m
** Avoid splitting timber parts by pre-drilling all screw holes **
Step 1
Page 9
•Fix 3x CP1-50x908x1385 Panels together as shown in the diagram below, using 60mm screws.
•Ensure bottom faces of frame and outer cladding faces are flush between all 3 panels.
CP1 - 50x908x1385
SCREW 60 mm
FLUSH
SCREW 100 mm
45x140x3200
120X120X1525.A
120X120X1525.A
SCREW 60 mm
FLUSH
FLUSH
•Position and fix 2x 120x120x1525.A posts and 1x 45x140x3200 purlin to the 3 Panel wall
constructed in the previous step, as shown in the diagram below, using 60mm screws.
•Ensure the bottom faces of the panels are flush with the bottom faces of the posts and the outer
cladding face is flush with the outer face of the purlin.
•Fix 2x 120x120x1525.A to 1x 45x140x3200 using 2x 100mm screws per post, shown in the
detail view.
FLUSH
FLUSH
Equal Equal

Components Required
PART NUMBER
QTY
CPSS1
1
CPSS2
1
CPSS3
1
CPSS41
CPSS51
CPSS61
SCREW 60 mm16
Assembly Steps for Leviathan SideShed 1.5m x 3.0m
** Avoid splitting timber parts by pre-drilling all screw holes **
Step 2
Page 10
•Construct the front wall assembly by
fixing 1x CPSS2, 1x CPSS4 and 1x
CPSS6 as shown using 60mm screws.
•Ensure outer faces of frames and outer
cladding faces are flush between all 3
panels.
CPSS4
CPSS6
CPSS2
CPSS3
CPSS1
CPSS5
SCREW 60 mm
FLUSH
FLUSH
FLUSH
FLUSH
FLUSH
FLUSH
•Construct the rear wall assembly by
fixing 1x CPSS1, 1x CPSS3 and 1x
CPSS5 as shown using 60mm screws.
•Ensure outer faces of frames and outer
cladding faces are flush between all 3
panels.
SCREW 60 mm

Components Required
PART NUMBER
QTY
45x140x1977
4
45x140x18072
SCREW 100 mm2
M10 x 150mm Bolt
2
M10 x 110mm Bolt
4
M10 Plain Washer
12
M10 Nut6
Assembly Steps for Leviathan SideShed 1.5m x 3.0m
** Avoid splitting timber parts by pre-drilling all screw holes **
Step 3
Page 11
Main Gazebo Rafters
45x140x1977
SCREW 100 mm
SCREW 100 mm
M10 x 110mm Bolt
M10 x 110mm Bolt
M10 x 150mm Bolt
45x140x1807
45x140x1807

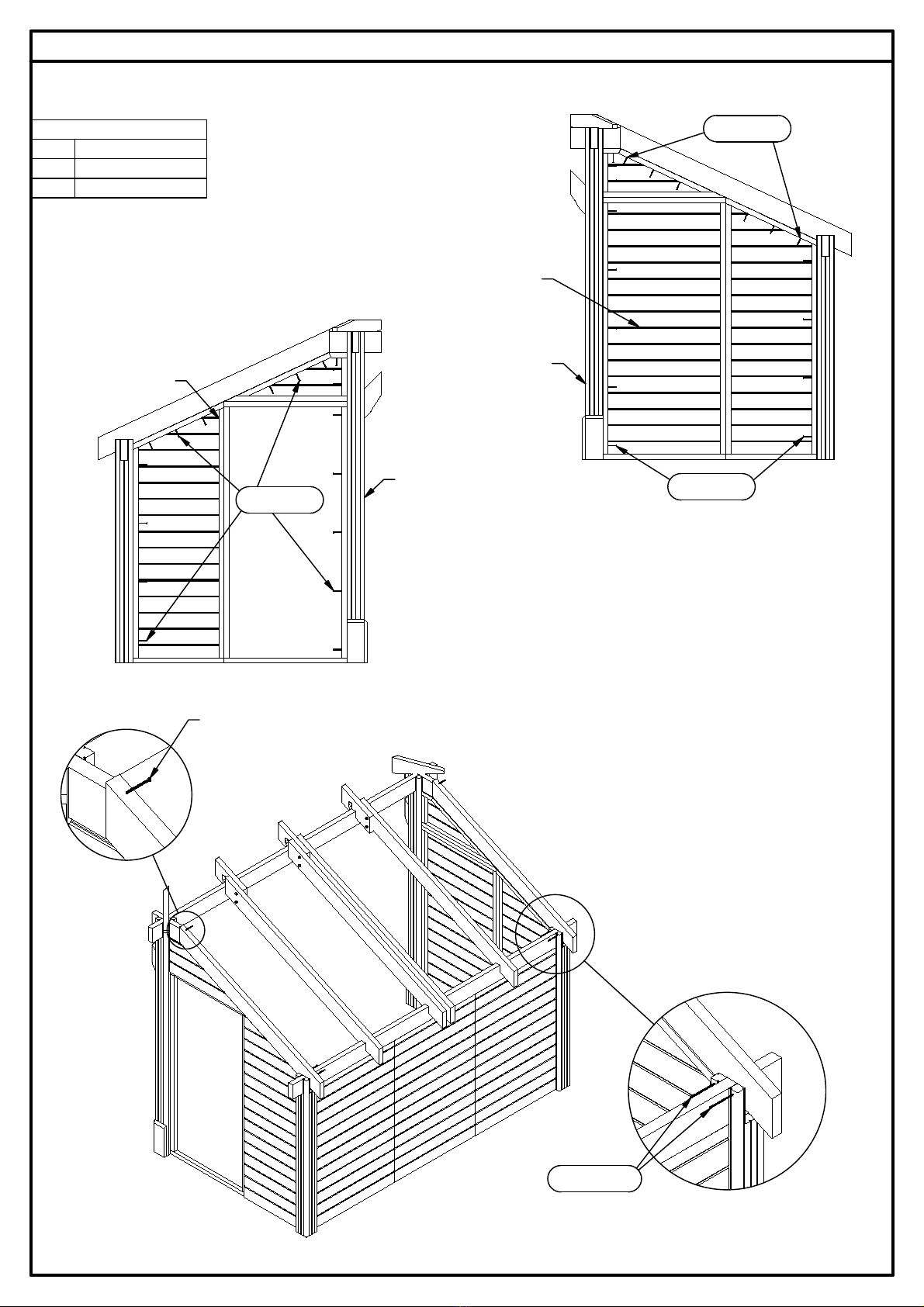

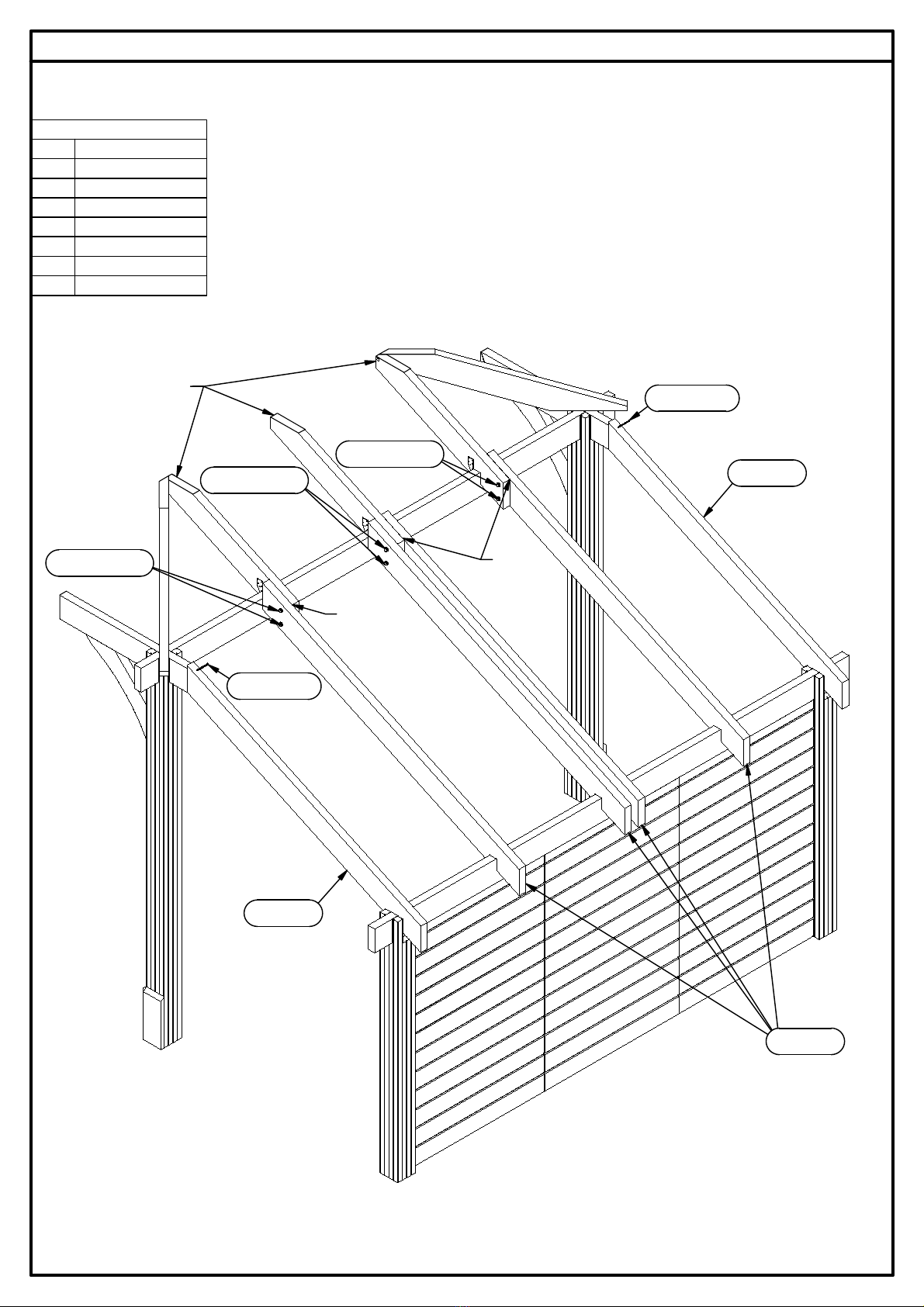

•Position the constructed outer wall using 2x 45x140x1807 outer rafters and loosely fix to the main gazebo
using 100mm screws to hold in place.
•Position and fix 4x 45x140x1977 rafters to the main gazebo rafters as shown, using M10 bolts, washers
and nuts.
•Ensure the top faces of the 4x 45x140x1977 rafters are flush with the top faces of the main gazebo
rafters.
FLUSH
FLUSH

Components Required
PART NUMBER
QTY
SCREW 100 mm
4
SCREW 60 mm36
Assembly Steps for Leviathan SideShed 1.5m x 3.0m
** Avoid splitting timber parts by pre-drilling all screw holes **
Step 4
Page 12
•Position and fix the rear wall assembly to the
120x120 posts and outer rafter as shown, using
60mm screws.
•Ensure the outer face of the cladding on your
panels is flush with the outer face of the outer
rafter.
Main gazebo post
Main gazebo post
•Position and fix the front wall assembly to the
120x120 posts and outer rafter as shown, using
60mm screws.
•Ensure the outer face of the cladding on your panels is
flush with the outer face of the outer rafter.
SCREW 60 mm
SCREW 60 mm
SCREW 60 mm
Rear wall assembly
Front wall assembly
SCREW 100 mm
•Fix front and rear posts to the outer rafters using 2x
100mm screws per post.
•Tightly screw outer rafters to main gazebo as shown
using loosely fixed 100mm screws from previous step.
Tightly fix two outer purlins
with 100mm screws.

Components Required
PART NUMBER
QTY
20x140x6652
20x140x45
1
20x140x618.A2
SCREW 100 mm1
35mm Screw30
H2.5 Bracket
3
Assembly Steps for Leviathan SideShed 1.5m x 3.0m
** Avoid splitting timber parts by pre-drilling all screw holes **
Step 5
Page 13

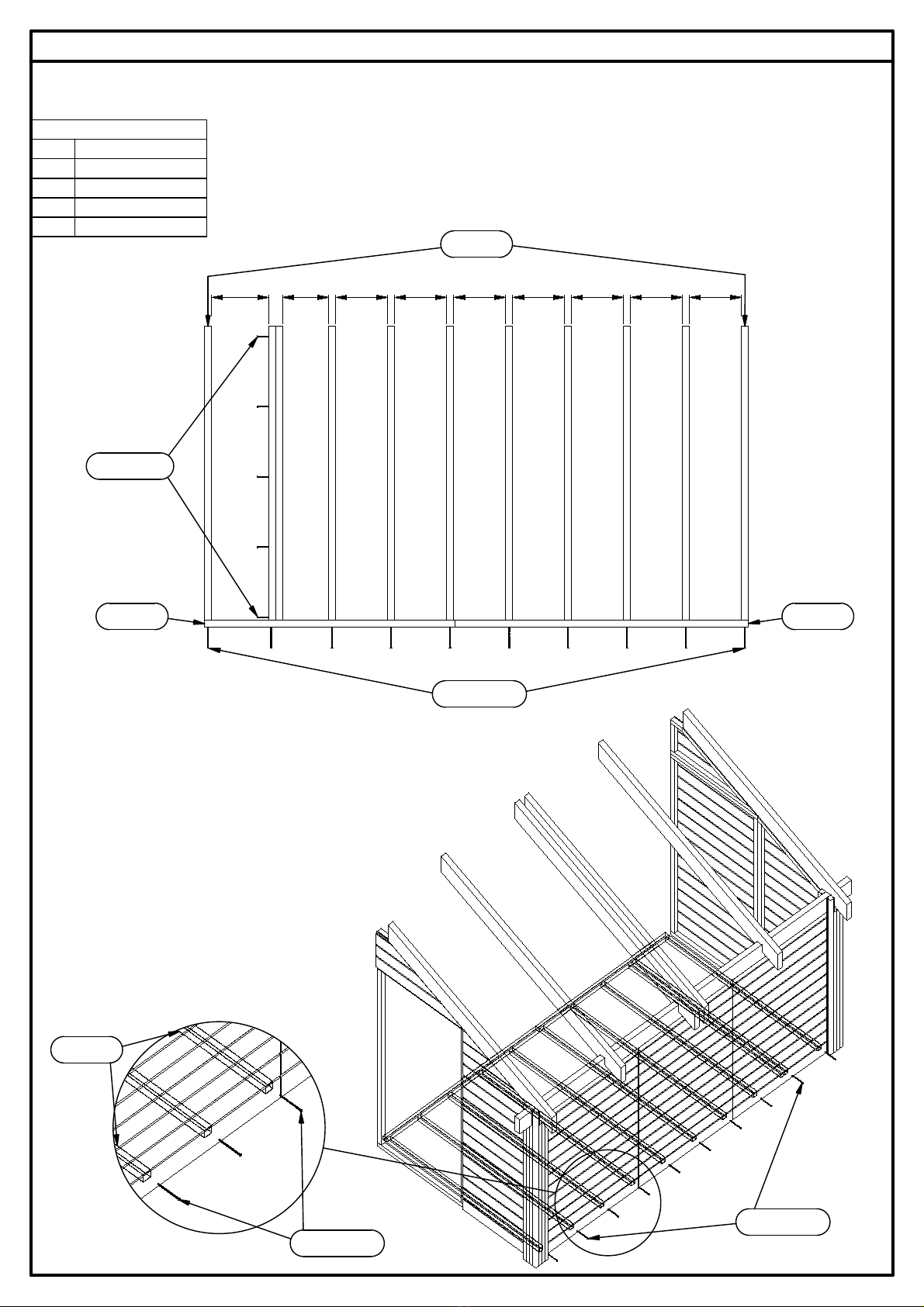

•Use 20x140 cover trims to correctly position the four central rafters of your SideShed as shown.
•Do not install the cover trims in this step, they are just used to space the rafters correctly.
•Fix the 3x H2.5 Simpson brackets to the 45x140x3200 purlin, using 5x 35mm screws per bracket.
H2.5 Bracket
20x140x618.A
20x140x665 20x140x665
20x140x618.A
45x140x3200
H2.5 Bracket20x140x45
35mm Screw
•Fix the 3x H2.5 Brackets to each rafter as shown below, having removed the cover trims, using 5x 35mm screws per bracket.
•Fix the final rafter (without H2.5 Bracket fixing) to your 45x140x3200 purlin using 1x 100mm screw as shown.
SCREW 100 mm
H2.5 Bracket
35mm Screw
35mm Screw
45x140x3200

Components Required
PART NUMBER
QTY
35x35x147012
35x35x1250
1
SCREW 100 mm20
SCREW 60 mm5
Assembly Steps for Leviathan SideShed 1.5m x 3.0m
** Avoid splitting timber parts by pre-drilling all screw holes **
Step 6
Page 14
•Fix 2x 35x35x1470 together using 60mm screws evenly spaced.
•Position and fix your 35x35x1470 and 35x35x1250 bearers as shown in the diagram below, using 1x
100mm screw per bearer.
•Ensure top faces of all bearers are flush.
SCREW 60 mm
SCREW 100 mm
35x35x1250 35x35x1470
35x35x1470
285 230 260 260 260 260 260 260 260
SCREW 100 mm
•Position and fix the bearer assembly to the side wall
assembly, using 1x 100mm screw per bearer.
•Use bearer layout diagram above to help locate screw
positions.
SCREW 100 mm
35x35x1470

Components Required
PART NUMBER
QTY
CP1 - 84x910x2120 - P5 PANEL3
SCREW 60 mm36
M10 Plain Washer
6
M10 Shield Anchor
6
M10x110mm Hex Head Bolt for
Shield Anchor
6
Assembly Steps for Leviathan SideShed 1.5m x 3.0m
** Avoid splitting timber parts by pre-drilling all screw holes **
Step 7
Page 15
Panel
Concrete
M10 shield anchor
(n16 hole 80mm deep required)
M10x110mm
bolt &washer
•Fix 3x CP1 - 84x910x2120 - P5 PANEL as
shown using 60mm screws.
•Ensure outer faces of frames and outer
cladding faces are flush between all 3 panels.
•Fix the panels into the concrete base by drilling Ø16 holes 80mm deep (2 per
panel) and inserting the shield anchors into the holes.
•Fix the panels by inserting M10x110mm bolts and M10 washers and tighten
until secure.
•Fix the wall assembly from the previous step to the main gazebo 120x120 posts and main
gazebo purlin, using 60mm screws.
•Ensure the assembled wall meets the bearer assembly before securing.
CP1 - 84x910x2120 - P5 PANEL
SCREW 60 mm
SCREW 60 mm
M10 Shield Anchor
SCREW 60 mm
FLUSH
FLUSH

Components Required
PART NUMBER
QTY
MFP- 2400x1200x10
1
MFP- 2400x305x10
1
MFP- 1505x390x10
1
SCREW 100 mm9
35mm Screw75
Assembly Steps for Leviathan SideShed 1.5m x 3.0m
** Avoid splitting timber parts by pre-drilling all screw holes **
Step 8
Page 16

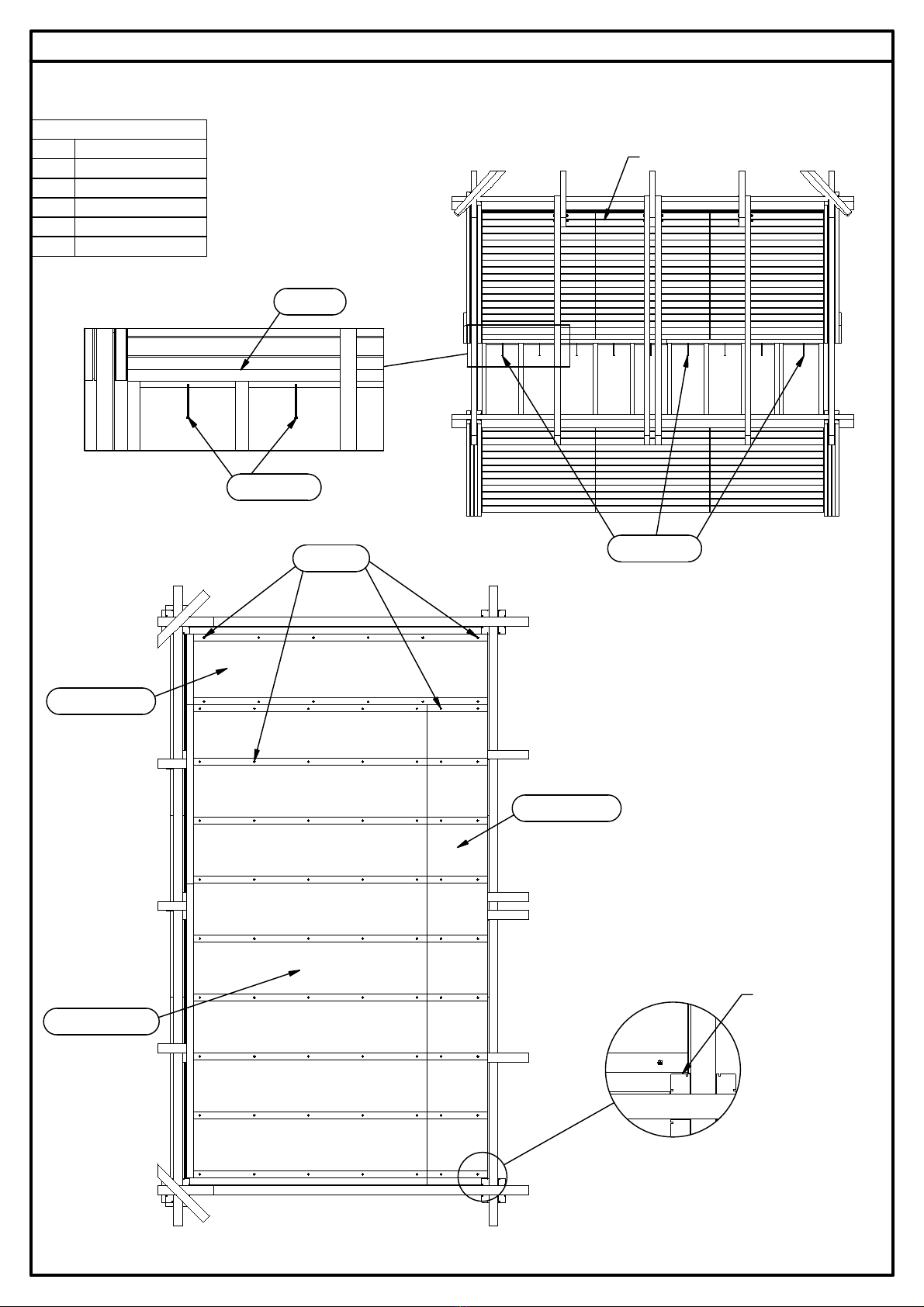

•Fix the bearer assembly to the wall assembly constructed in the previous step as shown, using 9x 100mm
screws.
SCREW 100 mm
SCREW 100 mm
35x35x1470
Side wall assembly
•The corners of the MFP boards will need to
be cut around the main gazebo and side
store 120x120 posts.
•Fix 1x MFP- 2400x1200x10 , 1x MFP-
2400x305x10 and 1x MFP-
1505x390x10 to the bearers as shown in
the diagram, using 35mm screws evenly
spaced.
35mm Screw
MFP- 2400x1200x10
MFP- 2400x305x10
MFP- 1505x390x10
Cut corners of MFP
around 120x120
Posts.

Components Required
PART NUMBER
QTY
F.159738
F.3715972
Nail 40mm120
Assembly Steps for Leviathan SideShed 1.5m x 3.0m
** Avoid splitting timber parts by pre-drilling all screw holes **
Step 9
Page 17

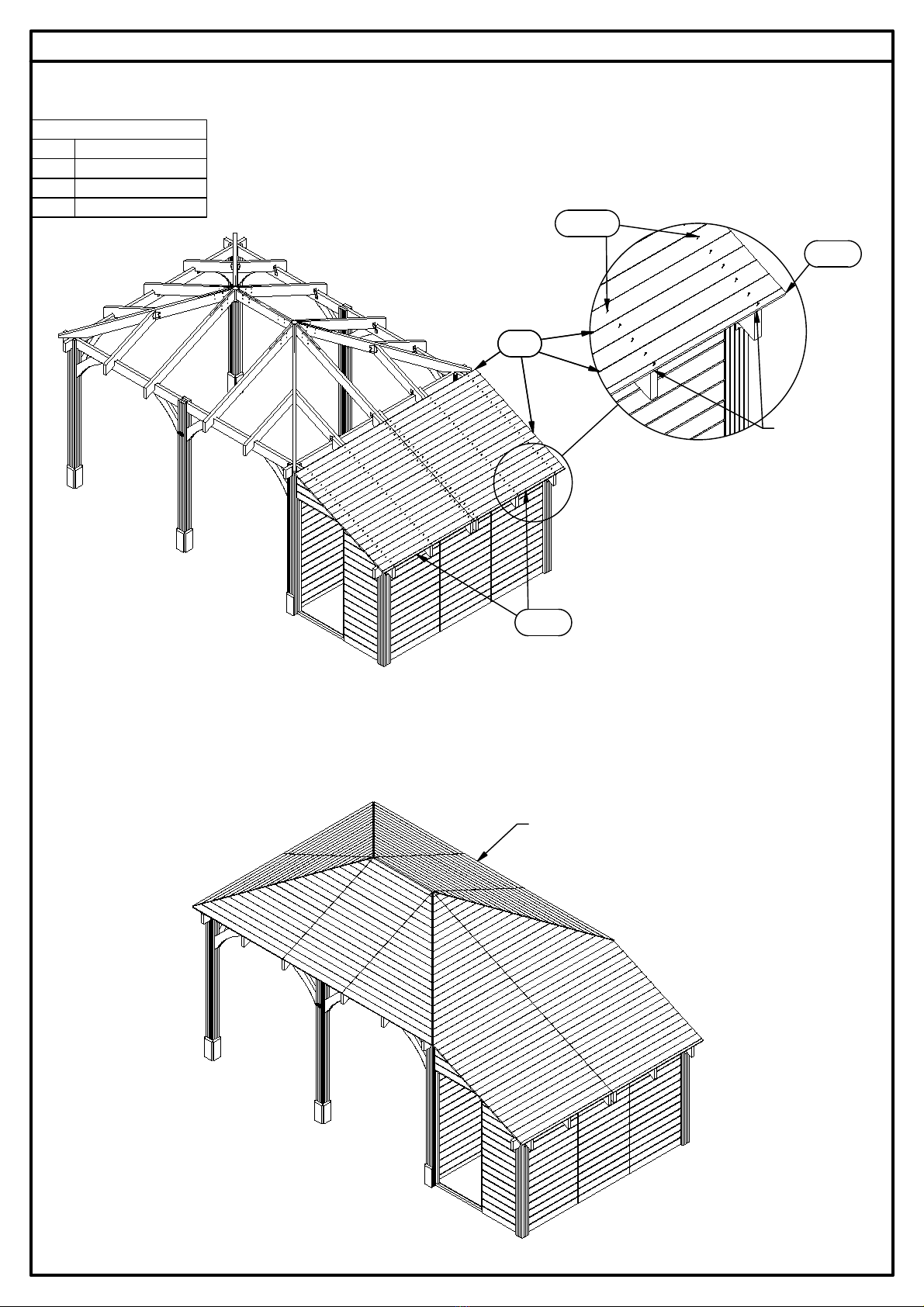

•Fix 2x F.371597 flush with the end of the SideShed rafters, shown in the diagram, using 3x 40mm nails
per roof board. Ensure a 2mm gap in between these boards to allow for expansion of the wood.
•Continue this process with the remaining 38x F.1597, leaving a 2mm expansion gap between each roof
board.
•After the SideShed roof boards have been installed, continue by fixing the main gazebo roof boards following the same process.
•Please read the main gazebo installation manual for more detailed instructions on roof installation.
F.371597
F.1597
F.371597 flush with
edge of rafters.
F.371597
Nail 40mm
F.1597
Main Gazebo Roof Boards.

Components Required
PART NUMBER
QTY
20x140x6652
20x140x6222
20x140x45
1
20x140x618.A
2
20x140x620.B2
35mm Screw25
Assembly Steps for Leviathan SideShed 1.5m x 3.0m
** Avoid splitting timber parts by pre-drilling all screw holes **
Step 10
Page 18

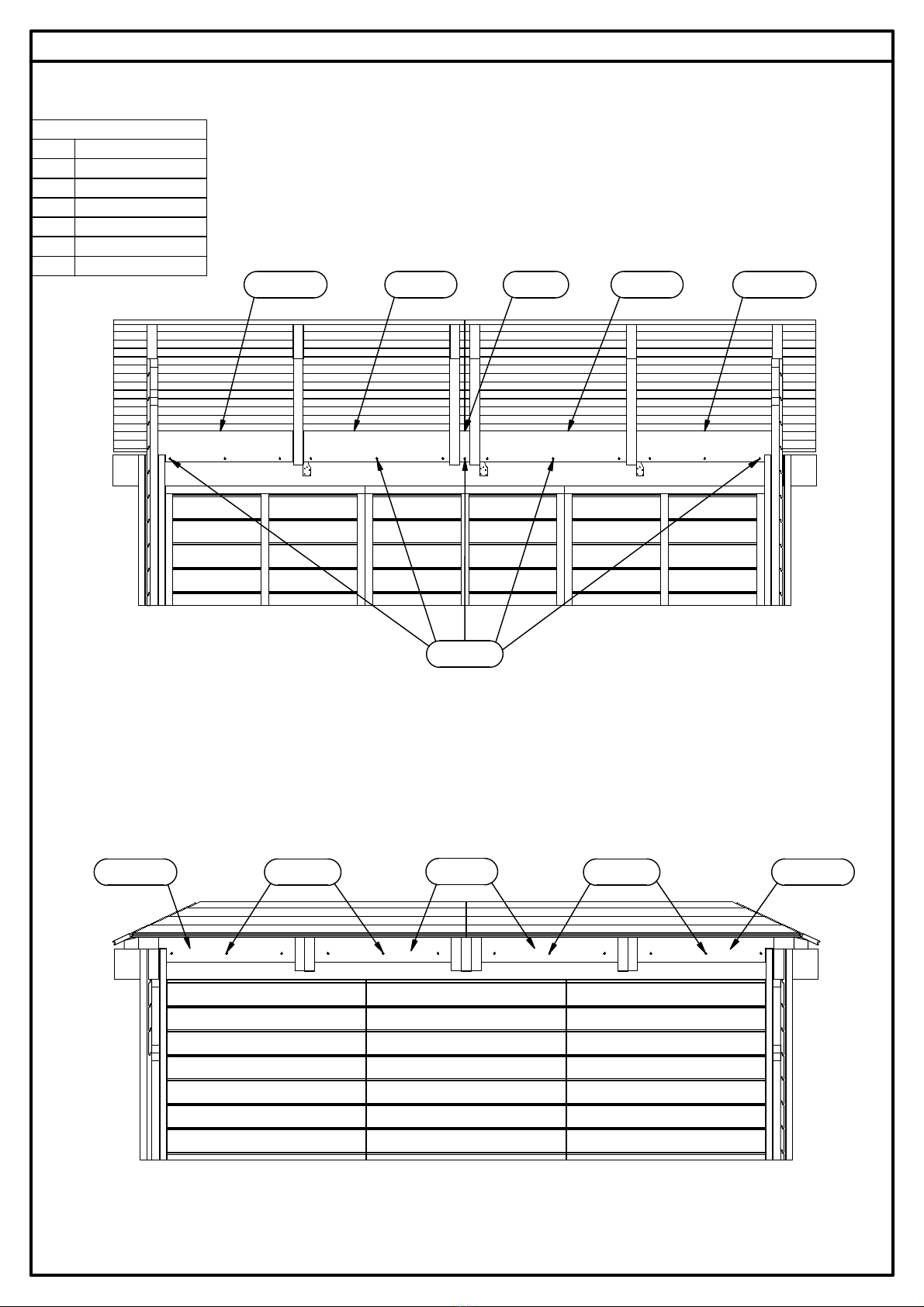

•Fix 2x 20x140x665, 2x 20x140x618.A and 1x 20x140x45 to the SideShed purlin as shown in the
diagram below, using evenly spaced 35mm screws.
•Ensure the top face of the cover trims meet the bottom face of the roof boards before securing with screws.
20x140x618.A 20x140x665 20x140x45 20x140x665 20x140x618.A
20x140x620.B 20x140x622 20x140x620.B35mm Screw 35mm Screw
35mm Screw
•Fix 2x 20x140x622 and 2x 20x140x620.B to the main gazebo purlin as shown in the diagram below, using evenly spaced 35mm screws.
•Ensure the top face of the cover trims meet the bottom face of the roof boards before securing with screws.

Components Required
PART NUMBER
QTY
CPSS7
1
GAZ-PT15351756
1
35mm Screw20
M6 x 60mm Coach Bolt
4
M6 Washer
4
M6 Nut4
DOOR HINGE2
SCREW 15mm2
Shootbolt (WRG100
48x100)
1
Assembly Steps for Leviathan SideShed 1.5m x 3.0m
** Avoid splitting timber parts by pre-drilling all screw holes **
Step 11
Page 19
•Fix 1x GAZ-PT15351756 as shown in the diagram,
using 4x 35mm screws.
•Ensure the trim is flush with the internal edge of the
outer door frame and spaced 15mm from the bottom
face of the front panels.
35mm SCREW
Bolt + Washer + Nut
Washer
Nut
Bolt
Hinge
GAZ-PT15351756
SCREW 15mm
Shootbolt
35mm Screw
Door Hinge
GAZ-PT15351756
35mm Screw
Drill a hole in the
120x120 post to
allow shootbolt
to fully lock.
•Position the door into the installed door frame ensuring a 5mm gap around each side of
the door frame.
35mm Screw
M6 x 60mm Coach Bolt
CPSS7
35mm Screw
35mm Screw
•Fix the hinges to the GAZ-PT15351756 trim and the
CPSS7 door panel using 6x 35mm screws, 2x M6x
60mm Coach bolts, 2x M6 Washers and 2x M6 nuts
per hinge as shown below.
•Ensure hinges are in line with the frame of the door panel
when fixing.
•Fix the shootbolt as shown, using 2x 15mm screws and 4x 35mm screws.
•A hole will need to be drilled into the 120x120 post deep enough to allow the
shootbolt to fully lock.
•Ensure the shootbolt is secured to the central frame timbers of the CPSS7 door
panel.

Components Required
PART NUMBER
QTY
15x70x21202
15x70x13852
15x70x1803.A
1
20x120x300.A4
35mm Screw44
Assembly Steps for Leviathan SideShed 1.5m x 3.0m
** Avoid splitting timber parts by pre-drilling all screw holes **
Step 12
Page 20

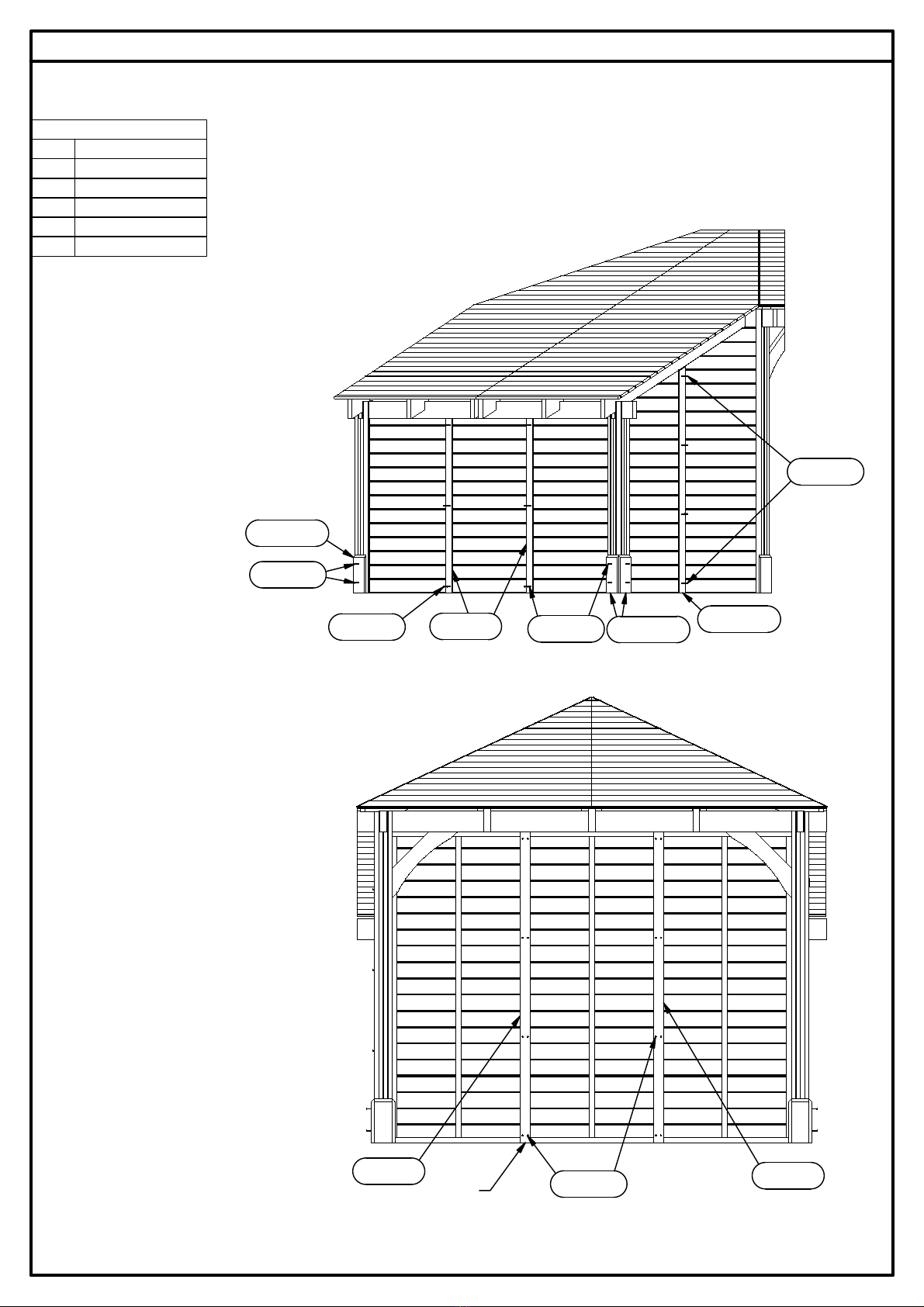

•Position and fix 2x 15x70x1385 trims to cover panel joins, using 35mm screws.
•Position and fix 1x 15x70x1803.A trim to cover panel joins, using 35mm screws.
•Ensure the bottom face of the trims are flush with the bottom face of the side panel.
15x70x2120 15x70x2120
35mm Screw
•Position and fix 2x 15x70x2120 trims to cover
panel joins, using 35mm screws.
•Ensure the bottom face of the trims are flush with
the bottom face of the side panel
FLUSH
Congratulations on your new Gazebo and SideShed!
15x70x1803.A
15x70x1385
20x120x300.A
35mm Screw
20x120x300.A
35mm Screw
35mm Screw
35mm Screw
•Fix 2x 20x120x300.A per SideShed post,
using 2x 35mm screws per post.
•Ensure the bottom face of the post cover trim
is flush with the bottom face of the posts.
