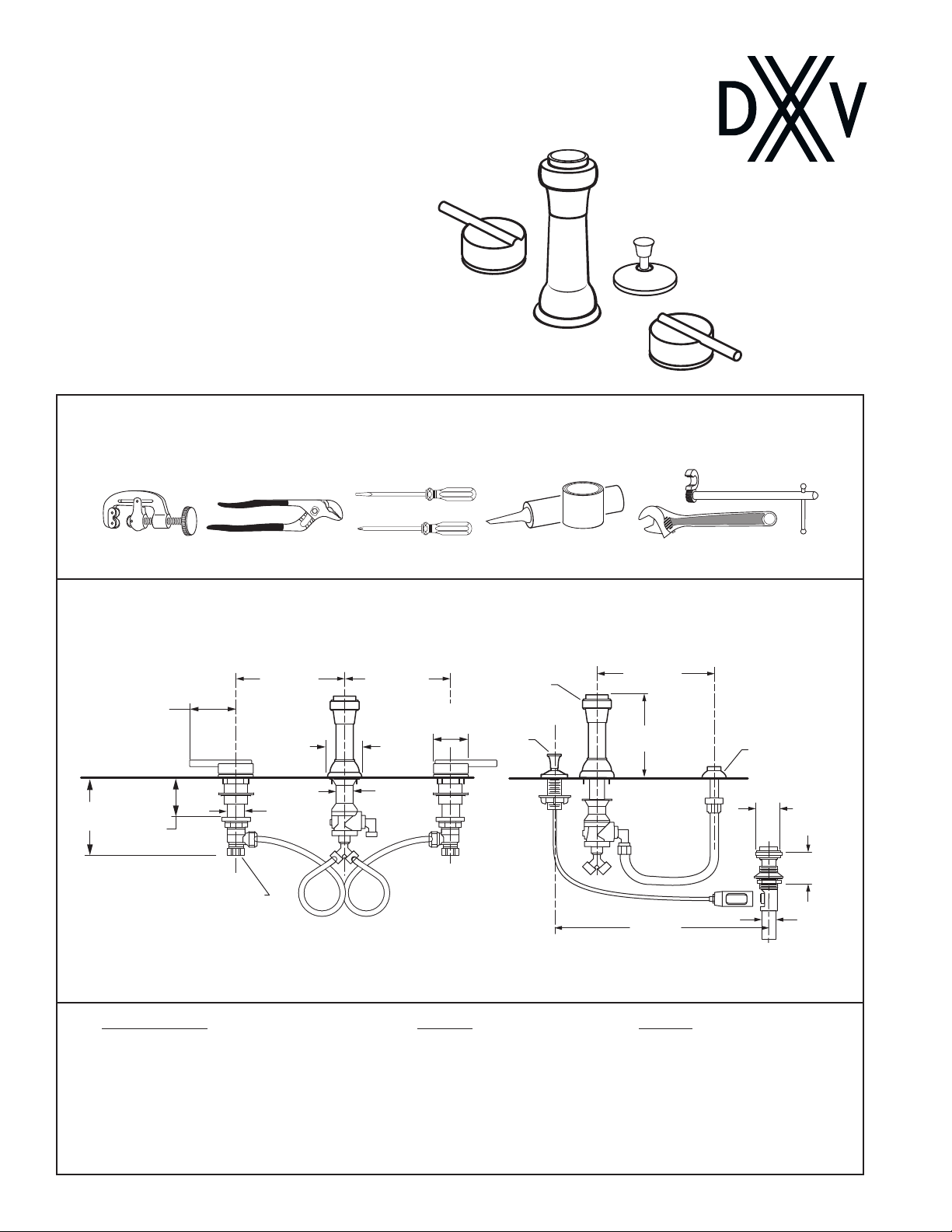

DXV Rem D35100330 User manual

- 1 -
INSTALLATION INSTRUCTIONS
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
SAVE FOR FUTURE USE
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
M965497 Rev. 1.6 (5/17)
Model D35100330
Rem®
3-Hole Bidet Set
with Vacuum Breaker
Plumbers' Putty or Caulking Adjustable Wrench
Phillips Screwdriver
Channel Locks
Tubing Cutter
Flat Blade Screwdriver
Basin Wrench
ROUGHING-IN DIMENSIONS:
• For reference
DIVERTER
AND VACUUM
BREAKER
1-1/2"
(38 mm)
LIFT ROD 5-5/8"
(143 mm)
2-7/16"
(62 mm) D.
2-1/2" to 6"
(64 to 152 mm)
2-1/2" to 6"
(64 to 152 mm)
2"
(51 mm)
1-1/8" D.
(29 mm)
1-1/8" D.
(29 mm)
7" MAX
(178 mm)
2" MAX
(51 mm)
2-1/8" DIA.
(54 mm)
1-1/4" O.D.
(32 mm)
13" MAX
(330 mm)
4" MAX
(102 mm)
SPRAY
CONNECTIONS ARE FOR 1/2" IPS
FLEXIBLE SUPPLIES or 3/8" O.D.
BULL-NOSE RISERS
3"
(75 mm)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: [phone]
www.DXV.com
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: [phone]
www.DXV.ca
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.

- 2 - M965497 Rev. 1.6 (5/17)

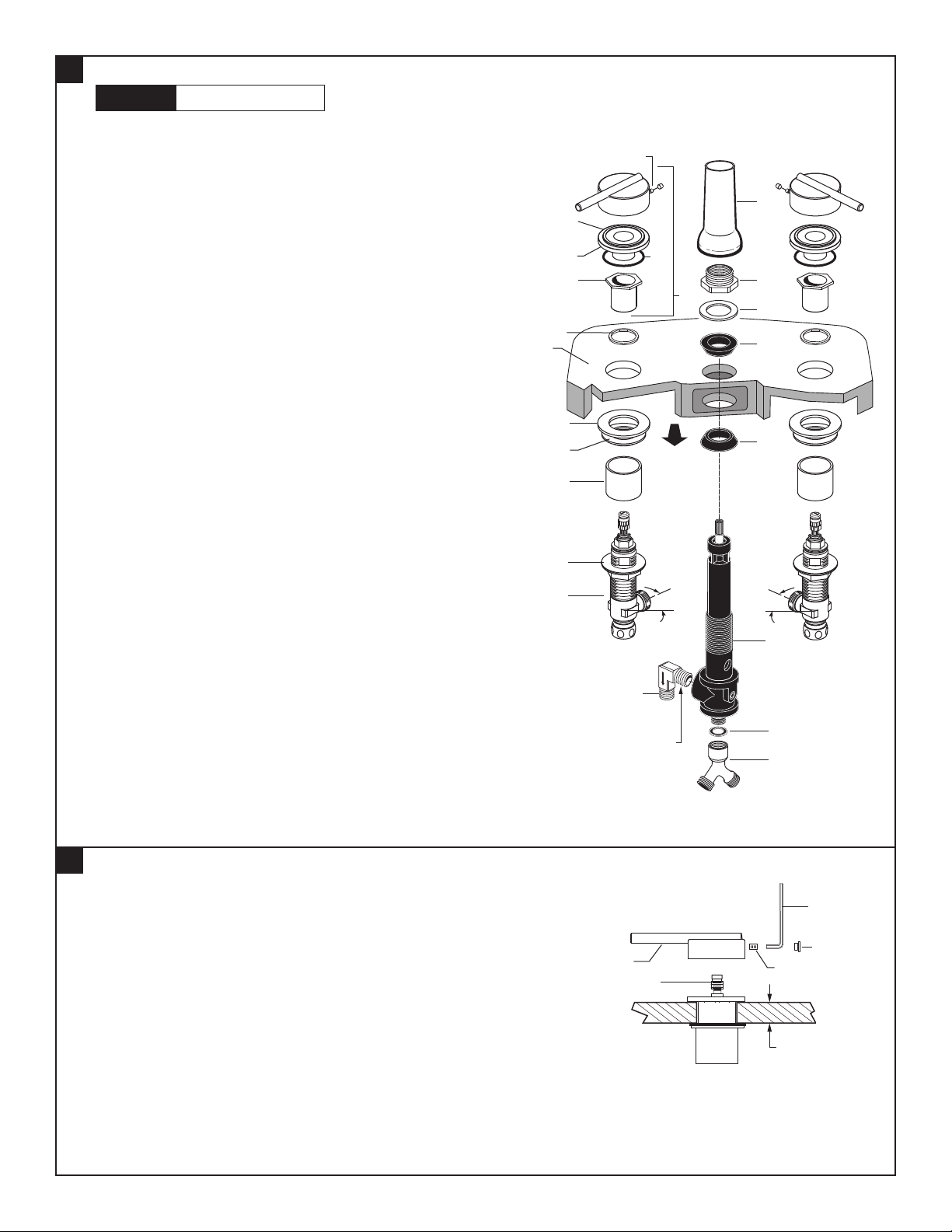

1
2INSTALL HANDLES
INSTALL CONTROL VALVES
• Turn VALVES to off position. Align HANDLES (1) as shown or
as desired and install onto HANDLE ADAPTER (2). Tighten SET
SCREW (3) with HEX WRENCH (4) supplied. Push PLUG
BUTTON (5) into place.
• Apply sealant or Teon tape to threads of SPRAY ELL (1) and install into TRANSFER
VALVE (2). Note: Arrow on SPRAY ELL (1) points down, see illustration.
• Install “Y” HOSE ADAPTER (3) with SEAL (4) to bottom nipple of
TRANSFER VALVE (2) and tighten to make a water tight seal.
• Install LOWER CONE SEAL (5) onto TRANSFER VALVE (2) and
insert TRANSFER VALVE (2) from under side of Bidet into the
center forward hole.
• Install UPPER CONE SEAL (6), FRICTION WASHER (7) and
MOUNTING NUT (8) onto TRANSFER VALVE (2).
• Tighten MOUNTING NUT (8) to secure the TRANSFER VALVE (2)
and make a water tight seal.
• Thread TRANSFER VALVE ESCUTCHEON (9) onto MOUNTING
NUT (8). until snug against bidet ledge.
INSTALL TRANSFER VALVE
CAUTION Turn off hot and cold watert
supplies before beginning.
2
FRONT
4
1
3
5
18
14
15
19
17
16
6
7
13
20
12
10
11
8
9
COLD
HOT
BIDET
LEDGE
GROOVE
APPLY TEFLON
TAPE
10˚
10˚
1-1/2"
(38 mm) MAX.
3
5
4
2
1
• Unpack valve assembly and remove HANDLE (10) by unthreading
SET SCREW (11). Unthread ROSETTE (12) and FLANGE (13)
removing them from VALVE BODY (14).
• Thread LOCKNUT (15) to bottom of VALVE BODY (14). Make sure
SPACER (16), BRASS WASHER (17) and RUBBER WASHER (18)
are installed.
• Insert VALVE BODY (14) through mounting hole from underside
of bidet ledge.
Note: VALVE BODY marked Hot is installed in the left Mtg. hole,
VALVE BODY marked Cold in the right when facing front
of fitting.
• Install STOP RING (19) onto VALVE BODY (14) if not in place.
Install O-RING (20) into groove in FLANGE (13).
• Thread FLANGE (13) ush against STOP RING (19).Thread
ROSETTE (12) onto VALVE BODY (14) until tight against it’s internal stop.
• Align VALVE BODY (14) as shown and from below tighten LOCKNUT (15)
to secure VALVE BODY (14).

- 3 -
3
M965497 Rev. 1.6 (5/17)
2
DRAIN
OUTLET
1
4
3
4
5
7
6
REMOVE FLANGE
INSTALL DRAIN FROM
BELOW FIXTURE
FLANGE GASKET
TIGHTEN LOCKNUT
• Check DRAIN FLANGE in BIDET to ensure that WHITE
FOAM GASKET (1) is fully compressed and not visible.
Fig. A.
POP-UP ASSEMBLY
• Insert LIFT ROD GUIDE (1) and CABLE CONNECTOR (2)
through rear hole, making sure SEAL WASHER (3) is
properly seated. Fig. B.
• From below slip slot in MOUNTING NUT (4) over CABLE (5).
Thread NUT (4) onto lift rod guide shank to secure ROD
GUIDE (1) to bidet. Hand tighten only. Fig. B.
• Tighten LOCKNUT rmly with
Adjustable Wrench or Channel Locks.
• Remove CLEAR PLASTIC COVER (1).
• Remove CARDBOARD SPACER (2) from under
DRAIN POP-UP (3).
• Tighten TAILPIECE (4) on DRAIN BODY before
installing DRAIN BODY. Fig. B.
POP-UP DRAIN
DRAIN
BODY
4
2
3
1
Fig. A. Fig. B.
23
14
Fig. A. Fig. B.
1
DRAIN
FLANGE
1WHITE FOAM
GASKET
NOT VISIBLE
1
2
4
5
3
ILLUSTRATION
SHOWN LESS
VALVES
SLOTTED
MOUNTING
NUT
Fig. B.
Fig. B.Fig. A.
• Thread FLANGE (1) counter-clockwise and remove
FLANGE (1) and FOAM GASKET (2) from drain
body. Fig. A.
• Thread LOCKNUT (3) clock-wise to bottom of
drain body. Push GASKET (4) down against
LOCKNUT (3). Fig. B.
• From under side of BIDET
install DRAIN BODY (1) up
through drain outlet.
Note: No plumber’s putty
or caulk is required.
The CABLE ATTACHMENT
POINT (2) must face towards
the rear of the BIDET.
• Install FOAM GASKET (3) and
FLANGE (4) onto drain body
from above BIDET and
tighten FLANGE (4) rmly.

- 4 -
SMALL
END
LARGE
END
LARGE
END
VALVE
OUTLET
VALVE
OUTLET
PUTTY
1
2
31
4
8
5
6
7
7
9
9a
HOT
FRONT
COLD
FERRULE
COMPRESSION
NUT
COUPLING NUT
FLEXIBLE
SUPPLIES
3/8 O.D.
BULL-NOSE
RISERS
1/2" PIPE
THREAD
3/8 COMPRESSION
CONNECTION
CONNECT TO
WASTE OUTLET
10
11
8
9
10
ATTACH CABLE
CONNECTOR
CHECK OPERATION OF POP-UP
INSTALL SUPPLY HOSES
• POP-UP KNOB (1) must be fully
down. Fig. A.
• Thread CABLE CONNECTOR (1)
clockwise onto DRAIN BODY
CONNECTION (2) and hand
tighten. Fig. B.
Your new POP-UP DRAIN
installation is now complete.
Fig. C.
Note: Tailpeice on pop-up drain
is 1-1/4"O.D. Fig. C.
• Operate LIFT KNOB (1) to verify that STOPPER (2)
opens and closes. Fig. A.
Note: If STOPPER (2) does not open and close
properly then refer to the “troubleshooting
section” of theseinstructions.
INSTALL DIVERTER HANDLE
• DIVERTER HANDLE (1) onto VALVE STEM (2)
of DIVERTER. Fig. B.
• Secure with DIVERTER HANDLE SCREW (3).
• Thread HANDLE CAP (4) onto DIVERTER HANDLE (1).
Connect small end of SUPPLY HOSES (1) TO “Y”
ADAPTER (2) and larger end to each VALVE OUTLET.
Important: Loop SUPPLY HOSES (1) as illustrated
so they do not kink.
INSTALL SPRAY BODY
• Apply putty to the underside of SPRAY BODY FLANGE (3)
and install SPRAY BODY (3) into spray hole of Bidet.
• From underside of Bidet install RUBBER WASHER (4),
FIBER WASHER (5) and LOCKNUT (6) onto shank of
SPRAY BODY (3). Tighten LOCKNUT (6) to make water
tight seal.
• Connect one end of SPRAY HOSE (7) to HOSE ADAPTER (8)
and the other end to shank of SPRAY BODY (3).
Tighten hose connections to make a water tight seal.
WATER SUPPLY CONNECTION
NOTE: FLEXIBLE SUPPLIES OR BULL-NOSE RISERS
NOT INCLUDED AND MUST BE PURCHASED SEPARATE LY.
• Connect water supply to VALVE BODIES (9,9a) with 1/2" IPS FLEXIBLE
SUPPLIES (10) or 3/8" O.D. BULL-NOSE RISERS (11). Use adjustable
wrench to tighten connections. Do not over tighten. Be careful not to
kink copper supply when bending. Use tubing cutter to cut to proper length.
• | Connect HOT water supply to inlet of left SHANK and COLD water supply to right
SHANK using sealant, appropriate connectors, and COUPLING NUTS.
• Connect 1-1/4" O.D. tailpiece on POP-UP DRAIN to waste outlet.
1-1/4” O.D.
1
2
DOWN
Fig. A. Fig. B. Fig. C.
2
1
Fig. A. Fig. B. 4
3
1
2
M965497 Rev. 1.6 (5/17)

- 5 - M965497 Rev. 1.6 (5/17)
11 TEST INSTALLED FITTING AND CONNECTIONS FOR LEAKS
• With FAUCET HANDLES in OFF position, turn on WATER SUPPLIES (1) and check all connections for leaks.
• Operate both handles to ush water lines thoroughly. Turn diverter to rim wash and bidet spray.
• Operate LIFT ROD (2) and ll bidet with water. DRAIN STOPPER (3) should make a good seal and retain water
in bidet. If DRAIN STOPPER (3) does not make a water tight seal see “Troublingshooting Guid” section in
these instructions
• Release DRAIN STOPPER (3) and check all drain connections and “P” trap for leaks. Tighten if necessary.
NOTE: Diverter valve is not a positive shut-off to rim wash.
1
1
2
3

- 6 -
• Disconnect the Cable from the Drain by threading the Cable Connector (1) counter-clockwise. Fig. A.
• Look at the area on the Drain Body where the Cable was attached and locate the component labeled as
“Cam” in the illustration. Fig. B.
• Use a small screwdriver to rotate the Cam in the clockwise direction as far as it will go. At this point the
Stopper should be in the UP position. Fig. B, C.
• Push DOWN on the Lift-Knob to make sure it is fully down. Fig. C.
• Re-attach the Cable to the Drain Body Connection (2) by threading the Cable Connector (1) clockwise onto the
Drain Body Connection (2) and hand-tighten. Fig. A.
• Disconnect the Cable from the Drain by threading the Cable Connector (1) counter-clockwise. Fig. A.
• Look at the area on the Drain Body where the Cable was attached and locate the component labeled
as “Cam” and “Cam Cap” in the illustration. Fig. B.
• Use ngers or small screwdriver under either side of the Cam Cap to pry it out from the Drain. Fig. D.
• Remove the Cam by pulling it straight out while wiggling gently to loosen the Rubber Seal. Fig. E.
• The Stopper can now be removed by lifting it out of the Drain. Fig. F.
If sink does not hold water even though Stopper is in the “down” position:
• Follow CABLE ADJUSTMENT PROCEDURE.
If Stopper does not raise up fully or sink drains too slowly:
• Follow CABLE ADJUSTMENT PROCEDURE.
If you need to remove the Stopper:
• Follow STOPPER REMOVAL PROCEDURE.
If you would like the ability to remove your Stopper simply by lifting it out of the drain:
• Follow STOPPER INSTALLATION PROCEDURE for “Unlocked” mode.

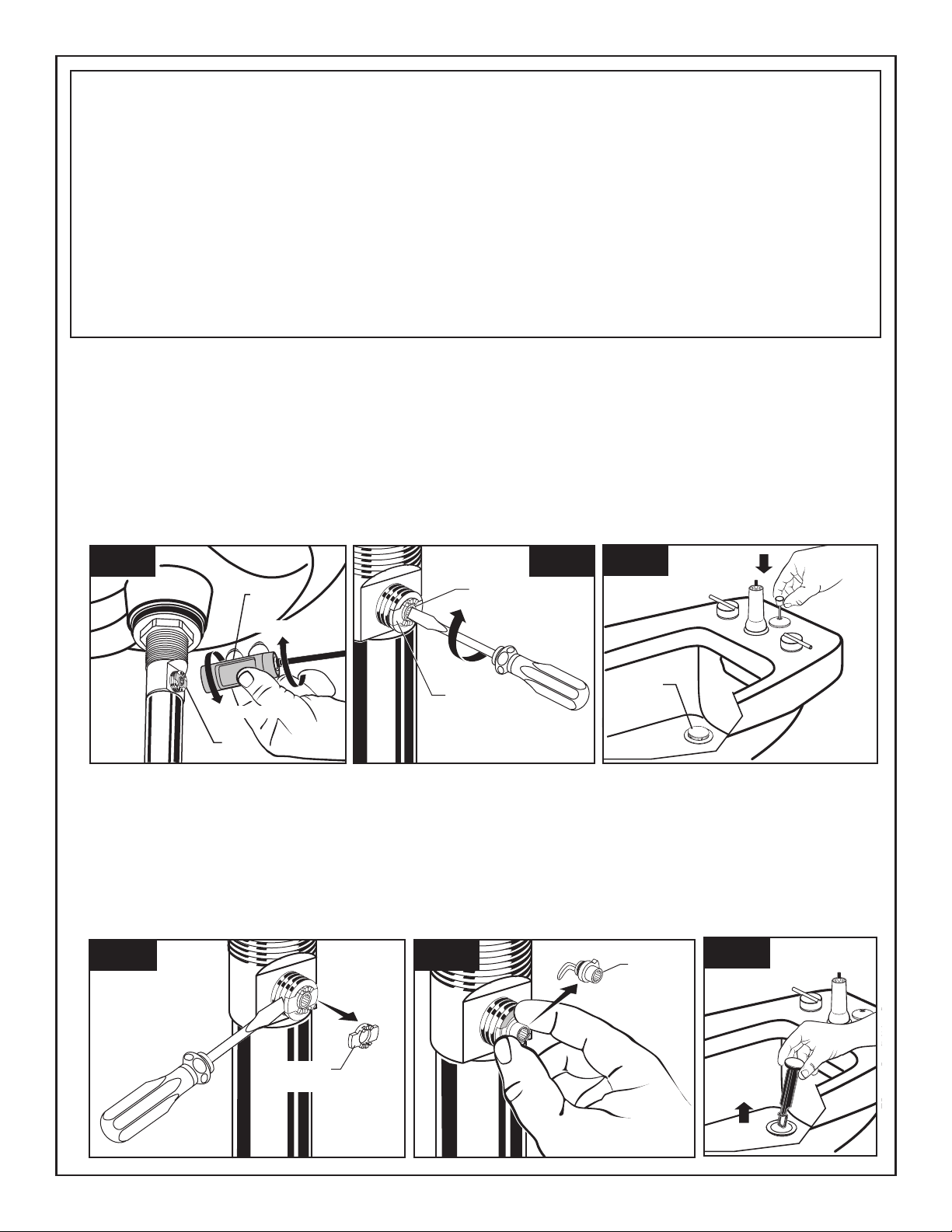

CABLE ADJUSTMENT PROCEDURE
STOPPER REMOVAL PROCEDURE
Speed Connect®Drain
Troubleshooting Guide
Fig. F.
CAM
CAM CAP
Fig. B.Fig. A.
REMOVE
CAM
Fig. E.
2
1
RE-ATTACH
DISCONNECT
Fig. D.
REMOVE
CAM CAP
Fig. C. DOWN
STOPPER
Fig. F.
CAM
CAM CAP
Fig. B.Fig. A.
REMOVE
CAM
Fig. E.
2
1
RE-ATTACH
DISCONNECT
Fig. D.
REMOVE
CAM CAP
Fig. C. DOWN
STOPPER
M965497 Rev. 1.6 (5/17)

- 7 - M965497 Rev. 1.6 (5/17)
Fig. J. Fig. K.
INSTALL
CAM CAP
CAM
INSTALL CAM
Unlocked Mode
DRAIN
Fig. G.
LOOP TOWARD
REAR OF BIDET
180˚
DRAIN
Fig. H.
LOOP TOWARD
FRONT OF BIDET
Locked Mode
(Vandal Proof)
LOCKED MODE:
• Look at the Plastic Loop at the bottom of the Stopper and notice
that the Loop is on one side of the Stopper. Fig. G.
• To install the stopper in “Locked” mode, insert the Stopper into
the Drain so that the Plastic Loop is facing toward the rear of the
Sink. Rotate Stopper slightly if necessary so that the Stopper slides
all the way down. Fig. G.
• Re-install the Cam into the Drain, rotating the Cam if necessary
to make sure it is fully inserted. Fig. J.
• Re-install the Cam Cap, making sure the guide teeth are facing
outward. If the Cam Cap does not “snap” into place, then rotate
the Cam to make sure it is fully inserted. Fig. K.
• Re-attach Cable. See “CABLE ADJUSTMENT PROCEDURE” in
Troubling Shooting Guide to complete installation. Stopper will be
in “Locked” mode and not be removable.
UNLOCKED MODE:
• Look at the Plastic Loop at the bottom of the Stopper and notice
that the Loop is on one side of the Stopper. Fig. H.
• To install the stopper in “Unlocked” mode, insert the Stopper into
the Drain so that the Plastic Loop is facing toward the front of the
Sink. Rotate Stopper slightly if necessary so that the Stopper slides
all the way down. Fig. H.
• Re-install the Cam into the Drain, rotating the Cam if necessary
to make sure it is fully inserted. Fig. J.
• Re-install the Cam Cap, making sure the guide teeth are facing
outward. If the Cam Cap does not “snap” into place, then rotate
the Cam to make sure it is fully inserted. Fig. K.
• Re-attach Cable. See “CABLE ADJUSTMENT PROCEDURE” in
“Troublingshooting Guide” to complete installation. Stopper will be
in “Unlocked” mode and removable.
STOPPER INSTALLATION PROCEDURE
The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be removed)
or “Unlock” Mode (Stopper is removable).

- 8 -
Replace the “YYY” with
appropriate finish code
POLISHED CHROME 100
BRUSHED NICKEL 144
MODEL NUMBER
D35100330
Rem®
3-Hole Bidet Set with
Vacuum Breaker
M965497 Rev. 1.6 (5/17)
H961243.XXX
ROSETTE
H960104.191
1/2" HOT
CARTRIDGE
H960136.191
1/2" COLD
CARTRIDGE
M953130-0070A
TRANSFER VALVE
H960852.XXX
DIVERTER HANDLE
H961252.XXX
DIVERTER COVER
H961251 .XXX
ROSETTE
H960849.XXX
ROSETTE
H961260.191
MOUNTING KIT
H960568.XXX
AERATOR
ASSEMBLY
H961248.191
MOUNTING KIT
028704-0070A
TEE AND HOSE KIT
(INCLUDING SEALS)
M921323-0070A
ELBOW
ADAPTER
M964550-YYY0A
POP-UP KNOB
AND ROD
H961247.XXX
SPRAY BODY
H961249.191
HOSE ASSEMBLY
M952430-0070A
CABLE ASSEMBLY
H960742.191
1/2" SIDE
VALVE ROUGH
(CLOCK-WISE ON)
H960741.191
1/2" SIDE
VALVE ROUGH
(COUNTER
CLOCK-WISE ON)
874214.XXX
DRAIN ASSEMBLY
H960848.XXX
HANDLE
ASSEMBLY
M964445-YYY0A
BUTTON &
SCREW KIT
H960279.191
MOUNTING KIT
