INSTALLATION INSTRUCTIONS
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
SAVE FOR FUTURE USE
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work has begun.
M965534 Rev. 1.9 (4/18)
Tri-Spoke Handle
Model D35105870
Cross Handle
Models D35105840, D35105840RB
Cylinder Handle
Models D35105800, D35105800RB
Percy®
Widespread Lavatory Faucets
ROUGHING-IN DIMENSIONS:
• For reference
Plumbers' Putty or CaulkingAdjustable Wrench
Phillips Screwdriver
Channel Locks Flat Blade Screwdriver
6" to 12"
(152 to 305 mm)
10"
(254 mm)
6-9/16"
(167 mm)
5-7/16"
(138 mm)
MOUNTING
SURFACE
3-1/8"
(80 mm)
2-1/4" DIA.
(57 mm)
7/8" DIA.
(22 mm)
1-1/2" MAX.
(38 mm)
CROSS
HANDLE
10-1/2" MAX.
(267 mm)
1-1/4" O.D.
(32 mm)
2" MAX
(51 mm)
1-1/2"
(37 mm)
CYLINDER
HANDLE
2-1/2"
(63 mm)
NOTE: MOUNTING HOLES ARE 1-3/8" DIA. (35 mm)
CONNECTIONS:
• 1/2" IPS FLEXIBLE SUPPLIES
• 3/8" O.D. BULL-NOSE RISERS
3"
(77 mm)
TRI-SPOKE
HANDLE
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: [phone]
www.DXV.com
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: [phone]
www.DXV.ca
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
D35105870
D35105840
D35105840RB
D35105800
D35105800RB

- 2 - M965534 Rev. 1.9 (4/18)
2
3

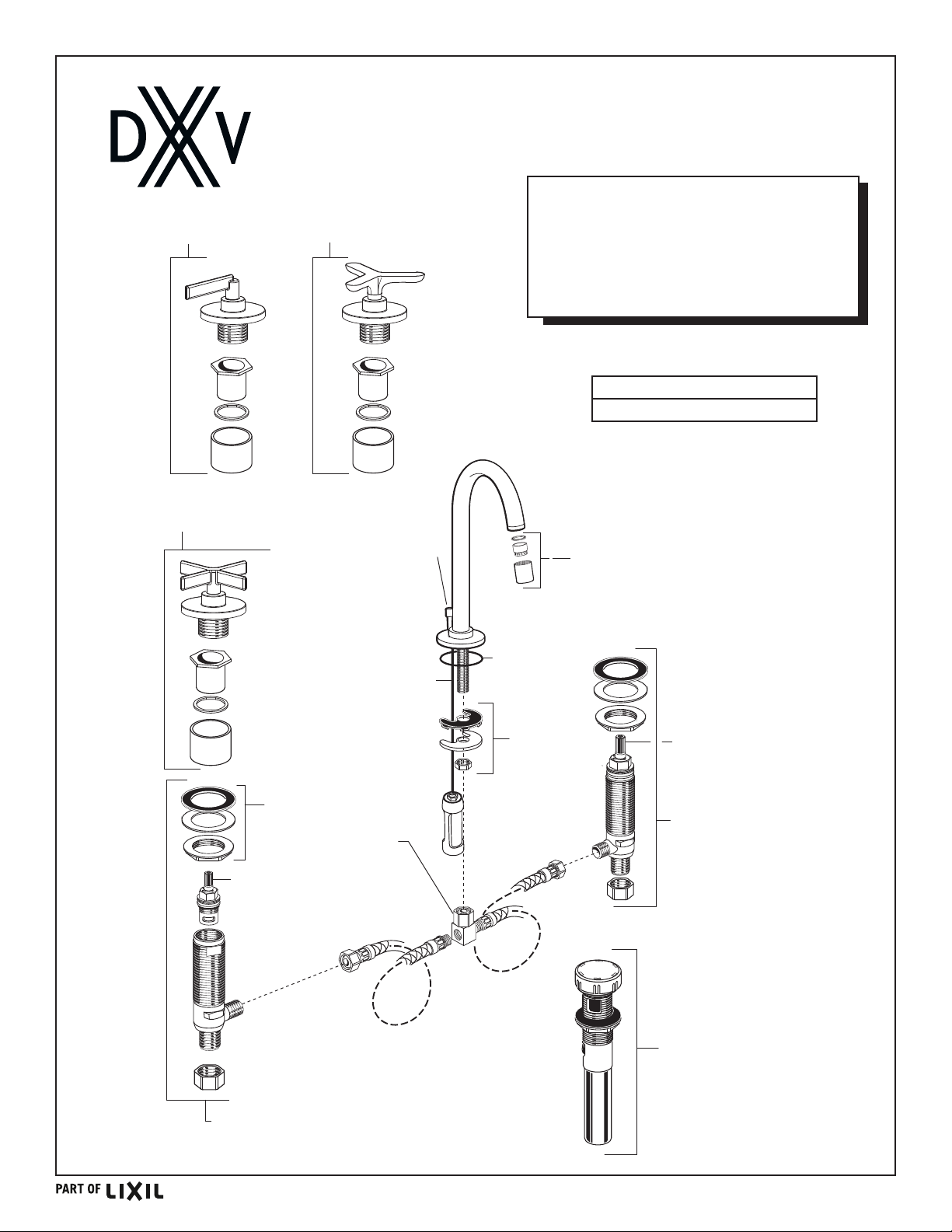

1TEE ASSEMBLY
INSTALL VALVE BODIES
• Insert SPOUT ASSEMBLY (1) and
CABLE CONNECTOR (2) through
center hole, making sure O-RING
SEAL (3) is properly seated in
SPOUT BASE (4) groove.
• Assemble RUBBER WASHER (5),
BRASS WASHER (6) and
LOCKNUT (7) onto SPOUT
SHANK (8) from under side
of sink. Make sure SPOUT (1)
is centered in the mounting
hole and the slot in the BRASS
WASHER (6) faces toward
the front of the sink.
• Tighten LOCKNUT (7) rmly.
SPOUT ASSEMBLY
CAUTION Turn off hot and cold water
supplies before beginning.
• Thread TEE BODY (1) COUPLING NUT (2) to
SPOUT SHANK (3). Tighten with wrenches.
• Thread LOCKNUT (1) to bottom of VALVE BODY (2). Make sure
SPACER (3), BRASS WASHER (4) and RUBBER WASHER (5)
are installed.
• Insert VALVE BODY (2) through mounting hole from underside
of lavatory or mounting surface.
Note: VALVE BODY marked Hot (Red Dot) is installed in the left
Mtg.hole, VALVE BODY marked Cold (Blue Dot) in the right
when facingfront of fitting. Maximum mounting surface thickness
is 1-3/4"(44mm).
• Install STOP RING (6) onto VALVE BODY (2).
• Thread FLANGE (7) onto VALVE BODY (2) until tight aganist
the STOP RING (6).
• Align VALVE BODY (2) and from below tighten LOCKNUT (1)
to secure VALVE BODY (2).
INSTALL HANDELS
• Install SEAL (8) into base of HANDLE ESCUTCHEON (9).
• Turn VALVES to off position. Align HANDLE ASSEMBLY (10)
and push down onto spline of VALVE BODY (2). Thread HANDLE
ESCUTCHEON (9) tight against mounting surface.
• Installation for the Cold Water Valve is the same.
HOSE CONNECTIONS
• Tighten COUPLING NUT (11) on SUPPLY HOSE (12) to
OUTLET (13) making a water tight connection.
Important: Loop SUPPLY HOSES (12) as shown so they
do not kink.
1
SLOT
3
5
7
2
6
8
4
1
3
2
1-3/4'' (44mm) MAX.
MOUNTING SURFACE
SPLINE
RED DOT
STOP RING
CROSS HANDLE
ASSEMBLY
12
HOT 13
5
11
COLD
12
16
3
4
7
8
6
910
CYLINDER
HANDLE
ASSEMBLY
TRI-SPOKE
HANDLE
ASSEMBLY

- 3 - M965534 Rev. 1.9 (4/18)
4
5
6
8
7
INSTALL POP-UP DRAINTEE ASSEMBLY
REMOVE MOUNTING WASHERS
AND LOCKNUT
ATTACH DRAIN FROM
BELOW FIXTURE
FLANGE GASKET AND POP-UP KNOB
TIGHTEN LOCKNUT
• Remove CLEAR PLASTIC COVER (1). Fig. A.
• Remove FOAM SPACER (2) from under
DRAIN POP-UP (3). Fig. A.
• Tighten TAILPIECE (4) on DRAIN BODY before
installing DRAIN BODY. Fig. B.
• Thread LOCKNUT (1) counter-clockwise and
remove from drain body. Remove PLASTIC
WASHER (2) and pull off RUBBER CONE
WASHER (3).Fig. A.
• Drop DRAIN BODY (4) through sink drain hole.
Make sure WHITE FOAM GASKET (5) is under
ange of DRAIN BODY (4). Fig. B.
Note: No plumber’s putty or caulk is required.
• The CABLE ATTACHMENT POINT (6) mustface
towards the rear of the SINK. Fig. B.
• From under side of SINK install
RUBBER CONE WASHER (3),
PLASTIC WASHER (2) and
LOCKNUT (1) onto DRAIN
BODY (4).
Note: The CABLE ATTACHMENT
POINT (5) must face
towards the rear of
the SINK.
• Check DRAIN FLANGE in SINK to ensure that
WHITE FOAM GASKET (3) is fully compressed
and not visible. Fig. A.
• POP-UP KNOB (1) must be fully down. Fig. B.
• Tighten LOCKNUT (1) rmly with
Adjustable Wrench or Channel Locks.
2
3
1
DRAIN
BODY
4
Fig. A. Fig. B.
Fig. B.
REAR OF
SINK
4
56
SINK
DRAIN
HOLE
1
3
2
Fig.
A.
Fig. B.
WHITE FOAM
GASKET
NOT VISIBLE DRAIN
FLANGE
UP
1
DOWN
Fig. A. Fig. B.
1
5
3
2
4
1

- 4 - M965534 Rev. 1.9 (4/18)
9
10
11
ATTACH CABLE CONNECTOR
CHECK OPERATION OF POP-UP

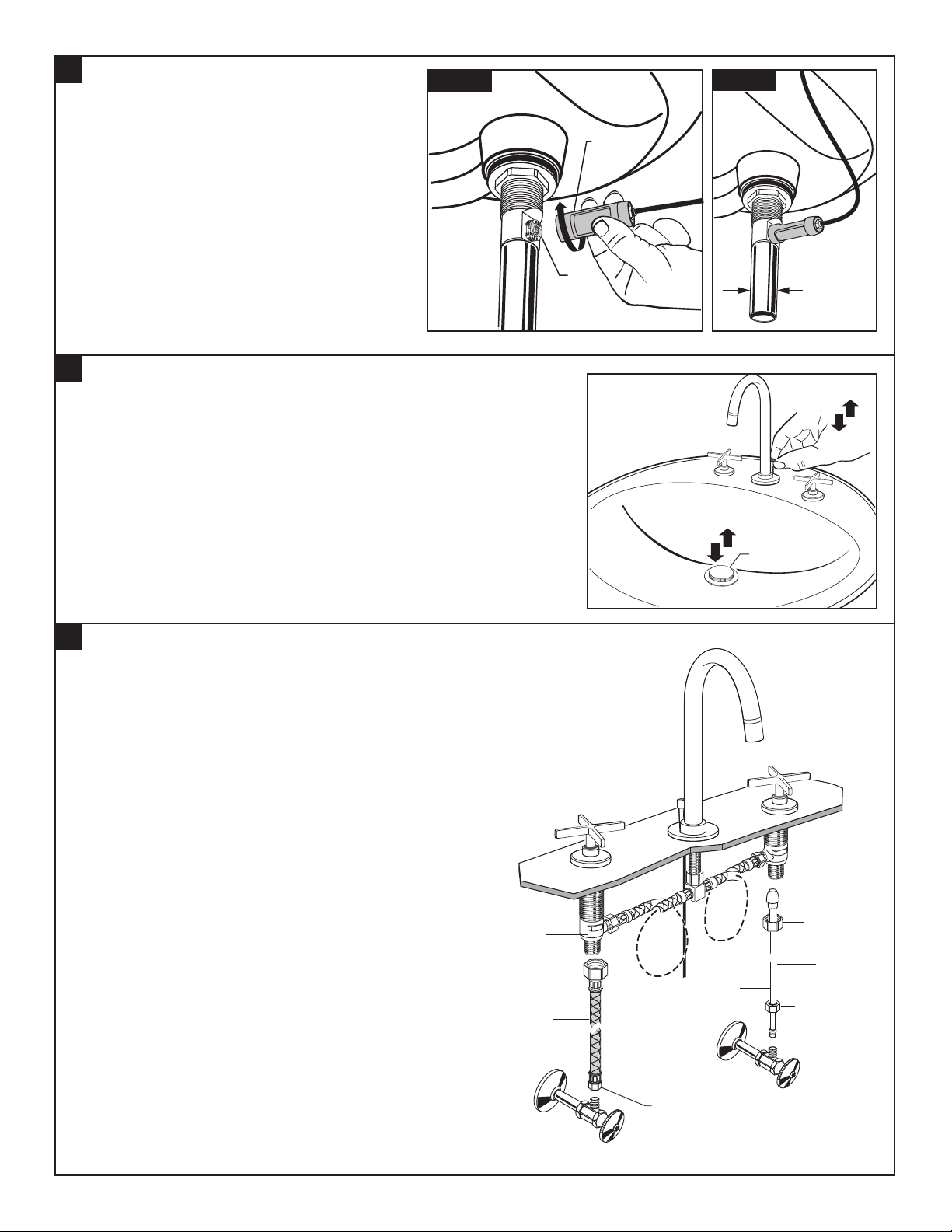

MAKE WATER SUPPLY AND WASTE CONNECTIONS
• Thread CABLE CONNECTOR (1) clockwise
onto DRAIN BODY CONNECTION (2) and
hand tighten. Fig. A.
Your new POP-UP DRAIN installation is
now complete. Fig. B.
Note: Tailpeice on pop-up drain is
1-1/4" O.D. (32mm) Fig. B.
• Operate LIFT KNOB (1) to verify that STOPPER (2) opens and closes.
Note: If STOPPER (2) does not open and close properly then refer to the
“troubleshooting section” of these instructions.
NOTE: FLEXIBLE SUPPLIES OR BULL-NOSE RISERS NOT INCLUDED
AND MUST BE PURCHASED SEPARATELY.
• Connect water supply to VALVE BODIES (1,1A) with 1/2" IPS FLEXIBLE
SUPPLIES (2) or 3/8" O.D. BULL-NOSE RISERS (3). Use
adjustable wrench to tighten connections. Do not over tighten.
Be careful not to kink copper supply when bending. Use tubing
cutter to cut to proper length.
• Connect HOT water supply to inlet of left SHANK and COLD
water supply to right SHANK using sealant, appropriate
connectors, and COUPLING NUTS.
Fig. A.
2
1
1-1/4" O.D.
(32mm)
Fig. A. Fig. B.
2
HOT
COLD FERRULE
COMPRESSION
NUT
COUPLING
NUT
FLEXIBLE
SUPPLIES
3/8" (6mm) O.D.
BULL-NOSE
RISERS
1/2" (13mm) PIPE
THREAD
3/8" (6mm) COMPRESSION
CONNECTION
2
3
1A
1

- 5 -
HOT
2
2
COLD
“P” TRAP
WASTE
OUTLET
4
6
1
5
31
M965534 Rev. 1.9 (4/18)

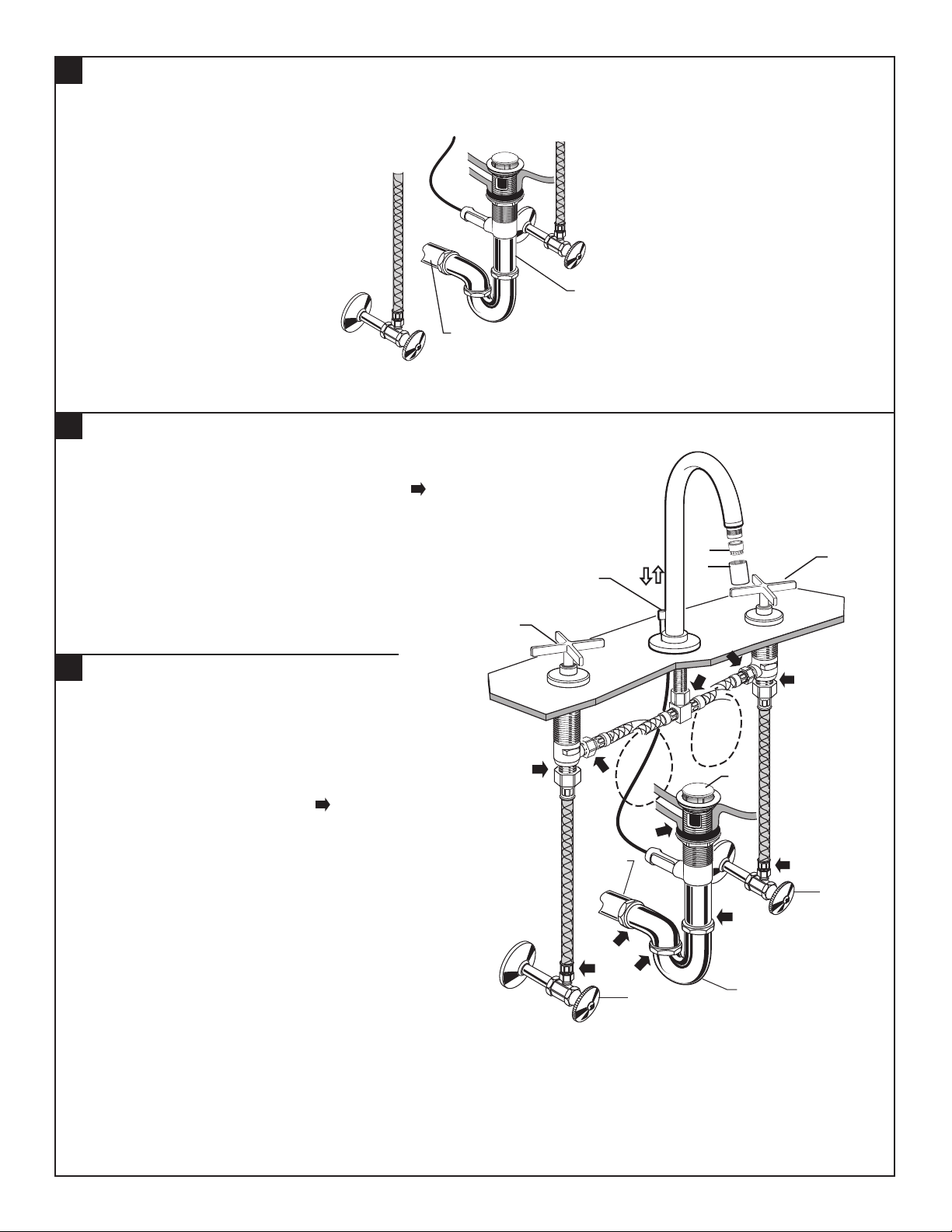

12
13
14
• With HANDLE (1) in OFF position, turn on WATER
SUPPLIES (2) and check all connections for leaks.
• Remove AERATOR (3). Loosen AERATOR HOUSING (4)
and remove AERATOR (3).
• Operate HANDLES (1) to ush water lines thoroughly.
• Replace AERATOR (3) and tighten AERATOR HOUSING (4).
• Operate POP-UP KNOB (5) and ll lavatory with water.
Check that DRAIN STOPPER (6) makes a good seal and
retains water in Sink. If DRAIN STOPPER (6) does not
seal properly, please refer to Troubleshooting section in
these instructions.
• Push POP-UP KNOB (5) down and check all drain
connections and “P” trap for leaks. Tighten if necessary.
TO CLEAN AERATOR
• AERATOR (3) may accumulate dirt causing distorted
and reduced water ow. Remove AERATOR (3) and
rinse clean.
• Replace AERATOR (3) and operate handles several
times from OFF to ON position. Do not force,
handles turn only 90˚.
CONNECT DRAIN
TEST INSTALLED FITTING
CHECK DRAIN CONNECTIONS
WASTE
OUTLET
1-1/4" (32mm) O.D.
TAILPIECE
• Connect 1-1/4" (32mm) O.D. tailpiece on POP-UP DRAIN to waste outlet.

- 6 -
REMOVE
CAM
Fig. E.Fig. D.
REMOVE
CAM CAP
Fig. F.
M965534 Rev. 1.9 (4/18)
• Disconnect the Cable from the Drain by threading the Cable Connector (1) counter-clockwise. Fig. A.
• Look at the area on the Drain Body where the Cable was attached and locate the component labeled as
“Cam” in the illustration. Fig. B.
• Use a small screwdriver to rotate the Cam in the clockwise direction as far as it will go. At this point the
Stopper should be in the UP position. Fig. B, C.
• Push DOWN on the Lift-Knob to make sure it is fully down. Fig. C.
• Re-attach the Cable to the Drain Body Connection (2) by threading the Cable Connector (1) clockwise onto the
Drain Body Connection (2) and hand-tighten. Fig. A.
• Disconnect the Cable from the Drain by threading the Cable Connector (1) counter-clockwise. Fig. A.
• Look at the area on the Drain Body where the Cable was attached and locate the component labeled
as “Cam” and “Cam Cap” in the illustration. Fig. B.
• Use ngers or small screwdriver under either side of the Cam Cap to pry it out from the Drain. Fig. D.
• Remove the Cam by pulling it straight out while wiggling gently to loosen the Rubber Seal. Fig. E.
• The Stopper can now be removed by lifting it out of the Drain. Fig. F.
If sink does not hold water even though Stopper is in the “down” position:
• Follow CABLE ADJUSTMENT PROCEDURE.
If Stopper does not raise up fully or sink drains too slowly:
• Follow CABLE ADJUSTMENT PROCEDURE.
If you need to remove the Stopper:
• Follow STOPPER REMOVAL PROCEDURE.
If you would like the ability to remove your Stopper simply by lifting it out of the drain:
• Follow STOPPER INSTALLATION PROCEDURE for “Unlocked” mode.

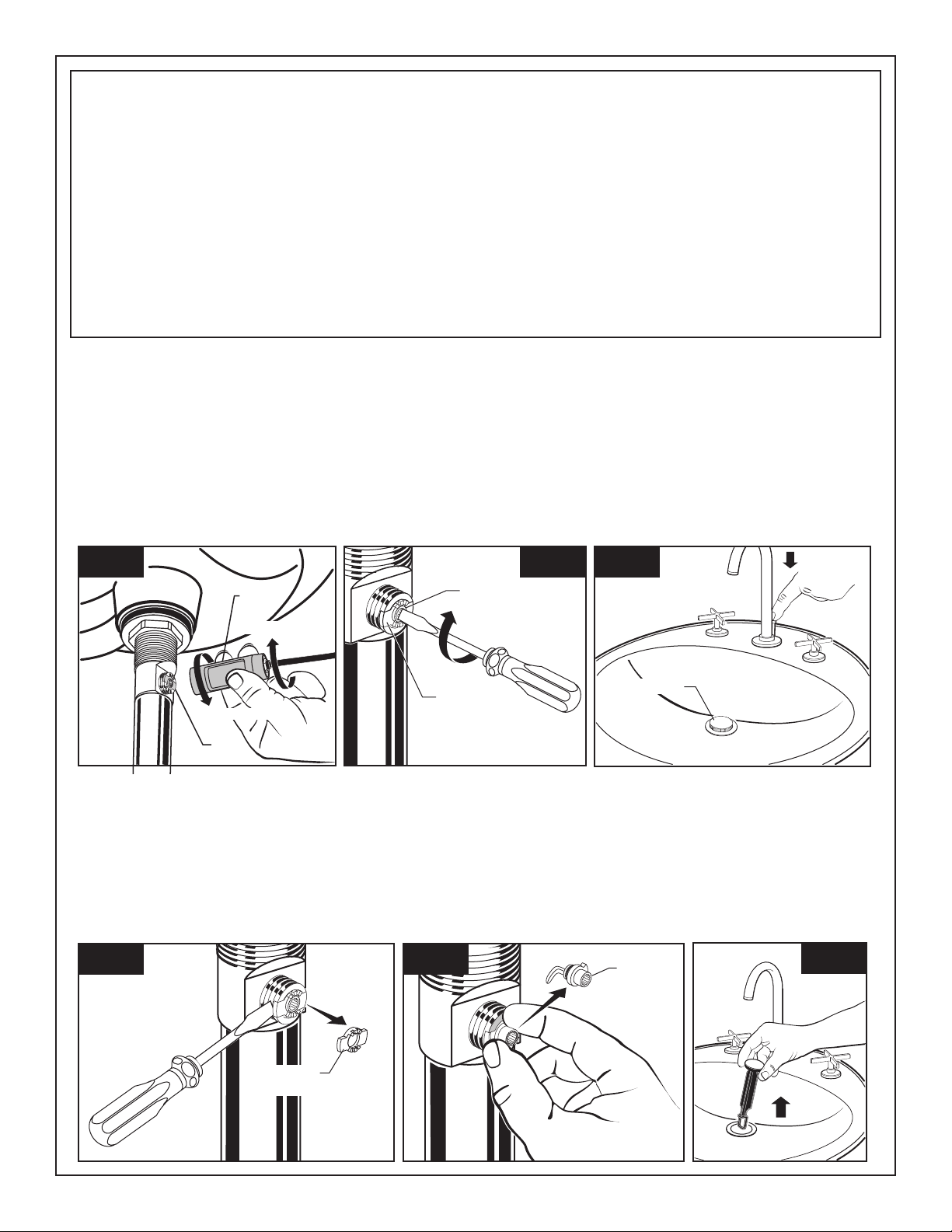

CABLE ADJUSTMENT PROCEDURE
STOPPER REMOVAL PROCEDURE
Speed Connect®Drain
Troubleshooting Guide
CAM
CAM CAP
Fig. B.Fig. A.
2
1
RE-ATTACH
DISCONNECT
Fig. C. DOWN
STOPPER

- 7 -
Fig. J. Fig. K.
INSTALL
CAM CAP
CAM
INSTALL CAM
Unlocked Mode
Locked Mode
(Vandal Proof)
DRAIN
LOOP TOWARD
REAR OF SINK
DRAIN
LOOP TOWARD
FRONT OF SINK
180˚
Fig. G.
Fig. H.
M965534 Rev. 1.9 (4/18)

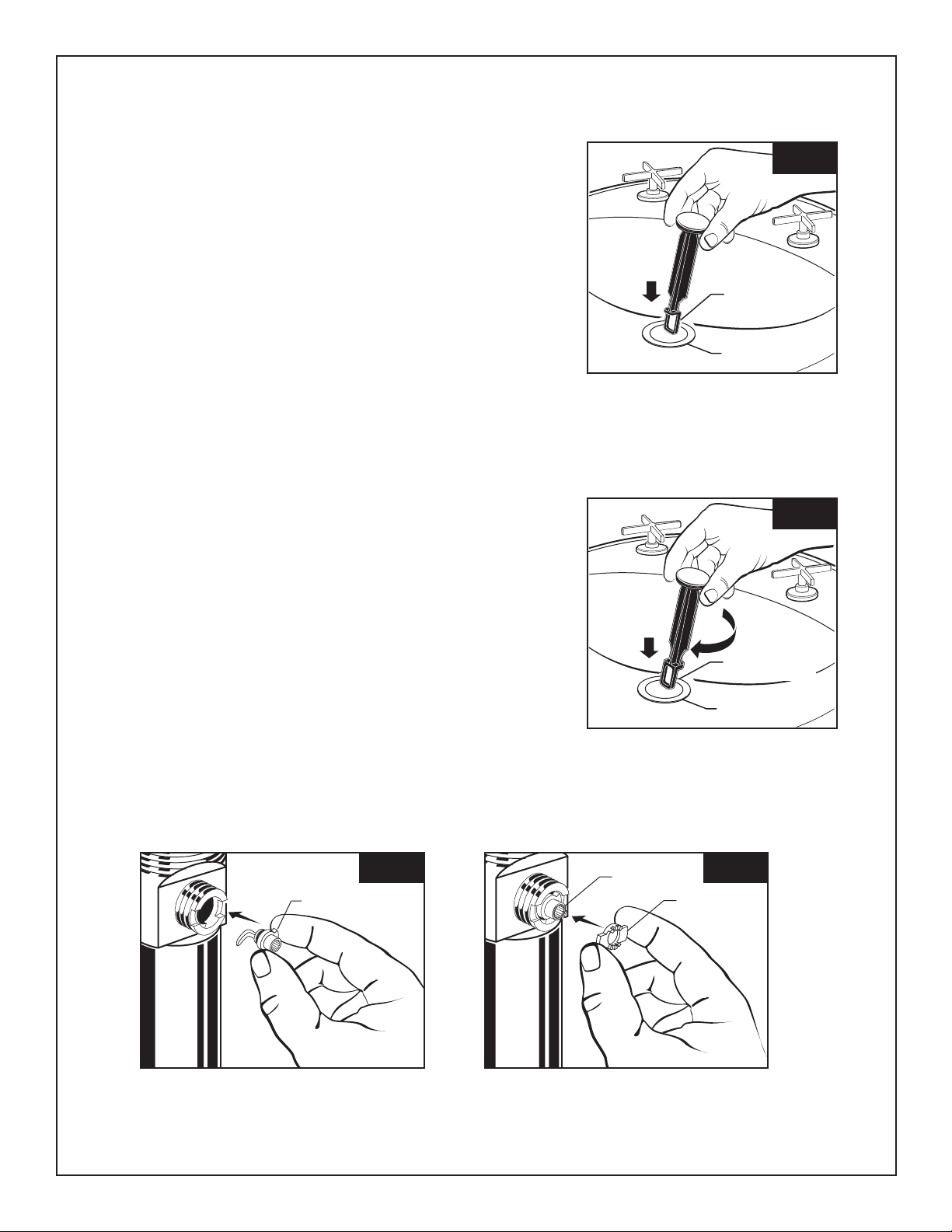

LOCKED MODE:
• Look at the Plastic Loop at the bottom of the Stopper and notice
that the Loop is on one side of the Stopper. Fig. G.
• To install the stopper in “Locked” mode, insert the Stopper into
the Drain so that the Plastic Loop is facing toward the rear of the
Sink. Rotate Stopper slightly if necessary so that the Stopper slides
all the way down. Fig. G.
• Re-install the Cam into the Drain, rotating the Cam if necessary
to make sure it is fully inserted. Fig. J.
• Re-install the Cam Cap, making sure the guide teeth are facing
outward. If the Cam Cap does not “snap” into place, then rotate
the Cam to make sure it is fully inserted. Fig. K.
• Re-attach Cable. See “CABLE ADJUSTMENT PROCEDURE” in
Troubling Shooting Guide to complete installation. Stopper will be
in “Locked” mode and not be removable.
UNLOCKED MODE:
• Look at the Plastic Loop at the bottom of the Stopper and notice
that the Loop is on one side of the Stopper. Fig. H.
• To install the stopper in “Unlocked” mode, insert the Stopper into
the Drain so that the Plastic Loop is facing toward the front of the
Sink. Rotate Stopper slightly if necessary so that the Stopper slides
all the way down. Fig. H.
• Re-install the Cam into the Drain, rotating the Cam if necessary
to make sure it is fully inserted. Fig. J.
• Re-install the Cam Cap, making sure the guide teeth are facing
outward. If the Cam Cap does not “snap” into place, then rotate
the Cam to make sure it is fully inserted. Fig. K.
• Re-attach Cable. See “CABLE ADJUSTMENT PROCEDURE” in
“Troublingshooting Guide” to complete installation. Stopper will be
in “Unlocked” mode and removable.
STOPPER INSTALLATION PROCEDURE
The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be removed)
or “Unlock” Mode (Stopper is removable).

- 8 -
M964752-YYY0A
AERATOR ASSEMBLY
M953006-0070A
TEE & HOSE ASSEMBLY
H960295.191
SPOUT
MTG. KIT
M964712-0070A
O-RING
M964751-YYY0A
LIFT KNOB
ASSEMBLY
M952430-0070A
SPEED CONNECT
CABLE ASSEMBLY
874214.XXX
DRAIN ASSEMBLY
H960136.191
1/2" CARTRIDGE
(CLOCKWISE ON)
H960742.191
1/2" SIDE VALVE
(CLOCKWISE ON)
H960741.191
1/2" SIDE VALVE
(COUNTER-CLOCKWISE ON)
H960104.191
1/2" CARTRIDGE
(COUNTER-CLOCKWISE ON)
M964630-YYY0A
CYLINDER HANDLE
ASSEMBLEY
M964629-YYY0A
CROSS HANDLE
ASSEMBLEY
M970437-YYY0A
TRI-SPOKE HANDLE
ASSEMBLEY
H960279.191
MOUNTING KIT
M965534 Rev. 1.9 (4/18)
Percy®
Widespread
Lavatory Faucets
MODEL NUMBERS
Tri-Spoke Handle
D35105870
Cross Handle
D35105840 / D35105840RB
Cylinder Handle
D35105800 / D35105800RB
Replace the “YYY” with
appropriate finish code
POLISHED CHROME 100
BRUSHED NICKEL 144
