dynarex 7089 User manual

HAND HELD
PULSE OXIMETER
INSTRUCTION
MANUAL
Reorder No. 7089

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
2

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
3
All information contained in this publication is believed to
be correct. We shall not be liable for errors contained herein
nor for incidental or consequential damages in connection
with the furnishing, performance, or use of this material.
The information this publication refers to is protected by
copyrights or patents and does not convey any license under
the patent rights of our company, nor the rights of others.We
do not assume any liability arising out of any infringements
or patents or other rights of third parties.
Copyright © 2013. All rights reserved.
Contents of this material are subject to change without
prior notice.
r0

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
4
Contents
1 Introduction..................................................................................... 6
1.1 Brief Introduction .......................................................... 6
1.2 Safety Information ........................................................ 6
1.3 Equipment Symbols ....................................................11
1.4 Equipment Classication .......................................... 12
1.5 Package Contents ........................................................ 12
2 General Descriptions ................................................................. 13
2.1 Front Panel ................................................................... 13
2.2 Rear Panel ..................................................................... 15
2.3 Product Features ........................................................ 17
2.4 Intended Use ............................................................... 17
3 Getting Started ............................................................................ 18
3.1 Unpacking and Checking......................................... 18
3.2 Environmental Requirements................................. 18

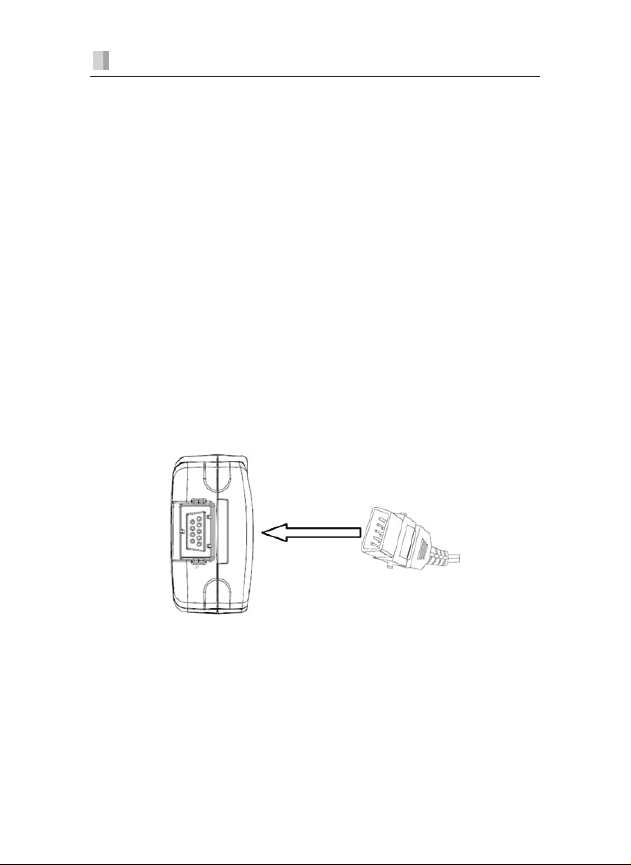

3.3 Connect the Sensor.................................................... 19
3.4 Starting or Shutting O the Oximeter................. 20
4 Setting ID, Date and Time ........................................................ 20
4.1 Date & Time Setting ................................................... 21
4.2 ID Number Setting...................................................... 22
5 Take a Measurement ................................................................. 22
5.1 Factors That May Aect The Measurement ....... 23

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
5
6 History Data Reviewing ............................................................ 26
6.1 Character Denition................................................... 26
6.2 Reviewing Operation................................................. 26
7 Alarm Setting ............................................................................... 27
7.1 Alarm Priority................................................................ 27
7.2 Character Denition................................................... 28
7.3 SpO2Alarm Setting ........................................... 28
7.4 PR Alarm Setting ......................................................... 29
7.5 Alarm on/o.................................................................. 29
7.6 Alarm Activation.......................................................... 30
8 Beep on/o ................................................................................... 31
9 Maintain and Cleaning ..............................................................32
9.1 Safety Checks ............................................................... 32
9.2 Calibration and Verication .................................... 35
9.3 Trouble Shooting ........................................................ 36
9.4 Warranty .........................................................................37
APPENDIX A Specications ..................................................... 39
APPENDIX B .....................................................................................42

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
6
1 Introduction
1.1 Brief Introduction
Thank you for purchasing the Hand Held Pulse Oximeter. The
device is designed to measure SpO2and PR, delivering visual
and audio alarm, sensor o alarm, data storage and review
etc. Please read this manual carefully before using it.
1.2 Safety Information
Conception of Warning, Precaution and Notice
The Warning, Precaution and Notice in this document means:
ØWarning - Indicates a potential hazard or unsafe
practice that, if not avoided, will result in death or
serious injury.
ØCaution - Indicates a potential hazard or unsafe
practice that, if not avoided, could result in minor
personal injury or product/ property damage.
ØNotice - Provides application tips or other useful
information to ensure that you get the most from
your product.
WARNINGS
• Before putting the system into operation, verify that the
equipment, connecting cables and accessories are in
correct working order and operating condition.
• To avoid explosion hazard, do not use the Oximeter in
the presence of ammable anesthetics, vapors or liquids.
• Do not open the equipment housings; electric shock

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
7
hazard may exist. All servicing and future upgrades must
be carried out by trained personnel and authorized by
our company only.
• The Pulse Oximeter is specied for use by medical
professionals only.
• Prolonged use of the probe/sensor or the patient’s condition
may require changing the sensor site periodically. Change
the sensor site and check skin integrity, circulatory status,
and correct alignment at least every 4 hours. Prolonged use
may cause blisters, skin deterioration, and discomfort.
• When connecting this Oximeter to any instrument,
verify proper operation before clinical use. Refer to
the instrument’s user manual for full instructions. The
equipment connected to the Pulse Oximeter’s data
interface must be certied according to the respective
IEC standards, i.e., IEC950 for data processing equipment
or IEC 601-1 for medical electrical equipment. All
combinations of equipment must be in compliance with
IEC601-1-1 systems requirements.
• Sensor malfunction may cause inaccurate data, possibly
resulting in patient injury or death, so pay close
attention to the sensor and inspect it often.
• The physiological data and alarm messages displayed
on the equipment are for reference only and cannot be
directly used for diagnostic interpretation.
• Do not rely exclusively on the audible alarm system
for patient monitoring. Adjustment of alarm volume
to o may result in a hazard to the patient. Remember
that alarm settings should be customized according

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
8
to dierent patient situations and always keeping the
patient under close surveillance is the most reliable way
for safe patient monitoring.
• Worn-out data cables may also cause inaccurate data, so
if the data is used as a reference to treat a patient, pay
special attention to the data cable and check it more
frequently.
• When using the equipment with electrosurgical units
(ESU), make sure the patient is safe.
• Do not come into contact with the patient during
debrillation. Otherwise serious injury or death could
result.
• Single-use accessories should never be reused. To avoid
inadvertent disconnection, route all cables in a way to
prevent a stumbling hazard. Wrap and secure excess
cabling to avoid risk of entanglement or strangulation
by patients or personnel.
CAUTIONS
• Autoclaving, ethylene oxide sterilizing, or immersing the
sensors in liquid may cause inaccurate readings.
• To ensure patient safety, use only parts specied in this
manual.
• The operator must be thoroughly familiar with the
information in this manual before using the device.
• Magnetic and electrical elds are capable of interfering
with the proper performance of the equipment. For this
reason make sure that all external devices operated in
the vicinity of the equipment comply with the relevant

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
9
EMC requirements. Mobile phones, X-ray equipment or
MRI devices are a possible source of interference as they
may emit higher levels of electromagnetic radiation.
• Unplug the sensor from the Oximeter before cleaning or
disinfecting it. If liquid is accidentally spilled on the unit,
clean and dry thoroughly before reuse.
• Do not try to use the SpO2and NIBP measurement on
the same arm at the same time. This could potentially
aect measurement accuracy.
• At the end of its service life, the equipment must
be disposed of in compliance with the guidelines
regulating the disposal of such products. If you have any
questions concerning disposal of the equipment, please
contact your distributor.
• Always install or carry the equipment properly to avoid
damage caused by drop, impact, strong vibration or
other mechanical force.
NOTES
• Put the equipment in a location where you can easily see
the screen and access the operating controls.
• Keep this manual in the vicinity of the equipment so that
it can be obtained conveniently when needed.
• The software was developed in compliance with
IEC60601-1-4. The possibility of hazards arising from
software errors is minimized.
• SpO2measurements may be inuenced by high ambient
light, especially sunlight. Shield the sensor area if necessary.

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
10
• Dyes introduced into the bloodstream, such as
methylene blue, indocyanine green, indigo carmine,
and uorescein, may inuence the accuracy of the SpO2
reading.
• Any condition that restricts blood ow, such as use of
a blood pressure cu or extremes in systemic vascular
resistance, may cause a failure to determine accurate
pulse rate and SpO2readings.
• Remove ngernail polish or articial ngernails before
applying SpO2sensors. Fingernail polish or articial
ngernails may cause inaccurate SpO2readings.
• Optical cross-talk can occur when two or more sensors are
located in adjoining areas. It can be eliminated by covering
each site with opaque material. Optical cross-talk may
adversely aect the accuracy of the SpO2readings.
• Obstructions or dirt on the sensor’s red light or detector
may cause a sensor failure. Make sure there are no
obstructions and the sensor is clean.
• For routine equipment maintenance, please refer to
the service procedures at the associated section as
indicated in the manual.
• As to the other concerns for attention, please carefully
look through the specic chapter in enclosed
instructions.
• This manual describes all features and options. This
model may not have all accessories mentioned in this
manual.
• Federal Law restricts this device to sale by or on the
order of a physician.

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
11
Symbols Denitions
Attention! Refer to the relevant
information. Read operator’s manual
carefully before using the Oximeter.
:Type BF applied part
Production date
Manufacturer’s address
Low power indicator
Serial Number
1.3 Equipment Symbols

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
12
1.4 Equipment Classication
Classication according to IEC-60601
According to the type
of protection against
electrical shock
Internal electrical power
source equipment
According to the degree
of protection against
electrical shock
Type B equipment
According to the degree of
protection against harmful
ingress of water
Ordinary equipment
(enclosed equipment
without protection against
ingress of water)
According to the methods
of sterilization or
disinfection
Non-sterilizable:
Use of liquid surface
disinfectants only.
According to the
mode of operation continuous operation
Equipment not suitable for use in the
presence of a ammable anesthetic mixture,
air or with oxygen or nitrous oxide.
1.5 Package Contents
1. Pulse Oximeter manual
2. Sensor manual
3. Finger Sensor w/cable
4. USB cable
5. Software Disk

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
13
2 General Descriptions
The Hand Held Pulse Oximeter has 8-segment digital LED for
displaying data. It can display the SpO2and pulse rate value,
time & date, ID number, pulse bar as well as battery status
etc.
2.1 Front Panel
Please refer to Fig. 1. The display in Fig.1 is a normal screen.
Instruction of Fig. 1:
1. SpO2: SpO2value
2. PR: Pulse rate
Fig. 1 Front panel

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
14
3. Low power indicator. When the power is lower
than 2.4V, the lamp indicated will be lighted, and the
Oximeter will power o automatically when the power
is lower than 2.3V.
4. Alarm Indicator: When technical alarm or physiolog-
ical alarm occurs, the lamp indicated will turn red.
5. Power button
6. Navigation buttons: you can select and set the dierent
parameters. These three buttons below are also used as
shortcut buttons:
a) Press the up button, the unit will display the ID number.
b) Press the right or left button, the unit will display the
Error Code.
7. Menu button: You can return to the measurement
screen or switch the main menu item by this button.
8. Reserved function.
9. Beep o/on Indicator: When beep is o, the lamp
indicated by it is on.
10. Alarm light: When there is an alarm, the associated
lamp will be lighted.
11. Pulse bar: The pulse bar is in proportion to the
pulse volume.
Note: This manual describes all features and options.
However equipment may not have all accessories.

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
15
Rear panel introduction:
1. Battery compartment – Uses 2 AA-size alkaline batteries
(not included)
2. Fixing hole
3. Fixing screw
4. Battery cover
2.2 Rear Panel
Fig. 2 Rear panel

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
16
Battery Installation (Batteries Not Included):
1) Open the battery cover: Rotate the xing screw slightly
in the rear panel to the up position which is marked
with “ “ and then open the cover.
2) Install 2 batteries as indicated by the polarity sign.
Note: Be sure to insert the batteries in the correct
polarity, as indicated by polarity markings (+ and -)
inside the battery cover.
3) Close battery cover: Close the battery cover and rotate
the screw to the position, and the batteries are
locked.
Make sure that the polarity of the batteries is
correct, otherwise the unit cannot operate normally.
Battery Life And Replacement
When the low-power indication lamp is lighted, please
replace the batteries with new ones as needed.
t Always turn the unit o before replacing the batteries.
t Dispose of the used batteries according to the applicable
local regulations.
Warnings!
If battery contents should get into your eyes, immediately
rinse with plenty of clean water. Consult a doctor immediately.
Cautions!
t Do not use batteries not specied for this unit.

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
17
t Do not insert the batteries with the polarities in the
wrong direction.
t Do not dispose of batteries in re.
t If battery contents should get on your skin or clothing,
immediately rinse with plenty of clean water.
t Remove the batteries from this unit when you are not
going to use it for a long period of time (approximately
three months or more).
t Do not use batteries of dierent types together.
t Do not use new and used batteries together.
2.3 Product Features
t Rubber grip design oers special protection.
t Compact, light-weight design for simple, one-hand operation.
t High brightness LED displays SpO2, pulse rate and pulse
bar.
t Up to 99 patients’ ID and 72-hour record storage.
t Visual & audio alarm, low battery alarm.
t Data transfer to PC for storage or printing.
t Convenient 2 AA-size alkaline batteries (not included).
2.4 Intended Use
The Hand Held Pulse Oximeter is intended for continuous
monitoring, spot-checking of functional pulse oxygen
saturation (%SpO2) and pulse rate (PR) of single adults,
pediatric patients in hospitals and home care.

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
18
3. Getting Started
3.1 Unpacking and Checking
Before unpacking, examine the packing case carefully for
damage. If any damage is detected, contact your distributor.
Open the package and remove the equipment and
accessories carefully. Check all materials as per the packing
list and check for any mechanical damage.
NOTE
Save the packing case and packaging material as they can be
used if the equipment must be reshipped.
WARNINGS
• Keep the packing material out of children’s reach.
Disposal of the packaging material should observe the
applicable waste control regulations.
• Before use, please verify whether the packages,
especially the package is intact. In case of any damage,
do not apply the Pulse Oximeter to the patient.
3.2 Environmental Requirements
The operating environment of the equipment must meet the
requirements specied in this manual.
When the equipment is moved from one place to another,
condensation may occur as a result of temperature or
humidity dierence. In this case, never start the system
before the condensation disappears.

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
19
Warning: Make sure that the operating environment of the
equipment meets the specic requirements. The equipment
may not meet the specications dened in this manual and
unexpected consequences, e.g. may result in damage to the
equipment
3.3 Connect The Sensor
1. Before use, check the Pulse Oximeter for mechanical damage.
2. Install the alkaline batteries and ensure that the
batteries have sucient power.
3. Plug the SpO2extension cable in the multifunctioning
connector on top of the Oximeter, as shown in Fig. 3
Ensure that the sensor is rmly plugged in.
Note: The connector is also applied to upload data to Med-
View software for reviewing. Detailed information is referred
to MedView software operator’s manual.
Fig. 3

Oximeter SerieSOximeter SerieS PULSE OXIMETER INSTRUCTION MANUAL
20
3.4 Starting or Shutting O the Oximeter
To start the Pulse Oximeter:
1. Press and hold the Power button for about 3 seconds.
The LED and alarm lamp ashes, and then goes out.
The system gives a beep and displays the startup
screen. The startup screen displays the version number
of software.
2. The startup screen disappears and normal screen
appears.
To shut o the Pulse Oximeter:
1. Conrm that the patient measurement is nished.
2. Disconnect the SpO2extension cable from the
Pulse Oximeter.
3. Press and hold the Power button for 4 seconds.
WARNING
Do not use the Pulse Oximeter if you suspect it is not working
properly, or if it is mechanically damaged. Contact your distrib-
utor immediately.
4 Setting ID, Date and Time
Always set the date and time before using the unit for the
rst time. Set dierent ID numbers for dierent users.
Check and make sure the date and time are correct
