E-XTEQ DS One User manual

INTERACTIVE NAVIGATION
E-XTEQ DS ONE
USER MANUAL
MANUAL / Reference : MAN_DSONE_EXTEQ_EN_V1.0
E-XTEQ provides International engineering / OEM’s worldwide connections / High capacity production.
HIGH-TECH INDUSTRIES: RESEARCH & DEVELOPMENT, ASSEMBLY LINES, WORKSHOPS
E-XTEQ USA T.: [phone] lE-XTEQ EUROPE T.: [phone] lE-XTEQ.COM

2/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Introduction ....................................................................................................... 3
Safety Guidelines............................................................................................... 4
Maintenance and Storage ................................................................................... 4
Before Use ........................................................................................................... 4
Usage Precautions............................................................................................... 5
Disassembly/Damage/Removal.......................................................................... 5
Cleaning the Product .......................................................................................... 5
Getting Started ................................................................................................. 6
Safety Reminders................................................................................................. 6
Appearance and Dimensions.............................................................................. 6
Presentation......................................................................................................... 7
Job Storage ......................................................................................................... 7
Accessories .......................................................................................................... 8
Initial Setup ........................................................................................................ 9
Power Cable Connection and Power On............................................................ 9
Battery Cable Clamps Connection..................................................................... 9
Optimus ............................................................................................................. 10
Optimus Installation ..................................................................................... 10
Using Optimus...............................................................................................12
Update ................................................................................................................14
Dealer Id. N° (Dealer Code/BAC)....................................................................16
Settings...............................................................................................................17
Preferences .........................................................................................................17
Wi-Fi Connection............................................................................................... 18
Other Settings ....................................................................................................19
Diagnostic.......................................................................................................... 20
Vehicle Selection from VIN Scan....................................................................... 20
Manual Selection of Battery.............................................................................. 21
Start Diagnostic ................................................................................................. 21
Results................................................................................................................ 22
Result Storage ........................................................................................... 23
Support Information.................................................................................. 24
Warranty.................................................................................................... 26
Table of Contents
E-XTEQ DS ONE USER MANUAL
REVISION OF THE MANUAL
Due to software updates, your experience of the software interface (including but not limited to software features, user interfaces, and
interaction experiences) may differ from the interface presented in this manual. The software interface is subject to change.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty
EDITION / REVISION REFERENCE DATE UPDATES PARTS
First edition MAN_DSONE_STLA_EN_V1.0 March 2023 -

3/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Introduction
ABOUT ////////
E-XTEQ is a battery diagnostic tool and equipment manufacturer with a broad spectrum
of knowledge and understanding of battery technology for Industrial, OEM and
Aftermarket Maintenance including EV/HEV applications.
Our mission is to be a passionate global leader of innovative measurement solutions by
providing premium testing equipment and unsurpassed services to our valued customers
and partners.
The DS One is a handheld tester, providing a customizable solution to diagnose 12V lead
batteries. The DS One is able to provide the State of charge (SOC) and State of health
(SOH) of a 12V lead battery whether on-board or outside the vehicle.
Its ergonomics and color interface, available in 27 languages, have been specially
designed for the after-market environment, and will allow the user to master the
equipment without any special training.
The optional integration of customers’ database simplies its use and the monitoring of
the procedures.
All the tests and results are stored in the device to guarantee complete traceability of job
history.
Different measuring devices, integrated or available as accessories (connected through
dedicated inputs), enable the DS One to provide additional information, necessary for
the vehicle diagnostic.
Several options, like docking station and thermal printer will improve its efciency.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

4/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Safety Guidelines 1/2
MAINTENANCE AND STORAGE ////////
BEFORE USE ////////
Please read the safety guidelines carefully.
This section indicates the areas that need to be protected in order to prevent harm
to people who use this equipment, damage to property and to enable proper use
of this product.
Keep this product dry. Do not expose the DS ONE to rain, snow or other moisture.
Discontinue use and contact technical support if an overheat event has occurred,
or if corrosion or deterioration has been identied in the cables or other parts of the
product.
Extreme caution: Keep liquids and conductive tools away from the DS ONE while
operating.
When operating the equipment make sure the surface is dry and clean to minimize any
risks.
Keep the exterior clean and free of dust.
Do not disassemble or modify the main unit
as it may cause an electrical shortage or re.
To reduce the risk of electrical shortage, unplug the
AC power plug before cleaning and maintenance.
The battery contains chemicals that may generate
explosive gases. Before handling the battery/module,
remove all metal accessories such as rings, bracelets
and necklaces. Short circuit at battery terminals may
cause burns. Do not place batteries near ames or
other heat sources
The battery uid is highly corrosive. If the battery uid
gets on your skin or clothes, immediately wash it with
soap and water. If electrolyte gets in your eyes, immediately ush
with cold water for at least 10 minutes and seek
medical attention.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

5/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Safety Guidelines 2/2
SAFETY REMINDERS ////////
DISASSEMBLY/DAMAGE/REMOVAL ////////
CLEANING THE PRODUCT ////////
Do not use extension cords as there is a risk of re and electrical shortage.
If use is necessary, check that the extension cord has the following:
1. Identical plug, cable size and the same electrical wiring as the DS ONE.
2. Make sure the equipment is securely connected before use.
When unplugging the cord from the outlet, hold the frame of the plug to avoid damaging
the plug or power cord. Pulling the cord may cause the cable plug to break. Replace
power cord immediately if damaged.
If the outlet shape does not t the plug, please contact the E-XTEQ service department.
Phone: [phone]
E-mail: [e-mail]
Do not disassemble the product or damage or remove the stickers or labels on the
product. If the product’s case has been disassembled or damaged by the user, all
warranties will be void. Always contact a designated E-XTEQ Service Center for repairs.
Do not insert metallic objects into the unit to prevent electric shock, re, short
circuit, possible leaking of harmful substances and personal injuries. Do not store
the product in a wet or humid place. Always store the product in a dry place.
It is recommended that you clean the product by wiping it gently using a soft cloth.
Do not use water, chemical substances or detergents. They may cause discoloration or
corrosion to the product’s exterior and may cause a re or electric shock.
INFORMATION INTERNAL BATTERY ////////
Product Name: Lithium-Ion Polymer Rechargeable Battery
Model Number: HCP104060ZC
Cell Type: HCP104060
Voltage/Capacity: 3,7V / 3000mAh
Recommended use: Charge with specic charger according to product specication.
Charge with CC/CV model.
When not using cell for long periods of time, remove it from the equipment and store in
a place with low humidity and low temperature. Batteries have life cycles. If cell powers
equipment a much shorter time than usual, please replace the cell with a new one.
Battery would be over-discharged by its self-discharge characteristics if the battery is not
used for a long time. In order to prevent over-discharging, the battery shall be charged
periodically to maintain between 3.7V and 3.99V/cell.
Restriction on use: Reverse charging is prohibited, for it will deteriorate the cell
performance and lead to safety issues such as heat and leakage. Stop using the cell
if abnormal heat, odor, discoloration, deformation or abnormal condition is detected
during use, charge, or storage. Do not put battery into a microwave oven, dryer, or high-
pressure container.
It is prohibited to use the battery close to re or in areas where temperatures are above
113˚F / 45˚C. Also, do not charge / discharge in such conditions.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

6/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Getting Started 1/3
Width
5.04 in / 128 mm
Depth
1.85 in / 47 mm
Height
8.07 in / 205 mm
SAFETY REMINDERS ////////
APPEARANCE AND DIMENSIONS ////////
Please review the safety guidelines in this manual before using the DS One.
When unplugging the DS One, pull on the plug itself rather than the cord to reduce the
risk of damaging the power plug or cord.
The DS One is designed for indoor use. Use outside in dry weather only.
Dimension Details: Weight:
Metrics: 205 x 128 x 47 (mm) Kilogram: 680 (g)
Imperial: 8.07 x 5.04 x 1.85 (inch) Pounds: 1.50 (lbs.)
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

7/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Getting Started 2/3
PRESENTATION ////////
IR Thermometer + Laser Pointer
Optical Code Reader
Wi-Fi Connection to the Net
Battery Status
Clamps Connection
Wi-Fi Network Connection
Error Mode Indicator
JOB STORAGE ////////
The DS One has expandable storage through an SD card located on the right side of the
tool inside the silicone protective shell.
The tool comes with a 16 GB removable SD card.
Acceptable sizes for replacements are 4GB, 8GB and 16GB formatted with FAT32 le
system.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty
Star t Test
Cancel, Previous Step
OK, Next Step
Navigating Arrows
Power On/Off
USB Connection / charge port
RJ45 Connection

8/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Getting Started 3/3
ACCESSORIES ////////
The DS One is delivered with:
Durable Plastic Case
Power Supply
Switching adaptor USB 5V with 3 interchangeable heads (US-EU-UK), and a 2.62ft /
80cm USB charger cable USBA to USBB is supplied with the DS One.
Cable with Clamp
Small Kelvin Clamp Assembly with 4.59 ft/1.4m Cables.
The cable will be used to connect the battery to the DS One.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

9/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Initial Setup 1/8
POWER CABLE CONNECTION AND POWER ON ////////
Connect the USB B side
power cable to the DS
One.
DS One is equipped with a Lithium-Ion Polymer Rechargeable Battery. To recharge
its internal Li-Po battery, the DS One is equipped with a transformer (110-220V) and
worldwide power adapters.
Voltage - 100 - 240 V
Frequency - 50/60 Hz
Consumption - 0,3A Maximum
Before using the DS One for the rst time, it is recommended to fully charge the
internal battery. When the DS One is connected to a power supply, it will start
automatically.
Connect the USB A side
power cable to a USB
port.
Or use the switching
adapter by putting
the corresponding
plug adapter for your
installation.
Connect the USB socket
A to this one.
Plug into a standard
electrical socket.
When the battery is full, the logo on the DS One display will change from charging to full.
BATTERY CABLE CLAMPS CONNECTION ////////
Install the clamps on the side of the remote.
When the tester is rst connected to a battery, it operates as a voltmeter until the action
is validated.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

10/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Initial Setup 2/8
OPTIMUS ////////
Optimus installation
All diagnostic data (jobs) performed by DS One are stored and can also be uploaded into
a dedicated program: OPTIMUS.
When a new software update is released, OPTIMUS will automatically propose to update
the DS One when it is connected via its dedicated USB cable.
To download OPTIMUS, open a web page on the computer and go to the web site:
http://e-xteq.com.
Click on the DOWNLOAD tab.
Then click on "Download OPTIMUS".
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

11/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Initial Setup 3/8
OPTIMUS ////////
Once the download is nished, you can save and open the executable le
«OptimusSetup.exe ».
The rst time OPTIMUS is used an account must be created. Click on “Don’t have an account
yet?”
Fill in all the empty elds, click on “I’m not a robot” then “Register”.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

12/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Initial Setup 4/8
OPTIMUS ////////
An internet page will open with your settings.
Meanwhile, you will receive an e-mail to conrm your address.
It’s very important to conrm your e-mail address by clicking on the link received (If
the link isn’t clickable from the e-mail body, copy and paste in a web browser).
The window below will verify that your email has been conrmed.
USING OPTIMUS ////////
Depending on the conguration of your computer, installation may be necessary to
create an authorization to ARGOS IP Address: 35.204.186.65.
You can now use OPTIMUS, using your credentials.
USING OPTIMUS
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

13/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Initial Setup 5/8
USING OPTIMUS ////////
You will then have access to your dashboard.
When connecting your tool, it will appear in « Connected Devices ». All the recorded jobs les
will be transferred automatically.
Clicking on the image of the product will give you access to its own dashboard.
If a new software update is available, this update will be proposed. If the latest version is
already installed, “Your device is up to date” will be displayed.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

14/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Initial Setup 6/8
UPDATE ////////
Job history can be found under the “Jobs” tab. They can be ltered and exported into a CSV le
USING OPTIMUS ////////
“Apply lter” will show a list of jobs. Click on the job to see the detail. It is possible to generate
a PDF le.
When leaving Optimus, please click the eject button to be able to get out of the USB connect
mode.
OPTIMUS SOFTWARE
DS One is delivered with a Software Installation Guide (OPTIMUS).
Optimus connection is mandatory for product updates and is useful for data (history) storage.
To install OPTIMUS on your PC, you can follow the instructions on the Software Installation
Guide or the detailed instructions in the “Optimus installation” section of this manual.
Your recently delivered device may need an initial update.
REMOTE UPDATE
To update the remote, please connect to Optimus.
When connecting the DS One to Optimus (for job download) a new software update will be
proposed if available.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

15/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Initial Setup 7/8
UPDATE ////////
The following message will then appear:
On OPTIMUS software:
The device will appear on your
dashboard. You can update by
clicking on “Update Device”.
Click on the image of the
product to view the dashboard.
On the device dashboard you
can also update by clicking on
(Update to DSA**-**-**).
The update will begin
and the yellow bar will
appear signaling to not
disconnect the device during
this step.
When the update is nished,
please click the eject button to
be able to get out of the USB
connecting mode.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

16/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Initial Setup 8/8
DEALER ID CODE (BUSINESS ASSOCIATE CODE) ////////
Once the DS One has been updated, follow the steps below to enter the dealer identication
code into the tool.
Dealer ID code (BAC) is not mandatory.
Dealer Identication Number will be recorded, no need to re-enter after
initial setup.
1. Click on the Settings Icon.
2. Click on the Information Icon.
3. Click on the BAC Icon.
4. Input your Identication Number and
Press Enter(check mark), then Back(left
arrow) to Save.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty

17/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Settings 1/3
PREFERENCES ////////
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty
Personalize the user experience
From the Main Menu, the “Settings
icon allows the user to personalize the
user experience.
Languages
From the Settings Menu, choose
“Language” and then select your
preferred language.
Units
Units can be set up on DS ONE. The
user has the option to select between
Celsius and Fahrenheit.
Auto Sleep
DS ONE is equipped with energy saver
mode to reduce power consumption
automatically if the device is not used
for a certain period of time. The device
will power off automatically after 5
minutes if device is not used. It can be
disabled or can be set from 1 to 60
minutes.
Date and Time
Date and Time will be set automatically
during and update, however, there is a
manual setting of the date and time.
Wi-Fi Settings
In order for the DS One to save the
diagnostics tests performed on the
ARGOS dedicated server without the
use of Optimus, it must be connected
to an internal network.
Tool Box
“Tool Box” has a Voltmeter and a
thermal IR temperature reader.
Sounds and Haptics
The user has the option to turn the
sound and haptics on or off in the
settings menu.

18/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Settings 2/3

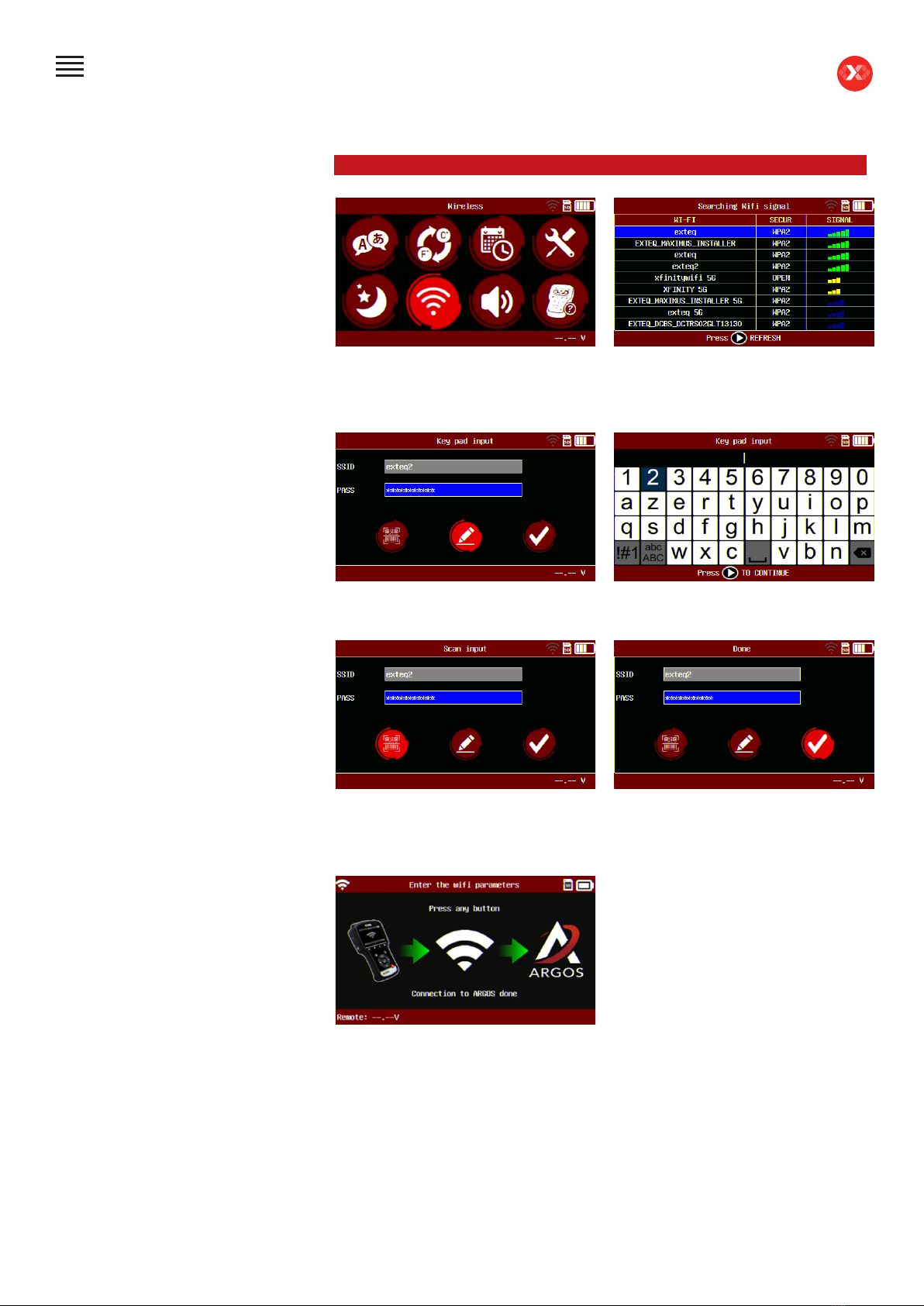

WI-FI CONNECTION ////////
The connection to ARGOS will allow the
transfer of jobs without a wired connection
to a PC.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty
Select the “network connection” icon. Choose your Wi-Fi connection.
Select “Edit” icon for a manual selection. Enter the password using the navigating
arrow icons.
Or select “barcode scan” to scan the
password.
Select ✓icon to connect to ARGOS (Cloud
Management).

19/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Settings 3/3
OTHER SETTINGS ////////
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty
Information
The Information Menu will give access
to different extra settings and data
about the tool.
About
“About” icon gives information
regarding the Remote including serial
number, software version, and more.
Update
“Update” icon gives information about
how to update the device. Updating
application can be downloaded at
www.e-xteq.com
BAC
Select “BAC” (Dealer Identication
Number) Icon to input BAC Code
manually or by using the Barcode Scan.
Press Enter, then Back to Save (see also
p.13/45).
Support
“Support” icon gives information
about how to contact technical support
for assistance.

20/27
E-XTEQ DS ONE User Manual / Ref. MAN_DSONE_EXTEQ_EN_V1.0
Diagnostic 1/4
DIAGNOSTICS ////////
The Main Menu is the home screen of the tool. It gives access to all the available features of the
DS One. Internal Resistance test (CCA Test) is provided by the DS One to determine the SOC
and the SOH based on the battery voltage (V) and the internal resistance (mOhm).
Press any key to highlight the “Diagnostic” icon.
Press the ✓button on the keypad to go to the next screen.
VEHICLE SELECTION FROM VIN ////////
Select “VIN” to access the different ways to
enter the VIN.
Select “Scan Input” to scan the VIN of the
vehicle.
Table of Content
Introduction
Safety Guidelines
Maintenance and Storage
Before Use
Usage Precautions
Disassembly/Damage/Removal
Cleaning the Product
Internal Information Battery
Getting Started
Safety Reminders
Appearance and Dimensions
Presentation
Job Storage
Accessories
Initial Setup
Power Cable Connection and Power On
Battery Cable Clamps Connection
Optimus
- Optimus Installation
- Using Optimus
Update
Dealer Id. N° (Dealer Code/BAC)
Settings
Preferences
Wi-Fi Connection
Other Settings
Diagnostic
Vehicle Selection from VIN Scan
Manual Selection of Battery
Start Diagnostic
Results
Results Storage
Support Information
Warranty
Press ✓ to start the process
Select “Key Pad Input” to manually input the
VIN of the vehicle.
Use key pad to type in VIN.
