Ecleris PROCAM HD 3D User manual

USER MANUAL
PROCAM HD 3D
3D SPLITTER
ABOUT THIS MANUAL
Version: V.2019.04.01
Year: 2019
Language: English
All the rights to this manual are reserved, especially reproduction, publication and translation rights. No portion of this manual may be
reproduced by no means (photocopy, microfilm or other methods) without previous written authorization from ECLERIS. Neither can it
be reproduced, multiplied or published through any electronic data processing form.
The information contained in this manual may be modified or broaden without previous notification, without it representing any
responsibility to ECLERIS.
ECLERIS USA.
11801 NW 100th Rd
Suite 17
Medley, FL 33178, U.S.A.
Phone: [phone]
CMC Medical Devices & Drugs S.L.
C/ Horacio Lengo Nº18, CP29006,
Málaga, Spain
Ph. [phone]
Email: [email protected]

USER MANUAL –PROCAM HD 3D
Page 2of 15
INMANUUIN136 Rev.2019.04.01 / ENG
CONTENT
1. SYMBOLS................................................................................................................................3
2. SAFETY INFORMATION.........................................................................................................3
2.1 WARNINGS..........................................................................................................................3
3. INTRODUCTION......................................................................................................................4
3.1 INTENDED USE...................................................................................................................5
3.2 INTENDED USER ................................................................................................................5
3.3 COMPONENTS....................................................................................................................5
3.3.1 MAIN UNIT –FRONT PANEL .......................................................................................6
3.3.2 MAIN UNIT –REAR PANEL..........................................................................................6
3.3.3 3D SPLITTER –SIDE CONTROLS...............................................................................6
4. INSTALLATION AND SET UP .................................................................................................7
5. FUNCTIONS............................................................................................................................9
5.1 WINDOWS FUNCTION......................................................................................................10
5.2 BRIGHTNESS / GAIN FUNCTION .....................................................................................10
5.3 WHITE BALANCE FUNCTION...........................................................................................11
6. MAINTENANCE.....................................................................................................................11
6.1 CLEANING.........................................................................................................................11
6.2 FUSE REPLACEMENT......................................................................................................12
7. TECHNICAL SPECIFICATIONS............................................................................................12
8. TROUBLESHOOTING...........................................................................................................13
9. TECHNICAL SERVICE..........................................................................................................15
10. WARRANTY.......................................................................................................................15

USER MANUAL –PROCAM HD 3D
Page 3of 15
INMANUUIN136 Rev.2019.04.01 / ENG
1. SYMBOLS
Read the related documents.
Manufacturer information
(Name, Address).
Serial Number.
Do not discard with the
household waste.
Warning.
CE mark
Alternate Current.
EU Authorized
Representative
Keep dry / Protect from water.
Ground protection.
This side up.
Equipotentiality.
Environment transport conditions.
Date of Manufacture
(MM/YYYY).
Pressure limits.
Product Code.
Humidity limits.
Fragile.
Windows Function.
Fuse.
Brightness / Gain Function.
Camera connection.
White Balance Function.
2. SAFETY INFORMATION
2.1 WARNINGS
It is important to read this manual carefully before using the device.
ECLERIS will not be held responsible for damage that can occur to the equipment due to not
following the instructions or not observing the following criteria:
Keep the equipment out of children reach.
Do not install the equipment next to heat sources, such as heaters.
Install the equipment on a firm horizontal surface, in a well-ventilated area.
Do not block the ventilation grids. These vents should be located so that there is good air
circulation, leaving an area cleared of obstacles of at least 30cm.
Protect the equipment and accessories from direct sun light, dust, humidity and vibrations
or excessive banging.
Equipment not appropriate to be used near or around flammable anesthetic mixture with
air, oxygen or nitrous oxide.
The equipment does not need sterilization.
Do not put any container with liquids on top of the device.
Main power cord and PROCAM HD cables are resistant to deformations and mechanical
tensions however do not damage them and avoid violent shocks to the cables.
Do not use the equipment during electrical storms.

USER MANUAL –PROCAM HD 3D
Page 4of 15
INMANUUIN136 Rev.2019.04.01 / ENG
Unplug the equipment when it is not being used.
This equipment has to be connected to ground through a ground conductor in the power
cable. This ground connection is essential for the safe use of the equipment.
The device is provided with a connectable power cable that assures proper electrical
isolation. If it needs to be replaced, the replacement shall not be longer that the original
cable and it needs to be certified under IEC 60245-1 or IEC 60227-1.
In case of interference with other electro medical or electric equipment, we recommend
increasing the distance between 3D Splitter and the other equipment to minimize these
effects.
Do not open the equipment. Maintenance and repairs must be done by ECLERIS or an
authorized company. ECLERIS will not be responsible for the consequences of repairs or
maintenance carried out by non-authorized personal.
In case of any problem, disconnect the power cable.
The device must be used only by personnel informed of all these warnings.
This instruction manual must be kept together with the equipment for future reference. If
the equipment is sold or donated this manual must be enclosed.
Any use outside of the manufacturer specific intent use, will exclude ECLERIS of all
liability.
If by any of the following:
Inadequate use of the equipment.
Failure to use the instruction manual.
Bad maintenance and care of the equipment.
Repair or manipulation by unauthorized personnel.
…personal or material damage is produced to a third party, ECLERIS, the manufacturer and
sales agent of this equipment, will not assume any responsibility for said damage.
The device should never be discarded with the household waste. Please check local
regulations for electronic components disposal or recycling. It is the user’s responsibility
to deliver the system to the proper location for disposal or recycle of electrical and
electronic devices.
3. INTRODUCTION
The device is designed to capture the direct image of a microscope / colposcope with binocular
stereoscopic vision, these images are processed in the beam splitter where you can select
different levels of Gain / Brightness, Windows and perform White Balance.
The beam splitter has 2 removable adapters that allow you to install it in different models and
brands of microscopes / colposcopes available in the market. We recommend consulting for each
particular case informing brand and model.
In its conventional use the beam splitter is inserted between the head of the microscope and the
binocular, allowing the normal use of the binocular for a direct view with the microscope and/or
using a 3D glass which allows seeing 3D images on a 3D monitor screen.
The beam splitter connects directly to the main unit. The main unit has 3D-HD and 2D-HD video
outputs (HDMI).

USER MANUAL –PROCAM HD 3D
Page 5of 15
INMANUUIN136 Rev.2019.04.01 / ENG
3.1 INTENDED USE
The system is designed to display high definition 3D or 2D images using monitors that have HDMI
inputs compatible with 3D signals (HDMI v1.4 or later).
It is located between the optical head and the binocular to take the optical signals and generate
3D images.
The system supports working distances between 200mm and 400mm focal length. The systems
allows keeping the binocular installed in the microscope, so that you can get 3D or 2D- HD
images on the monitor, and use the binocular in a conventional way simultaneously.
The main unit can be attached to the forearm of the pantographic arm of Ecleris microscopes and
colposcopes, or on a flat surface.
3.2 INTENDED USER
Any health professional or technician who has basic knowledge on how to operate a stereoscopic
microscope.
People with a large visual impairment in one eye, or a large focus asymmetry between both eyes,
will not be able to perceive three-dimensional images.
USERS who need correction through glasses or contact lenses should use them to perceive
three-dimensional images.
USERS with phorias (orthophoria exophoria, endophoria), tropia, strabismus or any situation that
breaks the fusion of images, or generate problems to merge images may not perceive three-
dimensional images.
3.3 COMPONENTS
The system is composed by:
MAIN UNIT 3D SPLITTER + INFERIOR/SUPERIOR
ADAPTER + ADAPTORS FIXATION
SCREWS
Note: Upper and lower rings have different shapes for adapting the 3D Splitter to different brands
and models of microscopes /colposcopes.

USER MANUAL –PROCAM HD 3D
Page 6of 15
INMANUUIN136 Rev.2019.04.01 / ENG
POWER CORD OPTIONAL: EXTENSION CABLE 4m.
3.3.1 MAIN UNIT –FRONT PANEL
1. Video Input for 3D Splitter cable
2. ON/ OFF button.
3.3.2 MAIN UNIT –REAR PANEL
1. Video Output 3D-HD.
2. Video Output 2D-HD.
3. Power Input.
4. Equipotential pin

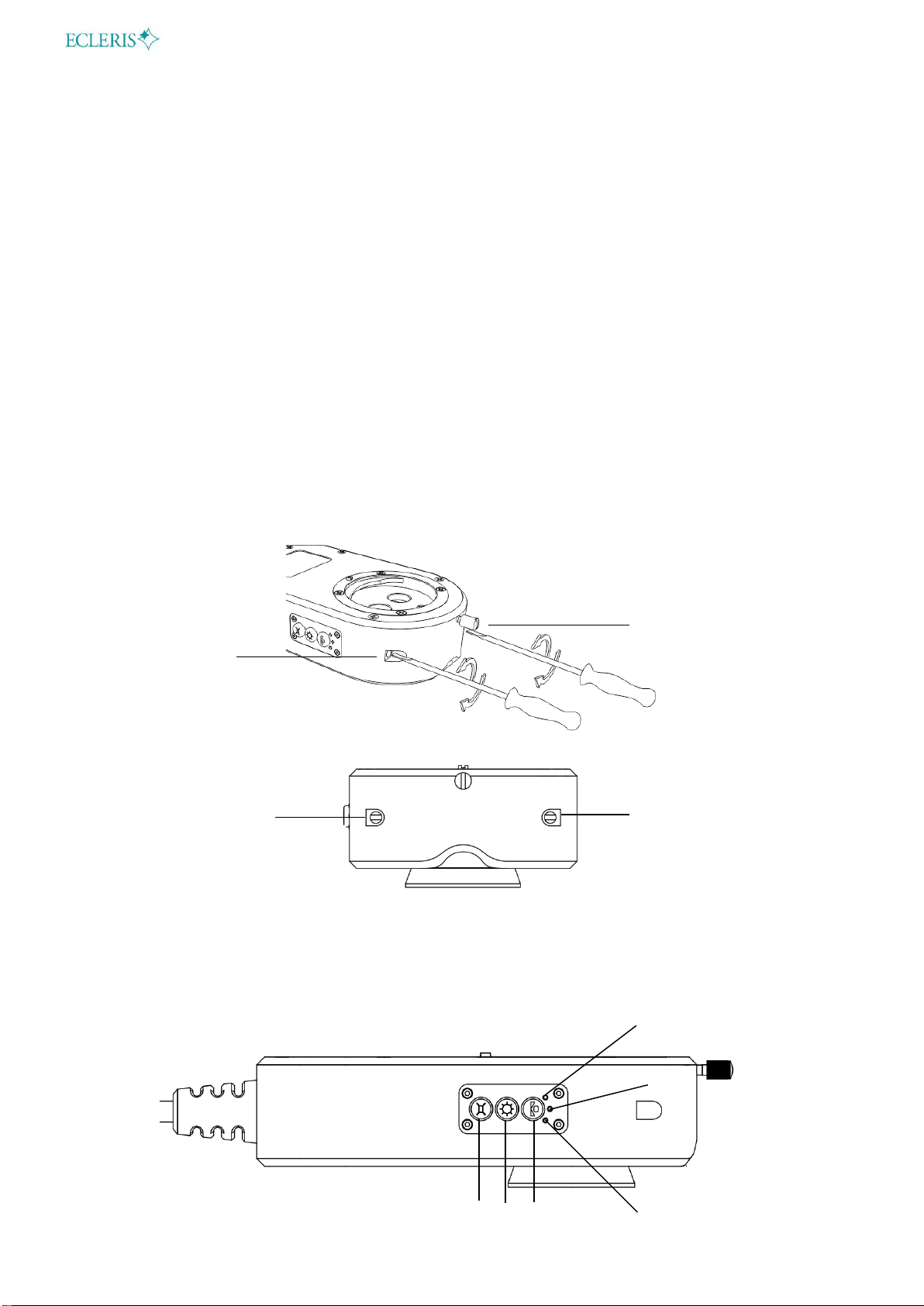

3.3.3 3D SPLITTER –SIDE CONTROLS
1. Windows Function.
2. Brightness / Gain Function.
3. White Balance.
4. Fixing screw.
1
2
1
2
3
4
1
2
3
4

USER MANUAL –PROCAM HD 3D
Page 7of 15
INMANUUIN136 Rev.2019.04.01 / ENG
4. INSTALLATION AND SET UP
The connection and revision of the equipment must be carried out by technical personnel
with knowledge of the electrical installation from where the equipment will be powered.
1) Carefully unpack the equipment.
2) If you have an ECLERIS microscope or colposcope, you can attach the 3D main unit
directly to the forearm of the scope below the ECLERIS light source hanging from it. For
doing so using an Allen key, unscrew the two screws at the bottom of the 3D main unit as
shown in the picture. Two heads of screws will emerge from the top of the 3D main unit.
These heads of screws shall be anchored to the bottom side of the light source. The base
of the light source has two holes where the head of the screws of the Ecleris 3D main unit
shall be introduced. Once the head of the anchor screws are in place, you will need to
slightly push back the 3D main unit in order to attach it completely to the light source.
Finally to ensure a strong and stable coupling, tighten the screws of the 3D main unit from
the base of it
In case you have another brand/model of microscope or colposcope or if you prefer to use
the 3D main unit as a standalone one, you can lay the unit on a flat surface. If this surface
is far away from the beam splitter and the scope, you can order an extension cable (4
meters).
3) Connect the power cord to the wall socket or to the power input on the rear side of the
Ecleris light source.
4) Connect the 3D beam splitter cable to the front panel of the 3D main unit.

USER MANUAL –PROCAM HD 3D
Page 8of 15
INMANUUIN136 Rev.2019.04.01 / ENG
5) Connect one HDMI video cable between the monitor and the main unit. Both video
signals, 2D and 3D-HD are simultaneously active.
6) Place the 3D beam splitter between the optical head and the binocular and adjust the
fixing screw.
7) Turn ON the monitor and select the active 3D function (or 2D if you prefer) and turn ON
the main unit of the splitter.
8) Perform a White Balance (if it is the first time you are using the system). You do not need
to repeat this procedure each time you turn on the device since the system stores the last
White Balance calibration performed in its memory. To perform this step, see Section
White Balance Function.

USER MANUAL –PROCAM HD 3D
Page 9of 15
INMANUUIN136 Rev.2019.04.01 / ENG
9) Carry out para-focalization. To perform a correct para-focalization, place the object to be
displayed at the appropriate focal distance under the objective lens of the microscope.
If your microscope has fine focus control, place it in the middle of its path. Place the
eyepieces in the neutral position (uncorrected) and select the largest magnification of the
microscope. Then adjust the height of the microscope and fine-tune the fine-focus. Select
decreasingly all magnifications, until the minimum magnification, verifying that all are in
focus. If not, make the necessary adjustments with the fine-focus until you reach the
optimum target. If it is necessary to adjust the focus, you should recheck it with all
magnifications. Repeat the procedure until you can focus correctly on all magnifications.
10)Once you have performed the para-focalization with the microscope through the
eyepieces, proceed to check the focusing of the image on the screen. In order to get a
three-dimensional image, the images of the right and left camera of the device are
superimposed; therefore, it is necessary to verify that the images of both cameras are
correctly focused. To do this, place your 3D glasses and cover your left eye. Look at the
image that appears on the screen and check that it is in focus. If this is not the case,
proceed with the adjustment screw located on the body of the 3D splitter, using a flat
screwdriver (for the left eye, use the left side screw). Once you have been able to focus
the image corresponding to the left eye, proceed with the right eye equally; taking care to
use the right side screw.
3D splitter front view
5. FUNCTIONS
Right focus adjustment
Left focus adjustment
Right focus adjustment
screw
Left focus adjustment screw
2
1
3
4
5
6

USER MANUAL –PROCAM HD 3D
Page 10 of 15
INMANUUIN136 Rev.2019.04.01 / ENG
1. Windows function.
2. Brightness / Gain function.
3. White Balance function.
4. Brightness level indicator.
5. White Balance function indicator.
6. Windows level indicator
5.1 WINDOWS FUNCTION
With the Windows function activated, the active portion where the video camera performs a gain
adjustment is reduced, which means that a smaller portion of the full image area on the video
monitor will be used by the video camera to make adjustments on Gain / brightness / intensity,
this impacts on the brightness of the image since only the central part of the image is taken to
compensate the level of illumination.
By selecting the appropriate Windows level the image will be displayed with the appropriate
brightness level. The different levels of Windows select different areas of interest of the total
image to adjust the most appropriate level of brightness. This greatly improves the contrast of the
image. Once you select the desired level of Windows it will remain until a new level is selected.
If the image, after adjusting the Windows level remains unchanged, the lighting levels are optimal
and there is no need to adjust the Windows, however any change of lighting will be automatically
compensated if any of the levels of Windows remains active.
The system has 4 levels of Windows:
Off: LED Indicator Off.
Level 1: LED Flashing Indicator.
Level 2: LED Indicator Flashing Fast.
Level 3: LED Indicator Constantly On.
After five seconds of selecting a level for this function, it will be stored in memory. This means
that, in case you turn the splitter off, the Windows level set in the equipment when you turn it on
again will be the last one you selected before turning the splitter off.
When the splitter is recording the set level in memory, the White Balance LED indicator (central
position) will blink.
5.2 BRIGHTNESS / GAIN FUNCTION
The Brightness / Gain function sets 3 different levels of brightness in the image, by pressing the
corresponding button you can select the brightness level most suitable to achieve an optimal
image on the screen.
The system has 3 levels of Brightness / Gain:
Desactivado: LED Indicador Apagado.
Nivel 1: LED Indicador Destellando.
Nivel 2: LED Indicador Encendido Constante.
OFF
Level 1
Level 2
Level 3
OFF
Level
1
Level
2

USER MANUAL –PROCAM HD 3D
Page 11 of 15
INMANUUIN136 Rev.2019.04.01 / ENG
After five seconds of selecting a level for this function, it will be stored in memory. This means
that, in case you turn the splitter off, the Brightness/Gain level set in the equipment when you turn
it on again will be the last one you selected before turning the splitter off.
When the splitter is recording the set level in memory, the White Balance LED indicator (central
position) will blink.
5.3 WHITE BALANCE FUNCTION
The White Balance function allows the equipment to perform an internal calibration to
compensate the differences in color temperatures of different light sources, ensuring reliable color
reproduction. Since this function adjusts the camera parameters for a particular light source, the
White Balance procedure must be performed each time the light source to be used with the
equipment is changed.
To get the White Balance, focus on a completely white and illuminated image with light intensity
at maximum power and press the White Balance button for approximately 3 seconds.
This White Balance remains stored in memory even when the camera is turned off. During the
White Balance setting, the White Balance indicator flashes to indicate that the White Balance is
being performed, then when the White Balance button is not pressed the LED indicator remains
off.
Only if the White Balance is set correctly, reliable color reproduction is guaranteed.
Perform a new White Balance if the light source is changed.
Always perform the White Balance with the light source that will be used to carry out the
procedure afterwards.
6. MAINTENANCE
6.1 CLEANING
Before cleaning the 3D HD Splitter, disconnect the power cable from the electric power
supply.
Do not sterilize nor immerse in liquid the device or any of its accessories or parts.
CLEANING OF EXTERNAL SURFACES
To clean the outer surfaces of the device only use a soft cloth dampened in mild detergent or
soap. Only use adequate cleaning products prepared for electrical equipment following the
product’s instructions.
We recommend cleaning the external surfaces once every 15 days.
Never use flammable products, especially alcohol, when the unit is hot.
While cleaning, be careful not to let water or humidity get into the equipment.
Do not use any abrasive agent.

USER MANUAL –PROCAM HD 3D
Page 12 of 15
INMANUUIN136 Rev.2019.04.01 / ENG
Wait at least 15 minutes after cleaning the device before connecting it and using it
again.
6.2 FUSE REPLACEMENT
To avoid wasting time due to unavailability it is recommended to have spare fuses:
1) Disconnect the power cord from the power supply and equipment.
2) Below the power input at the rear side of the unit, there is a small rectangular piece of
plastic where the fuses are placed. With the help of a screwdriver and performing light
pressure, remove the cover to replace the damaged fuse..
3) Remove the damaged fuses and replace them immediately, use fuses of the same
characteristics as the replaced one..
Use ONLY fuses as indicated on the rear panel of the equipment and IEC60127
certification.
4) Place the plastic part containing the fuses again.
5) Connect the power cord.
7. TECHNICAL SPECIFICATIONS
POWER SUPPLY
110 - 240 V~
Nº OF PHASES
1 (single-phase)
FREQUENCY
50 - 60 Hz
CLASS
I
MODE
Continuous
GRADE OF WATER PROTECTION
IPX0
POWER CONSUMPTION
60 VA
FUSES
2 x T3AL250V

USER MANUAL –PROCAM HD 3D
Page 13 of 15
INMANUUIN136 Rev.2019.04.01 / ENG
COOLING
Forced
VIDEO OUTPUT- 2D
1920x1080p60 (HDMI)
VIDEO OUTPUT- 3D
1920x1080p30 (HDMI)
VIDEO GENERATION
2 x 1920x1080p30
3D MODE
Side by Side
BINOCULAR ADAPTERS
Ecleris/Carl Zeiss®, Leica®, Global®, Kaps®
OPERATING CONDITIONS
10 - 40 ºC (50 –104ºF)
35 - 75 % relative humidity
700 - 1060 hPa
STORAGE AND TRANSPORT CONDITIONS
-30 +50 ºC (-22 –122ºF)
10 - 95 % relative humidity
500 - 1060 hPa
WEIGHT
4.25 Kg (9.3 Lb)
This system is not designed to be used in the presence of inflammable anesthetic gases
mixture with air, oxygen, nitrous oxide, or environments with high oxygen content.
The device is provided with a connectable power cable that assures proper electrical
isolation.
8. TROUBLESHOOTING
The following table indicates the most common problems and their solutions. Please consult this
table if you have any inconvenience.
As the 3D Splitter is always used in combination with a video monitor and a microscope or
colposcope, faults should be analyzed considering the whole system.
PROBLEM
PROBABLE CAUSE
ACTIÓN
The equipment
does not turn on.
It is not connected to the
electrical socket.
Connect the cable to the
electrical socket.
The power cord is damaged or
cut.
Change power cord.
The plug or socket is in bad
conditions.
Replace the plug or socket.
Power source is damaged or
burnt.
Change power supply for a new
one.
Connector of the power supply
Change power supply for a new

USER MANUAL –PROCAM HD 3D
Page 14 of 15
INMANUUIN136 Rev.2019.04.01 / ENG
in bad conditions.
one.
Faulty system.
Contact Ecleris nearest
Technical Service.
LED lights are ON
on the HD Splitter
but there is no
image on the
monitor.
Monitor OFF.
Turn ON the monitor.
Incorrect connection of HDMI
cable on monitor.
In case the monitor has several
HDMI inputs, select the correct
one.
3D HD Splitter disconnected.
Verify connection of HDMI
cables on both the splitter and
the monitor.
Faulty system.
Contact Ecleris nearest
Technical Service.
Image is out of
focus on the
binoculars of the
optical system.
Inappropriate height of the
Optical head.
Regulate the height of the
optical head as indicated on the
objective lens.
Fine focus out of range.
Adjust fine focus control to its
middle path.
Image is out of
focus on the
monitor.
Camera inside HD Splitter not
focused.
Adjust the individual focus of
the HD Splitter (as described on
INSTALLATION AND SET UP).
Incorrect colors
on monitor.
White Balance.
Perform White Balance.
Different
Brightness levels
on each camera
(you can detect
this failure by
covering each
one of your eyes,
one at the time,
and observing the
brightness levels
on the monitor. If
the levels you see
with each eye are
different, then the
Brightness level
on each camera
is different).
Different Brightness levels on
each camera, due to a board
malfunction.
Turn the system off. Turn it on
again, and when the function
indicators start to blink, press
the White Balance button. Hold
it until the indicators stop
blinking. By doing so, you reset
the function levels to the factory
settings (if you had Windows or
Brightness levels stored on the
memory, they will be erased).
You do not need to perform
White Balance again.
Restart the system again, and
operate it as usual.

USER MANUAL –PROCAM HD 3D
Page 15 of 15
INMANUUIN136 Rev.2019.04.01 / ENG
If the inconvenience cannot be solved, please contact your local distributor or the nearest
ECLERIS office and ask for technical service.
9. TECHNICAL SERVICE
3D HD Splitter should be repaired and/or maintained exclusively by ECLERIS trained and
qualified personnel in authorized installations and only the parts of the device classified as
repairable by ECLERIS can be repaired. ECLERIS will provide under request circuits, list of
components, calibration instructions or any other information in order to assist the ECLERIS
authorized technical personnel.
We recommend using the following procedure to expedite repair service and reposition of
products under guarantee:
1) Contact the Technical Service Department of your local distributor or nearest ECLERIS
office.
2) Provide detailed information on the problem.
3) If the problem cannot be solved through troubleshooting, it must be sent for repair.
The following information should be sent with the product:
Owner’s name.
Owner’s address.
Person to contact and a telephone number.
Product serial number.
Problem description.
The shipment should be done in the original packaging to avoid damage to the equipment during
the transportation. ECLERIS will not be responsible for damage caused during the transportation
due to improper packaging.
10. WARRANTY
ECLERIS declares that the device has passed our Quality Control and no defects have been
found in its manufacture, therefore guarantees proper working order under adequate conditions
that are indicated in this manual. The guarantee is for the term of one (1) year starting on the
purchase date.
ECLERIS shall not be responsible for damage caused by/to the NOMBRE and its power supplies
for inadequate use, neglect, incorrect cleaning or storage. Any repairs carried out by anyone
other than ECLERIS authorized personal will annul this warranty. This warranty is only valid for
the original buyer.
Without regarding the warranty, all shipping cost to and from ECLERIS authorized installations
are exclusive responsibility of the client.
