Advisor® Tech Vital Signs Monitor
Quick Reference Guide

To place your order: 1-800-643-9378 | www.midwestvetsupply.com
Contact your Midwest Veterinary Supply Representative for more information!
Advisor® Tech Vital Signs Monitor
2

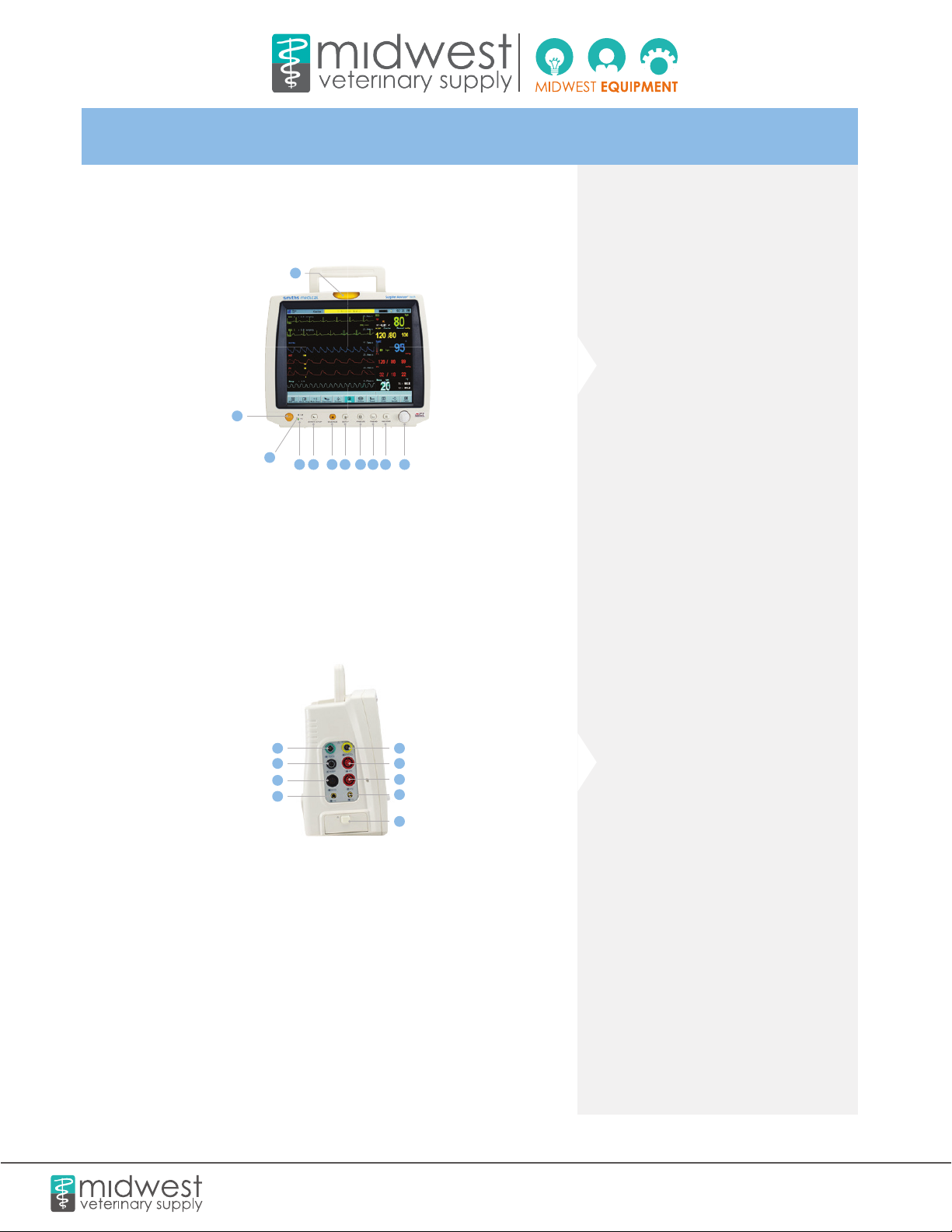

Front Panel
1. Alarm indicator
2. Power switch/stand-by
3. DC On
4. AC On
5. NIBP start/stop
6. Alarm silence
7. Setup
8. Freeze
9. Trend
10. Record
11. Rotary knob
Left Side Panel
1. AG/ETCO2 sensor connector (option)
2. Oxygen saturation sensor connector
(SpO2)
3. Channel 1 IBP port (option)
4. Channel 2 IBP port (option)
5. NIBP connector
6. Channel 1 temperature probe
connector (T1)
7. Channel 2 temperature probe
connector (T2)
8. AAMI ECG cable connector
9. Battery
1110987654
3
2
1 5
6
7
8
9
2
3
4
1

To place your order: 1-800-643-9378 | www.midwestvetsupply.com
Contact your Midwest Veterinary Supply Representative for more information!
Advisor® Tech Vital Signs Monitor
3

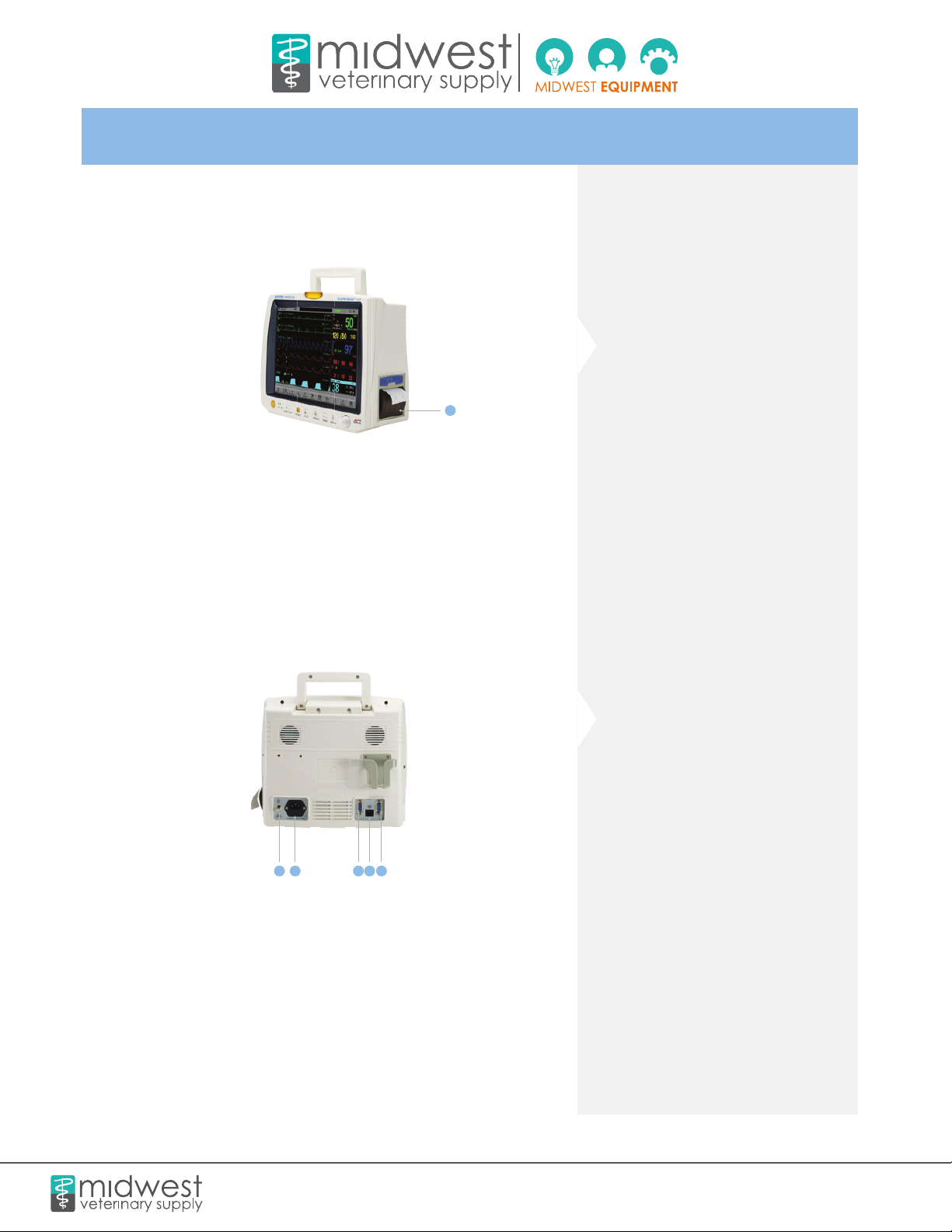

Right Side Panel l
1. Printer (option)
Rear Panel
1. Equipotentiality ground
2. AC input
3. External VGA display connector
4. Ethernet interface
5. RS-232 I/O digital interface
connector
54321
1

To place your order: 1-800-643-9378 | www.midwestvetsupply.com
Contact your Midwest Veterinary Supply Representative for more information!
Advisor® Tech Vital Signs Monitor
4
Inserting the Battery into the Monitor
1. Open the battery cover on the left side panel
2. Insert battery (provided) and ensure it is aligned correctly
3. Use lever to hold battery in place
4. Close battery cover
OUT OF BOX SET UP
Plugging into a Main Power Source
1. Insert power lead into AC input at the rear panel
2. Plug into a main power source
Turning the Power On
1. Press and hold the power switch on the front panel
2. When the power indicator is bright, the display screen will enter the main screen
after 25 seconds
Connecting Required Sensors (Refer to visual reference below)
1. Align correlated sensors to the sockets on the left panel of the monitor and connect
them (correlated by color)
2. Listen for a click when inserting the sensors
Connecting Required Sensors
When removing a sensor from the
monitor, make sure you pull back its’
sleeve for correct removal
Pull Sleeve Back
Inserting the Battery
into the Monitor
1
2
3
4

To place your order: 1-800-643-9378 | www.midwestvetsupply.com
Contact your Midwest Veterinary Supply Representative for more information!
Advisor® Tech Vital Signs Monitor
5
Setting Up Initial Monitor Parameters
1. Press the hard or soft key Setup button on the front panel (you can also use the
rotary knob for navigation by rotating and pressing to select)
2. The following settings can be found in the Setup area and can be set to your
preferences by touching each option on the screen
Factory Setup: Used for service purposes only
Optional Module: Used to upgrade or add additional parameters (for example
ETCO2)
Display Mode: Select chosen mode of display (3 waveforms, 6 waveforms, Large
Font or oxyCRG)
Waveform Select: Select the desired parameters for viewing (ECG, PLETH, RESP,
IBP1, IBP2, CO2 and AG)
Printer: If applicable, select the desired print function from the following:
• Grid Output, Alarm Print, Auto Print, Parameters Only, Waveforms and NIBP
print
• Hospital name may also be entered
Config Manager: User may select, save and store up to 7 user specific monitor
configurations
Drug Calculation: Calculate patient drugs
Hemodynamic Cal: Calculate/view hemodynamic calculations
Sweep Direction: Adjustable (default = right)
Sound Level: Adjustable (default = off)
Brightness Level: Adjustable (default = 1X)
Heart Sound: Adjustable (default = QRS)
3. Connect to patient after initial set up
What is oxyCRG?
The relationship of a patient’s
monitored heart rate, respiratory rate
and saturations represented over time
on the same graph.
Need to set up 3 lead &
3 waveform viewing?
1. Touch the ECG parameter on
the screen
2. Change Lead Type from 5 lead
to 3 lead
3. Go Back
4. Press the Setup soft key
5. Enter Display Mode
6. Select 3 waveforms
7. Go to Waveform Select and select
required waveforms (for example
ECG, Pleth & Resp or CO2)

To place your order: 1-800-643-9378 | www.midwestvetsupply.com
Contact your Midwest Veterinary Supply Representative for more information!
Advisor® Tech Vital Signs Monitor
6
Inputting Patient ID Information
1. Once in the Patient ID area, set the ID number of the patient (should be unique)
2. Enter patient name (up to 9 characters)
3. Enter patient type (canine, feline, equine, bovine, ovine, caprine or swine)
4. Enter patient sex
5. Set patient blood type (default = N/A, A, B, O, AB, RH+, RH-)
6. Set patient age (default = 25)
7. To exit, choose Save for new patient data to be saved
PATIENT SPECIFIC PARAMETER SET UP
Starting a New Case
1. Touch Patient ID in the top left area of the display screen directly and enter new
information (outlined in the next section)
2. Or, touch the Pause soft-key and then choose Start New Case
It is important to start a new case
for every patient to ensure that
unique readings, memories and
trends can be enabled for accurate
vital signs monitoring.
Setting Unique Parameters for Your Patient
Each individual parameter can be adjusted for your patient needs by touching the
desired parameter on the right side of the display screen.
(When selecting each parameter, a description is displayed at the bottom of the screen.)
ECG
1. Alarm Switch: Adjustable (default = off)
2. HR Alarms: Select to change high and low values
3. ECG Lead: Select appropriate lead (default = I)
4. ECG Gain: Increase or decrease size of waveform
5. ECG Filter: Select from the options below (default = surgery, which is the most
common filter)
• Monitor: Used for basic surgeries (not for any surgery which includes electric i.e.
cautery, laser, dental scaling)
• Surgery: Used in instances with cautery, laser, dental scaling; assists in
filtering HZ
• Diagnostic
6. Lead Type: Default = 5 leads (most common is 3 leads)
7. ECG Cascade: It is possible to cascade ECG for longer monitoring times (set up must
be 6 waveforms)
8. Sweep Speed: Adjustable (default = 25 mm/s)
9. Sweep Color: Adjustable (default = green)
10. ARR Analysis: Turn arrythmia analysis on or off
Did you know that you can customize
sweep colors?
Sweep colors can be chosen from
white, gray, red, yellow, green, cyan,
blue and magenta.

To place your order: 1-800-643-9378 | www.midwestvetsupply.com
Contact your Midwest Veterinary Supply Representative for more information!
Advisor® Tech Vital Signs Monitor
7
Sp02
1. Alarm Switch: Adjustable (default = on)
2. SpO2 Alarm: Select to change high and low values
3. Sweep Speed: Adjustable (default = 12.5 mm/s)
4. Sweep Color: Adjustable (default = blue)
ETCO2
1. Alarm Switch: Adjustable (default = on)
2. ETCO2 Alarm: Select to change high and low values
3. AWRR Alarm: Select to change high and low values
4. Apnea Delay: Setting range is 10 – 60 seconds (default = 10 seconds)
5. ETCO2Unit: mmHg, kPa or % (default = mmHg)
6. Wave Scale: 0 75 mmHg or 0 150 mmHg
7. Fill In Waveform: Adjustable
8. Sweep Speed: Adjustable (default = 12.5 mm/s)
9. Sweep Color: Adjustable (default = cyan)
10. ETCO2 Period: 1 breath, 10 seconds or 20 seconds (default = 1 breath)
11. Zero Setup: Used to set the CO2 module to zero
12. Temperature Setup can be found in the ETCO2 menu where you are able to set
the following:
• Alarm Switch: Adjustable (default = on)
• Temperature Unit: Celsius or Fahrenheit (default = celsius)
• Temperature Alarm: Range for both T1 and T2 temperature measurement
channels is 25 – 50°C (upper limit default = 38°C, lower limit default = 36°C)
NIBP
1. Alarm Switch: Adjustable (default = on)
2. Pressure Unit: mmHg or kPa (default = mmHg)
3. Patient Type: Canine, feline, equine, bovine, ovine, caprine or swine (choose suitable
setting for your patient to avoid injury when the cuff inflates)
4. Inflation Mode: Manual, Auto and STAT (default = manual)
5. Time Interval: Used to support auto inflation mode, the range is 1 minute to 4 hours
What does the Apnea Delay
function do?
This setting is used to set the no
breaths detected time-out. This
time-out is the time period in seconds
following the last detected breath
at which the CO2 module will signal
no breaths detected. The monitor
will alarm if the patient has stopped
breathing for longer than the pre-set
apnea time.
Helpful NIBP tip:
When in Auto Inflation Memory Mode,
ensure a new patient record has been
set up so that the inflation pressure
can reset itself and take a new unique
blood pressure measurement.

To place your order: 1-800-643-9378 | www.midwestvetsupply.com
Contact your Midwest Veterinary Supply Representative for more information!
Advisor® Tech Vital Signs Monitor
8
Deleting a Patient
The monitor can save eight sets of patient information for recall. The previous patient
can be deleted in order to add a new patient.
1. Open the Recall menu
2. Enter Delete History Record area and choose a patient to delete
3. Click Yes to delete the selected patient record
Trend Viewing
1. Press the Trend hard or soft key
2. Set the trending interval from 5 seconds up to 15 minutes (Default = 5 seconds)
3. View trends (Graphical Trend, Tabular Trend, Alarm Event, Last Waveform or
Event List)
Alarm Priority Setup
When the monitor detects certain conditions that require your attention, the monitor will
enter an alarm state.
Alarm parameters can be set for individual patients.
1. Select Alarm Set Up soft key
2. Select Alarm Priority to identify what parameters are medium or high importance
3. To set individual Alarm Limits, enter the desired parameter setup menus for each
variable being measured
Drug Calculation
1. Select System Setup, then go to the Drug Calculation menu
2. Select appropriate settings for the drug required. Each drug has its own fixed
unit/unit series. Among unit series, one unit may change to another automatically
depending on the entered value
3. Drug A – E allows the user to enter their own drug if it is not in the existing library
Titration Table
1. Select Titration Table in the Drug Calculation window after the drug calculation is
finished
2. In the table, change Reference, Interval, Dose Type and the titrated table will
change accordingly
3. To print the displayed titrated values, select Print item
What is a Titration Table?
A titration table accurately measures
the correct volume and concentration
of drug needed for your patient.

To place your order: 1-800-643-9378 | www.midwestvetsupply.com
Contact your Midwest Veterinary Supply Representative for more information!
Advisor® Tech Vital Signs Monitor
9
Hemodynamic Calculation
1. Select System Setup, then go to the Hemodynamic Cal menu
2. Confirm input of the correct values
3. Select the Calculation button
• If a calculated value is outside the range, its background will highlight in yellow
• Press the Reference Range button to view its normal range in the unit field
• Invalid values are displayed as “---”
4. Press the Print button which will print the displayed calculations
Printing (Optional)
1. Press soft touch key Print to print current display
2. To stop printing, press Print again
Inserting Printer Paper
1. Open the printer door
2. Remove the empty reel
3. Insert the new reel into the paper cassette
4. Pay attention that the paper is turning swiftly. Pull a small length of paper out of the
catch from the lower end of the roll (If it is the upper end, the paper reel is installed
conversely, which means the printer will print blank pages. If this happens, turn the
reel the other way round.)
5. Close the door, make sure the paper is aligned
Wi-Fi
For instructions on how to set up your Advisor tech Wi-Fi module, follow the Setting Up
Wi-Fi & Data Manager Software Guide.
What is Hemodynamic Calculation?
Measures how blood is flowing
through the patients’ body by
monitoring heart pressure and the
bloods resistance to flow.

To place your order: 1-800-643-9378 | www.midwestvetsupply.com
Contact your Midwest Veterinary Supply Representative for more information!
Advisor® Tech Vital Signs Monitor
10
Why isn’t blood pressure reading correctly?
Is this a new patient? If yes, check the Auto Inflation Memory Mode in NIBP Settings, and
ensure a new patient record has been set up so that the inflation pressure can reset itself
and take a new unique measurement.
Why isn’t the NIBP parameter showing on the screen?
In ECG Settings, ensure the monitor is set to 3 lead mode versus 5 lead (default).
TROUBLESHOOTING
Advisor® Tech Vital Signs Monitor

To place your order: 1-800-643-9378 | www.midwestvetsupply.com
Contact your Midwest Veterinary Supply Representative for more information!
11
Advisor® Tech Vital Signs Monitor
Clinical support
The veterinary clinical support team is dedicated to assisting customers with expert
information pertaining to the technical and clinical aspects of the Advisor® tech vital
signs monitor and our complete line of products. Each clinical support representative is a
Certified Veterinary Technician with extensive experience and product knowledge.
Contact Us
Monday - Friday, 8 am - 5 pm (CST)
Email: [e-mail]
Phone: [phone], option 2
Web: www.smiths-medical.com/surgivet

To place your order: 1-800-643-9378 | www.midwestvetsupply.com
Contact your Midwest Veterinary Supply Representative for more information!
PRODUCT(S) DESCRIBED MAY NOT BE LICENSED OR AVAILABLE FOR SALE IN ALL GEOGRAPHIES
Smiths Medical ASD, Inc.
6000 Nathan Lane North
Minneapolis, MN, 55442, USA
Tel: [phone]
Toll-Free USA 1-800-258-5361
www.smiths-medical.com
Find your local contact information at: www.smiths-medical.com/customer-support/contact-us
Smiths Medical is part of the global technology business Smiths Group plc. Please see the Instructions for Use/Operator’s Manual for a complete listing of the indications, contraindications, warnings and
precautions. Surgivet and the Smiths Medical design mark are trademarks of Smiths Medical. The symbol ® indicates the trademark is registered in the U.S. Patent and Trademark Office and certain other
countries. All other names and marks mentioned are the trademarks or service marks of their respective owners.
©2020 Smiths Medical. All rights reserved. AH0009.EN.AM.Rev.A.0320
