Ecleris XENOLUX 180 User manual

XENOLUX 180 Light Source
V.2019.04.01

ECLERIS USA
11801 NW 100th Rd
Suite 17
Medley, FL 33178
Phone: [phone]
CMC Medical Devices & Drugs S.L.
C/ Horacio Lengo Nº18, CP29006, Málaga, Spain
Ph. [phone]
Email: [e-mail]

INMANUUIN1823
INDEX
INDEX ........................................................................................................................................................3
INTRODUCTION....................................................................................................................................... 4
DESCRIPTION...........................................................................................................................................5
FRONT PANEL .....................................................................................................5
REAR PANEL........................................................................................................6
TECHNICAL SPECIFICATIONS..............................................................................................................7
SIMBOLS DESCRIPTION......................................................................................8
COMPONENTS..........................................................................................................................................9
INSTALLATION......................................................................................................................................10
REVISION AND OPERATION................................................................................................................11
REVISION.............................................................................................................11
MAINTENANCE......................................................................................................................................13
CLEANING...........................................................................................................13
External Surfaces................................................................................................................ 13
ELECTRICAL CONNECTIONS...........................................................................14
FUSE CHANGE ....................................................................................................14
LAMP CHANGE...................................................................................................14
TROUBLESHOOTING ............................................................................................................................16
WARNINGS..........................................................................................................17
MAINTENANCE CARD.......................................................................................18
TECHNICAL SERVICE...........................................................................................................................20
WARRANTY............................................................................................................................................ 21
RIGHTS ....................................................................................................................................................22

INTRODUCTION
XENOLUX 180 light source has a Xenon arc lamp designed to be used in all ECLERIS
microscope and colposcope models as well as in therapeutic and diagnostic procedures.
This light source has a connection for endocamera, video output and universal adapter
for those fiber optic models most widely distributed in the market.
It has a lighting module with a 180 Watts Xenon lamp which produces the necessary
light to obtain video images. The cold, deep and white Xenon light of this equipment
enhances the real brightness and colors allowing its use for all types of procedures.
The manually operated mechanical diaphragm with continuous adjustment allows
regulating the lighting level so that the user gets the necessary optimum level, always
keeping the same lighting quality and color.
The XENOLUX 180 allows the connection of the Ecleris PROCAM universal
endocamera which has a 1/3” CCD sensor and integrated controls, especially designed
for medical applications ensuring a high image quality, precision and resolution.
This endocamera allows the electronic capture of the image, its processing and
conversion to video signal with adequate features for the connection to external devices
such as monitors, video-printers, image capturing systems, etc.
The purpose of this manual is to explain the functioning and operation of the
equipment.
Before turning the equipment on for the first time, read the whole manual and pay
special attention to all the safety measures in order to prevent any damage that may
occur either to the user or the patient.
This symbol shall be used in this manual to indicate information that
includes warnings or important precautions.
Please, read the manual thoroughly before operating the equipment.
Should you have any doubt regarding the contents of the manual herein or the
equipment operation and safety, please contact your local distributor or the closes
ECLERIS office.

INMANUUIN1825
DESCRIPTION
FRONT PANEL
1On/Off switch
2Diaphragm control
3Camera connector (video input)
4Universal fiberoptic cable connector
1
3
4
2

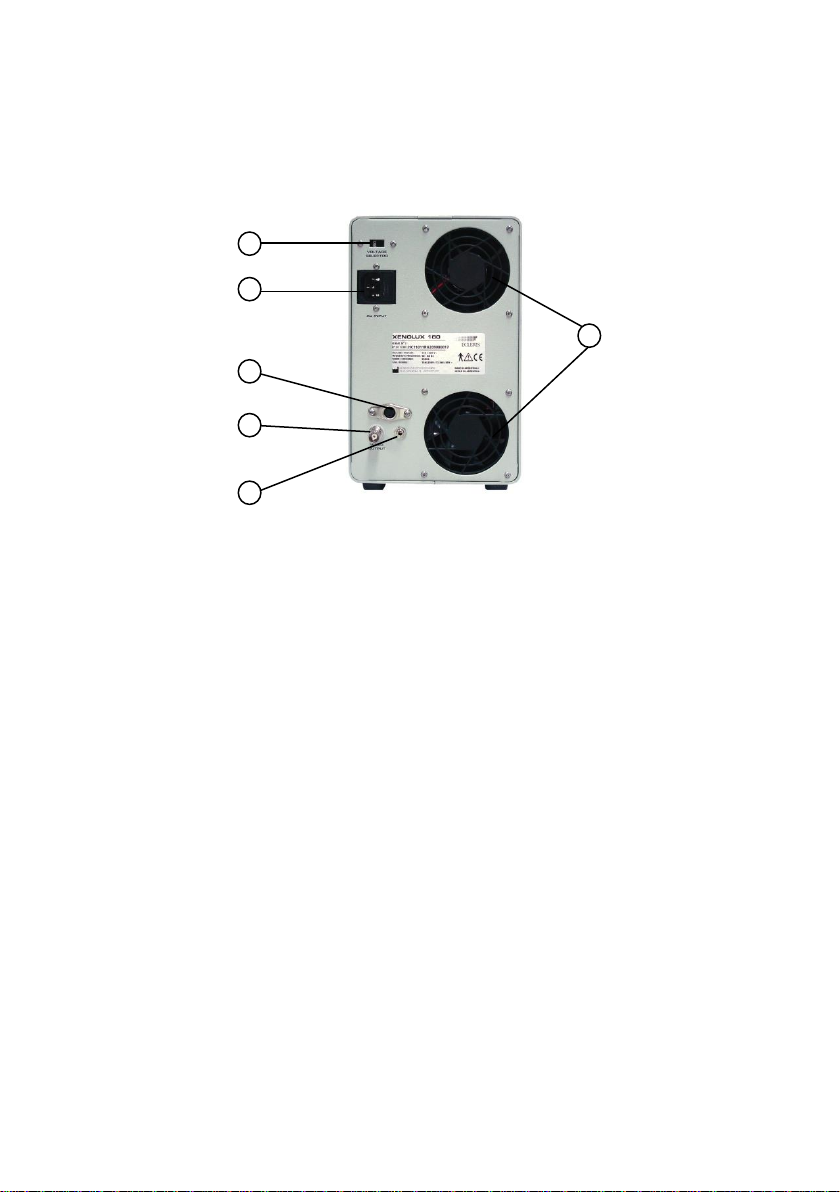

REAR PANEL
5Power supply voltage selector switch (110/220V))
6Power supply cable connector with fuse holder
7S-Video Output (SVHS)
8Composite Video Output (CVBS)
9EclerisEndodigiConnector (Image and video capture)
and other peripheral devices*
10 Ventilationgrids
*Standard output (Normally-Open) to remotely operate other image capture devices such as Video Printers.
10
8
6
9
7
5

INMANUUIN1827
TECHNICAL SPECIFICATIONS
POWER SUPPLY VOLTAGE 110 / 220 V
Nº OF PHASES 1 (single-phase)
FREQUENCY 50 - 60 Hz
CLASS I
TYPE B
PROTECTION LEVEL AGAINST
WATER ENTRANCE IPX0
POWER 400 Watts
FUSE T5AL250V / T2.5AL250V
LIGHTING SOURCE 180W Xenon lamp
COLOR TEMPERATURE 6000°K Approx.
REFRIGERATION Forced through fans
FIBER OPTIC CONNECTOR Built-in revolving turret with multiple
adapters
VIDEO OUTPUT Composite Video (CVBS) (1 Vpp/75
Ω), BNC
S-Video (Y/C), Jack mini-DIN
ECLERIS ENDODIGI CONNECTOR Mono Jack 3.5 mm
DIMENSIONS 150 X 330 X 230 MM (width x depth x
high)
WEIGHT 5.8 KG
SERVICE CONDITIONS 10 - 40 ºC
35 - 75 % relative humidity
700 - 1060 HPa
STORAGE AND TRANSPORTATION -30 -45 ºC
CONDITIONS 10 - 95 % relative humidity
500 - 1060 HPa

SIMBOLS DESCRIPTION
Attention! Read the related documentation.
Alternate current
Protect against water
Up
Fragile
CE Mark
Identificación del fabricante (Nombre, Dirección)
B Type

INMANUUIN1829
COMPONENTS
XENOLUX 180 light source includes the following components. It is recommended to
identify and check their existence before proceeding with the installation.
MainUnit
PowerSupply Cable
User’s Manual

INSTALLATION
Experienced or expert personnel are not required to install the XENOLUX 180.
Once the installation is over, please continue with the procedures detailed in the
Revision and Operation section.
Thoroughly follow the instructions included in this section.
1. Unpacktheequipmentcarefully.
2. In case of using the XENOLUX 180 as an endoscopic light source, place it on
a solid and flat surface.
3. Rotate the universal adapter until the corresponding connector is aligned with
the light output.
4. Connect the fiber optic cable to the corresponding connector of the universal
adapter (depending on the fiber optic to be used). The fiber optic connector
shall match perfectly and not exceed the adapter.
5. In case of using the XENOLUX 180 as a Microscope / Colposcope light
source, mount the XENOLUX 180 on the Ecleris Microscope / Colposcope
forearm (See “Light Source Installation” Section in Ecleris Microscope
/Colposcope User’s Manual)
6. Rotate the universal adapter until the Wolf connector is aligned with the light
output.
7. Connect the fiber optic cable to the Wolf connector of the universal adapter.
The fiber optic connector shall match perfectly and not exceed the adapter.
When turning the light source on, check fans functioning.
If due to any breakdown they do not work, turn the equipment off
immediately to avoid failures in the lamp as a result of high temperature.
The XENOLUX 180 shall only be used in places with electrical
installations that meet the national and local regulations in effect.
It shall always be connected to the grounding of the operating room or
endoscopy tower through a ground cable.
The XENOLUX 180 shall be connected to the voltage line through the
power supply cable provided.
The power supply shall only be provided with a protected plug and the
adequate ground connection.

INMANUUIN18211
REVISION AND OPERATION
REVISION
Once installation is over and before turning the XENOLUX 180 on, please go through
the following check list:
•Verify that the electrical power has its grounding connection in perfect
conditions and that it makes perfect contact with the equipment.
•Check that the fuse holder has a fuse installed and that it is the correct one
(T5AL250V for 110V power supply and T2.5AL250V for 220 V).
•Check that the ventilation grid is completely free, without obstruction.
•Ensure an adequate air flow.
•Verify that there are no water or liquid sources near the equipment that may
damage it, such as gases or flammable emissions in the environment.
All connections shall be made before turning the equipment on.
The XENOLUX 180 shall only be used in places with electrical
installations that meet the national, provincial and local regulations in
effect.
If before connecting the XENOLUX 180 any anomaly is detected, please contact the
technical service department of your local distributor or the closest ECLERIS office,
prior to its use.
OPERATION
This section thoroughly describes the equipment start-up and functioning verification
procedure. It is recommended to perform this procedure after installing the equipment
and during maintenance inspections.
The equipment shall only be operated by qualified personnel.
Once the XENOLUX 180 is turned on, it shall remain in this condition
for at least 15 minutes.
When turning the XENOLUX 180 off, wait for at least other 15 minutes
before turning it on again.
Short On and Off-cycles considerable reduce the lamp useful life.

1. Connect the power supply cable to the equipment and the electrical power.
2. You may begin the procedure after turning the XENOLUX 180 on, by
pressing the on/off switch.
The Xenon Lamp takes 2 seconds to turn on after the XENOLUX 180 is ON.
3. Use the diaphragm control to regulate lighting intensity.
4. Once the procedure is over, turn the XENOLUX 180 off in order to maximize
the lamp useful life.
5. Should you use a video camera (Ecleris PROCAM), connect it to the video
input connector.
6. Connect the video output (rear panel BNC or S-Video connector) to the video
input of the viewing device and turn the XENOLUX 180 on.
7. Select the video input and video Standard in the viewing device.

INMANUUIN18213
MAINTENANCE
In order to keep an optimum operation of the XENOLUX 180 it is recommended to
perform the following procedures:
•Periodic cleaning of all exterior components.
•Connections inspection.
•Annual technical inspection of the equipment.
To perform any revision or maintenance work, contact your local distributor or the
closest ECLERIS office.
All technical service Works, repairs or modifications shall be noted on the Maintenance
Card of this manual indicating: work performed, date, name and signature of the person
in charge.
CLEANING
Before cleaning the XENOLUX 180, disconnect the power supply cable form the
electrical power.
External Surfaces
Clean the external surface of the equipment using a piece of cotton or cloth moistened
with mild detergent or soap. Use only adequate products for the external cleaning of
electrical equipments, prepared in accordance with the manufacturer’s indications.
Perform the cleaning with special care, avoiding water or humidity access
to the equipment.
Do not use flammable products, especially alcohol when the XENOLUX
180 is hot.
Do not turn the lamp on until one (1) hour has passed from the cleaning,
since an explosive mixture may occur.
It is recommended to clean the exterior surface of the device every 15
days.

ELECTRICAL CONNECTIONS
Constantly check the condition of all components and their aging process.
Verify there are no:
•Faulty, broken or cut cables.
•Faulty connection between the cable and the plug.
•Oxide corrosion in connection pins
FUSE CHANGE
To avoid time losses due to downtime of the XENOLUX 180, it is recommended to
have a spare fuse.
1Disconnect the power supply cable from the electrical power and the
equipment.
2Under the power supply cable connector there is a small rectangular plastic
holder where the fuses are located. Using a screwdriver and with a slight
pressure remove the lid to replace the damaged fuse.
3Remove the burnt fuse and replace it with the spare fuse located inside the
same plastic holder. Use fuses of the same rating.
4Place the fuse lid back pushing it until a “click” is heard.
5Connect the power supply cable.
6Replace the spare fuse for future use.
LAMP CHANGE
Before changing the lamp disconnect the microscope lighting source from
the electrical power and check that both the equipment and the lamp are
completely cold.
1. Place the XENOLUX 180 on a firm base
2. Remove the lateral right cover loosening the 4 2.5mm-Allen screws that hold
the cabinet.

INMANUUIN18215
3. Disconnect the lamp power supply connector.
4. Remove the lamp holder screw and take away the defective lamp.
5. Place the new 180W Xenon lamp in the lamp holder as shown in the figures
(code part: XBO R180/45C).
6. Fix the lamp by adjusting the lamp holder screw.
7. Connect the Xenon lamp power supply connector (male) to the light source
female connector. Check that the cables are far from the fan.
8. Place the lateral cover back.
Lamp
fastening
screw

TROUBLESHOOTING
The following table indicates the most common problems and their quick solutions.
Please consult this table for any difficulty you may encounter.
PROBLEM
PROBABLE CAUSE
ACTION
The equipment
does not turn on
It is not connected to the
electrical power
Connect the power supply cable
to the electrical power
The power supply cable is
broken or cut
Change the power supply cable
The plug is in bad condition
Changetheplug
Fuse brokenorburnt
Changethe fuse
The green pilot
light from the
on/off switch turns
on but the lamp
does not
Exhaustelamp
Changethelamp
Internal fuse burnt or
defective board
Contact the closest Technical
service
Light intensity is
not the correct one
Defectivelamp
Changethelamp
The lamp is out of place or
deficiently connected.
Remove the lamp from the
lamp-holder and place it again
correctly.
High temperature
Ventilationgrids are
obstructed
Cleantheventilationgrids
A fan is not working
Turn the equipment off
immediately and contact the
closest Technical Service
Excessivenoise
Lamp cables are touching
the fan
Arrange the lamp cables in a
way they do not touch the fan
Light is correct but
no image appears
on the monitor
when connecting
the video camera
The video cable is cutor not
connected to the monitor
Change the cable and check the
connection to the monitor
Defective camera
Replacethe video camera
Deficientlyprogrammed
monitor
Select the corresponding video
input and Standard
Imagetoodark
Inadequatelighting
Open the diaphragm and check
that the lamp and fiber optic
cable are correctly placed
Deficientlyprogrammed
monitor
Check the monitor color,
brightness and saturation levels
after having made a white
balance.

INMANUUIN18217
If the problem cannot be solved, please contact your local distributor or any ECLERIS
office and request technical service.
WARNINGS
It is important to read this manual thoroughly before using the XENOLUX 180.
ECLERIS shall not be liable for the damages that may occur if the equipment is not
used according to these instructions and following the criteria mentioned herein below:
• This equipment is not suitable for use in the presence of flammable anesthetic
mixture with air, oxygen, or nitrous oxide.
•Do not install the equipment near heating sources such as stoves.
•Install the equipment on a firm and horizontal surface, in a perfectly ventilated
place.
•Avoid exposing the equipment and fittings directly to sunlight, dust, humidity,
vibrations or excessive impacts.
•Do not use volatile substances (benzine, thinner or solvents in general) to clean the
equipment since it may be damaged. It is recommended to use a soft wet cloth
soaked in neutral soap or any specific product to clean electronic equipment
cabinets.
•Do not introduce objects in the holes or rest any containers with liquid on the
equipment.
•Prevent the power supply cable from being walked over or placed under any piece of
furniture.
•Do not use the equipment when there are electrical storms.
•Always unplug the equipment when it is not being used.
•The XENOLUX 180 is grounded through a conductor of the power supply cable.
This essential grounding is provided for a safe operation of the equipment.
•In case of interference with other electro medical or electrical equipment, widen the
distance between the XENOLUX 180 and the other device in order to minimize
these effects. Also check the ground connection.
•Do not open the equipment. Maintenance and repairs shall be made by ECLERIS or
authorized company. ECLERIS shall not be liable for the consequences of
maintenance or repairs made by unauthorized personnel.
•This manual of instructions shall be kept together with the equipment for future
consultations. Should the equipment be sold or donated, the manual shall go with it.
If as a consequence of:
•Inadequate use of the equipment.

•No use of this manual.
•Poor care and maintenance of the equipment or.
•Repair or manipulation by unauthorized personal.
…any material or personal damage were caused to third parties, ECLERIS, the
manufacturer and the supplier of the equipment, shall not assume any responsibility for
such damages.
MAINTENANCE CARD
WorkPerformed
ResponsiblePerson
Date
Signature

INMANUUIN18219
This card shall only be completed by the authorized person from the company
responsible for the maintenance, repair and modification of the device.
We recommend keeping it updated for a quicker and more efficient service.

TECHNICAL SERVICE
XENOLUX 180 light sources shall be exclusively repaired and/or maintained in
authorized ECLERIS technical facilities. ECLERIS recommends using the following
procedures to speed up the repair service and replacement of the guaranteed products.
1 Contact the technical service department of your local distributor or any ECLERIS
office
2 Give detailed information of the problem.
3 f the problem cannot be solved by troubleshooting, the product shall be sent for its
repair.
The following product information shall be attached:
•Owner’s name.
•Owner’s address.
•Contact name and phone number.
•Product’s serial number.
•Problem’s description.
The XENOLUX 180 shall be sent in its original packing so that it is not damaged
during transportation. ECLERIS shall not be liable for damages that may occur during
transportation, caused by deficient packaging.
