ECS H110T-SI01 User manual

H110T-SI01
Intel®Skylake LGA1151 SoC
USER’S GUIDE

Version:1.0 ®

H110T-SI01USERMANUAL
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected
under international copyright laws, with all rights reserved. Neither this manual, nor
any of the material contained herein, may be reproduced without written consent of
the author.
Version 1.0
Disclaimer
The information in this document is subject to change without notice. The manufac-
turer makes no representations or warranties with respect to the contents hereof
and specifically disclaims any implied warranties of merchantability or fitness for
any particular purpose. The manufacturer reserves the right to revise this publica-
tion and to make changes from time to time in the content hereof without obligation
of the manufacturer to notify any person of such revision or changes.
TrademarkRecognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel
Corporation.
Other product names used in this manual are the properties of their respective owners
and are acknowledged.
FederalCommunicationsCommission(FCC)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential instal-
lation. This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and the receiver
•Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
•Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits govern-
ing this device. Changes or modifications not expressly approved by the system’s
manufacturer could void the user’s authority to operate the equipment.

ii
H110T-SI01USER MANUAL
DeclarationofConformity
This device complies with part 15 of the FCC rules. Operation is subject to the follow-
ing conditions:
•This device may not cause harmful interference.
•This device must accept any interference received, including interference
that may cause undesired operation.
CanadianDepartmentofCommunications
This class B digital apparatus meets all requirements of the Canadian Interference-
causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Réglement
sur le matériel brouilieur du Canada.
The manual consists of the following:
Describes features of the
motherboard.
page 1
Describes installation of
motherboard components.
page 7
page 27
page 51
Installing the Motherboard
Introducing the Motherboard
Provides information on us-
ing the BIOS Setup Utility.
Describes the motherboard
software.
Limits and methods of mesurement of radio disturbance char-
acteristics of information technology equipment
EN 55022
EN 61000-3-2 Disturbances in supply systems caused
EN 61000-3-3 Disturbances in supply systems caused by household appli-
ances and similar electrical equipment “ Voltage fluctuations”
EN 55024 Information technology equipment-Immunity characteristics-
Limits and methods of measurement
EN 60950 Safety for information technology equipment including electri-
cal business equipment
CE marking
AbouttheManual






This device is in conformity with the following EC/EMC directives:
Chapter 4
Chapter 1
Chapter 2
Chapter 3
Using BIOS
Using the Motherboard Software
Chapter 5
Trouble Shooting
Provides basic trouble shoot-
ing tips.
page 55


iii
H110T-SI01USERMANUAL
Chapter 2 7
Installing the Motherboard 7
Safety Precautions.............................................................................7
Installing the Motherboard in a Chassis......................................7
Checking Jumper Settings...........................................................8
Installing Hardware..................................................................10
Installing the Processor...........................................................10
Installing the CPU Cooler.........................................................12
Installing Memory Modules....................................................13
Installing Add-on Cards...........................................................14
Connecting Optional Devices..................................................16
Installing a Hard Disk Drive/Optical Disk Drive......................23
Connecting Case Components.......................................................24
TABLE OF CONTENTS
Preface i
Chapter 1 1
Introducing the Motherboard 1
Introduction...................................................................................1
Pakage Contents............................................................................1
Specifications................................................................................2
Motherboard Components..........................................................4
I/O Ports..............................................................................................6
Chapter 3 27
Using BIOS 27
About the Setup Utility........................ .......................................27
The Standard Configuration........................ ...........................27
Entering the Setup Utility.......................................................27
Resetting the Default CMOS Values.....................................28
Using BIOS........................................................................................28
BIOS Navigation Keys..............................................................29
Main Menu.............................................................................30
Advanced Menu......................................................................31
Chipset Menu..........................................................................43
Tweak Menu...........................................................................46
Security Menu.........................................................................47
Boot Menu..............................................................................48
Exit Menu................................................................................49
Updating the BIOS.............................................................................50

iv
H110T-SI01USERMANUAL
Chapter 4 51
Using the Motherboard Software 51
Auto-installing under Windows 7/8.............................................51
Running Setup.........................................................................51
Manual Installation..........................................................................53
Chapter 5 55
Trouble Shooting 55
Start up problems during assembly..............................................55
Start up problems after prolong use............................................56
Maintenance and care tips..............................................................56
Basic Troubleshooting Flowchart...................................................57

1
H110T-SI01USER MANUAL
Chapter1
Chapter 1
Introducing the Motherboard
Introduction
Thank you for choosing the H110T-SI01 motherboard. This motherboard is a high
performance, enhanced function motherboard designed to support the LGA1151
socket for Intel® Skylake processor.
This motherboard is based on Intel®H110 Express Chipset for best desktop platform
solution. It supports up to 32 GB of system memory with dual channel DDR4 2400
MHz SO-DIMM. Two M.2 slots are for extending usage.
It integrates USB 2.0 ports and USB 3.0 interface, supporting up to three USB 2.0
ports (one 5-pin USB 2.0 header supports additional one USB 2.0 port and two USB
2.0 ports at the rear panel) and four USB 3.0 ports (two USB 3.0 ports at the rear panel
and one USB 3.0 header supports additonal two USB 3.0 ports).
This motherboard is equipped with advanced full set of I/O ports in the rear panel,
including one 19V DC_IN port, one HDMI in port (For All-In-One Specification), one
HDMI out port, two USB 2.0 ports, two USB 3.0 ports, one RJ45 LAN connector, and
audio jacks for line-out and mircophone.
In addition, this motherboard supports two SATA 6Gb/s connectors for storage
expansion.
Your motherboard package ships with the following items:
Package Contents
H110T-SI01 Motherboard
QIG
DVD
I/O Shield
1 SATA Cable and 1 SATA/Power Cable





Accessories may vary, please refer to actual goods you purchase.

Chapter1
2
H110T-SI01USERMANUAL
Specifications
• Dual-channel DDR4 memory architecture
• 2 x 260-pin DDR4 SO-DIMM sockets support up to 32 GB
• Supports DDR4 2400 MHz DDR4 SDRAM
Memory
• 2 x M.2 slots
- 1 x type 2230 for wifi/BT
- 1 x type 2280 for SSD
• Supported by Intel®H110 Express Chipset
- 2 x Serial ATA 6Gb/s devices
Expansion
Slots
Storage
• 1 x 19V DC_IN port
• 1 x HDMI in port (For All-In-One Specification)
• 1 x HDMI out port
• 2 x USB 2.0 ports
• 2 x USB 3.0 ports
• 1 x RJ45 LAN connector
• 2 x Audio port (1 x line-out, 1 x Microphone)
Rear Panel I/O
LAN • Realtek RTL8111H
- 10/100/1000 Fast Ethernet Controller
- Wake-on-LAN and remote wake-up support
• Realtek ALC662-VD0-GR 48P
- 6 Channel High Definition Audio Codec
- Compliant with HD audio specification
Audio
CPU • LGA1151 socket for Intel® Skylake processor
• Supports CPU up to 65W TDP
• 1 x 4-pin CPU_FAN connector with smart fan function
• 1 x 4-pin SYS_FAN connector with smart fan function
• 1 x USB 3.0 header supports additional two USB 3.0 ports
• 1 x 10-pin USB 2.0 header (black) supports card reader and
camera
• 1 x 5-pin USB 2.0 header (yellow) supports touch panel or other
2.0 device
• 2 x Serial SATA 6Gb/s connectors
• 1 x Front Panel switch/LED header
• 1 x Front Panel audio header
• 1 x Clear CMOS jumper
• 1 x SATA power connector
• 1 x Consumer infrared header (CIR)
• 1 x Digital microphone header (For All-In-One Specification)
• 1 x 2 channel audio speaker header (For All-In-One Specific-
ation)
• 1 x LVDS connetor (For All-In-One Specification)
• 1 x LVDS brightness switch header (For All-In-One Specifica-
tion)
• 1 x Debug Card header (LDC)
• 1 x LCD panel select jumper (For All-In-One Specification)
Internal I/O
Connectors &
Headers
• Intel®H110 Chipset
Chipset

3
H110T-SI01USER MANUAL
Chapter1
• AMI BIOS with 64Mb SPI Flash ROM
- Supports Plug and Play
- Supports ACPI & DMI
- Supports STR (S3) /STD (S4)
- Supports Hardware monitor
- Audio, LAN, can be disabled in BIOS
- F7 hot key for boot up devices option
- Supports PgUp clear CMOS Hotkey (Has PS2 KB Model only)
- Add the function of copying BIOS parameters to USB flash
drive
System BIOS
Form Factor • Thin Mini ITX Size, 170mm x 170mm

Chapter1
4
H110T-SI01USERMANUAL
Motherboard Components

5
H110T-SI01USER MANUAL
Chapter1
Table of Motherboard Components
LABEL COMPONENTS
1. CPU Socket LGA1151 socket for Intel® Skylake Processor
2. LDC Debug Card header
3. DMIC Digital microphone header (For All-In-One Specification)
4. SPKR 2 Channels audio speaker header (For All-In-One Specification)
5. F_AUDIO Front panel audio header
6. NGFF Type 2230 for wifi/BT
7. NGFF1 Type 2280 for SSD
8. SO-DIMM1~2 260-pin DDR4 SDRAM SO-DIMMs
9. CLR_CMOS Clear CMOS jumper
10. USB3F Front panel USB 3.0 header
11. USB_TP USB 2.0 header for touch panel or other USB 2.0 device
12. SATA1~2 Serial ATA 6Gb/s connectors
13. SYS_FAN 4-pin system cooling fan connector with smart fan function
14. CPU_FAN 4-pin CPU cooling fan connector with smart fan function
15. CIR Consumer infrared header
16. F_PANEL Front panel switch/LED header
17. MON_SW LVDS brightness switch header (For All-In-One Specification)
18. SATA_PWR SATA power connector
19. LVDS LVDS connector (For All-In-One Specification)
20. DISP_BRT LVDS brightness control header (For All-In-One Specification)
21. LCD_SEL LCD panel select jumper (For All-In-One Specification)
22. USB_CR_CAM 10-pin USB 2.0 header supports card reader and camera

Chapter1
6
H110T-SI01USERMANUAL
I/O Ports
1. 19V DC_IN Port
Connect the DC_IN port to the power adapter.
2. HDMI_IN Port (For All-In-One Specification)
You can connect the HDMI output of other computer or other HDMI source to the
HDMI_IN port.
3. HDMI_OUT Port
You can connect the display device to the HDMI_OUT port.
4. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
5. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
7. Line-out (lime)
It is used to connect to speakers or headphones.
8. Microphone (pink)
It is used to connect to a microphone.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
PC HDMI_IN port LCD_MODE button pulse
Power ON Un-plugged PC  LCD off
Power OFF Plugged HDMI  LCD off
Power ON Plugged PC  HDMI LCD off
Power OFF Un-plugged LCD off
1. Please press button to switch the mode manually, it will not be
automatically switched when inserting the HDMI cable.
2. When HDMI_IN is in use, front panel audio header will be invalid.

Chapter2
7
H110T-SI01USER MANUAL
Chapter 2
Installing the Motherboard
2-1. Safety Precautions
2-2. Installing the motherboard in a Chassis
This motherboard carries a Thin Mini ITX form factor of 170 x 170 mm. Choose a
chassis that accommodates this form factor. Make sure that the I/O template in the
chassis matches the I/O ports installed on the rear edge of the motherboard. Most
system chassis have mounting brackets installed in the chassis, which corresponds
to the holes in the motherboard. Place the motherboard over the mounting brack-
ets and secure the motherboard onto the mounting brackets with screws.
Follow these safety precautions when installing the motherboard:
• Wear a grounding strap attached to a grounded device to avoid damage
from static electricity.
• Discharge static electricity by touching the metal case of a safely grounded
object before working on the motherboard.
• Leave components in the static-proof bags.
• Always remove the AC power by unplugging the power cord from the power
outlet before installing or removing the motherboard or other hardware
components.
Do not over-tighten the screws as this can stress the motherboard.

Chapter2
8
H110T-SI01USER MANUAL
This section explains how to set jumpers for correct configuration of the
motherboard.
2-3. Checking Jumper Settings

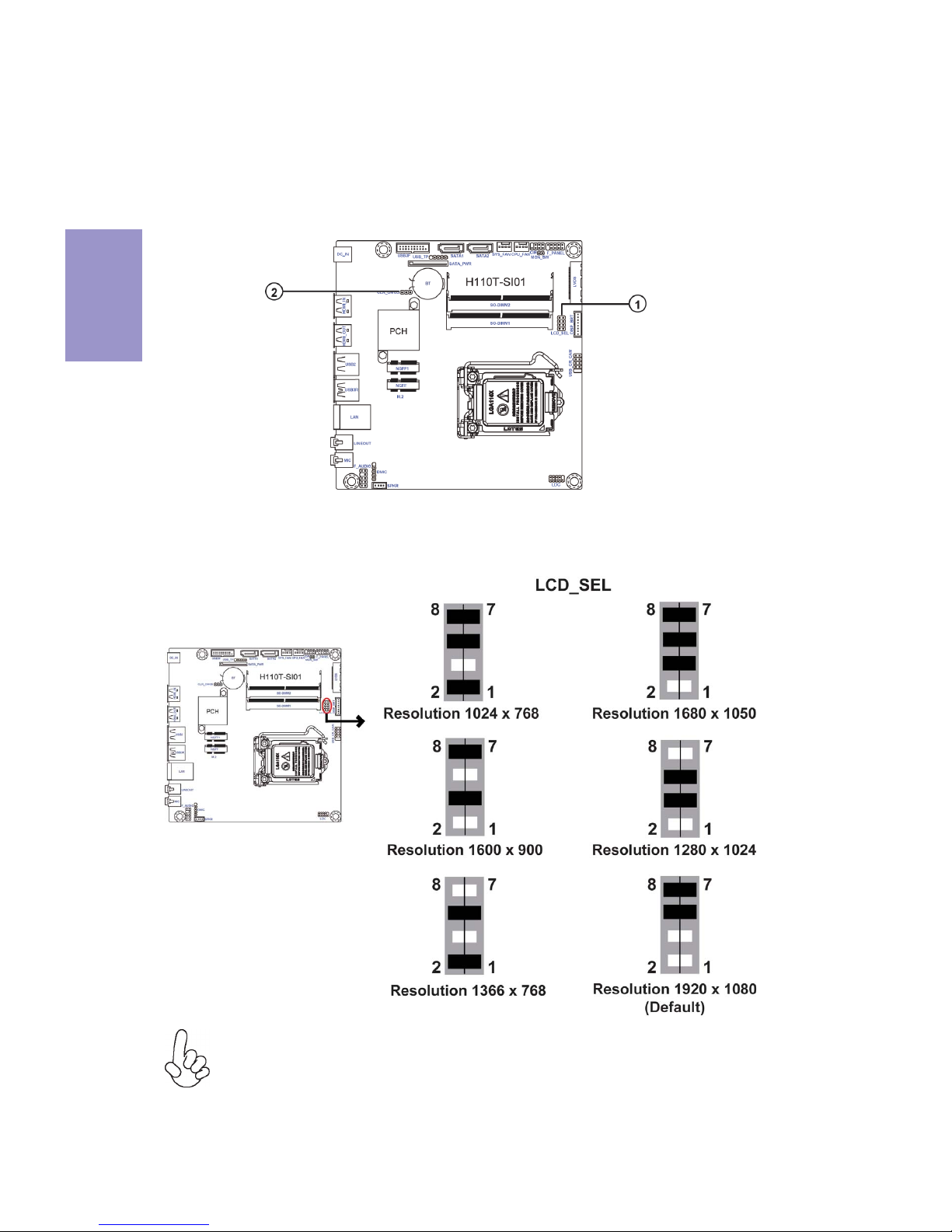

1. LCD_SEL: LCD panel select jumper (For All-In-One Specification)
1.When your panel connects to LVDS, please check LCD_SEL header setting
first.
2.Due to the differences of the panel parameters, please follow the above
illustration to place the jumper caps.

Chapter2
9
H110T-SI01USER MANUAL
To avoid the system instability after clearing CMOS, we recommend users to
enter the main BIOS setting page to “Load Default Settings” and then “Save
and Exit Setup”.
The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.

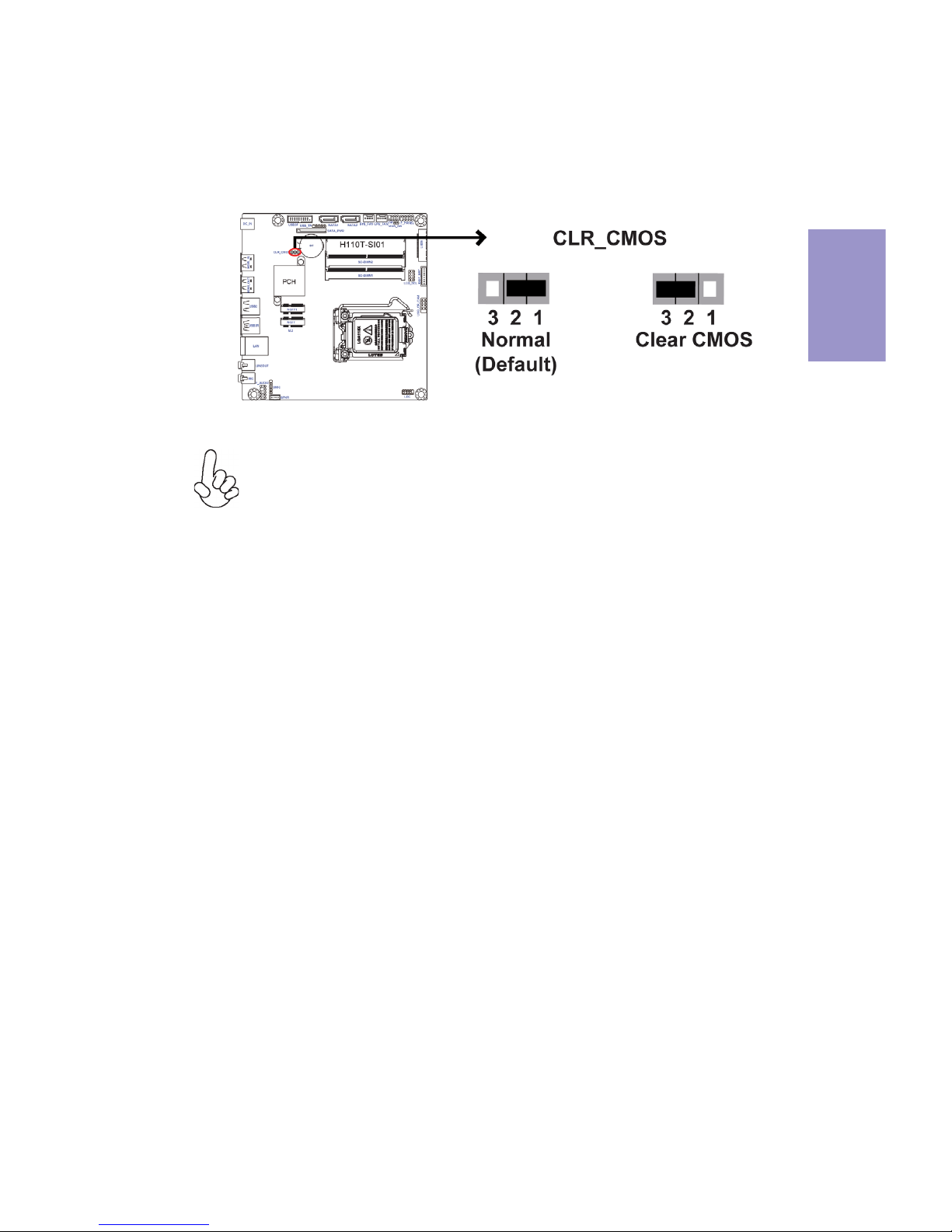

2. CLR_CMOS: Clear CMOS jumper

Chapter2
10
H110T-SI01USER MANUAL
2-4. Installing Hardware
• This motherboard has an LGA1151 socket.
• When choosing a processor, consider the performance requirements of
the system. Performance is based on the processor design, the clock speed
and system bus frequency of the processor, and the quantity of internal
cache memory and external cache memory.
• You may be able to change the settings in the system Setup Utility. We
strongly recommend you do not over-clock processor or other
components to run faster than their rated speed.
• The following illustration shows CPU installation components.

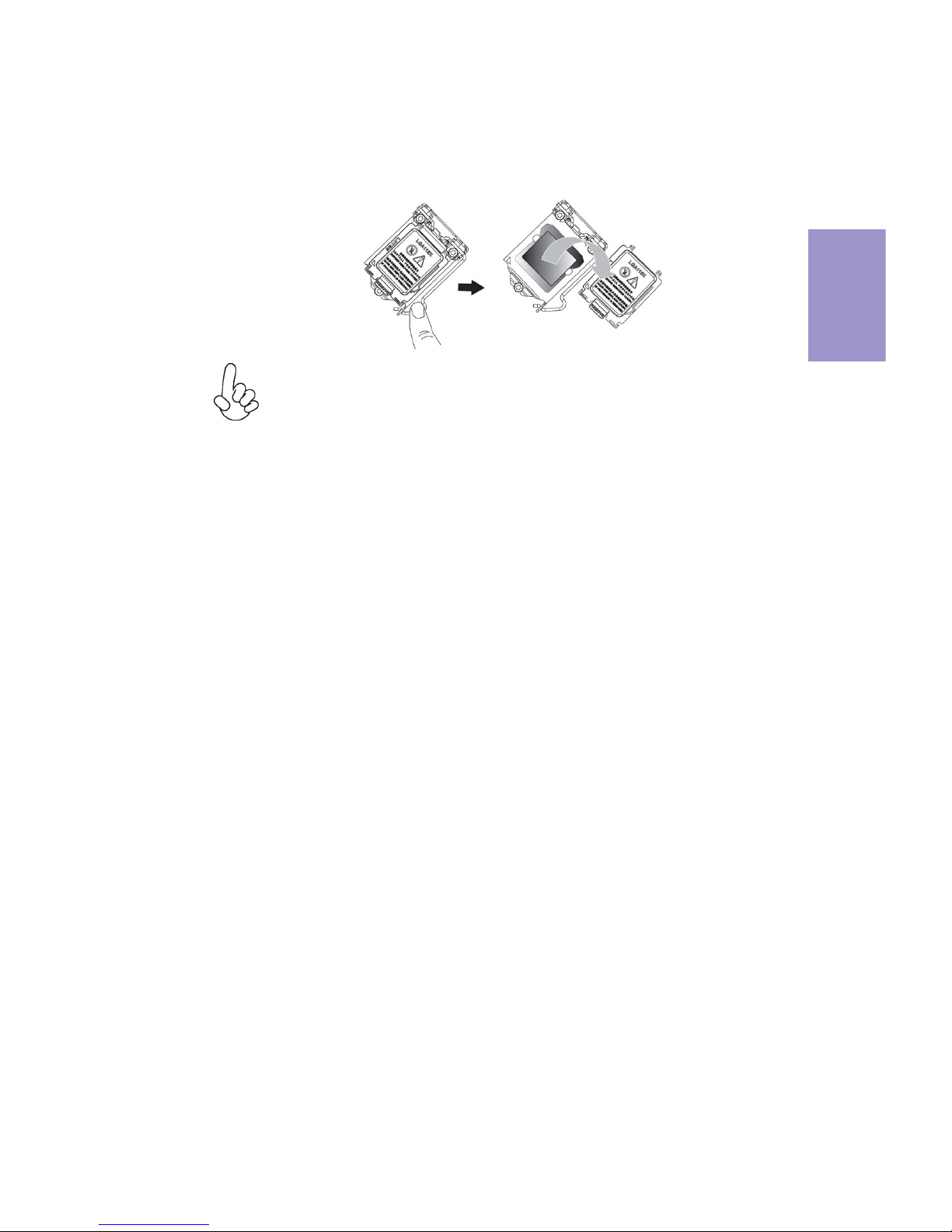

A. Press the hook of lever down with your thumb and pull it to the right
side to release it from retention tab.
B. Lift the tail of the load lever and rotate the load plate to fully open
position.
C. Grasp the edge of the package substrate. Make sure pin 1 indicator
is on your bottom-left side. Aim at the socket and place the package
carefully into the socket by purely vertical motion.
2-4-1. Installing the Processor

Chapter2
11
H110T-SI01USER MANUAL
D. Rotate the load plate onto the package IHS (Intergraded Heat
Spreader). Engage the load lever while pressing down lightly onto the
load plate. Secure the load lever with the hook under retention tab. Then
the cover will flick automatically.
Please save and replace the cover onto the CPU socket if processor is re-
moved.

Chapter2
12
H110T-SI01USER MANUAL
A. Apply some thermal grease onto the contacted area between the
heatsink and the CPU, and make it to be a thin layer.
B. Fasten the cooling fan supporting base onto the CPU socket on the
motherboard. And make sure the CPU fan is plugged to the CPU fan
connector.
C. Connect the CPU cooler power connector to the CPU_FAN connector.
2-4-2. Installing the CPU Cooler
• Install the cooling fan in a well-lit work area so that you can clearly see the
motherboard and processor socket.
• Avoid using cooling fans with sharp edges in case the fan casing and the
clips cause serious damage to the motherboard or its components.
• To achieve better airflow rates and heat dissipation, we suggest that you
use a high quality fan with 3800 rpm at least. CPU fan and heat sink
installation procedures may vary with the type of CPU fan/heatsink
supplied. The form and size of fan/heatsink may also vary.
• DO NOT remove the CPU cap from the socket before installing a CPU.
• Return Material Authorization (RMA) requests will be accepted only if the
motherboard comes with the cap on the LGA1151 socket.
• The following illustration shows how to install CPU fan.

Chapter2
13
H110T-SI01USER MANUAL
2-4-3. Installing Memory Modules
• This motherboard accommodates two memory modules. It can support
two 204-pin DDR4 2400 MHz.
• Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules only
by their edges. Do not touch the components or metal parts. Always wear
a grounding strap when you handle the modules.
• You must install at least one module in any of the two slots. Total memory
capacity is 32 GB.
• Refer to the following to install the memory modules.

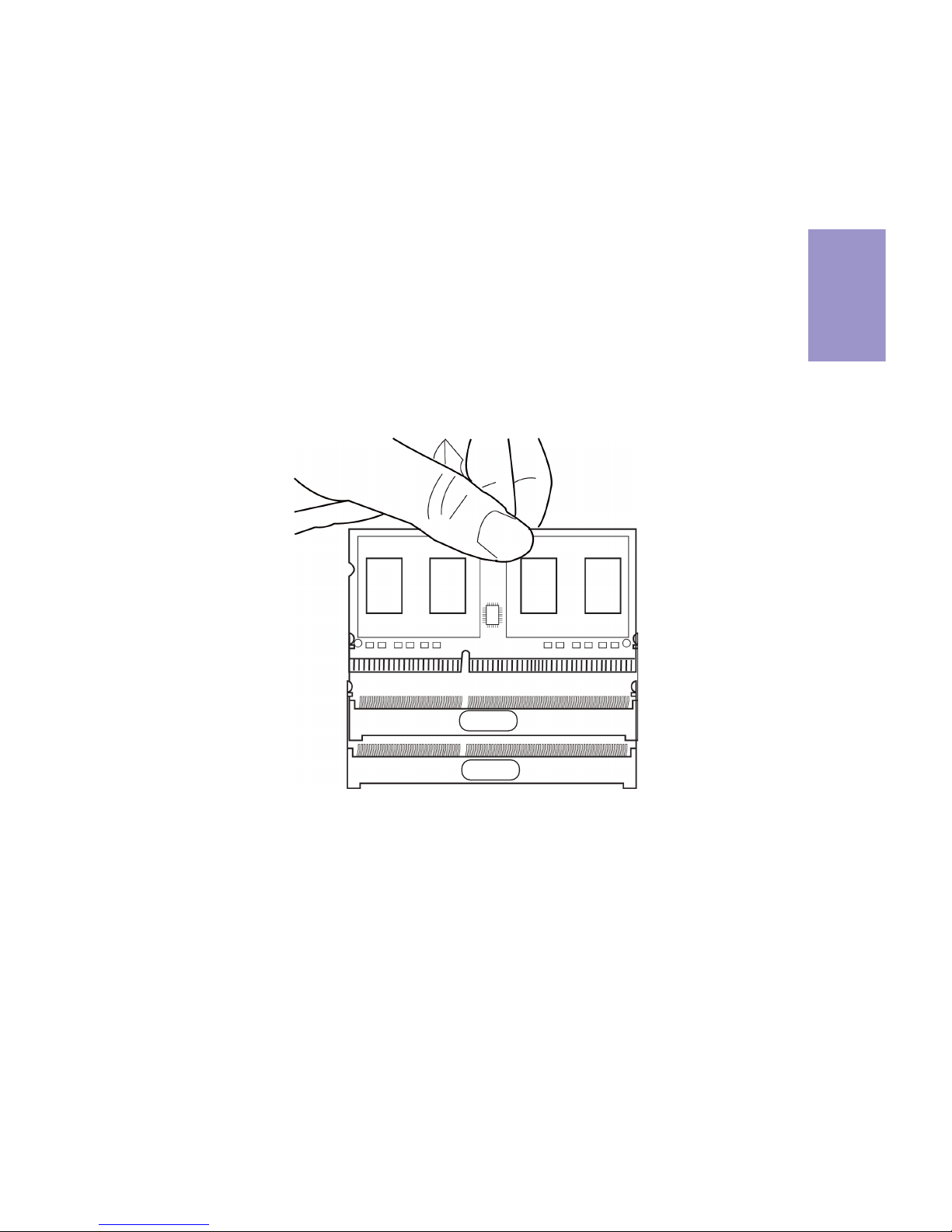

Install the DIMM module into the slot and press it firmly down until it fits
in place. Check that the cutouts on the DIMM module edge connector
match the notches in the DIMM slot.
SO-DIMM2
SO-DIMM1

Chapter2
14
H110T-SI01USER MANUAL
2-4-4. Installing Add-on Cards
The slots on this motherboard are designed to hold expansion cards and connect
them to the system bus. Expansion slots are a means of adding or enhancing the
motherboard’s features and capabilities. With these efficient facilities, you can
increase the motherboard’s capabilities by adding hardware that performs tasks
that are not part of the basic system.
Before installing an add-on card, check the documentation for
the card carefully. If the card is not Plug and Play, you may have
to manually configure the card before installation.

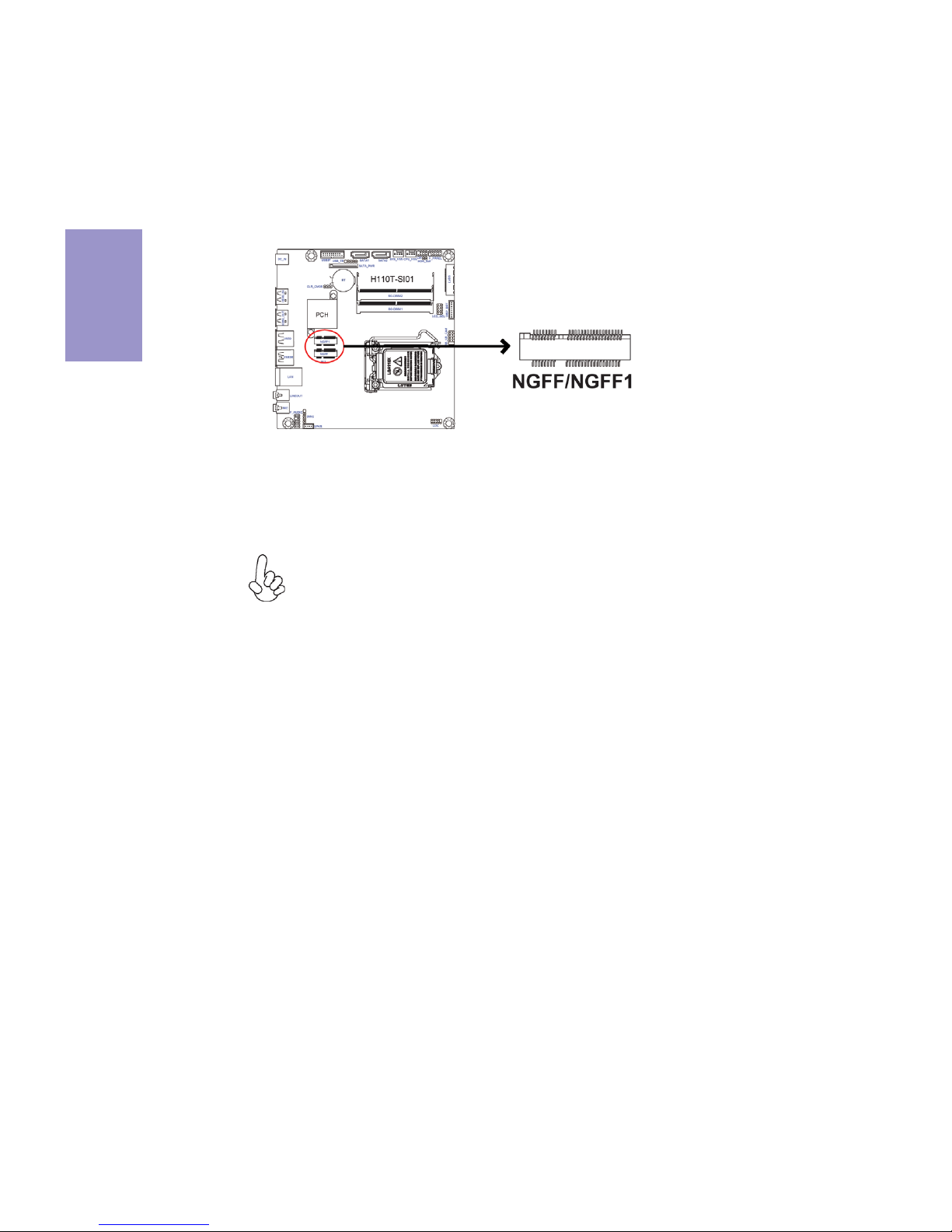

NGFF/NGFF1
Slots
The NGFF slot is M.2 for 2230/2280 SATA or PCIE SSD installing. It
will provide high transfer performance than original SATA inter-
face.
