Edco MAGNA-TRAP TMC-7 Assembly instructions
E-TMC7-I-0119
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Operator’s Instruction Manual
TMC-7
MAGNA-TRAP® 7″ TURBO / EDGE GRINDER
Available in Gasoline and Electric
Printed in USA
©2019
EQUIPMENT DEVELOPMENT COMPANY, INC.
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone: 800-638-3326 or 301-663-1600 • Fax: 800-447-3326 or 301-663-1607
READ AND UNDERSTAND THE OPERATOR’S SAFETY MANUAL THOROUGHLY
BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT.
Death or serious injury could occur if this machine is used improperly.
Machine specic Operator’s Instruction Manuals are oered at edcoinc.com/customer-resources/manuals-parts-lists/
READ AND UNDERSTAND THE ENGINE MANUFACTURERS INSTRUCTIONS AND OPERATORS MANUAL BEFORE OPERATION.
Page 2
E-TMC7-I-0119
EQUIPMENT DEVELOPMENT CO., INC.
•Engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth
defects or other reproductive harm.
• Tilting a gasoline powered machine tted with an
EPA approved vented charcoal lter gas cap, beyond
20° can cause fuel leakage. If a leak occurs, do not
start or run the engine until the leak is xed. Eliminate all other ignition
sources in the immediate area (no smoking, ares, sparks or ames).
Use approved gasoline absorbing material to contain the fuel leakage.
Then use clean, non-sparking tools to collect absorbed materials then
dispose of these contaminants properly.
• Gasoline is extremely ammable and poisonous. It should
only be dispensed in well ventilated areas, and with a cool
engine.
• Small gasoline engines produce high concentrations of
carbon monoxide (CO) example: a 5 HP 4 cycle engine operation in
an enclosed 100,000 cu. ft. area with only one change of air per hour
is capable of providing deadly concentrations of CO in less than fteen
minutes. Five changes of air in the same area will produce noxious
fumes in less than 30 minutes. Gasoline powered equipment should
not be used in enclosed or partially enclosed areas. Symptoms of CO
poisoning include, head-ache, nausea, weakness, dizziness, visual
problems and loss of consciousness. If symptoms occur - get into
fresh air and seek medical attention immediately.
• Never refuel a hot engine or an engine while it is running.
• Engines are shipped from factory without fuel/oil.
SAFETY MESSAGES
Indicates an imminent hazard which, if not avoided,
will result in death or serious injury.
Indicates an imminent hazard which, if not avoided,
can result in death or serious injury.
Indicates hazards which, if not avoided, could result in
serious injury and or damage to the equipment.
• Safety Instructions are proceeded by a graphic alert symbol of DANGER,
WARNING, or CAUTION.
GASOLINE / PROPANE POWERED EQUIPMENT
• Do not disconnect power by pulling cord. To disconnect, grasp the
plug, not the cord.
• Unplug power cord at the machine when not in use and before servic-
ing.
• Switch motor OFF before disconnecting power.
• Never use frayed, damaged, taped or under rated extension cords.
Electrical shock could result in death or serious injury to the operator
and damage to the equipment.
• Assure you are using the proper extension cord length.
• Equipment should only be operated by trained personnel in good
physical condition and mental health (not fatigued). The operator and
maintenance personnel must be physically able to handle the bulk
weight and power of this equipment.
• This is a one person tool. Maintain a safe operating distance to other
personnel. It is the operators’ responsibility to keep other people (work-
ers, pedestrians, bystanders, etc.) away during operation. Block o
the work area in all directions with roping, safety netting, etc.
Failure to do so may result in others being injured by ying debris or
exposing them to harmful dust and noise.
• This equipment is intended for commercial use only.
• For the operator’s safety and the safety of others, always keep all
guards in place during operation.
• Never let equipment run unattended.
• Personal Protection Equipment and proper safety attire must be worn
when operating this machinery. The operator must wear approved
safety equipment appropriate for the job such as hard hat and safety
shoes when conditions require. Hearing protection MUST be used
when operational noise levels of this equipment may exceed 85db.
Eye protection MUST be worn at all times.
GENERAL INSTRUCTIONS
Keep body parts, loose clothing and accessories away from
moving parts. Failure to do so could result in dismemberment
or death.
• Do not modify the machine.
• Stop motor/engine when adjusting or servicing this equipment. Maintain
a safe operating distance from ammable materials. Sparks
from the cutting-action of this machine can ignite ammable
materials or vapors.
• Propane is extremely ammable and is heavier than air
and tends to settle in low areas where a spark or ame could
ignite gas. DO NOT start or operate this propane engine in
a poorly ventilated area where leaking propane gas could accumulate
and endanger safety of persons in area. If headache develops, shut o
machine. Have it checked for carbon monoxide emissions by a qualied
technician before using it again. To ensure personal safety, installation
and repair of propane fuel supply systems must be performed only by
qualied technicians. Carbon monoxide emissions from this machine are
greatly increased due to a dirty combustion air cleaner.
Extreme care must be taken when operating electric models
with water present: Ensure power cord is properly grounded,
is attached to a Ground-Fault-Interrupter (GFI) outlet, and is
undamaged.
• Check all electrical cables - be sure connections are tight and cable
is continuous and in good condition. Be sure cable is correctly rated
for both the operating current and voltage of this equipment.
• Improper connection of the equipment grounding conductor can
result in a risk of electric shock. Check with qualied electrician or
service person if there is any doubt as to whether the outlet is properly
grounded. Adhere to all local codes and ordinances.
• NOTE: In the event of a malfunction or breakdown, grounding provides
a path of least resistance for the electric current to dissipate. The motor
is equipped with a grounded plug and must be connected to an outlet
that is properly installed and properly grounded. DO NOT modify the
plug provided on the motor. If the plug does not t the outlet have a
qualied electrician install the proper receptacle.
ELECTRICAL POWERED EQUIPMENT
DUST WARNING
Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains chemi-
cals known to cause cancer, birth defects, or other
reproductive harm. Materials being removed can be toxic or hazardous.
A breathing respirator is required to help protect the operator.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, concrete and other
masonry products.Your risk of exposure to these chemi cals varies de-
pending on how often you do this type of work. To reduce your risk: work
in a well ventilated area, use a dust control system, such as an industrial-
style vacuum, and wear approved personal safety equipment, such as a
dust/particle respirator designed to lter out microscopic particles.
• See more on the importance of dust prevention and silica warnings at:
osha.gov/silica
• More concrete and silica dust supression training and educational ma-
terials available at edcoinc.com/silica-standards or scan the QR code on
page 5.
• Written exposure plans are provided at http://www.edcoinc.com/written-
exposure-control-plans/
ELECTRICAL POWERED EQUIPMENT CONTINUED
SAFETY INFORMATION
Page 3
E-TMC7-I-0119
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Operator’s Instruction Manual
TMC-7
Table of Contents
HOW TO ORDER REPAIR PARTS
To insure product safety and reliability, always use genu-
ine EDCO replacement parts when making repairs to the
equipment.
When ordering parts, please specify the MODEL and SERI-
AL NUMBER of the machine as given on the NAMEPLATE.
In addition, give part number, description and quantity as
listed on the parts list.
Please note: Due to improvements and changes in the
equipment the illustrations shown may be dierent from
the actual machine.
Toll Free: Voice 1-800-638-3326 • Fax 1-800-447-3326
Figure 1
Specications ................................................................................................................ 3
How to Order Repair Parts ............................................................................................ 3
Safety Guideline ........................................................................................................ 2, 4
Operating Instructions .............................................................................................. 5 - 7
Maintenance Instructions and Schedule........................................................................ 8
SMI Dust and Silica Warning......................................................................................... 9
Notes ........................................................................................................................... 10
Limited Equipment Warranty ............................................................... Inside Back Page
NOTE: Due to improvements your machine may not appear the same as the pictures in this manual.
Specications & dimensions are for
reference only and subject to change.
Length (L) 40” 102 cm
Width (W) 24” 61 cm
Height (H) 38.5” 98 cm
Total Weight 120 lbs. 54.4 kg
Noise level lwa - 99 dB(A)
Noise level leq - 87 dB(A)
L
H
W
Page 4
E-TMC7-I-0119
EQUIPMENT DEVELOPMENT CO., INC.
Read and understand all operating instructions
before operating this equipment.
Death or serious injury can result if this machine is used improperly.
Eye and ear protection must be worn at all times while the grinder is in use. During normal operation,
sound pressure levels may exceed 85dBA. Use only ANSI approved safety glasses to help prevent
eye injury. Everyday eyeglasses have only impact resistant lenses; they are NOT safety glasses.
Operator must wear appropriate clothing and footwear. Do not wear loose clothing or jewelry that
can get tangled in moving parts. Footwear should provide sure footing and protection.
Materials being removed can be toxic or hazardous. A breathing respirator is required to help protect the oper-
ator from inhaling the airborne material when operating this machine.
• Inspect the work surface for cracks, uneven joints and foreign objects such as nails, screws and pipes. Damage
to the disc and/or equipment may result which can also cause serious injury to the operator. Hazardous areas
should be properly identied and clearly marked.
• The TMC-7 is designed to be controlled by a single operator .
• Inspect the discs carefully before installing. Do not use any questionable disc since serious personal injury and/
or damage to property can result.
• Never operate this grinder while under the inuence of drugs, alcohol or when taking medications that impair the
senses or reactions, or when excessively tired or under stress.
• Be sure decals on the machine can be clearly read and understood. Replace worn or missing decals immediately,
Safety Guidelines
Safety warnings and guidelines do not by themselves eliminate danger.
They are not given as substitutes for proper accident prevention procedures and good judgement.
Page 5
E-TMC7-I-0119
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Operating Instructions

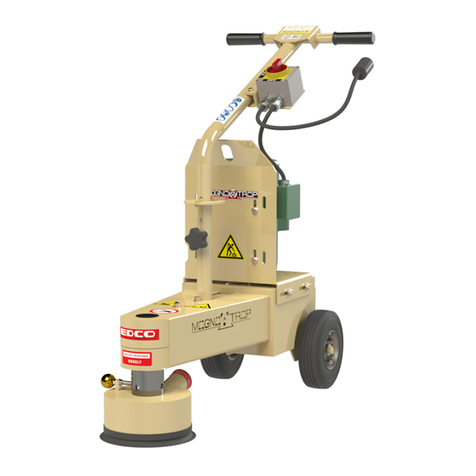

About the TMC-7:
• The EDCO edge grinders are designed to be used in conjunction with other EDCO surface preparation products.
It’s small, lightweight construction allows the operator to grind close to obstacles.
These units are equipped with a single 7” diameter Diamond Segmented Disc that is an aggressive surface material
grinder for removing excess concrete, epoxy mortar, urethane coatings and overlays, and non-skid abrasive coatings on
steel, concrete, or polymer slab oors. A scarier disc is optional. This machine is capable of either wet or dry grinding.
Before Starting:
• Before starting, perform a visual inspection of the entire machine. Be sure all fasteners are tight and
secure, check for signs of metal cracking or fatigue, inspect for damage. Be sure guards are in place, secure and
undamaged.
• Inspect diamond grinding disc. Check for loose or damaged diamond segments and replace if
necessary. Check that the diamond disc has been correctly mounted and be sure it is tight. Dierent
diamond/matrix discs wear at dierent rates. Be sure to use the correct diamond/matrix combination
for your specic application.
Figure 2
Switch Box
J
Electric Motor
Adjustable
Wheel Carriage
Vacuum Port
Hood
Grease Fitting
Access Cap
Handle Belt Lock Guard
Diamond Disc (Underneath)
Adjustable Handle
Gas Engine
Flat for Edge Grinding
Pivot Adjuster (head)
Page 6
E-TMC7-I-0119
EQUIPMENT DEVELOPMENT CO., INC.
Operating Instructions
To Start Grinding:
• Operating the machine from the rear, push down, or if operating from the front,
lift the handle very slightly to shift some of the weight o of the disc, but do not
let the disc lift from the slab surface. The slight weight shift will aid in reaching
the operating speed without an excessive start-up power draw.
Once the unit reaches operating speed, allow the edger-grinder to settle
back down on the slab with the full weight on the disc.
• If the disc is out of balance, stop immediately and have the problem xed or
damage to the equipment will result.
For Wet Grinding:
• Water is not necessary as a coolant but rather as a means of controlling dust. Lightly dampen the oor or use a
ne mist.
Do not use an excessive amount of water . Excess water on the surface will create a dangerous, slip-
pery surface and more work during cleanup.
• Sprinkle a small amount of sand on the slab to create a slurry during grinding. The slurry tends to keep the dia-
monds free from build up and the cutting edge exposed. If a squeaking sound is heard or the machine tends to
pull to one side, the diamond segments may have lled and are no longer grinding eectively. Discontinue use of
machine. Make sure the throttle is completely closed (full stop position) to insure the engine will not accidently re
(kick back) when removing the disc which could cause bodily injury and/or damage to the machine. Then follow
the directions for replacing the diamond disc or optional scarier disc.
For Dry Grinding:
Check materials being removed to determine if they are listed on an EPA hazardous substance list. A
breathing respirator is required to help protect the operator.
• The EDCO industrial VAC’s have available optional HEPA lter kits designed to be used when removing
hazardous materials. Standard, shop-vac style vacuums are not capable of extended operation. In addition,
these standard vacs use paper bag lters that can clog and overload the vacuum motor.
• Dry grinding creates a large volume of airborne dust. The edgers are equipped with a 1-1/2” vacuum port for
attaching a high volume industrial vacuum capable of removing particles to three microns. If the materials
involved are hazardous, or unknown and assumed hazardous, the operator must assume responsibility for the
proper handling and disposal of the hazardous material.
Note: Hazardous debris, including vacuum lters, must be disposed of properly according to OSHA and
government standards.
Figure 1
Page 7
E-TMC7-I-0119
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Figure 5
Figure 4
Figure 7Figure 6
Figure 2 Figure 3
Operating Instructions
For Edge Grinding:
• Pivot handle and rear wheel frame to allow machine to get as close to wall as possible. (Figure 2)
Pivot at side of hood toward the wall.
Replacing the Diamond Grinding Disc:
• Disconnect from power source.
• To gain access to the disc, push down on the handle in the rear optional position and pivot the unit back on
the wheels until it comes to rest on the handle. (Figure 3)
• Remove plastic cap from belt cover. (Figure 4) Place 9/16” socket on top of shaft. While holding ratchet on top,
place 1-1/8” socket on nut and remove. (Figure 5)
• Replace with a new disc and reverse the procedure.
Inspect drive belt:
• Remove belt cover by removing 2 bolts. (Figure 6)
• Check belt tension. On new equipment, and after installing a new belt, the belt should be retensioned after the rst four
hours of use. A damaged, stretched, or worn belt should be replaced with a new one.
(Figures 7 - Shown with belt cover removed.) Loosen motor mount bolts and push down slightly to tension belts.
Re-tighten motor mount bolts. Replace belt cover.
Page 8
E-TMC7-I-0119
EQUIPMENT DEVELOPMENT CO., INC.
Maintenance
Make sure the throttle is completely closed (full stop position) to insure
the engine will not accidently re (kick back) while
performing any maintenance.
• All maintenance should be performed regularly and by qualied personnel only.
• Never work under equipment without rst properly securing the equipment to prevent
it from moving or falling. Always work on a at and level surface.
• Grease disc bearings every 8 hours of use. To access grease the tting on the TMC-7 refer to (Figure 8).
These bearings are tapered roller bearings lubricated with High Temp Lubriplate No. 930-AA, or equivalent
bearing grease. Do not over lubricate. Be sure to clean up any excess grease after lubricating the
bearings. These bearings can occassionally require adjustment. If it is evident that these bearings need
adjustment they can be accessed by removing the belt over.
• Lubricate the wheel bearings from time to time with an occasional drop or two of oil to prevent binding.
• Proper belt tension must be maintained to transmit the motor power to the grinding disc.
Damage to the motor will occur and disc life shortened if belts are not kept at the
proper tension.
• Keep the Grinders clean. Be sure the safety decals are readable and properly maintained on the machine.
Repairs are to be done
by authorized EDCO
Dealers only.
Read and follow
instructions in the engine
owner’s manual.
Quick Reference
For Maintaining
Grinders
Before
Each
Operation
Daily
After
Each
Use
As
Required
Engine Air FIlter (Gas) X
Visual Inspection of
Entire Machine X
Inspect Diamond Disc X
Grease Bearings X
Clean dust and dirt o
Machine X
Inspect Belt and Belt
tensioning XFigure 8
Grease Fitting
Page 9
E-TMC7-I-0119
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
DUST AND CRYSTALLINE SILICA WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust,
mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as
respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with
the risks associated with the particular process and/or material being cut or the composition of
the tool being used, review the material safety data sheets and/or consult your employer, the
manufacturers/suppliers, governmental agencies such as OSHA and NIOSH and other sources
on hazardous materials. California and some other authorities, for instance, have published lists
of substances known to cause cancer, reproductive toxicity, or other harmful eects.
Control dust, mist and fumes at the source where possible. In this regard use good work practices
and follow the recommendations of the manufacturers/suppliers, OSHA/NIOSH, and occupa-
tional and trade associations. Water should be used for dust suppression when wet grinding/
cutting/drilling is feasible. When the hazards from inhalation of dust, mists and fumes cannot
be eliminated, the operator and any bystanders should always wear a respirator approved by
NIOSH/MSHA for the material being used.
Grinding/cutting/drilling of masonry, concrete and other materials with silica in their composition
may give o dust or mists containing crystalline silica. Silica is a basic component of sand,
quartz, brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial
inhalation of airborne crystalline silica can cause serious or fatal respiratory diseases, including
silicosis. In addition, California and some other authorities have listed respirable crystalline silica
as a substance known to cause cancer. When grinding/cutting/drilling such materials, always
follow the respiratory precautions mentioned above.
See more on the importance of dust prevention and silica warnings at osha.gov/silica.
See more concrete and silica dust supression training and educational
materials at edcoinc.com/silica-standards or scan the QR code at right.
Page 10
E-TMC7-I-0119
EQUIPMENT DEVELOPMENT CO., INC.
NOTES
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
This page intentionally left blank.
Page 11
E-TMC7-I-0119
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Equipment Development Company, Inc. herein referred to as EDCO (Seller) warrants that
each new unit manufactured by EDCO to be free from defects in material and workmanship
in normal use and service for a period of (1) one year (except for the cutter drum assembly
on all model concrete/asphalt planers AND the chisel head assembly on all model ALR’s &
ALR-BS in which case the warranty period shall be 90 days) from date of shipment to the
original retail or equipment rental center owner.
Accessories or equipment furnished and installed on the product by EDCO but manufactured by
others, including, but not limited to engines, motors,electrical components, transmissions etc.,
shall carry the accessory manufacturers own warranty.
EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by
EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been
defective in material or workmanship.
EDCO reserves the right to modify, alter and improve any part or parts
without incurring any obligation to replace any part or parts previously sold without such
modified, altered or improved part or parts.
This warranty is in lieu of and excludes all other warranties, expressed, implied, statutory,
or otherwise created under applicable law including, but not limited to the warranty of
merchantability and the warranty of fitness for a particular purpose in no event shall seller
or the manufacturer of the product be liable for special, incidental, or consequential dam-
ages, including loss of profits, whether or not caused by or resulting from the negligence
of seller and/or the manufacturer of the product unless specifically provided herein. In ad-
dition, this warranty shall not apply to any products or portions there of which have been
subjected to abuse, misuse, improper installation, maintenance, or operation, electrical
failure or abnormal conditions and to products which have been tampered with, altered,
modified, repaired, reworked by anyone not approved by seller or used in any manner
inconsistent with the provisions of the above or any instructions or specifications provided
with or for the product.
FORCE MAJEURE
Seller’s obligation hereunder are subject to, and Seller shall not be held responsible for, any
delay or failure to make delivery of all or any part of the Product due to labor difficulties,
fires, casualties, accidents, acts of the elements, acts of God, transportation difficulties,
delays by a common carrier, inability to obtain Product, materials or components or qualified
labor sufficient to timely perform part of or all of the obligations contained in these terms
and conditions, governmental regulations or actions, strikes, damage to or destruction in
whole or part of manufacturing plant, riots, terrorist attacks or incidents, civil commotions,
warlike conditions, flood , tidal waves, typhoon, hurricane, earthquake, lightning, explosion
or any other causes, contingencies or circumstances within or without the United States not
subject to the Seller’s control which prevent or hinder the manufacture or delivery of the
Products or make the fulfillment of these terms and conditions impracticable. In the event
of the occurrence of any of the foregoing, at the option of Seller, Seller shall be excused
from the performance under these Terms and Conditions, or the performance of the Seller
shall be correspondingly extended.
This document sets forth the terms and conditions pursuant to which the purchaser (“Pur-
chaser”) will purchase and Equipment Development Co.Inc. (“Seller”)will sell the products,
accessories, attachments (collectively the Products “) ordered by the Purchaser. These
terms and conditions shall govern and apply to the sale of Seller’s Products to Purchaser,
regardless of any terms and conditions appearing on any purchase order or other forms
submitted by Purchaser to Seller, or the inconsistency of any terms therein and herein.
1. PRICE
All prices set forth on any purchase order or other document are F.O.B. Sellers facility or dis-
tribution point, as may be determined by Seller (F.O.B.Point). All prices are exclusive of any
and all taxes, including, but not limited to, excise, sales, use, property or transportation taxes
related to the sale or use of the Products, now or hereafter imposed, together with all penalties
and expenses. Purchaser shall be responsible for collecting and/or paying any and all such
taxes, whether or not they are stated in any invoice for the Products. Unless otherwise speci-
fied herein, all prices are exclusive of inland transportation, freight, insurance and other costs
and expenses relating to the shipment of the Products from the F.O.B. point to Purchaser’s
facility. Any prepayment by Seller of freight insurance and other costs shall be for the account
of Purchaser
and shall be repaid to Seller.
2. PAYMENT TERMS
Payment terms are as follows. 2% 10 days (to approved and qualified accounts). Net 30
days. This is a cash discount for invoices paid within 10 days after the invoice date, regard-
less of date of receipt of shipment. This is not a trade discount and will not be granted to
accounts that do not adhere to stated terms.
*All past due accounts are subject to a late payment fee of 1.5% per month or a maximum
allowed by law if different, along with the expenses incidental to collection including reason-
able attorney’s fees and costs.
*Seller reserves the right to hold shipments against past due accounts.
*Seller reserves the right to alter payment terms.
3. FREIGHT TERMS
All shipments will be made F.O.B. shipping point as designated in these Terms and Condi-
tions, and title shall pass at the F.O.B. point. Delivery to the initial common carrier shall
constitute delivery to the Purchaser. Any claims for loss or damage during shipment
are to be filed with carrier by the Purchaser. Seller will not assume responsibility for the
performance of the carrier.
Back orders will be shipped in the most practical fashion with charges consistent with
our freight policy established with the original order. UPS, FED EX, MAIL or shipments
by other couriers are subject to the same terms and conditions as outlined in paragraph
#3”Freight Terms”.
4. DELIVERY, DAMAGES, SHORTAGES
Seller shall use reasonable efforts to attempt to cause the Products to be delivered as provided
for in these Terms & Conditions. Delivery to the initial common carrier shall constitute the delivery
to the Purchaser. Sellers responsibility, in so far as transportation risks are concerned ceases
upon the delivery of the Products in good condition to such carrier at the F.O.B. point and all the
Products shall be shipped at the Purchaser’s risk. Seller shall not be responsible or liable for
any loss of income and/or profits, or incidental, special, consequential damages resulting from
Seller’s delayed performance in shipment and delivery.
5. RETURN OF DEFECTIVE PRODUCTS
Defective or failed material shall be held at the Purchaser’s premises until authorization has
been granted by Seller to return or dispose of Products. Products that are to be returned
for final inspection must be returned Freight Prepaid in the most economical way. Credit
will be issued for material found to be defective upon Seller’s inspection based on prices
at time of purchase.
6. PRODUCTS ORDERED IN ERROR
Products may be returned, provided that claim is made and Seller is notified within 7 days
of receipt of Products, and the Products are in original buyer’s possession not more than
30 days prior to return, subject to Seller’s approval. If Products are accepted for return,
they must be Freight Prepaid and buyer will be charged a minimum of 15% restocking
charge, plus a charge back for outbound freight charges if the original order was shipped
prepaid. Returns are not accepted for any Products that are specifically manufactured to
meet the buyer’s requirement of either specifications or quantity.
AGREEMENTS
These Terms and Conditions constitute the entire agreement between Seller and Purchaser as
it relates to terms and conditions of sale, and supersedes any and all prior oral or written agree-
ments, correspondence, quotations or understandings heretofore in force between the parties
relating to the subject matter hereof. There are no agreements between Seller and Purchaser
with respect to the Product herein except those specifically set forth in and made part of these
terms and conditions. Any additional terms, conditions and/or prices are rejected by Seller.
These terms and conditions may be modified, cancelled or rescinded only by a written
agreement of both parties executed by their duly authorized agents.
USE ONLY GENUINE EDCO PARTS & ACCESSORIES
For your own safety, the safety of others and the life of your machine.
SUBMIT ALL WARRANTY CLAIMS AT:
edcoinc.com/customer-support/warranty-claim-form/
LIMITED EQUIPMENT WARRANTY OF SALE
TERMS AND CONDITIONS
(NOT APPLICABLE TO SALES THROUGH AUTHORIZED DISTRIBUTION)
EQUIPMENT DEVELOPMENT CO., INC.
Scan This QRC or Visit
www.edcoinc.com/customer-support
READ
:
EDCO Owner’s Manuals and Parts Listings share basic information
and parts of each product. Download and print them whenever needed.
WATCH:
EDCO Product Training Videos show how to use products, install
tooling, and perform basic maintenance.
FIND:
Somewhere on this product is an EDCO QRC Training Decal. Scanning
this code provides owner’s information, videos, and other training content
anywhere/anytime on your mobile device.
JOIN:
EDCOed.com is a free, 24-hour training space. Each certication track
focuses on a specic EDCO product group. The information in these tracks help
businesses be successful with those products.
Example Only
EDCO is always updating online training / information so you always have the most recent content.
Also see Operator’s Safety & Limited Warranty Manual
BEFORE USING THIS PRODUCT
Have You Used EDCO’s Online Customer Support??
Other manuals for MAGNA-TRAP TMC-7
3
Table of contents
Other Edco Grinder manuals
Edco
Edco TG-10 Assembly instructions
Edco
Edco TG-10 Assembly instructions
Edco
Edco MAGNA-TRAP TMC-7 Assembly instructions
Edco
Edco SEC-HD User manual
Edco
Edco EDG-7 Datasheet
Edco
Edco MAGNA-TRAP TMC-7 Assembly instructions
Edco
Edco TG-10 Assembly instructions
Edco
Edco MAGNA-TRAP TMC-7 Assembly instructions
Edco
Edco SECNG-1.5L User manual
Edco

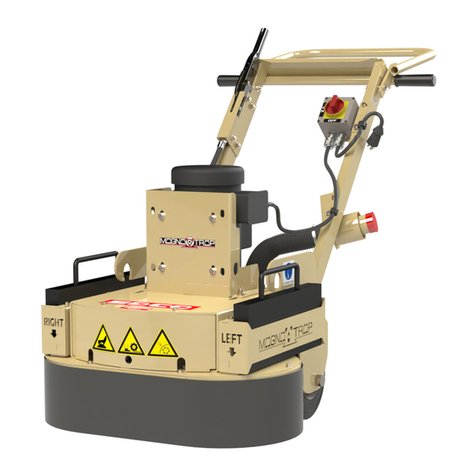

Edco MAGNA-TRAP 2EC-NG-1.5 User manual
