EdilKamin ARIS UP2 Quick start guide

EN Installation, use and maintenance page 2
ARIS UP2
PELLET STOVE

2
ENGLISH
The undersigned company, EDILKAMIN S.p.A., with
registered office in Via Vincenzo Monti 47 - 20123 Milan
(Italy) - Italian Tax ID VAT NO. 00192220192
Hereby declares, under its sole responsibility, that:
The pellet stoves mentioned below comply with EU
Regulation 305/2011 and the harmonised EU standard
EN 14785:2006
PELLET STOVES, bearing the
EDILKAMIN brand, called
ARIS UP2
SERIAL NO.: Rating plate reference
ARIS UP2 : Performance declaration: (DoP - EK no. 171)
Moreover, the company hereby declares that:
the ARIS UP2 wood pellet stoves satisfy the requirements of
the following European directives:
2014/35/EC - Low Voltage Directive
2014/30/EC - Electromagnetic Compatibility Directive
Introduction and readers of this manual 3
Safety information 4
Dimensions 5
Technical data 6
Unpacking 7
Smoke discharge direction 8
Covering Ceramic 12
Covering Steel 14
Installation 15
Instructions for use 19
Maintenance 28
Troubleshooting 31
CONTENTS
USER/INSTALLER
The original language of this edition is Italian

3
ENGLISH
Dear Sir/Madam
We thank you for and congratulate you on choosing our
product. Before using it, we would ask you to read this
manual carefully, so that you can make the most of all its
functions in total safety.
This manual is an integral part of the product. We ask you
to keep it for the entire lifetime of the product. If you lose it,
you can request a copy from your dealer or download it from
www.edilkamin.com.
Readers of the manual
This manual is addressed to:
• those who use the product at home (“USER”);
• the technician who will install the product (“INSTALLER”)
The target person of each page is indicated in a band at the
bottom of the page (USER or INSTALLER).
General information
After unpacking the product, check the condition and
completeness of the contents.
In the event of error, immediately contact the retailer where
the purchase was made, providing him with a copy of the
warranty booklet and sales receipt.
The appliance must be installed and operated in compliance
with local and national law and European regulations. For the
installation, and for anything not specifically indicated in the
manual, observe local regulations.
The diagrams provided in this manual are for illustration
purposes only: they do not always strictly refer to your
specific model, and are not binding in any way.
MEANING OF SYMBOLS
In some parts of the manual the following symbols are
used:
INFORMATION:
failure to comply with these requirements
will compromise product use.
PLEASE NOTE:
carefully read and understand the
message in question, since failure to
follow the instructions in it could cause
serious damage to the product and put
the safety of those using it at risk.
OPERATING SEQUENCE:
follow the instructions for the operations
described.
Product identication and warranty.
The product is uniquely identified by a number, the
“counterfoil”, which is indicated on the warranty certificate.
Please keep:
• the warranty certificate accompanying the product
• the purchase receipt given to you by the retailer
• the declaration of conformity given to you by the installer.
The warranty conditions are given in the warranty certificate
accompanying the product.
First ignition is required, in Italy, by an authorised
technician in accordance with UNI 10683, and is
recommended in all countries to ensure best results from
the product.
This consists of:
• checking the installation documents (declaration of
conformity) and the quality of the installation itself
• calibrating the product to suit its actual application
• providing explanations to the end user and issuing
the complementary documentation (first ignition -
commissioning certificate)
Having the appliance commissioned properly ensures that it
will operate to best effect and in complete safety.
First ignition is required for activation of the Edilkamin
manufacturer warranty. The warranty is only valid in the
country where the product was bought.
If the appliance is not commissioned by an authorised
technician, Edilkamin will not provide warranty service. See
the warranty booklet for details. The above terms do not
affect the dealer’s legal responsibility for the legal warranty.
The warranty, however, covers only demonstrable
manufacturing defects and not, for instance, problems
resulting from improper installation or calibration.
USER/INSTALLER

4
ENGLISH
SAFETY INFORMATION
• The product is not designed for use by people,
including children, with limited physical, sensory
and mental abilities.
• The appliance is not designed for cooking
purposes.
• The appliance is designed to burn UNI EN ISO
17225-2 category A1 wood pellets, in the amounts
and manner described in this manual.
• The appliance is designed for indoor use and in
areas with normal humidity conditions.
• Keep the product in a dry place out of the weather.
• For the legal and company warranties, refer to the
warranty certificate inside the product: specifically,
neither Edilkamin nor the retailer are liable for
damage resulting from incorrect installation or
maintenance.
Safety risks may be caused by:
• Installation in non-suitable settings, in particular
those that are subject to fire risks. DO NOT
INSTALL THE PRODUCT IN AREAS SUBJECT TO
THE RISK OF FIRE.
• Contact with fire and hot parts (e.g. glass panel
and pipes). DO NOT TOUCH HOT PARTS and,
when the stove is switched off and still hot, always
wear the glove supplied.
• Contact with live electrical equipment (internal).
DO NOT ACCESS THE INTERNAL ELECTRICAL
EQUIPMENT WHILE THE APPLIANCE IS
POWERED ON. Electrocution hazard.
• Use of improper ignition aids (e.g. alcohol). DO
NOT IGNITE OR BOOST THE FLAME WITH FLUID
SPRAYS OR A FLAME TORCH. Serious risk of
burns, damage and injury.
• Use of fuel other than wood pellets. DO NOT BURN
WASTE MATTER, PLASTIC OR MATERIALS OTHER
THAN WOOD PELLETS IN THE COMBUSTION
CHAMBER. The product may become soiled, the
flue may catch fire, and environmental damage
may ensue.
• Cleaning the combustion chamber when hot. DO
NOT CLEAN WITH A VACUUM CLEANER WHEN
HOT. You could damage the vacuum-cleaner and
risk the emission of smoke in the room.
• Cleaning the smoke duct with cleaning products.
DO NOT CLEAN THE PRODUCT WITH
FLAMMABLE PRODUCTS. Risk of fire or blowback.
• Cleaning the glass pane while hot or with unsuitable
cleaning products. DO NOT CLEAN HOT GLASS
WITH WATER. ONLY USE RECOMMENDED
GLASS CLEANING PRODUCTS. Risk of cracking
and permanent, irreparable damage to the glass.
• The storage of flammable materials at a distance
which is less than the safe distances listed in
this manual. DO NOT PLACE LAUNDRY ON
THE APPLIANCE. DO NOT PLACE DRYING
RACKS WITHIN THE SAFETY CLEARANCE. Keep
flammable fluids away from the appliance. Fire
hazard.
• Blocking the aeration vents and air intakes in the
room. DO NOT BLOCK THE AERATION VENTS
OR FLUE. Risk of smoke returning into the room
with consequent damage and injury.
• Use of the product as a support or ladder. DO
NOT CLIMB ONTO THE PRODUCT OR USE IT AS
A SUPPORT. Risk of damage and injury.
• Use of the stove with the combustion chamber
open. DO NOT USE THE PRODUCT WITH ITS
DOOR OPEN.
• Incandescent material may come out from the
open door. DO NOT throw incandescent material
outside the appliance. Fire hazard.
• Use of water in case of fire. CALL THE
AUTHORITIES if a fire breaks out.
• If you have doubts, please do not take any action,
but contact the retailer or the installer.
For reasons of safety, read the user instructions
included in this manual.
USER/INSTALLER

5
ENGLISH
DIMENSIONS
DIMENSIONS (cm)
53
Ø 4 cm aria
combustione
97
14
18
53
55
55
Ø 8 cm
uscita fumi
29
5,5
97
14
10
Ø 8 cm
uscita fumi
53
Ø 4 cm aria
combustione
97
14
18
53
55
55
Ø 8 cm
uscita fumi
29
5,5
97
14
10
Ø 8 cm
uscita fumi
53
Ø 4 cm aria
combustione
97
14
18
53
55
55
Ø 8 cm
uscita fumi
29
5,5
97
14
10
Ø 8 cm
uscita fumi
53
Ø 4 cm aria
combustione
97
14
18
53
55
55
Ø 8 cm
uscita fumi
29
5,5
97
14
10
Ø 8 cm
uscita fumi
USER/INSTALLER
Combustion air
Ø 40 mm
Smoke outlet
Ø 80 mm
Smoke outlet
Ø 80 mm

6
ENGLISH
USER/INSTALLER
The above data are illustrative and are drawn from the certification by a notified body.
EDILKAMIN s.p.a. reserves the right to modify the product without notification in the interests of improvement.
TECHNICAL CHARACTERISTICS per EN 14785
Nominal power Reduced power
Available power 8,2 2,5 kW
Efficiency 88,7 89,7 %
CO emissions at 13% O20,004 0,018 %
Fumes temperature 130 93 °C
Fuel consumption 1,9 0,6 kg/h
Tank capacity 15 kg
Draw 11,2 8,9 Pa
Autonomy 8 25 hours
Heatable volume * 215 m3
Fumes outlet diameter (male) 80 mm
Air intake diameter (male) 40 mm
Weight including packaging (steel/glas/stone) 147/160/177 kg
UE 2015-1186 (A++/G) A+
TECHNICAL DATA FOR RATING THE FLUE
which must in any case satisfy the requirements of this sheet and the installation instructions for the product
Nominal power
Fumes temperature at outlet 156 °C
Minimum draw 0,01 Pa
Fumes flow rate 9,4 g/s
* The heatable volume is calculated for a house insulated pursuant to Italian Law 10/91 and subsequent amendments,
and a heating demand of 33 Kcal/m³ hour, pellet 4,8 kW/kg
ELECTRICAL SPECIFICATIONS
Power 230 Vac +/- 10% 50 Hz
Mean absorbed power 132-50 W
Power absorption during ignition 300 W
Remote control frequency (provided) 2,4 GHz
Protection Fuse 4 AT, 250 Vac 5x20
TECHNICAL CHARACTERISTICS

7
ENGLISH
UNPACKING
PREPARATION AND UNPACKING
The packaging materials are neither toxic nor noxious
and do not require special disposal.
The end user is responsible for storing, disposing of
and recycling them in a regulatory fashion.
Always move the stove vertically with
suitable equipment and in compliance with
safety regulations.
Do not turn the package over, and handle
all parts requiring installation with care.
PACKAGING
ARIS UP CERAMIC-
The delivery consists of the following packages:
• one containing the stove's frame
• one containing the claddings (see details in the
assembly chapter)

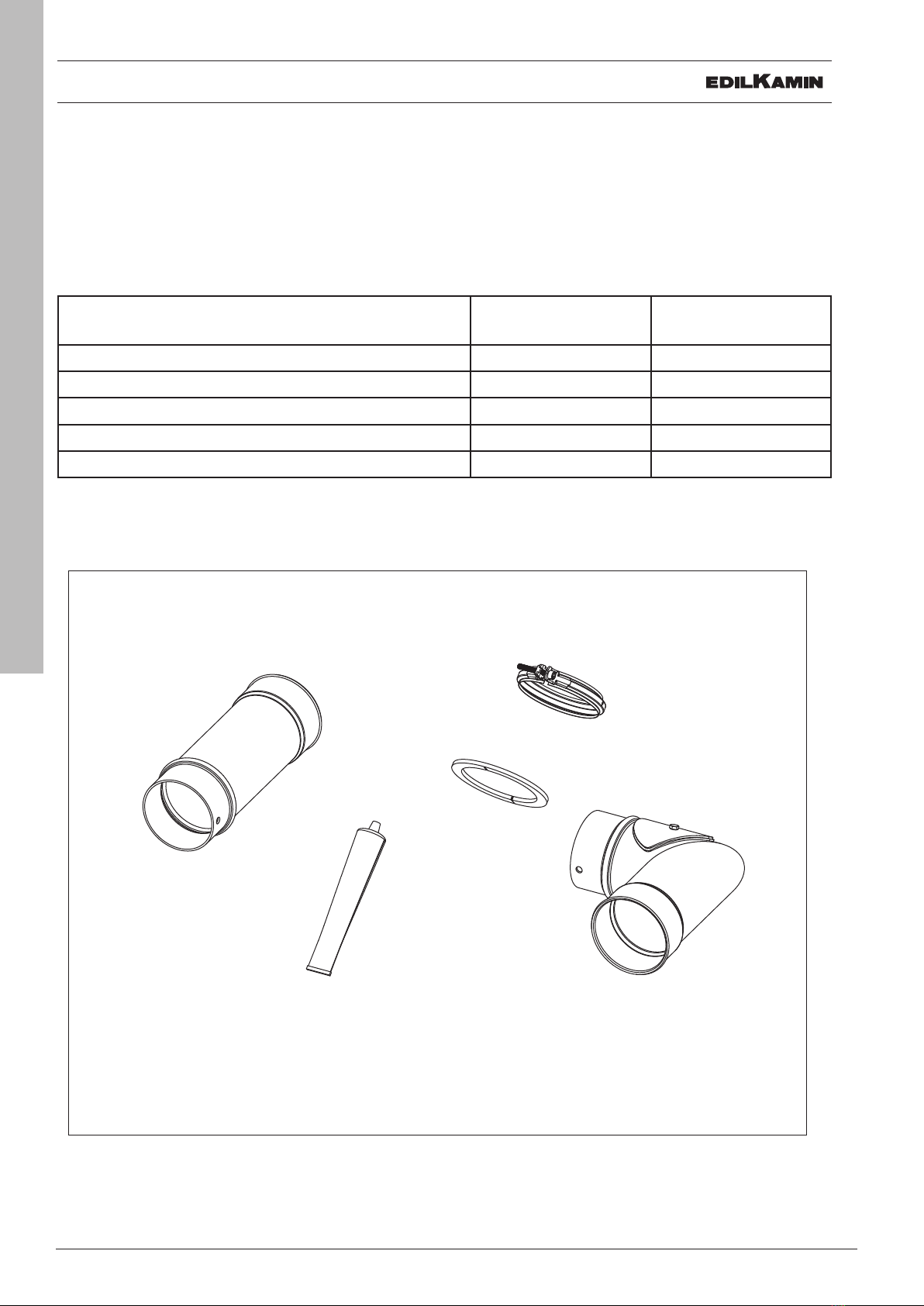

• the multiple smoke outlet Kit
ARIS UP STEEL
The delivery consists of the following packages:
• one containing the stove's frame and the steel
sides (already fitted)
• one, on top of the stove package, containing the
ceramic cladding (see details in the assembly
chapter)
• the multiple smoke outlet Kit
ARIS UP STONE
The package contains:
• a package with the cladding (already fitted);
• the multiple smoke outlet Kit
The package with the stove contains:
• remote control,
• warranty certificate,
• glove,
• this manual,
• power cable,
• protective lever (removable handle) for the
combustion chamber door

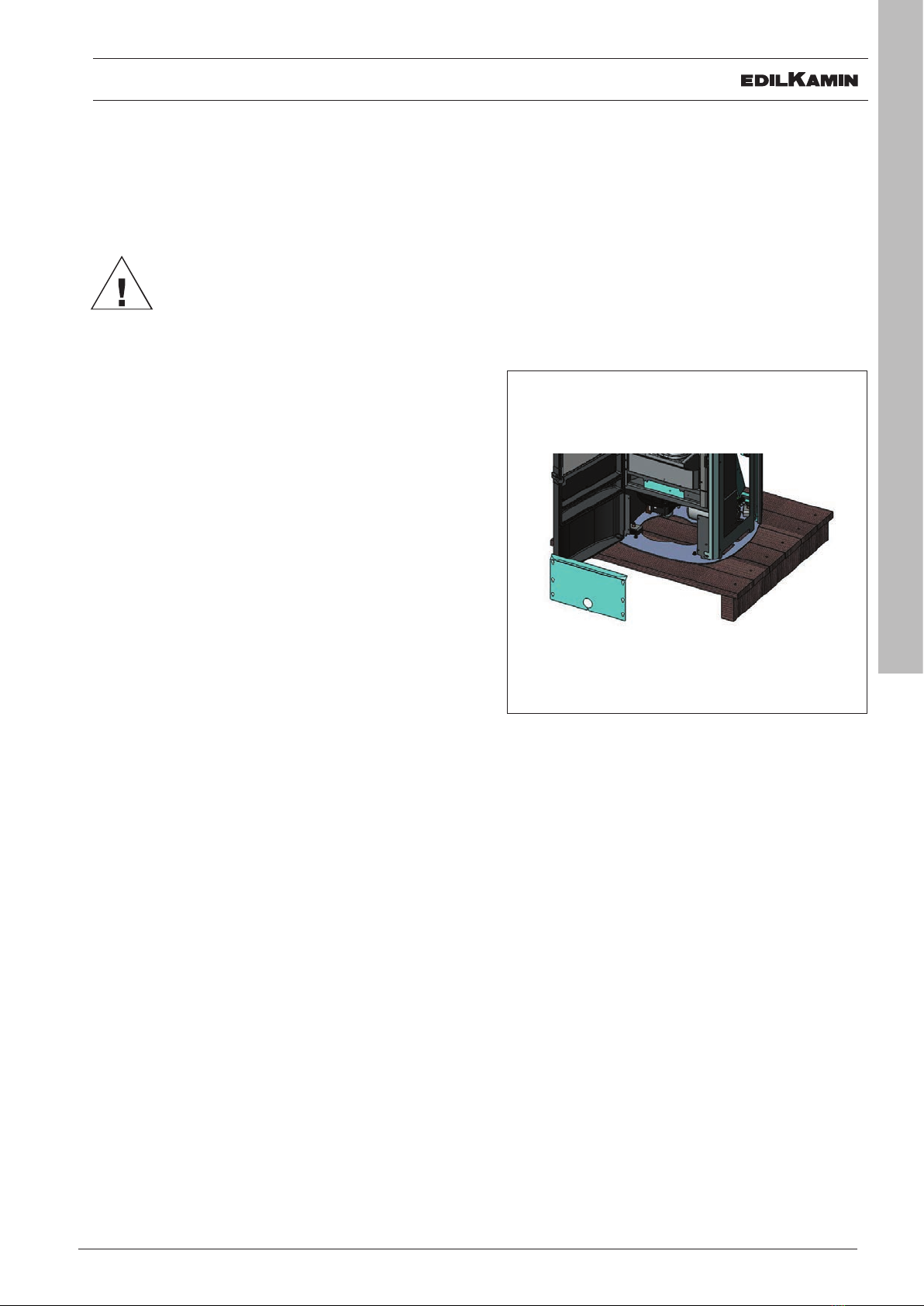

TO REMOVE THE STOVE FROM THE PALLET
• Open the combustion chamber door using the
removable handle
• loosen the 4 screws to remove the galvanised
front panel
• remove the 2 screws fixed to the pallet
• refit the galvanised panel and tighten the 4 fixing
screws.
INSTALLER

8
ENGLISH
ORIENTATION OF THE SMOKE OUTLET
INSTALLER
SMOKE OUTLET
The stove can have its smoke outlet pipe connected to the top or the rear.
To use the rear smoke outlet, proceed as follows. Only perform work with the electrical power
disconnected
Use the smoke outlet Kit provided for the connection, as shown below
Description Reference in
gure
Quantity
Joint clamp F
Elbow-union - Pipe Ø 8 cm with inspection door L 1
Silicone tube S 1
Fume pipe section Ø 8 cm H 1
Rosette flange U 1
H
L
U
S
F

9
ENGLISH
A
B
G
H
A
G
A
B
L
U
Q
I
**
*
ARIS UP CERAMIC
FUME DISCHARGE
INSTALLER
The CERAMIC version of ARIS is configured for con-
necting the fume discharge pipe to the rear and to
the top.
WHATEVER SOLUTION IS USED TO CON-
NECT THE FUME OUTLET TO THE FLUE,
IT IS NECESSARY TO REMOVE THE LEFT-
HAND REAR METAL SIDE (A) AND THE
LEFT-HAND METAL FRAME (B).
NB: add silicone (provided) between the fume volute
inlet and the elbow union provided (for fume dis-
charge from top), or to the pipe section provided (for
fume discharge from rear).
FUME DISCHARGE FROM REAR
Remove the lower rear panel (G).
Remove the pre-cut section* from the previously
removed lower rear panel (G) and from the left-hand
rear metal side (A).
Remove the pre-cut section (I ) from the stove struc-
ture.
Connect the flue section (H, provided) onto the fume
volute inlet using the clamp provided.
FUME DISCHARGE FROM TOP
Mount the elbow union with clamp (L) provided onto
the fume volute inlet.
Remove the cover on top (Q - Fig. 15).
Connect the fume discharge pipe (not provided) to
the aforementioned elbow union .
Insert the rose (U ) provided.
AFTER CONNECTING THE FUME DIS-
CHARGE PIPE TO THE FLUE, RE-ATTACH
THE LEFT-HAND REAR METAL SIDE (A)
AND THE LEFT-HAND METAL FRAME (B).

10
ENGLISH
A
B
G
L
U
Q
H
A
G
I
**
*
A
B
FUME DISCHARGE
ARIS UP STEEL
INSTALLER
The STEEL version of ARIS is configured for connecting the
fume discharge pipe to the rear and to the top.
WHATEVER SOLUTION IS USED TO CONNECT
THE FUME OUTLET TO THE FLUE, IT IS NECES-
SARY TO REMOVE THE LEFT-HAND REAR MET-
AL SIDE (A - Fig. 16-18) AND THE LEFT-HAND
METAL SIDE (B ).
NB: add silicone (provided) between the fume volute inlet
and the elbow union provided (for fume discharge from
top), or to the pipe section provided (for fume discharge
from rear).
FUME DISCHARGE FROM REAR
Remove the lower rear portion (G).
Remove the pre-cut section *from the previously re-
moved lower rear portion (G) and from the left-hand rear
metal side (A).
Remove the pre-cut section (I ) from the stove structure.
Connect the flue section (H, provided) onto the fume volute
inlet using the clamp provided.
FUME DISCHARGE FROM TOP
Mount the elbow union suing the clamp (L) provided onto
the fume volute inlet.
Remove the cover on top (Q).
Connect the fume discharge pipe (not provided) to the
aforementioned elbow union .
Insert the rose (U) provided.
AFTER CONNECTING THE FUME DISCHARGE
PIPE TO THE FLUE, RE-ATTACH THE LEFT-
HAND REAR METAL SIDE (A) AND THE LEFT-
HAND METAL SIDE (B).

11
ENGLISH
A
G
L
U
Q
H
A
G
I
**
*
B
A
B
ARIS UP STONE
FUME DISCHARGE
INSTALLER
The POTSTONE version of ARIS is configured for connect-
ing the fume discharge pipe to the rear and to the top.
WHATEVER SOLUTION IS USED TO CONNECT
THE FUME OUTLET TO THE FLUE, IT IS NECES-
SARY TO REMOVE THE LEFT-HAND REAR MET-
AL SIDE (A - Fig. 20-22) AND THE LEFT-HAND
METAL FRAME INCLUDING THE POTSTONE
LINING (B).
NB: add silicone (provided) between the fume volute inlet
and the elbow union provided (for fume discharge from
top), or to the pipe section provided (for fume discharge
from rear).
FUME DISCHARGE FROM REAR
Remove the lower rear portion (G).
Remove the pre-cut section *from the previously re-
moved lower rear portion (G) and from the left-hand rear
metal side (A).
Remove the pre-cut section (I ) from the stove structure.
Connect the flue section (H , provided) onto the fume vo-
lute inlet using the clamp provided.
FUME DISCHARGE FROM TOP
Mount the elbow union using the clamp (L) provided onto
the fume volute inlet.
Remove the cover on top (Q ).
Connect the fume discharge pipe (not provided) to the
aforementioned elbow union .
Insert the rose (U) provided.
AFTER CONNECTING THE FUME DISCHARGE
PIPE TO THE FLUE, RE-ATTACH THE LEFT-
HAND REAR METAL SIDE (A) AND THE LEFT-
HAND METAL FRAME INCLUDING THE POT-
STONE LINING (B).

12
ENGLISH
fig. 1
fig. 2
fig. 3
C
D
B
A
B
C
B
B
D
A
A
COVERING CERAMIC
INSTALLER
1) VERSION WITH CERAMIC SIDES AND
TOP
Fig. 1
The stove is delivered (Fig. 1) with the following external
components already installed:
• metal rear sides (A)
• metal frames for fixing the ceramic side elements (B)
• cast iron upper grille (C)
The pieces indicated below are packaged separately.
• 4 ceramic side elements (D - Fig. 3)
• 1 upper horizontal ceramic element (E - Fig. 7)
• 1 ceramic top (F - fig. 9)
• 16 milled pins M4
• 16 washers M5
• 4 rubber pads (M)
• 4 brass washers
• 2 screws T.E. M6x10
To t proceed as follows:
Fig. 2
Remove the two metal rear sides (A) screwed onto the
structure.
Remove the metal frames (B) by loosening the screws.
Remove the cast iron upper grille (C) screwed onto the
structure.
Fig. 3
Attach the vertical ceramic elements (D) to the metal
frames (B) by inserting the M4 knurled bolts with washers
provided through the relevant slots.

13
ENGLISH
fig. 4
fig. 6
fig. 5
C
E
F
M
B+D
C+E
B+D
A
COVERING CERAMIC
INSTALLER
REAR VIEW
Fig. 4
Fix the upper horizontal ceramic element (E) to the upper
cast iron grid (C) with the two supplied screws M6x10
Fig. 5
Mount the vertical ceramic elements (D) onto the structure
together with the metal frame brackets (B) previously de-
tached from the stove.
Mount the upper horizontal ceramic element (F) onto the
structure together with the upper cast iron grille (C) previ-
ously detached from the stove.
Lastly, re-mount the two rear metal sides (A) previously
detached from the stove.
Fig. 6
Apply the rubber (M) and the brass washers on the corre-
sponding seats of the cast iron top, then place the ceramic
top.

14
ENGLISH
fig. 9
fig. 7
A
C
fig. 10
F
M
C
E
C+E
fig. 8
C
COVERING STEEL
INSTALLER
2) VERSION WITH STEEL SIDES AND
PROFILES AND CERAMIC TOP
Fig. 7
The stove is delivered with metal sides (A) and upper cast
iron grille (C) already mounted.
The parts indicated below are instead packed separately.
• 1 upper horizontal ceramic element (E)
• 1 ceramic top (F)
• 2 milled pins M4
• 2 washers
• 4 rubber pads (M)
• 4 brass washers
• 2 screws T.E. M6x10
To t proceed as follows:
Fig. 8
Remove the cast iron upper grille (C) screwed onto the
structure.
Fig. 9
Fix the upper horizontal ceramic element (E) to the upper
cast iron grid (C) with the two supplied screws M6x10
Fig. 10
Mount the upper horizontal ceramic element (F) back onto
the structure together with the upper cast iron grille (C)
previously detached from the stove.
Apply the rubber (M) and the brass washers on the corre-
sponding seats of the cast iron top, then place the ceramic
top.
REAR VIEW

15
ENGLISH
REMARKS ON INSTALLATION
Note that:
• installation must be carried out by authorised
technical personnel;
• The appliance must be installed and operated
in compliance with local and national law and
European regulations. The applicable Italian
regulation is UNI 10683;
• If installed in a condominium, the appliance must
be approved by the administrator.
We give some general instructions below, however
these do not obviate the need to comply with local
regulations and do not affect the installer’s liability for
the installation.
Checking the suitability of the installation
space
• The room must have a volume of at least 20 m3.
• The floor must be able to bear the weight of the
product and its accessories.
• Level the appliance.
• The appliance may not be installed in a bedroom,
bathroom or in the same room as other equipment
which draws air for combustion from the room
itself, or in any area with an explosive atmosphere.
Any extraction fans operating in the same room or
area as the product, may affect its draw.
• In Italy, check the compatibility pursuant to UNI
10683 and UNI 7129 in the presence of gas fired
products.
INSTALLATION
Protection from heat and safety clearances
The surfaces of the building adjacent to the product
must be protected against overheating.
The insulation to be used will depend on the type of
surface in question.
The appliance must be installed in accordance with
the following safety instructions:
- minimum clearance at the sides and rear of 20 cm
from flammable materials.
- no flammable materials may be kept closer to the
front of the appliance than 80 cm.
If connected to a wooden or otherwise flammable wall,
the flue must be insulated appropriately.
If installed on a flammable or combustible floor, or one
incapable of bearing its load, use steel or glass plates
under the stove to distribute the load.
Contact the retailer for such optional equipment
Positioning the product
The product is designed to operate in all climatic
conditions. In special circumstances, such as strong
wind, its safety equipment may switch the appliance
off.
Contact the authorised Edilkamin Technical Assistance
Centre.
INSTALLER

16
ENGLISH
FLUE SYSTEM
(Smoke duct, ue and chimney pot)
This chapter has been drawn up pursuant to European
regulations EN 13384, EN 1443, EN 1856 and EN
1457. The installer must observe both these and any
other local regulations. This manual does not in any
way substitute such regulations.
The product must be connected to a flue system which
ensures that the smoke produced by combustion are
discharged in complete safety.
Before positioning the appliance, the installer must
check that the flue is suitable.
SMOKE DUCT, FLUE
The smoke duct (which connects the combustion
chamber’s smoke outlet with the flue) and the flue itself
must, among other regulatory requirements:
• receive the smoke from a single product (the
outlets of multiple appliances cannot be conveyed
into a single flue)
• be routed vertically for the most part
• have no downwards sloping sections
• preferably have a circular internal cross section, or
with a ratio of the sides of less than 1.5
• terminate at roof level with a proper chimney pot:
the flue may not discharge directly on the wall
or into an enclosed space, even if the space in
question is open to the sky
• be made of material rated in fire reaction class
A1 as per UNI EN 13501 or analogous national
regulations
• be certified, with a chimney plate if metal
• be of uniform cross section or vary in cross section
only immediately after the outlet, not at some mid
point of its length.
THE SMOKE DUCT
Further to the general requirements for the smoke duct
and flue, the smoke duct:
• may not be made of flexible metal material
• must be insulated, if routed through unheated
areas or outdoors
• must not be routed through rooms where the
installation of combustion heat generators is
prohibited, there is risk of fire, or which cannot be
inspected
• must enable the recovery of soot and be open for
inspection
• have at most 3 bends with a maximum angle of
90°
• must have a single horizontal section with a length
of no more than 3 metres, depending on the draw.
Note, in any case, that long sections promote the
accumulation of dirt and are harder to keep clean.
INSTALLATION
INSTALLER

17
ENGLISH
THE FLUE:
Further to the general prescriptions for the smoke duct
and flue, the flue:
• must serve solely to discharge smoke
• must be correctly sized to satisfy the requirements
of smoke discharge (EN 13384-1)
• should preferably be insulated, in steel with a
circular internal section. If rectangular, the corners
must have a radius of not less than 20 mm, with a
ratio of the internal dimensions of <1.5
• must normally be at least 1.5 metres in vertical
length
• must have a constant cross section
• must be waterproof and thermally insulated to
ensure a good draw
• must preferably have a collection chamber for
non-combusted matter and any condensation.
• if pre-existing, must be clean, to prevent fire
hazards
• in general, we recommend fitting a tube inside the
existing masonry chimney if its diameter is greater
than 150 mm.
INTUBATED SYSTEM:
Further to the general prescriptions for the smoke duct
and flue, the intubated system:
• must operate in negative pressure
• must be open to inspection
• must observe local regulations.
THE CHIMNEY POT
• must be windproof
• must have an internal cross section equivalent to
that of the flue and a smoke outlet at least double
that of the interior of the flue
• for dual flues (which should be spaced at least 2 m
apart) the chimney pot receiving the smoke from
the solid fuel appliance or that from the higher
storey, must be at least 50 cm higher than the other
• it must extend beyond the back flow zone (in Italy,
refer to UNI 10683 point 6.5.8.)
• it must allow for maintenance of the chimney
INSTALLATION
INSTALLER
EXTERNAL AIR INTAKE
In general, we suggest two ways to ensure a proper
flow of combustion air.
Indirect air intake
Install an air outlet at floor level with an effective sur-
face area (net of the screen or other protections) of at
least 80 cm2(10 cm in diameter).
To prevent draughts, we recommend installing the air
intake behind the stove or behind a radiator.
Installing it in front of the appliance will create
unpleasant draughts.
Direct air intake*
Install an air intake with effective area (net of the mesh
or other protective equipment) at least equal to that of
the air intake at the rear of the product.
Connect the air intake to the appliance’s air intake
with a tube (which may also be flexible). Increase the
diameter of the pipe if it is not smooth: assess its load
loss.
We recommend that it does not exceed 3 metres in
length; if it does, increase the diameter. Reduce the
length by 1 m for each elbow.
The air may be drawn from an adjacent room only if:
• the flow is taken from permanent and unobstructed
openings communicating with the outdoors;
• the adjacent room is never in underpressure
relative to the outdoors;
• the adjacent room is not a garage. subject to fire
hazard, a bathroom or bedroom;
• the adjacent room is not a shared room in the
condominium.
In Italy, UNI 10683 provides that ventilation is sufficient
even if a pressure difference between the outdoors
and indoors of no more than 4 PA is guaranteed (UNI
EN 13384-1). The installer who issues the declaration
of conformity is responsible for ensuring these
conditions.
*The direct connection of the air intake does not make
the product airtight. It is therefore necessary to ensure
an air recovery taken in the room by the product (i.e.
for the glass cleaning)

18
ENGLISH
CHECKINGTHEELECTRICALCONNECTIONS
(the power socket must be located in an
easy to access position)
The stove is equipped with an electrical power cord
or connection to a 230V 50 Hz socket, preferably with
electromagnetic switch.
Variations in voltage of more than 10% can compromise
the operation of the stove.
The electrical system must be compliant; check the
operation of the earth in particular.
Edilkamin is not responsible for malfunctions resulting
from an improperly earthed system.
The power line must be of adequate section for the
power of the appliance.
The power cable must not come into contact with the
flue or other hot parts of the stove.
Power up the stove by setting its switch from 0 to 1.
There is one 4 A fuse on the socket with switch located
at the rear of the stove.
INSTALLATION
switchfuse housing
power supply
INSTALLER

19
ENGLISH
USER INSTRUCTIONS
USER
*
LOADING THE PELLETS INTO THE TANK.
To open the tank, lift the lid
FIRST IGNITION (COMMISSIONING) PHAS-
ES
• Make sure you have read and understood this
manual
• Remove all flammable materials from the appliance
(manuals, labels, etc.). In particular remove any
labels from the glass
• Make sure that the technician performs the first
ignition and the first loading of the pellet tank (see
“pellet loading”)
When the stove is hot, DO NOT MAKE
CONTACT between the pellet bag and the
top grille.
Use the provided glove when loading the
stove while it is operating and hence hot to
the touch.
Make sure not to touch the smoke
discharge pipe if hot.
FUEL
Use UNI EN ISO 17225-2 category A1 wood pellets
or similar regulatory products with the following
characteristics.
diameter 6 mm
length 3-4 cm
humidity <10 %
For reasons of safety and environmental compatibility,
DO NOT burn plastic, painted wood, coal, bark or
other such materials in the stove.
Do not use the stove as an incinerator
Caution
Using fuels other than those specified can
damage the appliance
On first ignition, there may be a slight
smell of paint, which will disappear in a
short time.

20
ENGLISH
OPERATION
Description. The access to and adjustment of these
functions is described below:
Mode Size settings
MANUAL • power level
• ventilation level
AUTOMATIC • desired room temperature
• ventilation level
CRONO • desired room temperature,
selected per day of the week
• ventilation level
* when lowering the ventilation the stove also
automatically modulates its power to maintain
maximum efficiency.
The stove also has the following supplementary
functions.
Function In which mode it
can be activated
What it does
STAND BY automatic crono when the desired
temperature is
reached, the stove
shuts off and turns
on again when the
temperature drops
RELAX manual auto-
matic crono
enables natural con-
vection mode (fan
off), thus reducing
the power
NIGHT manual auto-
matic
allows you to set the
stove to go out after
a given number of
hours
OPTIONAL CONNECTIONS
The technician can supply, on request:
external thermostat, telephone dialler for connection to
the logic board
PHASES
Further to the above operational procedures, the stove
has the following phases
- Ignition (display reads ON ) Flame ignites and
grows stable
This is the result of:
• manual ignition with ignition button
• request from Crono
• power request during stand by
• request from external contact
Ignition has a variable duration, with the aim of reaching
the start temperature
- Switch-off (display reads OFF )
The flame is extinguished and the stove cools down.
This is the result of:
• manual switch-off with switch-off button
• power demand ceases with Stand by function
active
• request from Crono
• request from external contact
Switch-off has a variable duration, with the aim of
reaching the stop temperature
- Shutdown
Switches the stove off in response to an alarm
INTERFACE
The user interface is the remote control but, if this is not
available, you can control the stove with the button
on
its rear (see figure)
1. WITH THE STOVE OFF
press the button for 2” to turn the stove on.
2. WITH THE STOVE ON
press the button for 2” to turn the stove off.
3. WITH THE STOVE ON IN MANUAL MODE
by pressing one time and immediately releasing the
button, you can increase the operating power.
simplified on button
USER INSTRUCTIONS
USER
