EdilKamin MYRNA Quick start guide

UK Installation, use and maintenance page 2
PELLET STOVE
MYRNA
MYRNA Q
MYRNA Q
MYRNA

2
ENGLISH
EDILKAMIN S.p.A., with registered offices in Via
Vincenzo Monti 47 - 20123 Milan - tax code and VAT
number 00192220192
Declares, under its sole responsibility, that:
The pellet stove mentioned below is conforming with
EU Regulation 305/2011 and harmonised EU standard
EN 14785:2006
PELLET STOVE, tradename EDILKAMIN, models
MYRNA/ MYRNA Q
SERIAL NUMBER: Nameplate reference
Performance declaration:
MYRNA/ MYRNA Q (DoP - EK n°195)
Nameplate reference
And also declares that:
the MYRNA/ MYRNA Q wood pellet stove satisfies the
requirements of the following European directives:
2014/35/EC - Low Voltage Directive
2014/30/EC - Electromagnetic Compatibility Directive
CONTENTS
The original language of this manual is Italian
USER/INSTALLER
Safety information 4
Safety information 4
General information (dimensions,technical data) 5
General information (dimensions,technical data) 5
Unpacking 7
Unpacking 7
Cover 9
Cover 9
Installation 13
Installation 13
User instructions 18
User instructions 18
Maintenance 54
Maintenance 54
In the event of problems 57
In the event of problems 57

3
ENGLISH
Dear Sir/Madam
We thank you for and congratulate you on choosing our
product. Before using it, we ask you to read this manual
carefully, in order for you to be able to make the most of all
its functions in total safety.
This manual is an integral part of the product. We ask you
to keep it for the entire lifetime of the product. If you lose it,
you can request a copy from your dealer or download it from
www.edilkamin.com.
Readers of this manual
This manual is addressed to:
• those who will use the product at home (“USER”);
• the technician who will install the product (“INSTALLER”)
The target person of each page is indicated in a band at the
bottom of the page (USER or INSTALLER).
After unpacking the product, check the condition and
completeness of the contents.
In the event of error, immediately contact the retailer where
the purchase was made, providing them with a copy of the
warranty booklet and the sales receipt.
The appliance must be installed and operated in compliance
with local and national law and European regulations. For the
installation, and for anything not specifically indicated in the
manual, observe local regulations.
The diagrams provided in this manual are for illustration
purposes only: they do not always strictly refer to your
specific model, and are not binding in any way.
MEANING OF SYMBOLS
In some parts of the manual the following symbols are
used:
INFORMATION:
failure to comply with these requirements
will compromise product use.
ATTENTION:
carefully read and understand the
message in question, since failure to
follow the instructions in it could cause
serious damage to the product and put
the safety of those using it at risk.
OPERATING SEQUENCE:
follow the instructions for the operations
described.
Identification of the product and warranty.
The product is uniquely identified by a number, the
“counterfoil”, which is indicated on the warranty certificate.
Please keep:
• the warranty certificate accompanying the product
• the purchase receipt given to you by the retailer
• the declaration of conformity given to you by the installer.
The warranty conditions are given in the warranty certificate
accompanying the product.
USER/INSTALLER

4
ENGLISH
USER/INSTALLER
SAFETY INFORMATION
• The appliance is not designed for use by people,
including children, with limited physical, sensory
and mental capacities.
• The appliance is not intended to be used for
cooking.
• The appliance is designed to burn UNI EN ISO
17225-2 category A1 wood pellets, in the amounts
and manner described in this manual.
• The appliance is designed for use indoors, in
normal conditions of ambient humidity.
• Keep the product in a dry place out of the weather.
• For the legal and company warranties, refer to
the warranty certificate inside the product: neither
Edilkamin nor the reseller are liable for damage
resulting from incorrect installation or maintenance.
Safety risks may be caused by:
• installation in unsuitable conditions. In particular,
conditions of fire hazard. DO NOT INSTALL THE
PRODUCT IN AREAS SUBJECT TO THE RISK OF
FIRE.
• contact with fire and hot parts (e.g. glass panel
and pipes). DO NOT TOUCH THE STOVE’S HOT
PARTS; always wear the provided gloves when
working with the stove, even if switched off, when
it is still hot. Failure do so can result in burns.
• contact with live electrical equipment (internal).
DO NOT ACCESS THE INTERNAL ELECTRICAL
EQUIPMENT WHILE THE APPLIANCE IS
POWERED ON. Electrocution hazard.
• use of improper ignition aids (e.g. alcohol). DO
NOT IGNITE OR BOOST THE FLAME WITH FLUID
SPRAYS OR A FLAME TORCH.
• use of fuel other than wood pellets. DO NOT
BURN WASTE MATTER, PLASTIC OR OTHER
MATERIALS THAN WOOD PELLETS IN THE
HEARTH. The product may be soiled, the flue may
catch fire, and environmental damage may ensue.
• cleaning the hearth when hot. DO NOT CLEAN
THE HEARTH WITH A VACUUM CLEANER WHILE
IT IS HOT. Risk of damage to the cleaner and
smoke in the room.
• cleaning the fumes duct with cleaning products. DO
NOT CLEAN THE PRODUCT WITH FLAMMABLE
PRODUCTS. Risk of fire and blowback.
• cleaning the hot glass pane with unsuitable
cleaning products. DO NOT CLEAN THE GLASS
WHILE IT IS HOT WITH WATER OR ANY OTHER
PRODUCT THAN THE RECOMMENDED GLASS
CLEANING PRODUCTS. Risk of cracking and
irreparable damage to the glass.
• storing flammable materials within the safety
clearance indicated in this manual. DO NOT
PLACE LAUNDRY ON THE PRODUCT. DO NOT
PLACE DRYING RACKS WITHIN THE SAFETY
CLEARANCE. Keep flammable fluids away from
the product. Fire hazard.
• blocking the aeration vents and air intakes in the
room. DO NOT BLOCK THE AERATION VENTS
OR FLUE. Risk of smoke returning into the room
with consequent damage and injury.
• use of the product as a support or ladder. DO NOT
CLIMB ONTO THE PRODUCT OR USE IT AS A
SUPPORT. Risk of damage and injury.
• use of the stove with the hearth open. DO NOT
USE THE PRODUCT WITH ITS DOOR OPEN.
• incandescent material projected from the open
door. DO NOT throw incandescent material
outside the appliance. Fire hazard.
• use of water in case of fire. CALL THE AUTHORITIES
IF A FIRE BREAKS OUT.
Please use all normal precautions for a household
heating appliance.
Connect the product to electricity supply only after
having completed its assembly and mounted the
cladding. Otherwise there is a risk of having “live”
electrical parts exposed.
If you have doubts, please do not take any action, but
contact the retailer or the installer.
For reasons of safety, read the user instructions
included in this manual.

5
ENGLISH
GENERAL INFORMATION
USER/INSTALLER
MYRNA
MYRNA Q
Dimensions (cm)
112
54,5 54,5
55
5
27,3 27,3
Smoke outlet
Ø 8 cm
112
54,5 54,5
55
Combustion
Ø 4 cm
Combustion
Ø 4 cm
Smoke outlet Ø 8 cm
15
15
8
8
24
24
39
39

6
ENGLISH
EDILKAMIN s.p.a. reserves the right to modify the product without notification in the inte-
rests of improvement.
TECHNICAL CHARACTERISTICS in accordance with EN 14785 The data shown below refers to the
actual installation and use and was taken during the certification phase by a notified body under the conditions
specified by the standard.
MYRNA
MYRNA Q
Nominal power Reduced power
Available power 10 3,5 kW
Yield 91,4 94,7 %
CO emissions at 13% O20,0019 0,0012 %
Fumes temperature 136 75 °C
Fuel consumption * 0,8 2,3 kg/h
Tank capacity 25 kg
Draw 12 11 Pa
Autonomy 11 31 ore
Heatable volume ** 260 m3
Fume duct diameter 80 mm
Air intake duct diameter 40 mm
Weight including packaging 160 kg
Energy efficiency class according to UE 2015-
1186 regulation (Class A++/G) A+
TECHNICAL DATA FOR SIZING THE FLUE which must in any case satisfy the requirements in this sheet
and the installation instructions for the product.
Nominal power Reduced power
Fumes temperature at smoke outlet 163 90 °C
Minimum draw 0,01 Pa
Fumes flow rate 7,3 3,7 g/s
*A calorific value of 4.8 kW/Kg has been used to calculate consumption.
** The heatable volume is calculated based on the assumption of a heating demand of 33 Kcal/m³ hour.
ELECTRICAL SPECIFICATIONS
Power supply 230 Vac +/- 10% 50 Hz
Nominal power absorbed 126 W
Reduced power absorbed 23 W
Power absorbed in stand by 3 W
Power absorption during ignition 365 W
Remote control frequency (provided) 2,4 GHz
Protection Fusibile 4 AT, 250 Vac 5x20
TECHNICAL DATA
USER/INSTALLER

7
ENGLISH
UNPACKING
PREPARATION AND UNPACKING
The packaging materials are neither toxic nor noxious
The packaging materials are neither toxic nor noxious
and do not require special disposal.
and do not require special disposal.
The user is responsible for storing, disposing of and
The user is responsible for storing, disposing of and
recycling them in a regulatory fashion.
recycling them in a regulatory fashion.
Always move the stove vertically with
suitable equipment and in compliance with
safety regulations.
Do not turn the package over, and handle
all parts requiring installation with care.
INSTALLER

8
ENGLISH
UNPACKING
INSTALLER

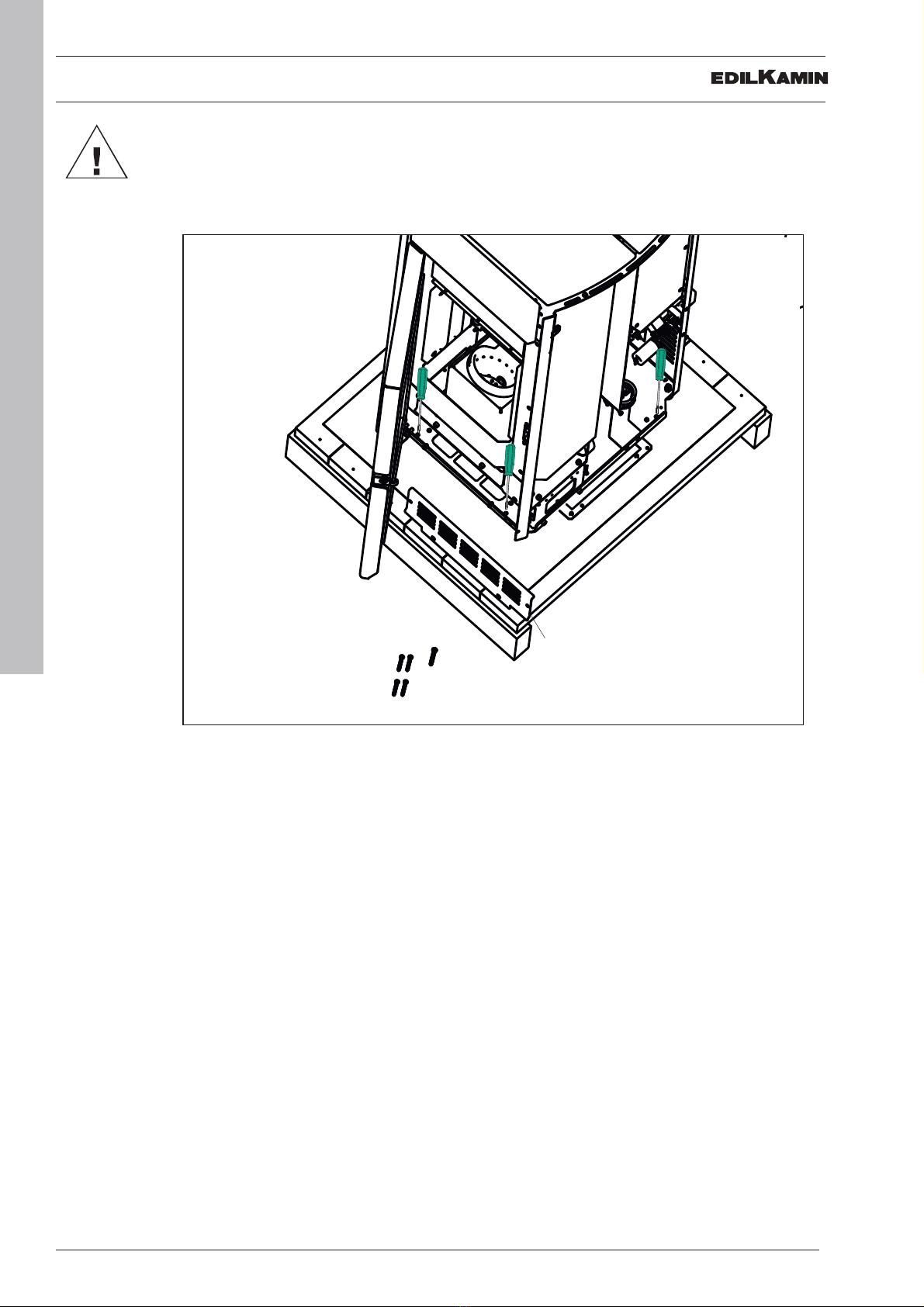

INDICATIVE DRAWINGS, NOT ALWAYS REFERRING TO THE SPECIFIC MODEL.
DO NOT REMOVE THE PRODUCT FROM THE PALLET BEFORE LOOSENING THE SCREWS.
1- put off the flancs
2 - open the door
3- put off composant A
4 - screw out the 4 screws V
A
V

9
ENGLISH
INDICATIVE DRAWINGS, NOT ALWAYS REFERRING TO THE SPECIFIC MODEL.
COVER
INSTALLER
COVER’S CONTENT
- C1: ceramic top front
- C2: ceramic cover pellet
- F: front panel
F
C1
C2

10
ENGLISH
COVER
INSTALLER
INDICATIVE DRAWINGS, NOT ALWAYS REFERRING TO THE SPECIFIC MODEL.
FITTING OF THE CERAMIC TOP FRONT
1) Remove the metal front panel (A)
2) Fix loosely the screw (V) to the ceramic
Put the ceramic with the screw on the top. Fix the screw.
(V)
(A)

11
ENGLISH
COVER
INSTALLER
INDICATIVE DRAWINGS, NOT ALWAYS REFERRING TO THE SPECIFIC MODEL.
FITTING OF THE CERAMIC COVER PELLET
Take the ceramic (C2) put it close to the open cover
pellet fix it by hand with the 4 screws (V1).
FITTING OF THE FRONT PANEL (F)
Fix by hand the composant A to the ceramic
F with 4 screws . THen fix it together to the
stove.
F A
(C2)
(V1)
(V1)
(V1)
(V2)
FROM THE REAR
FROM THE REAR
NOTE
BE CAREFULL TO PUT AS SHOWED HERE

12
ENGLISH
COVER
INSTALLER
INDICATIVE DRAWINGS, NOT ALWAYS REFERRING TO THE SPECIFIC MODEL.
The result is showed at the picture below.
C2
C1
F

13
ENGLISH
INSTALLATION
INSTALLER
REMARKS ON INSTALLATION
REMARKS ON INSTALLATION
Note that:
Note that:
•
•
The appliance may only be installed by a qualified
The appliance may only be installed by a qualified
technician authorised to issue the declaration of
technician authorised to issue the declaration of
conformity.
conformity.
•
•
The appliance must be installed and operated
The appliance must be installed and operated
in compliance with local and national law and
in compliance with local and national law and
European regulations. The applicable Italian
European regulations. The applicable Italian
regulation is UNI 10683.
regulation is UNI 10683.
•
•
If installed in a condominium, the appliance must
If installed in a condominium, the appliance must
be approved by the administrator.
be approved by the administrator.
We give some general instructions below, however
We give some general instructions below, however
these do not obviate the need to comply with local
these do not obviate the need to comply with local
regulations and do not affect the installer’s liability for
regulations and do not affect the installer’s liability for
the installation.
the installation.
Checking the suitability of the installation
space
• The room must have a volume of at least 30 m3
• The floor must be able to bear the weight of the
product and its accessories.
• Level the appliance
• The appliance may not be installed in a bedroom,
bathroom or in the same room as other equipment
which draws air for combustion from the room
itself, or in any area with an explosive atmosphere.
Any extraction fans operating in the same room or
area as the product, may affect its draw.
Protection from heat and safety clearances
The surfaces of the building adjacent to the product
must be protected against overheating.
The insulation to be used will depend on the type of
surface in question.
The product must be installed in observance of the
following safety instructions:
- minimum clearance at the sides of 5 cm and back of
5 cm from flammable materials.
- no flammable materials may be kept closer to the
front of the appliance than 80 cm.
If connected to a wooden or otherwise flammable wall,
the flue must be insulated appropriately.
If installed on a flammable or combustible floor, or
which is not capable of bearing its load, use steel or
glass plates under the stove to distribute the load.
Contact the retailer for such optional equipment.
Positioning the product
The product is designed to operate in all climatic
conditions. In special circumstances, such as strong
wind, its safety equipment may switch the stove off.
Contact the authorised Edilkamin Technical Assistance
Centre.

14
ENGLISH
INSTALLATION
INSTALLER
FLUE SYSTEM
FLUE SYSTEM
(
(
Fumes duct, flue and chimney pot
Fumes duct, flue and chimney pot
)
)
Thsi chapter has been drawn up pursuant to European
regulations EN 13384, EN 1443, EN 1856 and EN
1457. The installer must observe both these and any
other local regulations. This manual does not in any
way substitute such regulations.
The product must be connected to a flue system which
ensures that the fumes produced by combustion are
exhausted in complete safety.
Before positioning the product, the installer must
check that the flue pipe is properly rated.
THE FUMES DUCT
THE FUMES DUCT
Further to the general prescriptions for the fumes duct
and flue, the fumes duct
:
:
• may not be made of flexible metal material
• must be insulated, if routed through unheated
areas or outdoors
• must not be routed through rooms in which the
installation of combustion heat generators is
prohibited, or subject to fire hazard, or which
cannot be inspected.
• must enable the recovery of soot and be open for
inspection
• must have at most 3 bends, through an angle of
no more than 90°
• must have a single horizontal section of length
no more than 3 metri, depending on the draw.
Note in any case that long sections promote the
accumulation of dirt and are harder to keep clean.
EXTERNAL AIR INTAKE
In general, we suggest two ways for ensuring a proper
flow of combustion air.
Indirect air intake
Install an intake at floor level with effective area (net of
the mesh or other protective equipment) of at least 80
cm2(10 cm dia.).
To prevent draughts, we recommend installing the
intake behind the stove or behind a radiator.
Installing it in front of the appliance will create
unpleasant draughts.
Direct air intake
Install an air intake of effective area (net of the mesh or
other protective equipment) at least equal to that of the
air intake at the back of the product.
Connect the air intake to the appliance’s air intake
with a tube (which may also be flexible). Increase the
diameter of the pipe if it is not smooth: assess its load
loss.
We recommend not exceeding a 5 m length and not
curving the tube at most 3 time, depending on the
draw of the flue.
The air maty be drawn from an adjacent room only if:
• the flow is taken from permanent and unobstructed
openings communicating with the outdoors;
• the adjacent room is never in underpressure
relative to the outdoors;
• the adjacent room is not a garage. subject to fire
hazard, a bathroom or bedroom
• the adjacent room is not a shared room in the
condominium.

15
ENGLISH
INTUBATED SYSTEM
INTUBATED SYSTEM:
Further to the general prescriptions for the fumes duct
and flue, the intubated system:
• must operate in negative pressure;
• must be open to inspection
• must observe local regulations.
THE CHIMNEY POT
THE CHIMNEY POT
• must be windproof
• must have an internal cross section equivalent to
that of the flue and a fumes outlet at least double
that of the interior of the flue
• for dual flues (which should be spaced at least 2
m apart) the chimney pot receiving the fumes from
the solid fuel appliance or that from the higher
storey, must be at least 50 cm higher than the other
• it must extend beyond the back flow zone (in Italy,
refer to UNI 10683 point 6.5.8.)
• it must allow for maintenance of the chimney
INSTALLATION
INSTALLER

16
ENGLISH
INSTALLATION
INSTALLER
EXTERNAL AIR INTAKE
In general, we suggest two ways for ensuring a proper
flow of combustion air.
Indirect air intake
Install an intake at floor level with effective area (net of
the mesh or other protective equipment) of at least 80
cm2(10 cm dia.).
To prevent draughts, we recommend installing the
intake behind the stove or behind a radiator.
Installing it in front of the appliance will create
unpleasant draughts.
Direct air intake
Install an air intake of effective area (net of the mesh or
other protective equipment) at least equal to that of the
air intake at the back of the product.
Connect the air intake to the appliance’s air intake with
a tube (which may also be flexible).
We recommend not exceeding a 5 m length and not
curving the tube at most 3 time, depending on the
draw of the flue.
The air maty be drawn from an adjacent room only if:
• the flow is taken from permanent and unobstructed
openings communicating with the outdoors;
• the adjacent room is never in underpressure
relative to the outdoors;
• the adjacent room is not a garage. subject to fire
hazard, a bathroom or bedroom
• the adjacent room is not a shared room in the
condominium.

17
ENGLISH
CHECKINGTHEELECTRICALCONNECTIONS
(the power socket must be located in an
easily accessible position)
The stove is equipped with an electrical power cord or
connection to a 230V 50 Hz socket, preferably with an
electromagnetic switch.
Variations in voltage of more than 10% can compromise
the operation of the stove.
The electrical system must be compliant; check the
operation of the earth in particular.
Edilkamin is not responsible for malfunctions resulting
from an improperly earthed system.
The power line must be of adequate section for the
power of the appliance.
The power cable must not come into contact with the
flue or other hot parts of the stove.

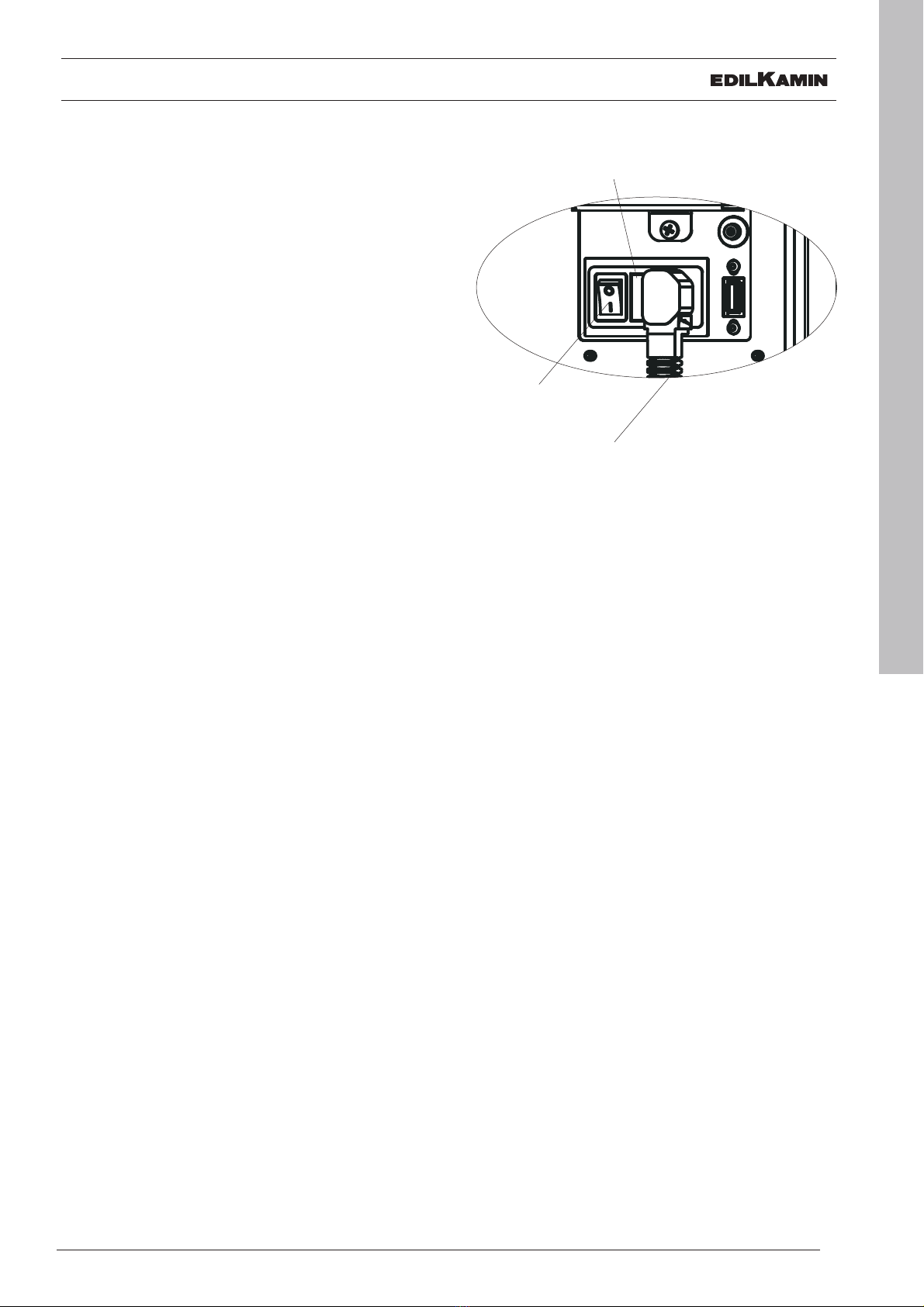

Power up the stove by setting its switch from 0 to 1.
There is a 4 A fuse on the socket with switch located at
the rear of the stove.
INSTALLATION
INSTALLER
fuse
compartment
switch
power supply

18
ENGLISH
FIRST IGNITION PROCEDURE
•
•
Make sure you have read and understood this
Make sure you have read and understood this
manual
manual
•
•
Remove all flammable materials from the appliance
Remove all flammable materials from the appliance
(manuals, labels, etc). Make sure to remove the
(manuals, labels, etc). Make sure to remove the
labels on the glass.
labels on the glass.
USER INSTRUCTIONS
USER
Using fuels other than those specified can
Using fuels other than those specified can
damage the appliance
damage the appliance
LOADING THE PELLETS INTO THE PELLET
TANK

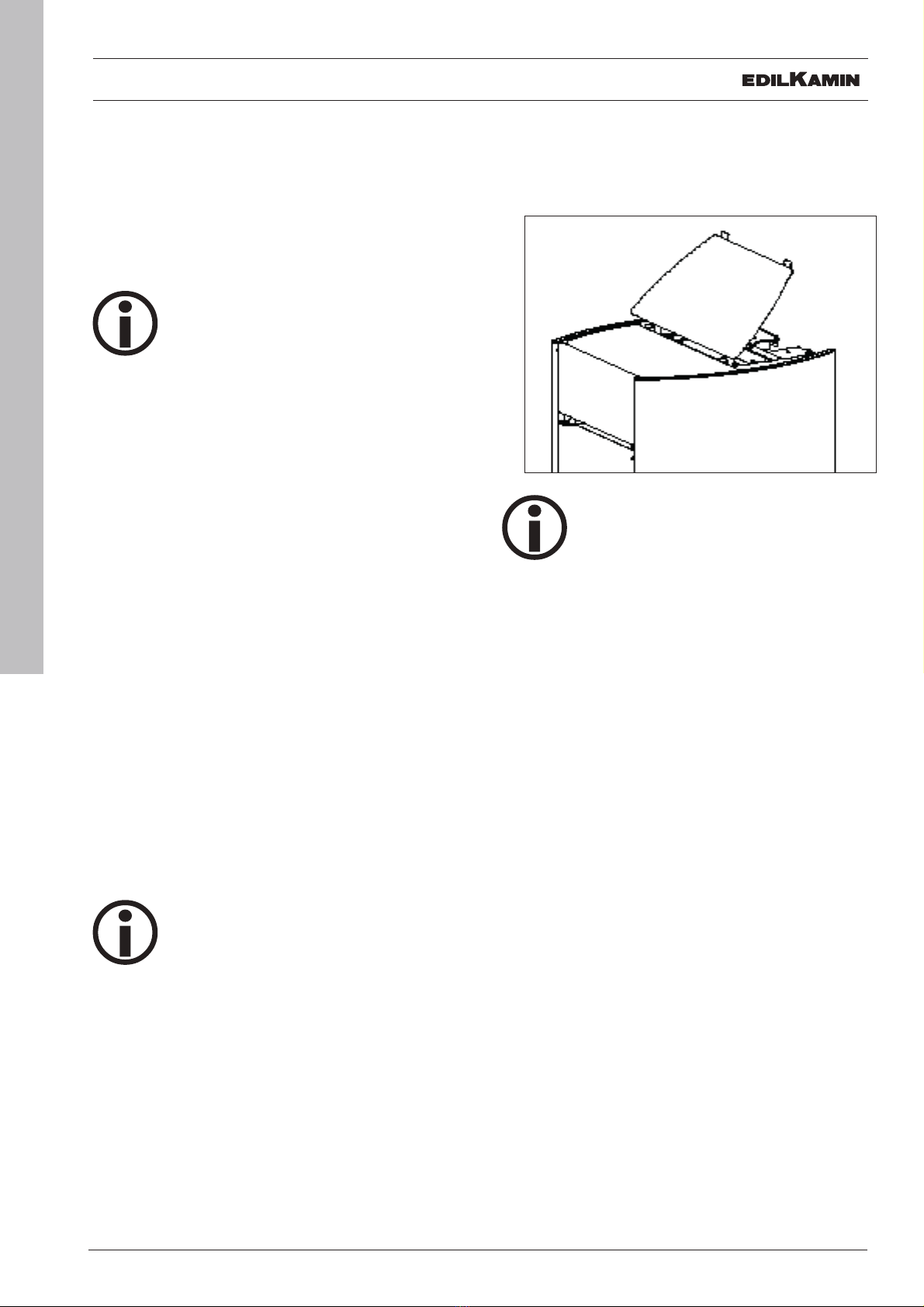

To access the tank, open the lid.
• When doing so, DO NOT rest the bag
of pallets on the top grille, since the
plastic bag may melt and damage the
appliance’s paint.
• Use the provided gloves when loading
the stove while it is operating and hence
hot to the touch.
• Take care not to touch the fume exhaust
pipe when hot.
COMBUSTIBLE
Use BS EN ISO 17225-2 category A1 wood pellets
Use BS EN ISO 17225-2 category A1 wood pellets
or similar certified products with the following
or similar certified products with the following
characteristics
characteristics
diameter: 6 mm; maximum
diameter: 6 mm; maximum
length: 4 cm, maximum
length: 4 cm, maximum
moisture: 10 %,
moisture: 10 %,
NOTES:
• IN RESPECT OF THE ENVIRONMENT AND FOR
SAFETY REASONS, DO NOT BURN PLASTIC
MATERIALS, VARNISHED WOOD, COAL, BARK
AND WOOD WASTE.
• DO NOT USE THE STOVE AS AN INCINERATOR.
Caution
Using fuels other than those specified can damage the
appliance

19
ENGLISH
USER INSTRUCTIONS
USER
OPERATION
Mode Settable parameters
MANUAL • power level
• ventilation level (the fans, if
more than one, can be ad-
justed separately)*
AUTOMATIC • desired room temperature
• ventilation level *
TIMER • desired room temperature,
selected per day of the week
• ventilation level*
* when lowering the ventilation, the product can
automatically modulate its power to maintain maximum
efficiency.
The product also has the following supplementary
functions.
Function Modes in which
it can be acti-
vated
What it does
Stand-By automatic
timer-based
when the desired
temperature is
reached, the prod-
uct switches off and
then back on again
when the tempera-
ture drops
RELAX manual
automatic
timer-based
enables natural con-
vection mode (fan
off), thus reducing
the power
EASY
TIMER
manual
automatic
is used to pro-
gramme the switch-
ing off/on after
a set number of
hours (maximum 12
hours)
OPTIONAL CONNECTIONS
The technician can supply, on request:
• external thermostat;
• telephone dialler;
• probes/thermostats for managing the ducting fans
(if present on the purchased model)
INTERFACE
Alternatively, the product can be managed, as a standard configuration, in the following ways:
• Bluetooth REMOTE CONTROL: used for all functions, near the product
• Wi-Fi APP: used for all functions even outside of home, with Internet connections
If necessary, a few functions can also be managed from a:
• SAVE PANEL: panel used for the on/off functions; power setting
By purchasing the Edilkamin optional elements included in the range:
• UMTS MODEM: used for managing a few functions, even outside of home, by means of a mobile telephone
By purchasing the non-Edilkamin optional elements:
• VOICE CONTROL SYSTEMS Alexa or Google Home

20
ENGLISH
USER INSTRUCTIONS: REMOTE CONTROL
USER
REMOTE CONTROL
The remote control has specific functions for three distinct figures:
• user of the product (operations not protected by password)
• installer (operations with dedicated password because any errors can jeopardise the product’s
operations and SECURITY)
• Edilkamin technical assistance centre (operations with dedicated password because any errors can
jeopardise the product’s operations and SECURITY)
