EdilKamin SLIDE Quick start guide

SLIDE
Pellet stove
UK Installation, use and maintenance

2
ENGLISH
EDILKAMIN S.p.A., with registered offices in Via Vincenzo
Monti 47 - 20123 Milan - tax code and VAT number
00192220192
Declares, under its sole responsibility, that:
The pellet stove mentioned below is conforming with EU
Regulation 305/2011 and harmonised EU standard EN
14785:2006
PELLET STOVE, tradename EDILKAMIN, model SLIDE
SERIAL NUMBER: Nameplate reference
Performance declaration: (DoP - EK n° 140):
Nameplate reference
And also declares that:
the SLIDE wood pellet stove satisfies the requirements of the
following European directives:
2014/35/EC - Low Voltage Directive
2014/30/EC - Electromagnetic Compatibility Directive
Safety information 4
General information 5
Installation 7
Instructions for use 15
Maintenance 23
Troubleshooting 26
CONTENTS

3
ENGLISH
Dear Sir/Madam
Congratulations on choosing our product. Before you use it,
please read this manual carefully, to get the best from your
new appliance in total safety.
This manual is an integral part of the product. Please keep it
for the entire life of the product.
If you lose it, you can request a copy or download it from
www.edilkamin.com
After unpacking the product, check the condition and
completeness of the contents.
In the event of error, immediately contact the retailer where
the purchase was made, providing him with a copy of the
warranty booklet and the sales receipt.
The appliance must be installed and operated in compliance
with local and national law and European regulations. For the
installation, and for anything not specifically indicated in the
manual, observe local regulations.
The diagrams in this manual are illustrative; they do not
always refer specifically to your product and are not binding
in any way.
The product is uniquely identified by a number, the
“counterfoil”, which is indicated on the warranty certificate
inside the product.
Please keep:
• the warranty certificate accompanying the product
• the purchase receipt given to you by the retailer
• the declaration of conformity given to you by the installer.
The warranty conditions are given in the warranty certificate
accompanying the product.
We recommend that the appliance be started up for the first
time (commissioned) by a qualified Edilkamin technician.
In Italy, commissioning by an authorised technician is
required by UNI 10683, and is recommended in all countries
to ensure best results from the product.
This consists in:
• checking the installation documents (declaration of
conformity) and the quality of the installation itself;
• calibratingtheproducttosuititsactualapplication
• explanationtotheenduserandissueofcomplementary
documentation (commissioning certificate)
Having the appliance commissioned properly ensures that it
will operate to best effect and in complete safety.
Proper commissioning is required for activation of the
Edilkamin warranty. The warranty is only valid in the country
of sale of the product.
If the appliance is not commissioned by an authorised
technician, Edilkamin will not provide warranty service. See
the warranty booklet for details. The above terms do not
affect the reseller’s legal responsibility for the legal warranty.
The legal warranty covers only demonstrable manufacturing
defects and not, for instance, problems resulting from
improper installation or calibration.
MEANING OF SYMBOLS
In some parts of the manual the following symbols are
used:
INFORMATION:
failure to comply with these requirements
will compromise product use.
PLEASE NOTE:
carefully read and understand the
message in question, since failure to
follow the instructions in it could cause
serious damage to the product and put
the safety of those using it at risk.
OPERATING SEQUENCE:
follow the instructions for the operations
described

4
ENGLISH
SAFETY INFORMATION
• The appliance is not designed for use by people,
including children, with limited physical, sensory
and mental capacities.
• The appliance is not intended to be used for
cooking.
• The appliance is designed to burn UNI EN ISO
17225-2 category A1 wood pellets, in the amounts
and manner described in this manual.
• The appliance is designed for use indoors, in
normal conditions of ambient humidity.
• Keep the product in a dry place out of the weather.
Safety risks may be caused by:
• installation in unsuitable conditions. In particular,
conditions of fire hazard. DO NOT INSTALL THE
PRODUCT IN AREAS SUBJECT TO THE RISK OF
FIRE.
• contact with fire and hot parts (e.g. glass panel
and pipes). DO NOT TOUCH THE STOVE’S HOT
PARTS; always wear the provided gloves when
working with the stove, even if switched off, when
it is still hot. Failure do so can result in burns.
• contact with live electrical equipment (internal).
DO NOT ACCESS THE INTERNAL ELECTRICAL
EQUIPMENT WHILE THE APPLIANCE IS
POWERED ON. Electrocution hazard.
• use of improper ignition aids (e.g. alcohol). DO
NOT IGNITE OR BOOST THE FLAME WITH FLUID
SPRAYS OR A FLAME TORCH.
• use of fuel other than wood pellets. DO NOT
BURN WASTE MATTER, PLASTIC OR OTHER
MATERIALS THAN WOOD PELLETS IN THE
HEARTH. The product may be soiled, the flue may
catch fire, and environmental damage may ensue.
• cleaning the hearth when hot. DO NOT CLEAN
THE HEARTH WITH A VACUUM CLEANER WHILE
IT IS HOT. Risk of damage to the cleaner and
smoke in the room.
• cleaning the fumes duct with cleaning products. DO
NOT CLEAN THE PRODUCT WITH FLAMMABLE
PRODUCTS. Risk of fire and blowback.
• cleaning the hot glass pane with unsuitable
cleaning products. DO NOT CLEAN THE GLASS
WHILE IT IS HOT WITH WATER OR ANY OTHER
PRODUCT THAN THE RECOMMENDED GLASS
CLEANING PRODUCTS. Risk of cracking and
irreparable damage to the glass.
• storing flammable materials within the safety
clearance indicated in this manual. DO NOT
PLACE LAUNDRY ON THE PRODUCT. DO NOT
PLACE DRYING RACKS WITHIN THE SAFETY
CLEARANCE. Keep flammable fluids away from
the product. Fire hazard.
• blocking the aeration vents and air intakes in the
room. DO NOT BLOCK THE AERATION VENTS
OR FLUE. Risk of smoke returning into the room
with consequent damage and injury.
• use of the product as a support or ladder. DO NOT
CLIMB ONTO THE PRODUCT OR USE IT AS A
SUPPORT. Risk of damage and injury.
• use of the stove with the hearth open. DO NOT
USE THE PRODUCT WITH ITS DOOR OPEN.
• incandescent material projected from the open
door. DO NOT throw incandescent material
outside the appliance. Fire hazard.
• use of water in case of fire. CALL THE AUTHORITIES
IF A FIRE BREAKS OUT.
Please use all normal precautions for a household
heating appliance.
If you have doubts, please do not take any action, but
contact the retailer or the installer.
For reasons of safety, read the user instructions
included in this manual.

5
ENGLISH
GENERAL INFORMATION

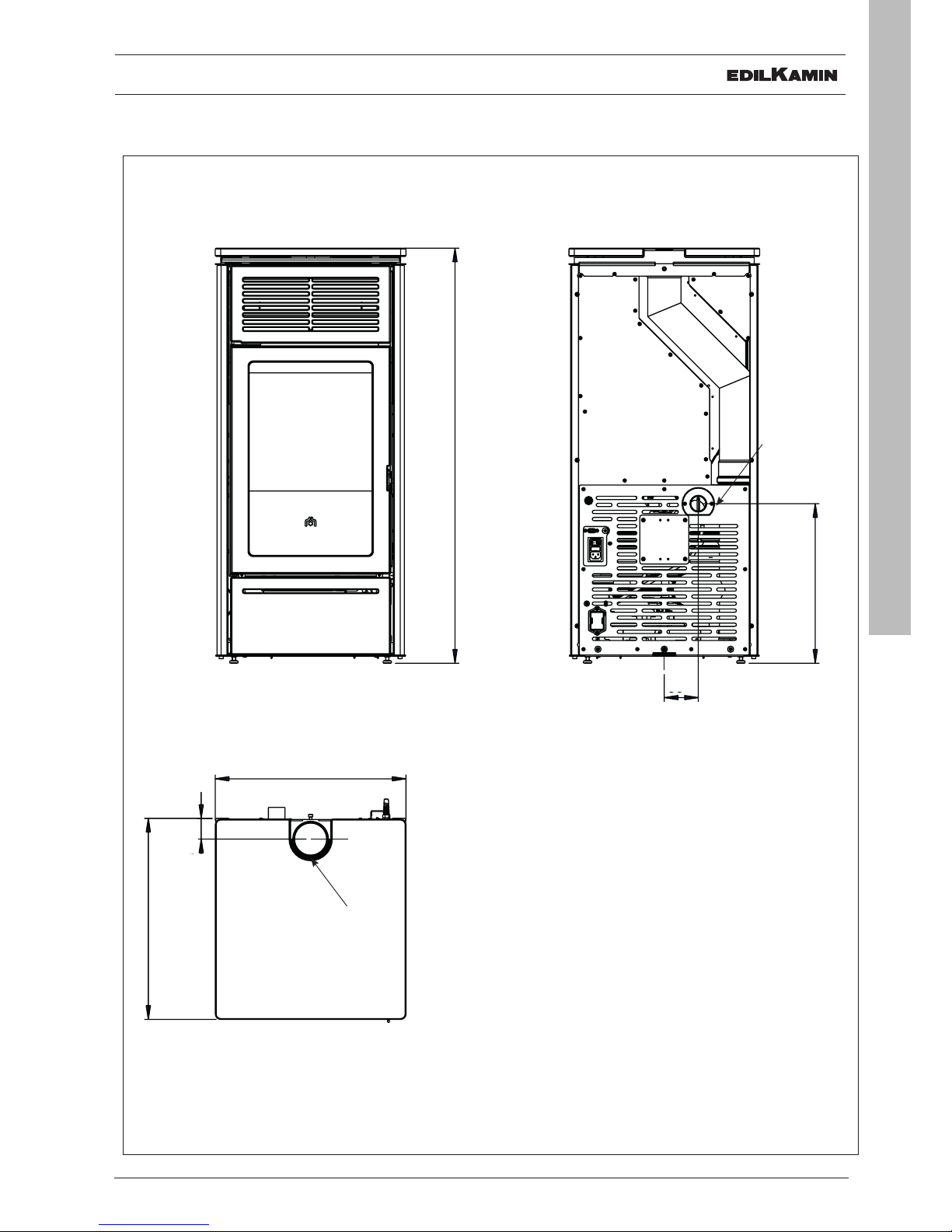

DIMENSIONS (cm)
Ø 4 cm
combustion
air
Ø 8 cm outlet
100 /101 stone/marbre
8
38,5
49
5
46
Ø 8 cm outlet

6
ENGLISH
The above data are illustrative and are drawn from the certification by a notified body.
EDILKAMIN s.p.a. reserves the right to modify the product without notification in the interests of improvement.
TECHNICAL CHARACTERISTICS per EN 14785
Nominal power Reduced power
Available power 4,7 2,5 kW
Efficiency 90,6 91,8 %
CO emissions at 13% O20,010 0,028 %
Fumes temperature 112 85 °C
Fuel consumption 1,1 0,6 kg/h
Tank capacity 20 kg
Draw 12 - 5 10 - 3 Pa
Autonomy 18 33 hours
Heatable volume * 120 m3
Fumes outlet diameter (male) 80 mm
Air intake diameter (male) 40 mm
Weight including packaging 115 kg
TECHNICAL DATA FOR RATING THE FLUE
which must in any case satisfy the requirements of this sheet and the installation instructions for the product
Nominal power Reduced power
Available power 4,7 2,5 kW
Fumes temperature at outlet 134 102 °C
Minimum draw 0,01 Pa
Fumes flow rate 4,6 2,8 g/s
* The heatable volume is calculated for a house insulated pursuant to Italian Law 10/91 and subsequent amendments,
and a heating demand of 33 Kcal/m³ hour.
ELECTRICAL SPECIFICATIONS
Power 230 Vac +/- 10% 50 Hz
Mean absorbed power 50 - 80 W
Power absorption during ignition 300 W
Remote control frequency (provided) 2,4 GHz
Logic board protection Fuse 4 AT, 250 Vac 5x20
GENERAL INFORMATION

7
ENGLISH
INSTALLATION
PREPARATION AND UNPACKING
The packaging materials are neither toxic nor noxious
and do not require special disposal.
The user is responsible for storing, disposing or and
recycling them in a regulatory fashion.
PACKAGING
• The packaging contains two items:
• one containing the structure of the stove (1) with
the side panels already installed, and a bag with
five rubber dampers for the top
• one containing the marble or stone top (2)
The stove itself contains:
the remote control, the warranty certificate, the glove,
this manual and the desiccating salts.
The lever for opening the door is also on the pallet.
Always move the stove vertically with
suitable equipment and in observance of
safety regulations.
Do not turn the package over, and handle
all parts requiring installation with care.
1
2
INSTALLING THE LINING
Proceed as follows (refer to the figures):
• To remove the stove from the pallet: remove the
screws and rear bracket; take the side panels off
to remove the front screws.
• Fit the interlocking side panels and screw down
the bolts on the back
• Position the top
PLEASE NOTE:
DO NOT ATTEMPT TO TAKE THE STOVE
OFF THE PALLET WITHOUT FIRST
REMOVING THE SIDE PANELS AND THE
SCREWS (ONE PER SIDE) ANCHORING
THE STOVE TO THE PALLET

8
ENGLISH
INSTALLATION
To remove the stove from the pallet: remove the screws and rear bracket; take the side panels off to remove the
front screws.

9
ENGLISH
INSTALLATION

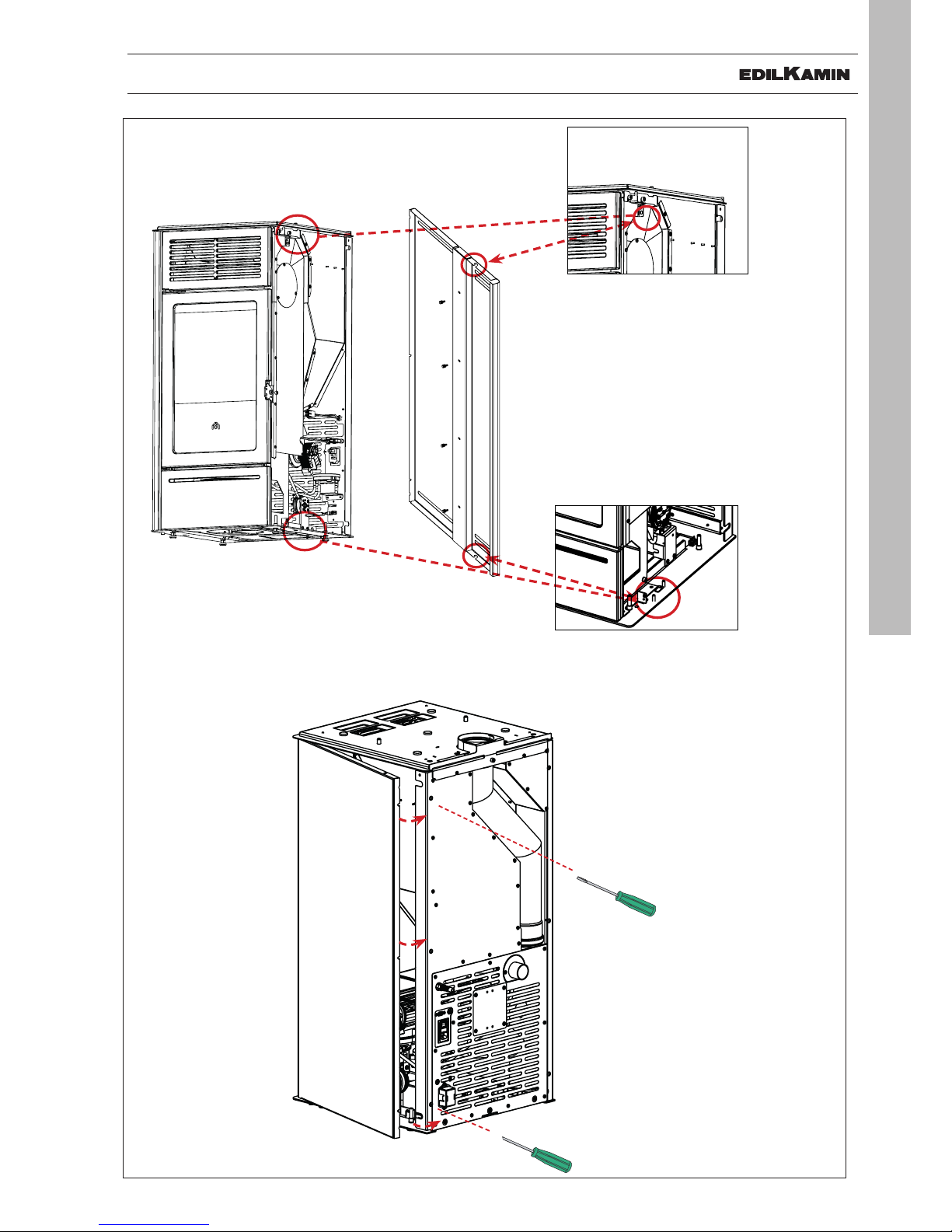

Fit the interlocking side panels and screw down the bolts on the back

10
ENGLISH
INSTALLATION

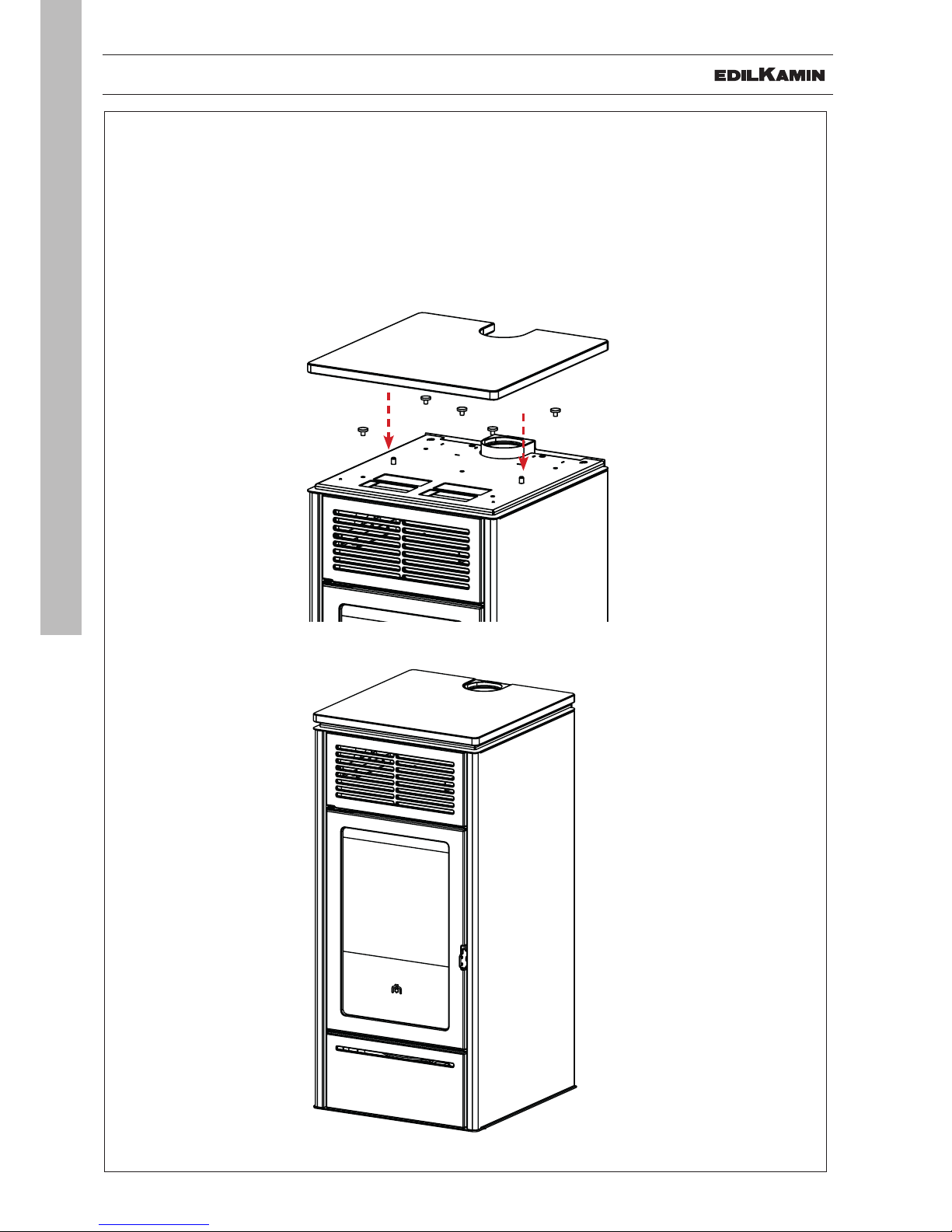

Position the top, after having inserted the 5 rubber dampers, by slotting it into the two pins (arrows)

11
ENGLISH
REMARKS ON INSTALLATION
Note that:
• The appliance may only be installed by a qualified
technician authorised to issue the declaration of
conformity.
• The appliance must be installed and operated
in compliance with local and national law and
European regulations. The applicable Italian
regulation is UNI 10683.
• If installed in a condominium, the appliance must
be approved by the administrator.
We give some general instructions below, however
these do not obviate the need to comply with local
regulations and do not affect the installer’s liability for
the installation.
Checking the suitability of the installation
space
• The room must have a volume of at least 20 m3
• The floor must be able to bear the weight of the
product and its accessories.
• Level the appliance
• The appliance may not be installed in a bedroom,
bathroom or in the same room as other equipment
which draws air for combustion from the room
itself, or in any area with an explosive atmosphere.
Any extraction fans operating in the same room or
area as the product, may affect its draw.
• In Italy, check the compatibility pursuant to UNI
10683 and UNI 7129 in the presence of gas fired
products.
Protection from heat and safety clearances
The surfaces of the building adjacent to the product
must be protected against overheating.
The insulation to be used will depend on the type of
surface in question.
The product must be installed in observance of the
following safety instructions:
- minimum clearance at the sides and back of 10 cm
from flammable materials.
- no flammable materials may be kept closer to the
front of the appliance than 80 cm.
If connected to a wooden or otherwise flammable wall,
the flue must be insulated appropriately.
If installed on a flammable or combustible floor, or
which is not capable of bearing its load, use steel or
glass plates under the stove to distribute the load.
Contact the retailer for such optional equipment.
Positioning the product
The product is designed to operate in all climatic
conditions. In special circumstances, such as strong
wind, its safety equipment may switch the stove off.
Contact the authorised Edilkamin Technical Assistance
Centre.
INSTALLATION

12
ENGLISH
TYPICAL CASES
46
Ø 4 cm aria
combustione
99
11
18
46
49
49
Ø 8 cm uscita fumi
39
6
99
46
Ø 4 cm aria
combustione
99
11
18
46
49
49
Ø 8 cm uscita fumi
39
6
99
INSTALLATION
FLUE SYSTEM
(Fumes duct, ue and chimney pot)
Thsi chapter has been drawn up pursuant to European
regulations EN 13384, EN 1443, EN 1856 and EN
1457. The installer must observe both these and any
other local regulations. This manual does not in any
way substitute such regulations.
The product must be connected to a flue system which
ensures that the fumes produced by combustion are
exhausted in complete safety.
Before positioning the product, the installer must
check that the flue pipe is properly rated.
FUMES DUCT, FLUE
The fumes duct (which connects the hearth's fumes
outlet with the flue) and the flue itself must, among
other regulatory requirements:
• receive the fumes from a single product (the outlets
of multiple appliances may not be conveyed into
a single flue)
• be routed vertically for the most part
• have no downwards sloping sections
• preferably have a circular internal cross section, or
with a ratio of the sides of less than 1.5
• terminate at roof level with a proper chimney pot:
the flue may not discharge directly from the wall
or into an enclosed space, even if the space in
question is open to the sky
• be made of material rated fire reaction class A1 per
UNI EN 13501 or analogous national regulations.
• be certified, with a chimney plate if metal
• be of uniform cross section or vary in cross section
only immediately after the outlet, not at some mid
point of its length
THE FUMES DUCT
Further to the general prescriptions for the fumes duct
and flue, the fumes duct:
• may not be made of flexible metal material
• must be insulated, if routed through unheated
areas or outdoors
• must not be routed through rooms in which the
installation of combustion heat generators is
prohibited, or subject to fire hazard, or which
cannot be inspected.
• must enable the recovery of soot and be open for
inspection
• must have at most 3 bends, through an angle of
no more than 90°
• must have a single horizontal section of length
no more than 3 metri, depending on the draw.
Note in any case that long sections promote the
accumulation of dirt and are harder to keep clean.
A: insulated steel flue, pursuant to EN 1856
B: minimum height 1.5 m and above the level of the roof
guttering
C-E: external ambient air intake (through section of at least
80 cm²)
D: steel flue inside existing masonry chimney

13
ENGLISH
THE FLUE:
Further to the general prescriptions for the fumes duct
and flue, the flue:
• must serve solely to exhaust fumes
• must be correctly sized to satisfy the requirements
of fumes exhaust (EN 13384-1)
• should preferably be insulated, in steel with a
circular internal section. If rectangular, the corners
must have a radius of not less than 20 mm, with a
ratio of the internal dimensions of <1.5
• must normally be at least 1.5 metres in vertical
length
• must have a constant cross section
• must be waterproof and thermally insulated to
ensure a good draw
• must preferable have a collection chamber for
• If pre-existing, must be clean, to prevent the fire
hazard.
• in general, we recommend fitting a tube inside the
existing masonry chimney if its diameter is greater
than 150 mm.
INTUBATED SYSTEM:
Further to the general prescriptions for the fumes duct
and flue, the intubated system:
• must operate in negative pressure;
• must be open to inspection
• must observe local regulations.
THE CHIMNEY POT
• must be windproof
• must have an internal cross section equivalent to
that of the flue and a fumes outlet at least double
that of the interior of the flue
• for dual flues (which should be spaced at least 2
m apart) the chimney pot receiving the fumes from
the solid fuel appliance or that from the higher
storey, must be at least 50 cm higher than the other
• it must extend beyond the back flow zone (in Italy,
refer to UNI 10683 point 6.5.8.)
• it must allow for maintenance of the chimney
EXTERNAL AIR INTAKE
In general, we suggest two ways for ensuring a proper
flow of combustion air.
Indirect air intake
Install an intake at floor level with effective area (net of
the mesh or other protective equipment) of at least 80
cm2(10 cm dia.).
To prevent draughts, we recommend installing the
intake behind the stove or behind a radiator.
Installing it in front of the appliance will create
unpleasant draughts.
Direct air intake
Install an air intake of effective area (net of the mesh or
other protective equipment) at least equal to that of the
air intake at the back of the product.
Connect the air intake to the appliance’s air intake with
a tube (which may also be flexible).
We recommend not exceeding a 5 m length and
curving the tube at most 3 time, depending on the
draw of the flue.
The air maty be drawn from an adjacent room only if:
• the flow is taken from permanent and unobstructed
openings communicating with the outdoors;
• the adjacent room is never in underpressure
relative to the outdoors;
• the adjacent room is not a garage. subject to fire
hazard, a bathroom or bedroom
• the adjacent room is not a shared room in the
condominium.
INSTALLATION

14
ENGLISH
CHECKINGTHEELECTRICALCONNECTIONS
(the power socket must be located in an
easy to access position)
The stove is equipped with an electrical power cord
or connection to a 230V 50 Hz socket, preferably with
electromagnetic cutout.
Variations in voltage of more than 10% can compromise
the operation of the stove.
The electrical system must be compliant; check the
operation of the earth in particular.
Edilkamin is not responsible for malfunctions resulting
from an improperly earthed system.
The power line must be of adequate section for the
power of the appliance.
The power cord must not come into contact with the
hot parts of the stove, including the flue.
Power up the stove by setting its switch from 0 to 1.
One fuses (4 A) is inserted in the socket with switch,
located on the back of the stove.
First ignition procedure
• Make sure you have read and understood this
manual
• Remove all flammable materials from the appliance
(manuals, labels, etc). Make sure to remove the
labels on the glass.
There may be a slight smell of paint the first few times it
is ignited, however, this will disappear quickly.
INSTALLATION
LOADING THE PELLETS INTO THE
PELLET TANK
Slide the top to load the pellets
Use UNI EN ISO 17225-2 category A1 wood pellets
or similar regulatory products with the following
characteristics.
diameter 6 mm;
length 3-4 cm
humidity <10 %
For reasons of safety and environmental compatibililty,
DO NOT burn plastic, painted wood, coal, bark or
other such materials in the stove.
Do not use the stove as an incinerator
*
Caution
Using fuels other than those specified can
damage the appliance
1) When doing so, DO NOT rest
the bag of pallets on the top
grille, since the plastic bag may
melt and damage the appliance’s
paint.
2) Use the provided gloves when
loading the stove while it is
operating and hence hot to the
touch.

15
ENGLISH

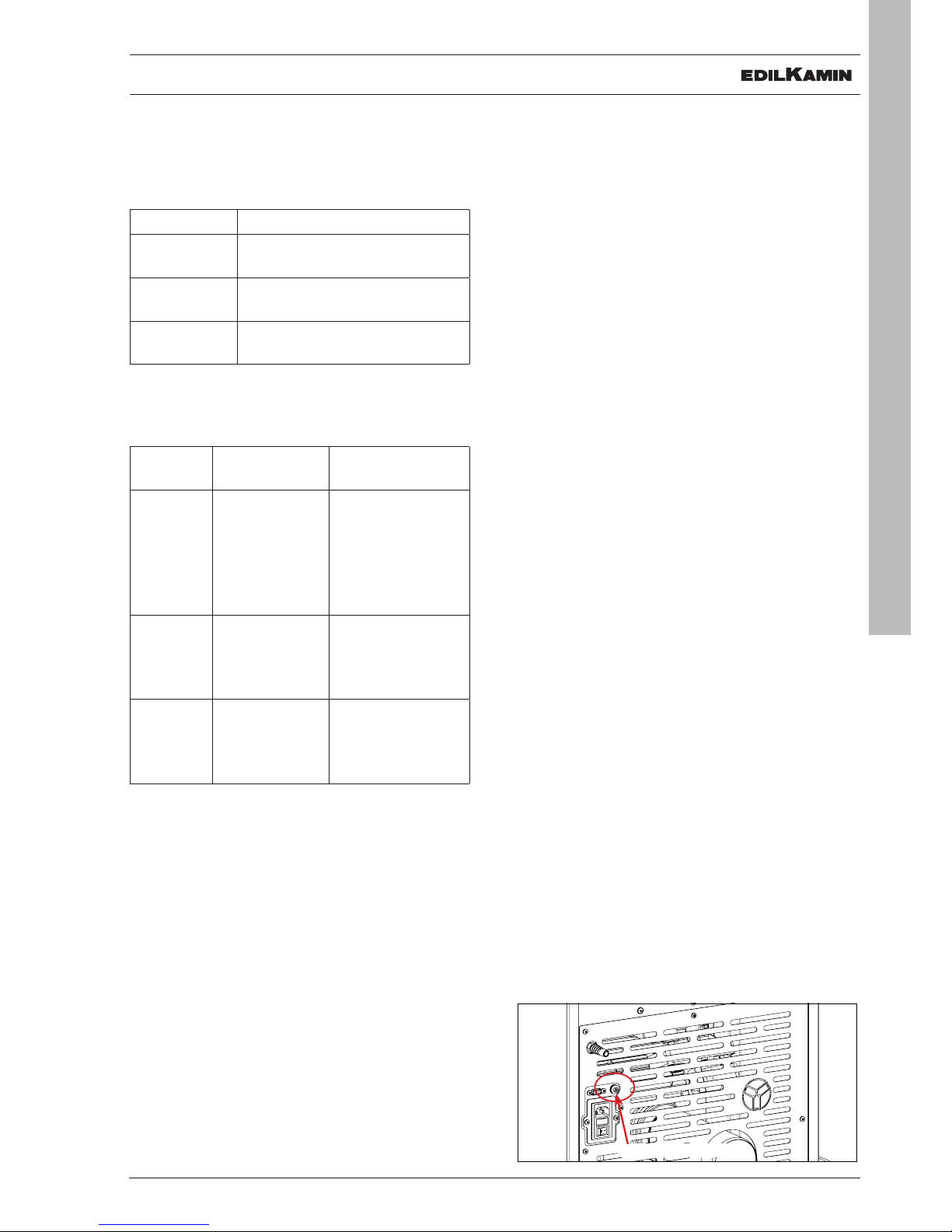

OPERATION
Description.
The access to and adjustment of these functions is
described on page:
Method Settings
MANUAL • power level
• ventilation level
AUTOMATIC • desired room temperature
• ventilation level
CRONO • desired room temperature,
selected per day of the week
The stove also has the following supplementary
functions.
Function In which mode it
can be activated
What it does
STAND BY automatic
crono
when the desired
temperature is
reached, the stove
shuts off and turns
on again when the
temperature drops
RELAX manual
automatic
crono
enables natural con-
vection mode (fan
off), thus reducing
the power
NIGHT manual
automatic
allows you to set the
stove to go out after
a given number of
hours
OPTIONAL CONNECTIONS
The technician can supply, on request:
external thermostat, telephone dialler for connection to
the logic board
PHASES
Further to the above operational procedures, the stove
has the following phases
- Ignition (display reads ON ) Flame ignites and
grows stable
This is the result of:
• manual ignition with ignition button
• request from Crono
• power request during stand by
• request from external contact
Ignition has a variable duration, with the aim of reaching
the start temperature
- Switch-off (display reads OFF )
The flame is extinguished and the stove cools down.
This is the result of:
• manual switch-off with switch-off button
• power demand ceases with Stand by function
active
• request from Crono
• request from external contact
Switch-off has a variable duration, with the aim of
reaching the stop temperature
- Shutdown
Switches the stove off in response to an alarm.
In case of malfunction, a key is available for switching
the stove on and off and setting the temperature
(without visual indication except for the flame itself)
INTERFACE
The user interface is the remote control but, if this is not
available, you can control the stove with the button
on
its back (see figure)
1. WITH THE STOVE OFF
press the button for 2” to turn the stove on.
2. WITH THE STOVE ON
press the button for 2” to turn the stove off.
3. WITH THE STOVE ON IN MANUAL MODE
press the button to increase its output power
simplified on button
USER INSTRUCTIONS

16
ENGLISH
USER INSTRUCTIONS

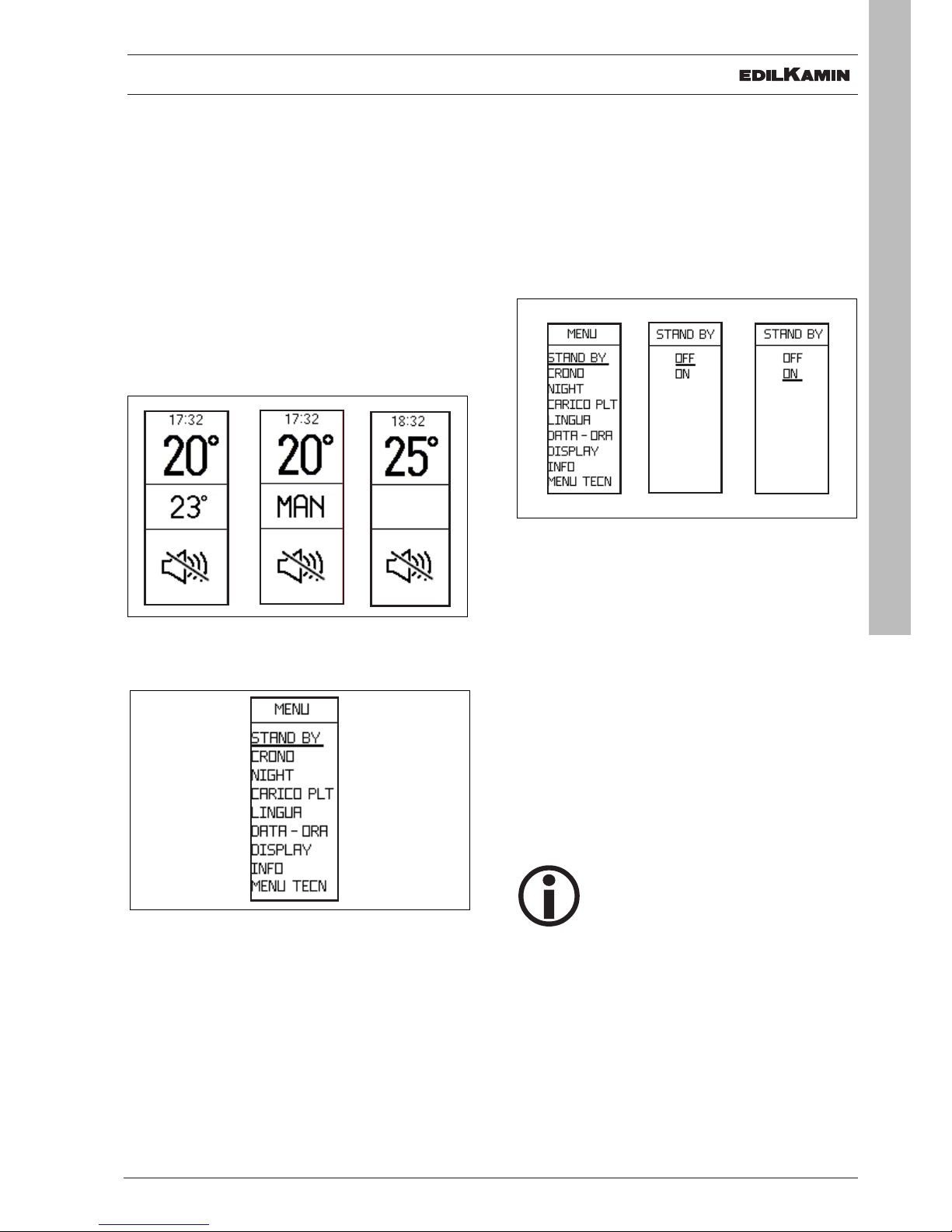

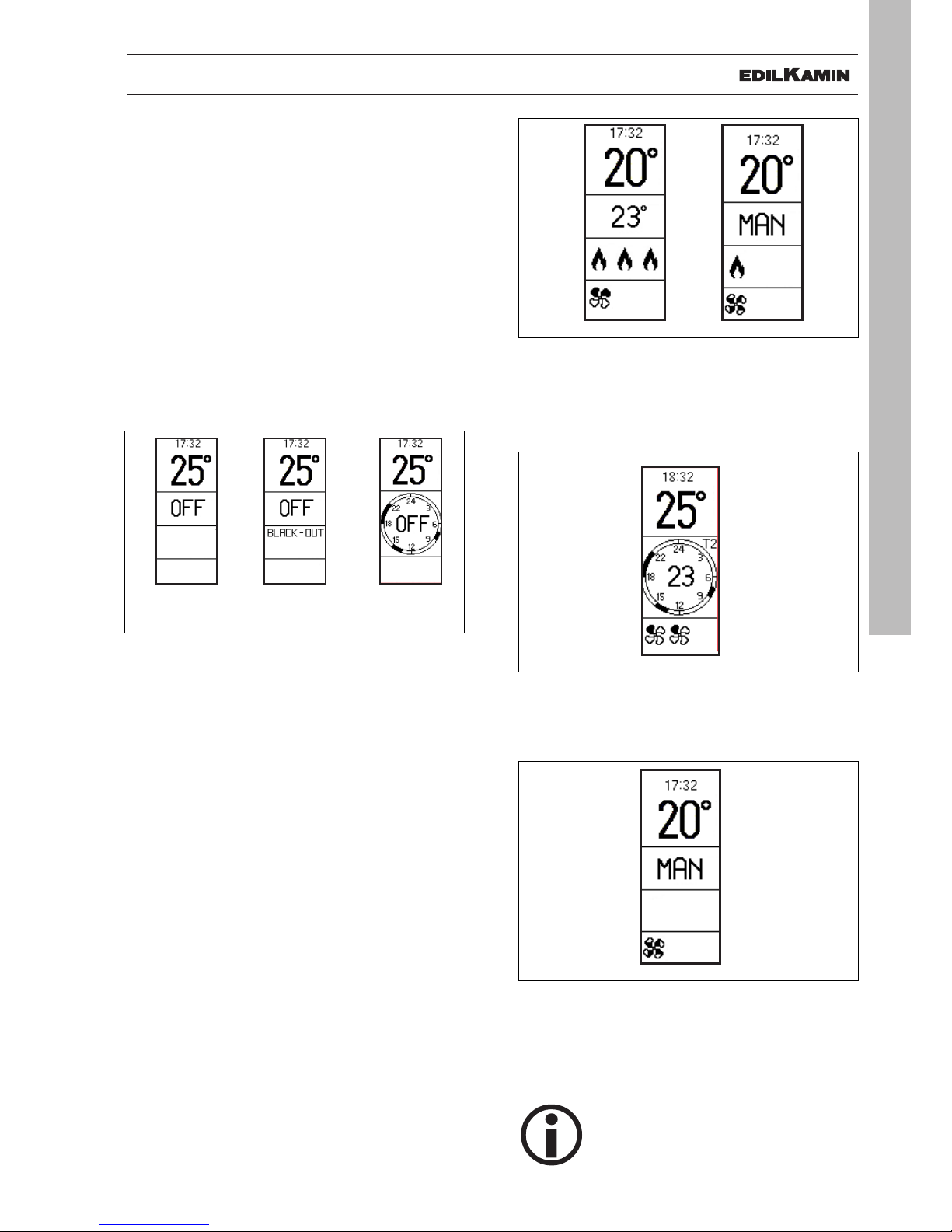

REMOTE CONTROL
Specifications:
RF transceiver module, frequency 2.4 GHz - Powered
by two AAA 1.5 V batteries rated at least 1200 mAh.
ON/OFF button:
manual on/off button and for switching the remote
from energy saving mode to active heating
touch buttons:
+: increment button (increases the stove’s power,
temperature or fan speed, etc., or scrolls through the
menu)
+: decrement button (decreases the stove’s power,
temperature or fan speed, etc., or scrolls through the
menu)
M: menu key / relax mode key
OK: confirm key, switches to the next setting and
between automatic and manual modes
NOTES
• The remote control does not store the programs,
which are stored on the logic board; there is thus
no need to reprogram it when it is shut off or
replaced by a new one.
• The remote exchanges information with the logic
board (including room temperature sensing in
automatic mode) every 2” and when it is activated
by pressing the ON/OFF button.
• In normal use, the remote’s batteries should last a
year. This is an approximate value, since it depends
on both the type of batteries and the intensity of
use. Edilkamin and the reseller will not consider
claims for battery life under any circumstances. If
the battery charge is low, a warning displays at the
top left.
REMOTE CONTROL POWER SAVING
If the remote is not used for 20”, the display turns off to
save power. The display turns black without text. This
condition refers solely to the remote itself, and not to
the stove.
To turn the display back on, press the ON/OFF button.
DO NOT PRESS THE ON/OFF BUTTON
REPEATEDLY; this turns the stove on and
off in manual mode
If this is the rst power on and the language has
not yet been set, the language selection page will
display. Select the language with the +/- keys and
conrm it with OK.You are now asked to conrm
or set the time and date.Set the values with the +/-
keys and conrm with OK. The day of the week is
calculated automatically using a perpetual calendar.
REMOTE CONTROL FIRST POWER ON
• Open the back of the remote and insert the
two batteries in the indicated orientation.
• hooked up electrically
• THE AUDIBLE SIGNALS PRESS THE
ON / OFF BUTTON
Otherwise it will not work
A
.
SENDING SIGNAL FROM THE
REMOTE CONTROL TO THE
PRODUCT IS CONFIRMED BY A
POINT (A) – please see picture
on the side- ON THE DISPLAY .
IF ANY POINT IS SHOWN , THE
PRESSURE ON THE BUTTON WAS
TOO SHORT

17
ENGLISH
USER INSTRUCTIONS
fig. 1 fig. 2 fig. 3
The display reads the POSSIBLE STATES
described below:
- OFF STATE
The stove is shutting off or is off in response to
operation of the remote control’s ON/OFF key or an
external contact (crono, phone dialler)
The display shows the current time, room temperature
and the status in relation to which the stove is OFF.
The stove is OFF :
in response tomanual intervention (fig. 1)
due to power failure (fig. 2)
shut off by Crono mode (fig. 3)
From the OFF page, press the ON/OFF button for 3
seconds to go to the ON page.
Pressing the +/- keys has no effect.
Pressing the M key displays the menu.
- ON STATE
The stove is ON.
The display shows (figure 4)
1. the current time
2. the current room temperature
3. the room temperature setting or manual mode
4. the power level (represented by the flames)
5. the fan level (represented by the filling in of the
blades)
If timer programming is active, 3 and 4 are replaced by
the day’s timer programming with the current setpoint
at the centre (figure 5) and the temperature displayed
at the top right.
- ALARM STATE
In case of shutdown due to alarm, 4 is replaced by a
message indicating the type of shutdown (figure 6)
- STAND BY STATE
Situation in which there is no demand for heating.
If the Stand By function is active, the display shows the
same information as in the ON state, without flame and
without fan blades.
fig. 4
fig. 5
H1
fig. 6
When It Is On, The Stove Does Not
Always Have A Flame. The Stove Turns
On In Response To The Heating Demand
Setting.

18
ENGLISH
USER CONTROLS (REMOTE CONTROL)
- ON/OFF
- Switch-on/switch-off
- Manual mode setting
• Power setting
• Fan setting
- Automatic mode setting
• Temperature setpoint setting
• Fan setting
- RELAX function
- From the Menu page:
• Stand By
• Crono
• Night
• Load Pellets
• Language
• Date / time
• Display
• Info (technician only)
• Technical menu (technician only)
We describe the procedures below.
.
ON/OFF
Hold the ON/OFF button down to turn the stove ON.
When ON, the stove has a flame (ignition phase, etc.)
when there is a heating demand.
Switch-on/switch-off
The ON/OFF button switches the stove on (starts
the ignition phase) or off (starts the swithc off phase)
manually in Manual mode only.
In Automatic mode, the stove responds to the heating
demand.
Setting Manual/Automatic
Hold down the OK button to switch from manual to
automatic or vice versa.
In Manual mode, the display reads “Man”.
In Automatic mode, the temperature displays.
In automatic:
Room temperature setting
Set the temperature setpoint (Set) with the “+” and “-“
buttons.
Ventilation setting
Press “OK” once
The fan setting displays, next to the blade symbol
representing the fan.
Set the fan level with the “+” and “-“ buttons.
The blades fill in to indicate the current setting.
- In manual:
Power setting
Set the power level (displayed by the flame symbol)
with the “+” and “-“ buttons.
The power level displays next to the flame symbol.
Ventilation setting
Press “OK” once
The fan setting displays, next to the blade symbol
representing the fan.
Set the fan level with the “+” and “-“ buttons.
The blades fill in to indicate the current setting.
THE NUMBER NEXT TO THE FAN BLADE OR FLAME
ONLY DISPLAYS WHILE THE SETTING IS BEING
MADE.
USER INSTRUCTIONS

19
ENGLISH
USER INSTRUCTIONS
- Relax function
Natural convection function with automatic power
limiting.
This function is available in all modes: automatic,
manual and crono.
Hold down the “M” button to activate the Relax function:
Hold it down again to deactivate it.
The stove reduces its power output and after a few
minutes switches the fan off too.
Pressing OK in this mode has no effect.
The “+” and “-” buttons allow you to increase/decrease
the room setpoint (in automatic mode only)
Menu
Press the “M” button to display the menu.
When the menu displays, the buttons have the
following functions:
“+”: scroll up
“-”: scroll down
press and release “OK”: enter menu option
press and release “M”: quit menu option
Press the ON/OFF button to confirm and return to the
main page.
- Stand by
When the Stand by function is active, in automatic and
timer modes, the stove shuts off when the temperature
setpoint is reached and turns on again when the
temperature drops.
When the Stand By function is not active, the stove
sets itself to minimum power when the temperature
setpoint is reached
Press “OK” to enter the function from the Menu.
Use the “+/-” buttons to select OFF or ON.
Press “M” to quit without saving.
Press “OK” to confirm and return to the previous menu
level.
If you selected ON, the display shows the minutes
for which the stove will continue running at minimum
power even when the temperature setpoint has been
reached.
Press the ON/OFF button to confirm and return to the
main page.
The stove is programmed by default with a
delta of +/- 1 °C to optimise comfort.
The technician can change this setting
during commissioning to suit the needs of
the application.
The display shows the temperature
rounded down, so that both 20.1°C and
20.9°C display as “20°”

20
ENGLISH
USER INSTRUCTIONS
- Crono
When the Crono function is active, the user sets a
temperature setpoint and a time zone for each day of
the week for which that setpoint is specified.
The setting takes four steps, which need not be
consecutive:
• activate/deactivate Crono mode;
• apply the same Crono configuration for 7/7 days,
5/7, weekend only or day by day.
• set three temperature setpoints
• assign one of the three setpoints to a time zone.
Activating the Crono function
Press “OK” to enter the function from the Menu.
Use the “+/-” buttons to activate/deactivate the
function.
Press “M” to quit without saving.
Confirm with the “OK” button .
Press the ON/OFF button to confirm and return to the
main page.
Setting the period of application of the Crono
Press “OK” to enter the Temperature function from the
Menu.
The first page allows you to choose whether to apply
the same Crono configuration for 7/7 days, 5/7,
weekend only or day by day.
Setting the temperature setpoints
After you have selected the period of application, you
can set the temperature setpoints.
The Crono has three adjustable setpoints: T1, T2, T3.
Set the three temperature setpoints with the “+” and
“-” buttons.
Crono adjustment
Once you have set the temperature setpoint, you can
set the start and end of the time zone to which you
wish to apply it.
This is done in steps of 30’.
The buttons have the following functions:
“+”: increase the ignition time. Hold the button down
to scroll through the times more quickly.
“-”: decrease the ignition time. Hold the button down to
scroll through the times more quickly.
“OK”: confirm the time
“M”: return to the previous menu
ON/OFF button: return to the main page.
NOTE
the ignition times are indicated by the fact that
the dots are black. In zones with white dots, the
appliance is OFF.
