EdilKamin DANIA Air Tight Plus Quick start guide

DANIA Air Tight Plus
DANIA Air Tight C Plus
PELLET STOVE
EN Installation, use and maintenance page 2

2
ITALIANO
EDILKAMIN S.p.A., with registered offices in Via
Vincenzo Monti 47 - 20123 Milan - tax code and VAT
number 00192220192
Declares, under its sole responsibility, that:
The pellet stove mentioned below is conforming with
EU Regulation 305/2011 and harmonised EU standard
EN 14785:2006
PELLET STOVE, tradename EDILKAMIN, models
DANIA AIR TIGHT C
DANIA AIR TIGHT
SERIAL NUMBER: Nameplate reference
Performance declaration:
DANIA AIR TIGHT C/ DANIA AIR TIGHT (DoP - EK n° 193)
Nameplate reference
And also declares that:
the wood pellet stove satisfies the requirements of the
following European directives:
2014/35/EC - Low Voltage Directive
2014/30/EC - Electromagnetic Compatibility Directive
The original language of this manual is Italian
USER/INSTALLER

3
ITALIANO
Dear Sir/Madam
We thank you for and congratulate you on choosing our
product. Before using it, we ask you to read this manual
carefully, in order for you to be able to make the most of all
its functions in total safety.
This manual is an integral part of the product. We ask you
to keep it for the entire lifetime of the product. If you lose it,
you can request a copy from your dealer or download it from
www.edilkamin.com.
Readers of this manual
This manual is addressed to:
• those who will use the product at home (“USER”);
• the technician who will install the product (“INSTALLER”)
The target person of each page is indicated in a band at the
bottom of the page (USER or INSTALLER).
After unpacking the product, check the condition and
completeness of the contents.
In the event of error, immediately contact the retailer where
the purchase was made, providing them with a copy of the
warranty booklet and the sales receipt.
The appliance must be installed and operated in compliance
with local and national law and European regulations. For the
installation, and for anything not specifically indicated in the
manual, observe local regulations.
The diagrams provided in this manual are for illustration
purposes only: they do not always strictly refer to your
specific model, and are not binding in any way.
MEANING OF SYMBOLS
In some parts of the manual the following symbols are
used:
INFORMATION:
failure to comply with these requirements
will compromise product use.
ATTENTION:
carefully read and understand the
message in question, since failure to
follow the instructions in it could cause
serious damage to the product and put
the safety of those using it at risk.
OPERATING SEQUENCE:
follow the instructions for the operations
described.
Identification of the product and warranty.
The product is uniquely identified by a number, the
“counterfoil”, which is indicated on the warranty certificate.
Please keep:
• the warranty certificate accompanying the product
• the purchase receipt given to you by the retailer
• the declaration of conformity given to you by the installer.
The warranty conditions are given in the warranty certificate
accompanying the product.
USER/INSTALLER

4
ITALIANO
USER/INSTALLER
SAFETY INFORMATION
• The appliance is not designed for use by people,
including children, with limited physical, sensory
and mental capacities.
• The appliance is not intended to be used for
cooking.
• The appliance is designed to burn UNI EN ISO
17225-2 category A1 wood pellets, in the amounts
and manner described in this manual.
• The appliance is designed for use indoors, in
normal conditions of ambient humidity.
• Keep the product in a dry place out of the weather.
• For the legal and company warranties, refer to
the warranty certificate inside the product: neither
Edilkamin nor the reseller are liable for damage
resulting from incorrect installation or maintenance.
Safety risks may be caused by:
• installation in unsuitable conditions. In particular,
conditions of fire hazard. DO NOT INSTALL THE
PRODUCT IN AREAS SUBJECT TO THE RISK OF
FIRE.
• contact with fire and hot parts (e.g. glass panel
and pipes). DO NOT TOUCH THE STOVE’S HOT
PARTS; always wear the gloves when working with
the stove, even if switched off, when it is still hot.
Failure do so can result in burns.
• contact with live electrical equipment (internal).
DO NOT ACCESS THE INTERNAL ELECTRICAL
EQUIPMENT WHILE THE APPLIANCE IS
POWERED ON. Electrocution hazard.
• use of improper ignition aids (e.g. alcohol). DO
NOT IGNITE OR BOOST THE FLAME WITH FLUID
SPRAYS OR A FLAME TORCH.
• use of fuel other than wood pellets. DO NOT
BURN WASTE MATTER, PLASTIC OR OTHER
MATERIALS THAN WOOD PELLETS IN THE
HEARTH. The product may be soiled, the flue may
catch fire, and environmental damage may ensue.
• cleaning the hearth when hot. DO NOT CLEAN
THE HEARTH WITH A VACUUM CLEANER WHILE
IT IS HOT. Risk of damage to the cleaner and
smoke in the room.
• cleaning the fumes duct with cleaning products. DO
NOT CLEAN THE PRODUCT WITH FLAMMABLE
PRODUCTS. Risk of fire and blowback.
• cleaning the hot glass pane with unsuitable
cleaning products. DO NOT CLEAN THE GLASS
WHILE IT IS HOT WITH WATER OR ANY OTHER
PRODUCT THAN THE RECOMMENDED GLASS
CLEANING PRODUCTS. Risk of cracking and
irreparable damage to the glass.
• storing flammable materials within the safety
clearance indicated in this manual. DO NOT
PLACE LAUNDRY ON THE PRODUCT. DO NOT
PLACE DRYING RACKS WITHIN THE SAFETY
CLEARANCE. Keep flammable fluids away from
the product. Fire hazard.
• blocking the aeration vents and air intakes in the
room. DO NOT BLOCK THE AERATION VENTS
OR FLUE. Risk of smoke returning into the room
with consequent damage and injury.
• use of the product as a support or ladder. DO NOT
CLIMB ONTO THE PRODUCT OR USE IT AS A
SUPPORT. Risk of damage and injury.
• use of the stove with the hearth open. DO NOT
USE THE PRODUCT WITH ITS DOOR OPEN.
• incandescent material projected from the open
door. DO NOT throw incandescent material
outside the appliance. Fire hazard.
• use of water in case of fire. CALL THE AUTHORITIES
IF A FIRE BREAKS OUT.
Please use all normal precautions for a household
heating appliance.
Connect the product to electricity supply only after
having completed its assembly and mounted the
cladding. Otherwise there is a risk of having “live”
electrical parts exposed.
If you have doubts, please do not take any action, but
contact the retailer or the installer.
For reasons of safety, read the user instructions
included in this manual.

5
ITALIANO

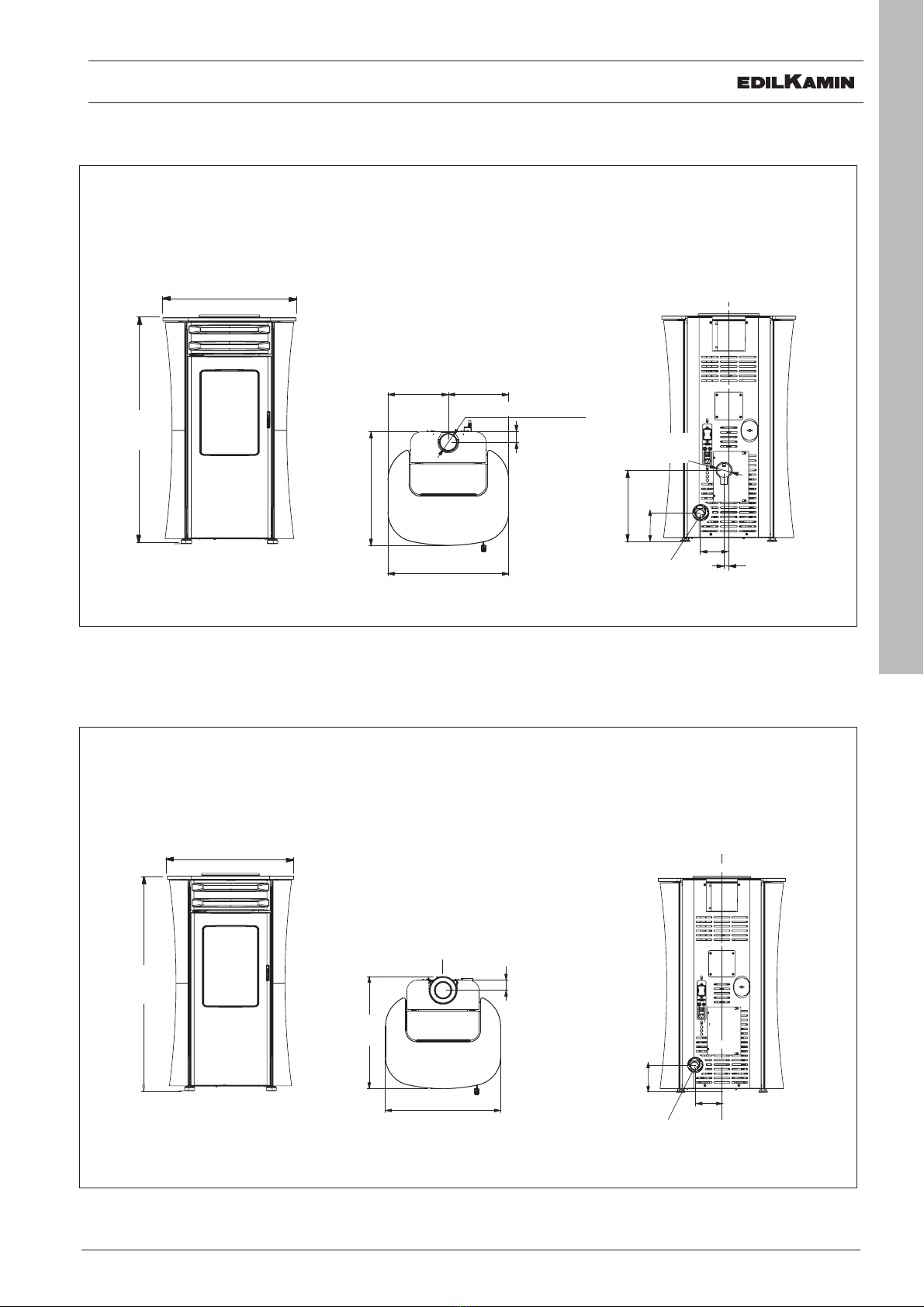

DIMENSIONS
57
5
57
28,4 28,4
54
96
57
55,5
5
57
Ø 8 cm uscita fumi
Ø 13 cm uscita fumi coassiale
96
30,3
12,3
Ø 6 cm
Ø 6 cm
air
2
11,8
12,3
11,8
USER/INSTALLER
Ø 6 cm
COMBUSTION
Ø 8 cm SMOKE
Ø 8 cm SMOKE
Ø 13 cm COAXIAL
DIMENSIONS (cm)
DANIA AIR TIGHT PLUS
DANIA AIR TIGHT C PLUS

6
ITALIANO
EDILKAMIN s.p.a. reserves the right to modify the product without notification in the inte-
rests of improvement.
TECHNICAL CHARACTERISTICS in accordance with EN 14785 The data shown below refers to the
actual installation and use and was taken during the certification phase by a notified body under the conditions
specified by the standard.Best results are achieved with the clean glass system closed. Use
the supplied gasket, by the installer.
DANIA AIR TIGHT
DANIA AIR TIGHT C PLUS
Potenza Nominale Potenza Ridotta
Available power 8 2,6 kW
Yield 91,3 90,1 %
CO emissions at 13% O20,003 0,021 %
Fumes temperature 166 106 °C
Fuel consumption * 1,8 0,6 kg/h
Tank capacity 18 kg
Draw 11 Pa
Autonomy 10 30 ore
Heatable volume ** 210 m3
Fume duct diameter 80/130 mm
Weight including packaging 137 kg
Energy efficiency class according to UE 2015-
1186 regulation (Class A++/G) A+
TECHNICAL DATA FOR SIZING THE FLUE which must in any case satisfy the requirements in this sheet
and the installation instructions for the product.
Nominal power Reduced power
Fumes temperature at smoke outlet 199 106 °C
Minimum draw 11 Pa
Fumes flow rate 5,6 2,8 g/s
*A calorific value of 4.8 kW/Kg has been used to calculate consumption.
** The heatable volume is calculated based on the assumption of a heating demand of 33 Kcal/m³ hour.
ELECTRICAL SPECIFICATIONS
Power supply Vac +/- 10% 50 Hz
Nominal power absorbed 180 W
Reduced power absorbed 78 W
Power absorbed in stand by 2 W
Power absorption during ignition 365 W
Remote control frequency (provided) 2,4 GHz
Protection Fusibile 4 AT, 250 Vac 5x20
TECHNICAL DATA
USER/INSTALLER

7
ITALIANO
UNPACKING
PREPARATION AND UNPACKING
The packaging materials are neither toxic nor noxious
The packaging materials are neither toxic nor noxious
and do not require special disposal.
and do not require special disposal.
The user is responsible for storing, disposing of and
The user is responsible for storing, disposing of and
recycling them in a regulatory fashion.
recycling them in a regulatory fashion.
Always move the stove vertically with
suitable equipment and in compliance with
safety regulations.
Do not turn the package over, and handle
all parts requiring installation with care.
In the stove you will find:
• remote control,
• warranty certificate,
• this manual,
• power cable.
The lever for opening the interior door is on the pallet.
Package materials such as plastic and films my be
dangerous for children.
Suffocation hazard.
Keep packages away from children.
INSTALLER

8
ITALIANO
(V)
(V)
(V)
UNPACKING
DO NOT REMOVE THE PRODUCT FROM THE PALLET BEFORE LOOSENING THE SCREWS.
INSTALLER
INDICATIVE DRAWINGS, NOT ALWAYS REFERRING TO THE SPECIFIC MODEL.

9
ITALIANO
REMARKS ON INSTALLATION
REMARKS ON INSTALLATION
Note that:
Note that:
• installation must be carried out by authorised
• installation must be carried out by authorised
technical personnel;
technical personnel;
the appliance must be installed and operated in
the appliance must be installed and operated in
compliance with local and national law and European
compliance with local and national law and European
regulations. The Italian reference standard is UNI
regulations. The Italian reference standard is UNI
10683; in France one must follow the instructions in the
10683; in France one must follow the instructions in the
DTA (Document Technique d’Application Référence
DTA (Document Technique d’Application Référence
Avis Technique), www.cstb.fr
Avis Technique), www.cstb.fr
• if installed in a condominium, the appliance must
• if installed in a condominium, the appliance must
be approved by the administrator;
be approved by the administrator;
• if installed in public premises, check and follow
• if installed in public premises, check and follow
local regulations for this type of installation.
local regulations for this type of installation.
Here are a few general instructions, although these do
Here are a few general instructions, although these do
not obviate the need to comply with local regulations
not obviate the need to comply with local regulations
and do not affect the installer’s liability for the
and do not affect the installer’s liability for the
installation.
installation.
Remember that Rada Air Tight C is sealed, in other
Remember that Rada Air Tight C is sealed, in other
words, if it is installed correctly with the air inlet pipe
words, if it is installed correctly with the air inlet pipe
connected to the outside, it takes the majority of the
connected to the outside, it takes the majority of the
air from the outside. For different countries, check if
air from the outside. For different countries, check if
there are particular installation conditions allowed for
there are particular installation conditions allowed for
sealed stoves.
sealed stoves.
Checking the suitability of the installation
space
• The room must have a volume of at least 30 m3
• The floor must be able to bear the weight of the
product and its accessories* (see the note in the
paragraph on the heat protection)
• Level the appliance
• Pursuant to Standard 10683 rev. 2012 point 6.3, in
Italy you can also install the appliance in bedrooms
or in rooms which already include a product that
takes air from it for combustion, provided that the
air inlet is connected to the outside
• Do not install the product in spaces where there is
a risk of fire or explosion
• In Italy, check the compatibility pursuant to UNI
10683 and UNI 7129 in the presence of gas fired
products.
INSTALLATION
Protection from heat and safety clearances
The surfaces of the building adjacent to the product
must be protected against overheating.
The insulation to be used will depend on the type of
surface in question.
The appliance must be installed in accordance with
the following safety instructions:
- minimum clearance at the sides 5 cm and back of
10 cm from flammable materials
- no flammable materials may be kept closer to the
front of the appliance than 80 cm.
If connected to a wooden or otherwise flammable wall,
the flue must be appropriately insulated.
If installed on a flammable or combustible floor, or
which is not capable of bearing its load*, use steel or
glass plates under the stove to distribute the load.
Contact the retailer for this type of optional.
Positioning the product
The product is designed to operate in all climate
conditions. In special circumstances, such as strong
wind, the safety devices may intervene to switch the
appliance off.
Contact the authorised Edilkamin Technical Assistance
Centre.
INSTALLER

10
ITALIANO
FLUE SYSTEM
FLUE SYSTEM
(fumes duct, flue and chimney pot)
(fumes duct, flue and chimney pot)
This chapter has been drawn up pursuant to European
regulations EN 13384, EN 1443, EN 1856 and EN
1457. The installer must observe both these and any
other local regulations. This manual does not in any
way substitute such regulations.
The product must be connected to a flue system which
ensures that the fumes produced by combustion are
expelled in complete safety.
Before positioning the appliance, the installer must
check that the flue is suitable.
FUMES DUCT, FLUE
FUMES DUCT, FLUE
The fumes duct (which connects the combustion
chamber smoke outlet with the flue) and the flue itself
must, among other regulatory requirements:
• receive the fumes from a single product (the outlets
of multiple appliances may not be conveyed into
a single flue)
• be routed vertically for the most part
• have no downwards sloping sections
• preferably have a circular internal cross section, or
with a ratio of the sides of less than 1.5
• terminate at roof level with a proper chimney pot:
the flue may not discharge directly on the wall
or into an enclosed space, even if the space in
question is open to the sky
• be made of material with rated fire reaction class
A1 as per UNI EN 13501 or analogous national
regulations
• be certified, with a chimney plate if metal
• be of uniform cross section or vary in cross section
only immediately after the outlet, not at some
midpoint of its length.
THE FUMES DUCT
THE FUMES DUCT
• Further to the general prescriptions for the fumes
duct and flue, the fumes duct:
• may not be made of flexible metal material
• must be insulated, if routed through unheated
areas or outdoors
• must not be routed through rooms where the
installation of combustion heat generators is
prohibited or there is risk of fire, or that cannot be
inspected
• must enable the recovery of soot and be open for
inspection
• must have a maximum of 3 bends with a maximum
angle of 90°
• if there is a horizontal section, it can have a
maximum length of no more than 3 metres,
depending on the draw. Note, in any case, that
long sections encourage the accumulation of dirt
and are harder to keep clean.
THE FLUE:
THE FLUE:
Further to the general prescriptions for the smoke duct
and flue, the flue:
• must only be used for discharging fumes
• must be correctly sized to satisfy the requirements
for fume discharging (EN 13384-1)
• should preferably be insulated, in steel with a
circular internal section. If rectangular, the corners
must have a radius of not less than 20 mm, with
aratio of the internal dimensions of <1.5
• must normally be at least 1.5 metres in vertical
length
• must have a constant cross section
• must be waterproof and thermally insulated to
ensure a good draw
• preferably provide a collection chamber for
unburnt residues and condensates
• if pre-existing, must be clean, to prevent fire
hazards
• in general, we recommend fitting a tube inside the
existing masonry chimney if its diameter is greater
than 150 mm.
INSTALLATION
INSTRUCTIONS FOR THE SMOKE
INSTRUCTIONS FOR THE SMOKE
DISCHARGE WITH OR WITHOUT
DISCHARGE WITH OR WITHOUT
CONCENTRIC PIPE
CONCENTRIC PIPE
INSTALLER

11
ITALIANO
INSTALLATION
INSTALLER
INTUBATED SYSTEM
INTUBATED SYSTEM:
Further to the general prescriptions for the fumes duct
and flue, the intubated system:
• must operate in negative pressure;
• must be open to inspection;
• must observe local regulations.
THE CHIMNEY POT
THE CHIMNEY POT (In every country and specially
in France, check on the specific waiver conditions)
• must be anti-downdraught
• must have an internal cross section equivalent to
that of the flue and a fumes outlet at least double
that of the interior of the flue
• for dual flues (which should be spaced at least 2
m apart) the chimney pot receiving the fumes from
the solid fuel appliance or that from the higher
storey, must be at least 50 cm higher than the other
• it must extend beyond the back flow zone (in Italy,
refer to UNI 10683 point 6.5.8.)
• it must allow for maintenance of the chimney.

12
ITALIANO
COMBUSTION AIR INTAKE
The inflow of necessary air for combustion, of air for
glass cleaning and heating air renewal must come
from the outside
Sealed stoves can also be installed in
passive houses. In this case, the air inlet
must be a direct air inlet
The stove takes the air from the outside
via the air inlet hole.
Install an air intake with an effective
surface area (net of the mesh or other
protective equipment) at least equal to the
cross section of the air inlet hole.
Connect the air intake to the appliance’s air intake with
a pipe that may also be flexible. Increase the diameter
of the pipe if the pipe is not smooth or if it is necessary
due to load losses: assess the load losses.
We recommend that it does not exceed 1 metre in
length or include any bends.
If you are not interested in the sealing feature of the
appliance, you can create an indirect air intake, even if
this is not recommended
Install an air outlet at floor level with an effective sur-
face area (net of the screen or other protections) of at
least 80 cm2(diameter 10 cm).
To prevent draughts, we recommend installing the
intake behind the product or behind a radiator.
Installing it in front of the appliance will create
unpleasant draughts.
The air may be drawn from an adjacent room only if:
• the flow is taken from permanent, unobstructed
openings communicating with the outdoors
• the air pressure in the adjacent room is never
reduced to a level below outdoor pressure
• the adjacent room is not a garage, subject to fire
hazard, a bathroom or a bedroom
• the adjacent room is not a shared room in the
condominium
In Italy, UNI 10683 provides that ventilation is sufficient
even if a pressure difference between the outdoors
and indoors of no more than 4 PA is guaranteed (UNI
EN 13384-1). The installer who issues the declaration
of conformity is responsible for ensuring these
conditions.
USE OF CONCENTRIC PIPES
USE OF CONCENTRIC PIPES
Without prejudice to the general instructions, you can
use concentric pipes (which provide for the passage of
smoke inside and the passage of the combustion air
into the external circular ring).
This type of installation only needs one hole in the wall,
instead of having one hole for the air intake and one for
the smoke discharge.
stufa
scarico fumi sopra
presa aria sopra
con uso coassiale
Examples of possible installations. For the smoke
discharge conditions (on roof, etc.) check local
regulations for sealed pellet stoves.
INSTALLATION
INSTALLER
Upper coaxial fumes discharge and air
intake

13
ITALIANO
INSTALLATION
INSTALLER
CHECKINGTHEELECTRICALCONNECTIONS
(the power socket must be located in an
easily accessible position)
The stove is equipped with an electrical power cord or
connection to a 230V 50 Hz socket, preferably with an
electromagnetic switch.
Variations in voltage of more than 10% can compromise
the operation of the stove.
The electrical system must be compliant; check the
operation of the earth in particular.
Edilkamin is not responsible for malfunctions resulting
from an improperly earthed system.
The power line must be of adequate section for the
power of the appliance.
The power cable must not come into contact with the
flue or other hot parts of the stove.
Power up the stove by setting its switch from 0 to 1.
There is a 4 A fuse on the socket with switch located at
the rear of the stove.
switch
fuse compartment
power supply

14
ITALIANO
*
FIRST IGNITION PROCEDURE
•
•
Make sure you have read and understood this
Make sure you have read and understood this
manual
manual
•
•
Remove all flammable materials from the appliance
Remove all flammable materials from the appliance
(manuals, labels, etc). Make sure to remove the
(manuals, labels, etc). Make sure to remove the
labels on the glass.
labels on the glass.
USER INSTRUCTIONS
Using fuels other than those specified can damage the appliance
Using fuels other than those specified can damage the appliance

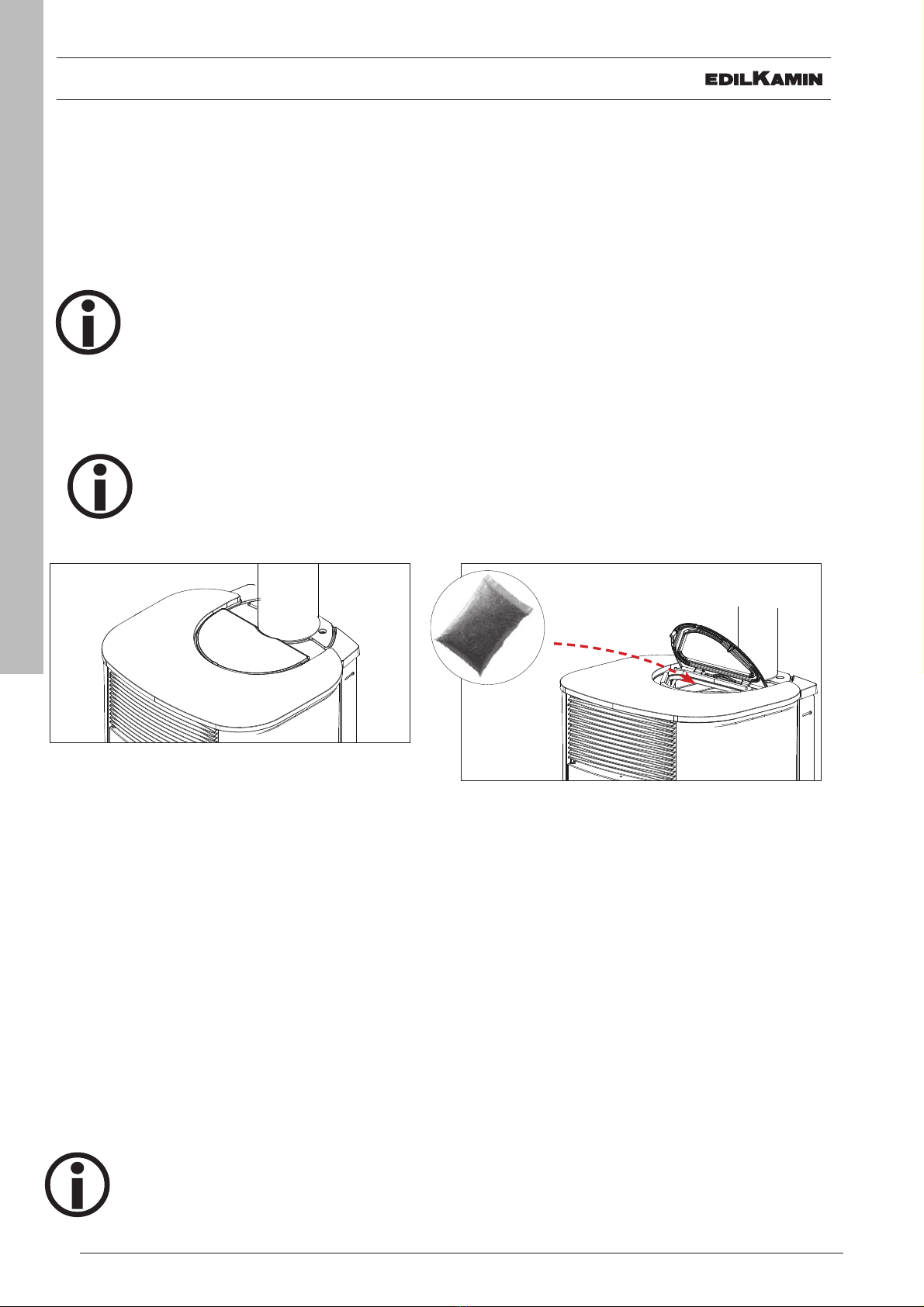

LOADING THE PELLETS INTO THE PELLET TANK
• When doing so, DO NOT rest the bag of pallets on the top grille, since the plastic bag may melt and
damage the appliance’s paint.
• Use the gloves when loading the stove while it is operating and hence hot to the touch.
• Take care not to touch the fume exhaust pipe when hot.
COMBUSTIBLE
Use BS EN ISO 17225-2 category A1 wood pellets or similar certified products with the following characteristics
Use BS EN ISO 17225-2 category A1 wood pellets or similar certified products with the following characteristics
diameter: 6 mm; maximum
diameter: 6 mm; maximum
length: 4 cm, maximum
length: 4 cm, maximum
moisture: 10 %,
moisture: 10 %,
NOTES:
• IN RESPECT OF THE ENVIRONMENT AND FOR SAFETY REASONS, DO NOT BURN PLASTIC MATERIALS,
VARNISHED WOOD, COAL, BARK AND WOOD WASTE.
• DO NOT USE THE STOVE AS AN INCINERATOR.
Caution
Using fuels other than those specified can damage the appliance
INSTALLER

15
ITALIANO
USER INSTRUCTIONS
USER
OPERATION
Mode Settable parameters
MANUAL • power level
• ventilation level (the fans, if
more than one, can be ad-
justed separately)*
AUTOMATIC • desired room temperature
• ventilation level *
TIMER • desired room temperature,
selected per day of the week
• ventilation level*
* when lowering the ventilation, the product can
automatically modulate its power to maintain maximum
efficiency.
The product also has the following supplementary
functions.
Function Modes in which
it can be acti-
vated
What it does
Stand-By automatic
timer-based
when the desired
temperature is
reached, the prod-
uct switches off and
then back on again
when the tempera-
ture drops
RELAX manual
automatic
timer-based
enables natural con-
vection mode (fan
off), thus reducing
the power
EASY
TIMER
manual
automatic
is used to pro-
gramme the switch-
ing off/on after
a set number of
hours (maximum 12
hours)
OPTIONAL CONNECTIONS
The technician can supply, on request:
• external thermostat;
• telephone dialler;
• probes/thermostats for managing the ducting fans
(if present on the purchased model)
INTERFACE
Alternatively, the product can be managed, as a standard configuration, in the following ways:
• Bluetooth REMOTE CONTROL: used for all functions, near the product
• Wi-Fi APP: used for all functions even outside of home, with Internet connections
If necessary, a few functions can also be managed from a:
• SAVE PANEL: panel used for the on/off functions; power setting
By purchasing the Edilkamin optional elements included in the range:
• UMTS MODEM: used for managing a few functions, even outside of home, by means of a mobile telephone
By purchasing the non-Edilkamin optional elements:
• VOICE CONTROL SYSTEMS Alexa or Google Home

16
ITALIANO
USER INSTRUCTIONS: REMOTE CONTROL
USER
REMOTE CONTROL
The remote control has specific functions for three distinct figures:
• user of the product (operations not protected by password)
• installer (operations with dedicated password because any errors can jeopardise the product’s
operations and SECURITY)
• Edilkamin technical assistance centre (operations with dedicated password because any errors can
jeopardise the product’s operations and SECURITY)

17
ITALIANO
USER
USER INSTRUCTIONS: REMOTE CONTROL
CRONO
timer
AIRKARE
RELAX
EASY TIMER
MENU
CONFIRM OK
DECREASE
INCREASE
VENTILATION
DECREASE / LH
ON-OFF
switch-on/switch-off
AUTO/MAN
VENTILATION
INCREASE / RH
WALL BRACKET
Characteristics: Module for RF transmission and reception with 2.4 GHz frequency - Recommended power
supply 3 x AA slimline 1.5 VDC batteries (with at least 1600 mAh capacity).
Risk of explosion if the batteries are replaced with other batteries of an incorrect type.
If at the first switch-on operation the language is not set, the adjacent language selection screen will ap-
pear. Choose the language with the +/- buttons and confirm with OK.
REMOTE CONTROL POWER SAVING
After 20” of non-use the backlighting decreases and after a further 10” the display switches off.
If any button is pressed with the display on, the counter resets.
If any button is pressed with the display off, the display and the backlighting will switch on and the counter will reset.
This only refers to the remote control, not the product itself.
In normal use, the remote control’s batteries should last a year. This duration is for illustrative purposes only.
Edilkamin and the reseller will not consider claims for battery life under any circumstances.

18
ENGLISH
USER
USER INSTRUCTIONS: REMOTE CONTROL
Bluetooth communication present between the stove and the circuit board. If there is no communica-
tion, the symbol disappears.
Wi-Fi communication of the product towards the router. If there is no communication, the symbol disap-
pears.
On only if the battery is running out. The power level supplied by the batteries is near the limit for power-
ing the remote control.
Maintenance necessary symbol.
Appears after a certain number of hours of operation.
The relative function is active (Relax – airKare – EasyTimer – Crono).
EasyTimer and Crono cannot be activated simultaneously.
°C/F. Indicates the unit of measurement of the displayed temperature: degrees centigrade (°C) or Fahrenheit.
Reserve indicator It switches on if the function is active. The arrows switch on in sequence to signal that the
tank must be filled.
Presence of flame and stove power
current room
temperature target room
temperature
SWITCH-ON
POWER 1
POWER 2
POWER 3
POWER 4
POWER 5

19
ENGLISH
USER INSTRUCTIONS: REMOTE CONTROL
Visualisation of the status of the fan(s).
If the activation fume temperature has not been reached, it will not display any symbol.
The stand-by function (where present and active) has caused the product to switch off.
It does NOT indicate that the function is enabled.
Automatic or Manual mode: the product’s air power depends on the room temperature or
is set by the user.
Setting. Indicates that the remote control is in the setting mode.
The settable value will appear in the bottom bar.
Digits for SET-POINTS. Setting of the various SET-POINTS: temperature, power, fan speed.
Number of the parameter in the parameter setting section.
Bottom bar for weekly scheduling and messages.
The days of the week and time bar will only appear if the timer (Crono) is activated.
USER
SPEED OFF
SPEED 1
SPEED 2
SPEED 3
SPEED 4
SPEED 5
AUTOMATIC

20
ENGLISH
USER INSTRUCTIONS
USER
POSSIBLE STATUSES of the product
- OFF STATE
The product is “deactivated” and will not produce heat due to manual switching off using the ON/OFF button on the
remote control or due to an external contact (timer, telephone dialler).
From the OFF page, press the ON/OFF button for 3 seconds to access the ON page.
- ON STATUS
The product is “active” and can fulfil the heating requests.
- ALARM STATUS
In case of a stoppage due to an alarm.
- ON STATUS Stand-by activated
The product is momentarily off because there are no heating requests.
