ENGLISH
The undersigned EDILKAMIN S.p.a. with head of ce headquarters
at Via Vincenzo Monti 47 - 20123 Milan - Italy - VAT T00192220192
Declares under its own responsability as follows:
The wood pellet replace illustrated below conforms to Regu-
lation EU 305/2011 (CPR) and to the harmonised European
Standard
EN 14785:2006
WOOD PELLET FIREPLACE, trademark EDILKAMIN, called
PELLKAMIN
Year of manufacture: Ref. Data nameplate
Declaration of performance (DoP - PELLKAMIN 8: EK 130 -
PELLKAMIN 10: EK 124): Ref. data tag plate
In addition, it is hereby declared that:
the wood pellet replace PELLKAMIN is in compliance with the
requirements of the European directives:
2014/35/UE - Direttiva Bassa Tensione
2014/30/UE - Direttiva Compatibilità Elettromagnetica
EDILKAMIN S.p.a. will decline all responsability of malfunctio-
ning or damage to the equipment in case of unauthorized
substitution, assembly or modi cations of any sort on the said
equipment on the part of non-EDILKAMIN personnel.
TABLE OF CONTENTS
Safety Information ..................................... pag. 33
General information ................................................ pag. 34
Installation ............................................................... pag. 39
Instructions for use .................................................... pag. 50
Maintenance ............................................................ pag. 54
Possible troubleshooting ............................................. pag. 56
Ceck list ..................................................................... pag. 58
Notes ........................................................................... pag. 59

- 31 -
ENGLISH
Dear Sir/Madam
Congratulations and thank you for choosing our product.
Please read this document carefully before you use this product in order to obtain the best performance in complete safety.
For further details or assistance, please contact the DEALER where you purchased the product or visit the TECHNICAL
ASSISTANCE CENTRES page on our website www.edilkamin.com.
NOTE
- After you remove the packaging, please inspect the unit for any damage or missing parts (insert extraction handle, remote con-
trol, warranty booklet, glove, CD/technical data sheet, desiccant).
In case of anomalies please contact the dealer where you purchased the product immediately.
You will need to present a copy of the warranty booklet and valid proof of purchase.
- Commissioning/ testing
Commissioning and testing must be performed by an authorized Edilkamin Technical Assistance Centre. Failure to do so will void
the warranty. Commissioning, as specied in standard UNI 10683 consists in a series inspections to be performed with the insert
installed in order to ascertain the correct operation of the system and its compliance to applicable regulations.
- Incorrect installation, incorrect maintenance, or improper use of the product, shall relieve the manufacturer from any
damage resulting from the use of this product.
- the proof of purchase tag, necessary for identifying the insert, is located:
- on the top of the package
- in the warranty booklet found inside the rebox
- on the ID plate afxed to the back side of the unit;
This documentation must be saved for identication together with the valid proof of purchase receipt. The data contained
therein must be reported when requesting information and made available should servicing be required;
- All images are for illustration purposes only; actual products may vary.

- 32 -
ENGLISH
• The appliance is not designed to be used by people, including
children, with reduced physical, sensorial or mental abilities.
Children must be supervised to ensure they do not play with
the appliance.
• The main risks that may derive from using the insert pertain
to non-compliance with installation instructions, direct contact
with live electrical parts (internal), contact with the re or hot
parts (glass, pipes, hot air output), when extraneous substances
or non-recommended fuel are introduced, or due to incorrect
maintenance or by repeatedly pressing the ignition button wi-
thout having emptied the crucible.
• Only use certied, high quality, 6 mm diameter wooden
pellets for fuel.
• Should components fail, the insert are equipped with safety
devices that guarantee automatic shutdown. These are activated
without any intervention required.
• In order to function correctly, the insert must be installed in
accordance with the instructions given herein and the door
must not be opened during operation: combustion is fully
automatic and requires no intervention.
• Under no circumstances should any foreign substances be
entered into the hearth or hopper.
• Do not use ammable products to clean the smoke channel
(the ue section connecting the stove smoke outlet to the
chimney ue).
• The hearth and hopper parts must only be cleaned when
COLD.
• The glass can be cleaned when COLD with a suitable product
(e.g. GlassKamin Edilkamin) and a cloth.
• Avoid opening the door of the combustion chamber when the
insert is hot; wait until it has cooled down naturally.
• Each time the insert is removed, a security system cuts off the
power supply. Should the insert be removed involuntarily du-
ring ignition, operation or while switching off (including while
blocked), the “Power failure” block phase will be launched
when the insert is reinserted. Wait for the block phase to end
before reactivating the insert.
SAFETY INFORMATION
• The insert must not function if the door is open, if the glass is
broken or if the pellet-loading port is open.
• It must not be used as a step ladder or a base on which to rest
any object.
• Do not lay laundry directly on the insert to dry. Any clothes
horse or similar must be placed at a safe distance from the
insert (danger of re).
• Make sure the insert is installed and ignited the rst time
by Edilkamin-qualied CAT personnel (technical assistan-
ce centre) in accordance with the instructions provided here
within; this is an essential requirement for the validation of the
guarantee.
• When the insert is in operation, the exhaust pipes and door
become very hot (do not touch without wearing the thermal
glove).
• Do not place anything, which is not heat resistant near the
insert.
• NEVER use liquid fuel to ignite the insert or rekindle the
embers.
• Do not obstruct the ventilation apertures in the room where
the insert is installed, nor the air inlets of the stove itself.
• Do not wet the insert and do not go near electrical parts
with wet hands.
• Do not use reducers on the smoke exhaust pipes.
• The insert must be installed in a room that is suitable for re
prevention and equipped with all that is required (power and
air supply and outlets) for the insert to function correctly and
safely.
• SHOULD IGNITION FAIL, DO NOT RE-IGNITE UN-
TILYOU HAVE EMPTIED THE COMBUSTION CHAM-
BER.

- 33 -
ENGLISH
g. 1
F
A
B
C
D
E
G
H
GENERALINFORMATION
PRINCIPLE OF OPERATION
PELLKAMIN is an insert that uses pellets as fuel. Combustion
is electronically managed.
The combustion chamber is made with steel perimeter structure
covered, at the back, with a cast-iron panel and closed, at the
front, with a ceramic glass door (use the thermal glove pro-
vided when opening).
The fuel (pellets) is taken from the storage tank (A). A cochlea
(B) is enabled by a gear motor (C), which takes the fuel to the
combustion chamber (D).
The pellets are ignited by hot air produced by an electrical resi-
stance (E) and suctioned into the combustion chamber by
means of a centrifugal fan.
The smoke produced by combustion is extracted from the
hearth by means of this centrifugal fan and expelled from the
mouth located in the upper area of the insert (F).
Through the lower grille (G), the fans draw air from the room
that, routed through the cavity on the back of the combustion
chamber, is heated before returning to the room through the
upper grille (H).
Provide two aeration grilles (area larger than 100 cm2), the rst
one under the insert and the second positioned at least 50 cm
above the insert or anyway communicating with the internal
compartment where the insert is positioned, as indicated on
page 48.
The fuel tank (A) is situated to the rear of the insert.
The hopper can be lled in the following ways:
– through extraction of the insert, see page 42.
(TO BE CARRIED OUT ONLYWITH THE INSERT
TURNED OFF).
– using the pellet loading kit (optional), complete with loading
mouth to apply to the mantel, see page 43.
(THE INSTALLATION OF THE KIT ALLOWS PEL-
LETS TO BE LOADED IN THE HOPPER FROM THE
FRONT WITHOUT HAVING TO TURN OFF THE IN-
SERT).
– using the pellet front loading drawer kit (optional see page
46).
(INSTALLATION OF THE KIT MAKES IT POSSIBLE
TO LOAD THE PELLETS INTO THE HOPPER FROM
THE FRONTAND FROM THE SIDE WITHOUT HAV-
ING TO SHUT DOWN THE INSERT).
Fuel quantity, smoke extraction and combustion air supply
are all controlled by an electronic control board, which is
equipped with Leonardo software to achieve high combustion
ef ciency and low emissions.
All phases of operation can be managed via radio remote
control.
In case of breakage or loss of the radio remote control, switch-
ing on and off and setting the operating power can be done
through a 1,2-metre cable, complete with simplied on-button
to be placed near the insert by the installer (see page 53).
• Each time the insert is removed, a security system cuts off the
power supply. Should the insert be removed involuntarily du-
ring ignition, operation or while switching off (including while
blocked), the “Power failure” block phase will be launched
when the insert is reinserted. Wait for the block phase to end
before reactivating the insert.

- 34 -
ENGLISH
GENERALINFORMATION
LEONARDO is a combustion safety and control system which allows optimal performan-
ce in all conditions thanks to two sensors measuring the pressure level in the combustion
chamber and smoke temperature.
The detection of and subsequent optimisation of these two parameters is continuous in
order to correct operation anomalies in real time.
The LEONARDO system offers constant combustion, automatically regulating the draft
based on the characteristics of the chimney  ue (bends, length, shape, diameter, etc.)
and environmental conditions (wind, humidity, atmospheric pressure, installations at high
altitude, etc.). The standards for installation must be respected.
The LEONARDO system is also able to recognise the type of pellets and automatically
adjust the  ow moment by moment to ensure the required level of combustion.
• ELECTRONIC EQUIPMENT
* patented
*
AUX PORT
(connected via optional serial port cable code 640560)
This is a clean, potential free contact, useful for connecting a telephone combiner or
other control devices via an optional cable.
BACKUP BATTERY
A backup battery is found on the control board (3-Volt CR 2032 battery).
Its malfunction is indicated with the following messages: (not considered a defect but
due to normal wear-and-tear): “Battery check”.
For more detailed information, please contact the DEALER who has performed the rst
1st ignition.

- 35 -
ENGLISH
GENERALINFORMATION

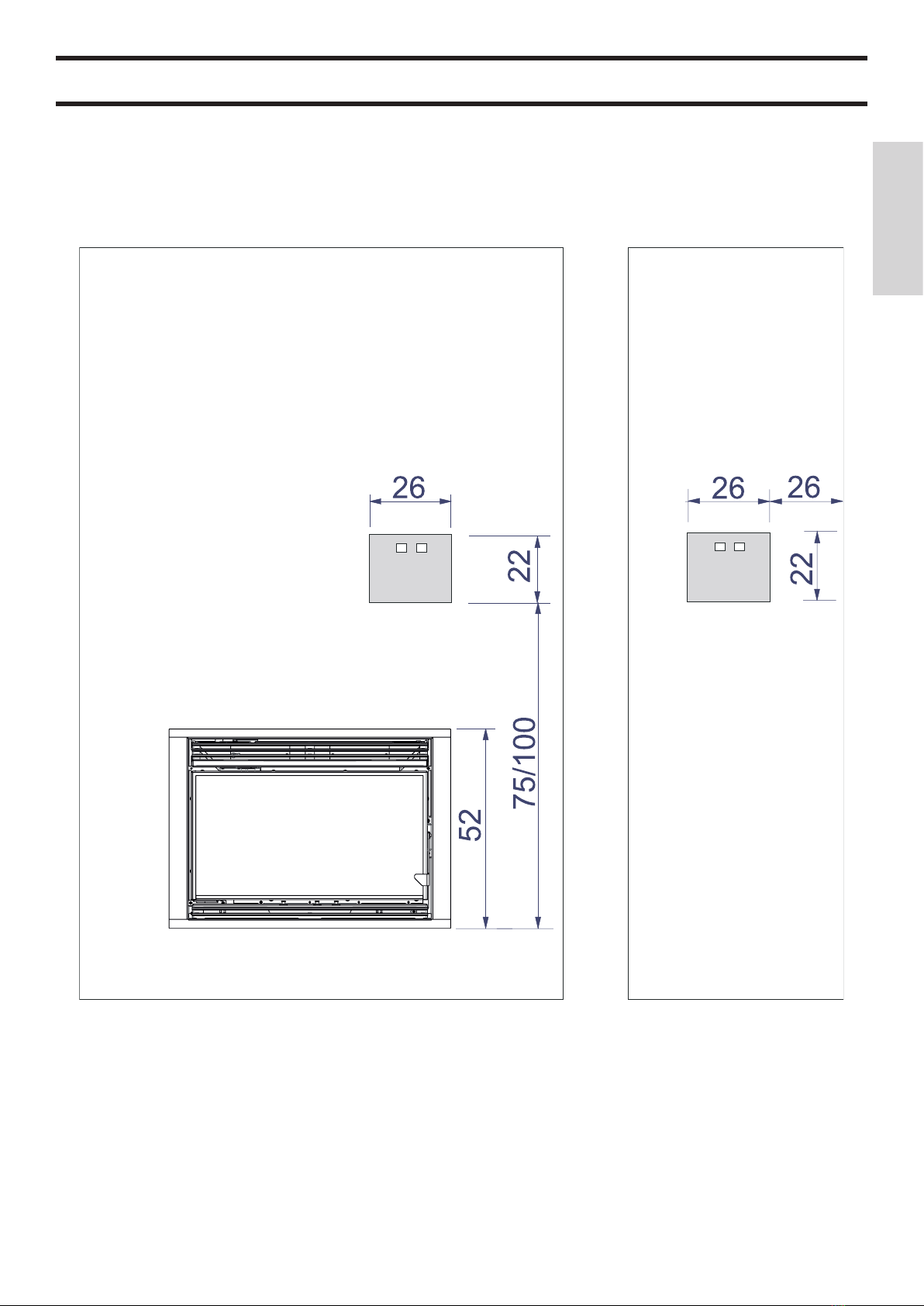

BACK
SIDESYSTEM
FRONT PELLKAMIN 8
52
74
52
presa aria esterna
Ø 40 mm
74
52
46
49
3
4
7
74
3
uscita fumi
Ø 80 mm
8
6
9
29
presa aria esterna
Ø 40 mm
3
46 3
52
presa aria esterna
Ø 40 mm
74
52
46
49
3
4
7
74
3
uscita fumi
Ø 80 mm
8
6
9
29
presa aria esterna
Ø 40 mm
3
46 3
52
presa aria esterna
Ø 40 mm
74
52
46
49
3
4
7
74
3
uscita fumi
Ø 80 mm
8
6
9
29
presa aria esterna
Ø 40 mm
3
46 3
FRONT PELLKAMIN 10
52
presa aria esterna
Ø 40 mm
74
52
46
49
3
4
7
74
3
uscita fumi
Ø 80 mm
8
6
9
29
presa aria esterna
Ø 40 mm
3
46 3
Combustion air
Ø 40 mm
Smoke outlet
Ø 80 mm
Combustion air
Ø 40 mm

- 36 -
ENGLISH
ELECTRICAL CHARACTERISTICS
Power supply 230 Vac +/- 10% 50 Hz
Average power consumption 120 - 150 W
Power consumption during ignition 400 W
Remote control frequency 2,4 GHz
Protection on electronic circuit board Fusibile 2AT, 250 Vac 5x20
N.B.
1) keep in mind that external devices can cause interference to the operation of the circuit board.
2) warning: activity on live components, maintenance and/or checks must be carried out by qualied personnel.
(before carrying out any maintenance, disconnect the appliance from the mains electricity)
3) In case of problems with the electrical grid, consult an electrician to evaluate the installation of a UPS of at least 800
Vac. Power variations greater than 10% can cause problems for the product.
The above data are indicative and are those resulting during certication on the part of the notied body.
EDILKAMIN s.p.a. reserves the right to change the products at its discretion without notice.
SAFETY DEVICES
• THERMO COUPLING:
located on the smoke exhaust, detects the temperature. On the basis of the parameters set, check the ignition, working and turn-off
phases.
• VACUUM GAUGE:
Positioned on the smoke extractor, which detects the vacuum value (compared to the installation environment) in the combustion
chamber
• SAFETY THERMOSTAT:
Intervenes when the temperature within the insert is too high. Blocks pellet loading causing the insert to turn off.
• ROOM TEMP. DETECTION PROBE:
located on the remote control. Alternatively it can be connected up to the electronic board inside the insert.
GENERALINFORMATION
* The heatable room dimensions are calculated on the basis of home insulation in compliance with Italian law 10/91, and subse-
quent changes together with an expected heat output of 33 Kcal/m³ per hour.
THERMO TECHNICAL CHARACTERISTICS according to EN 14785)
PELLKAMIN 8 PELLKAMIN 10
Nominal power Reduced power Nominal power Reduced power
Thermal power output 8,1 3,1 10,4 3,1 kW
Yield / Efciency 91,1 90,3 90 90,3 %
Emissions CO 13% O20,011 0,055 0,013 0,055 %
Fume temperature 145 100 172 100 °C
Fuel consumption 1,9 0,7 2,4 0,7 kg/h
Hopper capacity 11 11 kg
Draught 12 - 5 10 - 3 12 - 5 10 - 3 Pa
Autonomy 6 16 5 16 hours
Heatable volume * 210 270 m3
Smoke outlet pipe diameter (male) 80 80 mm
Air intake pipe diameter (male) 40 40 mm
Weight including packaging 153 147 kg
TECHNICAL DATA FOR SIZING THE FLUE which must, in any case, comply with the guidelines of
this sheet and the installation rules for each product
PELLKAMIN 8 PELLKAMIN 10
Nominal power Reduced power Nominal power Reduced power
Temperature of fumes on exit from the discharge pipe 174 120 207 120 °C
Minimum draught 0,01 Pa
Fume ow capacity 5,5 3,7 6,4 3,7 g/s

- 37 -
ENGLISH
INSTALLAZIONE
GENERAL NOTES
In Italy it is necessary to refer to the standard declaration of
conformity conforming to Ministerial Decree 37/2008 (pur-
suant to Law 46/1990) and standards UNI 10683/2012 and UNI
10412-2/2009.
In the case of installation in a multiple-tenancy building, con-
tact the building manager before installation.
In France, it is necessary to refer to Decree 2008-1231.
VERIFY COMPATIBILITYWITH OTHER DEVICES
In Italy the insert MUST NOT be installed in the same space
as type B gas heating equipment (e.g. gas boilers, stoves, and
equipment served by an extraction hood - ref. UNI 10683 and
7129).
In general, the insert could create low pressure in the room,
affecting the operation of such appliances or being affected by
them.
VERIFYTHE POWER SUPPLY CONNECTION
(the plug must be accessible)
The insert is supplied with a power cable that is to be con-
nected to a 230V 50 Hz socket, preferably tted with a magne-
tothermic switch.
The electrical system must comply with the law; particularly
verify the efciency of the earthing system. The power line
must have a suitable cross-section for the insert’s power. An
inadequate earthing system can cause anomalies for which
Edilkamin cannot be held liable.
Power variations greater than 10% can cause problems for the
product.
AIR INTAKE (NON-AIRTIGHT INSTALLATION)
An air intake must be prepared behind the insert and connected
with the outside.
It must have a useful minimum section of 80 cm² to guarantee
sufcient air to the insert for combustion, without creating
depression in the installation room.
A 4 cm diameter outlet is found on the rear of the PELLKA-
MIN .
This outlet is used for air intake connected directly with the
outside via pipes.
The pipes must not be longer than 1 metre and have no bends
and must have a wind guard at the end.
POSITIONING AND DISTANCES FOR FIRE SAFETY
To function correctly, PELLKAMIN must be positioned on the
level.
Check that the oor load capacity is sufcient.
PELLKAMIN must be installed in compliance with the fol-
lowing safety conditions:
- minimum distance from ammable materials around the sides
and back of the insert: 20 cm
- ammable materials must not be placed less than 80 cm from
the front of the insert.
If it is not possible to comply with the above-mentioned di-
stances, technical and construction-related provisions must be
taken to prevent re hazards.
If connected to wooden walls or other ammable materials, the
smoke exhaust pipe must be insulated.

- 38 -
ENGLISH
INSTALLATION
A: internal chimney ue up to the roof
B: external brick-built chimney ue
C: internal brick-built chimney ue
D: double-wall external steel chimney
ue (for the following installation, the chimney ue must be
double-walled and well-insulated for the entire length)
52
presa aria esterna
Ø 40 mm
74
52
46
49
3
4
7
74
3
uscita fumi
Ø 80 mm
8
6
9
29
presa aria esterna
Ø 40 mm
3
46 3
CHIMNEY POT
The main characteristics are:
- an internal cross-section at the base, which is the same as that
of the chimney ue
- an outlet cross-section which is no smaller than twice that of
the chimney ue
- its position must be high enough to catch the wind and avoid
downdraft areas in turbulent wind, it must be high enough to
catch the wind and avoid downdraft areas in turbulent wind.
SMOKE OUTLET
The insert must have its own smoke outlet (the smoke can-
not be discharged into a smoke ue used by other devices).
Smoke discharge takes place from the mouth on the cover,
measuring 8 cm in diameter.
The smoke outlet must be connected to outside by means of
suitable steel pipes EN 1856 certied.
The pipe must be hermetically sealed.
The material used to seal and if necessary insulate the pipes,
must be resistant to high temperatures (high temperature silico-
ne or mastic).
The only horizontal section allowed may be up to 2 m long up
to three 90° bends (in relation to the vertical).
A vertical section of at least 1.5 m and an anti-wind terminal
is necessary (if the discharge outlet is not in a chimney ue -
reference UNI 10683).
The vertical duct can be internal or external.
If the smoke channel is outside, it must be appropriately insu-
lated.
If the smoke channel is tted inside a chimney ue, the latter
must be suitable for solid fuel.
If it is wider than 150 mm in diameter it must be improved by
entering a pipe that has a suitable cross-section and is made of
suitable material (e.g. 80 mm diameter steel).
All sections of the smoke duct must be accessible for inspec-
tion.
The chimney pots and smoke ducts connected to the solid fuel
appliances must be cleaned once a year (verify whether a speci-
c legislation exists in your country).
Failure to regularly inspect and clean the insert increases the
probability of a re occurring in the chimney pot. In that case,
proceed as follows:
Do not use water to extinguish the re; Empty the pellet hop-
per; Contact specialist personnel before reigniting the stove.
The insert is designed to work under any weather conditions.
In case of particular conditions, such as strong wind, the safety
system may be activated, which results in the insert being
extinguished.
If this happens, do not operate the insert with the safety devices
disabled.
If the problem persists, contact our Technical Service De-
partment.

- 39 -
ENGLISH
INSTALLATION
g. 4
g. 1
g. 2 E
A
B
C
D
A
B
CC1
g. 3
A
B
C
C1
g. 5
XX
X
XX X
Y
Z
6,5 6,5
15 15 23
The insert is supplied with a base plate (A) complete with
smoke duct (B) and primary air duct (C).
The insert can be removed for loading pellets (OPERATION
TO BE PERFORMED WITH THE INSERT TURNED
OFF) and for any maintenance or cleaning by an Authorised
Technical Assistance Centre.
To t, proceed as follows:
• Check for a power outlet on the back of the insert, so that it is
accessible once installation is complete.
• After evaluating the proper position of the insert, lift it using
the two handles on the sides of the insert (D – Fig. 1), from the
base plate (A – Fig. 1).
• Secure the base plate (A – Fig. 2) on the base using bolts
through the holes positioned on the perimeter of the plate (X –
Fig. 5).
Alternatively, to secure the above plate, you can use the exist-
ing holes in the same base plate (Y– Fig. 5) and countersunk
screws (the screw head must not protrude more than 2 mm
from the base plate).
The customer can make other holes, being careful not to do so
in line with the guides
(Z– Fig. 5)
• Fit the ue (not supplied) on the smoke duct (B) and the Ø 40
mm tube (C1 – not supplied) on the primary air duct (C).
The Ø 40 mm tube (C1 – not supplied) can be installed from
below the base plate (A), see Fig. 3.
• Replace the insert (Fig. 4) by sliding it on the base plate (A
– Fig. 2) until it stops (the insert must t in the two slots (E –
Fig. 2) in the front part of the base plate (A– Fig. 2), taking
care that the power supply cord is not crushed between the two
plates.

- 40 -
ENGLISH
INSTALLATION
g. 5
g. 6
g. 7
F
G
EXTRACTION OF THE INSERT
To extract the insert, proceed as follows:
CAUTION:
BEFORE PROCEEDING, MAKE SURE THAT THE IN-
SERT IS FIXED TO THE BASE
• Open the door and lift the slide lock (F – Fig. 5).
• Attach the handle provided to the two pins xed to the lower
grille (G - g. 6) and pull the insert towards you as far as it will
go (g. 7).
• Using the handle (G – Fig. 6), pull the insert towards you
until it stops (Fig. 7).
• Each time the insert is removed, a security system cuts
off the power supply. Should the insert be removed invo-
luntarily during ignition, operation or while switching off
(including while blocked), the “Power failure” block phase
will be launched when the insert is reinserted. Wait for the
block phase to end before reactivating the insert.

- 41 -
ENGLISH
INSTALLATION
g. 8
g. 9
g. 10
g. 11
M
L
I
I
A
H
L
INSTALLATION OFTHE PELLET
LOADER KIT (Optional)
N.B.: THE PELLET LOADER KITALLOWS PELLETS
TO BE LOADED IN THE HOPPER FROM THE FRONT
WITHOUT HAVING TO TURN OFF THE INSERT.
The insert is already prepared for the installation of the pellet
loader on the mantel.
ATTENTION:
THE OPERATION MUST BE PERFORMED BEFORE
INSTALLING THE INSERT.
To t, proceed as follows:
• Install the bracket for centring the pellet loading tube (I – Fig.
8) on the base plate (A).
Fit the pellet loading tube (L - g. 9) on the collar of the
bracket collar (H - g. 8), securing it with the clamp supplied
(M - g. 8).
• Proceed with the installation of the insert (Fig. 10-11) as
described in the previous pages.
• For the installation of the loading mouth (L – Fig. 11), see the
pages that follow.

- 42 -
ENGLISH
INSTALLATION
Note:
• The loading mouth can be installed on the front, on the right
side of the mantel.
• Shortening the pellet loading tube (supplied with a length
of 80 cm), depending on the position of the hearth, is man-
datory so that it stays taut, in order to facilitate the pellets
dropping into the hopper.
• Before fully closing the mantel, carry out pellet loading
test to make sure they drop correctly.
• Correctly insulating the loading tube is mandatory as it
must not come into contact with the smoke channel.
1st phase
INSTALLING THE LOADING INLET WITH DOOR
(g. 12 and 13)
•Only mount the front or side wall of the mantel, onto which
the loading inlet will be attached;
complete the mantel only after verifying the correct opera-
tion of the entire loading system.
•Make a 18.5 x 18.5 cm hole.
•Secure the loading inlet to the mantel using the self-tapping
screws supplied, using the holes on the mantel frame; reinforce
the plasterboard, attaching metal proles on the rear (g. 13).
2nd phase
INSTALLING THE LOADING TUBE (g. 13 and 14)
• Secure the exible tube to the outlet on the loading inlet using
the clamps supplied (g. 13)
• Cut the tube to size and t the end of the tube on the centring
bracket (H - g. 14) and fasten it using the clamps provided.
3rd phase
COMPLETING THE MANTEL
Before fully closing the mantel, carry out pellet loading test
to ensure the pellets are dropped correctly and there are no
obstacles to proper loading. g. 13
g. 14
g. 12
H
LOADING
TUBE
METAL REIN-
FORCEMENTS
LOADING
INLET

- 43 -
ENGLISH
INSTALLATION
DIAGRAM FOR MAKING THE FIXING SLOT OF THE INLET WITH PELLET
LOADING DOOR (approximate measurements)
FRONT RIGHT
SIDE

- 44 -
ENGLISH
INSTALLATION
g. 15
g. 16
g. 17
N
g. 18
O
Y
P
Q
Q
INSTALLATION OFTHE PELLET FRONT
LOADING DRAWER KIT (optional)
N.B.: THE INSTALLATION OF THE PELLET FRONT
LOADING DRAWERALLOWS PELLETS TO BE LOAD-
ED IN THE HOPPER FROM THE FRONT WITHOUT
HAVING TO TURN OFF THE INSERT.
The insert is already prepared for the installation of the pellet
front loading drawer complete with vent surround frame.
ATTENTION:
THE OPERATION MUST BE PERFORMED BEFORE
INSTALLING THE INSERT.
To t, proceed as follows:
• Remove the slotted-in upper grille (N– Fig. 15), the lower
grille (O – Fig. 15) and the metal prole plate (Y – Fig. 15)
using the screws.
Take care not to overtighten the bolt securing the top grille and
deform it; it must be possible to unscrew it/screw it back in
during maintenance.
Remove the vent surround frame (P– Fig. 16) from the struc-
ture using the screws.
• Proceed with the installation of the pellet loading drawer (Q–
Fig. 17-18) on top of the insert using the screws provided.

- 45 -
ENGLISH
INSTALLATION
g. 19
g. 20
g. 21
R
R
N
YO
g. 22
T
S
59
59
56
• Mount the vent surround frame (R– Fig. 19-20) supplied
with the pellet loading drawer, in place of the one previously
removed.
• Ret the slotted-in upper grille (N– Fig. 21), the lower grille
(O – Fig. 21) and the metal prole plate (Y – Fig. 21) using the
screws previously removed.
• Open the pellet front loading drawer (S – Fig. 22), load the
pellets by pushing them inside the drawer using the scoop
provided (T – Fig. 22).

- 46 -
ENGLISH
INSTALLATION
g. 23
X
g. 24 Y
NOTES ON FITTING THE COVERING
In using a prefabricated Edilkamin covering, to identify the
exact position of PELLKAMIN is important to verify the mo-
del of the covering to be used.
Positioning differs according to the model chosen (see as-
sembly instructions given in the packaging of each covering).
Always check that installation is perfectly vertical and horizon-
tal.
COVERINGS, COUNTER-HOODS AND THEIR
VENTILATION
Before installing the covering, check that all connections, com-
mands and moving parts are perfectly functional.
Check this with the insert on and working for a few hours. Do
so prior to tting the covering in order to intervene as necessa-
ry.
Finishing works, such as construction of the counter-hood,
covering assembly, pilaster preparation, painting, etc.,
should be carried out once the nal test has been passed.
Edilkamin will therefore not be held liable for any charges
deriving from both demolition and reconstruction works,
even where consequent to replacement of any faulty insert
parts.
Rather, at least 1 cm. (approx.) space must be left to allow
air to ow, thereby preventing heat from accumulating.
The counter-hood can be created from reproof plaster-
board panels or plaster sheets. When creating this, the air
circulation grill must be included, as previously specied.
- THE MANTELCAN BE CONSTRUCTED WITH FIRE
RESISTANT PANELS IN PLASTERBOARD OR
GYPSUM BOARD.
- AERATION GRILLES FOR PREVENTINGANY
EXCESS TEMPERATURE INSIDE MUST BE PROVI-
DED FOR DURING CONSTRUCTION (g. 23).
During the construction phase of the covering it is funda-
mental to ensure that the combustion air is restored
to prevent pressure phenomena in the room where the
replace is installed (refer to the Chapter regarding the
external air inlet on page 40)
In addition to the above, always consider the indications
given by paragraphs 4.4 and 4.7 of standard UNI 10683
“insulation, nishes, coverings and safety recommenda-
tions”.
N.B.: IMPORTANT FOR INSTALLATION CONDITIONS
*Provide two aeration grilles (area larger than 100 cm2), the
rst one under the insert and the second positioned at least 50
cm above the insert or anyway communicating with the internal
compartment where the insert is positioned.
These grilles prevent the accumulation of heat inside, which is
then used to help heat the room of installation.
* Internal mantel
ventilation grilled
External
intake * Recycled air
intake inspection
METALPROFILE FINISHING PLATE (X) FOR
MOUNTING OF “FRAME” COVERINGS
(supplied)
After removing the lower grille, you can mount, on the lower
base of the structure, the “angular” metal nishing prole (X
– for “frame” coverings or plasterboard) in place of the metal
prole plate (Y) previously mounted (see Fig. 24).

- 47 -
ENGLISH
INSTALLATION
45 min - 55 max
74
55
g. 25
45 min - 55 max
74
55
g. 27
1
2
3
g. 26
A
OPTIONAL BASE
Place the bottom of the base (1- Fig. 25) in the selected posi-
tion.
Provide a power outlet on the back of the insert, so that it is
accessible once installation is complete.
Secure the lower part of the base to the oor with 8-mm diam-
eter steel anchors in order to prevent it from tipping over.
Place the top of the base (2- Fig. 25), adjusting it to the desired
height using the bolts provided (3- Fig. 25).
At this point, proceed with the installation on the base, using
the bolts supplied, of the base plate (A - Fig. 26) supplied with
the insert.
Continue with the installation of the insert as shown on page 41
Failure to follow the above instructions can cause the insert
to tip over with possible serious injury to the user.
ONLY after securing the base to the oor can the insert be
placed on the base.

- 48 -
ENGLISH
INSTRUCTIONS FOR USE
Commissioning must be done by a Technical Service Centre
authorised by Edilkamin (CAT) prior to ignition and testing
according to the UNI 10683/2012 standard.
This standard indicates the control operations to be carried out,
aimed at ascertaining correct system function.
The CAT will also provide for calibrating the stove on the
basis of the type of pellets and the installation conditions, thus
allowing for the effectiveness of the guarantee.
If the rst ignition is not carried out by a C.A.T. authorised by
Edilkamin, the guarantee shall not be effective.
For information, consult the website www.edilkamin.com
There may be a slight smell of paint the rst few times it is
ignited, however, this will disappear quickly.
Before igniting you must check:
• that installation is correct
• the power supply
• that the door closes properly to a perfect seal
• that the combustion chamber is clean
• that the display is on standby (the date, power or temperature
ashes).
If pellets with different characteristics are used, the stoves
must be recalibrated using a similar procedure to that carried
out by the DEALER when the insert is ignited the rst time.
Using unsuitable pellets may: decrease efciency; cause
malfunctions; stop the stove from functioning due to clogging,
dirt on the glass, unburnt fuel, etc.
A simple, visual analysis of the pellets may be carried out:
Good quality: smooth, uniform length, not very dusty.
Poor quality: with longitudinal and transverse cracks, very
dusty, various lengths and mixed with foreign matter.
NOTE regarding the fuel.
PELLKAMIN is designed and programmed to burn wood
pellets with 6 mm diameter.
Pellets are a type of fuel in the form of little cylinders, made
from compacted sawdust, compressed under high pressure
with no adhesives or foreign materials.
They are sold in bags of 15 kg.
For the insert to function properly, you MUST NOT burn
anything else in it. Using other materials (including wood)
will render the warranty null and void. Such use is detected by
laboratory analyses. Edilkamin has designed, tested and pro-
grammed their stoves to guarantee the best performance when
pellets with the following characteristics are used:
diameter: 6 millimetres
maximum length: 40 mm
maximum moisture content: 8%
caloric value: at least 4100 kcal/kg.
