EdilKamin EVIA Quick start guide

EN Installation, use and maintenance page 2
EVIA
PELLET STOVE

2
ENGLISH
The undersigned EDILKAMIN S.p.A., with registered office in
Via Vincenzo Monti 47 - 20123 Milan (Italy) - Tax ID Code and
VAT number 00192220192
Hereby declares, under its sole responsibility, that:
The pellet stove mentioned below complies with EU
Regulation 305/2011 and the harmonised EU standard
EN 14785:2006
PELLET STOVE, bearing the brand
EDILKAMIN, model EVIA
SERIAL NO.: Rating plate reference
Performance declaration: (DoP - EK n° 164):
Rating plate reference
Moreover, the company hereby declares that:
the EVIA wood pellet stove satisfies the requirements of the
following European directives:
2014/35/EC - Low Voltage Directive
2014/30/EC - Electromagnetic Compatibility Directive
Safety information 4
General information (dimensions,specifications) 5
Unpacking 7
Installation 8
Cladding 15
Instructions for use 19
Maintenance 30
Troubleshooting 33
CONTENTS
USER/INSTALLER
The original language of this manual is Italian

3
ENGLISH
Dear Sir/Madam
We thank you for and congratulate you on choosing our
product. Before using it, we ask you to read this manual
carefully, in order for you to be able to make the most of all
its functions in total safety.
This manual is an integral part of the product. We ask you
to keep it for the entire lifetime of the product. If you lose it,
you can request a copy from your dealer or download it from
www.edilkamin.com.
Readers of this manual
This manual is addressed to:
• those who will use the product at home (“USER”);
• the technician who will install the product (“INSTALLER”)
The target person of each page is indicated in a band at the
bottom of the page (USER or INSTALLER).
General information
After unpacking the product, check the condition and
completeness of the contents.
In the event of error, immediately contact the retailer where
the purchase was made, providing them with a copy of the
warranty booklet and the sales receipt.
The appliance must be installed and operated in compliance
with local and national law and European regulations. For the
installation, and for anything not specifically indicated in the
manual, observe local regulations.
The diagrams provided in this manual are for illustration
purposes only: they do not always strictly refer to your
specific model, and are not binding in any way.
MEANING OF SYMBOLS
In some parts of the manual the following symbols are
used:
INFORMATION:
failure to comply with these requirements
will compromise product use.
ATTENTION:
carefully read and understand the
message in question, since failure to
follow the instructions in it could cause
serious damage to the product and put
the safety of those using it at risk.
OPERATING SEQUENCE:
follow the instructions for the operations
described.
Identication of the product and warranty.
The product is uniquely identified by a number, the
“counterfoil”, which is indicated on the warranty certificate.
Please keep:
• the warranty certificate accompanying the product
• the purchase receipt given to you by the retailer
• the declaration of conformity given to you by the installer.
The warranty conditions are given in the warranty certificate
accompanying the product.
First ignition (commissioning), in Italy, by an
authorised technician is required by UNI 10683, and is
recommended in all countries to ensure best results from
the product.
This consists of:
• checking the installation documents (declaration of
conformity) and the quality of the installation itself;
• calibrating the product to suit its actual application
• providing explanations to the end user and issuing
the complementary documentation (first ignition -
commissioning certificate)
Having the appliance commissioned properly ensures that it
will operate to best effect and in complete safety.
Commissioning is required for activation of the Edilkamin
manufacturer warranty. The warranty is only valid in the
country where the product was bought.
If the appliance is not commissioned by an authorised
technician, Edilkamin will not provide warranty service. See
the warranty booklet for details. The above terms do not
affect the dealer's legal responsibility for the legal warranty.
The warranty, however, covers only demonstrable
manufacturing defects and not, for instance, problems
resulting from improper installation or calibration.
USER/INSTALLER

4
ENGLISH
SAFETY INFORMATION
• The product is not designed for use by people,
including children, with limited physical,
sensory and mental abilities.
• The appliance is not designed for cooking
purposes.
• The appliance is designed to burn UNI EN
ISO 17225-2 category A1 wood pellets, in
the amounts and manner described in this
manual.
• The appliance is designed for indoor use and
in areas with normal humidity conditions.
• Keep the product in a dry place out of the
weather.
• For the legal and company warranties, refer
to the warranty certificate inside the product:
specifically, neither Edilkamin nor the retailer
are liable for damage resulting from incorrect
installation or maintenance.
Safety risks may be caused by:
• installation in non-suitable settings, in
particular those that are subject to fire risks.
DO NOT INSTALL THE PRODUCT IN AREAS
SUBJECT TO THE RISK OF FIRE.
• Contact with fire and hot parts (e.g. glass
panel and pipes). DO NOT TOUCH HOT
PARTS and, when the stove is switched off
and still hot, always wear the glove supplied.
• contact with live electrical equipment
(internal). DO NOT ACCESS THE INTERNAL
ELECTRICAL EQUIPMENT WHILE THE
APPLIANCE IS POWERED ON. Electrocution
hazard.
• Use of improper ignition aids (e.g. alcohol).
DO NOT IGNITE OR BOOST THE FLAME
WITH FLUID SPRAYS OR A FLAME TORCH.
Serious risk of burns, damage and injury.
• Use of fuel other than wood pellets. DO
NOT BURN WASTE MATTER, PLASTIC OR
MATERIALS OTHER THAN WOOD PELLETS
IN THE COMBUSTION CHAMBER. The
product may become soiled, the flue may
catch fire, and environmental damage may
ensue.
• Cleaning the combustion chamber when
hot. DO NOT CLEAN THE COMBUSTION
CHAMBER WITH A VACUUM CLEANER
WHILE IT IS HOT. You could damage the
vacuum-cleaner and risk the emission of
smoke in the room.
• Cleaning the fumes duct with cleaning
products. DO NOT CLEAN THE PRODUCT
WITH FLAMMABLE PRODUCTS. Risk of fire
or blowback.
• cleaning the glass pane while hot or with
unsuitable cleaning products. DO NOT
CLEAN HOT GLASS WITH WATER. ONLY
USE RECOMMENDED GLASS CLEANING
PRODUCTS. Risk of cracking and permanent,
irreparable damage to the glass.
• The storage of flammable materials at a
distance which is less than the safe distances
listed in this manual. DO NOT PLACE
LAUNDRY ON THE APPLIANCE. DO NOT
PLACE DRYING RACKS WITHIN THE SAFETY
CLEARANCE. Keep flammable fluids away
from the appliance. Fire hazard.
• Blocking the aeration vents and air intakes in
the room. DO NOT BLOCK THE AERATION
VENTS OR FLUE. Risk of smoke returning
into the room with consequent damage and
injury.
• Use of the product as a support or ladder. DO
NOT CLIMB ONTO THE PRODUCT OR USE
IT AS A SUPPORT. Risk of damage and injury.
• Use of the stove with the combustion chamber
door open. DO NOT USE THE PRODUCT
WITH ITS DOOR OPEN.
• Incandescent material projected from the
open door. DO NOT throw incandescent
material outside the appliance. Fire hazard.
• Use of water in case of fire. CALL THE
AUTHORITIES if a fire breaks out.
If you have doubts, please do not take any action,
but contact the dealer or the installer.
For reasons of safety, read the user instructions
included in this manual.
Connect the product to electricity supply only after
having completed its assembly and mounted the
cladding. Otherwise there is a risk of having "live"
electrical parts exposed.
USER/INSTALLER

5
ENGLISH
40
10,3
6,2
20,7
Ingresso aria
combustione
Ø 4 cm maschio
Eventuale uscita
fumi posteriore
113
57
56
Uscita fumi di serie
Ø 8 cm femmina
DIMENSIONS
DIMENSIONS (cm)
USER/INSTALLER
Combustion
air Ø 4 cm
Smoke outlet with
optional Ø 8 cm
male
Smoke outlet with outlet
Ø 8 cm female
6
10
21
40

6
ENGLISH
TECHNICAL CHARACTERISTICS in accordance with EN 14785
Nominal power Reduced power
Available power 8,2 2,4 kW
Yield 91,5 93,3 %
CO emissions at 13% O20,015 0,047 %
Fumes temperature 136 70 °C
Fuel consumption 1,8 0,5 kg/h
Tank capacity 17 kg
Draw 12 10 Pa
Autonomy 10 29 hours
Heatable volume * 215 m3
Fume duct diameter (top as standard, female) 80 mm
Air intake duct diameter (male) 40 mm
Weight including packaging 123 kg
TECHNICAL DATA FOR SIZING THE FLUE
which must in any case satisfy the requirements in this sheet and the installation instructions for the product
Nominal power Reduced power
Fumes temperature at smoke outlet 180 108 °C
Minimum draw 0.01 Pa
Fumes flow rate 4.8 2 rps
* The heatable volume is calculated based on the assumption of a heating demand of 33 Kcal/m³ hour.
ELECTRICAL SPECIFICATIONS
Power supply 230 V AC +/- 10% 50 Hz
Mean power absorbed (reduced power
- nominal) 25- 70 W
Power absorbed in stand by 4 kW
Power absorption during ignition 300 W
Remote control frequency (provided) 2.4 GHz
Protection rating Fuse 4 AT 250 V AC 5x20
TECHNICAL DATA
USER/INSTALLER
The above data is for guidance only and was measured during certification by a notified body.
EDILKAMIN s.p.a. reserves the right to modify the product without notification in the interests of improvement.
*A calorific value of 4.8 kW/Kg has been used to calculate consumption

7
ENGLISH
UNPACKING
PREPARATION AND UNPACKING
The packaging materials are neither toxic nor noxious
and do not require special disposal.
The user is responsible for storing, disposing of and
recycling them in a regulatory fashion.
Always move the stove vertically with
suitable equipment and in compliance with
safety regulations.
Do not turn the package over, and handle
all parts requiring installation with care.
In the stove you will find:
• remote control,
• warranty certificate,
• glove,
• this manual,
• desiccant salts,
• power cable.
The lever for opening the interior door is on the pallet.
Package materials such as plastic and
films my be dangerous for children.
Suffocation hazard.
Keep packages away from children.
PACKAGING
The delivery consists of two packages:
• one containing the stove frame
• one containing the sides and hardware (description
on following pages)
USER/INSTALLER
The stove has two doors:
• an attractive one: pull it towards you to open it
• an internal one: use the removable handle to open it.
removable handle for opening the internal door

8
ENGLISH
UNPACKING
DO NOT TRY REMOVING THE STOVE FROM THE PALLET BEFORE HAVING UNDONE THE SCREWS
ON THE FRONT, VISIBLE AFTER HAVING OPENED THE ATTRACTIVE DOOR

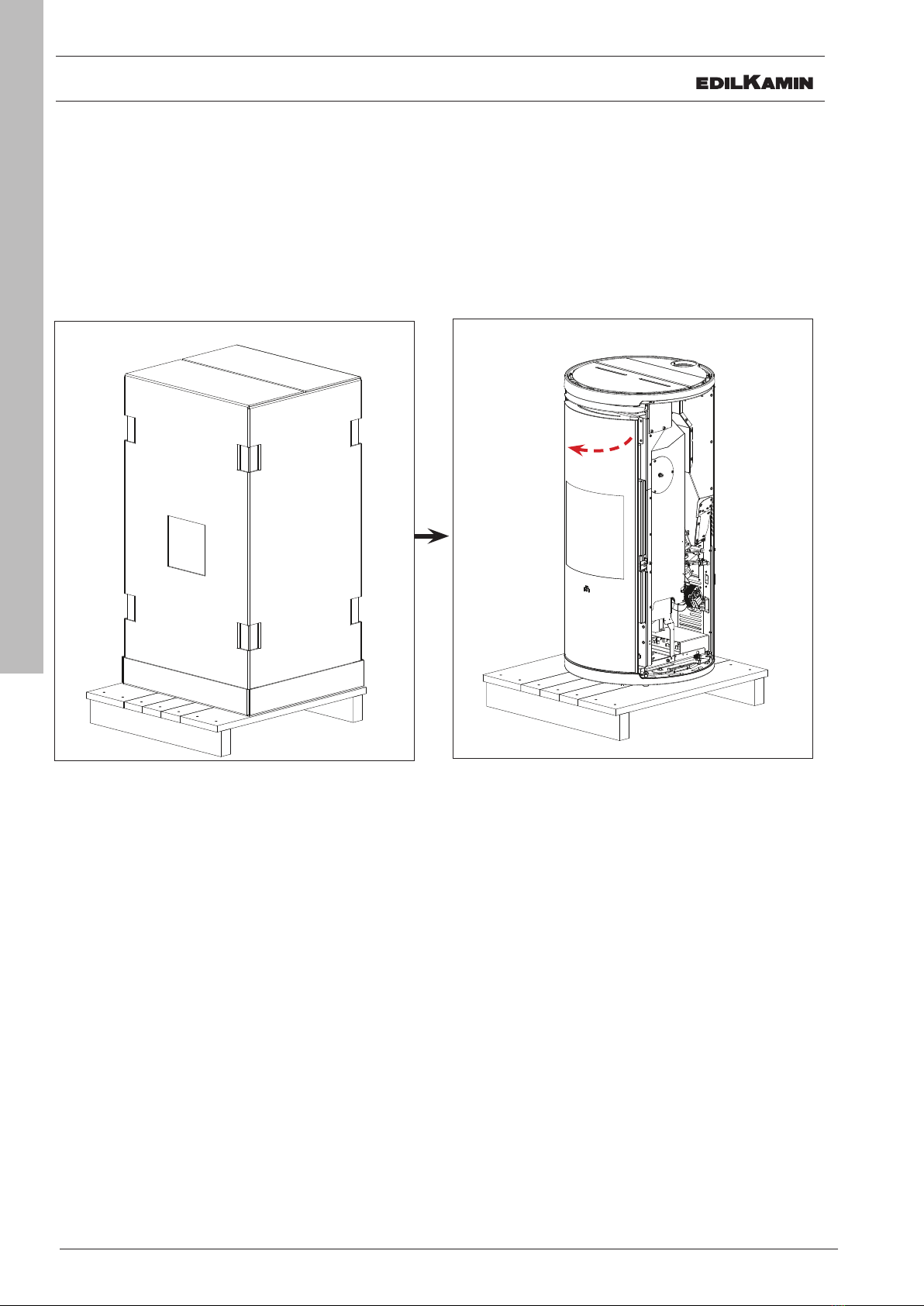

TO REMOVE THE STOVE FROM THE PALLET

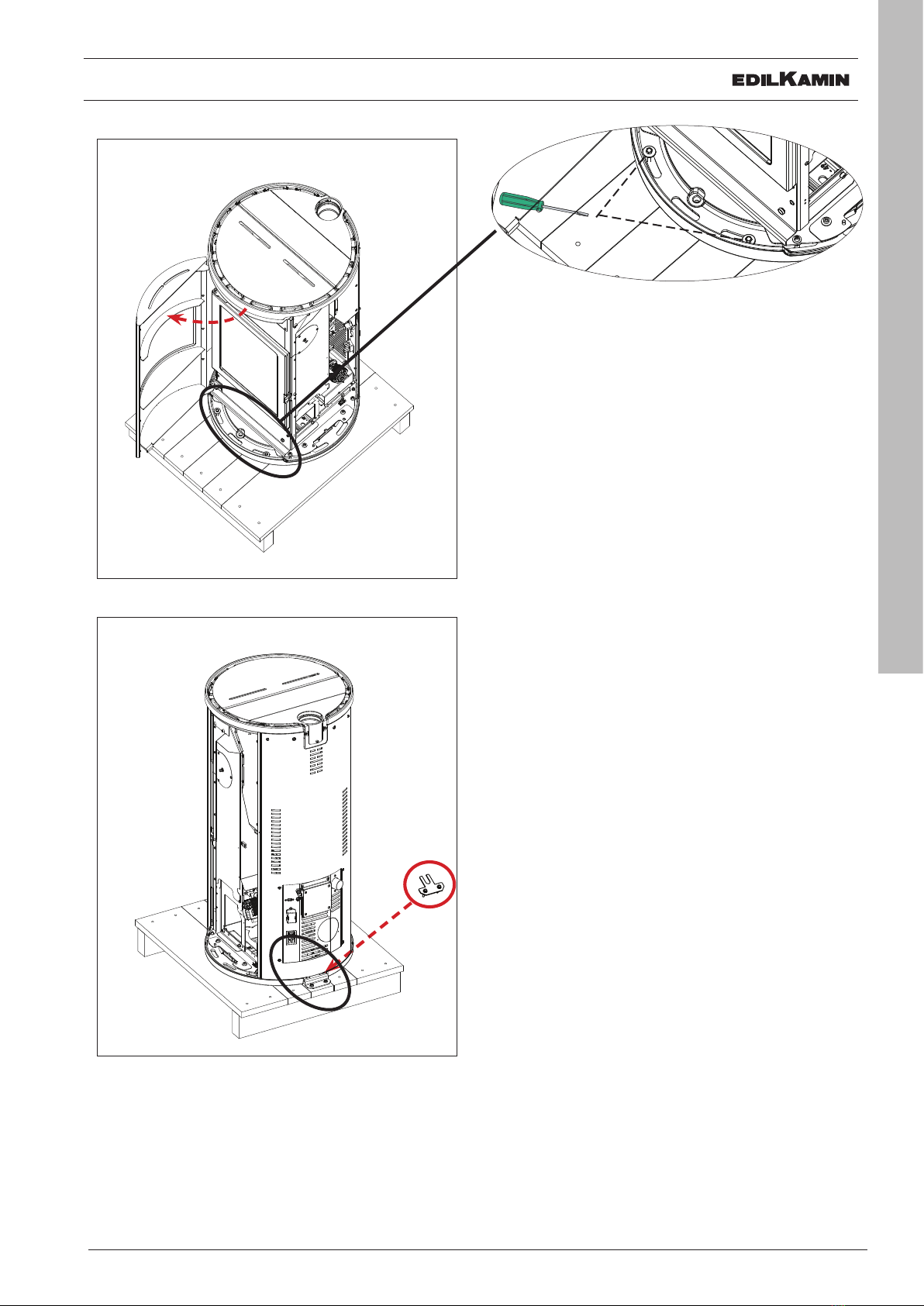

To remove the stove from the pallet you must (see the figures below):
1. remove the cardboard
2. open the attractive door and undo the screws with the washer in front
3. remove the bracket (screwed) on the rear.
INSTALLER

9
ENGLISH
UNPACKING
Detail of the screws with washer in front
Detail of the bracket screwed on the rear
INSTALLER

10
ENGLISH
ORIENTATION OF THE SMOKE OUTLET
INSTALLER
SMOKE OUTLET
The stove is delivered with the fume discharge pipe outlet on the top.
To use the rear smoke outlet we provide an optional which can be found in our stores.
The kit includes the instructions. The operation must be carried out by a technician.

11
ENGLISH
REMARKS ON INSTALLATION
Note that:
• installation must be carried out by authorised
technical personnel;
• the appliance must be installed and operated
in compliance with local and national law and
European regulations. The applicable Italian
regulation is UNI 10683;
• if installed in a condominium, the appliance must
be approved by the administrator.
Here are a few general instructions, although these do
not obviate the need to comply with local regulations
and do not affect the installer's liability for the
installation.
Checking the suitability of the installation
space
• The room must have a volume of at least 15 m3
• The floor must be able to bear the weight of the
product and its accessories.
• Level the appliance
• The appliance may not be installed in a bedroom,
bathroom or in the same room as other equipment
which draws air for combustion from the room
itself, or in any area with an explosive atmosphere.
Any extraction fans operating in the same room or
area as the product, may affect its draught.
• In Italy, check the compatibility pursuant to UNI
10683 and UNI 7129 in the presence of gas fired
products.
INSTALLATION
Protection from heat and safety
clearances
The surfaces of the building adjacent to the product
must be protected against overheating.
The insulation to be used will depend on the type of
surface in question.
The appliance must be installed in accordance with
the following safety instructions:
- minimum clearance at the sides and back of 20 cm
from flammable materials.
- no flammable materials may be kept closer to the
front of the appliance than 80 cm.
If connected to a wooden or otherwise flammable wall,
the flue must be appropriately insulated.
If installed on a flammable or combustible floor, or
which is not capable of bearing its load, use steel or
glass plates under the stove to distribute the load.
Contact the retailer for this type of optional.
Positioning the product
The product is designed to operate in all climate
conditions. In special circumstances, such as strong
wind, the safety devices may intervene to switch the
appliance off.
Contact the authorised Edilkamin Technical Assistance
Centre.
INSTALLER INSTALLER

12
ENGLISH
FLUE SYSTEM
(Fumes duct, ue and chimney pot)
This chapter has been drawn up pursuant to European
regulations EN 13384, EN 1443, EN 1856 and EN
1457. The installer must observe both these and any
other local regulations. This manual does not in any
way substitute such regulations.
The product must be connected to a flue system which
ensures that the fumes produced by combustion are
expelled in complete safety.
Before positioning the appliance, the installer must
check that the flue is suitable.
FUMES DUCT, FLUE
The fumes duct (which connects the combustion
chamber smoke outlet with the flue) and the flue itself
must, among other regulatory requirements:
• receive the fumes from a single product (the outlets
of multiple appliances may not be conveyed into
a single flue);
• be routed vertically for the most part;
• have no downwards sloping sections;
• preferably have a circular internal cross section, or
with a ratio of the sides of less than 1.5
• terminate at roof level with a proper chimney pot:
the flue may not discharge directly on the wall
or into an enclosed space, even if the space in
question is open to the sky;
• be made of material rated fire reaction class A1 per
UNI EN 13501 or analogous national regulations;
• be certified, with a chimney plate if metal;
• be of uniform cross section or vary in cross section
only immediately after the outlet, not at some mid-
point of its length.
THE FUMES DUCT
Further to the general prescriptions for the fumes duct
and flue, the fumes duct:
• may not be made of flexible metal material;
• must be insulated, if routed through unheated
areas or outdoors;
• must not be routed through rooms where the
installation of combustion heat generators is
prohibited or there is risk of fire, or that cannot be
inspected;
• must enable the recovery of soot and be open for
inspection;
• must have a maximum of 3 bends with a maximum
angle of 90°;
• if there is a horizontal section, it can have a
maximum length of no more than 3 metres,
depending on the draw. Note, in any case, that
long sections encourage the accumulation of dirt
and are harder to keep clean.
INSTALLATION
INSTALLER

13
ENGLISH
THE FLUE:
Further to the general prescriptions for the fumes duct
and flue, the flue:
• must only be used for discharging fumes
• must be correctly sized to satisfy the requirements
for fume discharging (EN 13384-1)
• should preferably be insulated, in steel with a
circular internal section. If rectangular, the corners
must have a radius of not less than 20 mm, with a
ratio of the internal dimensions of <1.5
• must normally be at least 1.5 metres in vertical
length
• must have a constant cross section
• must be waterproof and thermally insulated to
ensure a good draw
• must preferably have a collection chamber for
non-combusted matter and condensation.
• if pre-existing, must be clean, to prevent the fire
hazard.
• in general, we recommend fitting a tube inside the
existing masonry chimney if its diameter is greater
than 150 mm.
INTUBATED SYSTEM:
Further to the general prescriptions for the fumes duct
and flue, the intubated system:
• must operate in negative pressure;
• must be open to inspection
• must observe local regulations.
THE CHIMNEY POT
• must be anti-downdraught
• must have an internal cross section equivalent to
that of the flue and a fumes outlet at least double
that of the interior of the flue
• for dual flues (which should be spaced at least 2
m apart) the chimney pot receiving the fumes from
the solid fuel appliance or that from the higher
storey, must be at least 50 cm higher than the other
• it must extend beyond the back flow zone (in Italy,
refer to UNI 10683 point 6.5.8.)
• it must allow for maintenance of the chimney.
EXTERNAL AIR INTAKE
In general, we suggest two ways to ensure a proper
flow of combustion air.
Indirect air intake
Install an air outlet at floor level with an effective surface
area (net of the screen or other protections) of at least
80 cm2(10 cm in diameter).
To prevent draughts, we recommend installing the
intake behind the stove or behind a radiator.
Installing it in front of the appliance will create
unpleasant draughts.
Direct air intake
Install an air intake with an effective size ((net of the
mesh or other protective equipment) that is at least
equal to that of the air intake at the back of the product.
Choose the diameter based on the load losses.
Connect the air intake to the appliance's air intake with
a pipe that may also be flexible. Increase the diameter
of the pipe if the pipe is not smooth: assess any load
loss.
A maximum length of 5 metres is recommended, with
no more than 3 bends depending on the draft of the
flue.
The air maybe drawn from an adjacent room only if:
• the flow is taken from permanent and unobstructed
openings communicating with the outdoors;
• the air pressure in the adjacent room is never
lower than that of the outdoor pressure;
• the adjacent room is not a garage, subject to fire
hazard, a bathroom or a bedroom;
• the adjacent room is not a shared room in the
condominium.
In Italy, UNI 10683 provides that ventilation is sufficient
even if a pressure difference between the outdoors
and indoors of no more than 4 PA is guaranteed (UNI
EN 13384-1). The installer who issues the declaration
of conformity is responsible for ensuring these
conditions.
INSTALLATION
INSTALLER

14
ENGLISH
CHECKINGTHEELECTRICALCONNECTIONS
(the power socket must be located in an
easily accessible position)
The stove is equipped with an electrical power cord or
connection to a 230V 50 Hz socket, preferably with an
electromagnetic switch.
Variations in voltage of more than 10% can compromise
the operation of the stove.
The electrical system must be compliant; check the
operation of the earth in particular.
Edilkamin is not responsible for malfunctions resulting
from an improperly earthed system.
The power line must be of adequate section for the
power of the appliance.
The power cable must not come into contact with the
flue or other hot parts of the stove.
Power up the stove by setting its switch from 0 to 1.
There is a 4 A fuse on the socket with switch located at
the rear of the stove.
INSTALLATION
INSTALLER
switch
fuse
compartment
power supply

15
ENGLISH
COVER
INSTALLER
Description Reference in the gures below Quantity
Steel Side (1) 2
Side covering plate (2) 2
Self-tapping screw 4,2x9,5 (to fasten the plate to the side) (3) 4
Black screw M5x16 (to fasten the side to the structure) (4) 4
THE DRAWINGS ARE FOR GUIDANCE ONLY, USEFUL FOR THE INSTALLATION, BUT THEY MAY
NOT REFER TO THE SPECIFIC MODEL.
1
2
34
1
ADDITIONAL INSTRUCTIONS FOR COVERING INSTALLATION
Make sure to “push” the top until the end stop, loosening the two fixing screws, re-tightening them back as shown in
the illustration below, before installing covering to the stove structure.
slots must be
placed on the
FIXING
SCREWS

16
ENGLISH
COVER
INSTALLER
To assembly the cladding, proceed as follows. The figure shows the right side.
Prepare the side by fastening the plate.
Right-hand side
Adjust feet making them ush with the insert (see image), before sides tting.
Feet

17
ENGLISH
COVER
INSTALLER
Insert the side on the pins on the bottom
Screw the side on the top.
Place (without fastening) the screws (4) provided.
Fasten the two screws (V).
Fasten the screws (4).
(V)
(4)
(4)
Repeat the operations to mount the other side panel.

18
ENGLISH
COVER
INSTALLER
Possible adjustments
To adjust any misalignments, in addition to adjusting screws (V) and (4), remove the side panel and regulate the
screws (R) of the plate on the bottom.
screws (R) of the plate

19
ENGLISH
FIRST IGNITION (COMMISSIONING) PHASES
• Make sure you have read and understood this
manual
• Remove all flammable materials from the appliance
(manuals, labels, etc.). In particular remove any
labels from the glass
• Make sure the technician has carried out first
ignition for the product, and also filled the pellet
tank for the first time (see the “loading pellet”
paragraph)
When the stove is hot, DO NOT REST the
bag of pellets on the upper grille.
Use the glove provided when loading the
stove while it operates and is therefore hot
to the touch.
Take care not to touch the fume
exhaust pipe when hot
FUEL
Use Class A1 wood pellets conforming to the UNI
EN ISO 17225-2 standard or similar local regulations
envisaging, for example, products with the following
characteristics:
diameter 6 mm
length 3-4 cm
humidity <10%
For reasons of safety and environmental compatibility,
DO NOT burn, among other, plastic, painted wood,
coal or bark.
Do not use the stove as an incinerator.
Caution
Using fuels other than those specified can
damage the appliance.
USER INSTRUCTIONS
On first ignition, there may be a slight
smell of paint, which will disappear in a
short time.
USER
*
LOADING THE PELLETS INTO THE TANK
To access the tank, open the lid*.
Connect the product to the electricity
supply only after having completed its
assembly and mounted the cladding.

20
ENGLISH
OPERATION
Description. The access to and adjustment of these
functions is described below:
Mode Size settings
MANUAL • power level
• ventilation level
AUTOMATIC • desired room temperature
• ventilation level*
CRONO • desired room temperature,
selected per day/hours of the
week
• ventilation level*
* when lowering the ventilation the stove also
automatically modulates its power to maintain
maximum efficiency.
The stove also has the following supplementary
functions.
Function In which mode it
can be activated
What it does
STAND BY automatic crono when the desired
temperature is
reached, the stove
shuts off and turns
on again when the
temperature drops
RELAX manual auto-
matic crono
enables natural con-
vection mode (fan
off), thus reducing
the power
NIGHT manual auto-
matic
is used to program
the switching off/on
after a set number of
hours (maximum 12
hours after)
OPTIONAL CONNECTIONS
The technician can supply, on request:
external thermostat, telephone dialler, wi-fi for
connection to the logic board.
simplified on button
USER INSTRUCTIONS
INTERFACE
The user interface is the remote control but, if this is not
available, you can control the stove with the button on
the back (see figure below)
1. WITH THE STOVE OFF
press the button for 2” to turn the stove on.
2. WITH THE STOVE ON
press the button for 2” to turn the stove off.
3. WITH THE STOVE ON IN MANUAL MODE
by pressing the button once and releasing it
immediately, you can increase the operating power
USER
