Eickemeyer CryoIQ DERM plus User manual

USER MANUAL
CRYOIQ®
CRYOSURGICAL STICK
Item no. 173443/ 173446
TELEPHONE [phone]
www.eickemeyer.com

2
USER MANUAL CRYOIQ® CRYOSURGICAL STICK
T [phone] | F [phone] | [e-mail] | www.eickemeyer.com
CONTENT
1. Introduction and Warnings ..................................................................................................... 3
2. Legal .......................................................................................................................................... 3
3. Used Symbols ........................................................................................................................... 3
4. Device ........................................................................................................................................ 4
CryoIQ® DERM plus (Item no. 173443) ..........................................................................................4
CryoIQ® PRO (Item no. 173446)........................................................................................................4
Cartridge 16 /25 gram with Valve ....................................................................................................4
5. How to work with your CryoIQ® ............................................................................................. 5
Installation of N₂O Cartridge .............................................................................................................5
Operation Liquid “Spray” Freezing....................................................................................................5
Operation “Contact Freezing”.............................................................................................................5
Application Range..................................................................................................................................5
Treatment Time.......................................................................................................................................5
Cleaning.....................................................................................................................................................5
Storage.......................................................................................................................................................5
Disposal .....................................................................................................................................................5
Safety Instructions and Risk ...............................................................................................................5
Warranty.....................................................................................................................................................6
6. Liquid “Spray” Freezing.......................................................................................................... 6
7. Medical Considerations ........................................................................................................... 6
Contraindications ...................................................................................................................................6
Not Getting Expected Result?............................................................................................................6
Follow-up Treatment Suggestions ...................................................................................................6
8. Suggested Freezing Times ...................................................................................................... 7
9. Simple Treatment for Success................................................................................................. 7
10. Liability Waiver......................................................................................................................... 7

3
USER MANUAL CRYOIQ® CRYOSURGICAL STICK
T [phone] | F [phone] | [e-mail] | www.eickemeyer.com
1. INTRODUCTION AND WARNINGS
CryoIQ® devices are intended for the controlled destruction of unwanted tissue by application of extreme cold using
liquidfi ed N₂O.
Attention!
With this device you will operate directly on the animal. Therefore it is mandatory to carefully go through the user
guide and to follow the instructions in detail. If there are any doubts please consult your dealer or contact the
manufacturer in Sweden.
Only licensed specialists are allowed to use the units.
2. LEGAL
CryoIQ® is the registered trademark of Skalab Affärsutveckling AB.
The production of our veterinary products is following the same procedure as when we produce our medical device for
cryosurgery. The production for medical products are certifi ed according Medical Device Directive 93 / 42 and ISO 13485:2016
Please note the liability waiver.
Other registered trademark are a property of respective owners.
3. USED SYMBOLS
Manufacturer
Warnings
Upper temperature limit 50°C / 122°F
Part number
Serial number
Protect from direct sun exposure

4
USER MANUAL CRYOIQ® CRYOSURGICAL STICK
T [phone] | F [phone] | [e-mail] | www.eickemeyer.com
4. DEVICE
CryoIQ®DERM plus (Item no. 173443)
Lever
Glass tip Body
Serial no.
N₂O Cartridge (Item no. 173444)
Standard tip for CryoIQ®DERM plus
CryoIQ®PRO (Item no. 173446)
Tips for CryoIQ®PRO
Standard tip Dermatology tip
Cartridge 16/ 25 gram with Valve
Cartridge designed to work with CryoIQ® DERM plus and CryoIQ® PRO.
Cartridge designed to work with CryoIQ® DERM plus and CryoIQ® PRO.
Cartridge designed to work with CryoIQ® DERM plus and CryoIQ® PRO.
Cartridge 16 g (Item no. 173444) Cartridge 25 g (Item no. 173445)

5
USER MANUAL CRYOIQ® CRYOSURGICAL STICK
T [phone] | F [phone] | [e-mail] | www.eickemeyer.com
5. HOW TO WORK WITH YOUR CRYOIQ®
Installation of N₂O Cartridge
Unscrew the protection cap of the cartridge and remove the small stopper. Then screw (clockwise) the cartridge into the
threads of the CryoIQ® body, continue to turn until feeling a light stop position. DO NOT USE FORCE!
The cartridge has a built-in fi lter and valve and can be screwed or unscrewed without any gas loss. When the cartridge is
empty replace it with a new one.
Operation Liquid “Spray” Freezing
Remove the protecting cap from the glass tip. Bring the device into towards the lesion. By pressing the lever with the fi nger
the fl ow of N₂O begins.
Operation “Contact Freezing”
By pressing the lever with the fi nger the contact tip starts to cool down. After approx. 20 sec. the tip has reached -50°C / -58°F
and you are ready to start the treatment.
Application Range
All typical indications occurring in veterinary practice, like treatment of all types of warts, skin lesions that is treatable with
cryo-surgery.
Treatment Time
Treatment time depends on the depth at which the user deems necessary.
Cleaning
The glass-/ contact tip can be cleaned and disinfected with a disinfectant or alcohol. If the device comes into contact with
blood, mucous, or any other infected area it is mandatory to steam sterilize.
Screw off the gas cartridge from the body and sterilize the body and glass- / contact tip. Use a steam sterilizer at 134°C / 273°F,
according to EN norms 13060 and 285. All other sterilization methods are excluded.
Attention!
A hot air sterilization may damage the glass tip and must be avoided under all circumstances.
Storage
After use, put the device back in the original package. Once closed, make sure the lever is not being depressed. Otherwise, gas
will leak out unintentionally.
Protect the gas cartridge from heat and direct sun expo- sure. Never expose the gas cartridge to a temperature above +50°C /
+122°F. Store at room temperature 21°C / 70°F. Make sure that the tip is always protected by the cap.
Disposal
Disposal must be conducted in accordance with local requirements. Empty gas cartridge may be disposed of as scrap metal.
Safety Instructions and Risk
Only use the device as described in the user’s guide for the purpose specifi ed therein. Do not try to modify the device. Any
manipulations of the device will result in an exclusion of warranty and liability.

6
USER MANUAL CRYOIQ® CRYOSURGICAL STICK
T [phone] | F [phone] | [e-mail] | www.eickemeyer.com
Attention!
• Cartridges are under extreme pressure. Follow all suggested safety instructions.
• Never use a damaged device.The manufacturer should check any device that has been dropped before it is used
again.
Do not apply pressure when connecting the components. Put on the feeder’s thread perfectly straight when replace the
cartridge.
Warranty
The warranty is strictly limited to the exchange of defective parts. Dropped devices or broken tips are not under warranty.
Other claims for damages such as loss of working hours, incorrect treatment and their consequences, non executed after
treatment and their consequences as well as the non- observance of the safety instructions are excluded from all warranty
and liability.
6. LIQUID “SPRAY” FREEZING
CryoIQ® Liquid Cryo provides a highly concentrated freezing for a successful treatment. Our cryosurgical devices are equipped
with a specifi c liquid gas dosing applicator. The operator is able to control the release of suffi cient liquid N₂O to treat lesions
without wasting gas. With a temperature of -128°F the liquid gas is evaporating on the lesion. A freeze / thaw method is
recommended to achieve maximum results.
This process causes the cells of the tissue to be destroyed due to the cell membrane rupturing as a consequence of ice crystal
formation within the cell.
Please note: According to clinical studies, the freezing method Liquid “Spray” Freezing with N₂O is as effi cient as liquid
nitrogen (N₂) in most cryodermatologic indications.
7. MEDICAL CONSIDERATIONS
Contraindications
• Treatment of cutaneous mass cell tumors.
• Treatment of tumors with bony involvement.
• Treatment of animals with history of conditions such as melanoma, compromised circulation, cold intolerance and cold
utricaria.
Not Getting Expected Result?
A. No result – Treatment probably did not last long enough or the glass tip was to far away from the lesion. Snow and the ice
crystals do not effect the result only the liquid placed directly on the skin. Cryosurgery can normaly be repeated. A “second
freezing” can be applied after about one minute.
B. A blister, sometimes fi lled with blood, may develop after the treatment. Do not puncture the blister; instead cover it with
plaster or bandage.
Follow-up Treatment Suggestions
• Showering and swimming are permitted.
• Keep the treated area clean.
• The animal should not pick or scratch the treated area.

7
USER MANUAL CRYOIQ® CRYOSURGICAL STICK
T [phone] | F [phone] | [e-mail] | www.eickemeyer.com
8. SUGGESTED FREEZING TIMES
The veterinary literature has many reports of varying cryogenic freezing technics. Also the thickness, location and hydration
of the target tissue can affect outcomes.Veterinary professionals should be familiar with cryosurgical techniques when using
CryoIQ®.
9. SIMPLE TREATMENT FOR SUCCESS
1. Draw a circle around the lesion to be treated. Measure the size of the lesion to be able to see the treatment result by the
next visit, document in a animal journal.
2. Put the animal in such a way that you can easily treat the lesion. If possible, the CryoIQ® device should be perpendicular
to the lesion being treated.

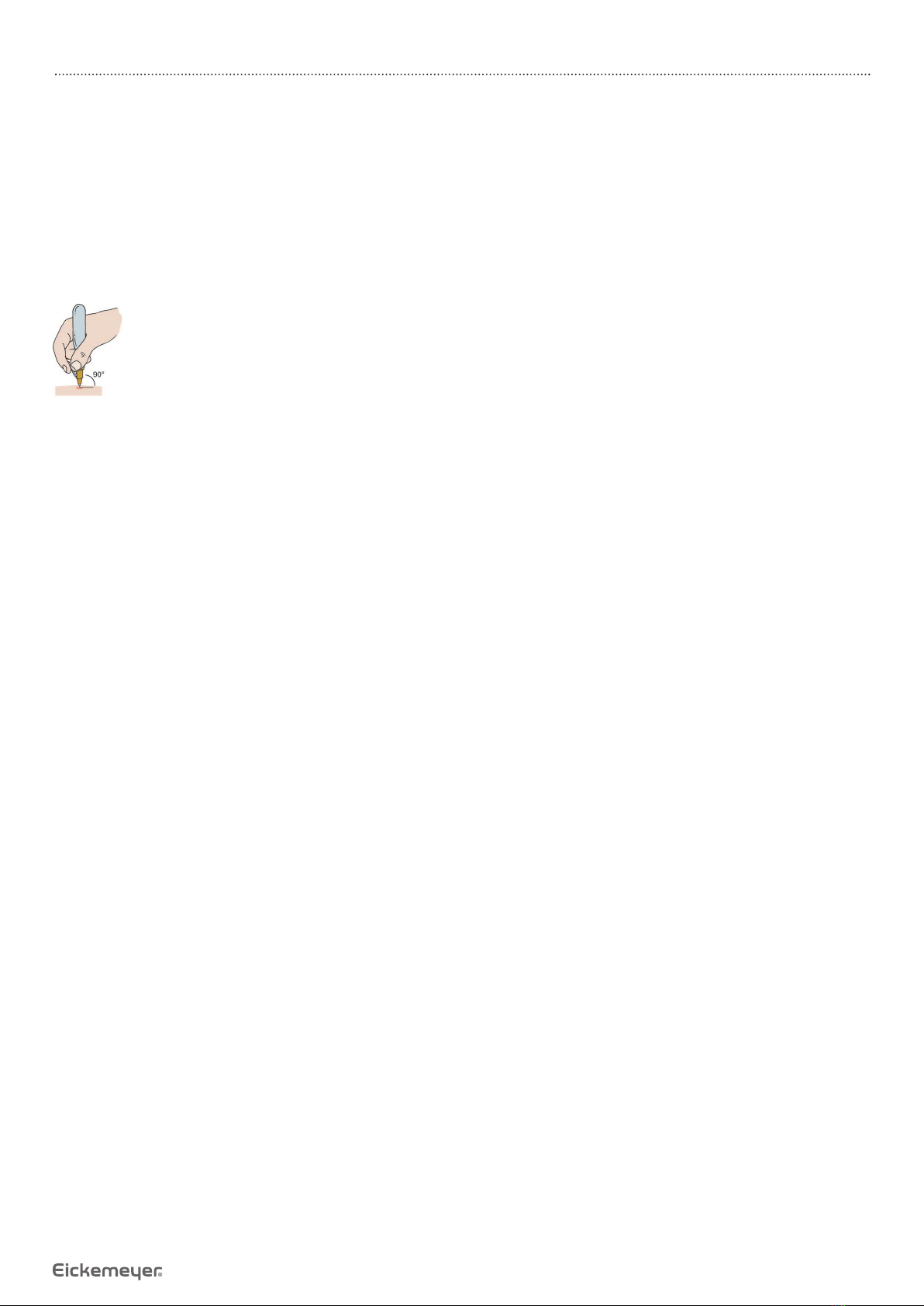

3. Place your device with a soft pressure against the lesion which is going to be treated.Activate your device by pressing the
lever on the side. The angle against the treatment area should be 65 – 90° to get the best result. Spraying at a distance
has absolutely no effect, max distance <1 mm.
4. For every 3 seconds of freeze, the CryoIQ® is penetrating 1mm in depth of the skin. The freezing times will vary depending
on the particular lesion being treated.
5. Freezing begins immediately. The animal may feel a little discomfort due to the extreme cold. However, a treatment will
never exceed 20 seconds limiting any severe discomfort. Approximately 5 minutes after treatment, a skin blush will appear
over the treatment area.
10. LIABILITY WAIVER
Improper use, including excess freezing levels beyond those, which are recommended or for an excessive duration, may result
in bodily injury to clients / patients or to operator. CryoIQ® global and their affi liates, respective directors, offi cers, shareholders,
employees, agents and contractors are not liable or responsible, regardless of whether such liability or responsibility is based
on breach of contract, tort, strict liability, breach of warranties, failure of essential purpose, fundamental breach or otherwise,
for any death or injury, whether physical or mental, or for any incidental, consequential, indirect, special or punitive damages,
arising out of the CryoIQ® products, its design, specifi cations, possession and use, and treatment procedures, and whether or
not any such death, injury, loss, damage(s) result from the negligence, default or error in judgment by CryoIQ® global, their
affi liates, respective directors, offi cers, shareholders, employees, agents and contractors, and even if advised of the possibility
of such damages. You agree to indemnify CryoIQ® global, their affi liates, respective directors, offi cers, shareholders, employees,
agents and contractors, from and against any and all liability, damages, losses, costs, judgments, fi nes, penalties and expenses
(including legal expenses) of any kind or nature, including, without limitation, incidental, consequential, indirect, special or
punitive damages, arising out of claims, demands, actions, causes of action, proceeding or suits, whether in law or in equity,
due to any death, injury, loss, damage or damages as hereinbefore referred to.
