Eickemeyer ORTHOVET PLUS User manual

ORTHOVET PLUS
BATTERY DRILL SYSTEM
Item No. 195070
TELEPHONE [phone]
www.eickemeyer.com
USER MANUAL

2
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com

3
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
CONTENT
1. Introduction .............................................................................................................................. 4
General Information ..............................................................................................................................4
2. OrthoVet Plus .......................................................................................................................... 6
Handpiece (Item No. 195077) ............................................................................................................6
Use...............................................................................................................................................................7
3. Attachments / Chucks............................................................................................................... 9
General Information ..............................................................................................................................9
Jacobs Chuck (Item No. 195078) .................................................................................................... 11
Quick Chuck for KIRSCHNER-Wires (Item No. 195079).......................................................... 12
Oscillating Saw-Chuck (Item No. 195081).................................................................................. 12
AO-Quick Chuck (Item No. 195080) ............................................................................................. 15
4. Care and Maintenance .......................................................................................................... 15
Preparation Prior to Cleaning ......................................................................................................... 15
Manual Cleaning Instruction........................................................................................................... 16
Mechanical/Automated Cleaning Instruction with Manual Pre-cleaning.......................17
Lubrication............................................................................................................................................. 19
Function Control ................................................................................................................................. 22
Packaging, Sterilization and Storage............................................................................................ 22
Repairs and Technical Service......................................................................................................... 23
Disposal ................................................................................................................................................. 23
5. Troubleshooting .....................................................................................................................24
6. System Specifi cations ...........................................................................................................25
Environmental Conditions................................................................................................................ 25
7. Ordering Information............................................................................................................. 26
Warning!
This description alone does not provide suffi cient background for the direct use of the product. Instruction in
handling this product is highly recommended.

4
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
1. INTRODUCTION
General Information
The OrthoVet Battery Drill System consists of
• Handpiece, cannulated
• Jacobs Chuck
• Quick Chuck for K-Wires, cannulated
• AO-Quick Chuck
• Oscillating Saw-Chuck
Accessories
• Charging station
• Batteries
• Funnel for handpiece
• Show case for transportation
• Container
• Tray
Intended Use
The OrthoVet Plus is a battery-driven power tool for use in veterinary osteosynthesis involving surgical procedures such as
drilling, burring, reaming, pin and wire placement, cutting of bone and hard tissue in small animals.
The keyless coupling (also used for saw blades) enables the exchange of different attachments in just a few seconds.Operation
of the OrthoVet Plus is possible in clockwise and counterclockwise direction as well as in oscillation cutting operation with
the saw attachment.
Safety Instructions
The surgeon has to assess whether the machine is suitable for the respective machine on the basis of the performance
limitations of the machine, the ancillary equipment and the cutting tool with respect to bone strength/anatomical situation
as well as the handling of the machine, the attachment and the cutting tool Application is suitable. Furthermore, the
contraindications for the implant must be taken into account. Please read the corresponding “surgical techniques” of the used
implant system.
The OrthoVet Plus is only to be used for patient treatment after careful consultation of the instructions for use. It is
recommended that an alternative system is available to use during application, as technical problems can never be completely
ruled out.
The OrthoVet Plus is designed for use by physicians and trained medical personnel.
Do not use any component if damage is apparent.
Do not use any component if the packaging is damaged.
Do not use this equipment in the presence of oxygen, nitrous oxide or a mixture consisting of fl ammable anesthetics and air.
To ensure the proper operation of the tool, only use EICKEMEYER® original accessories.
Before the fi rst and every subsequent use, power tools and their accessories / attachments have to run through the complete
reprocessing procedure. Protective covers and foils must be fully removed before sterilization.
For the tool to function properly, EICKEMEYER® recommends cleaning and servicing it after each use in accordance with the
process recommended in the chapter “Care and Maintenance”. Compliance with these specifi cations can considerably extend
the service life of the tool. Only use EICKEMEYER® oil, (item no. 563706) to lubricate the tool.

5
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
Effi ciently working cutting tools are the basis for successful surgery. Therefore, it is mandatory to check used cutting tools
after every use for wear and/or damage and to replace them if necessary. We recommend using new EICKEMEYER® cutting
tools for every surgery. Cutting tools must be cooled with irrigation liquid to prevent heat necrosis. The user of the product is
responsible for proper use of the equipment during surgery. If the OrthoVet Plus System is used in conjunction with an
implant system, make sure to consult the corresponding “Technique Guide”.
The manufacturer shall assume no responsibility for damage resulting from improper operation, neglected or unauthorized
maintenance of the tool.
Precautions
• To avoid injuries, the locking mechanism of the tool has to be activated before every manipulation and before placing
the tool back down, i.e. the mode switch has to be in “OFF” position.
• The handpiece may only be operated with a fully charged battery.To do this, ensure that the battery is charged in good time.
EICKEMEYER® recommend that the battery is replaced into the charger immediately after surgery.
• The batteries may never be sterilized, washed or dipped. Sterilization would destroy the battery with possible secondary
damage.
• Should the machine drop on the fl oor and have visible defects, do not use it anymore and send it to the EICKEMEYER®
service center.
Accessories / Scope of Delivery
The OrthoVet Plus Battery Drill System consists of a handpiece, one battery loading station two batteries and a range of
attachments and accessories designed for the system.
Special auxiliaries such as cleaning brushes and oil are available for cleaning and servicing the system. No oils from other
manufacturers must be used. Only lubricate the power tool and the attachments when clean.
EICKEMEYER® recommends the use of the specifi cally designed EICKEMEYER® OrthoVet Plus Tray (item no. 195986) and
Container-System (item no. 185555) to sterilize and store the system.
The following components are essential to ensure proper operation:
• Handpiece (item no. 195077)
• Battery charging station (item no. 195082)
• Battery (item no. 195083)
• Funnel for handpiece (item no. 195085)
• At least one attachment/chuck of the system (item no. 195078, 195079, 195080 or 195081)
Please refer to the end of these Instructions for Use for an overview of the components of the system.
Storage and Transport
Please use the original packaging / show case (item no. 195088) for dispatch and transport. If this is no longer available,
please contact your EICKEMEYER® offi ce.
Warranty
The warranty for the tools and accessories does not cover damage of any kind resulting from improper use, damaged seals or
improper storage and transport. EICKEMEYER® does not accept liability for damage resulting from repairs or maintenance
carried out by unauthorized sites.

6
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
2. ORTHOVET PLUS
Handpiece (Item No. 195077)
1 25
3
4
6
Figure 1
1 Attachment coupling
2 Rotating ring for direction change Left/OFF / Right
3 Trigger for speed regulation
4 Cover lid Battery closed when the battery is inserted
5 Release ring for attachment
6 Release slide for battery housing

7
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
Use
Before initial use, brand-new tools and accessories must under go the entire reprocessing process and the batteries should
be charged.
Inserting the Battery in the Battery Casing
To ensure sterility, the battery is inserted into the battery casing by two people, one of whom is wearing sterile garments.
1. The person with the sterile garments holds the sterile battery casing. If the casing is not opened, the same person
presses the central button to unlock (Fig. 3) and the housing cover with slide (Fig. 4) in arrow direction (Fig.5)
and opens the lid. In doing so, fold the lid outwards with the locking mechanism.
Figure 2 Figure 4 Figure 5Figure 3
2. The person wearing the sterile garments places the sterile funnel (item no. 195085) on the battery casing (Fig. 6) and
checks if it is seated correctly (Fig. 7). The sterile cover ensures that the unsterile battery does not contact the outside of
the sterile casing.
Figure 6 Figure 7
3. The person not wearing sterile garments carefully guides the unsterile battery through the sterile funnel (itemno.
195085), (Fig. 8).
The orientation of the battery is correct when the battery with groove slots and arrow symbol is inserted into the
corresponding spring profi le receptacle in the handpiece (Fig.7).
The same person presses it completely into the battery casing to ensure a correct seat (Fig. 9).This person may not contact
the outside of the battery casing.
Figure 9Figure 8

8
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com

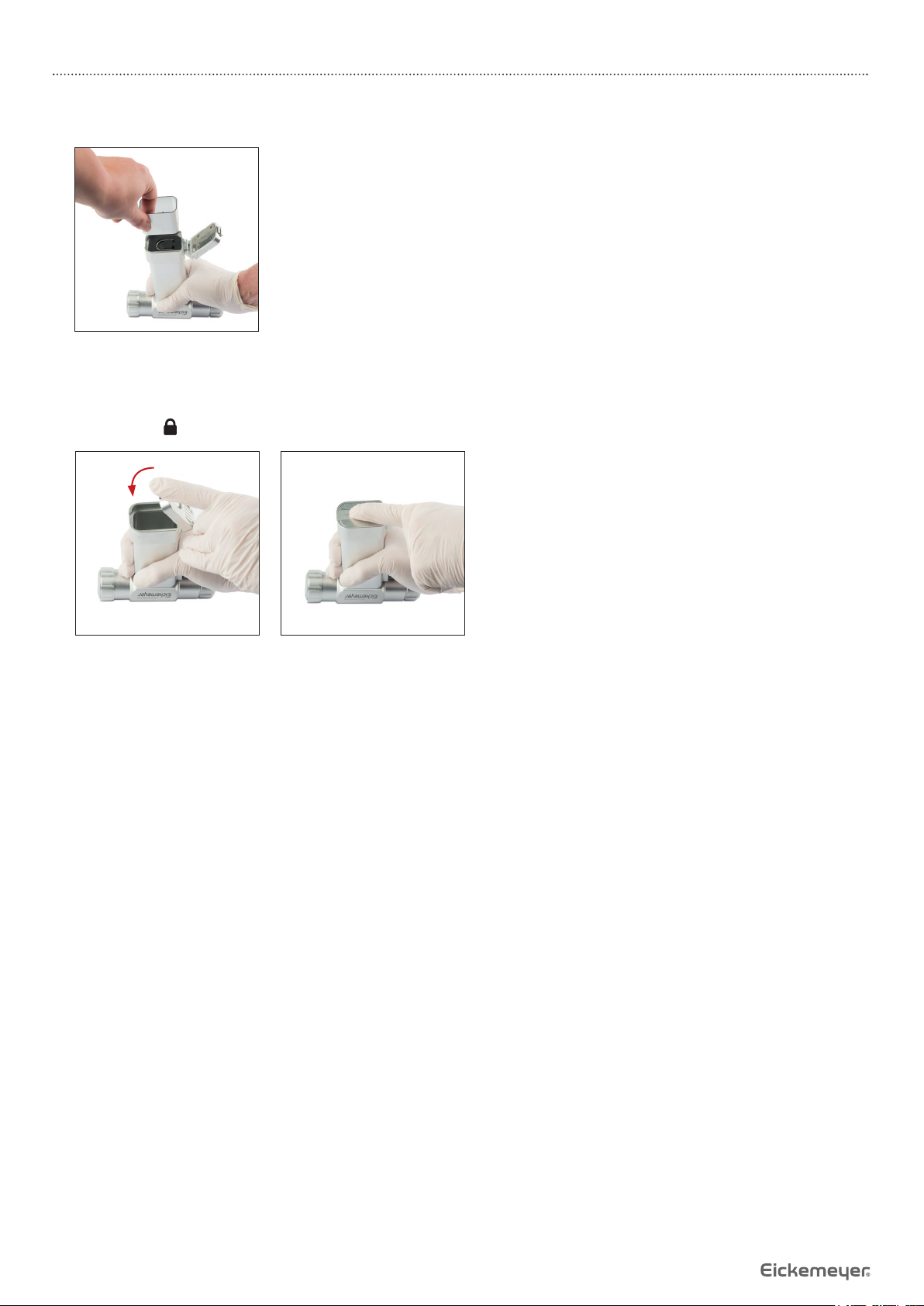

4. The person not wearing sterile garments grasps the fl anges on the sterile cover funnel (item no. 195085) and removes it
from the battery casing (Fig. 10).
Figure 10
5. The person wearing the sterile garments closes the casing lid from the outside without contacting the battery or the inside
of the casing (Fig. 11 + 12). After the cover has been closed, the person wearing the sterile clothing pushes the slider in
the direction until the lid locks with a click.
Figure 11 Figure 12
Precautions
Normally, one battery is suffi cient for one surgery. For safety, two batteries should be kept ready ensuring fast intraoperative
changing of batteries under sterile conditions if necessary.
Sterilize the sterile cover funnel (item no. 195085) after each use to ensure aseptic conditions when inserting the unsterile
battery into the sterile battery casing.
Charging
Only charge the batteries in the OrthoVet Plus charging station (item no. 195082).
Always fully charge batteries before use in the OR.
The battery is fully charged as soon as both indicator lights on the charging station are lit continuously, not fl ashing.
Storing
When not in use, always store the battery in the OrthoVet Plus charging station and switch it on. This prevents the battery
from being discharged and keeps it ready for use with full charge. Never load batteries in another charging station.This would
damage the batteries.
Make sure that stored batteries are stored separately and do not store with materials that can conduct electricity to prevent
short circuits. This could damage the battery and cause burns due to heat.
Use
Use the battery only as intended. Use only batteries approved for this device. Only insert the battery into the handpiece
immediately before using the OrthoVet Plus System.This saves energy. Due to the longer battery life an intraoperative battery
change is usually unnecessary. Do not drop batteries or apply force to the batteries.This would destroy the battery and cause
possible additional damage. Never use damaged or faulty batteries; they can damage the power tool.

9
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
Additional Information
Do not expose batteries to heat or fi re. Avoid storage in direct sunlight. Keep the charger and the batteries clean and in a cool
and dry place. Danger of fi re, explosion and burns. Do not disassemble, crush, heat to over 60 °C / 140 °F or burn.
Notes
For more information, see the “Care and Maintenance” section on page 15.
Please read the guidelines for the transport of nickel-metal hydride (NiMH) for the return transport to the EICKEMEYER®
Service Center.
3. ATTACHMENTS/ CHUCKS
General Information
The OrthoVet Plus System offers a broad range of attachments. All attachments has color-coded rings, so that they can easily
be identifi ed.

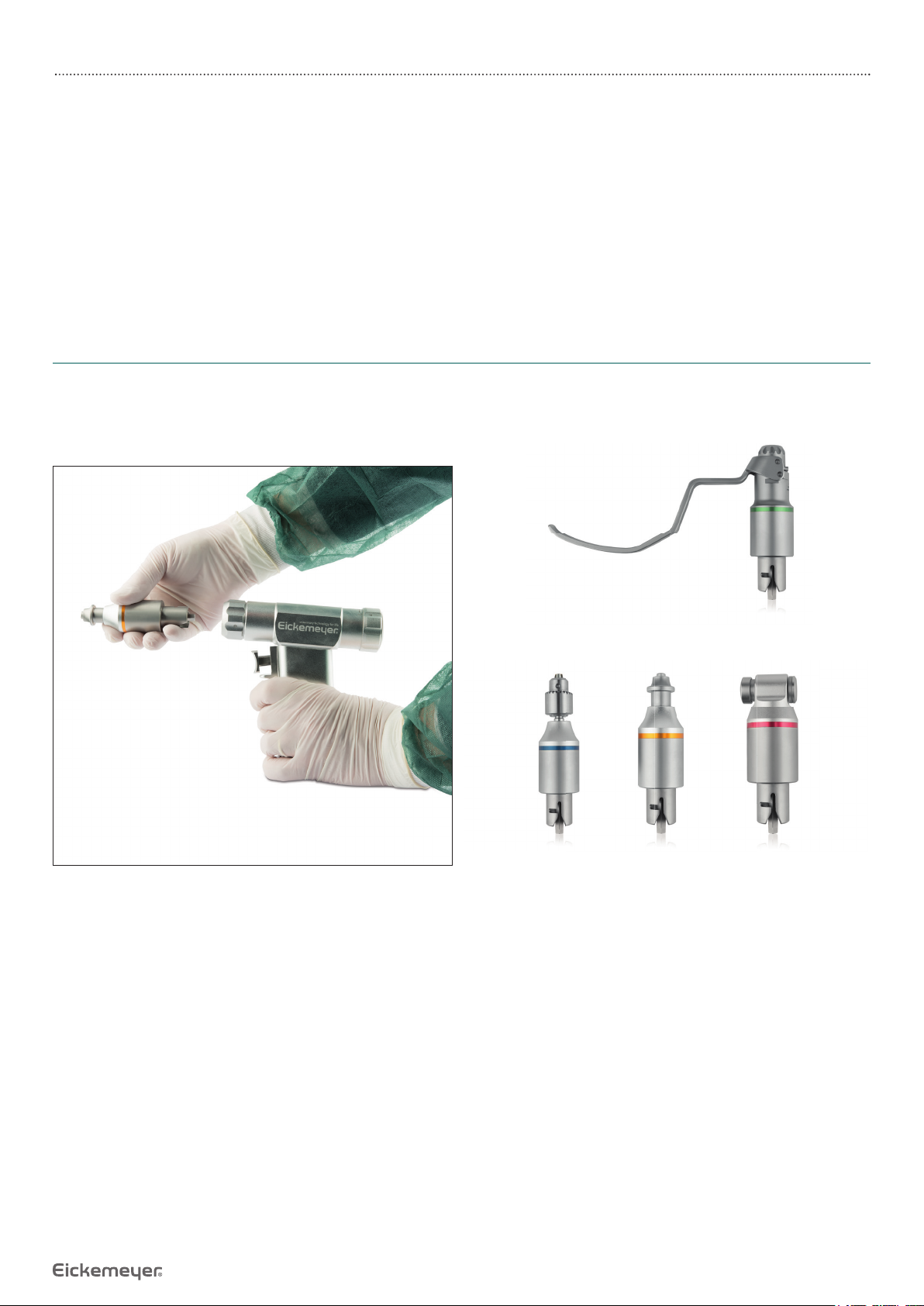

Mounting the Attachments
Figure 13
195079
195081195078 195080
Insert the attachment into the attachment coupling (Fig. 13). If the positioning pins do not lock into place right away, twist
the attachment a bit to the right or left until it locks into the correct position. Check if the attachment is seated correctly by
gently pulling on it.

10
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
Removing the Attachments
Figure 14
Turn the rotary ring with grooves clockwise on the handpiece and pull the attachment out from the coupling (Fig.14).
Precautions
• To prevent injury, the power tool must be switched “OFF” with the safety system during each manipulation.
• Only use original attachments and tools from EICKEMEYER®. Damage that arises from using attachments and tools made
by other manufacturers is not covered by the warranty.
• If the instrument is not needed during the operation, lay down the handpiece to make sure it is stable and cannot tip over.
To mount or remove attachments and cutting tools, always place the drive unit in an upright position on the sterile table.
Item no. Description Maximum Speed Torque
195078 Jacobs Chuck with key, cannulated , clamping rangeØ0,6 – 2,5mm 0 – 1,000 rpm ≥ 1.2 NM
195079 Quick Chuck for K-wires, cannulated , clamping range Ø 0,6 – 2,6mm 0 – 1,000 rpm ≥ 1.2 NM
195080 AO-Quick Chuck 0 – 1,000 rpm –
195081 Oscillating Saw-Chuck 0 – 11,000 rpm ≥ 3.0 NM

11
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
Jacobs Chuck (Item No. 195078)
For tools with round shaft.
Inserting and Removing Tools
Inserting tools:
Open the jaws of the Chuck using the appropriate key (item no. 195084) or by hand. Insert the shaft of the tool into the open
drill chuck and close it by twisting the chuck. Make sure that the shaft lies central to the three jaws. Tighten the drill chuck
with the key. Make sure that the teeth of the key engage correctly in the toothed rim of the chuck.
Removing tools:
Open the Chuck with the key and remove the tool.
Figure 15
Precautions
• Check the cutting tool for wear and/or damage after each use and replace if necessary.
• To ensure good fi xation of the tools, make sure the toothed rims on the drill chuck and key are not worn.
• During reaming procedure, high torque values must be provided by the power tool to the reaming head to allow effi cient
bone removal. In cases where the reaming head suddenly is blocked, these high torque values can be transferred onto the
user’s hand, wrist and / or the patient’s body.
In order to prevent injuries it therefore is essential that:
• The power tool is held in an ergonomical position with a fi rm grip.
• If the reamer / drill head blocks, release the speed trigger immediately.
• Use the Jacobs Chuck with Reverse motion only with tools that are approved for such use. Otherwise, the tool may break
with subsequent damage.

12
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
Quick Chuck for KIRSCHNER-Wires (Item No. 195079)
KIRSCHNER-Wires of any length with a diameter of 0.6 – 2.6 mm can be used with the Quick Chuck for KIRSCHNER-Wires.
1. Adjust the KIRSCHNER-Wire diameter according to the label on the adjusting sleeve • •• ••• (Fig. 16, no. 1). Slightly press
the adjusting sleeve axially against the handpiece and rotate the sleeve.
2. Apply a slight amount of pressure to insert the KIRSCHNER-Wire from the front into the cannulation.
The wire is held automatically.
3. Adjust the working length by pulling on the wire.
4. To affi x the wire, pull the tension lever (Fig. 16, Nr. 3) against the tool with your little fi nger and ring fi nger. Only pull the
tension lever against the tool as much as necessary. The clamping force can be varied by pulling and releasing the
clamping lever.
5. Insert the wire into the bone. Apply the clamping force as long as the wire is advanced.
6. To adjust the grip on the wire, reduce the clamping force and move the tool to the desired length. Reclamp the wire by
pulling on the tension lever.
2
3
1
Figure 16
Oscillating Saw-Chuck (Item No. 195081)
For saw blades with Aesculap-Connection.
Figure 17

13
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
Positioning the Saw Attachment
The attachment can be locked in two different positions (180° / 360°) when coupled:
Lock the machine, shove the sliding sleeve toward the saw blade coupling and rotate the attachment into the desired position
(Fig. 18 and Fig. 19).
Figure 18 Figure 19
Assembly and Disassembly of the Tools
Insert the tool/saw blade in the front of the attachment while pressing the locking knob down. Insert the saw blade in such
a way that the perforated holes in the saw blade fi t in the pins of the holder. Release the locking knob.
Figure 20
Precaution
To prevent injury, always grip the saw attachment with the inserted saw blade from the direction of the machine.

14
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
Change Saw Blade
1. Lock the machine with the Rotating Ring at the handpiece put in position “OFF”.
2. Press down the locking knob continuously.
3. Lift and remove the saw blade.
4. Use a slight amount of pressure to insert the new saw blade and turn it to one of the 5 desired position.
5. Place your thumb on the saw blade coupling to hold the saw blade. Insert the saw blade in such a way that the perforated
holes in the saw blade fi t in the pins of the holder. Release the locking knob.
6. Unlock the power tool.
Positioning the Saw Blade
The saw blade can be adjusted in the desired position vertically and horizontally at an angle of 45° (see the earlier sections
“Positioning the saw attachment” and “Changing the saw blade” (Fig. 21).
Figure 21
Using the Oscillating Saw Attachment
The saw blade must already be oscillating when the saw is applied to the bone. Do not apply strong pressure to the saw blade
as this will delay the cutting process and the saw teeth will catch in the bone. Optimal saw performance is achieved by
moving the power tool slightly back and forth in the plane of the saw blade so that the blade oscillates beyond the bone on
both sides. Very precise cuts can be made when the saw blade is guided steadily. Imprecise cuts arise due to used blades,
excess pressure or jamming the saw blade.

15
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com

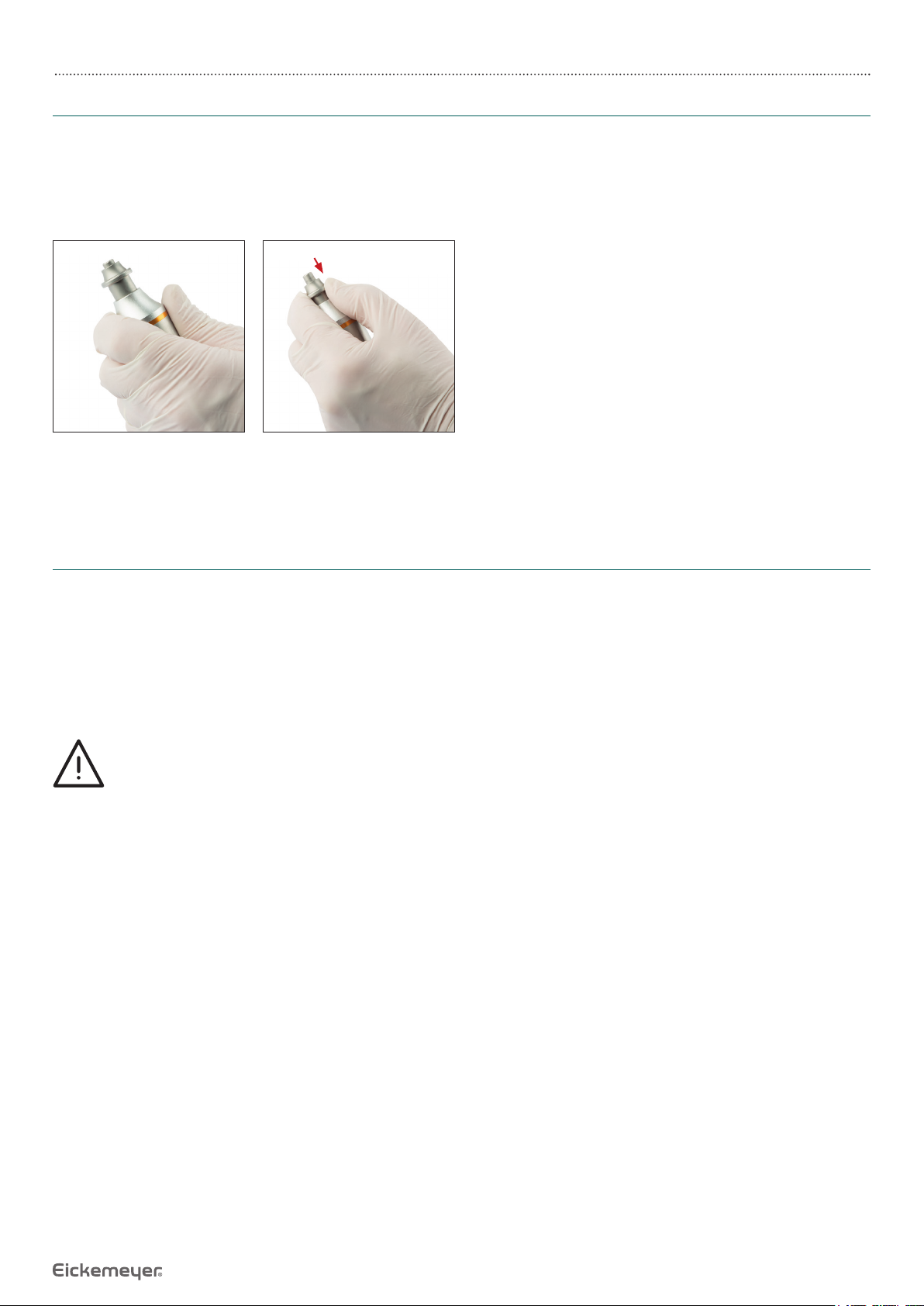

AO-Quick Chuck (Item No. 195080)
For tools with AO-coupling.
Assembly and Disassembly Tool
To connect the tool, pull the coupling sleeve back and then introduce the tool while rotating slightly.
To disconnect, push the coupling sleeve of the attachment back and remove the tool (Fig. 22a + 22b).
Figure 22bFigure 22a
4. CARE AND MAINTENANCE
Preparation Prior to Cleaning
Disassembly
Disassemble device if applicable. Remove all instruments and attachments from the handpiece and remove battery from
casing of the handpiece.
Batteries and Charge Station
To clean the batteries and the charger, wipe them off with a clean, soft and lint-free cloth dampened with disinfectant or
deionized water.
Warning!
Do not use solvents to disinfect the batteries. Battery poles must not contact water or solvents: danger of short
circuiting!
Return batteries to charger (item no. 195082) after each use.
Handpiece, Funnel and Chucks
Handpiece, funnel and chucks / attachments may be processed using:
a) Manual cleaning and / or
b) Automated cleaning with manual pre-cleaning
Note: Clean all movable parts in opened position.

16
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com

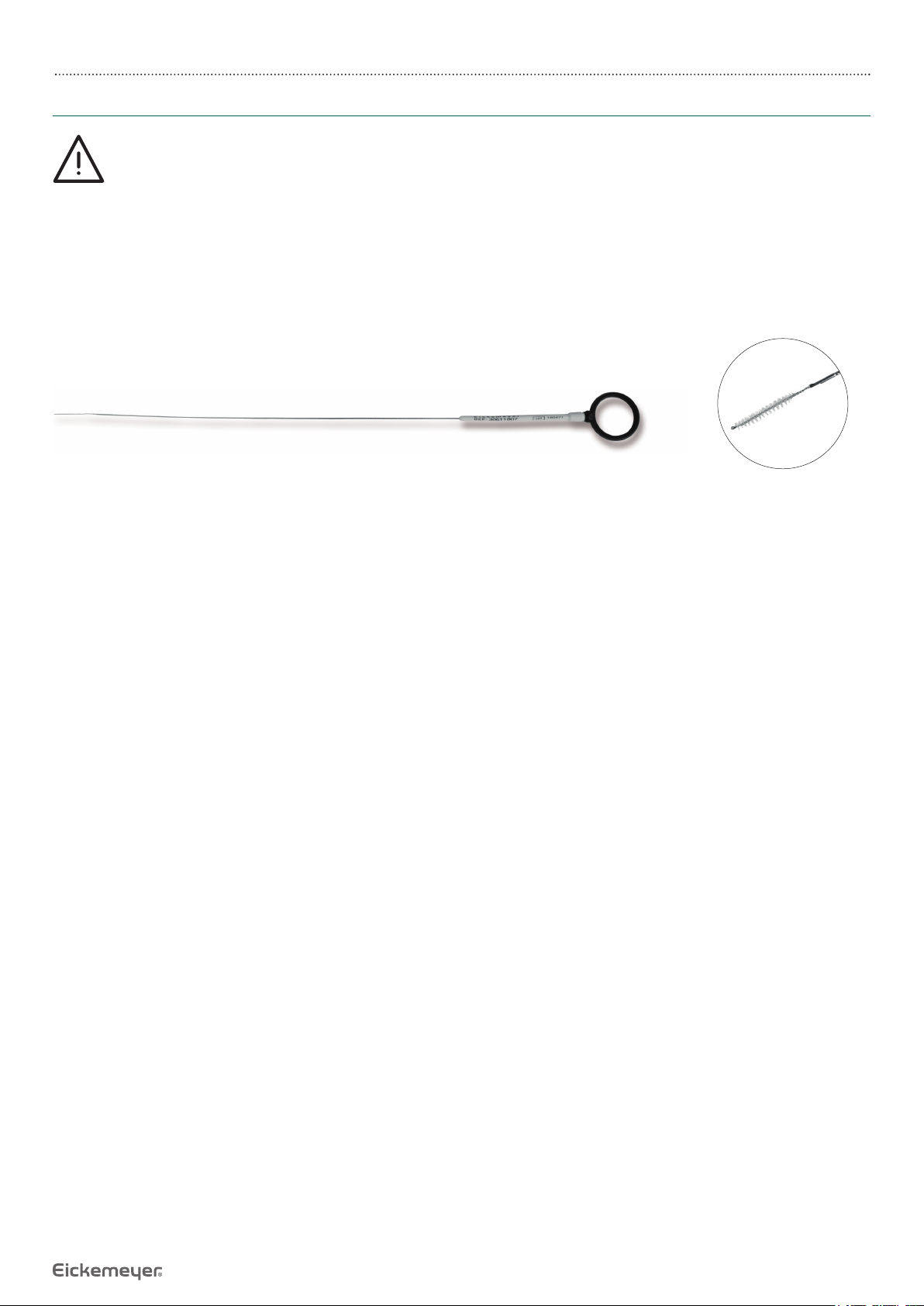

Manual Cleaning Instruction
1. Remove debris
Rinse the device under running cold tap water for a minimum of 2 minutes. Use a sponge, soft lint-free cloth or soft-
bristled brush to assist in removing gross soil. For cannulations of the handpiece and attachments, the cleaning brush
(item no. 30611807) should be used.
Figure 23
Precautions
• Never immerse the handpiece, lid or attachments in aqueous solutions or in an ultrasonic bath as this could decrease
the service life of the system.
• Do not use pointed objects for cleaning.
2. Manipulate Moving Parts
Manipulate all moving parts such as the triggers, sleeves and switches under running tap water to loosen and remove
gross debris.
3. Spray and Wipe
Spray and wipe the device using a neutral pH enzymatic solution for a minimum of 2 minutes.
Follow the enzymatic detergent manufacturer’s directions for correct temperature, water quality (i.e. pH, hardness) and
concentration / dilution.
4. Clean with Detergent
Clean the device manually under running warm water using an enzymatic cleaner or detergent for a minimum of 5minutes.
Manipulate all moving parts under running water. Use a soft-bristled brush and/or soft lint-free cloth to remove all visible
soil and debris. Follow the enzymatic cleaner or detergent manufacturer’s instructions for use for correct temperature,
water quality and concentration / dilution.
5. Rinse with Tap Water
Rinse the device thoroughly using cool to lukewarm running water for a minimum of 2 minutes. Use a syringe, pipette or
water jet to fl ush lumens and channels. Actuate joints, handles and other movable device features in order to rinse
thoroughly under running water.
6. Visually Inspect Device
Inspect the cannulations, coupling sleeves, etc. for visible soil. Repeat steps 1 – 6 until no visible soil remains.
7. Final Rinse with De-Ionized / Purifi ed Water
Final rinse with de-ionized or purifi ed water for a minimum of 2 minutes.
8. Dry
Dry device using a soft lint-free cloth or clean compressed air.

17
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
Mechanical / Automated Cleaning Instruction with Manual Pre-cleaning
Important!
Manual pre-cleaning prior to mechanical/automated cleaning/disinfection is important to ensure that cannulations
and other diffi cult to access areas are clean.
1. Remove Debris
Rinse the device under running cold tap water for a minimum of 2 minutes. Use a sponge, soft lint-free cloth or soft-
bristled brush to assist in removing gross soil. For cannulations of the handpiece and attachments, the cleaning brush
(item no. 30611807) should be used.
Figure 24
Precautions
• Never immerse the handpiece, lid or attachments in aqueous solutions or in an ultrasonic bath as this could decrease
the service life of the system.
• Do not use pointed objects for cleaning.
2. Manipulate Moving Parts
Manipulate all moving parts such as the triggers, sleeves and switches under running tap water to loosen and remove
gross debris.
3. Spray and Wipe
Spray and wipe the device using a neutral pH enzymatic solution for a minimum of 2 minutes.
Follow the enzymatic detergent manufacturer’s directions for correct temperature, water quality (i.e. pH, hardness) and
concentration / dilution.
4. Clean with Detergent
Clean the device manually under running warm water using an enzymatic cleaner or detergent for a minimum of 5minutes.
Manipulate all moving parts under running water. Use a soft-bristled brush and/or soft lint-free cloth to remove all visible
soil and debris. Follow the enzymatic cleaner or detergent manufacturer’s instructions for use for correct temperature,
water quality and concentration / dilution.
5. Rinse with Tap Water
Rinse the device thoroughly using cool to lukewarm running water for a minimum of 2 minutes.
Use a syringe, pipette or water jet to fl ush lumens and channels. Actuate joints, handles and other movable device features
in order to rinse thoroughly under running water.
6. Visually Inspect Device
Inspect the cannulations, coupling sleeves, etc. for visible soil. Repeat steps 1 – 6 until no visible soil remains.

18
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com

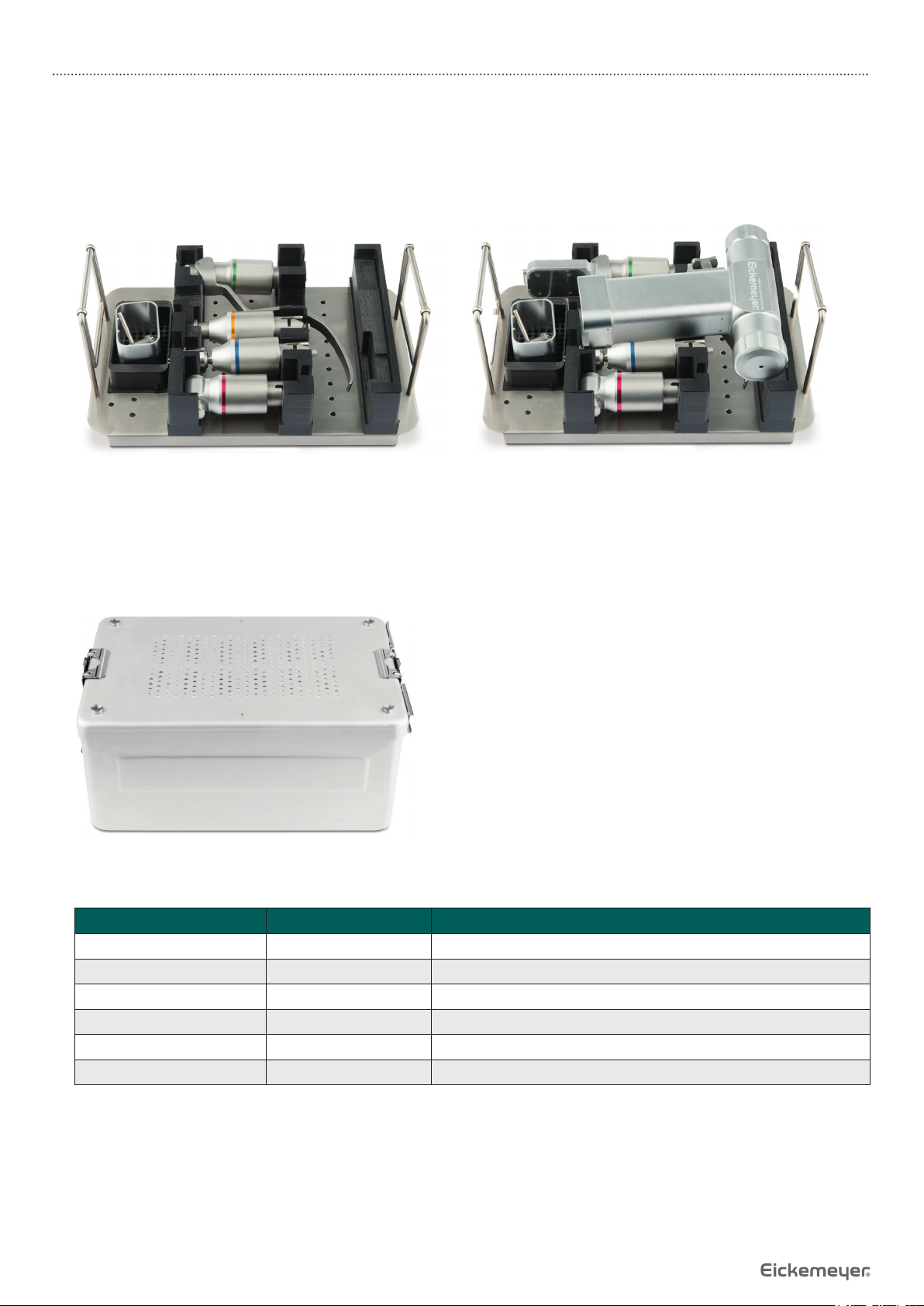

7. Load Tray/Washing Basket
Place devices in the specially designed tray for machine washing supplied by EICKEMEYER® (item no. 195086).
Dimensions load tray/ washing basket (in mm): L 260 x W 170 x H 110
Ensure that all cannulations (handpiece and attachments), if applicable, are positioned as shown (Figure 25 + 26).
Figure 25 Figure 26
Note: For the tray/ washing basket a corresponding container (item no. 185555, Fig. 27).
• Non perforated bottom, perforated lid
• Dimensions bottom (in mm): L 312 x W 183 x H 122
Figure 27
8. Automated Cleaning
Step Duration (minimum) Cleaning instructions
Rinse 2 minutes Cold tap water
Pre-wash 1 minute Warm water (≥40 °C), use detergent
Cleaning 2 minutes Warm water (≥45 °C), use detergent
Rinse 5 minutes Rinse with de-ionized (DI) or purifi ed water (PURW)
Thermal disinfection 5 minutes Hot de-ionized (DI) water, ≥ 93 °C
Dry 40 minutes ≥ 90 °C
9. Inspect the Device
Remove all the devices from the tray/ washing basket. Inspect the cannulations, coupling sleeves, etc. for visible soil. If
necessary, repeat the manual pre-clean / automated cleaning cycle. Confi rm that all parts are completely dry. Mechanical
cleaning / disinfection is an additional stress for power equipment, especially for seals and bearings. Therefore, systems
must be properly lubricated and regularly sent to be serviced (at least once per year).

19
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
Lubrication
The power tool and attachments should be regularly lubricated to ensure a long service life and smooth operation. It is
recommended that the accessible moving parts of the handpiece, the battery casing and attachments are lubricated with 1
drop of special oil, (item no. 563706) distribute the oil by moving the components. Wipe off the excess oil with a cloth.

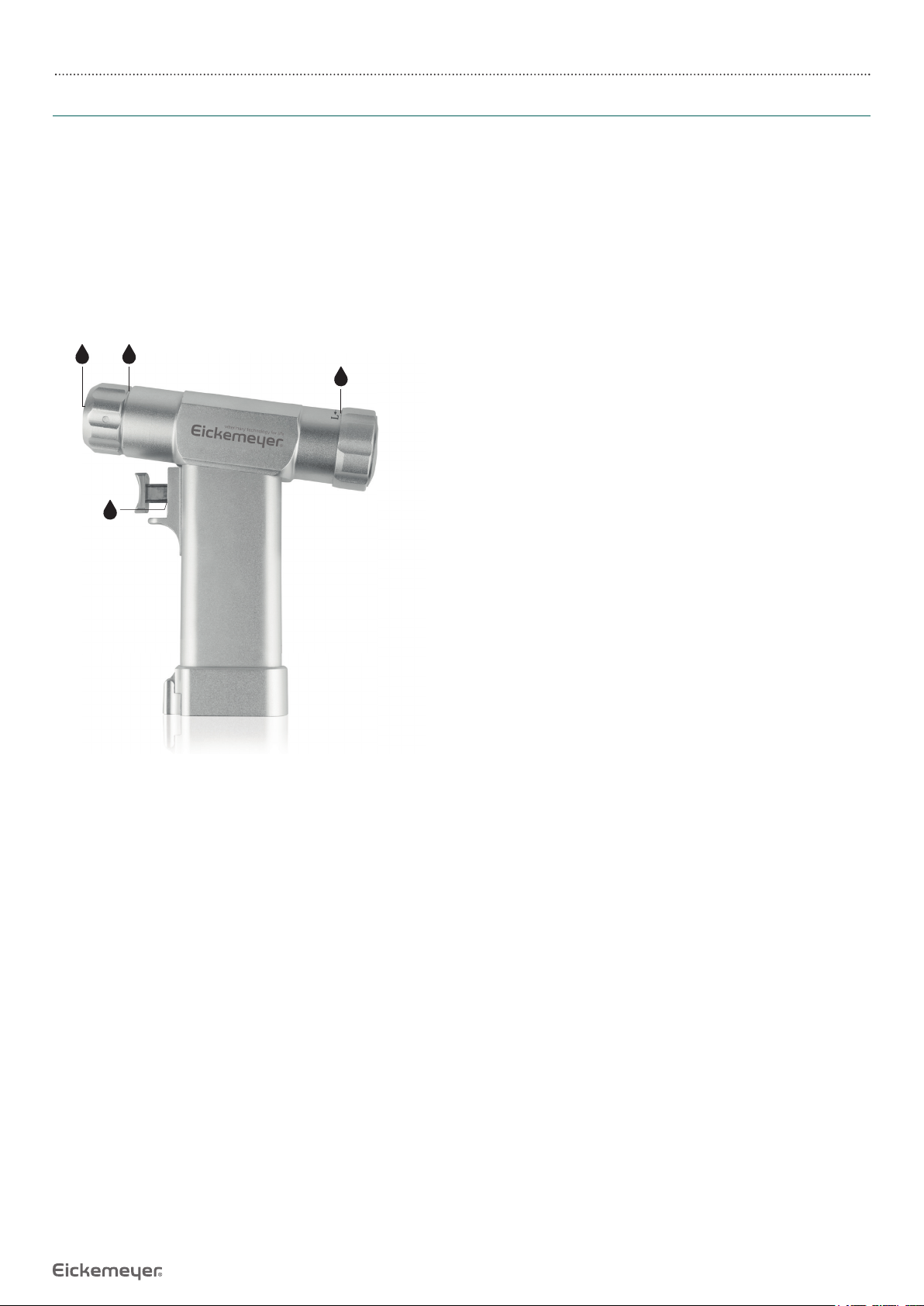

Lubricating the Handpiece (Fig. 28)
• Lubricate the trigger shafts and then press the triggers several times.
• Lubricate the attachment release buttons and then press the buttons several times.
• Lubricate the mode selector switch and then move it several times.
• Lubricate the attachment coupling.
Figure 28

20
USER MANUAL ORTHOVET PLUS BATTERY DRILL SYSTEM
T [phone] | F + 49 7461 96 580 90 | [e-mail] | www.eickemeyer.com
Lubricating the Battery Casing (Fig. 29 and 30)
• Place oil on the seal of the cover and then evenly distribute the oil on the seal.
• Lubricate the lock and hinges, then actuate it several times.
• Lubricate the battery casing release buttons from both the outside and inside and then press the buttons several times.
Figure 29 Figure 30
Attachments / Chucks
Lubricate all moving parts of all the attachments.
Jacobs Chuck (item no. 195078)
Lubricate the jaws and toothed rim.
Quick Coupling for KIRSCHNER-Wires (item no. 195079)
Lubricate the tension lever and clamping mechanism.
Hold the Quick Coupling up and add one drop of oil into the attachment hole and on the holder of the lever (Fig. 31). Move
the tension lever several times.
Figure 31
