Elation COLOR SPOT 150 User manual

USER MANUAL
Version 1.0
Keep this manual for future needs !
© Copyright
Reproduction prohibited !
COLOR SPOT 150

2
Table of contents
1. Safety instructions......................................................................................................... 3
2.Operating determinations .............................................................................................. 4
3.Description of the device ............................................................................................... 5
4.Installation....................................................................................................................... 6
4.1Fitting/Exchanging the lamp....................................................................................... 6
4.2Lamp adjustment........................................................................................................ 6
4.3 Inserting/Exchanging rotating gobos......................................................................... 7
4.4 Rigging...................................................................................................................... 8
4.5 Connection to the mains.......................................................................................... 10
4.6 DMX- 512 connection, master/slave connection .....................................................11
5. DMX Protocol-16 bit..................................................................................................... 12
6. DMX Protocol-8 bit....................................................................................................... 14
7.Controller mode............................................................................................................ 16
7.1 DMX addressing ..................................................................................................... 16
7.2 Remotely controllable functions .............................................................................. 16
8. Stand - alone mode...................................................................................................... 17
9. Functions of the control panel.................................................................................... 18
9.1 Addressing .............................................................................................................. 18
9.2 Slave control ........................................................................................................... 19
9.3 Fixture informations................................................................................................. 19
9.4 Personality options.................................................................................................. 20
9.5Test sequences........................................................................................................ 23
9.6 Stand-alone setting ................................................................................................. 24
9.7 Reset function ......................................................................................................... 25
9.8 Special functions.....................................................................................................25
10. Error and information messages.............................................................................. 27
11.Technical specifications ............................................................................................ 28
12. Maintenance and cleaning ........................................................................................ 30
13. Appendix .................................................................................................................... 31
COLOR SPOT 150

3
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFOREYOU INITIAL START - UP!
1. Safety instructions
Caution ! Be careful with your operations.With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires
Thisdevice hasleftour premisesinabsolutely perfect condition.In order tomaintainthis conditionandto ensure
asafe operation,itis absolutelynecessaryfor the userto follow thesafetyinstructions andwarningnotes written
in this manual.
Important:
Damages caused by the disregard of this user manual are not subject to warranty.The dealer will not accept
liability for any resulting defects or problems.
If the device has been exposed to drastic temperature fluctuation (e.g.after transportation), do not switch it on
immediately.The arisingcondensationwater mightdamageyourdevice.Leavethe deviceswitchedoff untilithas
reachedroomtemperature.
This device falls under protection-class I.The power plug must only be plugged into a protection class I outlet.
Neverlet the power-cordcomeintocontact withothercables!Handle thepower-cordandall connectionswiththe
mains with particular caution!
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-
cord from time to time.
Alwaysdisconnectfrom themains,whenthedevice isnotinuse or beforecleaningit.Only handle thepower-cord
by the plug. Never pull out the plug by tugging the power-cord.
During the initial start-up some smoke or smell may arise.This is a normal process and does not necessarily
mean that the device is defective.
Caution: Duringthe operation,thehousing becomesveryhot.
Do not switch the device on and off in short intervals as this would reduce the lamp’s life.
HEALTH HAZARD!
Never look directly into the light source,as sensitive persons may suffer
an epileptic shock
( especially meant for epileptics) !
Please consider that damages caused by manual modifications to the device are not subject to warranty.
Keep away children andamateurs !

4
2.Operating determinations
This device is a moving-head spot for creating decorative effects and was designed for indoor use only.
This device is designed for professional use, e.g. on stages, in discotheques, theatres etc.
Lightingeffectsare notdesignedforpermanentoperation. Consistentoperation breakswillensurethat the device
will serve you for a long time without defects.
Never run the device without lamp!
Do not shake the device.Avoid brute force when installing or operating the device.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always hold the
fixture at the transport handles.
Whenchoosing theinstallation-spot,please makesure that thedevice isnotexposed toextremeheat, moisture
or dust.There should not be any cables lying around.You endanger your own and the safety of others!
The minimum distance between light-output and the illuminated surface must be more than 0,8 meter.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.
Always fix the fixture with an appropriate safety-rope.Fix the safety-rope at the correct holes only.
Onlyoperate thefixtureafter havingcheckedthat the housingis firmly closedandall screwsaretightly fastened.
The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may
explose .
Themaximum ambienttemperature tamust neverbeexceeded.
CAUTION!
The lens has to be replaced when it is obviously damaged,
so that its function is impaired, e. g. due to cracks or deep scratches!
Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualifiedfor operatingthedevice. Mostdamagesare theresult of unprofessionaloperation!
CAUTION!
The lamp has to be replaced when it is damaged
or deformed due to the heat!
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
Never remove the serial barcode from the device as this would make the guarantee void.
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock, lamp explosion, crash etc.

5
3.Description of the device
Rear panel of the base
12 - Display
13 -Mode-button
14 -Enter-button
15-Up-button
16-Down-button
6 - DMX output 9 -Fuseholder
7 - DMX input 10 -Powercord
8 -Transport handle 11 -Power-switch
Control panel
1-Projector-head 4- Base
2 - Objective 5 - Control panel
3 - Arm

6
4.Installation
4.1Fitting/Exchanging the lamp
DANGER !
Install the lamp with the device switched off only.
Unplug from mains before !
To insert the lamp CDM-SA/T 150/942 open the small lamp cover at the rear of the head (see the drawing) by
loosening the 4 screws „W, X,Y, Z,” on the lamp cover.
Gently pull out the lamp assembly.
If changing the lamp, remove the old lamp from the socket.Insert the lamp to the socket.
Do not install a lamp with a higher wattage! A lamp like this generates temperatures the device is not designed
for.
Damages caused by non-observance are not subject to warranty.Please follow the lamp manufacturer‘s notes!
Do not touch the glass-bulb bare hand during the installation! Make sure that the lamp is installed tightly into the
lampholder system.
Reinsert the lamp assembly and tighten 4 screws again.
Before striking the lamp, reset the "LAti/rSEt" and "LASt/rSEt"counters in the "InFO" menu on the control
panel, by pressing the [ ] and [ ] buttons in one time and then confirming with the [ ] button.
Do not operate this fixture with opened housing-cover!
4.2Lamp adjustment
The COLOR SPOT 150 lampholder is aligned at the factory.
Duetodifferencesbetweenlamps,fineadjustmentmayimprove
lightperformance.
Strike the lamp, cancel all effects, open the shutter and set
thedimmer intensityonto100 %andfocus the lightona flat
surface (wall) or use function "LAAd" in the Special
functions .

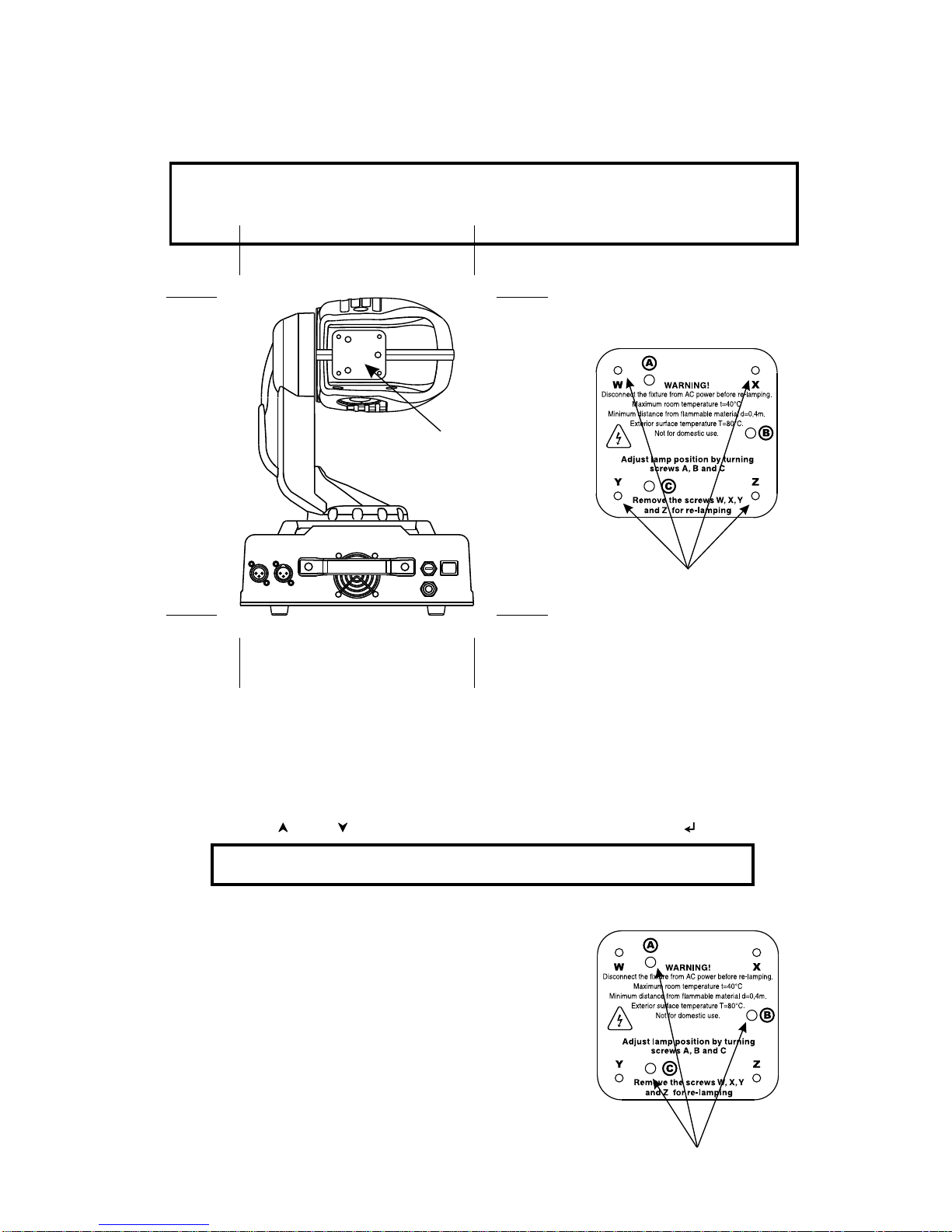

Centerthe hot-spot (the brightestpartof thebeam)usingthe 3
adjustment screws „A,B, C”.Turn one screw at a time to drag
thehot-spot,diagonallyacrossthe projectedimage.Ifyoucannot
detect a hot -spot, adjust the lamp until the light is even.
screws "X,Y,ZW"
Lampcover:
screws"A, B, C"

7
To reduce a hot-spot, pull the lamp in by turning all three screws „A, B, C” clockwise 1/4-turn at a time until the
light is evenly distributed.
If the light is brighter around the edge than it is in the center, or if light output is low, the lamp is too far back in the
reflector.„Push”thelamp out byturning thescrews„A,B,C”counterclockwise 1/4-turnat a timethelight isbright
andevenly distributed.
4.3 Inserting/Exchanging rotating gobos
DANGER!
Install the gobos with the device switched off only.
Unplug from mains before!
To insert the gobos open the top cover of the head by loosening the 2 screws .
If you wish to use other forms and patterns as the standard-gobos, or if gobos are to be exchanged,remove the
fixation-ring with an appropriate tool.Remove the gobo and insert the newgobo.Press the fixation-ring together
and insert it in front of the gobo.
CAUTION!
Never unscrew the screws of the rotating gobo
as the ball bearing will otherwise be opened!
gobo fixation-ring

8
4.4 Rigging
DANGERTO LIFE!
Please consider the respective national norms during the installation!
Theinstallation must only be carried out by an authorized dealer!
The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1
hourwithout any harmingdeformation.
The installation must always be secured with a secondary safety attachment, e.g.an appropriate catch net.This
secondary safety attachment must be constructed in a way that no part of the installation can fall down if the
main attachment fails.
Whenrigging, deriggingorservicing thefixturestaying inthearea belowtheinstallation place, onbridges, under
highworking places andotherendangered areasisforbidden.
Theoperatorhas tomakesurethatsafety-relatingandmachine-technical installations areapprovedbyanexpert
before taking into operation for the first time and after changes before taking into operation another time.
Theoperatorhas tomakesurethatsafety-relatingandmachine-technical installations areapprovedbyanexpert
after every four year in the course of an acceptance test.
Theoperator hastomake surethatsafety-relating andmachine-technical installations areapproved by askilled
persononce ayear.
The projector should be installed outside areas where persons may walk by or be seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to)
calculating working load limits, installation material being used, and periodic safety inspection of all installation
material and the projector.If you lack these qualifications,do not attemptthe installation yourself, but instead use
aprofessionalstructuralrigger.Improper installation canresult inbodilyinjury and.ordamageto property.
The projector has to be installed out of the reach of people.
Ifthe projectorshallbeloweredfromthe ceilingorhigh joists, professionaltrussing systemshave tobeused.The
projector must never be fixed swinging freely in the room.
Caution: Projectorsmay causesevereinjuries when crashingdown!If youhavedoubts concerningthesafetyof
a possible installation, do NOT install the projector!
Before rigging make sure that the installation area can hold a minimum point load of 10 times the projector’s
weight.
Danger of fire !
When installing the device, make sure there is no highly inflammable
material (decoration articles, etc.) in between a distance of min. 0,4 m.
CAUTION!
Use 2 appropriate clamps to rig the fixture on the truss.
Follow the instructions mentioned at the bottom of the base.
Make sure that the device is fixed properly! Ensure that
the structure (truss) to which you are attaching the fixtures is secure.

9
Themoving-head canbe placed directlyon thestagefloor orriggedin anyorientation on atruss withoutaltering
its operation characteristics .

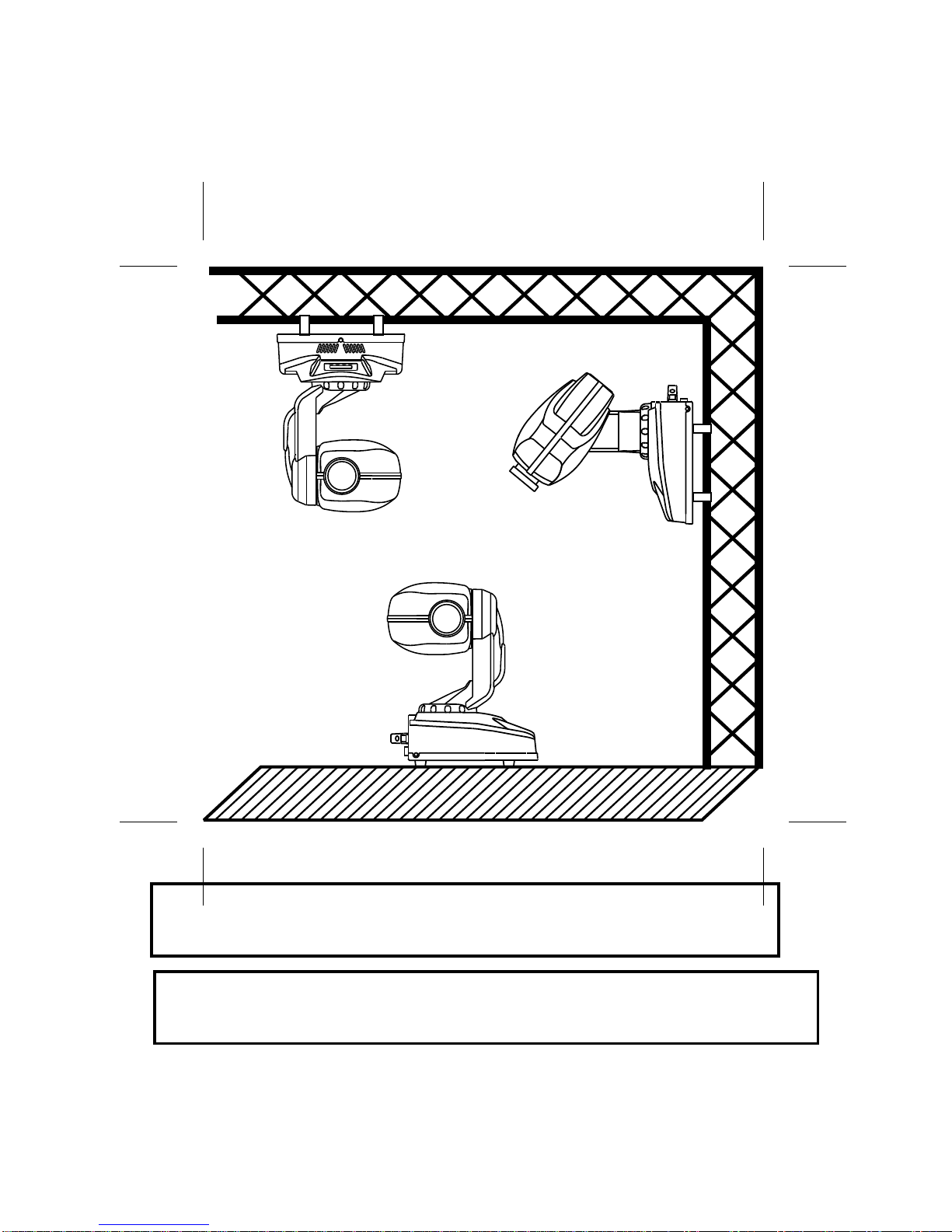

There are two possibility how to fix the COLOR SPOT 150 on a truss via the Omega holders -see the drawing
below.Usethe rigging clamps(notincluded) withscrewsM12.
For overhead use, always install a safety-rope that can hold at least 10 times the weight of the fixture.You must
only use safety-ropes with screw-on carabines.Pull the safety-rope through the two apertures on the bottom of
the base and over the trussing system etc. Insert the end in the carabine and tighten the fixation screw.
When installing fixtures side-by-side,
avoid illuminating one fixture with another!
DANGERTO LIFE!
Before taking into operation for the first time,the installation has to be
approved by an expert!

10
Fixation via the Omega holders
1.Screw each clamp (1) to the included Omega holders (4) with M12 bolt and nut through the hole in the holder.
2. Insert both quick-lock fasteners (3) into the holes of the base and tighten fully clockwise.Install the second
clamp.
3.Fasten the safety-rope (2) through the two apertures on the bottom of the base and over the trussing system.
1-Clamp
2-Safety-rope
3-Quick-lockfastener
4-Omegaholder
4.5 Connection to the mains
Connect the fixture to the mains with the enclosed power-plug.
The earth has to be connected!
The occupation of the connection-cables is as follows:
Cable Pin International
Brown Live L
Lightblue Neutral N
Yellow/Green Earth

11
4.6 DMX- 512 connection, master/slave connection
The wires must not come into contact with each other, otherwise
the fixtures will not work at all,or will not work properly.
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with the
fixture or one fixture with another.
Occupation of the XLR-connection:
DMX - output DMX-input
XLR mounting-socket: XLR mounting-plug:

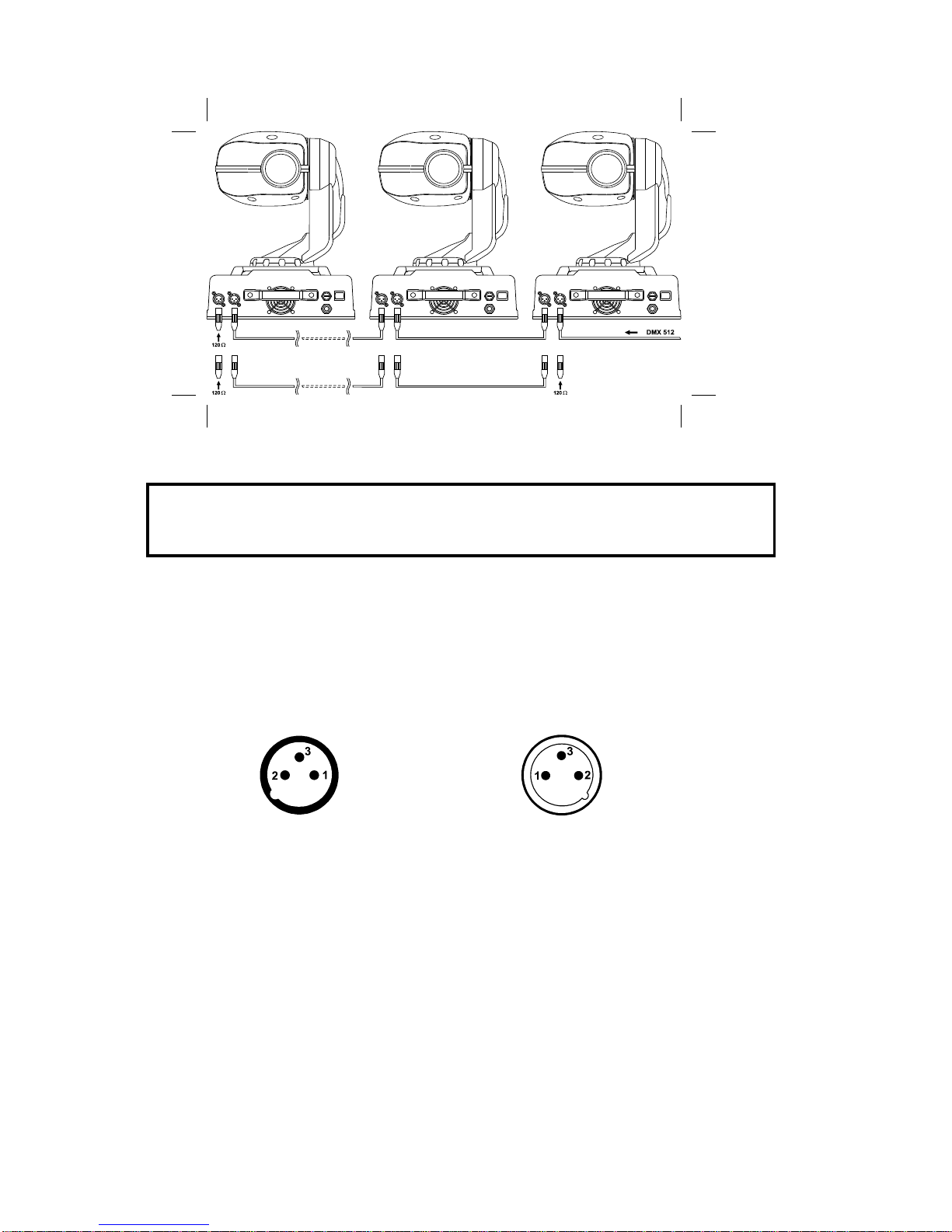

Building a serial DMX-chain:
Ifyou areusingthe standard controllers,youcan connecttheDMX-output of thecontrollerdirectly withtheDMX-
input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you
needto useadapter-cables.
Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always
connect output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ohm resistor
between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
Building a master/slave-chain:
Connect the DMX-output of the master fixture in the data-chain with the DMX-input of the first slave. Always
connect output with the input of the next slave until all slaves are connected (up to 9 fixtures).
Caution:It’s necessary toinsertthe XLRterminationplug (with120Ohm) intotheinput ofthemaster fixtureand
into the output of the last slave fixture in the link in order to ensure proper transmission on the data link.
1-Ground
2 - Signal (-)
3 - Signal (+)
1-Ground
2 - Signal (-)
3 - Signal (+)
Master/slave operation
Controller operation

12
5. DMX Protocol-16 bit
Mode 1 Mode 2 Value Function Type of control
Channel Channel
1 1 Pan
0-255 Pan movement by 530° proportional
2 3 Tilt
0-255 Tilt movement by 280° proportional
3 2 Pan fine
0-255 Fine control of pan movement proportional
4 4 Tilt fine
0-255 Fine control of tilt movement proportional
5 5 Speed of PAN/TILT movement
0 Max.speed (trackingmode) step
1-249 From max.speed to min.speed (vector mode) proportional
250-252 Max.speed(track.mode),black-out while step
coloror gobochanges
253-255 Max.speed(vector mode),black-out while PAN/TILT step
movingor colourorgobo changes
6 6 Colours
0 Open/white proportional
10 Turquoise proportional
21 Red proportional
32 Cyan proportional
42 Lightgreen proportional
53 Magenta proportional
64 LightBlue proportional
74 Yellow proportional
85 Green proportional
96 Pink proportional
106 Blue proportional
117 Orange proportional
128-189 Forwards rainbow effect from fast to slow proportional
190-193 Norotation proportional
194-255 Backwards rainbow effect from slow to fast proportional
7 7 Rotatinggobos
0-11 Open position(hole) step
12-23 Gobo1 step
24-35 Gobo2 step
36-47 Gobo3 step
48-59 Gobo4 step
60-71 Gobo5 step
72-83 Gobo6 step
84-95 Gobo7 step
96-235 Shaking gobos with variable speed
96-115 Gobo1 proportional
116-135 Gobo2 proportional
136-155 Gobo3 proportional
156-175 Gobo4 proportional
176-195 Gobo5 proportional
196-215 Gobo6 proportional
216-235 Gobo7 proportional
236-255 Gobo wheel rotation from slow to fast proportional

13
Channel Channel
8 8 Rotating gobo rotation
0-127 Goborotation proportional
128-189 Forwards gobo rotation from fast to slow proportional
190-193 Norotation step
194-255 Backwards gobo rotation from slow to fast proportional
9 9 Shutter,Strobe,Reset
0 Shutterclosed step
1-63 Light intensity from 0 to 100% proportional
64-95 Shutteropen step
96-127 Strobe-effect from slow to fast (max 8 flashes/s) proportional
128-139 Reset ,shutter closed step
140-159 Shutter closed step
160-175 Pulse-effect in sequences with increasing speed proportional
176-191 Pulse-effect insequenceswith decreasingspeed proportional
192-223 Random strobe effectwith increasing speed proportional
224-255 Shutter open step
Mode 1 Mode 2 Value Function Type of control

14
Mode 3 Mode 4 Value Function Type of control
Channel Channel
1 1 Pan
0-255 Pan movement by 530° proportional
2 2 Tilt
0-255 Tilt movement by 280° proportional
3 Speed of PAN/TILT movement
0 Max.speed (trackingmode) step
1-249 From max.speed to min.speed (vector mode) proportional
250-252 Max.speed(track.mode),black-out while step
coloror gobochanges
253-255 Max.speed(vector mode),black-out while PAN/TILT step
movingor colourorgobo changes
4 3 Colours
0 Open/white proportional
10 Turquoise proportional
21 Red proportional
32 Cyan proportional
42 Lightgreen proportional
53 Magenta proportional
64 LightBlue proportional
74 Yellow proportional
85 Green proportional
96 Pink proportional
106 Blue proportional
117 Orange proportional
128-189 Forwards rainbow effect from fast to slow proportional
190-193 Norotation proportional
194-255 Backwards rainbow effect from slow to fast proportional
5 4 Rotatinggobos
0-11 Open position(hole) step
12-23 Gobo 1 step
24-35 Gobo 2 step
36-47 Gobo 3 step
48-59 Gobo 4 step
60-71 Gobo 5 step
72-83 Gobo6 step
84-95 Gobo7 step
96-235 Shaking gobos with variable speed
96-115 Gobo1 proportional
116-135 Gobo2 proportional
136-155 Gobo3 proportional
156-175 Gobo4 proportional
176-195 Gobo5 proportional
196-215 Gobo6 proportional
216-235 Gobo7 proportional
236-255 Gobo wheel rotation from slow to fast proportional
6 5 Rotating gobo rotation
0-127 Goborotation proportional
128-189 Forwards gobo rotation from fast to slow proportional
190-193 Norotation step
194-255 Backwards gobo rotation from slow to fast proportional
6. DMX Protocol-8 bit

15
Channel Channel
7 6 Shutter,Strobe,Reset
0- Shutter closed step
1-63 Light intensity from 0 to 100% proportional
64-95 Shutteropen step
96-127 Strobe-effect from slow to fast (max 8 flashes/s) proportional
128-139 Reset ,shutter closed step
140-159 Shutter closed step
160-175 Pulse-effect in sequences with increasing speed proportional
176-191 Pulse-effect insequenceswith decreasingspeed proportional
192-223 Random strobe effectwith increasing speed proportional
224-255 Shutter open step
Mode 3 Mode 4 Value Function Type of control

16
TheCOLOR SPOT150 canbeoperated witha controllerin controller mode or without the controller in stand-
alone mode.
Both modes are described in the texts below.
7.Controller mode
The fixtures are individually addressed (001-504) on a data link and connected to the controller.The fixtures
respond to the DMX signal from the controller.
7.1 DMX addressing
Thecontrol panelon thefrontside ofthe base allowsyou toassign the DMXfixture address,which is definedas
the first channel from which the COLOR SPOT 150 will respond to the controller.
If you set, for example, the address to channel 5, the COLOR SPOT 150 will use the channel 5 to 13 for control.
Please,besurethat youdon’t haveanyoverlappingchannels in ordertocontroleachCOLOR SPOT150correctly
and independently from any other fixture on the DMX data link.
If two, three or more COLOR SPOT 150 are addressed similarly, they will work similarly.
Foraddress setting,pleaserefer totheinstructions under"Addressing"(menu "A001").
Controlling:
After having addressed all COLOR SPOT 150 , you may now start operating these via your lighting controller.
Note:After switching on, the COLOR SPOT 150 will automatically detect whether DMX 512 data is received or
not.If there is no data received at the DMX-input, the display will start to flash "A001" with actually set address.
This situation can occur if:
-the 3PINXLR plug(cablewithDMX signal fromcontroller) is notconnectedwith theinputof theCOLORSPOT
150
- the controller is switched off or defective, the cable or connector is defective or the signal wires are swap in the
inputconnector.
Note:It’s necessary to insert the XLR termination plug (with 120 Ohm) to the last fixture in the link in order to
ensure proper transmission on the DMX data link.
7.2 Remotely controllable functions
Colour - wheel
The COLOR SPOT 150 contains a colour wheel with 12 colour positions - 11 of these with dichroic colours and
the last one white.The colour-wheel can be positioned between two adjacent colours in any position.It is also
possible to rotate the colour- wheel continuously at different speeds("Rainbow effect“ in both directions).
Rotating gobo wheel
The rotating gobo-wheel includes 3 metal gobos, 3 glass gobos and 1 multicolor dichroic gobo rotating in both
directions. All gobos are interchangeable.The metal gobos have an outside diameter of 27 mm and an image
diameterof 22,5 mm.Theglassand dichroicgoboshave anoutside diameterof26,8 mm andanimage diameter
of 22,5 mm.
Shutter/Dimmer/Strobe
The dimming (0-100%) is provided by the simple mechanical shutter unit.This unit may also be used for strobe
effect (1 - 8 flashes per second).

17
8. Stand - alone mode
The fixtures on a data link are not connected to the controller but can execute pre-set programs which can be
different for every fixture.To set the program to be played,see the "Stand-alone setting" ( menu "St.AL.").
"Stand-alone operation" can be applied to the single fixture (the fixture may be set to the master /slave mode or
controller mode ) or to multiple fixtures operating synchronously.
Synchronous operation of multiple fixtures requires that they must be connected on a data link and one of them
is set as a master (master mode) and the rest as the slaves (slave mode).The slaves are assigned to SLA1-
SLA9 and on the certain slave address can be connected only one fixture.To set the fixture as the master or
slave , see the "Addressing" (menu "A001").
If the master fixture runs a reset or plays test(program) ,all slaves will execute these acts too.
You can't play or edit any programs on the slaves by their control panels if the master is switched on and
connected to the master/slave chain.
The master fixture starts simultaneous program start in the other slave fixtures.All fixtures have a definite,
synchronizedstartingpointwhen playing back their programs.Thenumberof runningprogram isthe samein all
slaves and depends on the master's choice (menu "St.AL." ).Every fixture runs its program repeatedly ,starting
the program step No.1 when requested by the master .

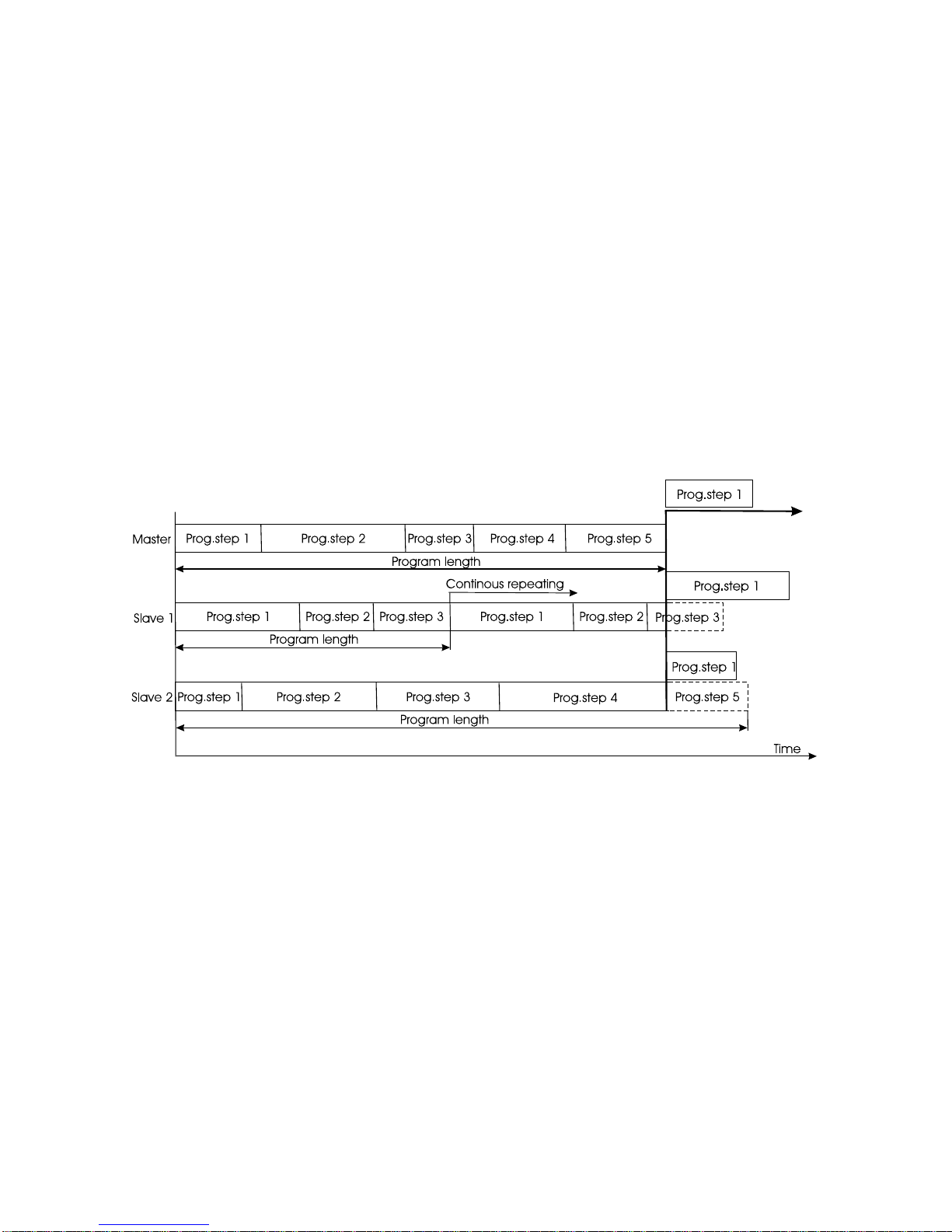

Forexample:
If the slave fixture has a shorter program length, it will continously repeat its program until the master fixture
finishes its own program and restarts its program running (slave 1- prog.step 3 will not be finished).
If the slave fixture has a longer program length, it will restart at prog.step 1 before it completes all its prog.steps
(slave 2 - prog.step 5 will not be played)- see the picture bellow.
Note:Disconectthe fixturesfromtheDMX controllerbeforemaster/slaveoperating ,otherwisedatacollisionscan
occur and the fixtures will not work properly!
It’s necessary to insert the XLR termination plug (with 120 Ohm) into the input of the master fixture and into the
output of the last slave fixture in the data link in order to ensure proper transmission on the data link.
From the master's control panel is possible to control any slave in a master/slave chain.
Starting point
Restart

18
9. Functions of the control panel
The control panel situated on the front side of the base offers several features.You can simply set the DMX
address,master/slave mode, read the number of lamp or unit hours, run test, make a reset and also use many
functions for setting and service purposes.
The main menu of the control panel is accessed by pressing the [ ] button - press this one so many times until
thedisplay showsmessage"A001" (with actually storedaddress).Browse throughthemenu by thepressing[
]or [ ] buttons - the display shows step by step these messages: A001,SLCt, InFO,PErS,tESt, StAL,rESE,
SPEC.Press [ ]if you wishto select oneof them.Thefunctions aredescribed inthefollowing sections andthe

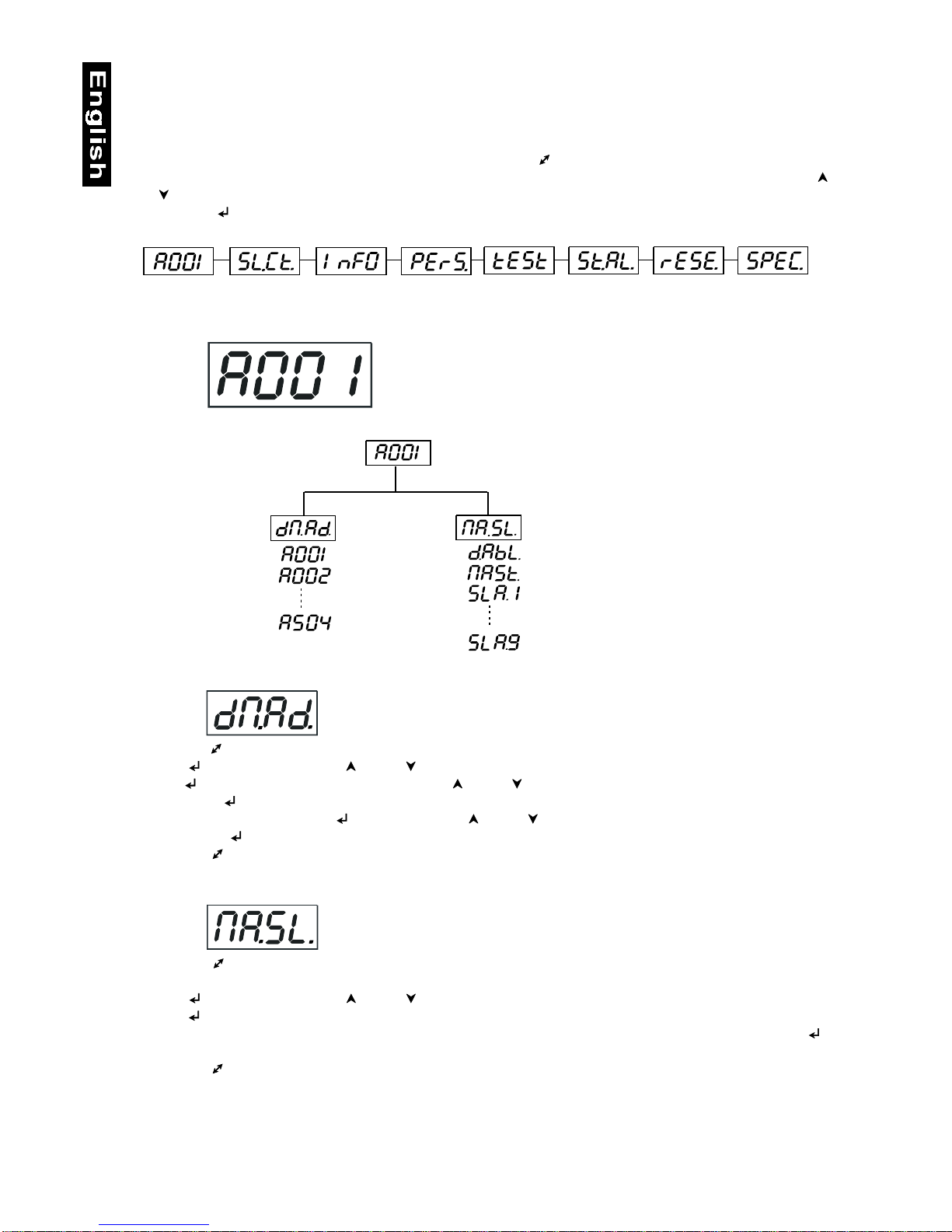

function hierarchy is shown below.
9.1 Addressing
By this menu you can set the DMX address or address the fixture as a master/slave.
- DMX addressing
1. Press the [ ]- buttonso manytimesuntil thedisplay showsmessage"A001" (with actuallystored address).
2. Press [ ]-button and use the [ ] and [ ] buttons to select"dM.Ad."-menu.
3. Press[ ]-button(the letter "A" flashes) and by [ ] and [ ] buttons select required address (001 -
504), press [ ]-button to confirm.
4. Select "M.ASL."-menu,press[ ]-button and use [ ] and [ ] buttons to select "d.AbL."(no master or
slave),press [ ]-button to confirm.
5.Press the [ ]- button.Choosen address is shown on the display.
If message "A001" (with actually stored address) flashes-no DMX data received at the DMX-input.
- Master/slave adressing
1. Press the [ ]- button so many times until the display shows message "A001" (with actually stored
address).
2. Press [ ]-button and use the [ ] and [ ] buttons to select "MA.SL."-menu.
3. Press [ ]-button(display flashes) and select"MASt"(to set the fixture as the master in a chain of multiple
fixtures) or "SLA.1"-"SLA.9" (to set the fixture to be the slave in a chain of multiple fixtures) and press [ ]
to confirm. If you want address no master or slave, select "d.AbL.".
4.Press the [ ]- button.Choosen address is shown on the display.
If message "MASt." fast flashes-DMX signal is received at the DMX-input- disconnect DMX controller!
Only one fixture may be the master. Up to the 9 slaves may be connected to the master and on the certain
address can be connected only one slave fixture (SLA1-SLA9).

19
Note:Disconectthe fixturesfromtheDMX controllerbeforemaster/slaveoperating ,otherwisedatacollisionscan
occur and the fixtures will not work properly!
If the fixture is set as the master and DMX signal is connected to its input,the error massage "MAEr" will appear
onits displayand thefixture's addresswill be setto its DMXaddress inorder torespondto DMXsignal fromthe
controller.
Forexample:
The master fixture has this address setting:"dM.Ad."-menu.........A010
"MA.SL."-menu........MASt (is displayed)
The DMX signal is connected to the master fixture.The message "MAst" starts fast flashing and after 20s error
massage "MA.Er" appears on its display and the fixture automatically will be switched to its DMX address
(masteraddress isdisabled).
Now the fixture has the address setting: "dM.Ad."-menu.........A010 ("A010"/" MA.Er"blinks )
"MA.SL."-menu.........d.AbL.
If the fixture is set as the slave and DMX signal is connected to its input,the fixture will respond to DMX signal
fromthe controller(independence onthe fixture's DMXaddress).
9.2 Slave control
This function allows you to control the slaves from the master's control panel in a master/slave operation.
Selectthis functionfrom themainmenu andpress [ ]-button.Browsethelist ofallconnected slaves("SL.C.1"
- "SL.C.9") bypressing[ ] and[ ] bottons.Selectthedesired slaveandpress [ ]-button.Theslave's control
panel is available from the master's control panel.
If no slave is connected to the master,massages "SL.C.1","SL.C.2","SL.C3"..."SL.C.9" still round repeat.
Note:This function is available from the master fixture only.
9.3 Fixture informations
The menu allows you to read an useful information about the fixture as the lamp life,head temperature,software
version, etc.
Press [ ] and [ ] buttons to select the desired option and press [ ] to see the value or next submenu.
Power On time
-By this option you can read the total number of the operation hours since the
COLOR SPOT 150 has been fabricated.Press [ ] or [ ] to return to the
menu.

20
-The numberof thehoursthat theCOLOR SPOT150has beenpoweredOn since the
counterwas last reset.Press [ ] or [ ] to return to the menu.In order to reset
this counter to 0, you have to hold the [ ] and [ ]-button and press the [ ]-
button.
Lamp On time
-This option enables you to read the total number of the operation hours with the lamp
on since the COLOR SPOT 150 has been fabricated.Press [ ] or [ ] to
return to the menu.
-The number of hours that the lamp has been powered On since the counter was last
reset.Press [ ] or [ ] to return to the menu. In order to reset this counter to 0,
you have to hold the [ ] and [ ]-button and press the [ ]-button.
Lamp strikes
- By this option you can read the total number of the lamp strikes since the COLOR
SPOT 150 has been fabricated.Press [ ] or [ ] to return to the menu.
-The number of the lamp strikes since the counter was last reset.Press [ ]
or [ ] to return to the menu. In order to reset the counter to 0, you have to hold the
[ ] and [ ]-button and press the [ ]-button.
- DMX values
Readout DMX values of each channel received by the fixture. Use the [ ] and [ ] buttons to select desired
channel and press [ ] to read its value coming to the fixture or [ ] to cancel and return to the menu.
- Software version
By this function you can read the software version of the display module. Press [ ] to read its value or [ ]
to return to the menu.
9.4 Personality options
Theseoptionsallow youto modifyCOLORSPOT150operating behavior.
Press [ ] and [ ]buttons to select the desired option and press [ ] to set the value or to see next submenu.
