Elite Screens CineTension 2 Series User manual

1
Rev.102111-AS
www.elitescreens.com [email protected]
Tab-tensioned Electric Motorized Projection Screen
CineTension 2 Series
User’s Guide

2
Rev.102111-AS
www.elitescreens.com [email protected]
Make sure to read this user’s guide and follow the procedure below.
•Please retain this user’s guide for future reference.
•To avoid damaging the unit, do not use with any unauthorized accessories not
recommended by the manufacturer.
•Handle the unit carefully during transportation to avoid any damages.
•To ensure safe and reliable operation, direct connection to a properly grounded power
source is advised.
•The power outlet supplying power to the unit should be close to the unit and easily
accessible.
•Do not install the unit on uneven or inclined surfaces.
•Do not place any heavy objects over the power cord.
•Position the power cord properly to avoid creating a trip obstacle.
•To avoid an electrical shoc or fire, due to a loose contact or short circuit, do not
overload the power cord.
•The internal & external parts of this unit are not end user serviceable. Do not attempt to
disassemble this unit by yourself. No one except authorized technicians can open and
ma e repairs to this unit.
•Ma e sure the power source that this unit is connected to has a continuous power flow.
•If there is need to use an extension cord, ma e sure the cord has an equal rating as the
appliance to avoid over heat.
•Do not handle the power plug when your hands are wet or your feet are in contact with
water.
Do not use this unit under the following circumstances.
•Disconnect the power cord under the conditions of heavy rain, wind thunder or
lightning.
•Avoid direct sun light, rain shower and moisture.
•Keep away from fire sources and high temperature to prevent this device from
overheating.
•Cut off the power supply first before transportation or maintenance.
•To avoid possible injury and/or an electric shoc , do not attempt to use this screen if
there is obvious damage or if there are any evident bro en parts.
Important Safety & Warning Precautions

3
Rev.102111-AS
www.elitescreens.com [email protected]
Due to various installation environments, the instructions provided in this user’s guide are for
reference only. Please consult a professional installation company for further installation and
safety advice. The installer must insure that proper mounting hardware is used to provide
adequate strength suitable for the installation. Elite Screens is not liable for any faulty
installations. or limit adjustment instructions, please contact our Technical Support
Department at [phone] Ext. 604.
The Screen’s Top Black Drop is already set to its maximum drop distance. There is NO extra top black
drop in the roller. Please be aware of this as it will void the limitation of your warranty.
Individual modifications to this product are prohibited and will void the warranty with the
manufacturer. Please contact Elite Screens Customer Service for any questions.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
owever, there is no guarantee that the interference will not occur on a particular installation. If this
equipment causes harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures.
Reorient or relocate the receiving antenna of the device which may be casing the interference.
Increase the separation between the screen and the device’s receiver.
onnect the equipment into a different power outlet other than the device.
1. Carefully unpack the screen.
2. Always handle the screen in a leveled position on a clean surface.
3. In order to protect the screen from exposure to stains, keep the screen out of contact with
foreign particles such as dust, sawdust, and/or liquids.
Regardless of the mounting method, the screen should be securely supported so that the vibration or
pulling on the viewing surface will not cause the casing to become loose or fall. The installer must insure
that the fasteners used are of adequate strength and suitable for the installation location.
Installation Warning
Pre-Installation
NOTE

4
Rev.102111-AS
www.elitescreens.com [email protected]

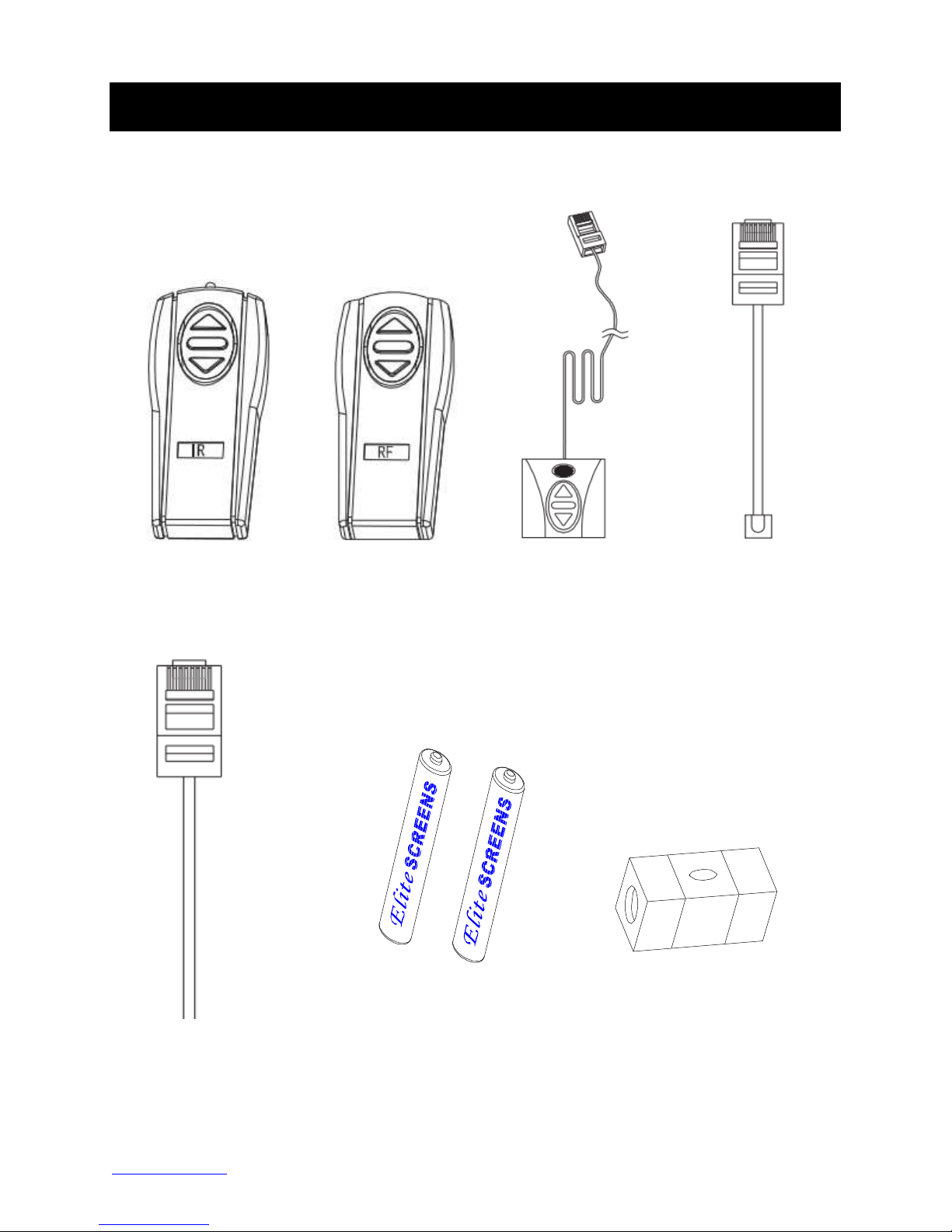

Please make sure all accessories listed below are included before proceeding.
A. B. C. D.
IR Remote RF Remote 3 Way Wall Switch IR Eye Receiver
Red+ Green-
E. F. G.
12V Trigger AAA Batteries Bubble Level
Accessories for CineTension 2 Series

5
Rev.102111-AS
www.elitescreens.com [email protected]
3
-
way Wall swit
ch
UP
Stop
D
o
wn
5-12 Volt Trigger Cable

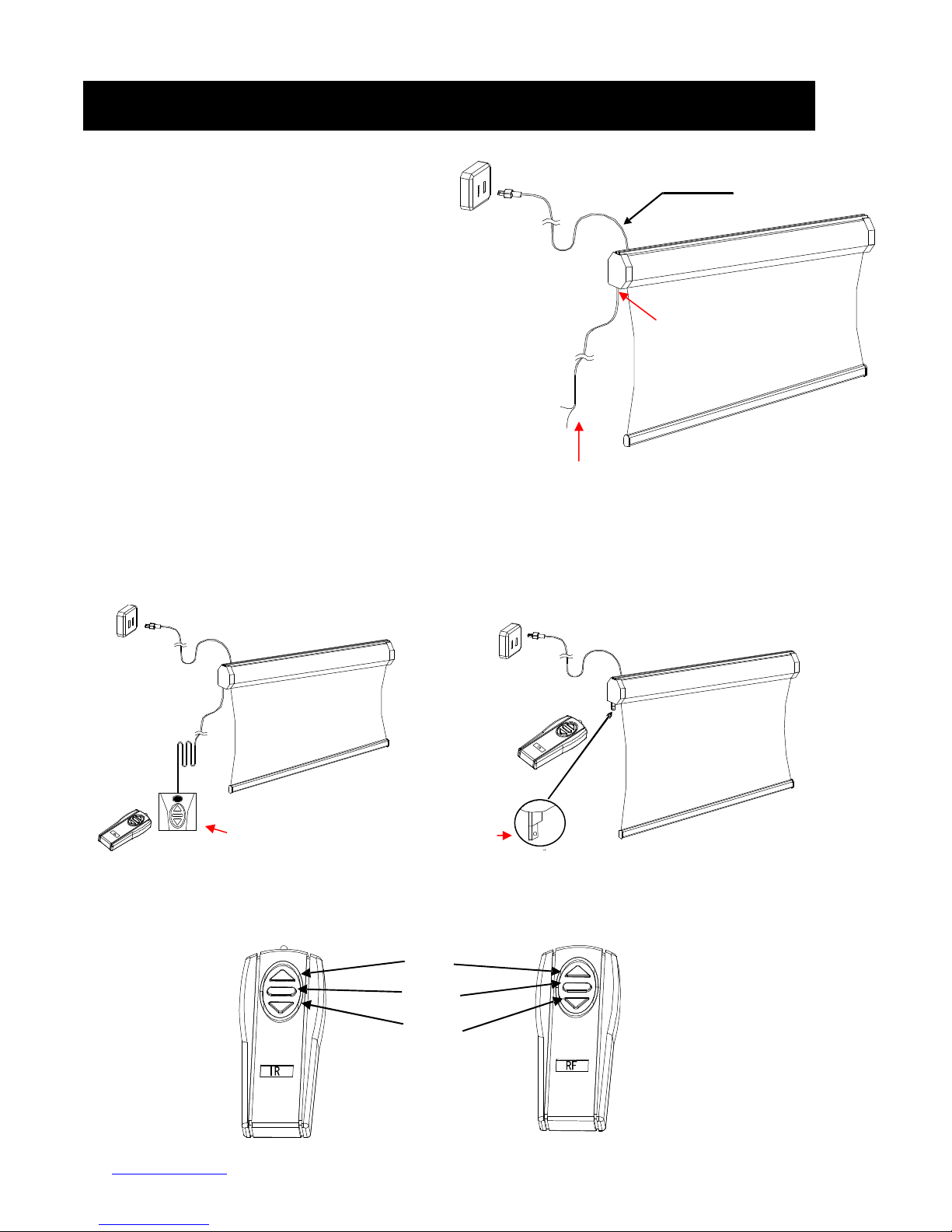

Control System for CineTension 2 Series
1. 5
-
12V Trigger:
The built
-
in 5
-
12V trigger input
allows your screen to synchronize its drop & rise
with the projector’s power cycle. The screen
deploys when the projector powers up and will
retract when the projector powers down. The 5-12
volt adaptor connects to your projector’s trigger
output via a separate cable that may or may not
be provided by the manufacturer of the projector.
The trigger feature will not work without an
output cable from the projector, but it can be
tested by connecting the Red (+) and Green (-)
cable to a 9-volt battery.
3
-
prong power cable
Red: DC 12 +
Green: 0 V -
RJ
-
45 input for 5
-
12V Trigger
2.
3
-
Way Wall Switch:
The 3
-
way wall
switch is a wall mount control box with
an up/stop/down button and plugs
directly into the screen’s RJ-45 input.
3. IR “Eye” Receiver:
The IR “Eye” Receiver plugs
directly into the screen’s RJ-45 input to present a low
profile line-of-sight control option for your IR remote
control even in a recessed ceiling installation.
IR “Eye” Receiver
4. IR Remote ontrol:
The Infrared
functions by direct line of sight contact
with a beam range of 30 feet.
5. RF Remote ontrol:
The radio
waves eliminate the need for a direct
line of sight with a range of 150 feet.

Rev.102111-AS
www.elitescreens.com [email protected]
Please make sure all items listed below are included before proceeding with the installation.
Please consult a professional installer. Elite Screens is not liable for any faulty installations.
1. Insert each Bolt (B) through the right & left slide channel located on the top of the screen’s case.
2. Slide the Extruded Hanging Bracket (D) through the rail located below the slide channel until it
meets with the top of the Bolt (B) and slightly secure the lug-nuts located on the top & bottom
of the bolt to attach the bracket.

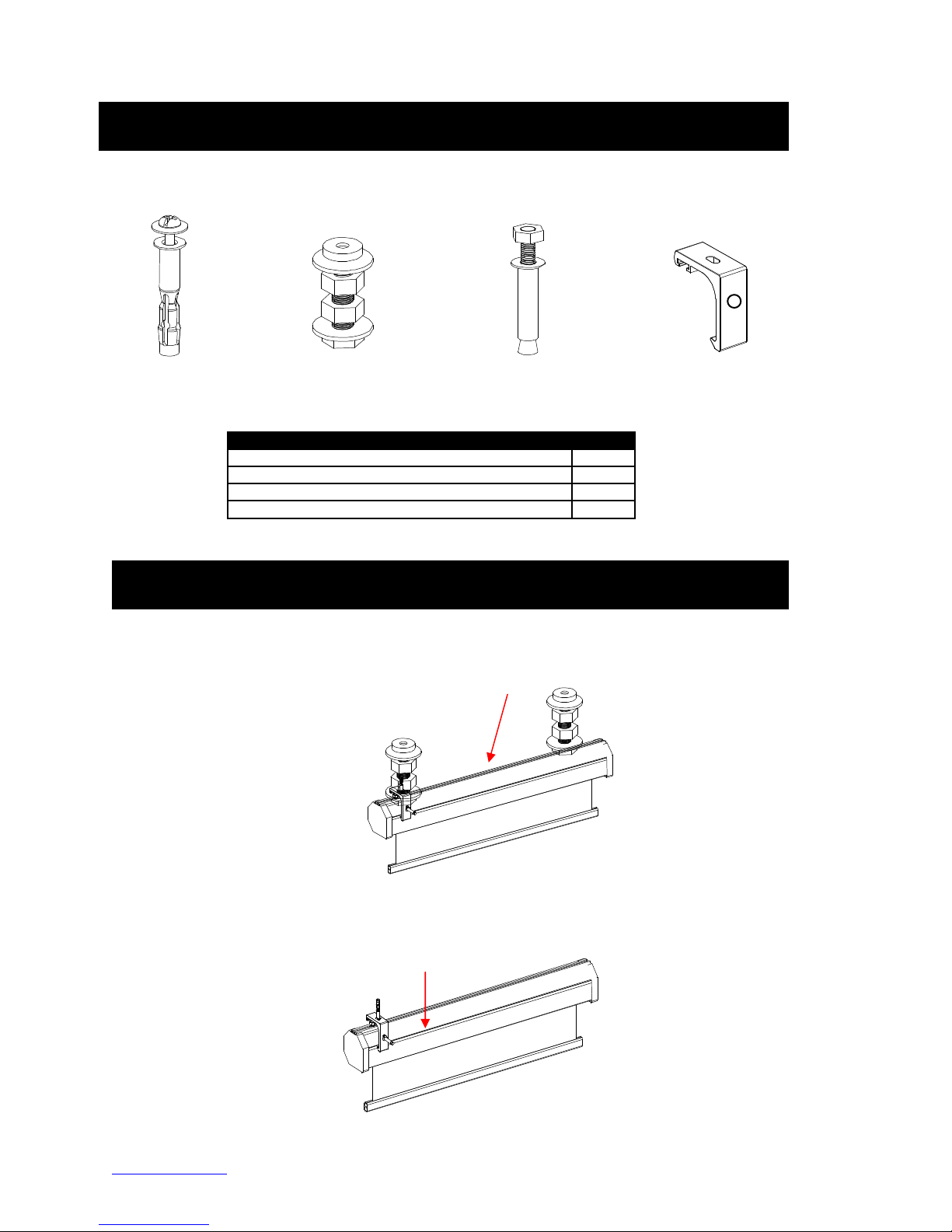

Hardware Parts List
QTY
A
.
Screw & Dry Wall Anchor
2EA.
B
.
Bolt
2
.
Masonry Screw & Anchor
2EA.
D
.
Extruded Hanging Bracket
2
or 3
Hardware Parts List for CineTension 2 Series
A
B
C
D
120” & above x 3
brackets
Installation Instructions

7
Rev.102111-AS
www.elitescreens.com [email protected]
3. Mark the installation location to drill your hole. Insert the proper screw and secure the bolts to
the bracket.
4. Example of the CineTension 2 installed to a wall, ceiling and enclosed.
Adjusting the Tension String
This adjustment is not required. The screen’s tension has been set to achieve its best performance.
Please contact Elite Screens for assistance to avoid damaging the screen and voiding your warranty.
1. If the tension string is loose, pull and turn the tension knob clockwise to tighten the string. To
release the tension, pull and turn the knob counter-clockwise.
Top hole for ceiling installation
Back hole for wall installation
Flush mount
to wall
Flush mount
to eiling
En losed
installation
*
Allow 2” of spa ing
between the front and
ba k of the s reen asing.
Tension Knob

8
Rev.102111-AS
www.elitescreens.com [email protected]
For additional information, please contact Elite Screens at te[email protected]om
1. If your screen does not move, please check the power supply. The screen will understandably
not move without power.
2. Make sure the power cord is firmly plugged to the power outlet.
3. Make sure that all cable connections are secure.
4. If the screen works well with the line switch but not with the remote control, please make sure
the remote controls have fresh batteries. Change the batteries every 6 months to ensure proper
operation of the remotes.
1. Q: Why does my screen no longer function?
A: Make sure your wall plug has power and that the screen is properly plugged. The fuse on the
screen will also need to be checked. Please contact [e-mail] for the
location. The tubular motor in this screen is equipped with a thermal relay. This feature will
automatically shut off the screen in the event of the motor becoming too hot. This will prevent
the motor from overheating. If you should experience this, please let the screen’s temperature
decrease for 10-15 min. before usage.
2. Q: ow is the screen material cleaned?
A: The screen material can be cleaned with mild soap and water.
3. Q: What type of batteries do the remote controls require?
A: The IR and RF remote controls use AAA alkaline batteries.
4. Q: Can you manually pull down the screen?
A: No, manually pulling down the screen will damage the electronic motor rolling system and
void your warranty.
5. Q: ow could I setup my Screens IR receiver to work with my learning remote control system
Do you have any IR codes I can use to achieve this?
A: Our IR remote controls have been evaluated and entered in to the databases of some
Universal remote control manufacturers. Please contact the manufacturer of your remote to
inquire about your remotes ability to function with ours. If they have not evaluated our remote
control then the following list of Binary codes will be used for most remote setups.
For Spectrum, VMAX2 (Plus), ome2 and ineTension 2 Series
Up: 1111 0000 0001
Stop: 1111 0000 0010
Down: 1111 0000 0100
6. Q: What is the gain on the matte white screen material?
A: The matte white material has a gain of 1.1. For detailed information, please visit
www.elitescreens.com/cinetension2
Troubleshooting & FAQ’S

9
Rev.102111-AS
www.elitescreens.com [email protected]
* Measurement dimensions are intended as a reference only and subject to change without notice Note: Data Error may be ±1"

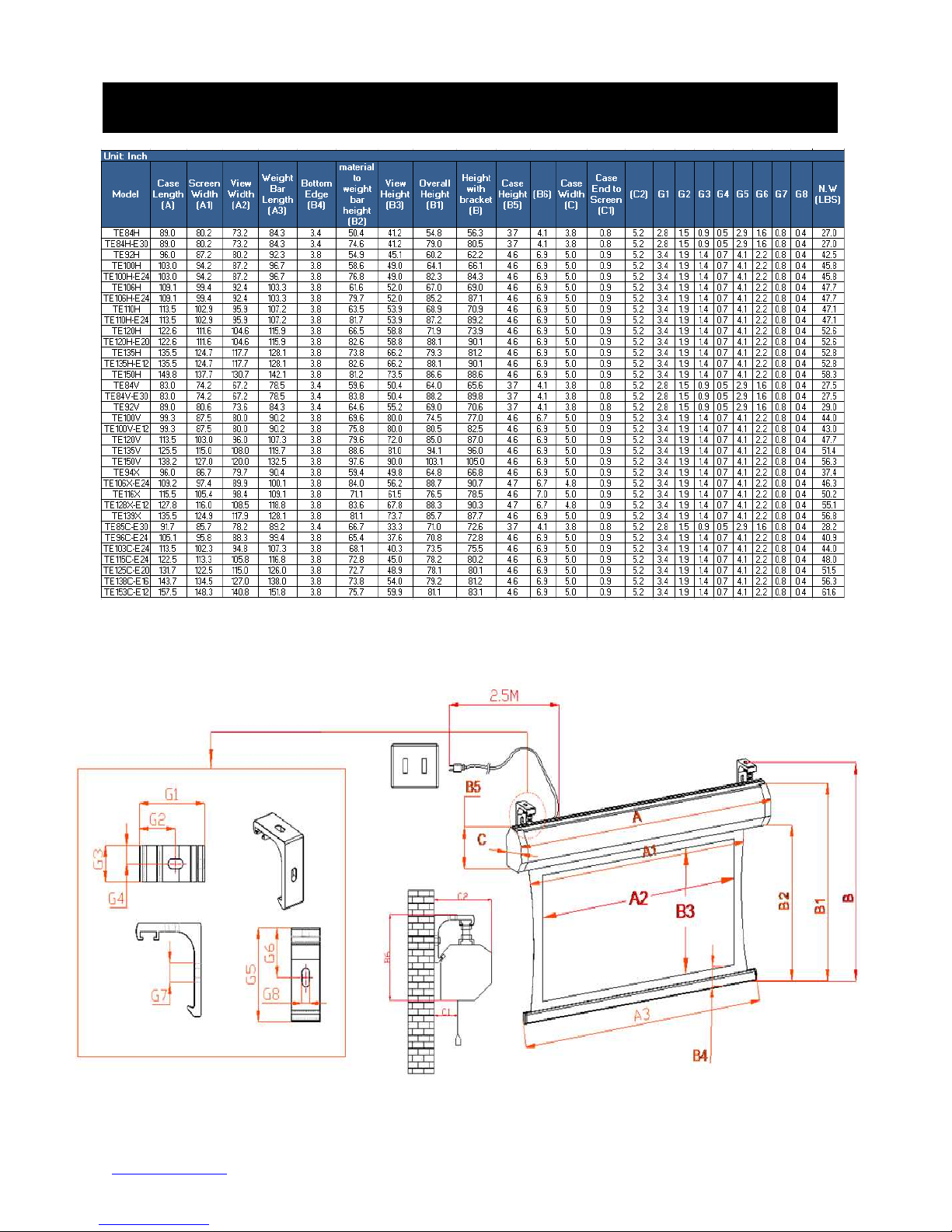

CineTension 2 Dimension Table

10
Rev.102111-AS
www.elitescreens.com [email protected]
•Two (2) Year parts and labor warranty from defects in workmanship from purchase date as
follows (except for refurbished units as specified below).
•Three (3) Year parts and labor warranty from defects in workmanship for GEMR (Government,
Educational, Military, & Religious) purchases of new product only.
•Refurbished Units carry a 90-DAY parts and labor warranty.
•Each party will be responsible for one way shipping during the warranty period.
•A RMA (Return Merchandise Authorization) number must be issued in order to process a
replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option
replace or repair the defective unit with a replacement *(see exceptions below) after the
defective unit or parts have been received. Once the product is received, Elite Screens will send
out a replacement *unit to the customer by ground service (subject to inventory availability).
•Do Not Return Any Unauthorized Items to Elite Screens, as they will be refused and returned
at your expense. The RMA Number must be included on the outside label of your shipping
box. Our warehouse is not authorized to accept returns without an RMA number on the
shipping label.
•RMA Numbers are valid for 45 days from the date issued.
•Missing Parts must be reported within 7 days of receipt. If reported after 7 days, the customer
will be responsible for shipping and handling fees. If reported after 30 days of receipt, the
customer will be responsible for cost of parts and shipping & handling fees.
*A New or refurbished replacement will be send out to the customer depending on the type of
purchase (new or refurbished) and based on stock availability.
North America only U.S. and anada
For Warranty and Service requests, please submit an RMA/Service Form at:
www.elitescreens.com/warrantysupportform
Please visit this link for full Warranty information:
www.elitescreens.com/warranty
For Customer Service and Technical questions, please contact Elite Screens at:
Telephone: [phone] [e-mail]
Fax: [phone] [e-mail]
REMEMBER TO REGISTER YOUR PRODUCT AT:
WWW.ELITESCREENS.COM
Warranty Policy

11
Rev.102111-AS
www.elitescreens.com [email protected]
US & Canada Tech Support & Warranty Claim
Please contact us at ser[email protected]om or call [phone] #3 or fax [phone]
Europe Tech Support & Warranty Claim
Please contact us at ser[email protected] or call [phone]
Asia Tech Support & Warranty Claim
Please contact us at ser[email protected]om.cn or call [phone]
Taiwan Tech Support & Warranty Claim
Please contact us at ser[email protected]om.tw or call +866+2+8990-1999
America: Europe:
Elite Screens Inc Elite Screens Europe
16410 Manning Way Lübecker Straße 1
Cerritos, CA 90703 USA 22087 amburg, Germany
Tel: [phone] Tel: [phone]
Fax: [phone] Fax: [phone]
[email protected] [email protected]
www.elitescreens.com www.elitescreens.eu
Asia: Elite Screens France S.A.S
Elite Screens China Corp. 11, Allée William Penn
Longxi Duimianling Industry Zone 92150 Surenes, rance
Longcheng Longgang District, Tel: [phone]
ShenZhen GuangDong, China ax: [phone]
Tel: [phone] [e-mail]
ax: [phone] www.elitescreens.com/fr
[e-mail]
www.elitescreens.com.cn
Japan:
Taiwan: Elite Screens Japan Corp.
Elite Screens Taiwan Corp. 467-2-606 Tsuruma, Machida-shi,
4 ., No. 42-1 Wuguan Rd. Wugu Township Taipei Tokyo, 194-0004 Japan
County 248, Taiwan (Wugu Industrial Park) Tel: [phone]
Taiwan (R.O.C) ax: + 81(0)42-706-9130
Tel: +886+2+8990-1999 [e-mail]
ax: +886+2+8990+1366 www.elitescreens.jp
[e-mail]
www.elitscreens.com.tw
Latin America ontact:
[email protected]
East Asia ontact:
[email protected]
India ontact:
[email protected]
Contact Information
