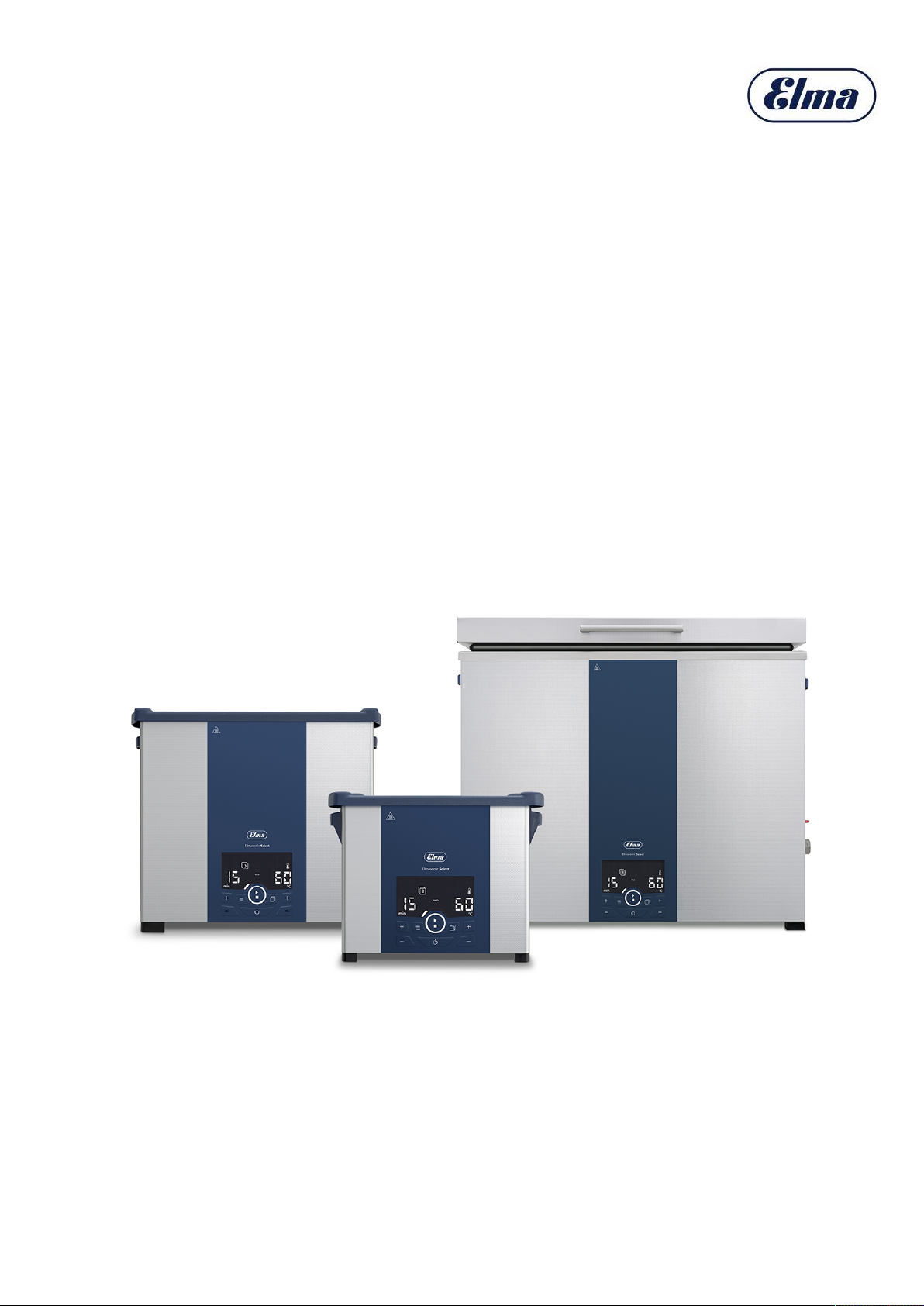

Elma Elmasonic Select Repair manual

04/2021
Translation of the original manual
Elmasonic Select
Ultrasonic cleaning unit
english
Version 1
Item No. 1112616

Copyright © 2020 Elma Schmidbauer GmbH. All rights reserved.
Elma Schmidbauer GmbH
Gottlieb-Daimler-Strasse 17
78224 Singen (Germany)
www.elma-ultrasonic.com
Technical Support:
Tel.: + 49 7731 882-280
Email: [email protected]
Subject to technical modifications and modifications to appearance.

Contents
1 About this manual...................................... 4
1.1 User.....................................................4
1.2 Other applicable documents................4
1.3 Factory settings ...................................4
1.4 CE mark ..............................................5
2 Proper use .................................................. 5
2.1 Ultrasonic cleaning ..............................5
2.2 Misuse .................................................5
3 Safety .......................................................... 6
3.1 The structure of warnings....................6
3.2 Meaning of symbols on the unit...........6
3.3 Meaning of symbols on the nameplate
............................................................6
3.4 Safety information on specific types of
hazard .................................................7
4 Use of cleaning agents.............................. 8
4.1 Permissible cleaning agents................8
4.2 Cleaning agents ..................................8
5 Technical data .......................................... 10
5.1 Elmasonic Select 30–60....................10
5.2 Elmasonic Select 80–120..................10
5.3 Elmasonic Select 150–300................11
5.4 Elmasonic Select 500/900.................12
5.5 Elmasonic Select 30–900..................13
6 Product contents ..................................... 14
7 Unit description........................................ 15
8 Controls .................................................... 16
8.1 Ultrasound mode display...................17
8.2 Operating status symbols..................17
8.3 Operating modes...............................18
9 Set up and connect the unit .....................18
9.1 Notes on installation site.....................18
9.2 Set up the unit ....................................19
9.3 Connect the unit .................................19
10 Insert objects to be cleaned.....................20
11 Fill the tank ................................................20
12 Operating the unit .....................................21
12.1 Switch on the unit ...............................21
12.2 Set the cleaning duration....................22
12.3 Set the target temperature..................22
12.4 Switch the heating on/off ....................22
12.5 Set the ultrasound mode ....................23
12.6 Set auto-degas ...................................23
12.7 Set Temperature-controlled start........23
12.8 Start ultrasonic cleaning .....................24
12.9 Save programmes ..............................24
12.10 Start a saved ultrasonic cleaning
programme .........................................25
12.11 Switch off and save ............................25
12.12 Remove cleaned objects ....................26
13 Drain the unit .............................................26
14 Change parameters in Setup ...................27
15 Malfunctions/fault messages ...................29
15.1 Troubleshooting..................................29
15.2 Fault messages ..................................29
16 Maintenance ..............................................30
16.1 Replace the network cable .................30
16.2 Clean enclosure..................................31
16.3 Cleaning the tank................................31
16.4 Disinfect..............................................31
16.5 Clean the blower, and check that it is
working correctly.................................31
16.6 LED test..............................................32
17 Disposal .....................................................32
Elma Schmidbauer GmbH Contents
Elmasonic Select iii

1 About this manual Elma Schmidbauer GmbH
4 / 32 Elmasonic Select
1 About this manual
IMPORTANT
Please read the manual before using the product. This manual forms part of the
contents supplied with the unit. Keep the manual in an accessible place close to the
product, and keep it with the product if it is sold on.
Meaning of the symbols used:
This symbol denotes lists.
This symbol denotes requirements.
Numbers with a dot denote actions.
This symbol denotes individual actions.
This symbol denotes interim results.
This symbol denotes the result of an action.
Numbers without a dot denote image labels.
1.1 User
In the manual, the term User refers to all persons who transport, set up, connect, operate and maintain
the unit. The manual is aimed at persons with appropriate technical knowledge and experience in
handling similar units.
The user is at least 16 years old. They must have read and understood the manual and be capable of
following all notes and instructions.
All tasks that go beyond the pure operation of the unit within the scope described here must be
performed by qualified and authorised specialists.
1.2 Other applicable documents
In addition to the specifications given in this manual, the following documents and directives also apply
and may take precedence. This list is not exhaustive:
• Regional safety regulations and other locally applicable provisions.
• Safety data sheet and dosing instructions of the cleaning agents used.
1.3 Factory settings
The unit is delivered with predefined factory settings that determine the type and version of various unit
functions. All information given in this manual is based on the use of a unit that is being operated with
the factory settings unchanged.
Unit functions can be customised in Setup mode. If this has been done, the unit functions can differ from
the information given in this manual. If discrepancies are found, the unit can be reset to the factory
settings [}27].

Elma Schmidbauer GmbH 2 Proper use
Elmasonic Select 5 / 32
1.4 CE mark
This unit fulfils CE marking requirements in line with EU (EC/EEC) directives. Details are stated in the
EU declaration of conformity that can be obtained from the manufacturer.
Technical changes to the unit must be approved by the manufacturer. The unit is no longer CE
compliant if opened by an unauthorised person.
2 Proper use
2.1 Ultrasonic cleaning
Only use the product in line with the listed specifications.
Using the unit in any other way is considered improper use.
• The product is intended for ultrasonic cleaning of objects with liquids.
• Do not use flammable liquids.
• Do not clean living creatures or plants.
• The product is only suitable for use in rooms.
• The product is designed for liquids that do not produce any vapours harmful to humans. If such
liquids are used, extra safety measures must be implemented e.g., personal protective equipment.
• The user is responsible for assessing the cleaning results.
• Only authorised, qualified personnel who are familiar with the manual may operate this product.
Unauthorised persons, in particular children, must not use this product.
• Only use original accessories made for this product.
2.2 Misuse
Misuse refers to any use of the unit that deviates from proper use. Any misuse takes place at the
user's own risk and incurs the following consequences:
• The warranty is invalidated if the unit is misused.
• All liability for personal injuries and damage to property is excluded.
Therefore, it is vital to prevent misuse. This particularly applies to foreseeable misuse that can, for
instance, arise in the following circumstances:
• Operation by persons who are incapable of operating the unit safely due to their physical, sensory
or mental abilities, due to inexperience or due to a lack of knowledge. Children, in particular, must
be kept away from the unit at all times.
• Failure to observe safety and warning notifications and maintenance and repair regulations.
• Failure to observe the conditions and fluids defined in the manual during setup and operation.
• Operation using unapproved cleaning agents.
• Operation in areas with explosive atmospheres.
• Operation connected to a power supply without a fault-current circuit breaker.
Use for the following purposes is also considered misuse:
• Cleaning or hydrating contact lenses.
• Cleaning animals or plants.

3 Safety Elma Schmidbauer GmbH
6 / 32 Elmasonic Select
3 Safety
3.1 The structure of warnings
SIGNALWORD
Type and source of the danger
Possible consequences of the danger if disregarded.
ØMeasures to prevent the danger.
Signal word Meaning Consequences if disregarded
DANGER Immediate danger Death or serious injury
WARNING Possible dangerous situation Death or serious injury
CAUTION Possible dangerous situation Slight injuries, damage to components or units
NOTICE Useful advice or tip No risk of personal injury, but possible damage to
components or units
Table1: Meaning of the signal words
3.2 Meaning of symbols on the unit
Warning – hot surfaces, vapours and liquids
3.3 Meaning of symbols on the nameplate
Attention
Order number
Read the manual
CE mark
Disposal information

Elma Schmidbauer GmbH 3 Safety
Elmasonic Select 7 / 32

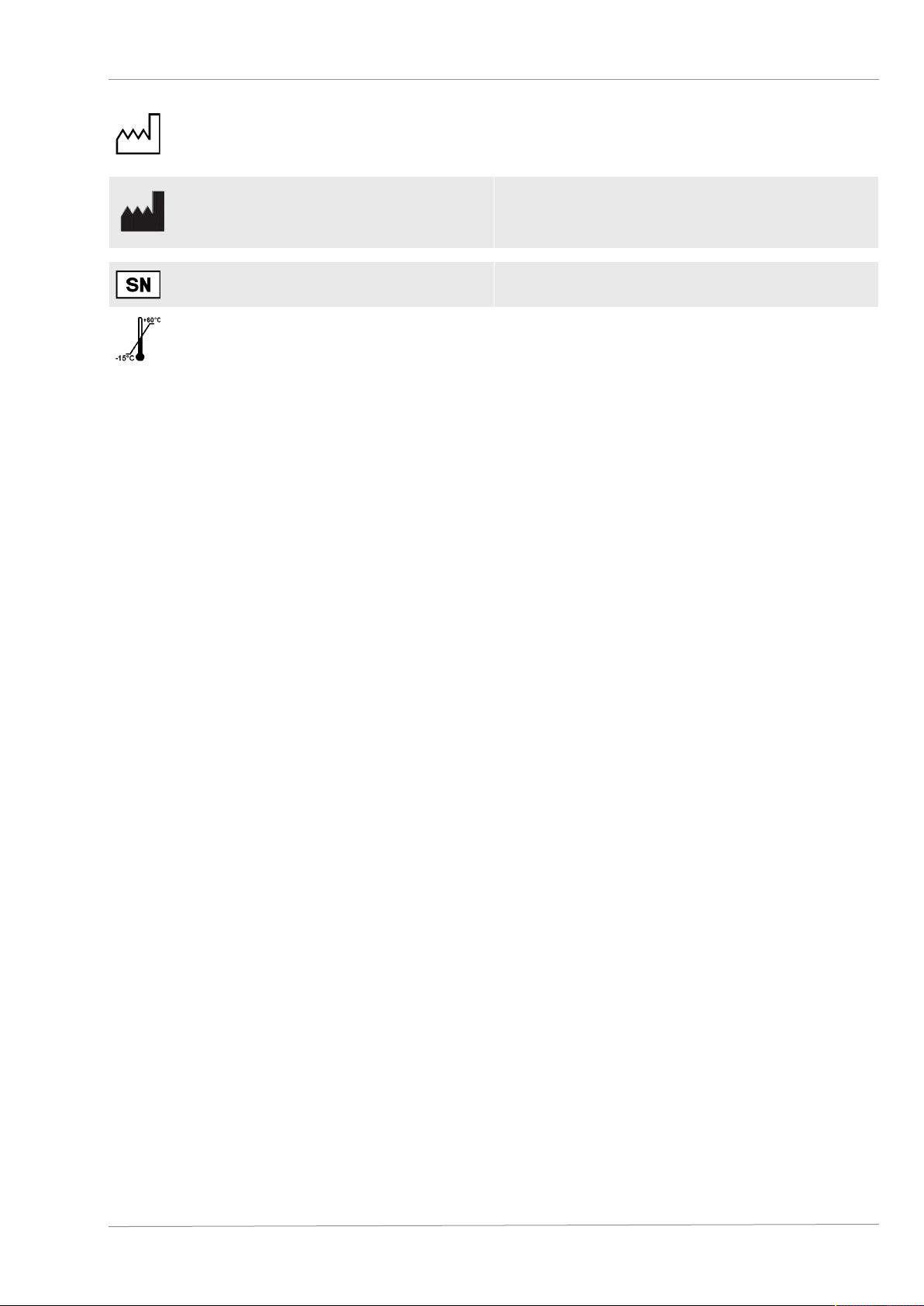

Date of production
Manufacturer
Serial number
Temperature limit
3.4 Safety information on specific types of hazard
Electrical power
Contact with live components can lead to serious
injury or death due to electrocution!
• Do not connect the unit to the power supply if the connection cables or other components are
visibly damaged.
• Keep the enclosure and control elements clean and dry.
• Protect the unit against penetrating moisture.
• The mains voltage and the connected load on the nameplate must correspond to the on-site
connection conditions.
• Only operate the unit in power circuits that are protected by a fault-current circuit breaker.
Risk of fire and explosion
Critical injuries, burns
• Do not fill the cleaning tank with flammable liquids.
• Only use cleaning agents that are approved for this unit.
• In case of doubt, ask the manufacturer or supplier.
Infections
Danger of possible infection due to poor cleaning results, dirty cleaning fluid and insufficient
maintenance and disinfection of the unit.
• Change the cleaning fluid when it becomes visibly dirty and at least once per day.
• Clean the tank and surfaces thoroughly after draining the fluid and disinfect, if necessary.
• Check the cleaning results. The operator is responsible for monitoring the cleaning results.
Hot liquids and surfaces
Danger of burns and scalds due to contact with hot fluids or surfaces caused by high operating
temperatures or continuous ultrasound operation.
• Do not touch the surfaces, accessories or objects being cleaned.
• Danger of splashes caused by high temperatures, by switching on ultrasound operation or by
careless insertion of the basket or objects. If necessary, wear suitable protective equipment.
• If work must be performed on hot components, switch off the unit and allow to cool. If necessary,
wear suitable protective equipment.

4 Use of cleaning agents Elma Schmidbauer GmbH
8 / 32 Elmasonic Select
Cleaning agents
Volatile, corrosive or aggressive cleaning agents can cause chemical burns to the skin and respiratory
tract.
• Observe the safety data sheet when using cleaning agents.
• Wear the protective equipment stipulated in the safety data sheet.
• Where necessary, provide adequate extraction for the emitted vapours and regularly check that the
extraction system is working correctly.
• Observe the information stipulated in the Cleaning agents chapter. In case of doubt, ask the
manufacturer or supplier.
Ultrasound-conductive liquids and materials
Ultrasound damages the cell membranes and bone structure.
• Do not reach into the ultrasonic bath during ultrasound operation.
• During ultrasound operation, do not touch any parts that conduct ultrasound, such as the tank,
basket or any accessories used.
Ultrasound noise emissions
Working with ultrasonic cleaning units for longer periods of time can damage your hearing.
• Use the lid or wear personal ear protection when working on ultrasonic units.
• Pregnant women must not be subjected to the noise emissions for longer periods of time.
• Keep animals away from the vicinity of ultrasonic devices.
Electromagnetic radiation
• No binding statement can be made for persons with active medical implants, such as pacemakers or
implanted defibrillators. A binding statement can only be made for specific workstations and in
consultation with the implant manufacturer.
4 Use of cleaning agents
A cleaning agent can be added to the liquid in the tank to improve the cleaning results.
If using cleaning agents, observe and apply the instructions stated in the safety data sheet and product
information.
Also observe the following information:
4.1 Permissible cleaning agents
• Only use aqueous cleaning agents for ultrasonic cleaning.
• Only use cleaning agents that are suitable for ultrasonic cleaning.
Elma provides a wide range of aqueous cleaning agents developed in-house that are optimised for
ultrasonic cleaning.
A list of Elma cleaning agents can be found here:
https://www.elma-ultrasonic.com/en/products/cleaning-chemistry/
4.2 Cleaning agents
The following limitations also apply if the chemical compounds listed below are introduced as
contamination or in the form of carry-over into the stainless-steel tank filled with cleaning agents.

Elma Schmidbauer GmbH 4 Use of cleaning agents
Elmasonic Select 9 / 32
Use of aggressive, corrosive cleaning agents:
Aggressive, corrosive cleaning agents can cause severe chemical burns if they come into contact with
eyes or skin. Insufficient ventilation can result in severe chemical burns to the respiratory tract.
• Before using any cleaning agents, read the safety data sheet and product information and observe
and apply the instructions.
• Where necessary, install an effective extractor system for the emitted vapours (e.g. at higher
temperatures) and regularly check that the extractor system is working correctly.
• Never reach into the tank when filled with cleaning agent.
• Wear suitable protective equipment in line with the safety data sheet.
Danger of fire or explosion when using combustible cleaning agents
Ultrasound and heat increase the evaporation of liquids and form extremely fine mists that readily
ignite on contact with sources of ignition. This can result in severe burns or death.
• Do not use cleaning agents that are labelled with the pictograms GHS01 (explosive), GHS02
(flammable) or GHS03 (oxidising) in line with the CLP regulation (EC no. 1272/2008). Do not use
cleaning agents that have a flashpoint.
• If necessary, clarify the cleaning agents that can be used by consulting the manufacturer or
supplier.
GHS01 GHS02 GHS03
Table2: GHS pictograms for explosive, flammable or oxidising substances
Damage to the stainless-steel tank caused by unsuitable cleaning agents
Unsuitable cleaning agents can cause pitting and therefore damage the stainless-steel tank within a
short time.
• Consult the unit and cleaning agent manufacturers to clarify whether the cleaning agent is
suitable.
• Do not use any cleaning agents in the acidic pH range (pH value <7) at the same time as halides,
such as fluoride, chloride, bromide or iodide.
• Only use cleaning agents that are suitable for ultrasound applications.

5 Technical data Elma Schmidbauer GmbH
10 / 32 Elmasonic Select
5 Technical data
5.1 Elmasonic Select 30–60
Elmasonic Select Unit 30 40 60
Mechanical data
Max. external dimensions W/D/H
(unit with cover) mm 305/170/230 305/170/280 370/210/275
Interior dimensions W/D (tank below
fill level marking) mm 220/120 215/115 275/125
Fill level (tank base to fill level
marking) mm 65 115 115
Working height (basket base to fill
level marking) mm 40 90 85
Recommended tank operating
capacity L 1.6 2.9 4.3
Weight (unit with cover) kg 3.6 3.8 5.2
Performance data
Total power consumption W 320 320 550
Effective ultrasonic power ±10% W 120 120 150
Peak ultrasonic output max. W 480 480 600
Heating power W 200 200 400
5.2 Elmasonic Select 80–120
Elmasonic Select Unit 80 100 120
Mechanical data
Max. external dimensions W/D/H
(unit with cover) mm 570/195/280 380/300/280 380/300/330
Interior dimensions W/D (tank below
fill level marking) mm 475/110 280/220 300/215
Fill level (tank base to fill level
marking) mm 115 115 165
Working height (basket base to fill
level marking) mm 95 80 130
Recommended tank operating
capacity L 6.8 6.8 10.0
Weight (unit with cover) kg 6.9 6.2 7.7

Elma Schmidbauer GmbH 5 Technical data
Elmasonic Select 11 / 32
Performance data
Total power consumption W 750 550 1,000
Effective ultrasonic power ±10% W 150 150 200
Peak ultrasonic output max. W 600 600 800
Heating power W 600 400 800
5.3 Elmasonic Select 150–300
Elmasonic Select Unit 150 180 300
Mechanical data
Max. external dimensions W/D/H
(unit with cover) mm 575/360/230 405/360/330 575/360/330
Interior dimensions W/D (tank
below fill level marking) mm 485/280 300/370 475/270
Fill level (tank base to fill level
marking) mm 65 165 165
Working height (basket base to fill
level marking) mm 35 130 135
Recommended tank operating
capacity L 8.7 14.2 22
Weight (unit with cover) kg 8.8 10.2 12.2
Performance data
Total power consumption W 1,100 1,000 1,500
Effective ultrasonic power ±10% W 300 200 300
Peak ultrasonic output max. W 1,200 800 1,200
Heating power W 800 800 1,200

5 Technical data Elma Schmidbauer GmbH
12 / 32 Elmasonic Select
5.4 Elmasonic Select 500/900
Elmasonic Select Unit 500 900
Mechanical data
Max. external dimensions W/D/H (unit with
cover) mm 770/425/505 870/595/505
Max. external dimensions W/D/H (unit with
sound-protection cover) mm 770/510/975 870/640/1,145
Interior dimensions W/D (tank below fill level
marking) mm 500/330 600/500
Fill level (tank base to fill level marking) mm 235 200
Working height (basket base to fill level
marking) mm 220 190
Recommended tank operating capacity L 40.3 63.7
Weight (unit with cover) kg 30.4 43.4
Weight (unit with sound-protection cover) kg 34.7 49.3
Weight (filled unit with cover) kg 70.1 106.7
Weight (filled unit with sound-protection
cover) kg 74.7 112.5
Performance data
Total power consumption W 2,080 2,960
Effective ultrasonic power ±10% W 480 960
Peak ultrasonic output max. W 1,920 3,840
Heating power W 1,600 2,000

Elma Schmidbauer GmbH 5 Technical data
Elmasonic Select 13 / 32
5.5 Elmasonic Select 30–900
Elmasonic Select Unit 30/40 60–300 500/900
Mechanical data
Drain connection thread Inches – 3/8 3/4
Nominal hose nozzle diameter Inches – DN10 DN20
Material (tank, enclosure) – Stainless steel
Electrical data
Mains voltage ±10% V~ 220–240
Mains frequency Hz 50/60
Ultrasonic frequency –2.5kHz/
+5.5kHz kHz 37
Max. target temperature °C 80
Degree of protection – IP20
Protection class – I
Ambient conditions
Temperature (transport) °C –15 to +60
Temperature (operation, storage) °C +5to +40
Air pressure (transport, storage) hPa 500–1,010
Permissible relative humidity
(transport, storage) % r. h. 10–80, non-condensing
Permissible relative humidity
(operation) % r. h. Max. 80, non-condensing under fluctuating temperature
Max. perm. altitude (operation) m (NHN) +2,000
Overvoltage category – II
Degree of contamination – 2
Sound pressure level LpAU* dB <80
Ultrasonic pressure level Lpz* dB <110
*Measured sound pressure level with lid at a distance of 1m.

6 Product contents Elma Schmidbauer GmbH
14 / 32 Elmasonic Select
6 Product contents
IMPORTANT
Check deliveries for damage to the packaging. Document any damage immediately
(e.g., photo), and report it to the manufacturer or dealer.
Check that all parts of the delivery are complete and undamaged.
Never put a damaged unit into operation.
Dispose of packaging materials that are no longer required in an environmentally
friendly manner.
1 2 3 4
56
Illustration1: Included items (schematic diagram)
1Ultrasonic unit Elmasonic Select 30–300
2Ultrasonic unit with sound-protection cover Elmasonic Select 500/900
3Cover Elmasonic Select 500/900
4Cover and drip tray Elmasonic Select 30–300
5Network cable (IEC connector)
6Hose connector for drain (not available for Elmasonic Select30 + 40)
7Manual (not shown)

Elma Schmidbauer GmbH 7 Unit description
Elmasonic Select 15 / 32

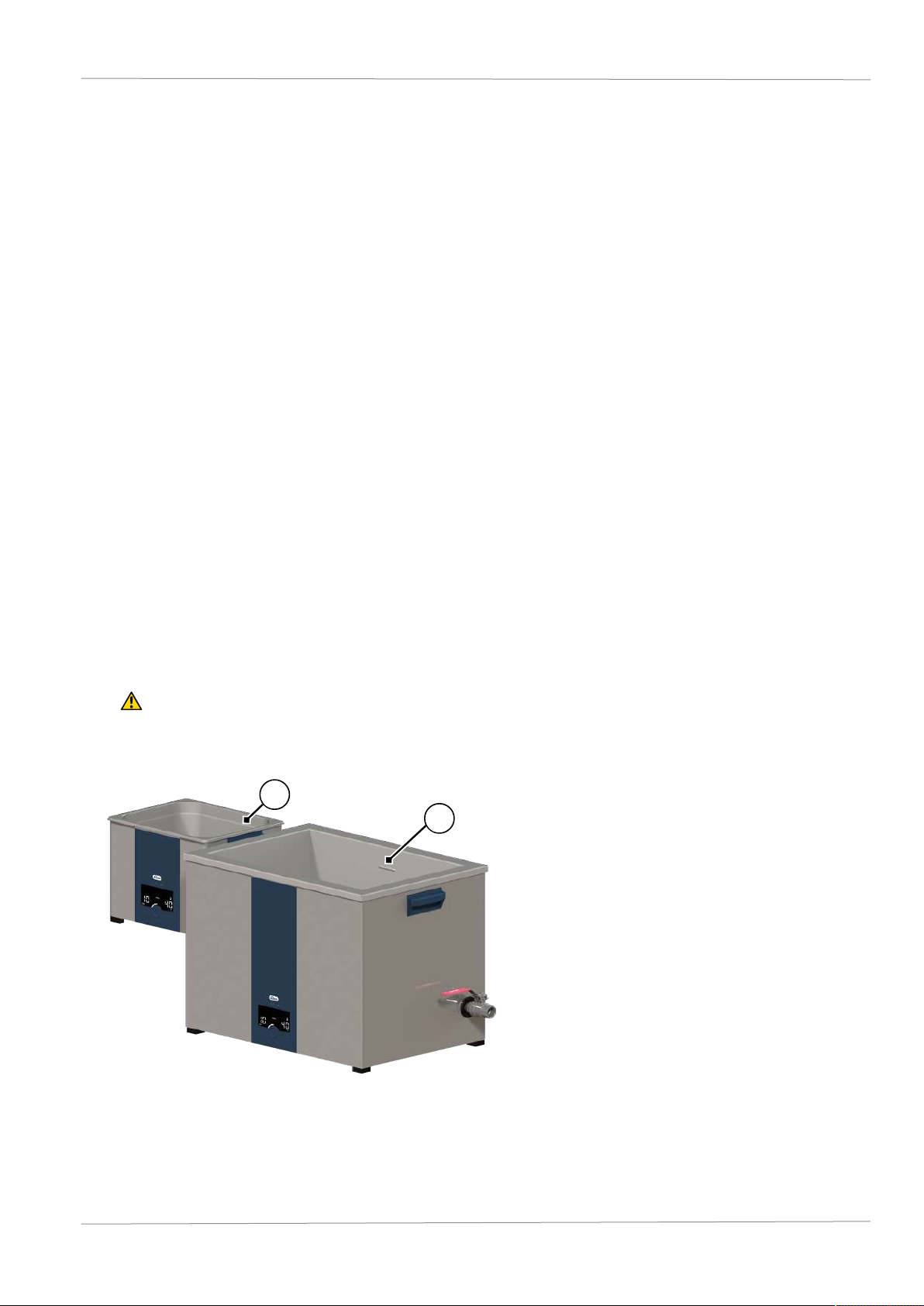

7 Unit description
123
56
7
89
10 4
Illustration2: Operating side/rear side
1 Warning of hot surfaces 7 Rotary switch, open/close drain
2 Display, splash-proof 8 Feet, non-slip
3 Handle 9 Membrane keyboard, wipeable
4 Mains connection 10 Blower on the unit base (not shown) (not
available for Elmasonic Select 30–100)
5 Nameplate, not shown 11 Ball valve, open/close drain (Elmasonic Select
500/900)
6 Drain (not available for Elmasonic
Select 30/40/500/900)
11
Illustration3: Drain of Elmasonic Select 500/900

8 Controls Elma Schmidbauer GmbH
16 / 32 Elmasonic Select

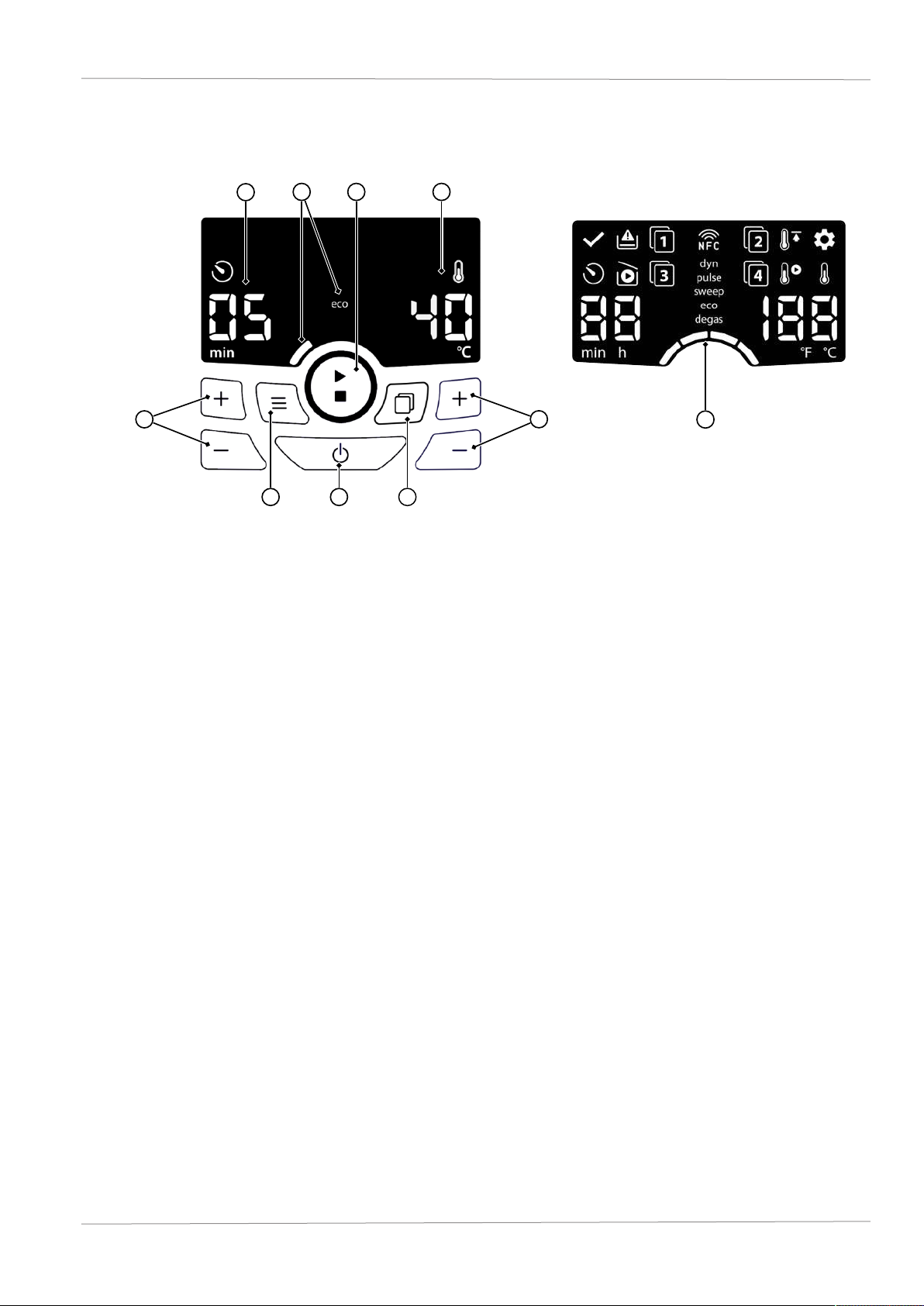

8 Controls
12 3 4
5
678
910
Illustration4: Controls
1Cleaning duration display value/unit/symbol
2Current ultrasound mode display name/bar element
3Start/stop button for ultrasonic cleaning (short press)/ultrasonic cleaning with temperature-
controlled start (long press)
4Temperature display value/unit/symbol
5Plus/minus buttons set temperature/programme memory/parameter values (short press),
quick cycle (long press)
6Select button to switch between programme mode and normal mode (short press)/save
program (long press)
7On/off button switch unit on/off
8Mode button to set ultrasound mode (short press)/ultrasonic cleaning with auto-degas (long
press)
9Plus/minus buttons set cleaning duration/programme memory/parameters
10 Display showing all LED indicators for LED test

Elma Schmidbauer GmbH 8 Controls
Elmasonic Select 17 / 32
8.1 Ultrasound mode display
The display shows the currently set ultrasound mode by displaying the mode name and a certain
number of bar segments. You can choose from the following ultrasound modes:
degas
(0 segments)
auto-degas
(degas
flashing)
Used to degas cleaning fluid and for specialist laboratory applications.
Used to degas the cleaning fluid before ultrasonic cleaning. The set
ultrasound mode starts automatically once degassing has been
completed (duration approx. 10min.).
eco
(1 segment)
Used for gentle cleaning and quieter operation. The sweep ultrasound
mode is a lower-intensity cycle.
sweep
(2 segments)
This mode performs most cleaning tasks with an evenly distributed sound
field (standard ultrasound mode).
pulse
(3 segments) Removes stubborn dirt using pulsed sound field distribution.
dynamic
(4 segments)
Combines the ultrasound modes sweep and pulse to improve the overall
cleaning power.

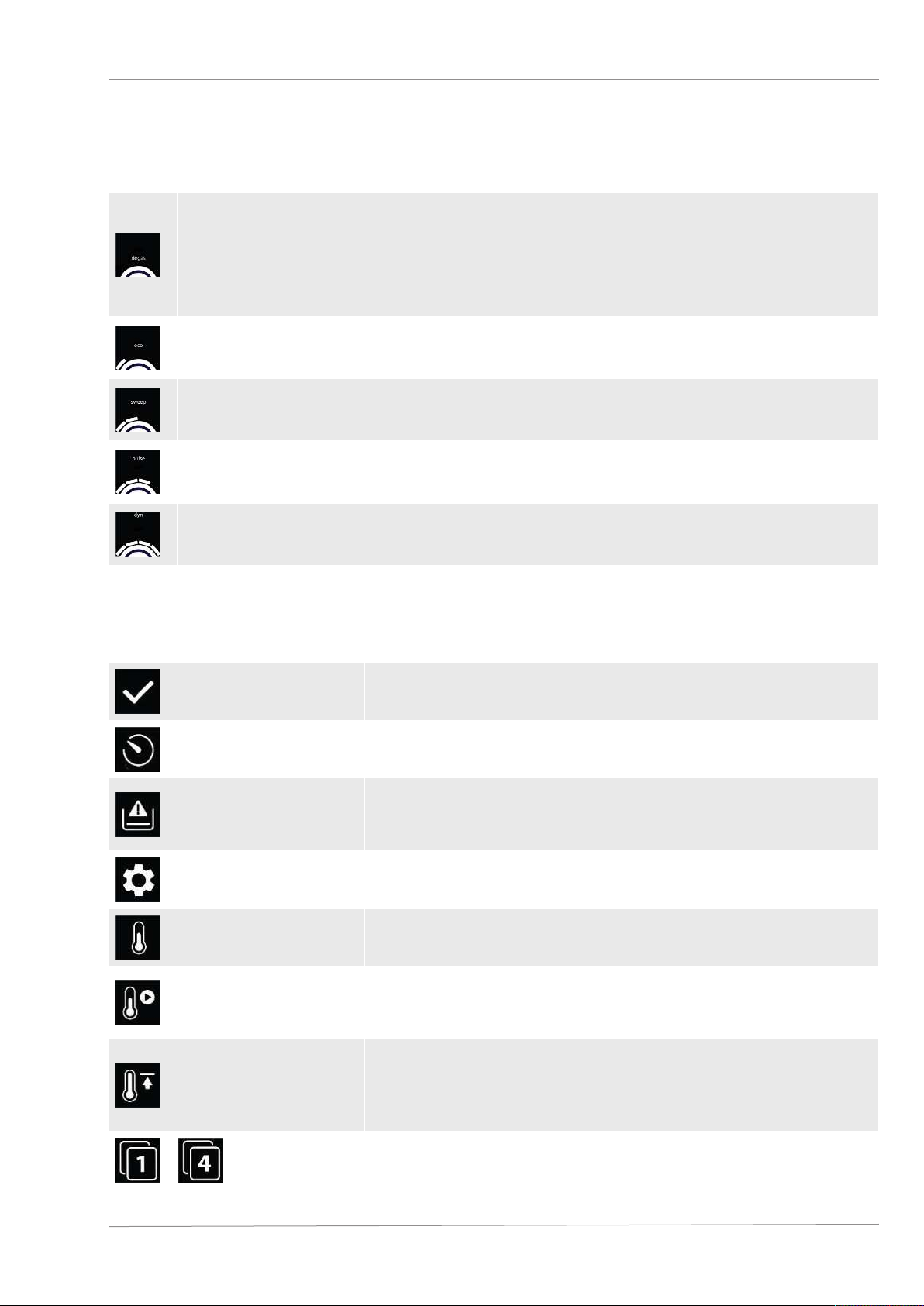

8.2 Operating status symbols
The following symbols are shown on the display as soon as the unit enters the respective operating
status:
End of
cleaning Ultrasonic cleaning has been completed and is finished.
Remaining
time
Ultrasonic cleaning is running; the remaining cleaning duration is
shown below the symbol.
Dry operation
(Not available for Elmasonic Select500/900).
The tank is empty, or the filling level is too low. Dry-run detection
is available during active heating.
Setup Setup mode is activated; the unit parameters [}27] can be
changed.
Heating The ultrasonic bath is currently being heated.
Temperature-
controlled
start
Ultrasonic cleaning will start automatically as soon as the set
cleaning temperature has been reached.
Temperature
limit
A temperature limit is defined as a maximum permissible cleaning
temperature. A higher temperature cannot be set.
The symbol flashes as soon as the temperature limit is reached or
exceeded.
.. Programme The displayed cleaning programme is selected (programme
number 1–4). A total of fourcleaning programmes can be stored.

9 Set up and connect the unit Elma Schmidbauer GmbH
18 / 32 Elmasonic Select
8.3 Operating modes
Operating mode Brief description Display
Switched off The unit is being supplied with power
and is switched off. Off
Standby
The unit is switched on. The display is
dimmed after a longer period of
inactivity. The automatic safety shut-off
is activated after 8hours of inactivity.
On
Setup
The unit is switched off. The Setup
menu is activated to change the unit
functions.
• Setup symbol
• Number of the selected unit function
(parameter)
• Current setting (parameter value)
Normal
mode
The unit is ready to use. Ultrasonic
cleaning can be conducted using
adjustable operating parameters.
• Set operating parameters
During Normal mode:
• Current operating status
Programme
mode
The unit is ready to use. Fourstored
programmes can be selected for
ultrasonic cleaning. The programmes
can be specified and saved.
• Available programmes
• Operating parameters of the selected
programme
No programmes have been saved:
• Programme number1 and "--" for
duration and temperature
During programme operation:
• Current operating status
9 Set up and connect the unit
CAUTION
Heavy loads (applies to unit sizes Elmasonic Select 500/900)!
Serious injuries to the spine or back muscles.
ØComply with the health and safety requirements on lifting heavy loads.
9.1 Notes on installation site
The unit is designed to be set up in commercially used premises such as laboratories, workshops, etc.
• The installation site must be well ventilated.
• The permissible ambient conditions are met.

Elma Schmidbauer GmbH 9 Set up and connect the unit
Elmasonic Select 19 / 32
• The unit must be installed on a sturdy, horizontal, non-slip, moisture-resistant work surface with
the following characteristics:
– The surface must be non-flammable.
– There must be sufficient clearance above the unit to allow the cover and the objects being
cleaned to be removed.
– There must be an area available next to the unit for setting down the basket and inserts.
• Electrical connection conditions:
– Splash-proof earthed socket near the unit
(cable length approx. 1.5m).
– The power connection must be protected by a fault-current circuit breaker (RCD).
– Ensure that the power supply required to operate the unit is available.
• Wastewater connection requirements:
–Units without drains: Select an installation site located close to a sink that can be used to
empty the unit.
–Units with drains: Properly connect the unit drain to the on-site wastewater disposal system.
If necessary, properly route the drain into a sink located nearby.
CAUTION!Use heat-resistant material.
9.2 Set up the unit
üUnpack the unit completely.
üKeep the cover and accessories e.g., basket, inserts, etc., on hand.
◦ Place the unit on the selected surface.
IMPORTANT The controls, such as the display, buttons and, if applicable, discharge tap must be
clearly visible and easily accessible.
èThe unit has been set up.
9.3 Connect the unit
Connect the drain
üCollect the required connection materials, e.g., suitable heat-resistant hose and hose clips (not
included).
1. Unscrew the yellow plug from the drain.
2. Screw the included hose nozzle into the drain.
3. Push the hose onto the hose nozzle, and secure it using a hose clip.
4. Connect the hose to the wastewater disposal system. If necessary, properly route the hose into
a sink.
5. Check the drain for leaks. To do so, fill the tank with cold water up to around 1/3 of the fill level.
Then, open the discharge tap to test all joints for leaks.
6. Seal any leaks found.
èThe drain is connected.
Connecting the network cable
üEnsure that the required power connection is available.
1. Plug the network cable into the IEC connector on the unit.
2. Route the network cable in such a way that it does not pose a tripping hazard, cannot be
damaged and is not exposed to moisture. The network cable must not touch the unit enclosure,
as the enclosure becomes hot during operation.
3. Connect the plug. The plug must be easily accessible to enable it to be disconnected in
emergencies.
èThe power supply is connected.

10 Insert objects to be cleaned Elma Schmidbauer GmbH
20 / 32 Elmasonic Select
10 Insert objects to be cleaned
üEnsure that all optional original accessories e.g., baskets or inserts for holding the objects being
cleaned, are available.
IMPORTANT Do not place objects on the bottom of the tank. The tank and the objects can be
damaged through ultrasonic operation.
1. Position the basket or insert next to the unit. The cover can be used as a mat.
2. Place the objects inside the basket or insert without overfilling it. Arrange the objects being cleaned
in such a way that fluid will be able to circulate around them without obstructions.
IMPORTANT Only clean objects that are suitable for ultrasonic operation, the set temperature and,
where applicable, the cleaning agent in use. In case of doubt, contact the manufacturer or dealer.
3. Hook the filled basket or insert inside the tank.
èThe objects being cleaned have now been inserted.
11 Fill the tank
The cleaning fluids intended for use in ultrasonic cleaning are water, softened water or distilled water.
Cleaning power can be improved by adding suitable cleaning agents.
üThe unit and the tank are clean and, if necessary, disinfected.
üThe filled basket or insert is hooked into the tank.
IMPORTANT When filling the tank without a basket or insert in place, please note that inserting the
basket or insert will cause the filling level in the tank to rise. To prevent the tank from overflowing,
do not fill the tank up to the fill level marking. If necessary, top up the tank after inserting the
objects.
1. Add the cleaning fluid to the tank up to the fill level marking using, for example, a measuring jug.
The fill level marking is the stacking collar (1) in unit sizes
Elmasonic Select 30–300 and the embossed mark (2) in unit sizes Elmasonic Select 500/900.
CAUTION!An overfilled tank can cause the cleaning fluid to boil over at high
temperatures.
1
2
Illustration5: Elmasonic Select 30–900 fill level marking
2. IMPORTANT The objects being cleaned must be completely submerged in the fluid to achieve
good cleaning results. If necessary, reduce the number of objects being cleaned.
èThe tank is filled.
