Operating Instructions
Elmasonic xtra TT
Ultrasonic Cleaning Units
english 

Contents
2
BA_Elmasonic xtra TT_EN_Vers. 03.2018
© Elma Schmidbauer GmbH
Contents
1Important safety warnings .......................................... 4
1.1 Instructions for the use of the present manual.......... 4
1.2 Instructions for the use of the unit............................ 5
2Intended use............................................................... 6
2.1 Safety instructions on the machine .......................... 6
2.2 Information for particular groups of people............... 6
3Functioning................................................................. 7
3.1 Ultrasonic cleaning factors....................................... 7
4Product description..................................................... 8
4.1 Elmasonic xtra TT product features ......................... 8
4.2 CE conformity.......................................................... 8
4.3 RFI Statement (European Union)............................. 9
4.4 Delivered equipment................................................ 9
4.5 Unit front view / side view........................................10
4.6 Unit back view.........................................................11

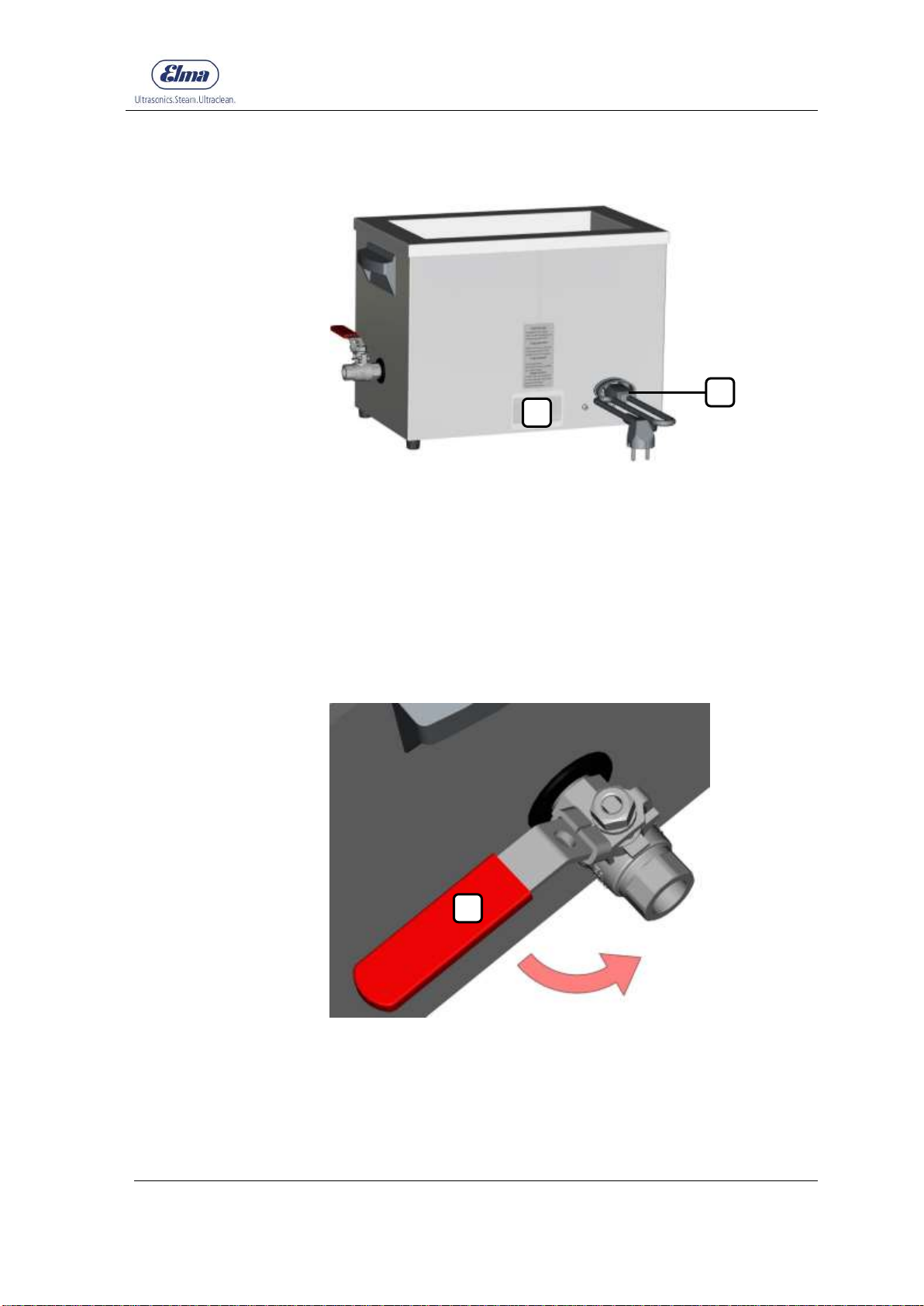

4.7 Ball valve for draining the tank................................11

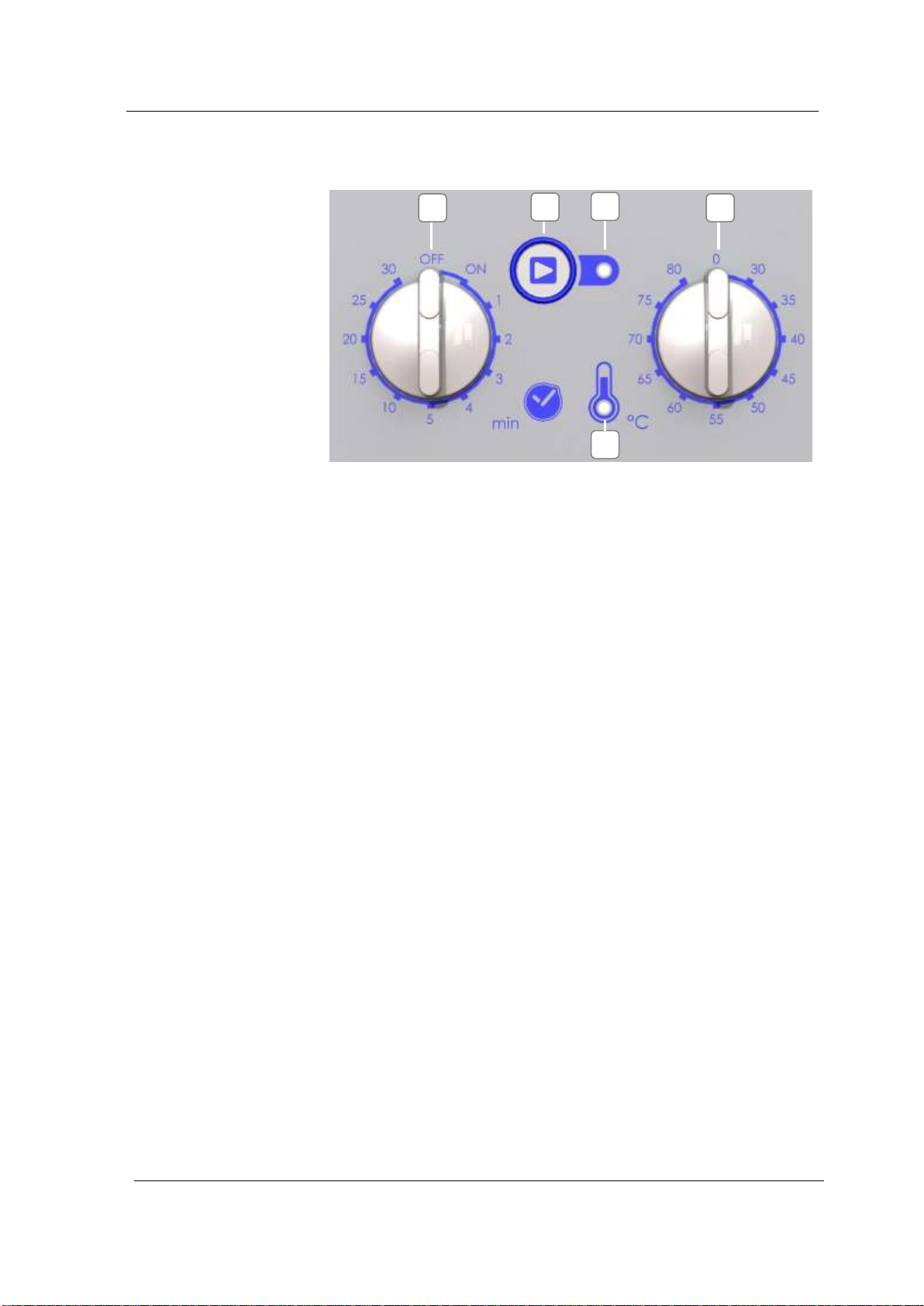

4.8 Description of operating elements...........................12
4.9 Description of LED indicators..................................13
4.10 Operating and display functions..............................14
5Initial operation......................................................... 16
5.1 Connecting the unit to the mains.............................16
6Putting unit into operation......................................... 17
6.1 Filling of the unit......................................................17
6.2 Placement of cleaning items...................................18
6.3 Degassing of liquid..................................................18
7Ultrasonic cleaning process...................................... 19
7.1 Heating up of the cleaning liquid (units with heating)
20
7.2 Starting the cleaning process manually...................21
7.3 Sweep function.......................................................21
7.4 Activate dynamic function .......................................22
7.5 Programme temperature limit..................................22
7.6 After the cleaning....................................................23
8Cleaning media ........................................................ 24
8.1 Limitations of use of cleaners containing solvents..24
8.2 Limitations on aqueous cleaners.............................25
8.3 List of recommended cleaning media......................25

© Elma Schmidbauer GmbH
BA_Elmasonic xtra TT_EN_Vers. 03.2018
3
9Maintenance............................................................. 26
9.1 Maintenance / Care.................................................26
9.2 Service life of the transducer tank...........................26
9.3 Repair.....................................................................27
10 Technical Details................................................... 28
11 Troubleshooting..................................................... 30
12 Putting out of action and waste disposal ............... 32
13 Manufacturer's contact address............................. 32

General
4
BA_Elmasonic xtra TT_EN_Vers. 03.2018.
© Elma Schmidbauer GmbH
General
The present Operating Instructions are part of the delivered
equipment. They must be ready for use at any time and remain
with the unit in case of resale.
We reserve the right to carry out technical modifications on the
unit due to advanced development.
An operating manual cannot take account of every conceivable
use. An operating manual cannot take account of every
possible use. Contact your dealer or the manufacturer for
further information or in the event of problems which are not
covered or not sufficiently covered in this operating manual.
1 Important safety warnings
Please observe any additional national safety regulations that
may apply.
1.1 Instructions for the use of the present manual
Carefully read the Operating Instructions before you operate the
unit. Do not use the present electrical unit for any purpose other
than described in the Operating Instructions.
Warning symbols used in the present manual:
This symbol warns of the risk of injury caused by electricity.
This symbol warns of the risk of injury caused by explosion
and/or deflagration.
This symbol warns of the risk of injury caused by hot surfaces
and liquids.
This symbol warns of the risk of injury.
This symbol warns of the risk of damage to the equipment.
This symbol marks additional information.
Signal words used in the present manual
The signal word Danger warns of a potential risk of serious
injury and danger to life.
The signal word Warning warns of the risk of serious injury and
heavy damage to the equipment.
The signal word Caution warns of the risk of light injury or
damage to the equipment.
The signal word Attention warns of the risk of damage to the
equipment.
Danger
Warning
Caution
Attention

© Elma Schmidbauer GmbH
BA_Elmasonic xtra TT_EN_Vers. 03.2018
5
1.2 Instructions for the use of the unit
The present Elma ultrasonic cleaning unit has been designed
for the treatment of items and liquids only.
No cleaning of living beings or plants!
Operation of the unit by authorized and instructed staff only.
Observe the instructions given in the manual.
For safety reasons, the present unit must be connected to a
correctly grounded socket only. The technical details indicated
on the nameplate must correspond with the available mains
connection details, in particular those of the mains voltage and
current connected value.
For purposes of maintenance and care of the unit, in the case
of suspected humidity inside the unit or in the case of
malfunctions and after operation, unplug the mains plug.
The unit must only be opened by authorised specialised
personnel.
Fill the unit with a sufficient quantity of cleaning liquid before
switch-on. Flammable liquids must not be treated by ultrasound
directly in the cleaning tank: risk of fire and explosion!
Risk of burning and scalding! Depending on the operational
period of the unit, unit surfaces, cleaning liquid, basket and
cleaning items can heat up considerably.
Ultrasonic units can produce annoying sounds.
Wear personal ear protection devices when working close to an
ultrasonic unit which is operated without cover.
Do not reach inside the cleaning liquid or touch sound-carrying
parts (tank, basket, cleaning items, etc.) during operation.
The manufacturer cannot be held liable for damages on
persons, equipment or cleaning items caused by improper use.
The operator is responsible for the instruction of the operating
staff.
Temperature during storage: +5 C (+41 F) to +40 C (+104 F)
Temperature during transport: -15 C (+5 F) to +60 C (+140 C)
Humidity and air pressure during storage and transport:
10 % - 80 % relative humidity; non-condensing
Pressure range 500 hPa –1060 hPa absolute
Intended use
User
Mains connection
Prevention of
electrical accidents
Cleaning liquid
Hot surfaces and
liquids
Noise emission
Sound transmission
at physical contact
Exclusion of liability
Storage and
transport conditions

Intended use
6
BA_Elmasonic xtra TT_EN_Vers. 03.2018.
© Elma Schmidbauer GmbH
2 Intended use
Ultrasonic cleaning machines are exclusively intended for
ultrasonic irradiation of objects and liquids. Thereby, no
flammable liquids are permitted to be used directly in the
cleaning tanks.
The machine is only permitted to be operated by trained
personnel and not by children. Operation and placement must
be performed in accordance with the conditions and media
defined in the operating manual.
The service intervals and regional regulations for checking the
equipment must be complied with.

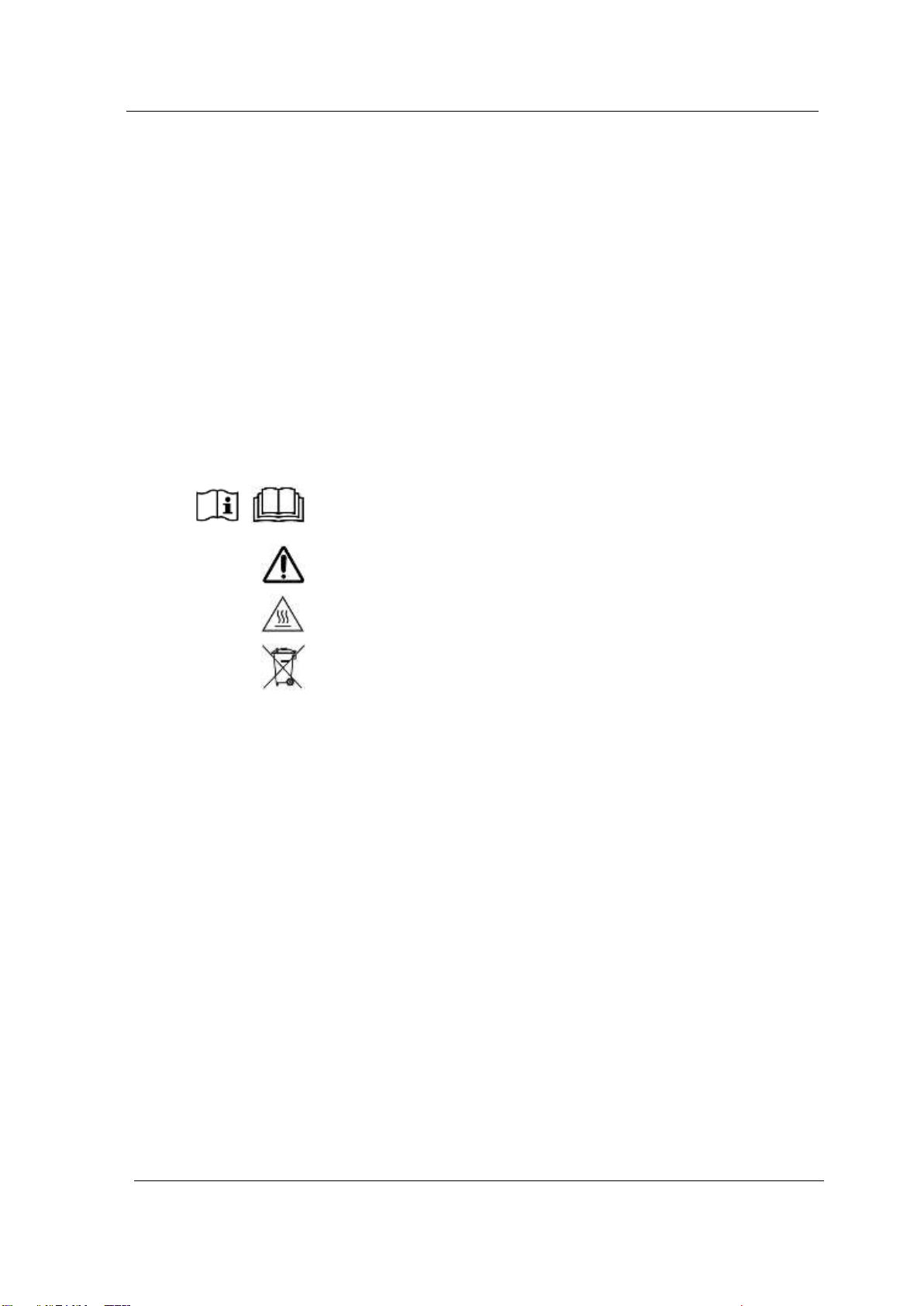

2.1 Safety instructions on the machine
Observe operating instructions!
Observe warnings and safety instructions given in the operating
manual!
This symbol warns about the risk of injury from hot surfaces and
liquids.
The unit cannot be disposed with household waste! Observe
regional waste regulations!
2.2 Information for particular groups of people
Ultrasonic energy emitted through the air is not hazardous to
your health. However, high sonic emissions do arise during
ultrasound operation that may, under circumstances, cause
hearing damage to the foetus.
We recommend pregnant people not to spend long periods of
time near an ultrasonic cleaning device.
Elma Schmidbauer products with the CE mark comply with the
European EMC and Low Voltage Directive and adhere to the
prescribed EMC limit values so that the electromagnetic
radiation emitted by the devices is harmless to healthy people.
A binding statement for people with implants, such as those
with cardiac pacemakers or implanted defibrillators, can only be
made at the specific occupational site and upon consulting the
manufacturer of the implants.
Pregnant woman
People with active
implants

© Elma Schmidbauer GmbH
BA_Elmasonic xtra TT_EN_Vers. 03.2018
7
3 Functioning
Today, cleaning by ultrasound is the most modern fine cleaning
method.
The electric high-frequency energy created by an ultrasonic
generator is transformed into mechanical energy by piezo-
electrical transducer systems and is then transmitted into the
bath.
This process creates millions of tiny vacuum bubbles which
implode due to the variations of pressure caused by the
ultrasonic activity. Highly energetic liquid jets are created.
These jets remove dirt particles from surfaces and even from
the smallest grooves and bores.
3.1 Ultrasonic cleaning factors
Basically, the cleaning result depends on four factors:
Ultrasonic energy is probably the most important mechanical
factor in the cleaning process. This energy must be transmitted
through a liquid medium to the surfaces which are to be
cleaned. The present Elmasonic unit is fitted with the innovative
sweep function device: electronic oscillation of the sound field
(sweep function) prevents the formation of zones of low
performance in the ultrasonic bath.
For saponification and removal of the dirt particles a suitable
cleaning agent is required. Elma has a large range of cleaning
media on offer.
Cleaning chemicals are also necessary to reduce the surface
tension. This increases considerably the efficiency of the
ultrasonic activity.
The effect of the cleaning medium is improved by the optimised
temperature of the cleaning liquid.
For Elma cleaning products please observe the instructions
given on the label or the product information leaflets.
The cleaning period depends on the degree and the kind of
contamination and on the correct selection of ultrasonic energy,
cleaning agent and temperature.
Mechanical energy
Cleaning media
Temperature
Cleaning period

Product description
8
BA_Elmasonic xtra TT_EN_Vers. 03.2018.
© Elma Schmidbauer GmbH
4 Product description
4.1 Elmasonic xtra TT product features
efficient 37 kHz ultrasonic high-performance transducers
cleaning tank made of cavitation-resistant stainless steel
user-friendly and clearly arranged operating panel; sealed
against liquid intrusion to protect the electronics
LED display for ultrasonic function
rotary switch for easy preselection of the cleaning line
continuous operating or short-term operation between 1
and 30 minutes
permanent sweep function for optimized sound field
distribution through frequency modulation
Switchable Dynamic-function increases the peak ultrasonic
performance. This improves the effectivity of cleaning and
makes it possible to remove even the most stubborn
contaminants.dry-run protected heating
temperature selectable by rotary switch; from 30°C to 80°C
in increments of 5°C (for H units)
LED display for heating operation (for H units)
detachable power cord with IEC plug
selectable temperature threshold with alarm
automatic safety shutdown after 8 hours of continuous
operation
automatic safety shutdown at a bath temperature of 90°C
4.2 CE conformity
This Elma ultrasonic cleaner meets the requirements for the CE
marking based on the EC/EU Low Voltage, Electromagnetic
Compatibility (EMC) and RoHS Directives.
Refer to the EC/EU Declaration of Conformity that can be
obtained from the manufacturer for details.

© Elma Schmidbauer GmbH
BA_Elmasonic xtra TT_EN_Vers. 03.2018
9
4.3 RFI Statement (European Union)
This is a Class A product.
Please note:
This equipment has been approved for business purposes with
regard to electromagnetic interference.
In a domestic environment this product may cause radio
interference in which case the user may be required to take
adequate measures.
For this please contact your supplier or the manufacturer of the
unit.
4.4 Delivered equipment
Ultrasonic cleaning unit
Mains cable
Operating Instructions
Stainless-steel cover

Product description
10
BA_Elmasonic xtra TT_EN_Vers. 03.2018.
© Elma Schmidbauer GmbH
4.5 Unit front view / side view
Illustration 4.5: Front view / side view Elmasonic xtra TT 60 H
Filling line indicates the recommended maximum filling level.
This level should not be exceeded even with cleaning items
inside.
Plastic carrying handles for the safe transportation of the unit
even with hot casing.
Ball valve for the draining of the tank functional description
see section 4.7.
Operating panel for the control of the operating functions.
Description see section 4.8 and 4.9.
Stainless-steel cover to be placed on the tank edge. (not
illustrated)
A
B
C
D
E
A
B
C
D
