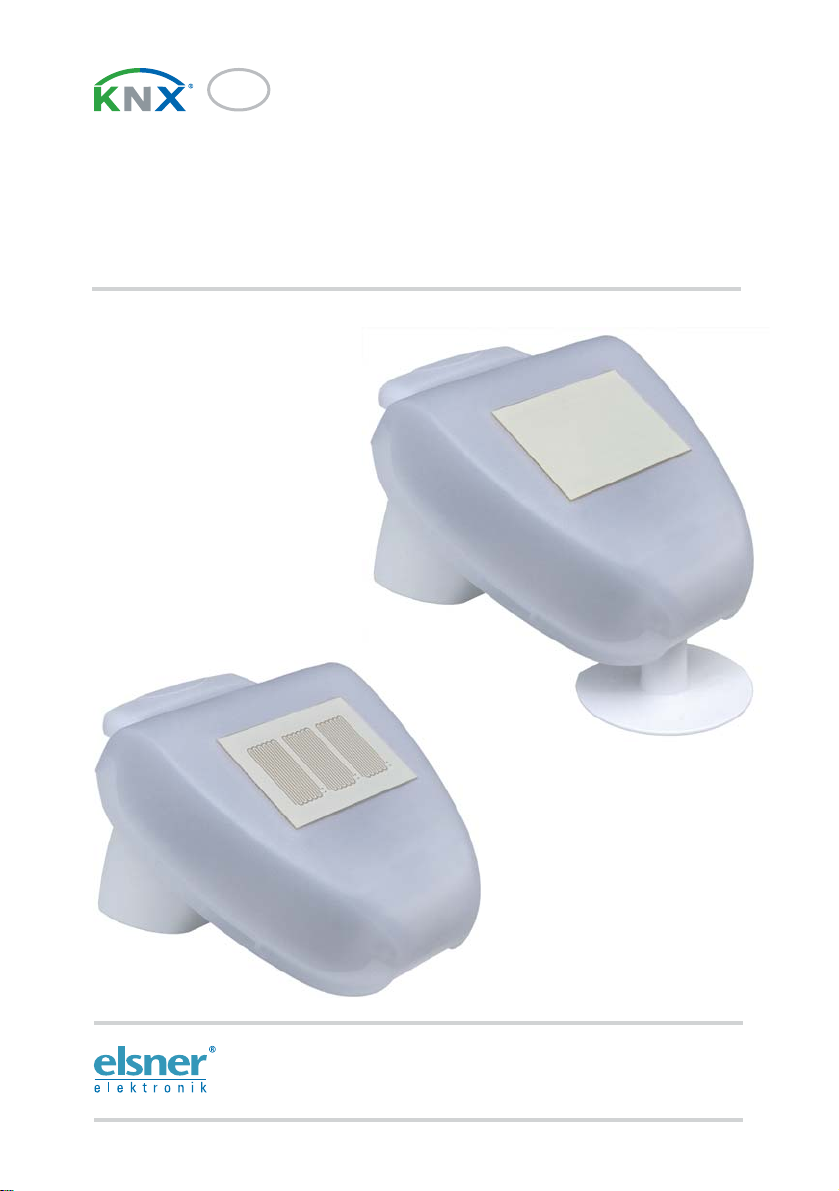

KNX W
Wind Sensor
KNX W 24 V
KNX W 230 V

1 Content
Elsner Elektronik GmbH • Herdweg 7 • D-75391 Gechingen • Germany
Wind Sensor KNX W • from software version 1.00, ETS programme version1.1
Date of issue: 31.10.12 • Errors excepted. Subject to technical changes.
1. Description ........................................................................................... 3
1.1. Technical specifications ........................................................................................... 3
2. Installation and commissioning ........................................................... 4
2.1. Installation notes ...................................................................................................... 4
2.2. Location ..................................................................................................................... 5
2.3. Mounting the sensor ................................................................................................ 5
2.3.1. Attaching the mount ..................................................................................... 5
2.3.2. View of rear side and drill hole plan ........................................................... 7
2.3.3. Preparing the sensor .................................................................................... 8
2.3.4. PCB layout ..................................................................................................... 9
2.3.5. Mounting the weather station ................................................................... 10
2.4. Notes on mounting and commissioning .............................................................. 11
3. Addressing of the device at the bus .................................................. 11
4. Maintenance ....................................................................................... 12
5. Transmission protocol ....................................................................... 13
5.1. List of all communication objects ......................................................................... 13
6. Setting of parameters ........................................................................ 16
6.1. General settings ..................................................................................................... 16
6.2. Threshold values .................................................................................................... 17
6.2.1. Wind threshold value 1 / 2 / 3 .................................................................... 17
6.3. Logic ....................................................................................................................... 18
6.4. AND Logic 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 ......................................................................... 19
6.4.1. Linkage inputs of AND Logic ..................................................................... 20
6.4.2. OR Logic 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 ................................................................ 20
6.4.3. Linkage inputs of OR Logic ........................................................................ 20

2 Clarification of signs
This manual is amended periodically and will be brought into line with new software
releases. The change status (software version and date) can be found in the contents footer.
If you have a device with a later software version, please check
www.elsner-elektronik.de in the menu area "Service" to find out whether a more up-to-
date version of the manual is available.
Clarification of signs used in this manual
Installation, testing, operational start-up and troubleshooting of the unit
should only be performed by an electrician.
Safety advice.
Safety advice for working on electrical connections, components,
etc.
DANGER! ... indicates an immediately hazardous situation which will lead to
death or severe injuries if it is not avoided.
WARNING! ... indicates a potentially hazardous situation which may lead to
death or severe injuries if it is not avoided.
CAUTION! ... indicates a potentially hazardous situation which may lead to
trivial or minor injuries if it is not avoided.
ATTENTION! ... indicates a situation which may lead to damage to property if it is
not avoided.
ETS In the ETS tables, the parameter default settings are marked by
underlining.

3 Description
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
1. Description
The Wind Sensor KNX W measures wind speed and transfers the values to the KNX
system. Three switching outputs with adjustable threshold values as well as additional
AND and OR logic gates are available.The sensor system, the evaluation electronics
and the electronics of the bus connection are mounted in a compact housing.
Functions:
•Wind measurement: The wind strength measurement takes place
electronically and thus noiselessly and reliably, even during hail, snow and
sub-zero temperatures. Even turbulent air and anabatic winds in the vicinity of
the weather station are recorded
•3 switching outputs with adjustable threshold values (Threshold values can
be set by parameter or via communication objects)
•8 AND and 8 OR logic gates with each 4 inputs. Every switching incident as
well as 8 logic inputs (in the form of communication objects) may be used as
inputs for the logic gates. The output of each gate may optionally be configured
as 1 bit or 2 x 8 bits
Configuration is made using the KNX software ETS. The programme file (format VD),
the data sheet and the manual can be downloaded from the Elsner Elektronik
homepage on www.elsner-elektronik.de in the “Service” menu.
1.1. Technical specifications
Housing Plastic material
Colour White / translucent
Mounting On-wall
Protection category IP 44
Dimensions approx. 96 × 77 × 118 (W × H × D, mm)
Weight 230 V AC version: approx. 240 g,
24 V DC version approx. 170 g
Ambient temperature Operation -30…+50°C, storage -30…+70°C
Operating voltage Available for 230 V AC or 24 V DC (20 V AC).
An appropriate 20 V AC power supply unit can be
obtained from Elsner Elektronik.
Cable cross-section Massive conductors of up to 1.5 mm² or conductors
with fine wires
Current 230 V AC version max. 20 mA, 24 V DC version max.
100 mA, residual ripple 10%
Data output KNX +/- bus terminal plug
BCU type Own micro controller
PEI type 0
Group addresses max. 254
Allocations max. 255
Communication objects 80

4 Installation and commissioning
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
The following standards have been considered for the evaluation of the product in
terms of electro magnetic compatibility:
Transient emissions:
• EN 60730-1:2000 Section EMV (23, 26, H23, H26) (threshold category: B)
• EN 50090-2-2:1996-11 + A1:2002-01 (threshold category: B)
• EN 61000-6-3:2001 (threshold category: B)
Interference resistance:
• EN 60730-1:2000 Section EMV (23, 26, H23, H26)
• EN 50090-2-2:1996-11 + A1:2002-01
• EN 61000-6-1:2004
The product has been tested for the above mentioned standards by an accredited EMV
laboratory.
2. Installation and commissioning
2.1. Installation notes
Installation, testing, operational start-up and troubleshooting should
only be performed by an electrician.
DANGER!
Risk to life from live voltage (mains voltage)!
There are unprotected live components inside the device.
• National legal regulations are to be followed.
• Ensure that all lines to be assembled are free of voltage and take
precautions against accidental switching on.
• Do not use the device if it is damaged.
• Take the device or system out of service and secure it against
unintentional use, if it can be assumed, that risk-free operation is no
longer guaranteed.
The device is only to be used for its intended purpose. Any improper modification or
failure to follow the operating instructions voids any and all warranty and guarantee
claims.
Measurement range Wind 0...35 m/s
Resolution (wind) 0,1 m/s
Accuracy (wind) at ambient temperature -20…+50°C:
±22% of the measurement value when incident flow is
from 45…315°
±15% of the measurement value when incident flow is
from 90…270°
(Frontal incident flow corresponds to 180°)

5 Installation and commissioning
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
After unpacking the device, check it immediately for possible mechanical damage. If it
has been damaged in transport, inform the supplier immediately.
The device may only be used as a fixed-site installation; that means only when assem-
bled and after conclusion of all installation and operational start-up tasks and only in
the surroundings designated for it.
Elsner Elektronik is not liable for any changes in norms and standards which may occur
after publication of these operating instructions.
2.2. Location
Select an assembly location at the building where wind speed may be collected by the
sensor unobstructedly. At least 60 cm of free space must be left beneath the device to
enable correct wind measurement and prevent snowing in when there is snow. The
distance also protects the unit against damage by birds.
2.3. Mounting the sensor
2.3.1. Attaching the mount
The sensor comes with a combination wall/pole mount. The mount comes adhered by
adhesive strips to the rear side of the housing.
Fasten the mount vertically onto the wall or pole.
Fig. 1
The wind sensor must be mounted on a verti-
cal wall (or a pole).
Wall
or
pole
min.
60 cm
Fig. 2
The wind sensor must be mounted in the hor-
izontal transverse direction (horizontally).
Horizontal

6 Installation and commissioning
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
Fig. 3
When wall mounting: flat side on wall, crescent-
shaped collar upward.
Collar
Fig. 4
When pole mounting: curved side on pole, collar
downward.
Collar
Fig. 5
An additional, optional accessory available from
Elsner Elektronik is an articulated arm for flexi-
ble wall, pole or beam mounting of the sensor.
Fig. 6
Example uses of the hinge arm mounting: With
the hinge arm mounting, the sensor peeps out
from beneath the roof overhang.

7 Installation and commissioning
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.

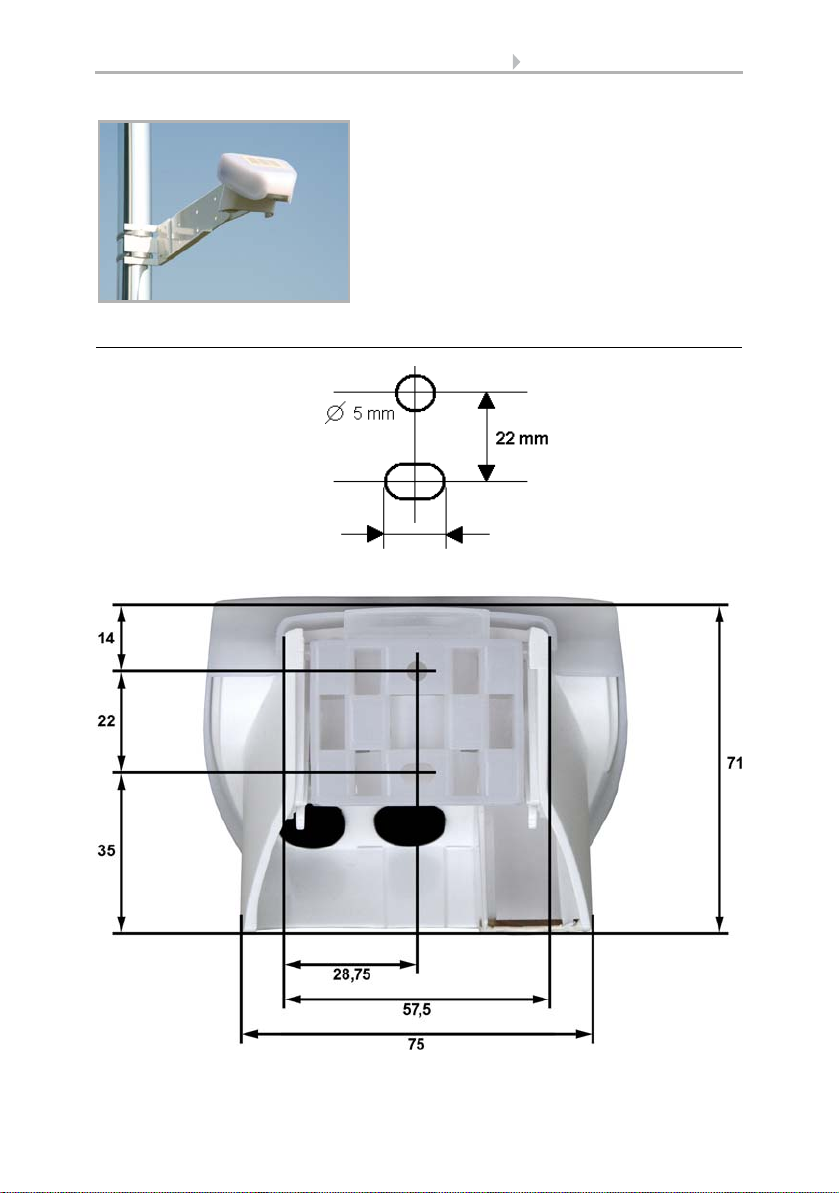

2.3.2. View of rear side and drill hole plan
Fig. 7
Example uses of the hinge arm mounting: Fit-
ting to a pole with worm drive hose clips
Langloch 7,5 x 5 mm
Fig. 8 a+b
Drill hole plan
Dimensions of rear side of
housing with bracket. Sub-
ject to change for technical
enhancement.

8 Installation and commissioning
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
2.3.3. Preparing the sensor
The sensor cover snaps in on the left and right along the bottom edge (see Fig.). The
cover of the 230V model is also screwed on top. Remove the cover. Proceed carefully,
so as not to pull off the wire connecting the PCB in the bottom part with the cover (sol-
dered cable connection in case of 230 V AC version, cable with plug in case of 24 V DC
version).
Lead the cable for the voltage supply and bus connection through the rubber seals on
the bottom of the device and connect Voltage L/N and Bus +/- to the terminals provid-
ed.
For 24V devices the connection cable must be plugged in between the cover and circuit
board.
Fig. 9
1 Screw-on cover (230V device)
2 Cover Snaps
3 Bottom part of housing
2
3
Unsnap cover and
remove upwards
1
Fig. 10
Remove the cable shielding under the circuit
board and only feed the connector cables up-
wards through the openings in the circuit
board.

9 Installation and commissioning
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.

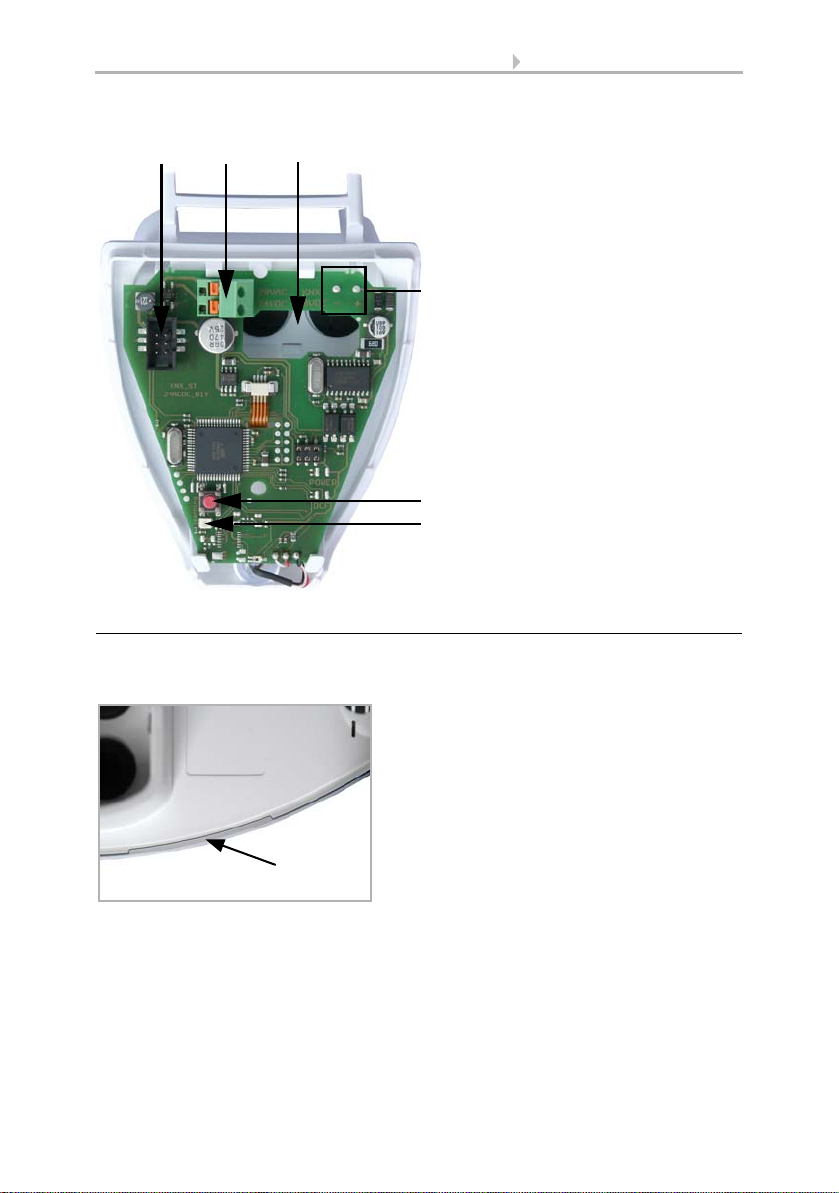

2.3.4. PCB layout
230 V AC version
Fig. 11
1) Opening for the cable for the
voltage supply
2) Tension clamp for voltage
supply (230 V AC), suitable for
massive conductors of up to
1.5 mm² or conductors with
fine wires
3) Slot for the KNX clamp +/-
4) Opening for the bus cable
5) Programming pushbutton for
the teach-in of the device
6) Programming LED
12
3
5
6
4

10 Installation and commissioning
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
24 V DC version
2.3.5. Mounting the weather station
Close the housing by putting the cover back over the bottom part. The cover must snap
in on the left and right with a definite “click”.
Fig. 12
1 Opening for the cable connec-
tion to the cover
2 Tension clamp for voltage
supply (230 V AC), suitable for
massive conductors of up to
1.5 mm² or conductors with
fine wires
3 Opening for the cable for the
voltage supply and for the bus
cable
4SlotforKNXclamp+/-
5 Programming pushbutton for
the teach-in of the device
6 Programming LED
1 2
4
3
5
6
Fig. 13
Make sure the cover and bottom part are
properly snapped together! This picture is
looking at the closed sensor from under-
neath.
Fastening

11 Addressing of the device at the bus
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
DANGER!
There is a risk to life from the live voltage on a 230 V device!
• The cover must be screwed on in operation.
To remove it, the weather station can be simply pulled upwards out of the mount,
against the resistance of the fastening.
2.4. Notes on mounting and commissioning
Do not open the device if water (rain) might ingress: even some drops might damage
the electronic system.
Observe the correct connections. Incorrect connections may destroy the sensor or con-
nected electronic devices.
The measured wind value and thus all other wind switching outputs may only be sup-
plied 60 seconds after the supply voltage has been connected.
After the auxiliary voltage has been applied, the device will enter an initialisation phase
lasting a few seconds. During this phase no information can be received via the bus.
3. Addressing of the device at the bus
The device is supplied with the bus address 15.15.250. You can program another ad-
dress into the ETS by overwriting the 15.15.250 address or by teaching via the pro-
gramming key on the circuit board inside the housing.
Fig. 14
With the 230V model, screw the cover on to
the underpart, to prevent unauthorised or ac-
cidental opening.
Fig. 15
Push the housing from above into the fas-
tened mount. The bumps on the mount must
snap into the rails in the housing.

12 Maintenance
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
DANGER!
Risk to life from live voltage (mains voltage)!
• With the 230V model, bus addressing via the programming key
should only be done by an accredited electrician.
• Do not touch any components on the circuit board while pressing
the key.
4. Maintenance
DANGER!
There is a risk to life from the live voltage (mains voltage)!
If you come into contact with live components in the device, (e.g. caused
also by a jet of water) there is the risk of an electric shock with
230 V devices.
Risk of injury caused by components moved automatically!
Durch die Automatiksteuerung können Anlagenteile anlaufen und
Personen in Gefahr bringen (z. B. fahren Fenster/Markise wenn beim
Reingen Regen-/Windalarm ausgelöst wurde).
The automatic control can start system components and place people in
danger (e.g. moving windows/awnings if a rain/wind alarm has been
triggered while cleaning).
• Always isolate the device from the mains for servicing and cleaning
(e. g. switch off or remove the fuse).
The device must regularly be checked for dirt twice a year and cleaned if necessary. In
case of severe dirt, the sensor may not work properly anymore.
ATTENTION
The device can be damaged if significant volumes of water penetrate the
housing.
• Do not clean with high pressure cleaners or steam jets.

13 Transmission protocol
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
5. Transmission protocol
Units of measurement:
Wind in metre per second
5.1. List of all communication objects
EIS types:
1 Switching 1/0
5 Floating point value
6 8 bit value
Abbreviations Flags:
C Communication
R Read
WWrite
T Transmit
No. Name Function EIStype Flags
0 Wind force measured value Output 5 C R T
1 Request maximum wind force Input 1 C R W
2 Maximum wind force
measured value
Output 5 C R T
3 Reset maximum wind force Input 1 C R W
4 Wind sensor malfunction Output 1 C R T
5 Wind threshold value 1 16 bit value 5 C R W T
6 Wind threshold value 1 1 = Increment |
0 = Decrement
1CRW
7 Wind threshold value 1 Increment 1 C R W
8 Wind threshold value 1 Decrement 1 C R W
9 Wind threshold value 1 Switching output 1 C R T
10 Wind threshold value 1 Switching output
block
1CRW
11 Wind threshold value 2 16 bit value 5 C R W T
12 Wind threshold value 2 1 = Increment |
0 = Decrement
1CRW
13 Wind threshold value 2 Increment 1 C R W
14 Wind threshold value 2 Decrement 1 C R W
15 Wind threshold value 2 Switching output 1 C R T
16 Wind threshold value 2 Switching output
block
1CRW
17 Wind threshold value 3 16 bit value 5 C R W T
18 Wind threshold value 3 1 = Increment |
0 = Decrement
1CRW

14 Transmission protocol
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
19 Wind threshold value 3 Increment 1 C R W
20 Wind threshold value3 Decrement 1 C R W
21 Wind threshold value 3 Switching output 1 C R T
22 Wind threshold value 3 Switching output
block
1CRW
23 AND Logic 1 Switching output 1 C R T
24 AND Logic 1 8 bit output A 6 C R T
25 AND Logic 1 8 bit output B 6 C R T
26 AND Logic 2 Switching output 1 C R T
27 AND Logic 2 8 bit output A 6 C R T
28 AND Logic 2 8 bit output B 6 C R T
29 AND Logic 3 Switching output 1 C R T
30 AND Logic 3 8 bit output A 6 C R T
31 AND Logic 3 8 bit output B 6 C R T
32 AND Logic 4 Switching output 1 C R T
33 AND Logic 4 8 bit output A 6 C R T
34 AND Logic 4 8 bit output B 6 C R T
35 AND Logic 5 Switching output 1 C R T
36 AND Logic 5 8 bit output A 6 C R T
37 AND Logic 5 8 bit output B 6 C R T
38 AND Logic 6 Switching output 1 C R T
39 AND Logic 6 8 bit output A 6 C R T
40 AND Logic 6 8 bit output B 6 C R T
41 AND Logic 7 Switching output 1 C R T
42 AND Logic 7 8 bit output A 6 C R T
43 AND Logic 7 8 bit output B 6 C R T
44 AND Logic 8 Switching output 1 C R T
45 AND Logic 8 8 bit output A 6 C R T
46 AND Logic 8 8 bit output B 6 C R T
47 OR Logic 1 Switching output 1 C R T
48 OR Logic 1 8 bit output A 6 C R T
49 OR Logic 1 8 bit output B 6 C R T
50 OR Logic 2 Switching output 1 C R T
51 OR Logic 2 8 bit output A 6 C R T
52 OR Logic 2 8 bit output B 6 C R T
53 OR Logic 3 Switching output 1 C R T
54 OR Logic 3 8 bit output A 6 C R T
55 OR Logic 3 8 bit output B 6 C R T
56 OR Logic 4 Switching output 1 C R T
57 OR Logic 4 8 bit output A 6 C R T
No. Name Function EIStype Flags

15 Transmission protocol
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
58 OR Logic 4 8 bit output B 6 C R T
59 OR Logic 5 Switching output 1 C R T
60 OR Logic 5 8 bit output A 6 C R T
61 OR Logic 5 8 bit output B 6 C R T
62 OR Logic 6 Switching output 1 C R T
63 OR Logic 6 8 bit output A 6 C R T
64 OR Logic 6 8 bit output B 6 C R T
65 OR Logic 7 Switching output 1 C R T
66 OR Logic 7 8 bit output A 6 C R T
67 OR Logic 7 8 bit output B 6 C R T
68 OR Logic 8 Switching output 1 C R T
69 OR Logic 8 8 bit output A 6 C R T
70 OR Logic 8 8 bit output B 6 C R T
71 Logic input 1 Input 1 C R W
72 Logic input 2 Input 1 C R W
73 Logic input 3 Input 1 C R W
74 Logic input 4 Input 1 C R W
75 Logic input 5 Input 1 C R W
76 Logic input 6 Input 1 C R W
77 Logic input 7 Input 1 C R W
78 Logic input 8 Input 1 C R W
79 Software Version readable 6 CR
No. Name Function EIStype Flags

16 Setting of parameters
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
6. Setting of parameters

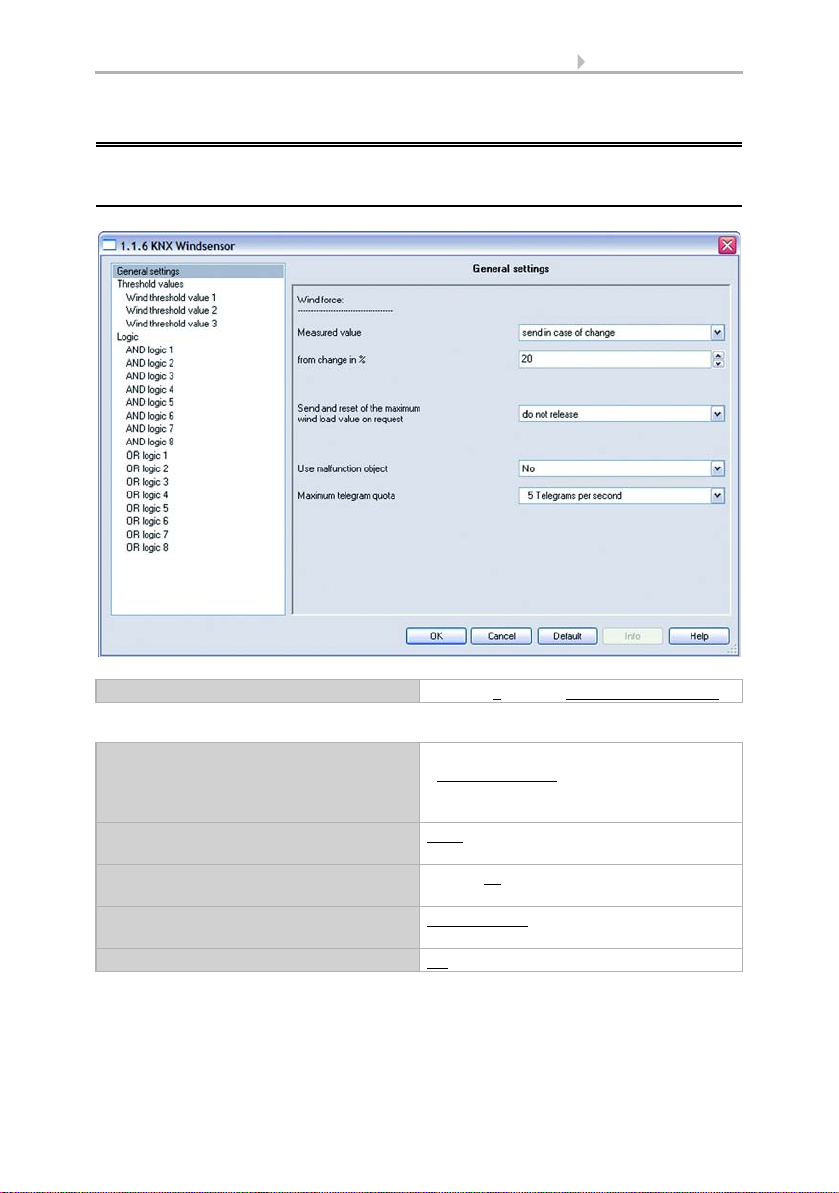

6.1. General settings
Wind force
Maximum telegram quota 1 • 2 • 3 • 5 • 10 • 20 telegrams per second
Measured value • do not send
• send periodically
• send in case of change
• send in case of change and periodically
send periodically all
(only if sending “periodically“)
5 sec … 2 h
From change in %
(only if sending “on change“)
1 … 50; 20
Send and reset of the maximum wind load
value on request
do not release • release
Use malfunction object No • Yes

17 Setting of parameters
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
6.2. Threshold values
Wind force
6.2.1. Wind threshold value 1 / 2 / 3
Threshold value
If the threshold value is set per Parameter:
If the threshold value is set per Communication object:
Switching output
Use threshold value 1 / 2 / 3 No • Yes
Transmission delay of the switching output
after power up and programming
5 sec … 2 h
Transmission delay of the switching output
after power up and programming
5 sec … 2 h
Threshold value setpoint per Parameter • Communication object
Threshold value in 0,1 m/s 0 … 350; 40
Hysteresis of the threshold value in % 0 … 250; 20
The value communicated last shall be
maintained
• not
• after restoration of voltage
(the changes threshold value may be
saved at least 100,000 times)
• after restoration of voltage and
programming (Attention: Do not use
for first commissioning)
Start threshold value in 0,1 m/s
valid until 1. communication
(only if the value communicated last is
„not“ maintained or „after restoration of
voltage“)
0 … 350; 40
Type of threshold change • Absolute value with a 16 bit
communication object
• Increment / decrement with one
communication object
• Increment / decrement with two
communication objects
Step size
(only if sending „Increment/decrement“)
0,1 m/s … 5 m/s; 1 m/s
Hysteresis of the threshold value in % 0 … 250; 20
Output is at
(TV = Threshold Value)
• TV above = 1 | TV - Hyst. below = 0
• TV above = 0 | TV - Hyst. below= 1
• TV below = 1 | TV + Hyst. above = 0
• TV below = 0 | TV + Hyst. above = 1

18 Setting of parameters
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
Blocking
„Blocking“ only appears if using „Switching output sends on change“
If block of the switching output is used:
6.3. Logic
AND Logic
OR Logic
Switching delay from 0 to 1 none • 1 sec … 2 h
Switching delay from 1 to 0 none • 1 sec … 2 h
Switching output sends • not
• on change
• on change to 1
• on change to 0
• on change and periodically
• on change to 1 and periodically
• on change to 0 and periodically
send periodically all
(only if sending “periodically“)
5 sec … 2 h
Use block of the switching output Yes • No
Use block of the switching output Yes
Evaluation of the blocking object • if value 1: block | if value 0: release
• if value 0: block | if value 1: release
Value of the blocking object before
1. communication
0• 1
Behaviour of the switching output
with blocking
• do not send telegram
•send0
•send1
Behaviour of the switching output
with release (selection depends on settings
made before)
• do not send telegram
• send status of the switching output
• if switching output = 1 => send 1
• if switching output = 0 => send 0
Communication objects logic inputs do not release • release
Logic 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 not active • active
Transmission delay of the switching
outputs after power up and programming
5 sec … 2 h
Logic 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 not active • active
Transmission delay of the switching
outputs after power up and programming
5 sec … 2 h

19 Setting of parameters
Wind Sensor KNX W • Date of issue: 31.10.2012 • Technical changes reserved. Errors reserved.
6.4. AND Logic 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8
Logic output sends “one 1 bit Object“:
Logic output sends “two 8 bit objects“:
1. / 2. / 3. / 4. Input • do not use
• all switching events which the sensor
provides (see “Linkage inputs of the AND
logic”)
Logic output sends • not
• one 1 bit object
• two 8 bit objects
Logic output sends one 1 bit object
if logic = 1 object value 1 • 0
if logic = 0 object value 1 • 0
Communication object
AND Logic 1 sends
• in case of the change of logic
• in case of the change of logic to 1
• in case of the change of logic to 0
• in case of the change of logic and
cyclically
• in case of the change of logic to 1 and
cyclically
• in case of the change of logic to 0 and
cyclically
send cyclically every
(only if sending “cyclically”)
5 sec … 2 h
Logic output sends two 8 bit objects
if logic = 1 object A value 0 … 255; 127
if logic = 0 object A value 0 … 255
if logic = 1 object B value 0 … 255; 127
if logic = 0 object B value 0 … 255
Communication objects
AND Logic 1 A and B sends
• in case of the change of logic
• in case of the change of logic to 1
• in case of the change of logic to 0
• in case of the change of logic and
cyclically
• in case of the change of logic to 1 and
cyclically
• in case of the change of logic to 0 and
cyclically
send cyclically every
(only if sending “cyclically”)
5 sec … 2 h
