emerio PH-122042 User manual

PH-122042
Panel Heater (EN)
Flächenheizung (DE)
Panneau chauffant (FR)
Radiatore a pannello (IT)

- 1 -
Content –Inhalt –Teneur –Contenuto
Instruction manual –English......................................................................................- 2 -
Bedienungsanleitung –Deutsch...............................................................................- 15 -
Mode d‘emploi – Français ........................................................................................- 28 -
Manuale d'istruzioni –Italiano.................................................................................- 41 -

- 2 -
Instruction manual –English
Important: read this instruction fully before using the heater;
retain these instructions for future reference.
This product is only suitable for well insulated spaces or
occasional use.
SAFETY INSTRUCTIONS (READ BEFORE OPERATING THE
HEATER)
1. Read and save these instructions. Attention: pictures in
the IM are for reference only.
2. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by
children without supervision.
5. Children of less than 3 years should be kept away unless
continuously supervised.
6. Children aged from 3 years and less than 8 years shall only
switch on/off the appliance provided that it has been
placed or installed in its intended normal operating
position and they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children aged from
3 years and less than 8 years shall not plug in, regulate and
clean the appliance or perform user maintenance.
7. CAUTION —Some parts of this product can become very
hot and cause burns. Particular attention has to be given
where children and vulnerable people are present.

- 3 -
8. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
9. This appliance is intended to be used in household and
similar applications.
10. The heater is not intended for use in bathrooms, laundry
areas or similar indoor locations. Never place the heater
where it may fall into a bathtub or any other water
container.
11. Do not use outdoors. Do not use to dry clothes or any
fabric.
12. Do not place the heater on carpets with a very deep pile.
13. The heater must not be located immediately below a
socket outlet.
14. Do not use the heater in areas where flammable liquids
are stored or where flammable fumes may be present.
15. Always unplug the heater when moving it from one
location to another.
16. Do not use the heater if the power cord is damaged.
17. Do not use this heater in the immediate surroundings of a
bath, a shower or a swimming pool.
18. WARNING: In order to avoid overheating, do not cover the
heater.
19. WARNING: The heater must not be used if the plaster
panels are damaged.
20. This heating device is not suitable for assembling in
vehicles and machines.
21. Means “DO NOT COVER“.
22. Regarding the information for FEET ASSEMBLY, please refer
to the below paragraph of the manual.
23. Always use the heater in an upright position. Keep
combustible material such as furniture, cushions, bedding,

- 4 -
paper, clothes, curtains etc. at least 100cm away from the
heater.
24. This heater has hot and arcing or sparking parts inside. Do
not use it in the areas where gasoline, paint, or flammable
liquids are used or stored.
25. To prevent overloading a circuit, do not plug the heater
into a circuit that already has other appliances working.
Do not install the heater under the wall socket.
26. Always unplug the appliance when not in use.
27. The appliance is hot when in use. To avoid burned, do not
let bare skin touch hot surfaces.

- 5 -
PH-122042 EN
PARTS DESCRIPTION
1. Heater body
2. Temperature sensor
3. Power switch
4. Control panel
5. Feet
a) LED display
b) Standby button
c) Timer and WIFI button
d) Value increase / decrease buttons
e) WI-FI indicator light
f) Timer indicator light
FEET ASSEMBLY (FREE STANDING)
1. Place the free standing feet on the ground. Insert the appliance into the slots of the feet.
2. Screw firmly with the two bolts.
WALL MOUNTING
There is a pack of accessories provided with the appliance. Please use it for wall mounting according to below
illustrations.

- 6 -
Accessories pack 1 set:
-1 x drill bit (8mm)
-4 x rail fittings
-4 x screw bolts
-4 x caps for bolts
1. Mark the positions of the four holes to be drilled on the wall. (Better install the appliance in a height of
20cm –100cm from the floor to get the best performance.)
2. Drill the holes with the drill bit.
3. Insert the plastic rail fittings into the holes.
4. Attach the appliance onto the four rail fittings through the four holes in the appliance.
5. Screw the four bolts into the plastic rail fittings.
6. Cover the bolts with the caps. It is recommended to use some glue to make the caps stick onto the bolts
firmly.
NOTE: make sure the distance between the bottom of the appliance and the floor is no less than 20cm when
the appliance is installed.
OPERATION
Plug the appliance into an appropriate electrical outlet. Turn on the appliance by pressing the power switch to
position “I”. The power switch will be illuminated. The appliance is standby. Press the standby button “” to
run your appliance.
1. Temperature setting
Press button “+” or “-” to set the desired temperature. You can choose from 0℃to 37℃. When you set your
desired temperature, the heater starts or stops heating automatically to maintain the room temperature. You
can long press the button “+“or “-” in the control panel for rapid adjustment.

- 7 -
2. Time setting
Press button “M” in the control panel, the timer 00 shows in the display. Press button “+” or “-” to set the
desired working time from 0 hour to 24 hours. The appliance will shut itself off automatically when the time is
up.
You can long press the button “+“or “-” in the control panel for rapid adjustment.
3. Turn off
Press button “ ” again to turn off the appliance. Turn off the main power switch and unplug the power cord
from the outlet.
WI-FI FUNCTION
This product is equipped with a Wi-Fi function. You can download APP in your mobile phones and use it like
the remote control. You can control the appliance from long distance by setting the on/off, timer, temperature,
and weekly schedule.
Long press the standby button “ ” to turn on/off the Wi-Fi function, the blue indicator light will be
blinking/off accordingly.
1. Download APP
1) For Apple system:
Open the “App store” software on your iPhone or iPad. Search “TuyaSmart” or “Smart Life” and download
either of them. This is free of charge.
2) For Android system:
Open the “Google Play” software on your Android phone. Search “TuyaSmart” or “Smart Life” and
download either of them. This is free of charge.
2. Open the APP and select “Register”. Enter your mobile phone number to get verification code. The country
code has already been filled in for you.
3. The verification code will send to your mobile phone within 60 seconds. Enter this verification code and
then set your password. Click “Done” to confirm the registration.
4. Select “Create Family” to enter family name, set location and rooms with smart devices. Click “Done” to
confirm the setting. Then, the home screen appears.

- 8 -

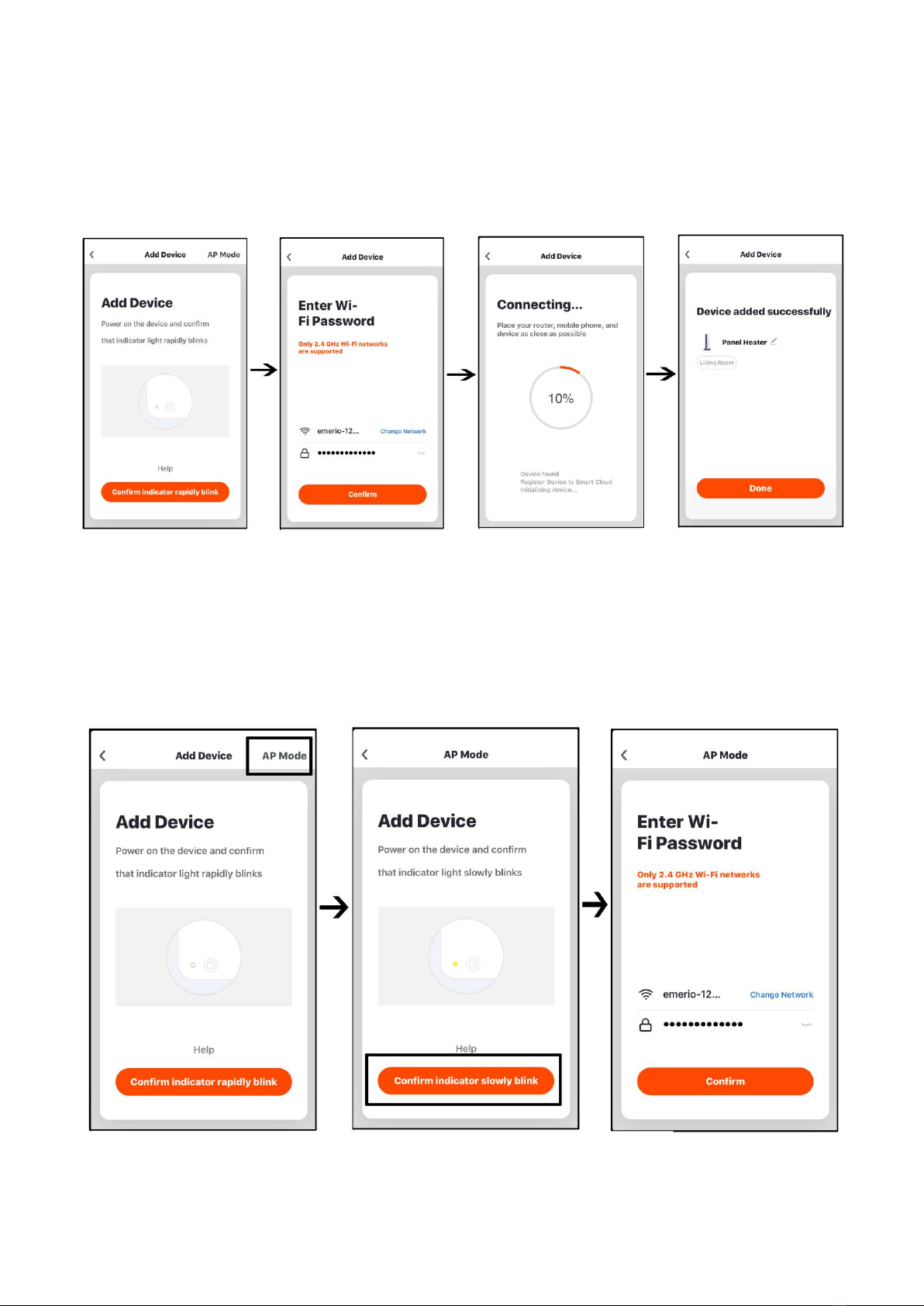

5. Connect your heater and your mobile phone at the same WI-FI Internet.
1) Make sure the blue Wi-Fi indicator light is blinking rapidly.
a) Click “Add Device” to enter into the next screen. Select “Add Manually”, and then choose the correct
product category (Small Home Appliance → Heater), then come into the next screen, click “Confirm
indicator rapidly blink”.
b) Type in the Internet password (the network name has already been filled in for you) and confirm. The
connection begins.
2) If the “rapid blink” connection is failed, long press button “M” to get slow blink, then try again.
a) Click “Add Device” to enter into the next screen. Select “Add Manually”, and then choose the correct
product category (Small Home Appliance → Heater), then come into the next screen; choose “AP
Mode”, come to the next screen and click “Confirm indicator slowly blink”.
b) Type in the Internet password (the network name has already been filled in for you) and confirm.
c) You will get the hint “connect your mobile phone to the device’s hotspot”, click “Go to Connect”, you
will come to WLAN settings, choose “SmartLife-XXXX”. Return to the APP. The connection will begin.

- 9 -
3) When the connection is done, you will come to a screen write “Device added successfully”. Click “Done”,
then you will come to the screen like below picture A. Now you can use your mobile phone like the
remote control to control your heater.
4) Click button “Power”, the appliance will be on. And you will come to the screen like picture B.
1. More information
2. Set temperature
3. Room temperature
4. Value decrease button
5. Value increase button
6. Power on/off
7. Countdown Timer
8. Smart Timer

- 10 -
More information
Touch “more information” button, you can change your basic device information, remove your device or
restore factory defaults, etc.
Normal working mode
1. Touch the button “Power”to turn on the appliance, then touch the button “+” or “-” to set your desired
temperature. The default startup temperature is 22℃.
2. Touch the button “Countdown Timer”, you can set the working time for 0-24 hours.

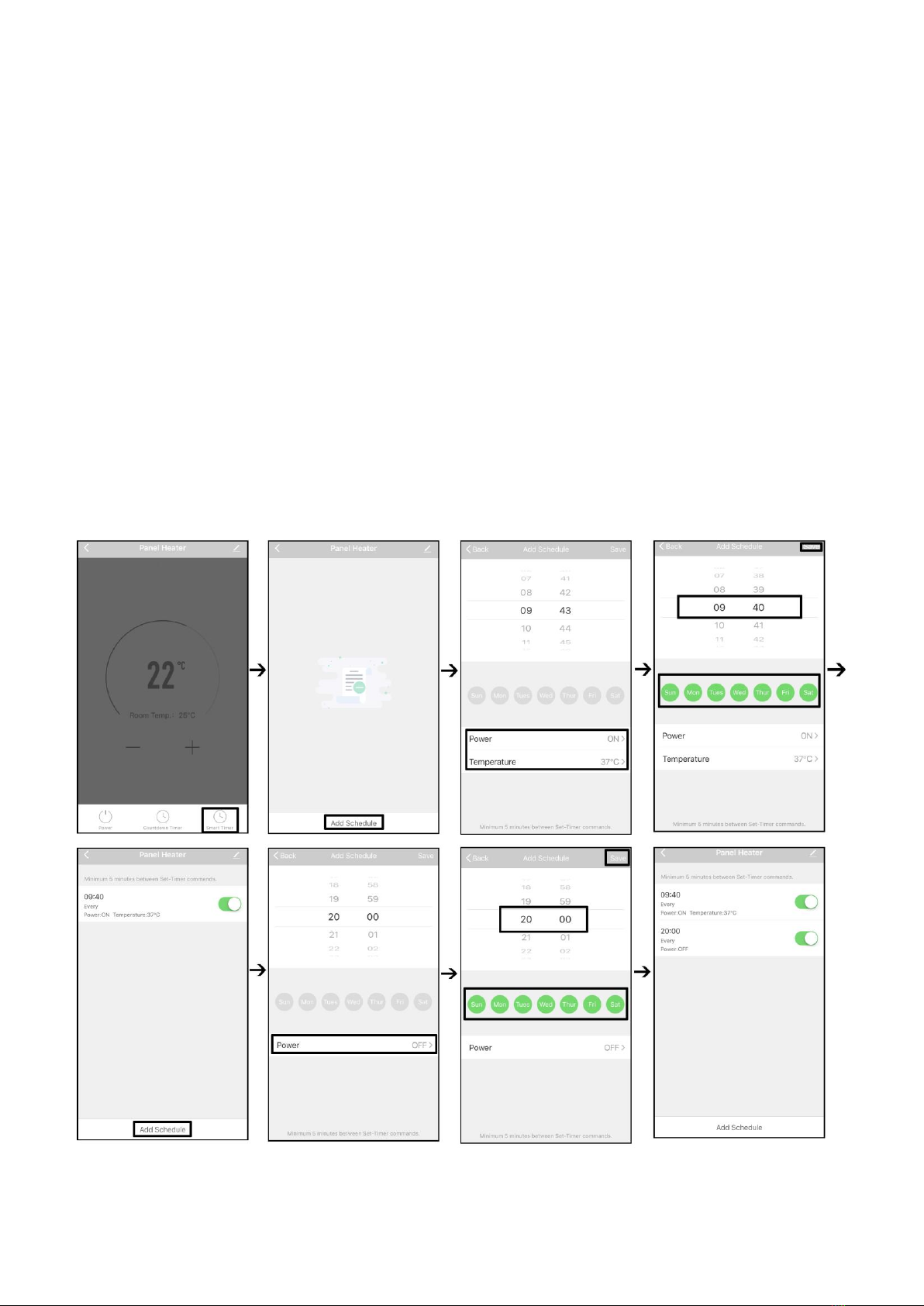

Weekly schedule
Touch the button “Smart Timer” to come into the next screen; touch “Add Schedule”, you can make your
weekly schedule here.
1. Set start time: Touch “Power” to choose ON, and touch “Temperature” to choose your desired
temperature, choose the time when you want to switch on the appliance, then touch the work days
button to choose the work days of each week (you can have multiple choices). Touch “Save” to confirm
the setting.
2. Set off time: Touch “Add schedule” to come to the add schedule screen, touch ”Power“ to choose OFF,
choose the time when you want to switch off the appliance, then touch the work days button to choose
the work days of each week (you can have multiple choices). Touch “Save” to confirm the setting.

- 11 -
If you want to turn off the schedule, touch icon “ ”. This row of schedule will get grey. (Fig. C)
If you want to cancel the schedule, long touch that schedule selection. Then the “Delete” screen will come;
touch “Confirm”to delete the schedule. (Fig. D)
If your heater fails to operate, please follow these instructions:
Ensure that your circuit breaker or fuse is working properly.
Be sure the heater is plugged in and that the electrical outlet is working properly.
If the power switch is not illuminated, send it to a service center for reparation directly.
SAFETY SYSTEM
The appliance has a safety system which automatically switches the unit off when overheated.
CLEANING THE HEATER
Always un-plug the heater from the wall socket and allow it to cool down completely before cleaning. Clean the
outside of the heater by wiping with a damp cloth and with a dry cloth. Do not use any detergents or abrasives
and do not allow any water to penetrate the heater.
To release the appliance from the wall, just open the screw bolt caps and unscrew the bolts to take off from the
wall.
STORING THE HEATER
When the heater is not used for long time it should be protected from dust and stored in a clean dry place.
TECHNICAL DATA:
Operating voltage: 220-240V ~ 50/60Hz
Power consumption: 425W
Max. transmitting power: 15.1 dBm
Frequency range: 2412MHz –2472MHz
Declaration of Conformity (DOC)
We, Emerio FOB Limited, declare under our sole responsibility that the product: PH-122042 is in conformity
with the essential requirements and other relevant requirements of the RED Directive (2014/53/EU)
The complete CE declaration is available at the following address: www.emerio.eu

- 12 -
GUARANTEE AND CUSTOMER SERVICE
Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred
during production or transportation, please return the device to your dealer. In addition to statutory legal
rights, the purchaser has an option to claim under the terms of the following guarantee:
For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a
defective product, you can directly go back to the point of purchase.
Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs
by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt,
without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction
manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.
Neither can we hold responsible for material damage or personal injury caused by improper use if the
instruction manual is not properly executed. Damage to accessories does not mean free replacement of the
whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts
is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning,
maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
ENVIRONMENT FRIENDLY DISPOSAL
Recycling –European Directive 2012/19/EU
This marking indicates that this product should not be disposed with other household wastes. To
prevent possible harm to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
Emerio Switzerland AG
Sihlbruggstrasse 107
6340 Baar
Switzerland
‘
’

- 13 -
ERP information (EN)
Supplier: Emerio Switzerland AG
Sihlbruggstrasse 107
6340 Baar
Switzerland
Declare that the product detailed below:
Information requirements for electric local space heaters
Model identifier(s):
Item
Symbol
Value
Unit
Item
Unit
Heat output
Type of heat input, for electric storage
local space heaters only (select one)
Nominal heat
output
Pnom
0.425
kW
manual heat charge control, with
integrated thermostat
No
Minimum heat
output (indicative)
Pmin
N.A.
kW
manual heat charge control with room
and/or outdoor temperature feedback
No
Maximum
continuous heat
output
Pmax,c
0.435
kW
electronic heat charge control with room
and/or outdoor temperature feedback
No
Auxiliary
electricity
consumption
---
---
---
fan assisted heat output
No
At nominal heat
output
elmax
0.435
kW
Type of heat output/room temperature control
(select one)
At minimum heat
output
elmin
N.A.
kW
single stage heat output and no room
temperature control
No
In standby mode
elSB
0.000
kW
Two or more manual stages, no room
temperature control
No
with mechanic thermostat room
temperature control
No
with electronic room temperature control
No
electronic room temperature control plus
day timer
No
electronic room temperature control plus
week timer
Yes
Other control options (multiple selections
possible)
room temperature control, with presence
detection
No
room temperature control, with open
window detection
No
with distance control option
Yes
with adaptive start control
No

- 14 -
with working time limitation
Yes
with black bulb sensor
No
Contact details
Emerio Switzerland AG
Sihlbruggstrasse 107
6340 Baar
Switzerland
Satisfies the requirement of the Council Directives:
COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU)
2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to
ecodesign requirements for local space heaters
Regarding information for consumers on how to install, use and maintain the product, WEEE information,
please check the instruction manual provided with packaging.

- 15 -
Bedienungsanleitung –Deutsch
Wichtig: Lesen Sie vor Verwendung dieses Heizgerätes diese
Anweisungen sorgfältig durch und bewahren Sie sie für
spätere Zwecke gut auf.
Dieses Produkt ist nur für gut isolierte Räume oder für den
gelegentlichen Gebrauch geeignet.
SICHERHEITSHINWEISE (VOR BETRIEB DES HEIZGERÄTS
DURCHLESEN)
1. Lesen und bewahren Sie diese Anleitungen auf. Achtung:
Die Bilder in der Bedienungsanleitung dienen nur zur
Veranschaulichung.
2. Dieses Gerät kann von Kindern ab 8 Jahren sowie von
Personen mit reduzierten physischen, sensorischen oder
mentalen Fähigkeiten oder Mangel an Erfahrung und/oder
Wissen benutzt werden, wenn sie beaufsichtig oder
bezüglich des sicheren Gebrauchs des Gerätes
unterwiesen wurden und die daraus resultierenden
Gefahren verstanden haben.
3. Kinder dürfen nicht mit dem Gerät spielen.
4. Kinder sollten dieses Gerät nicht unbeaufsichtigt reinigen
oder warten.
5. Kinder unter 3 Jahre sollten ferngehalten werden, außer
sie werden ständig beaufsichtigt.
6. Kinder ab 3 Jahre und unter 8 Jahre dürfen das Gerät nur
an- und ausschalten, unter der Voraussetzung, dass es an
die normale Betriebsposition platziert oder montiert
wurde und sie beaufsichtigt werden oder in der sicheren
Bedienung des Gerätes unterrichtet wurden und die
involvierten Gefahren verstehen. Kinder ab 3 Jahre und
unter 8 Jahre dürfen das Gerät nicht an das Stromnetz
anschließen, einstellen und reinigen oder
Wartungsarbeiten durchführen.

- 16 -
7. VORSICHT —Einige Teile dieses Produktes werden sehr
heiß und können Verbrennungen verursachen. In
Anwesenheit von Kindern und schutzbedürftigen
Personen muss besonders aufgepasst werden.
8. Wenn die Netzanschlussleitung dieses Gerätes beschädigt
wird, muss sie durch den Hersteller oder seinen
Kundendienst oder eine ähnlich qualifizierte Person
ersetzt werden, um Gefährdungen zu vermeiden.
9. Dieses Gerät ist für den Gebrauch in Haushalten und
ähnlichen Anwendungsbereichen vorgesehen.
10. Das Heizgerät darf nicht in Badezimmern, Waschbereichen
oder ähnlichen Orten verwendet werden. Das Heizgerät
niemals so aufstellen, dass es in eine Badewanne oder
einen anderen Wasserbehälter fallen kann.
11. Nicht im Freien verwenden. Nicht zum Trocknen von
Kleidung oder anderer Stoffe verwenden.
12. Das Heizgerät nicht auf Teppiche mit einem sehr hohen
Flor stellen.
13. Das Heizgerät darf nicht direkt unter einer Steckdose
platziert werden.
14. Verwenden Sie das Heizgerät nicht an Orten, an denen
brennbare Stoffe gelagert werden oder an denen sich
feuergefährliche Dämpfe befinden könnten.
15. Wenn das Heizgerät von einem Platz auf einen anderen
gestellt wird, immer den Stecker aus der Netzsteckdose
ziehen.
16. Das Heizgerät nicht verwenden, wenn das Anschlusskabel
beschädigt ist.
17. Dieses Heizgerät nicht in unmittelbarer Nahe einer
Badewanne, einer Dusche order eines Schwimmbeckens
benutzten.
18. WARNUNG: Um eine Überhitzung des Heizgeräts zu
vermeiden, darf das Heizgerät nicht abgedeckt werden.
19. WARNUNG: Bei beschädigten Gipsplatten darf das
Heizgerät nicht verwendet werden.
20. Dieses Heizgerät ist nicht zum Einbau in Fahrzeuge und
Maschinen geeignet.

- 17 -
21. Bedeutet " Nicht abdecken ".
22. Bitte lesen Sie den nachfolgenden Abschnitt in dieser
Bedienungsanleitung, um mehr über die MONTAGE DER
FÜßE zu erfahren.
23. Benutzen Sie das Heizgerät immer in aufrechter Position.
Halten Sie brennbares Material wie Möbel, Kissen,
Bettwäsche, Papier, Kleidung, Vorhänge usw. mindestens
100 cm vom Heizgerät entfernt.
24. Im Innern dieses Heizgeräts befinden sich Teile, die Hitze,
Lichtbögen oder Funken erzeugen können. Nicht in
Bereichen einsetzen, in denen Benzin, Lacke oder
entzündliche Flüssigkeiten verwendet oder gelagert
werden.
25. Um Stromkreisüberlastungen zu vermeiden, darf das
Heizgerät nicht mit einem Anschluss verbunden werden,
der bereits andere Verbraucher versorgt. Das Heizgerät
nicht unter einer Steckdose installieren.
26. Bei Nichtgebrauch immer den Netzstecker ziehen.
27. Während des Gebrauch wird das Gerät heiß. Die
ungeschützte Haut vor heißen Flächen fernhalten, es
besteht Verbrennungsgefahr.

- 18 -
PH-122042 DE
BESCHREIBUNG DER TEILE
1. Heizkörper
2. Temperatursensor
3. Hauptschalter
4. Bedienfeld
5. Standfüße
a) Display
b) Stand-by-Taste
c) Timer und WLAN-Taste
d) Plus- und Minustasten
e) WLAN-Anzeigeleuchte
f) Timer-Anzeigeleuchte
MONTAGE DER FÜSSE (FREISTEHEND)
1. Die Standfüße auf den Boden absetzen. Das Gerät in die Aussparungen für die Standfüße einführen.
2. Mit den beiden Schrauben fest anziehen.
MONTAGE AN DER WAND
Das Gerät wird mit Montagezubehör geliefert. Anhand der folgenden Abbildungen das Gerät mit dem Zubehör
an der Wand montieren.

- 19 -
Zubehörset 1:
-1 x Bohrer (8 mm)
-4 x Abstandshülsen
-4 x Schrauben
-4 x Schraubkappen
1. Die vier Bohrlöcher an der Wand markieren. (Für eine optimale Heizwirkung sollte das Gerät in einer Höhe
von 20 –100 cm über dem Boden angebracht werden.)
2. Mit dem Bohrer die Löcher bohren.
3. Die Kunststoffhülsen in die Löcher einführen.
4. Die Befestigungsschrauben durch die Geräteöffnungen in die Hülsen einsetzen.
5. Die Schrauben in den Kunststoffhülsen festziehen.
6. Die Schraubenköpfe mit den Kappen abdecken. Damit die Kappen fest in den Schraubköpfen halten, etwas
Klebstoff auftragen.
HINWEIS: Darauf achten, dass der Abstand zwischen der Unterseite des Geräts und dem Boden nach der
Geräteinstallation nicht weniger als 20 cm beträgt.
BETRIEB
Gerät an eine geeignete Steckdose anschließen. Zum Einschalten den Hauptschalter auf Position „I“ stellen.
Der Hauptschalter wird beleuchtet. Das Gerät ist auf Standby geschaltet. Zum Starten des Geräts die
Stand-by-Taste „ “ drücken.
1. Temperatureinstellung
Die Taste „+“ oder „-“ drücken, um die gewünschte Temperatur einzustellen. Der Wertebereich liegt zwischen
0 °C und 37 °C. Wenn die gewünschte Temperatur eingestellt wird, schaltet sich das Heizgerät automatisch ein
oder aus, um die Raumtemperatur zu halten. Zum schnelleren Einstellen die Taste „+“ oder „-“ auf dem
Bedienfeld gedrückt halten.
