Introduction
Scope of Manual
This instruction manual provides installation, operation, maintenance, and parts information for the Fisher Vee‐Ball
V150 (NPS 1 through 12), V200 (NPS 1 through 10), and V300 (NPS 1 through 12) rotary control valves (see figure 1).
NPS 3 through 12 valves without an attenuator currently in production are referred to as Series B (for more
information on this distinction see Appendix A).
For larger valves (NPS 14, 16, and 20), refer to a separate instruction manual. For information on ENVIRO‐SEAL™
packing, see the ENVIRO‐SEAL Packing System for Rotary Valves instruction manual (D101643X012). Refer to separate
manuals for information concerning the actuator, positioner and accessories.
Do not install, operate, or maintain Vee-Ball valves without being fully trained and qualified in valve,
actuator, and accessory installation, operation, and maintenance. To avoid personal injury or property
damage, it is important to carefully read, understand, and follow all the contents of this manual,
including all safety cautions and warnings. If you have any questions about these instructions, contact
your Emerson sales office before proceeding.
Instruction Manual
D101554X012
Vee-Ball Valves
March 2021

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
2
Table 1. Specifications
Valve Sizes
See table 2
Valve End Connection Styles
V150: Flanged valves that mate with CL150
raised-face flanges and EN 1092-1 Type B raised-face
and Type F Recess
V200: Flangeless (all sizes) and flanged valves that
mate with CL600 raised-face flanges (NPS 2-8)
V300: Flanged valves that mate with CL300
raised-face flanges and EN 1092-1 Type B raised-face
and Type F Recess
Maximum Inlet Pressure(1)
Consistent with applicable ASME B16.34 or
EN 12516-1 ratings
Standard Flow Direction
Forward (into the convex face of the Vee‐ball)
Actuator Mounting
JRight‐hand, standard or Jleft‐hand, optional, as
viewed from upstream end of valve (see figure 23 and
the Actuator Mounting section)
Maximum Ball Rotation
Standard: Ball rotates counterclockwise to close
when viewed from actuator side of valve
Optional: Ball rotates clockwise to close
Ball rotation is 90 degrees
Valve/Actuator Action
With diaphragm or piston rotary actuator,
field‐reversible between:Jpush‐down‐to‐close
(extending actuator rod closes valve) and
Jpush‐down‐to‐open (extending actuator rod
opens valve.) See actuator manual for details
1. The pressure/temperature limits in this manual, and any applicable code or standard limitation, should not be exceeded.
Description
The V150, V200, and V300 Vee‐Ball valves (figure 1) with a V‐notch ball are used in throttling or on‐off service. The
V200 is a flangeless construction. The V150 and V300 valves are raised‐face flanged constructions. The splined valve
shaft of all these valves connect to a variety of rotary‐shaft actuators.
Specifications
Specifications for these valves are shown in table 1 and in the Fisher Vee-Ball V150, V200, and V300 Rotary Control
Valves Bulletin 51.3:Vee‐Ball (D101363X012).
Educational Services
For information on available courses for Fisher Vee-Ball valves, as well as a variety of other products, contact:
Emerson Automation Solutions
Educational Services - Registration
Phone: [phone] or 1-800-338-8158
E-mail: [email protected]
emerson.com/fishervalvetraining

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
3
Table 2. Valve Body Materials, End Connections, and Ratings
VALVE DESIGN VALVE BODY MATERIAL SIZE RATINGS
NPS / DN ASME / PN
V150
WCC NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12, 14, 16, 20, 24x20(5) CL150
WCC / 1.0619(1) DN 80, 100, 150 PN 10-16
DN 200, 250, 300 PN 10 or PN 16
LCC
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12 CL150
DN 80, 100, 150 PN 10-16
DN 200, 250, 300 PN 10 or PN 16
CF3M(2) NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12 CL150
CF3M/1.4409(1) DN 80, 100, 150 PN 10-16
DN 200, 250, 300 PN 10 or PN 16
CG8M NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12, 14, 16, 20, 24x20(5)
CL150
CW2M NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
M35-2NPS 1, 1-1/2, 2, 3, 4, 6, 8
CD3MN(3) NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
CD3MWCuN(3) NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
CK3MCuN NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
V200(4)
WCC, LCC, CG8M, or CF3M(2)
NPS 1, 1-1/2, 2 CL150/300/600 flangeless
NPS 3, 4 CL150 and CL300/600
flangeless
NPS 6, 8 CL150/300 and CL600
flangeless
NPS 10 CL150 flangeless
WCC, LCC, or CG8M NPS 2, 3, 4, 6, or 8 CL600
CW2M, M35-2, or CK3MCuN NPS 1, 1-1/2, 2, 3, 4, 6, 8 CL150/300/600 flangeless
CK3MCuN NPS 10 CL150 flangeless
V300
WCC NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12, 14, 16, 20 CL300
WCC / 1.0619(1)
DN 25, 40, 50 PN 10-40
DN 80, 100, 150 PN 25-40
DN 200, 250, 300 PN 25 or PN 40
LCC
NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12 CL300
DN 25, 40, 50 PN 10-40
DN 80, 100, 150 PN 25-40
DN 200, 250, 300 PN 25 or PN 40
CF3M(2) NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12 CL300
CF3M/1.4409(1)
DN 25, 40, 50 PN 10-40
DN 80, 100, 150 PN 25-40
DN 200, 250, 300 PN 25 or PN 40
CG8M NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12, 14, 16, 20
CL300
CW2M NPS 1, 1-1/2, 2, 3, 4, 6, 8
M35-2NPS 1, 1-1/2, 2, 3, 4, 6, 8
CD3MN(3) NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
CD3MWCuN(3) NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
CK3MCuN NPS 1, 1-1/2, 2, 3, 4, 6, 8, 10, 12
1. WCC and EN Stl 1.0619 are dual certified. CF3M and EN SST 1.4409 are dual certified.
2. CF3M is a standard offering in Europe and Asia Pacific.
3. NORSOK compliant materials available upon request.
4. Flangeless V200 assemblies mate with raised-face flanges.
5. Valve body mates with NPS 24 ASME CL150 flanges. Internal based on NPS 20 valve design.
Installation
Separate installation steps are provided in this section for V150 and V300 flanged valves, V200 flangeless valves. Key
numbers in installation procedures are shown in figures 24, 25, and 26 unless otherwise indicated.
Some types of ceramic trim, including VTC, can create a spark under certain conditions. If an edge of a ceramic part is
struck against a second ceramic part with enough force, it can produce a spark.

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
4
WARNING
Avoid personal injury and property damage from ignition of process fluid caused by sparks from ceramic trim. Do not use
ceramic trim where the process fluid is unstable or if it is an explosive mixture (such as ether and air).
WARNING
Always wear protective gloves, clothing, and eyewear when performing any installation operations to avoid personal
injury.
Personal injury or equipment damage caused by sudden release of pressure may result if the valve assembly is installed
where service conditions could exceed either the valve body rating or the mating pipe flange joint rating. To avoid such
injury or damage, provide a relief valve for overpressure protection as required by government or accepted industry codes
and good engineering practices.
Check with your process or safety engineer for any additional measures that must be taken to protect against process
media.
If installing into an existing application, also refer to the WARNING at the beginning of the Maintenance section in this
instruction manual.

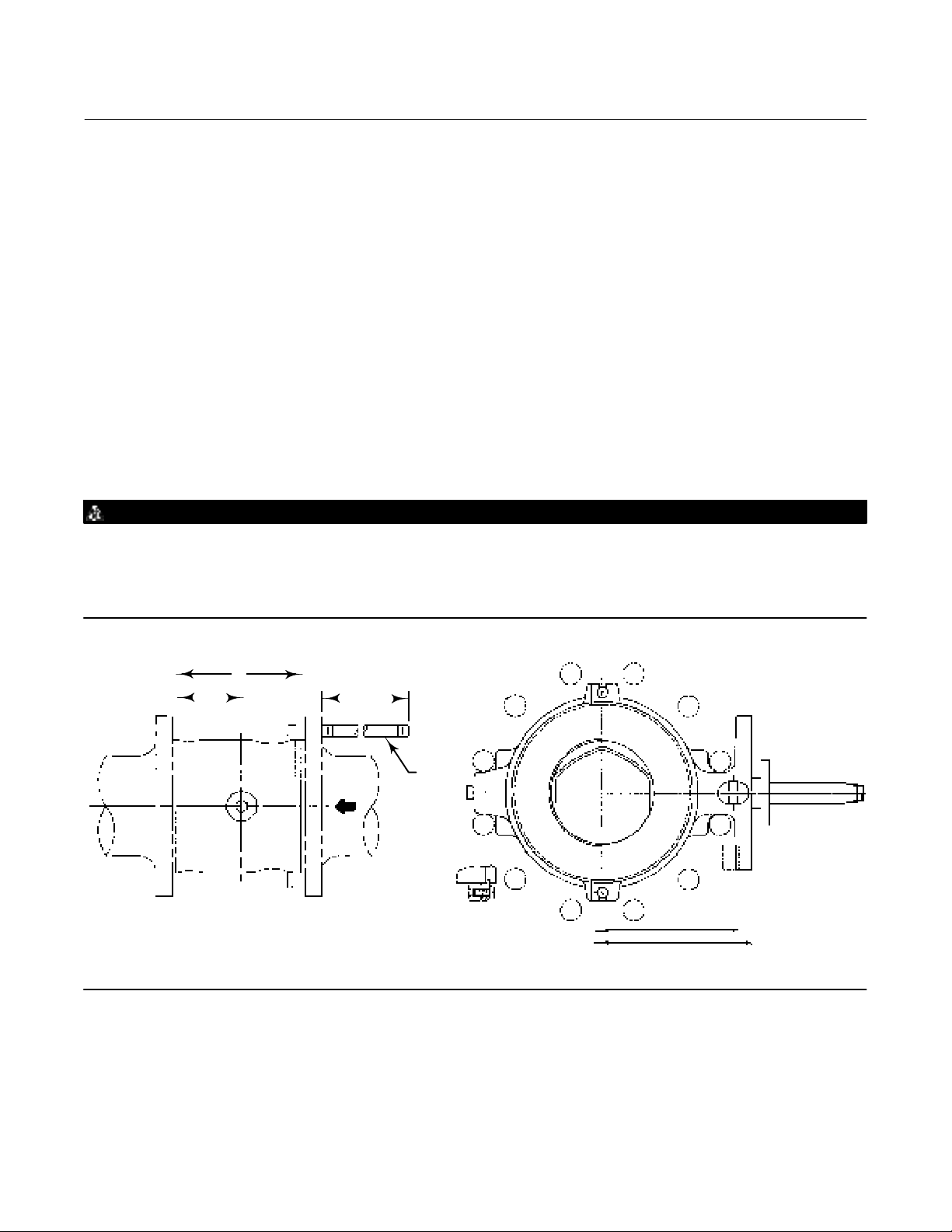

Figure 2. Flange Stud Length for Seal Protector End
DIMENSION SHOWN IN TABLE 3
1A4520
FIRST FULL THREAD TO FIRST FULL THREAD
Table 3. Flange Stud Lengths Required for Seal Protector Ring End of Fisher V150, V200, and V300 Valves
VALVE
SIZE
V150(2) V200(1) V300(2)
ANSI/ISA S75.08.02
Face‐to‐Face
ASME B16.10 Short
Face‐to‐Face
ANSI/ISA S75.08.02
Face‐to‐Face
ANSI/ISA S75.08.02
Face‐to‐Face
DN NPS mm Inches mm Inches mm Inches mm Inches
25
40
50
80
100
150
200
250
300
1
1-1/2
2
3
4
6
8
10
12
70
83
95
95
108
114
121
133
140
2.75
3.25
3.75
3.75
4.25
4.50
4.75
5.25
5.50
95
127
146
133
146
152
171
165
159
3.75
5.00
5.75
5.25
5.75
6.00
6.75
6.50
6.25
- - -
- - -
121
140
165
197
216
- - -
- - -
- - -
- - -
4.75
5.50
6.50
7.75
8.50
- - -
- - -
89
102
95
121
127
140
152
171
184
3.50
4.00
3.75
4.75
5.00
5.50
6.00
6.75
7.25
1. For the flanged V200, the same bolt lengths are used for both the inlet and outlet flange ends because the studs for threaded flange holes are double nutted. If the Cavitrol Hex
anti-cavitation trim is installed, the required outlet flange bolt length will be ½” longer than the Dimension specified in the table above. See Vee-Ball bulletin (D101363X012).
2. For V150 and V300 valve assemblies with the Cavitrol Hex anti-cavitation trim installed, the same bolt lengths are used for both the inlet and outlet flange ends.
WARNING
When ordered, the valve configuration and construction materials were selected to meet particular pressure, temperature,
pressure drop, and controlled fluid conditions. Responsibility for the safety of process media and compatibility of valve

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
5
materials with process media rests solely with the purchaser and end‐user. To avoid possible personal injury and because
some valve/trim material combinations are limited in their pressure drop and temperature ranges, do not apply any other
conditions to the valve without first contacting your Emerson sales office.
WARNING
The valve drive shaft is not necessarily grounded to the pipeline when installed. Personal injury or property damage could
result from an explosion caused by a discharge of static electricity from valve components if the process fluid or the
atmosphere around the valve is flammable. If the atmosphere around the valve or the process fluid is flammable,
electrically bond the drive shaft to the valve.
Note
Standard PTFE packing is composed of a partially conductive carbon‐filled PTFE female adaptor with PTFE V‐ring packing. Standard
graphite packing is composed of all conductive graphite ribbon packing. Alternate shaft‐to‐valve body bonding is available for
hazardous service areas where the standard packing is not sufficient to bond the shaft to the valve (see the following step).
Attach the optional bonding strap assembly (key 131, figure 3) to the valve drive shaft (key 6) with the clamp (key 130,
figure 3) and connect the other end of the bonding strap assembly to the valve body with the cap screw (key 23).
1. If the valve is to be stored before installation, protect the flange mating surfaces and keep the valve body cavity dry
and free of foreign material.
2. Install a three‐valve bypass around the control valve assembly if continuous operation will be necessary during
inspection and maintenance of the valve.
3. The valve is normally shipped as part of a control valve assembly, with an actuator mounted on the valve. If the
valve and actuator have been purchased separately or if the actuator has been removed, mount the actuator
according to the Actuator Mounting section and the appropriate actuator instruction manual.
4. Standard flow direction is with the seal protector ring (key 3) facing upstream.
5. Install the valve in a horizontal or vertical pipeline with the drive shaft in a horizontal position.
CAUTION
To maximize seal life, the valve should be installed so the drive shaft will be in the horizontal orientation while in service.
Please contact your Emerson sales office for evaluating vertical drive shaft installations.
6. The actuator can be right‐ or left‐hand mounted with the shaft in a horizontal orientation as shown in figure 1. If
necessary, refer to the appropriate actuator instruction manual for actuator installation and adjustment
procedures.
CAUTION
Ensure the valve and adjacent pipelines are free of foreign material that could damage the valve seating surfaces.
7. Be certain the valve and adjacent pipelines are free of any foreign material that could damage the valve sealing
surfaces.
8. Be sure the pipeline flanges are in line with each other.

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
6
Installing V150, V300, and Flanged V200 Valves
1. Install the V150 and V300 valve using studs (keys 32 and 33, not shown) and nuts to connect the valve flanges to
the pipeline flanges. The seal protector ring (key 3) end of the valve requires longer line flange studs (key 32) than
standard. Do not use standard‐length line flange studs for the seal protector ring end of the valve. The seal
protector ring end of the valve for the DN25/NPS 1 constructions will have threaded flange holes due to insufficient
nut clearance.
Figure 3. Optional Shaft‐to‐Body Bonding Strap Assembly
VALVE
BODY
ACTUATOR
A
A
VIEW A‐A
37A6528‐A
A3143‐2
2. See table 3 and figure 2 for length of studs for the seal protector ring end of V150 and V300 valves. Lubricate the
studs with anti‐seize lubricant.
3. Insert flat‐sheet line flange gaskets (or spiral‐wound gaskets with compression‐controlling center rings) that are
compatible with the flowing media.
4. Connect pressure lines to the actuator as indicated in the actuator instruction manual. When an auxiliary manual
actuator is used with a power actuator, install a bypass valve on the power actuator (if one is not supplied) for use
during manual operation.
WARNING
Personal injury could result from packing leakage. Valve packing was tightened before shipment; however the packing
might require some readjustment to meet specific service conditions. Check with your process or safety engineer for any
additional measures that must be taken to protect against process media.
If the valve has ENVIRO‐SEAL live‐loaded packing installed, this initial re‐adjustment will probably not be required. See
ENVIRO‐SEAL Packing System for Rotary Valves instruction manual (D101643X012) for packing instructions.

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
7
Installing V200 Valves
Stud length dimensions are shown in figure 4 for the seal protector ring end of the valve. For V200, CL600, the
dimension from the center line of the valve bore to the mounting flange face is larger than a CL150 or 300 valve.
1. Install the V200 valve using long studs (key 32, figure 4) to connect the two pipeline flanges. Refer to figure 4 for
the size of studs required. Lubricate the studs with anti‐seize lubricant.
2. Install two studs in the flanges before you place the valve in the line. Place the two studs so they will contact the
line‐centering notches at the bottom of the valve body.
3. Insert flat‐sheet line flange gaskets (or spiral‐wound gaskets with compression‐controlling center rings) that are
compatible with the process fluid.
4. Place the valve on the two studs. Install all remaining studs. Measure carefully to be sure the valve is centered on the
pipeline flanges, and tighten the flange stud nuts. Tighten the nuts in a criss‐cross sequence to be sure the flange
gaskets are properly torqued.
5. Connect pressure lines to the actuator as indicated in the actuator instruction manual. When an auxiliary manual
actuator is used with a power actuator, install a bypass valve on the power actuator (if one is not supplied) for use
during manual operation.
WARNING
Personal injury could result from packing leakage. Valve packing was tightened before shipment; however the packing
might require some readjustment to meet specific service conditions. Check with your process or safety engineer for any
additional measures that must be taken to protect against process media.
Figure 4. Fisher V200 Dimensions and Required Clearances for Installation
179 mm (7.06 INCHES) FOR CL600 NPS 6 VALVES
164 mm (6.44 INCHES) FOR CL150 AND 300 NPS 6 VALVES
95BA02100B
A6956
A
BM
KEY
32
12B3060‐L
NOTE:
REFER TO TABLE WITH DIMENSIONS ON PAGE 8

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
8
V200
VALVE
SIZE,
NPS
DIMENSION
A
B
M
Standard
ANSI/ISA
S75.08.02(1)
CL150
ASME B16.10(2)
Short (Optional)
Standard
CL150 ANSI/ISA
S75.08.02(1)
CL150
ASME B16.10(2)
Short (Optional)
CL300 CL600
mm
1
1-1/2
2
102
114
124
127
165
178
58
64
57
176
189
211
202
240
268
202
224
237
202
224
237
3
4
6
165
194
229
203
229
267
87
92
119
254
286
343
286
321
381
279
305
362
286
343
423
8
10
243
297
292
330
119
151
343
419
394
451
387
‐ ‐ ‐
426
‐ ‐ ‐
Inches
1
1-1/2
2
4.00
4.50
4.88
5.00
6.50
7.00
2.29
2.50
2.25
6.94
7.44
8.31
7.94
9.44
10.56
7.94
8.81
9.31
7.94
8.81
9.31
3
4
6
6.50
7.62
9.00
8.00
9.00
10.50
3.44
3.62
4.69
10.00
11.25
13.50
11.25
12.62
15.00
11.00
12.00
14.25
11.25
13.50
16.25
8
10
9.56
11.69
11.50
13.00
4.69
5.94
13.50
16.50
15.50
17.75
15.25
‐ ‐ ‐
16.75
‐ ‐ ‐
1. IEC 534‐3‐2 face‐to‐face dimensions are equivalent to ANSI/ISA S75.08.02 face‐to‐face dimensions.
2. 150 pound class only.
Maintenance
Valve parts are subject to normal wear and must be inspected and replaced as necessary. The frequency of inspection
and replacement depends upon the severity of service conditions.
Key numbers in this procedure are shown in figures 24, 25, and 26, unless otherwise noted.
WARNING
The Vee‐ball closes with a shearing, cutting motion, which could result in personal injury. To avoid injury, keep hands,
tools, and other objects away from the Vee‐ball while stroking the valve.
Avoid personal injury from sudden release of process pressure. Before performing any maintenance operations:
D Do not remove the actuator from the valve while the valve is still pressurized.
D Disconnect any operating lines providing air pressure, electric power, or a control signal to the actuator. Be sure the
actuator cannot suddenly open or close the valve.
D Use bypass valves or completely shut off the process to isolate the valve from process pressure. Relieve process pressure
from both sides of the valve. Drain the process media from both sides of the valve.
D Vent the power actuator loading pressure and relieve any actuator spring precompression.
D Use lock‐out procedures to be sure that the above measures stay in effect while you work on the equipment.
D Always wear protective gloves, clothing, and eyewear when performing any maintenance operations.
D The valve packing area may contain process fluids that are pressurized, even when the valve has been removed from the
pipeline. Process fluids may spray out under pressure when removing the packing hardware or packing rings.
D Check with your process or safety engineer for any additional measures that must be taken to protect against process
media.
Packing Maintenance
Key numbers in this procedure are shown in figures 24, 25, and 26, unless otherwise noted. A detailed view of the
packing is also shown in figure 5.

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
9
If the valve is equipped with the ENVIRO‐SEAL Packing System, refer to:
D the separate ENVIRO‐SEAL Packing System for Rotary Valves instruction manual (D101643X012) for maintenance
instructions, and
D the Parts List section of this manual for retrofit kits, parts kits, and individual parts.
If the packing is relatively new and tight on the drive shaft (key 6), and if tightening the packing follower nuts does not
stop leakage, it is possible that the drive shaft is worn or nicked so that a seal cannot be made. If the leakage comes
from the outside diameter of the packing, it is possible that the leakage is caused by nicks or scratches on the packing
box wall. Inspect the drive shaft and packing box wall for nicks or scratches while performing the following procedure.
Replacing Packing
When using this procedure, it is recommended that the actuator not be removed from the valve while the valve is still
in the pipeline or between flanges. Valve/actuator adjustments must be made with the valve out of the pipeline. Refer
to the Determining Closed Position portion of the Actuator Mounting section.
Disassembly
WARNING
Observe the steps in the WARNING at the beginning of the Maintenance section.
1. Isolate the control valve from the line pressure, release pressure from both sides of the valve body, and drain the
process media from both sides of the valve. If using a power actuator, shut off all pressure lines to the power
actuator, release pressure from the actuator, and disconnect the pressure lines from the actuator. Use lock‐out
procedures to be sure that the above measures stay in effect while you are working on the equipment.
2. Remove line bolting, remove the control valve from the pipeline, and place the valve/actuator assembly on a flat
surface with the seal protector ring facing up.
3. Remove the actuator cover. Take note of the orientation of the actuator with respect to the valve body and the
lever orientation with respect to the valve drive shaft (see figure 6).
WARNING
When the actuator is removed from the valve, the ball/shaft assembly may suddenly rotate, with a shearing, cutting
motion, which could result in personal injury. To avoid injury, carefully rotate the ball to a stable position after the actuator
is removed.
CAUTION
When removing the actuator from the valve, do not use a hammer or similar tool to drive the lever or actuator off the valve
shaft. Driving the lever or actuator off the valve shaft could damage the ball, seal, and valve. If necessary, use a puller to
remove the lever or actuator from the valve shaft. It is okay to tap the puller screw lightly to loosen lever or actuator, but
hitting the screw with excessive force could damage the ball, seal, and valve.
4. Remove the clamped lever (do not loosen the actuator turnbuckle adjustment), remove the actuator mounting
screws and nuts (keys 23 and 24), and remove the actuator. (If necessary, refer to the actuator instruction manual
for assistance.)

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
10
5. If applicable, remove the bonding strap assembly before attempting to remove the packing (see figure 3).
6. Remove the packing follower nuts and packing follower (keys 17 and 20). For alloy packing constructions, the
packing follower (key 17) and a separate packing flange (key 40) must be removed if present.
If the valve is equipped with the ENVIRO‐SEAL packing system, refer to the ENVIRO‐SEAL Packing System for Rotary
Valves instruction manual (D101643X012) for disassembly.
WARNING
Personal injury could result from packing leakage. Do not scratch the drive shaft or packing box wall while removing
packing parts in the following procedure.
7. Remove the packing parts (see figure 5, keys 16, 17, 35, and 39 depending on construction) using a formed wire
hook with a sharp end. Pierce the rings with the sharp end of the hook in order to remove them. Do not scratch the
drive shaft or packing box wall; scratching these surfaces could cause leakage. Clean all accessible metal parts and
surfaces to remove particles that would prevent the packing from sealing.
Assembly
If the valve is equipped with the ENVIRO‐SEAL packing system, refer to the ENVIRO‐SEAL Packing System for Rotary
Valves instruction manual (D101643X012) for assembly.
Series B only
1. For NPS 8, 10, and 12 valves, install the packing spacer (key 34) if it has been removed.
2. To help ensure correct centering of the Vee‐ball (key 2) on the seal (key 11), make sure the ball is closed while you
install or tighten new packing. Insert a screwdriver, pry bar, or similar tool between the lower ear of the ball and the
valve body. Use the pry to move the ball tightly against the bearing on the actuator side of the valve (see figure 6).
Keep the ball in that position until you have completed packing installation and adjustment.
3. Install the new packing parts using the parts sequence shown in figure 5. Install the packing follower (key 17). Alloy
constructions have a packing follower (key 17) and a separate packing flange (key 40) that must be replaced.
4. Secure the packing follower with the packing follower nuts (key 20). Tighten the nuts far enough to stop leakage
under operating conditions.
Handle the seal protector ring, seal, and other parts carefully to prevent damage. A new gasket (key 15) is required
whenever the seal protector ring (key 3) (figure 11) is removed.
Flow ring construction does not use a seal, shims, or spring seal. Use this procedure to remove the seal protector ring
from flow ring constructions, but disregard any instructions calling for the seal, shims, or spring seal.
Note
If the valve is equipped with a bonding strap assembly (figure 3), re‐install the assembly.
5. Reconnect the actuator and lever in accordance with the orientations that were noted in step 3 of the disassembly
procedures. If necessary, use figure 23 to identify the correct index marks.
6. Refer to the appropriate actuator instruction manual to complete actuator assembly and adjustment.
7. When the control valve is in operation, check the packing follower for leakage and retighten the packing follower
nuts (key 20) as necessary.

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
11
Replacing the Ball Seal
Disassembly
Perform this procedure if the control valve is not shutting off properly or if seal inspection is necessary. If you find upon
inspection that the ball, shaft, or bearings need to be replaced, use this procedure to remove the ball seal. Then,
proceed to the Bearing and Ball Maintenance procedures. Then, return to this procedure and begin with the assembly
of the ball seal steps.
While the actuator/valve assembly must be removed from the pipeline, the actuator may remain mounted on the
valve as you replace the ball seal.
Key numbers are shown in figures 24, 25, and 26, unless otherwise indicated. Ball Seal assembly details (with key
numbers) are also shown in figures 8, 9, and 10.

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
12

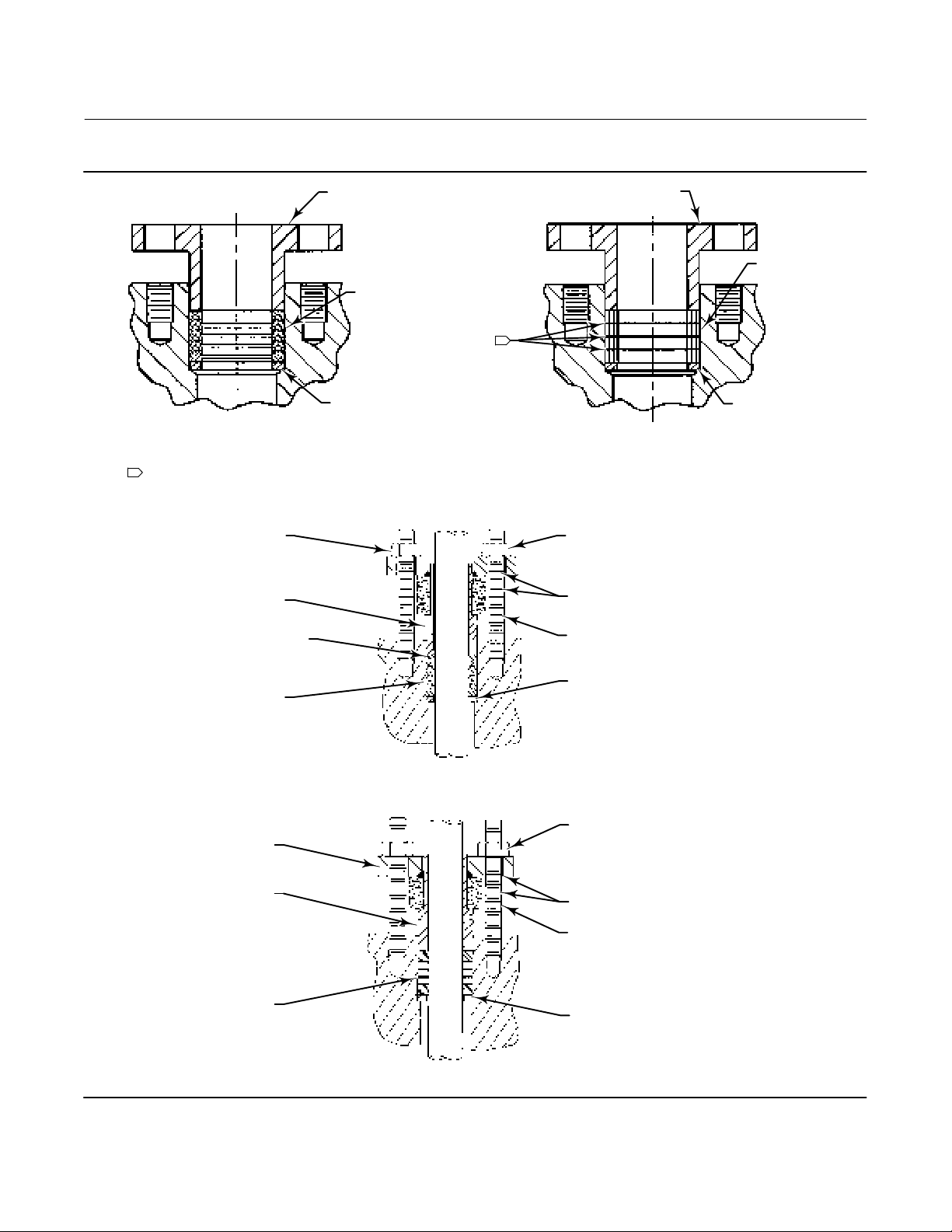

Figure 5. Packing Arrangements PACKING FOLLOWER (KEY 17)
PACKING SET
(KEY 16)
PACKING RING
(KEY 35)
PACKING
BOX RING (KEY 39)
PACKING FLANGE
(KEY 102)
SPRING PACK
ASSEMBLY
(KEY 103)
ANTI‐EXTRUSION
RING (KEY 106)
PACKING SET
(KEY 105)
PACKING FLANGE
NUT (KEY 101)
LUBRICANT
(KEY 113)
PACKING FLANGE
STUD (KEY 100)
PACKING BOX
RING (KEY 107)
PACKING FLANGE
(KEY 102)
SPRING PACK
ASSEMBLY
(KEY 103)
PACKING SET
(KEY 105)
PACKING FLANGE
NUT (KEY 101)
LUBRICANT
(KEY 113)
PACKING FLANGE
STUD (KEY 100)
PACKING BOX
RING (KEY 107)
NOTE:
INCLUDES ZINC WASHERS (KEY 36) FOR
GRAPHITE RIBBON PACKING ONLY.
GRAPHITE RIBBON PACKING
FOR V150, V200, AND V300
PTFE V‐RING PACKING
FOR V150, V200, AND V300
STANDARD PACKING
ENVIRO‐SEAL PTFE PACKING SYSTEM
ENVIRO‐SEAL GRAPHITE PACKING SYSTEM
1
28B5170
42B8445‐C SHT 1
42B8445‐C SHT 2
B2412‐1
PACKING FOLLOWER (KEY 17)
PACKING
BOX RING (KEY 39)
1

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
13

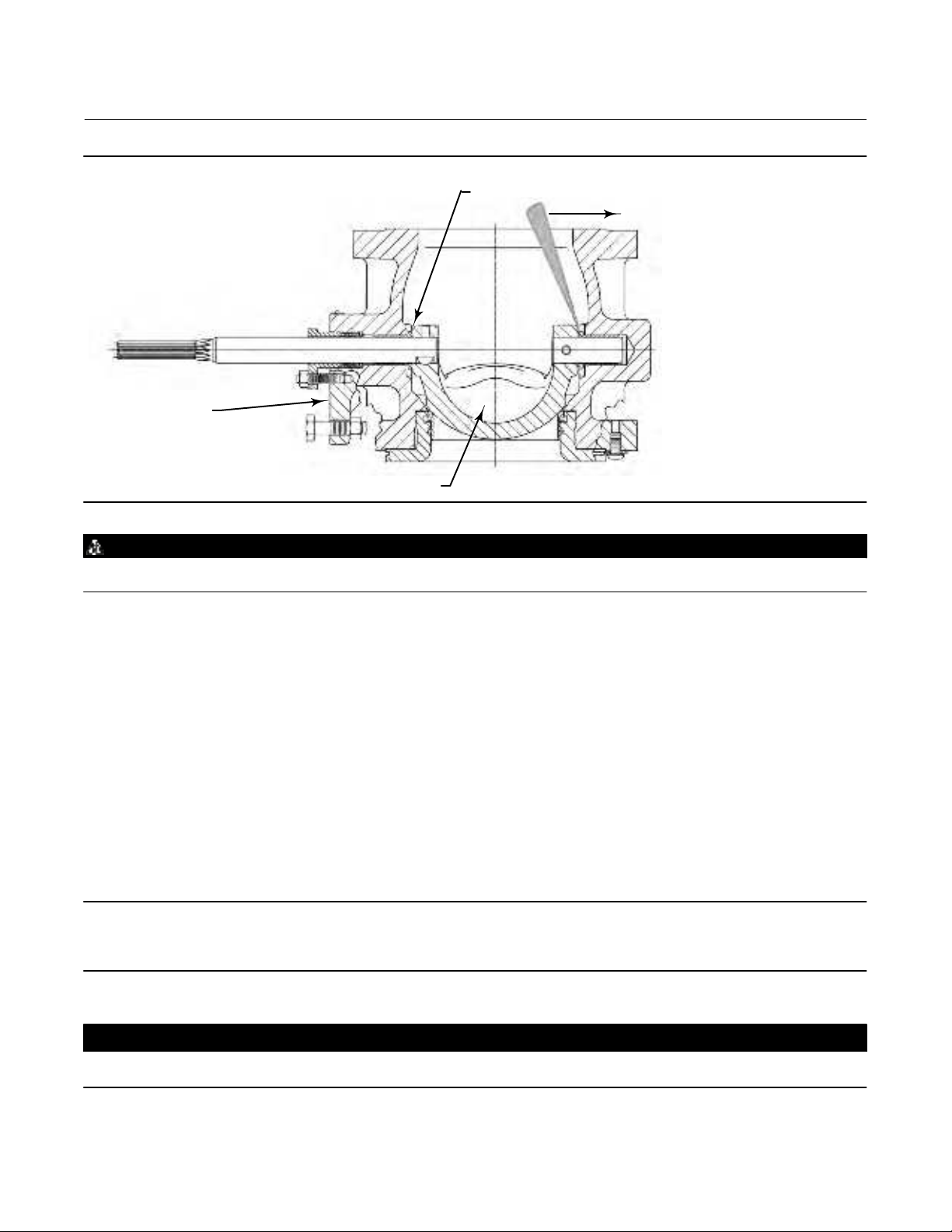

Figure 6. Typical Vee‐Ball Valve Showing Pry Bar
BALL
ACTUATOR SIDE
OF VALVE
58B2296‐B
E0739
THRUST AND BEARING SURFACE
PRY IN THIS DIRECTION
WARNING
Perform the steps in the WARNING at the beginning of the Maintenance section of this manual.
1. Remove line bolting, remove the control valve from the pipeline, and place the valve on a flat surface with the seal
protector ring facing up. Carefully rotate the ball to the open position.
2. Remove protector ring screws and washers (keys 21 and 22). Carefully remove the seal protector ring and gasket
(keys 3 and 15). (For flow ring constructions, go to step 4.)
a. For a Fisher TCM seal, remove the seal (key 11) from the valve body. For NPS 1, 1-1/2, and 2 valves, also remove
the backup ring (key 14, figure 8) from the valve body.
b. For a flat metal seal, remove the spring seal, seal, and shims (keys 13, 11, and 12). (Note: It may be necessary to
re‐use some of the original shims when reassembling the flat metal seal.)
c. For an HD ball seal or a high temperature HD ball seal, once the protector ring has been removed from the valve,
push the metal seal (key 11) out of the seal protector ring (key 3). Remove the wave spring (key 13), and on the
HD metal seal, the radial seal (key 37).
Note
The high temperature HD ball seal also has a piston ring (key 133) that will need to be removed. It will be in two pieces for the NPS
1, 1-1/2 and 2 valves, and one piece with a break in it for the NPS 3 through 12 valves.
CAUTION
Exercise care to avoid damaging components in the following procedure.

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
14
D It might be necessary to remove the HD seal by carefully tapping it with a soft punch and hammer. Take
care not to damage the seal protector ring.
D NPS 3 through 12 valves, if the seal is difficult to push out, it is recommended that a seal removal plate be
used to press the HD seal out of the seal protector ring. Refer to figure 12 for dimensions of the seal
removal plate.
D NPS 10 and 12 valves with an attenuator only: Remove the retaining ring (key 41) in the seal protector ring.
This retaining ring is an octagonal‐shaped support wire. To remove the retaining ring, find one of the free
ends of the ring. Use a screwdriver or similar tool to pry inward and upward until the ring is removed.
3. Inspect the gasket and sealing surfaces on the valve body (key 1 or 1A), the seal protector ring (key 3), Vee‐Ball (key
2), and the retaining ring (key 41 for NPS 10 and 12 valves with an attenuator only). Be sure the sealing surfaces are
not damaged.
4. If replacement of the ball, shafts (keys 6 or 9), or bearings (key 10) is needed, proceed to the Bearing and Ball
Maintenance procedure. If only the seal is to be replaced, proceed to the Assembly steps below.
Assembly
Refer to figures 8, 9, and 10 for key number locations during seal installation. Valve key number locations are shown in
figures 24, 25, and 26.
1. Thoroughly clean all parts that are to be re‐used and obtain replacement parts. Be sure that all sealing surfaces are
in good condition without scratches or wear. If the valve has been installed between line flanges and the flange
studs and nuts have been tightened, always replace the gasket (key 15) with a new gasket.
2. To help ensure correct side‐to‐side centering of the ball (key 2) on the seal (key 11), make sure the ball is closed
while you install the seal or flow ring and seal protector ring. Insert a screwdriver, pry bar, or similar tool between
the lower ear of the ball and the valve body (see figure 6).
3. Use the pry to move the ball tightly against the bearing on the actuator side of the valve. Be careful, excessive force
may damage the ball. Keep the ball in that position until you have completed seal or flow ring installation. Check
the ball's position periodically, and re‐center if necessary, during lever assembly and packing adjustments.
WARNING
The Vee‐Ball closes with a shearing, cutting motion, which could result in personal injury. To avoid injury or property
damage, keep hands, tools, and other objects away from the Vee‐Ball while stroking the valve.
4. Install the seal.
CAUTION
Due to the Vee‐ball shape, take care to never completely rotate either the front skirted edge or the circular back edge of the
ball out of the ball seal as the seal could be damaged.

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
15

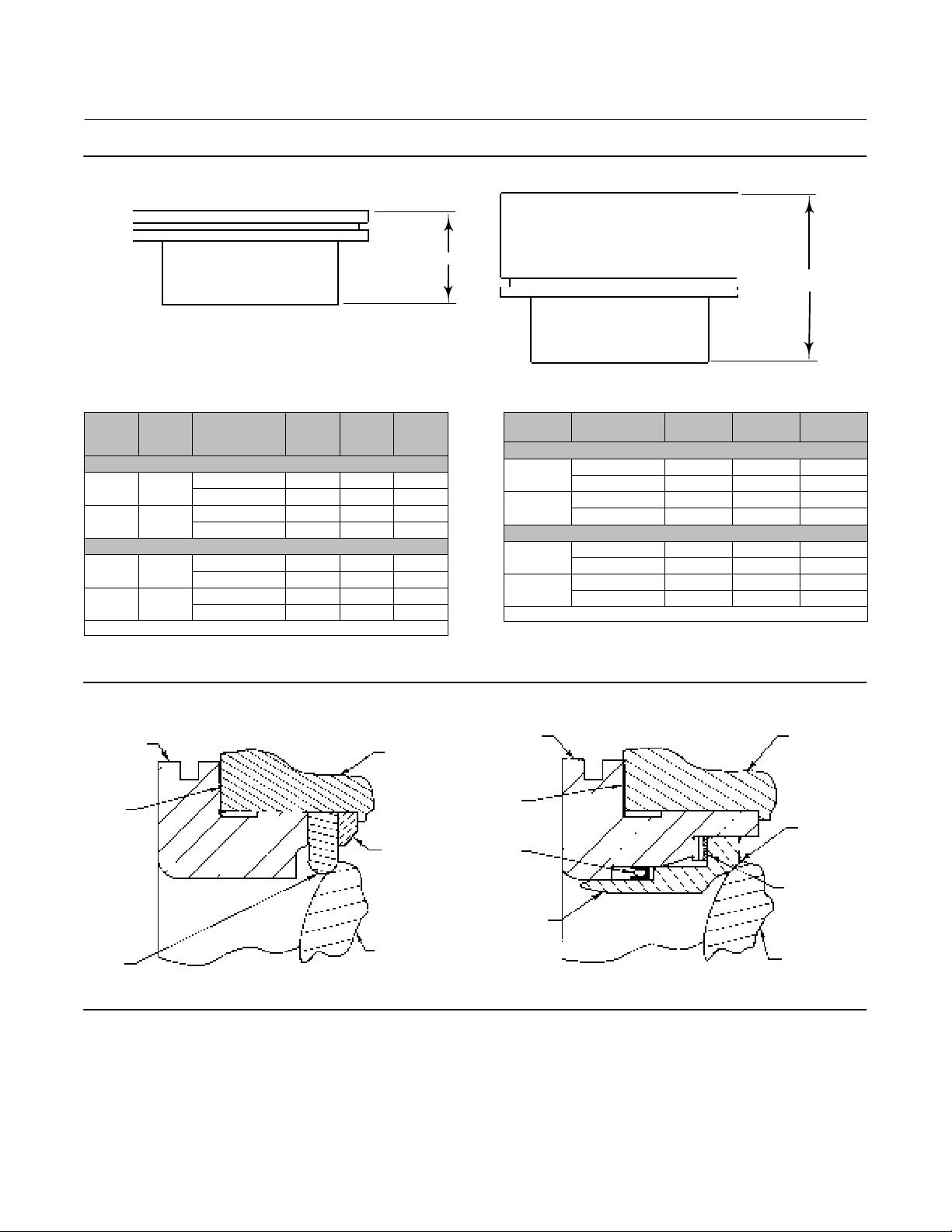

Figure 7. NPS 1 and 1-1/2 Seal Protector Ring Measurements
CL150 ASME B16.10 (SHORT) FACE‐TO‐FACE VALVE
D
A6960
ANSI/ISA S75.08.02 FACE‐TO‐FACE VALVE
D
A6959
Valve
Size, DN
Valve
Size,
NPS
Construction(1)
TCM
Seal
“D”
HD Seal
“D”
Flow
Ring
“D”
mm
25 1 New 37.6 44.7 39.6
Old 25.1 33.0 26.9
40 1-1/2 New 39.1 44.5 40.9
Old 27.4 32.8 29.2
Inches
25 1 New 1.48 1.76 1.56
Old 0.99 1.30 1.06
40 1-1/2 New 1.54 1.75 1.61
Old 1.08 1.29 1.15
1. See the Note on page 14 of this Instruction Manual.
Valve Size,
NPS Construction(1) TCM Seal “D”
HD Seal
“D”
Flow Ring
“D”
mm
1New 63.0 70.1 65.0
Old 50.5 58.4 52.3
1-1/2 New 89.9 95.3 91.7
Old 78.2 83.6 80.0
Inches
1New 2.48 2.76 2.56
Old 1.99 2.30 2.06
1-1/2 New 3.54 3.75 3.61
Old 3.08 3.29 3.15
1. See the Note on page 14 of this Instruction Manual.
Figure 8. Ball Seal Assembly for NPS 1, 1-1/2, and 2 Valves
SEAL PROTECTOR RING
(KEY 3)
GASKET
(KEY 15)
BALL SEAL
(KEY 11)
VALVE BODY
(KEY 1)
BACKUP RING
(KEY 14)
BALL (KEY 48)
SEAL PROTECTOR
RING (KEY 3)
GASKET
(KEY 15)
RADIAL SEAL
(KEY 37)
HD METAL BALL
SEAL (KEY 11)
APPLY
DRY FILM
LUBRICANT
WAVE SPRING
(KEY 13)
BALL (KEY 48)
VALVE BODY
(KEY 1)
Fisher TCM Plus BALL SEAL HD BALL SEAL
A6032‐2

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
16

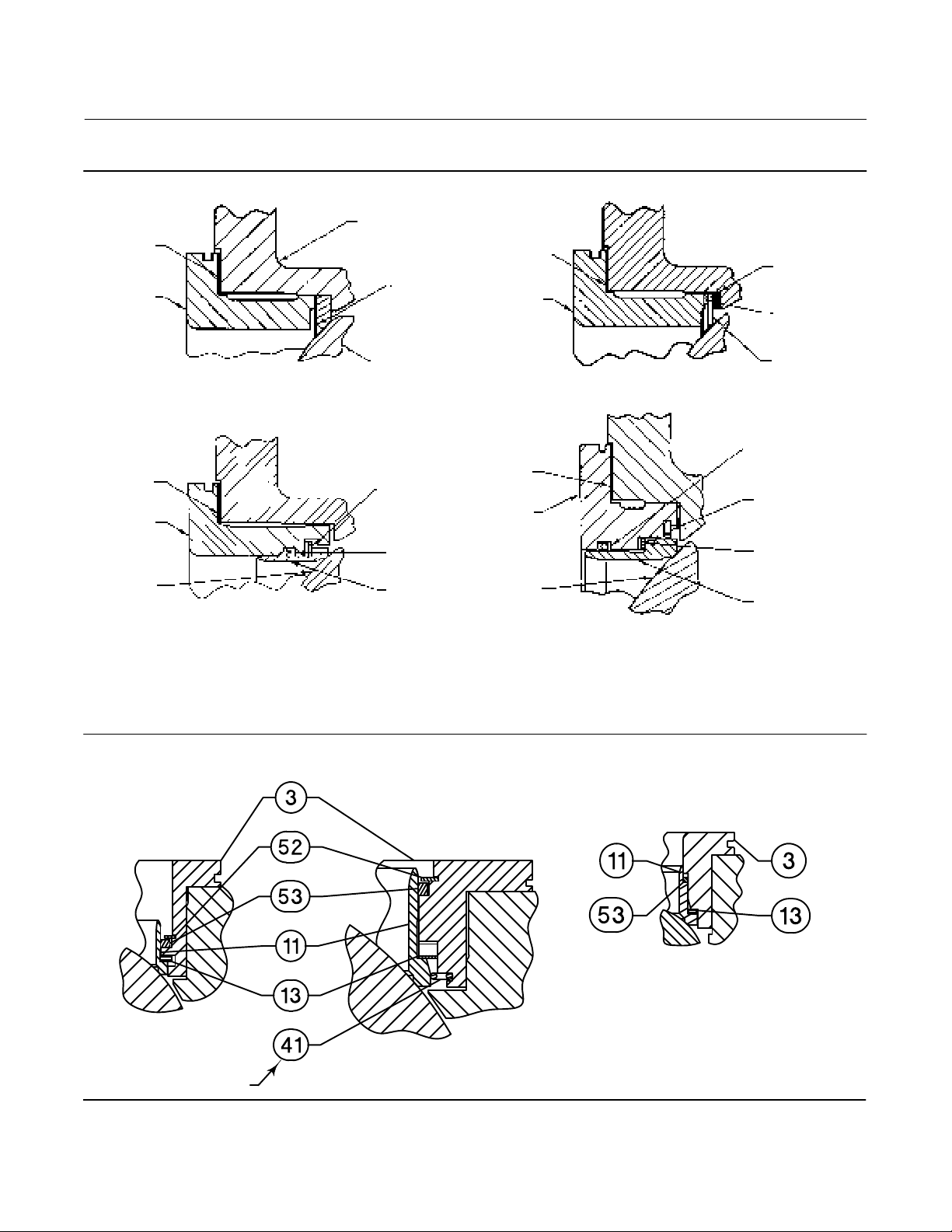

Figure 9. Ball Seal Assembly for NPS 3 through 12 Valves
GASKET
(KEY 15)
SEAL PROTECTOR
RING (KEY 3)
VALVE BODY
(KEY 1A)
SEAL
(KEY 11)
BALL
(KEY 2)
GASKET
(KEY 15)
SEAL PROTECTOR
RING (KEY 3)
SHIMS
(KEY 12)
SPRING SEAL
(KEY 13)
FLAT METAL
SEAL (KEY 11)
APPLY DRY FILM
LUBRICANT
WAVE SPRING
(KEY 13)
RADIAL SEAL
(KEY 37)
HD METAL BALL
SEAL (KEY 11)
RETAINING RING
WITH ATTENUATOR
ONLY (KEY 41)
GASKET
(KEY 15)
GASKET
(KEY 15)
SEAL PROTECTOR
RING (KEY 3) SEAL PROTECTOR
RING (KEY 3)
APPLY DRY
FILM
LUBRICANT
WAVE SPRING
(KEY 13)
RADIAL SEAL
(KEY 37)
HD METAL
BALL
SEAL (KEY 11)
NPS 3 THROUGH 12
FISHER TCM PLUS SEAL
NPS 3 THROUGH 12
FLAT METAL BALL SEAL
NPS 3 THROUGH 8
HD BALL SEAL NPS 10 AND 12
HD BALL SEAL
41B0742‐E
B2338‐3
Figure 10. High Temperature HD Ball Seal Details
SEAL PROTECTOR RING
SEAL PROTECTOR RING
RETAINING RING
PISTON RING
PISTON RING
HD METAL SEAL
HD METAL SEAL
WAVE SPRING
WAVE SPRING
USE ONLY WHEN
ATTENUATOR IS USED
NPS 3 THROUGH 8
AND 14 THROUGH 20
HD METAL BALL SEAL NPS 10 AND 12
HD METAL BALL SEAL
NPS 1, 1-1/2 AND 2
HD METAL BALL SEAL
28B9882‐E
E0261

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
17
Figure 11. Seal Protector Ring
SEAL
PROTECTOR
RING (KEY 3)
Figure 12. HD Seal Removal Plate Dimensions
A5544
A
6.4 mm
(0.250 INCHES)
MINIMUM
VALVE SIZE DIMENSION A
DN NPS Minimum‐Maximum, mm Minimum‐Maximum, Inches
80
100
150
200
250
300
3
4
6
8
10
12
75.9‐76.2
95.0‐95.3
126.7‐127.0
158.5‐158.8
212.5‐212.7
263.3‐263.5
2.990‐3.000
3.740‐3.750
4.990‐5.000
6.240‐6.250
8.365‐8.375
10.365‐10.375
Installing Fisher TCM Plus or Extra ball seals:
a. NPS 1, 1-1/2, and 2 valves: Install the backup ring (key 14). Install the Fisher TCM seal (key 11) into the valve
body. Refer to figure 7.
D Install the gasket (key 15) on the valve body.
D Install the seal protector ring (key 3) into the valve body. Now go to step 5 in this procedure.
b. NPS 3 through 12 valves: Install the Fisher TCM seal (key 11) into the valve body.
D Install the gasket (key 15) on the valve body.
D Install the seal protector ring (key 3) into the valve body. Now go to step 5 in this procedure.

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
18
Installing flat metal seals:
a. Install 12 shims in the valve and install the flat metal seal on top of the shims.
b. Install the spring seal (key 13) on the flat metal seal (key 11) with the convex side of the spring seal facing the
ball.
c. Install the seal protector ring, and install the protector ring screws and washers (keys 21 and 22). Tighten the
screws.
d. Add or remove shims under the ball seal as necessary to obtain zero ball seal deflection as accurately as possible.
Note
Zero ball seal deflection for a flat metal seal is the point at which the addition of one 0.13 mm (0.005 inch) thick shim causes
contact between the ball and ball seal to be broken. Hold the parts tightly together when determining zero deflection, or improper
zero deflection might result.
e. After zero deflection is reached, remove the seal protector ring, spring seal, seal and 4 shims. Final assembly of
the control valve should not exceed a maximum of 9 shims for zero deflection. If more than 9 shims are required,
contact your Emerson sales office.
f. Install the gasket (key 15) on the valve body.
g. Install the seal protector ring (key 3) into the valve body. Now go to step 5 in this procedure.
Installing HD ball seals:
Note
The older and newer designs of the NPS 1 and 1-1/2 seal protector ring are functionally the same, but are different lengths and not
interchangeable. All NPS 1 and 1-1/2 sizes of V150 and V300 valves are the newer design. The change in seal protector ring length
occurred in the 1992/1993 timeframe and affects NPS 1 and 1-1/2 V200 valves only. To determine whether you have the older or
newer design, measure the length of the seal protector ring (key 3, figure 26) from its pipeline flange mating surface to its
opposite end. Compare your measurement to those listed in figure 7.
a. For NPS 1 and 1-1/2 valves: The older and newer designs of the NPS 1 and 1-1/2 seal protector rings are
functionally the same, but are different lengths and not interchangeable. Refer to figure 7 for protector ring
dimensions.
D Install the wave spring (key 13) onto the ball seal.
D Lubricate and install the radial seal (key 37) onto the ball seal (key 11). Make sure the open side of the radial
seal faces away from the ball.
D Push the ball seal assembly into the seal protector ring (key 3).
D Go to step 5 in this procedure.

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
19
b. For all NPS 3 through 8 valves and NPS 10 and 12 valves without attenuator:
D Lubricate and install the radial seal (key 37) into the appropriate groove in the seal protector ring making
sure the open side of the radial seal faces away from the ball.
D Install the wave spring (key 13) into the seal protector ring (key 3).
D Install the HD seal (key 11) into the seal protector ring (key 3), past the radial seal. While pushing it past the
radial seal, make sure the HD seal is level. Go to step 5 in this procedure.
c. For NPS 10 and 12 valves with attenuator:
D Lubricate the radial seal with lithium grease and install the radial seal (key 37) into the appropriate groove
in the seal protector ring making sure the open side of the radial seal faces away from the ball.
D Install the wave spring (key 13) into the seal protector ring (key 3).
D To install the retaining ring (key 41), find one of the free ends of the ring. Insert the free end into the groove
in the seal protector ring. Work around the ring, pressing it into the groove until the ring is completely in its
groove.
D Install the HD seal (key 11) into the seal protector ring (key 3), past the radial seal. While pushing it past the
radial seal, make sure the HD seal is level.
D The HD seal uses a retaining ring (key 41) for NPS 10 and 12 valves only. This retaining ring is an
octagonal‐shaped support wire. Go to step 5 in this procedure.
Installing high temperature HD ball seals:
a. For NPS 1, 1-1/2 and 2 valves: The older and newer designs of the NPS 1 and 1-1/2 seal protector rings are
functionally the same, but are different lengths and not interchangeable. All part numbers in this manual are for
the newer design. Refer to figure 7 for ring dimensions.
D Place the wave spring (key 13) on top of the HD seal (key 11).
D Break the piston ring (key 133) into two approximately equal pieces either by placing the ring over a pencil
or similar object and applying pressure down‐wards on the ring until the ring snaps. Be sure to match the
broken ends together as you install it on the HD seal (key 11).
D Lay the HD seal (key 11) down on a flat surface and push the seal protector ring (key 3) into place. Make
sure the seal is level. Go to step 5 in this procedure.
b. For NPS 3 through 8 valves:
D Place the piston ring (key 133) and retaining ring (key 132) into the appropriate groove in the seal protector
ring (key 3). The piston ring has one break in it; do not break it further.
D Install the wave spring (key 13) into the seal protector ring (key 3).
D Lay the HD seal (key 11) down on a flat surface and push the seal protector ring (key 3) past the piston ring
(key 133) and into place. Make sure the seal is level. Go to step 5 in this procedure.

Instruction Manual
D101554X012
Vee-Ball Valves
March 2021
20
c. For NPS 10 and 12 valves:
D Place the piston ring (key 133) and retaining ring (key 132) into the appropriate groove in the seal protector
ring (key 3). The piston ring has one break in it; do not break it further.
D Install the wave spring (key 13) into the seal protector ring (key 3).
D If the valve has an attenuator, install the retaining ring (key 41). The octagonal shaped support wire ring has
two free ends. Place one of the free ends into the groove in the seal protector ring. Then starting at the
inserted end, press the rest of the ring into the groove completely.
D Lay the HD seal (key 11) down on a flat surface and push the seal protector ring (key 3) past the piston ring
(key 133) and into place. Make sure the seal is level. Go to step 5 in this procedure.
5. Install a replacement gasket (key 15) on the valve body (key 1 or 1A). Install the HD ball seal/seal protector ring
assembly into the valve body (key 1 or 1A).
6. Install washers (or clips), and screws that clamp the seal protector ring to the valve body [keys 3, 21, and 22; the
V200 valve uses clips (key 22) in place of washers].
7. If necessary, refer to the Packing Maintenance procedures to install the packing. Install the actuator using the
Actuator Mounting procedures or to the appropriate actuator instruction manual.
HD Ball Seal Lubrication
To assist with break‐in of the HD seals, it is recommended that the ball and seal be lubricated with dry film lubricant or
equivalent moly disulfide.
Bearing and Ball Maintenance
WARNING
Before performing the steps in this section, observe the WARNING at the beginning of the Maintenance section on page 8.
DN 80 - 300 (NPS 3 through 12) Valves
Procedures for disassembly and assembly of the bearings and ball cannot be accomplished until the ball seal and valve
packing are removed from the valve.
Refer to the Replacing Packing procedures to remove the actuator, and to remove the packing flange and packing
follower from the valve. When the packing disassembly steps are complete, return to this section.
Refer to the Replacing the Ball Seal procedures to remove the ball seal from the valve.
Table 4. Continuous Threaded Rod
Valve Size, DN Valve Size, NPS Threaded Rod Thread Size Thread Depth in Follower Shaft
80 3 0.25-20 0.5
100 4 0.25-20 0.5
150 6 0.25-20 0.5
200 8 0.3125-18 0.62
250 10 0.3125-18 0.62
300 12 0.3125-18 0.94
