Rosemount™648 Wireless Temperature
Transmitter
with Rosemount X-well™Technology
00825-0200-4648_RevDD.fm Page 1 Monday, October 10, 2016 9:50 AM

October 2016
2
Quick Start Guide
Rosemount 648 Wireless Temperature
Transmitter
Rosemount 648 Hardware Revision
HART®Device Revision
Device Install Kit/DD Revision
1
4
Device Revision 4, DD Revision 1 or higher
NOTICE
This guide provides basic information for the Rosemount 648 Wireless. It does not provide instructions for
detailed configuration, diagnostics, maintenance, service, troubleshooting, or installations. Refer to the
Rosemount 648 Wireless Reference Manual for more instruction. The manual and this guide are also
available electronically on EmersonProcess.com/Rosemount.
Failure to follow these installation guidelines could result in death or serious injury.
Make sure only qualified personnel perform the installation.
Explosions could result in death or serious injury.
Before connecting a Field Communicator in an explosive atmosphere, make sure the instruments are
installed in accordance with intrinsically safe or non-incendive field wiring practices.
Verify the operating atmosphere of the transmitter is consistent with the appropriate hazardous
locations certifications.
Process leaks could result in death or serious injury.
Do not remove the thermowell while in operation.
Install and tighten thermowells and sensors before applying pressure.
Electrical shock could cause death or serious injury.
Avoid contact with the leads and terminals. High voltage that may be present on leads can cause
electrical shock.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired
operations.
This device must be installed to ensure a minimum antenna separation distance of 20 cm from all
person.
The black power module may be replaced in a hazardous area. The black power module has surface
resistivity greater than one giga-ohm and must be properly installed in the wireless device enclosure.
Care must be taken during transportation to and from the point of installation to prevent electrostatic
charge build-up.
Contents
Wireless considerations . . . . . . . . . . . . . . . . . . . 3
Physical installation . . . . . . . . . . . . . . . . . . . . . . . 5
Verify operation . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Reference information . . . . . . . . . . . . . . . . . . . 11
Product Certifications . . . . . . . . . . . . . . . . . . . . 16
00825-0200-4648_RevDD.fm Page 2 Monday, October 10, 2016 9:50 AM

Quick Start Guide
3
October 2016
1.0 Wireless considerations
1.1 Power up sequence
The Rosemount 648 Wireless and all other wireless devices should be installed
only after the Smart Wireless Gateway (“Gateway”) has been installed and is
functioning properly. Wireless devices should also be powered up in order of
proximity from the Gateway, beginning with the closest. This will result in a
simpler and faster network installation. Enable active advertising on the Gateway
to ensure new devices join the network faster. For more information, see the
Smart Wireless Gateway Reference Manual.
1.2 Antenna position
The antenna should be positioned vertically, either straight up or straight down,
and it should be approximately 3 ft. (1 m) from any large structure, building, or
conductive surface to allow for clear communication to other devices.

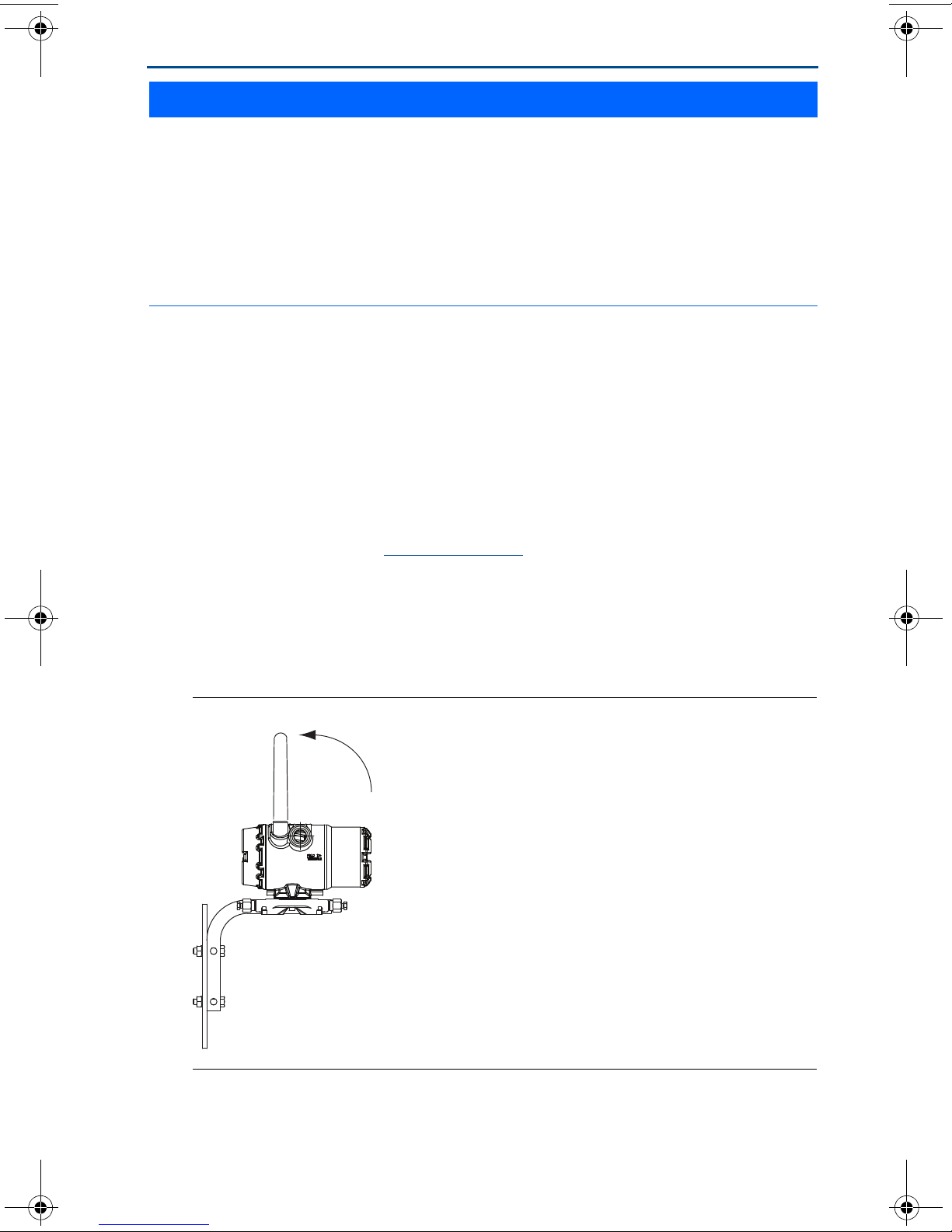

Figure 1. Antenna Position
NOTICE
Shipping considerations for wireless products: (lithium battery: black power module, model number
701PBKKF)
The unit was shipped to you without the black power module installed. Remove the black power module
prior to shipping the unit.
Each black power module contains two “C” size primary lithium batteries. Primary lithium batteries are
regulated in transportation by the U. S. Department of Transportation, and are also covered by IATA
(International Air Transport Association), ICAO (International Civil Aviation Organization), and ARD
(European Ground Transportation of Dangerous Goods). It is the responsibility of the shipper to ensure
compliance with these or any other local requirements. Consult current regulations and requirements
before shipping.
00825-0200-4648_RevDD.fm Page 3 Monday, October 10, 2016 9:50 AM

October 2016
4
Quick Start Guide
1.3 Conduit entry
Upon installation, ensure each conduit entry is either sealed with a conduit plug
using approved thread sealant, or has an installed conduit fitting or cable gland
with appropriate threaded sealant.
Figure 2. Conduit Entry
A. Conduit entry
1.4 Field Communicator connections
The black power module needs to be installed in the device for the Field
Communicator to interface with the Rosemount 648 Wireless. For HART Wireless
Transmitter communication via a Field Communicator, a Rosemount 648
Wireless Device Dashboard (DD) is required. Rosemount 648 Wireless
Transmitters equipped with Rosemount X-well Technology requires DD revision
648 Dev. 4 Rev. 1 or higher to view Rosemount X-well functionality. To obtain the
latest DD, visit the 475 Field Communicator System Software and Device
Description site at:
EmersonProcess.com/Field-Communicator
Refer to Figure 3 on page 5 for instructions on connecting the Field
Communicator to the Rosemount 648 Wireless Transmitter.
A
A
00825-0200-4648_RevDD.fm Page 4 Monday, October 10, 2016 9:50 AM

Quick Start Guide
5
October 2016

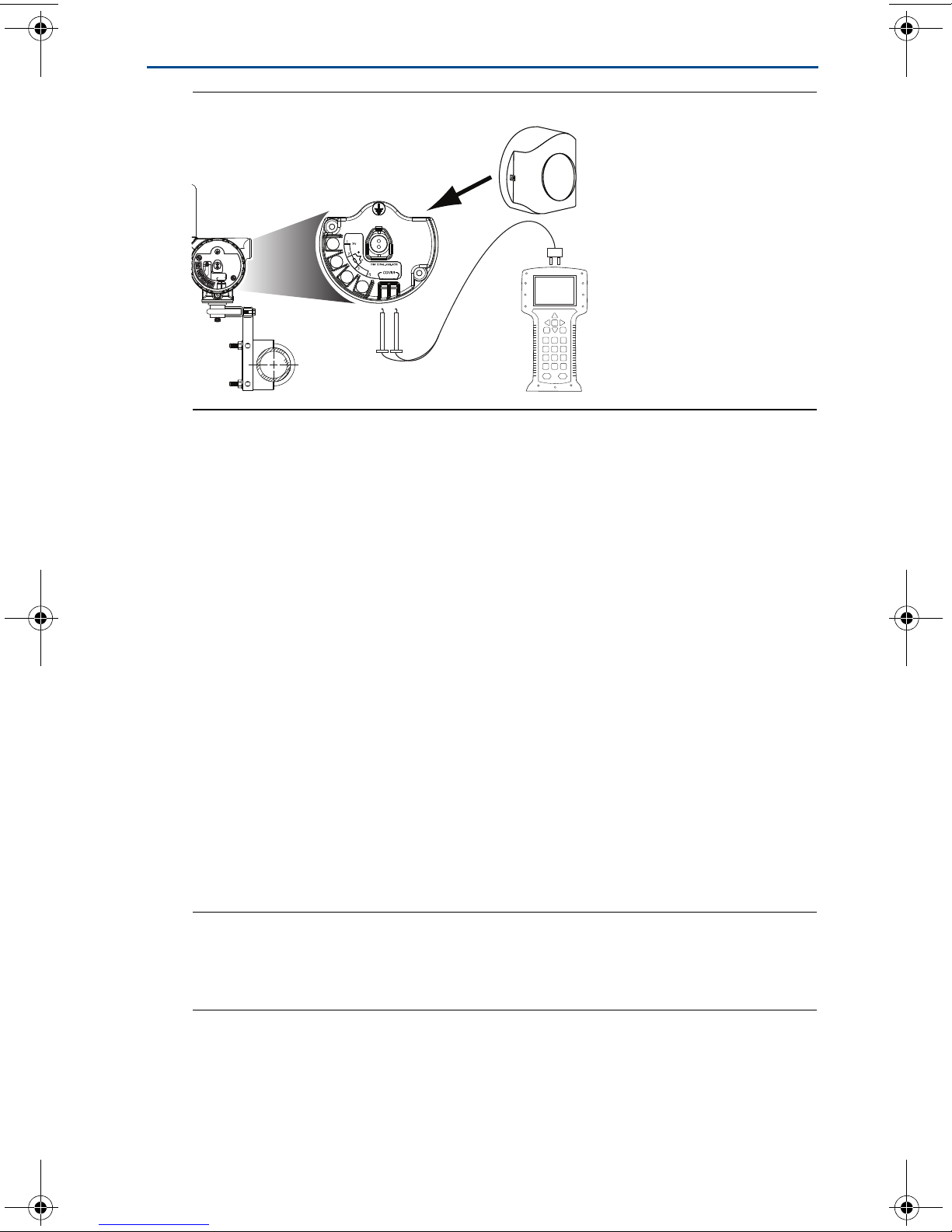

Figure 3. Connection
2.0 Physical installation
The Rosemount 648 Wireless can be installed in one of two configurations:
Direct Mount, where the sensor is connected directly to the Rosemount 648
Wireless housing’s conduit entry.
Remote Mount, where the sensor is mounted separate from the Rosemount
648 Wireless housing, then connected to the Rosemount 648 Wireless using
conduit.
Select the installation sequence that corresponds to the mounting configuration.
2.1 Direct mount
The direct mount installation should not be used when installing with a
Swagelok®fitting.
1. Install sensor according to standard installation practices using approved
thread sealant on all connections.
2. Attach Rosemount 648 Wireless housing to the sensor using the threaded
conduit entry.
3. Attach sensor wiring to the terminals as indicated on the wiring diagram.
4. Connect black power module.
Note
Wireless devices should be powered up in order of proximity from the Smart Wireless
Gateway, beginning with the closest device to the gateway. This will result in a simpler and
faster network installation.
COMM
P/N00753-9200-0020
1
2
3
4
00825-0200-4648_RevDD.fm Page 5 Monday, October 10, 2016 9:50 AM

October 2016
6
Quick Start Guide
Figure 4. Installing Electronics Housing Covers - Direct Mount
5. Close housing cover and tighten to safety specification. Always ensure a
proper seal by installing the electronics housing covers so metal touches
metal, but do not over tighten.
6. Position antenna vertically, either straight up or straight down. The antenna
should be approximately 3 ft. (1 m) from any large structures or buildings, to
allow clear communication to other devices.
Figure 5. Possible Antenna Rotation - Direct Mount
2.2 Remote mount
1. Install sensor according to standard installation practices using an approved
thread sealant on all connections.
2. Run wiring (and conduit, if necessary) from the sensor to the Rosemount 648
Wireless.
3. Pull wiring through the threaded conduit entry of the Rosemount 648
Wireless.
4. Attach sensor wiring to the terminals as indicated on the wiring diagram.
5. Connect black power module.
Possible antenna rotation shown.
Antenna rotation allows for best
installation practices in any
configuration.
00825-0200-4648_RevDD.fm Page 6 Monday, October 10, 2016 9:50 AM

Quick Start Guide
7
October 2016
Note
Wireless devices should be powered up in order of proximity from the wireless gateway,
beginning with the closest device to the Gateway. This will result in a simpler and faster
network installation.
Figure 6. Installing Electronics Housing Covers - Remote Mount
6. Close housing cover and tighten to safety specification. Always ensure a
proper seal by installing the electronics housing covers so metal touches
metal, but do not over tighten.
7. Position antenna vertically, either straight up or straight down.The antenna
should be approximately 3 ft. (1 m) from any large structures or buildings to
allow clear communication to other devices.
Figure 7. Possible Antenna Rotation - Remote Mount
2.3 Rosemount X-well Installation
Rosemount X-well Technology is only available in the Rosemount 648 Wireless
and 0085 pipe clamp sensor factory assembled complete point solution.
Rosemount X-well Technology will only work as specified with factory supplied
and assembled pipe clamp sensor.
00825-0200-4648_RevDD.fm Page 7 Monday, October 10, 2016 9:50 AM

October 2016
8
Quick Start Guide
In general, pipe clamp sensor installation best practices shall be followed (see
Rosemount 0085 Pipe Clamp Sensor Reference Manual with Rosemount X-well
Technology specific requirements noted below:
1. Direct mounting of transmitter on pipe clamp sensor is required for
Rosemount X-well Technology to properly function.
2. Transmitter head shall be placed away from dynamic external temperature
sources such as a boiler.
3. Insulation (1/2-in. thick minimum) is required over the sensor clamp assembly
and sensor extension up to transmitter head to prevent heat loss. Apply a
minimum of six inches of insulation on each side of the pipe clamp sensor.
Care should be taken to minimize air gaps between insulation and pipe. See
Figure 8 on page 8.
Note
DO NOT apply insulation over transmitter head.
4. Although it will come factory configured as such, ensure that pipe clamp RTD
sensor is assembled in 3-wire configuration. See Figure 11 for more
information.
Figure 8. Rosemount 648 Wireless with Rosemount X-well Technology
Installation Drawing
3.0 Verify operation
Operation can be verified using four methods at the device via the LCD display,
using the Field Communicator, at the Gateway via the Smart Wireless Gateway’s
integrated web server, or using AMS™ Wireless Suite or AMS Device Manager.
3.1 LCD display
During normal operation, the LCD display will show the PV value at the confirmed
update rate. Refer to the Rosemount 648 Wireless Reference Manual for error
codes and other LCD display messages. Select the Diagnostic button to display
the TAG, Device ID, Network ID, Network Join Status, and Device Status screens.
00825-0200-4648_RevDD.fm Page 8 Monday, October 10, 2016 9:50 AM

Quick Start Guide
9
October 2016
3.2 Field Communicator
For HART Wireless transmitter communication via a Field Communicator, a
Rosemount 648 Wireless Device Dashboard (DD) is required. Rosemount 648
Wireless transmitters equipped with Rosemount X-well Technology requires DD
revision 648 Dev. 4 Rev. 1 or higher to view Rosemount X-well functionality. To
obtain the latest DD, visit the 475 Field Communicator System Software and
Device Description site at:
EmersonProcess.com/Field-Communicator
The communication status may be verified in the wireless device using the
following Fast Key sequence.
3.3 Smart Wireless Gateway
If the Rosemount 648 Wireless was configured with the Network ID and Join Key
and sufficient time for network polling has passed, the transmitter will be
connected to the network. To verify device operation and connectivity using the
Smart Wireless Gateway's web based user interface, navigate to the Devices
page. This page will also display the transmitter's tag, PV, SV, TV, QV, and Last
Update time. Refer to Smart Wireless Gateway User Interface Manual
Supplement for terms, user fields, and parameters used in the Smart Wireless
Gateway web based user interface.
Note
The time to join the new device(s) to the network is dependent upon the number of devices
being joined and the number of devices in the current network. For one device joining an
existing network with multiple devices, it may take up to five minutes. It may take up to 60
minutes for multiple new devices to join the existing network.
Note
If the device joins the network and immediately has an alarm present, it is likely due to
sensor configuration. Check the sensor wiring (see “Sensor Wiring” on page 12) and the
sensor configuration (see Table 3 on page 14).
Searching for
network Joining network Connected with one parent
Connected with
two parents
Table 1. Rosemount 648 Wireless Fast Key Sequence
Function Fast Key sequence Menu items
Communications 3, 4 Comm, Join Mode, Neighbor Count, Advertisement
Count, Join Attempts
n e t w k
A -s r c h
n e t w k
J O I N G
n e t w k
1 P A R N T
n e t w k
2 P A R N T
00825-0200-4648_RevDD.fm Page 9 Monday, October 10, 2016 9:50 AM

October 2016
10
Quick Start Guide
Figure 9. Smart Wireless Gateway Network Settings
3.4 AMS Wireless Configurator
For HART Wireless transmitter communication via AMS Device Manager, a
Rosemount 648 Wireless Device Dashboard (DD) is required. Rosemount 648
Wireless Transmitters equipped with Rosemount X-well Technology requires DD
revision 648 Dev. 4 Rev. 1 or higher to view Rosemount X-well functionality. To
obtain the latest DD, visit the Emerson™Process Management. Easy Upgrade site
at:
EmersonProcess.com/Device-Install-Kits
Figure 10. AMS Wireless Configurator Explorer Window
00825-0200-4648_RevDD.fm Page 10 Monday, October 10, 2016 9:50 AM

Quick Start Guide
11
October 2016
3.5 Troubleshooting
If the device is not joined to the network after power up, verify the correct
configuration of the network ID and join key, and verify that Active Advertising
has been enabled on the Smart Wireless Gateway. The network ID and join key in
the device must match the network ID and join key of the Gateway.
The network ID and join key may be obtained from the Smart Wireless Gateway
on the Setup > Network > Settings page on the web server (see Figure 9 on
page 10). The network ID and join key may be changed in the wireless device by
using the following Fast Key sequence.
4.0 Reference information
The Rosemount 648 Wireless is compatible with a number of RTD and
thermocouple sensor types. Figure 11 shows the correct input connections to the
sensor terminals on the transmitter. Figure 12, 13, and 14 shows the lead wire
configurations for Rosemount sensors. To ensure proper sensor connection,
anchor the sensor lead wires into the appropriate compression terminals and
tighten the screws.
Table 2. Wireless Configuration Fast Key Sequence
Function Fast Key sequence Menu items
Wireless Configuration 2, 2, 1 Network ID, Join to Network, Broadcast Info
00825-0200-4648_RevDD.fm Page 11 Monday, October 10, 2016 9:50 AM

October 2016
12
Quick Start Guide
Figure 11. Sensor Wiring
Emerson Process Management provides 4-wire sensors for all single element
RTDs. Use these RTDs in 3-wire configurations by leaving the unneeded leads
disconnected and insulated with electrical tape.
Note
In order to communicate with a Field Communicator, the device must be powered by
connecting the black power module.
Thermocouple/mV 4-wire RTD and Ω
3-wire RTD and Ω2-wire RTD and Ω
Rosemount 648 Wireless Sensor connections diagram
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
2-wire
RTD and Ω
3-wire
RTD and Ω
4-wire
RTD and Ω
T/C and mV
00825-0200-4648_RevDD.fm Page 12 Monday, October 10, 2016 9:50 AM

Quick Start Guide
13
October 2016
Figure 12. Rosemount 65, 68, 78 Series, and 58C Lead Wire Configurations
Figure 13. Rosemount 183 Series Thermocouple Lead Wire Configurations
Figure 14. Series 185 Thermocouple Lead Wire Configurations
Note
The wiring diagrams shown above apply only to Rosemount sensors.
Single element
Type J Type E
Type K Type T
Type J Type N
Type K
White (1)
White (2)
Red (3)
Red
(
4
)
+ White (2)
– Red (3)
+ Purple (2)
– Red (3)
+ Yellow (2)
– Red (3)
+ Blue (2)
– Red (3)
+ Black (2)
– White (3)
+ Pink (2)
– White (3)
+ Green (2)
– White (3)
00825-0200-4648_RevDD.fm Page 13 Monday, October 10, 2016 9:50 AM

October 2016
14
Quick Start Guide
Table 3 lists the Fast Key sequences for common transmitter functions.
5.0 Power module replacement
Expected black power module life is 10 years at reference conditions.(1)
When module replacement is required perform the following procedure.
1. Remove the cover and module.
2. Replace the module (part number 701PBKKF) and cover.
3. Tighten to specification and verify operation.
5.1 Handling considerations
The black power module with the wireless unit contains two “C” size primary
lithium-thionyl chloride battery (black power module, model number 701PBKKF).
Each battery contains approximately 5.0 grams of lithium. Under normal
conditions, the battery materials are self-contained and are not reactive as long
as the batteries and the pack integrity are maintained. Care should be taken to
prevent thermal, electrical or mechanical damage.
Contacts should be protected to prevent premature discharge.
Black power modules should be stored in a clean and dry area. For maximum
black power module life, storage temperature should not exceed 86 °F (30 °C).
Note
Continuous exposure to ambient temperature limits of -40 °F or 185 °F (-40 °C or 85 °C) may
reduce specified life by less than 20 percent.
Table 3. Rosemount 648 Wireless Fast Key Sequence
Function Fast Key sequence Menu items
Device Information 2, 2, 7 Tag, Long Tag, Descriptor, Message, Date
Guided Setup 2, 1 Configure Sensor, Join to Network, Config Advance
Broadcasting, Calibrate Sensor
Manual Setup 2, 2
Wireless, Sensor, Display, HART, Device
Temperature, Terminal Temp, Device Information,
Power, Security
Wireless
Configuration 2, 2, 1 Network ID, Join to Network, Broadcast Info
Sensor Configuration 2, 2, 2, 5 Type, Connection, Units, Serial Number,
Transmitter-Sensor Matching, RMT X-well Setup
Sensor Calibration 3, 5, 2
Sensor Value, Sensor Status, Current Lower Trim,
Current Upper Trim, RTD 2 Wire Offset, Lower
Sensor Trim, Upper Sensor Trim, Device variable
trim reset
1. Reference conditions are 70 °F (21° C), transmit rate of once per minute, and routing data for three additional
network devices.
00825-0200-4648_RevDD.fm Page 14 Monday, October 10, 2016 9:50 AM

Quick Start Guide
15
October 2016
Use caution when handling the black power module, it may be damaged if
dropped from heights in excess of 20 feet.
Battery hazards remain when cells are discharged.
5.2 Environmental considerations
As with any battery, local environmental rules and regulations should be
consulted for proper management of spent batteries. If no specific requirements
exist, recycling through a qualified re-cycler is encouraged. Consult the materials
safety data sheet for battery specific information.
5.3 Shipping considerations
The unit was shipped to you without the black power module installed. Remove
the module prior to shipping the unit.
00825-0200-4648_RevDD.fm Page 15 Monday, October 10, 2016 9:50 AM

October 2016
16
Quick Start Guide
6.0 Product Certifications
Rev 3.1
6.1 European Directive Information
A copy of the EU Declaration of Conformity can be found at the end of the Quick
Start Guide. The most recent revision of the EU Declaration of Conformity can be
found at EmersonProcess.com/Rosemount.
6.2 Telecommunication Compliance
All wireless devices require certification to ensure they adhere to regulations
regarding the use of the RF spectrum. Nearly every country requires this type of
product certification.
Emerson Process Management is working with governmental agencies around
the world to supply fully compliant products and remove the risk of violating
country directives or laws governing wireless device usage.
6.3 FCC and IC
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following conditions: This device may not cause harmful interference. This device
must accept any interference received, including interference that may cause
undesired operation. This device must be installed to ensure a minimum antenna
separation distance of 20 cm from all persons.
6.4 Ordinary Location Certification
As standard, the transmitter has been examined and tested to determine that the
design meets the basic electrical, mechanical, and fire protection requirements
by a nationally recognized test laboratory (NRTL) as accredited by the Federal
Occupational Safety and Health Administration (OSHA).
6.5 Installing in North America
The US National Electrical Code®(NEC) and the Canadian Electrical Code (CEC)
permit the use of Division marked equipment in Zones and Zone marked
equipment in Divisions. The markings must be suitable for the area classification,
gas, and temperature class. This information is clearly defined in the respective
codes.
USA
I5 U.S. Intrinsic Safety (IS), Nonincendive (NI), and Dust Ignition-proof (DIP)
Certificate: FM 3027705
Standards: FM Class 3600 — 2011, FM Class 3610 — 2010, FM Class 3611 — 2004, FM
Class 3810 — 2005, ANSI/NEMA®250 — 2003, ANSI/ISA-60079-0 — 2009,
ANSI/ISA-60079-11 — 2009
Markings: IS CL I, DIV 1, GP 1, A, B, C, D; CL II, DIV 1, GP E, F, G; Class III, T4/T5; Class 1,
Zone 0 AEx ia IIC T4/T5; T4(–50 °C ≤Ta≤+70 °C), T5(–50 °C ≤Ta≤+40 °C)
when installed per Rosemount drawing 00648-1000;NI CL I, DIV 2, GP A, B,
C, D T4/T5; T4(–50 °C ≤Ta≤+70 °C), T5(–50 °C ≤Ta≤+40 °C) when installed
per Rosemount drawing 00648-1000; DIP CL II, DIV 1, GP E, F, G; CL III, T5;
T5(–50 °C ≤Ta≤+85 °C); Type 4X; IP66
00825-0200-4648_RevDD.fm Page 16 Monday, October 10, 2016 9:50 AM

Quick Start Guide
17
October 2016
Special Conditions for Safe Use (X):
1. The Rosemount 648 Transmitter housing contains aluminum and is considered a
potential risk of ignition by impact or friction. Care must be taken into account during
installation and use to prevent impact and friction.
2. The surface resistivity of the antenna is greater than 1 GΩ. To avoid electrostatic charge
build-up, it must not be rubbed or cleaned with solvents or dry cloth.
3. The Rosemount 648 Wireless Transmitter shall only be used with the 701PBKKF
Rosemount SmartPower™Battery Pack (P/N 00753-9220-0001).
N5 U.S. Nonincendive (NI) and Dust Ignition-proof (DIP)
Certificate: FM 3027705
Standards: FM Class 3600 — 2011, FM Class 3611 — 2004, FM Class 3810 — 2005,
ANSI/NEMA 250 — 2003
Markings: NI CL I, DIV 2, GP A, B, C, D T4/T5; T4(–50 °C ≤Ta≤+70 °C),
T5(–50 °C ≤Ta≤+40 °C); DIP CL II, DIV 1, GP E, F, G; CL III, T5;
T5(–50 °C ≤Ta≤+85 °C); Type 4X; IP66/67
Special Condition for Safe Use (X):
1. For use only with the Model 701PBKKF or Rosemount P/N 753-9220-0001 Smart Power
Battery Module.
Canada
I6 Canada Intrinsically Safe
Certificate: CSA 1143113
Standards: CAN/CSA C22.2 No. 0-10, CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No.
142-M1987, CSA Std C22.2 No. 157-92, CSA Std C22.2 No. 60529:05
Markings: Intrinsically Safe Class I, Division 1, Groups A, B, C and D T3C; Class 1, Zone
0, IIC, T3C; when connected per Rosemount drawing 00648-1020; Type 4X
Sensor terminal parameters
Uo= 6.6 V
Io= 26.2 mA
Po= 42.6 mW
Co= 23.8 μF
Lo= 50 mH
Sensor terminal parameters
Uo= 6.6 V
Io= 26.2 mA
Po= 42.6 mW
Co= 23.8 μF
Lo= 50 mH
00825-0200-4648_RevDD.fm Page 17 Monday, October 10, 2016 9:50 AM

October 2016
18
Quick Start Guide
Europe
I1 ATEX Intrinsic Safety
Certificate: Baseefa07ATEX0011X
Standards: EN 60079-0: 2012 + A11:2013, EN 60079-11: 2012
Markings: II 1 G Ex ia IIC T4 Ga, T4(-60 °C ≤Ta≤+70 °C)
II 1 G Ex ia IIC T5 Ga, T5(–60 °C ≤Ta≤ +40 °C)
For use with Rosemount SmartPower power module part number 753-9220-0001, or
for use with Emerson SmartPower option 701PBKKF.
Special Conditions for Safe Use (X):
1. The surface resistivity of the antenna is greater than 1 GΩ. To avoid electrostatic charge
build-up, it must not be rubbed or cleaned with solvents or dry cloth.
2. The power module may be replaced in a hazardous area. The power module has a
surface resistivity greater than 1 GΩand must be properly installed in the wireless
device enclosure. Care must be taken during transportation to and from the point of
installation to prevent electrostatic charge build-up.
NM ATEX Intrinsic Safety for Mining
Certificate: Baseefa07ATEX0011X
Standards: EN 60079-0: 2012 +A11:2013, EN 60079-11: 2012
Markings: I M 1 Ex ia I Ma (–60 °C ≤Ta≤+70 °C)
Special Conditions for Safe Use (X):
1. The surface resistivity of the antenna is greater than 1 GΩ. To avoid electrostatic charge
build-up, it must not be rubbed or cleaned with solvents or dry cloth.
2. The power module may be replaced in a hazardous area. The power module has a
surface resistivity greater than 1 GΩand must be properly installed in the wireless
device enclosure. Care must be taken during transportation to and from the point of
installation to prevent electrostatic charge build-up.
International
I7 IECEx Intrinsic Safety
Certificate: IECEx BAS 07.0007X
Standards: IEC 60079-0: 2011, IEC 60079-11: 2011
Markings: Ex ia IIC T4 Ga, T4 (–60 °C ≤Ta≤+70 °C)
Ex ia IIC T5 Ga, T5 (–60 °C ≤Ta≤+40 °C)
Sensor terminal parameters
Uo= 6.6 V
Io= 26.2 mA
Po= 42.6 mW
Co= 11 μF
Lo= 25 mH
Sensor terminal parameters
Uo= 6.6 V
Io= 26.2 mA
Po= 42.6 mW
Co= 11 μF
Lo= 25 mH
00825-0200-4648_RevDD.fm Page 18 Monday, October 10, 2016 9:50 AM

Quick Start Guide
19
October 2016
Special Conditions for Safe Use (X):
1. The surface resistivity of the antenna is greater than 1 GΩ. To avoid electrostatic charge
build-up, it must not be rubbed or cleaned with solvents or dry cloth.
2. The Model 701PBKKF Power Module may be replaced in a hazardous area. The Power
Modules have a surface resistivity greater than 1 GΩand must be properly installed I the
wireless device enclosure. Care must be taken during transportation to and from the
point of installation to prevent electrostatic charge build-up.
3. The Rosemount 648 enclosure may be made of aluminum alloy and given a protective
polyurethane paint finish; however, care should be taken to protect it from impact or
abrasion if located in a Zone 0 area.
Brazil
I2 INMETRO Intrinsic Safety
Certificate: UL-BR 15.0140X
Standards: ABNT NBR IEC 60079-0:2008 + Errata 1:2011, ABNT NBR IEC60079-11:2009
Markings: Ex ia IIC T4 (–60 °C ≤Ta≤+70 °C),
Ex ia IIC T5 (–60 °C ≤Ta≤+40 °C); IP66
Special Condition for Safe Use (X):
1. See certificate for special conditions.
China
I3 China Intrinsic Safety
Certificate: GYJ11.1706X
Standards: GB3836.1-2010, GB3836.4-2010, GB3836.20-2010
Markings: Ex ia IIC T4/T5 Ga
Sensor terminal parameters
Uo= 6.6 V
Io= 26.2 mA
Po= 42.6 mW
Co= 11 μF
Lo= 25 mH
Sensor terminal parameters
Uo= 6.6 V
Io= 26.2 mA
Po= 42.6 mW
Co= 11 μF
Lo= 25 mH
T code Ambient temperature
T4 -60 °C ≤Ta≤+70 °C
T5 -60 °C ≤Ta≤+45 °C
00825-0200-4648_RevDD.fm Page 19 Monday, October 10, 2016 9:50 AM

October 2016
20
Quick Start Guide
Special Condition for Safe Use (X):
1. See certificate for special conditions.
Japan
I4 TIIS Intrinsic Safety
Certificate: TC18638
Markings: Ex ia IIC T4 (–20 ~ +60 °C)
Special Condition for Safe Use (X):
1. See certificate for special conditions.
EAC – Belarus, Kazakhstan, Russia
IM Technical Regulation Customs Union Intrinsic Safety
Certificate: RU C-US.Gb05.B.00289
Markings: 0Ex ia IIC T4/T5 X,
T4 (–60 °C ≤Ta≤+70 °C)
T5 (–60 °C ≤Ta≤+40 °C)
Special Condition for Safe Use (X):
1. See certificate for special conditions.
Sensor terminal parameters
Uo= 6.6 V
Io= 26.2 mA
Po= 42.6 mW
Co= 11 μF
Lo= 25 μH
Sensor terminal parameters
Uo= 6.6 V
Io= 26.2 mA
Po= 42.6 mW
Co= 10.9 μF
Lo= 25 μH
Sensor terminal parameters
Uo= 6.6 V
Io= 26.2 mA
Po= 42.6 mW
Ca= 11 μF
La= 25 μH
00825-0200-4648_RevDD.fm Page 20 Monday, October 10, 2016 9:50 AM
