Endress+Hauser cerabar S User manual

cerabar S
Pressure Transmitter
Operating Instructions
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
4...20 mA
Test
123
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
4...20 mA
Test
123
BA 187P/00/en/04.99
Software version 5.0
017673-1000
Hauser+Endress
Nothing beats know-how

Short Operating Instructions
– –
++
ZS
Remote operation
over Commuwin II
Local operation
Cerabar S
without/with display
Local operation over push buttons
Section 3.1
set MR
= required MR? Pressure
yes no
Section 4
Calibration with
push buttons
Section 6.2
Calibration
with
reference
pressure
Linearisation?
Section 6.3
Dry
calibration
Section 4
Locking/Unlocking
with push buttons
Level
or pressure?
Level
no
yes
Table Automatic
Linearisation
Section 6.4
Section 6.5 - 6.6
Locking and
other settings
Matrix operation:
HART: Section 3.2
INTENSOR: Section 3.3
HART or INTENSOR via
Commuwin II:
Section 3.4
Section 5.1
Commisioning the
measuring point
Section 5.2 - 5.3
Locking and
other settings
Section 4
Damping
Damping?
no yes
Short Operating Instructions Cerabar S
2 Endress+Hauser

Table of Contents
1Introduction ............ 7
1.1 Measuring system . . . . . . . . 8
2Installation ............. 9
2.1 Mounting instructions without
diaphragm seal . . . . . . . . . 9
2.2 Mounting instructions with diaphragm
seal . . . . . . . . . . . . . . 11
2.3 Mounting accessories . . . . . . 12
2.4 Mounting position . . . . . . . . 13
2.5 Electrical connection . . . . . . . 14
3Operation ............. 16
3.1 Local operation . . . . . . . . . 16
3.2 Operating with the HART protocol via
the Universal HART
Communicator DXR 271 . . . . . . 17
3.3 Operating with the INTENSOR
protocol via Commulog VU 260 Z . . 17
3.4 Operating with the HART or
INTENSOR protocol via Commuwin II 18
4Local Operation ........... 19
4.1 Commissioning the measuring point . 19
4.2 Damping τ........... 21
4.3 Locking/unlocking operation . . . . 21
5Pressure Measurement ........ 22
5.1 Start-up with the Universal HART
Communicator DXR 271, Commulog
VU 260 Z or Commuwin II . . . . . 22
5.2 Locking/unlocking operation . . . . 25
5.3 Information on the measuring point . 26
6Level Measurement ......... 27
6.1 Start-up with the Universal HART
Communicator DXR 275,
Commulog VU 260 Z or Commuwin II 27
6.2 Calibration with reference pressure . 30
6.3 Dry calibration . . . . . . . . . 31
6.4 Linearisation . . . . . . . . . . 32
6.5 Locking/unlocking operation . . . . 35
6.6 Information on the measuring point . 36
7Diagnosis and Trouble-Shooting .... 37
7.1 Diagnosis of errors and warnings . . 37
7.2 Current simulation . . . . . . . . 38
7.3 Reset . . . . . . . . . . . . . 38
8Maintenance and Repair .......39
8.1 Repair . . . . . . . . . . . . . 39
8.2 Mounting the display . . . . . . . 40
8.3 Changing the sensor module and
electronics . . . . . . . . . . . 41
8.4 Changing the seal . . . . . . . . 42
8.5 Replacement parts . . . . . . . . 42
9Technical Data ...........44
10 Operating Matrix ..........52
10.1 Matrix INTENSOR . . . . . . . . 52
10.2 Matrix HART . . . . . . . . . . 53
10.3 Block diagram . . . . . . . . . . 53
Cerabar S Table of Contents
Endress+Hauser 3

Software History
HART protocol
(Operation via
Universal HART
Communicator
DXR 275)
INTENSOR protocol
(Operation via
Commulog VU 260 Z)
Commulog VU 260 Z
SW/
BA Instrument and SW No. VU 260 Z Changes Remarks
2.2 /
08.95
5422 1.7 No effect to documentation.
4.0 /
08.95
6940 1.7 Operating mode linearisation curve
modified.
Extension of error and warning list.
5.0 /
12.98
6950 1.8
Universal HART Communicator DXR 275
SW/
BA Instrument and SW No. Device revision DD revision Changes Remarks
1.2 /
09.94
6512 1 2 No effect to
documentation.
3.0 /
09.94
6530 2 1 Improved functions, e.g.
linearisation.
5.0 /
12.98
6550 3 1
Software History Cerabar S
4 Endress+Hauser

Notes on Safety
Approved usageThe Cerabar S is a pressure transmitter used for measuring gauge or absolute pressure
depending on the version. Level is measured using the Commuwin II display and
operating program or with the HART or INTENSOR handheld terminals.
Mounting,
commissioning,
operation
The Cerabar S has been designed to operate safely in accordance with current technical,
safety and EU standards. If installed incorrectly or used for applications for which it is
not intended, however, it is possible that application-related dangers may arise, e.g. B.
product overspill by incorrect installation or adjustment. For this reason, the instrument
must be installed, connected, operated and maintained by personnel that are authorised
by the user of the facility and who are suitably qualified. The manual must have been
read and understood, and the instructions followed. Modifications and repairs to the
device are permissible only when they are expressly approved in the manual.
Explosion hazardous
area
The measuring system used in the explosion hazardous area must comply with all existing
national standards. The instrument can be supplied with the following certificates as listed
in the table. The certificates are designated by the first letter of the order code on the
nameplate (see table below).
•Ensure that technical personnel are adequately trained.
•All measurement and safety regulations which apply to the measuring point are to
be observed.
Code Certificate Protection
R Standard None
G CENELEC EEx ia IIC T4/T6
G ATEX 100 ATEX II 1/2 G EEx ia IIC T4/T6
I CENELEC PMP: EEx d IIC T5/T6
PMC: EEx d [ia] IIC T6
I ATEX 100 PMP: ATEX II 2 G EEx d IIC T5/T6
PMC: ATEX II (1) 2 G EEx d [ia] IIC T6
D PTB, Zone 0 EEx ia IIC T4/T6
Q FM Explosion proof Class I, II, III Div. 1, Groups A…G
O FM IS Class I, II, III, Div. 1, Groups A…G
U CSA Explosion proof Class I, II, III, Div. 1, Groups B…G
S CSA IS Class I, II, III, Div. 1, Groups A…G
Certificates for applications in
explosion hazardous areas
ENDRESS+HAUSER
CERABAR S PMC/PMP
Order No. PMC xxx –
Order No. PMP xxx –
Cerabar S Notes on Safety
Endress+Hauser 5

Safety Conventions and Symbols
In order to highlight safety-relevant or alternative operating procedures in the manual,
the following conventions have been used, each indicated by a corresponding icon in
the margin.
Notes on safety
Ignition protection
Electrical symbols
Symbol Meaning
Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect
operation or may lead to an instrument response which is not planned.
Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to
personal injury or incorrect functioning of the instrument.
Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to
personal injury, a safety hazard or destruction of the instrument.
Device certified for use in explosion hazardous area
If the device has this symbol embossed on its name plate it can be installed in an explosion
hazardous area.
Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas.
– Devices located in and wiring entering areas with the designation “explosion hazardous
areas” must conform with the stated type of protection.
Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas.
– Devices located in safe areas still require a certificate if their outputs run into explosion
hazardous areas.
Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied.
Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be
applied or supplied.
Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by
means of an earth grounding system.
Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to
the equipment.
Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g. neutral star or
equipotential line according to national or company practice.
Note!
Caution!
Warning!
Note!
Safety Conventions and Symbols Cerabar S
6 Endress+Hauser

1 Introduction
ApplicationsThe Cerabar S pressure transmitter measures the pressure of gases, steam/vapour and
liquids and can be used in all areas of chemical and process engineering.
Operating principle
Ceramic sensor
The system pressure acts directly on the
rugged ceramic diaphragm of the pressure
sensor deflecting it by a maximum of 0.025
mm. A pressure-proportional change in the
capacitance is measured by the electrodes
on the ceramic substrate and diaphragm.
The measuring range is determined by the
thickness of the ceramic diaphragm.
Metal sensor
The process pressure deflects the
separating diaphragm with a filling liquid
transmitting the pressure to a resistance
bridge. The bridge output voltage, which is
proportional to pressure, is then measured
and processed.
Level measurement
The hydrostatic pressure of a column of
liquid enables its level to be measured
continuously by a pressure transmitter if the
density ρof the liquid is known.
h = phydr/ρ·g
0 - 10 bar
0 - 10 bar 0 - 10 bar
Version with
thread Version with diaphragm seal
for flange mounting
Version with
diaphragm seal
for hygienic applications
BA187Y04

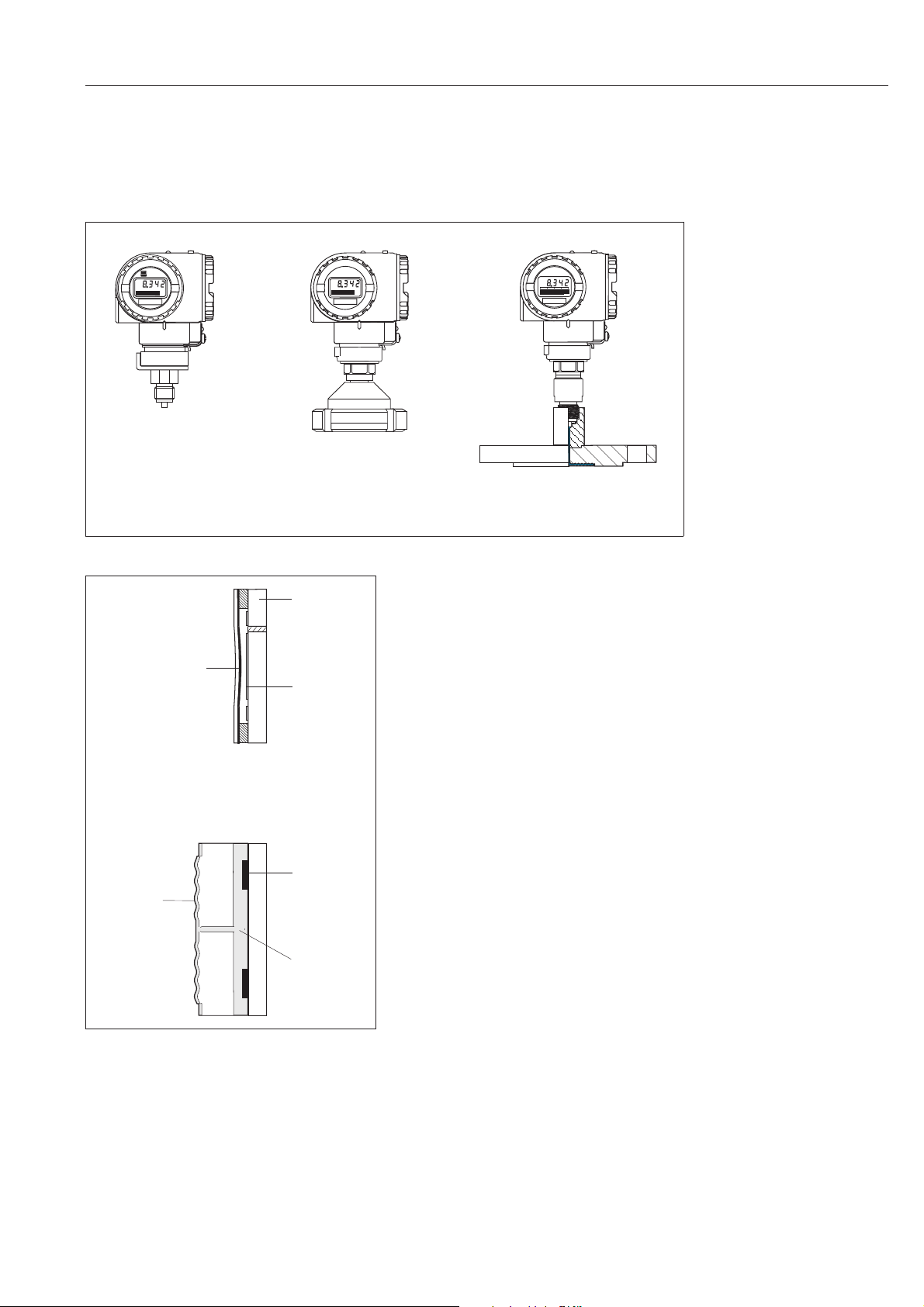

Figure 1.1
Examples of the Cerabar S
pressure transmitter S
BA187Y05
Ceramic
support
Electrode
Resistance
bridge
Filling fluid
Diaphragm
Diaphragm
Ceramic measuring cell
Metallic measuring cell
Figure 1.2
Ceramic and metallic measuring cells
Cerabar S 1 Introduction
Endress+Hauser 7

1.1 Measuring system
The complete measuring system consists of
•Cerabar S pressure transmitter with 4…20 mA signal output
•optional four-character pressure display
•power supply 11.5…45 VDC, in Ex area 11.5…30 VDC
For electronic versions with HART or INTENSOR protocol, a digital communication signal
is superposed on the signal current and is used for remote calibration.
These instruments have additional functions to also measure level.
Operation can be carried out using:
•the Commuwin II operating program
•the universal HART Communicator DXR 275 (HART protocol)
•the Commulog VU 260 Z handheld terminal (INTENSOR protocol)
0 - 10 bar
Cerabar S
with display
Non-Ex
area:
11.5…45 VDC
or
Ex area:
11.5…30 VDC
4…20 mA
BA187Y06
e.g. RN 221 transmitter
power supply unit

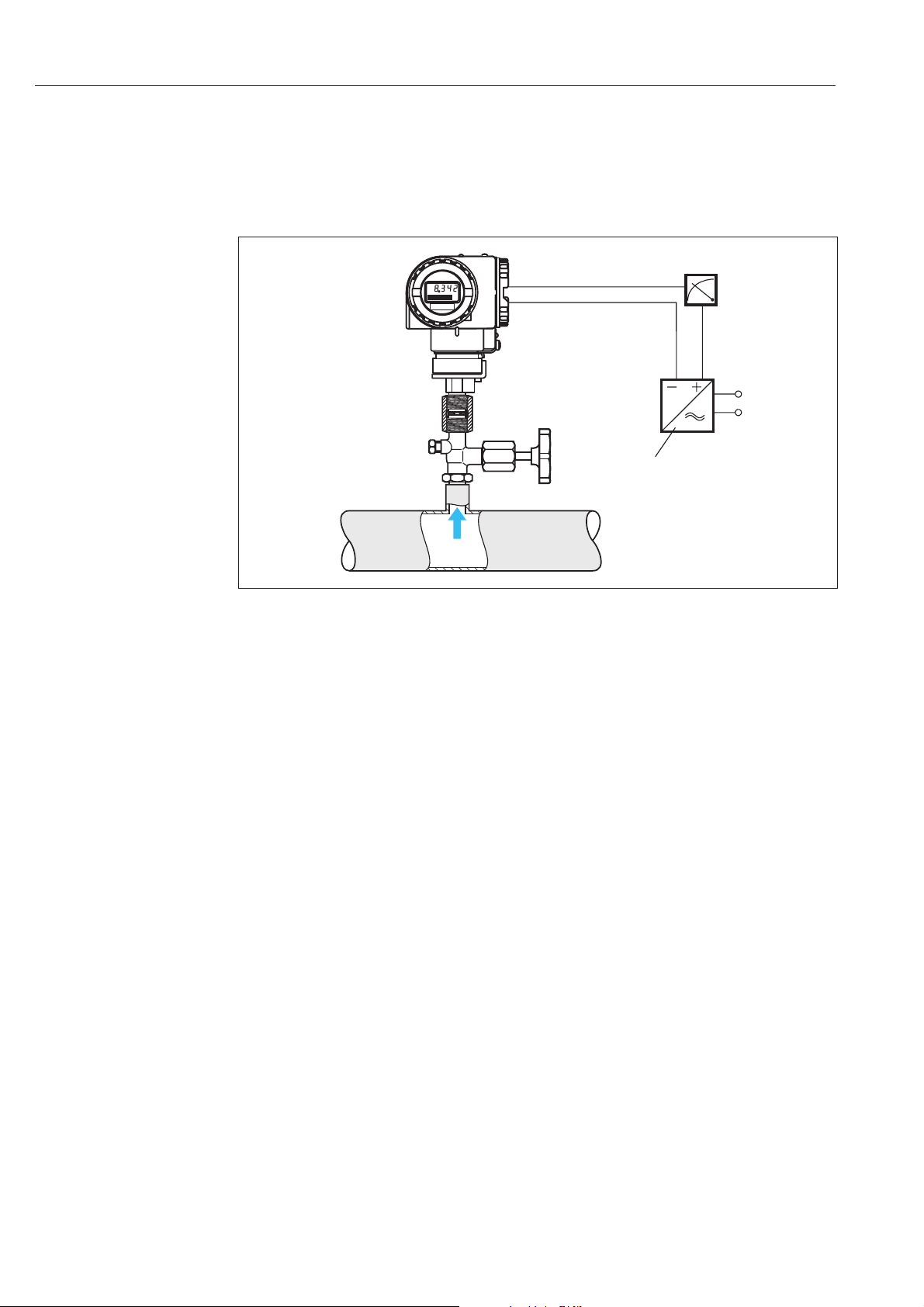

Figure 1.3
Cerabar S measurement system
with display
1 Introduction Cerabar S
8 Endress+Hauser

2 Installation
This section describes:
•the mechanical installation of Cerabar S with and without diaphragm seals
•the electrical connection
2.1 Mounting instructions without diaphragm seal
Cerabar S
without diaphragm seal
– PMC 731
– PMP 731
The Cerabar S without diaphragm seal is mounted in the same way as a manometer. The
use of shut-off valves and pigtails is recommended. Its position depends upon the
application.
•Measurement in gases:
Mount the shut-off valve above the
tapping point so that condensate can
run back into the process.
•Measurement in steam:
Mount with a pigtail above the tapping
point.
The pigtail reduces the temperature in
front of the diaphragm to almost
ambient temperature. The pigtail must
be filled with water before start-up.
0 - 10 bar
BA187Y09
Figure 2.1
Mounted on a shut-off valve for
measuring gases
0 - 10 bar
BA187Y10
Figure 2.2
Mounted with U-shaped pigtail
for measuring steam/vapour
0 - 10 bar
BA187Y08
Figure 2.3
Mounted with circular pigtail for
measuring steam/vapour
Cerabar S 2 Installation
Endress+Hauser 9

•Measurement in liquids:
Mount on the shut-off valve below the
tapping point or at the same height
PVDF adapter For instruments with PVC adapter, a maximum torque of 7 Nm is permitted. The thread
connection may become loose at high temperatures and pressures. This means that the
integrity of the thread must be checked regularly and may need to be tightened using
the torque given above. Teflon tape is recommended for sealing with the ½ NPT thread.
Mounting the PMP 731 The PMP 731 with metallic sensor is available in the following versions:
•with flush-mounted diaphragm or
•with adapter and internal diaphragm.
The adapter can be screwed on or welded in.
A seal is enclosed appropriate to the material used and version.
0 - 10 bar
BA187Y07
Figure 2.4
Mounted on a shut-off valve for measuring liquids
Thread
adapter
DIN 3852-E-G ½
Material: 1.4571 or
Hastelloy
G ½ external
Viton
elastomer seal
supplied
Thread adapter
DIN 3852-A-G ½
with Hastelloy only
Threaded hole
DIN 3852-X-G ½
G ½
∅26
3
12 132
3
12
132
G ½
∅26
27
21
2.514
22
Figure 2.5
left:
An elastomer seal
to DIN 3852-E-G ½ is supplied
with the thread adapter
right:
With internal diaphragm and
welded or thread adapter
Process connection with
flush-mounted diaphragm
version 1F
With internal diaphragm and
thread adapter
Seal supplied
(with 1.4435 diaphragm only)
Welded
Welded adapter
– Material 1.4571
with 1.4435 diaphragm
– Material Hastelloy
with diaphragm in
Hastelloy
2 Installation Cerabar S
10 Endress+Hauser

2.2 Mounting instructions with diaphragm seal
Cerabar S
with diaphragm seal
– PMC 635
– PMP 635
The Cerabar S with diaphragm seal is
screwed in, flanged or clamped,
depending on the type of diaphragm seal.
•The protective cap of the diaphragm
seal should only be removed just before
mounting in order to protect the
diaphragm.
•The diaphragm of the diaphragm seal of
the Cerabar S must not be pressed in or
cleaned with pointed or hard objects.
•The diaphragm seal and the pressure
sensor together form a closed and
calibrated system which is filled with
filling fluid through a hole in the upper
part. The following rules should be
observed:
–This hole is sealed and not to be
opened.
–The instrument should only be turned
by the diaphragm seal and not by the
housing.
Level measurementFor level measurement the Cerabar S must
always be installed below the lowest
measuring point.
•The instrument should not be installed
within the flow of material, in the outlet
of the tank or at a place in the tank
where pressure pulses from agitator
blades may occur.
•Calibration and function testing are
easier to carry out if the Cerabar S is
mounted downstream from a shut-off
valve.
Mounting with
temperature spacers
The use of temperature spacers is
recommended when the continuous
extreme product temperatures cause the
maximum permissible ambient
temperature to exceed +85 °C.
•Note when mounting that the
temperature spacer increases the
maximum height by 100 mm.
•Due to the hydrostatic column in the
temperature spacer, the increased
height also causes a zero point shift of
approx. 10 mbar.
0 - 10 bar
BA187Y16
Figure 2.6
When screwing in the Cerabar S
with diaphragm seals, turn by the
diaphragm seal only, not by the
housing.
0 - 10 bar
BA187Y12
0 - 10 bar
A + 100
100
BA187Y13
Figure 2.7
Information on the maximum
installation height A is given on
Page 44
Cerabar S 2 Installation
Endress+Hauser 11

Mounting with capillary
tubing To protect from high temperatures, moisture or vibration, or where the mounting point is
not easily accessible, the housing of the Cerabar S can be mounted with capillary tubing
away from the measuring point.
A bracket for mounting on a wall or pipe is available for this.
2.3 Mounting accessories
Wall and pipe mounting
with accessories
0 - 10 bar
Mounting point away from
the measuring point
Measuring point:
•very moist
•hot
•strongly vibrating
•difficult to access
BA187Y14
0 - 10 bar
Ø 60.3
90
87
73
Ø 6
BA187Y15
183
81
A* 118
70
111
/60,3
0 - 10 bar
PMC 731 A = 19 mm
PMP 731
Flush-mounted diaphragm
A = 14 mm
PMP 731
Internal diaphragm
A = 39 mm
BA187Y18
Figure 2.8
left:
• Mounted with bracket on
horizontal piping
right:
• Mounted with bracket on a wall
118
B*
3
94
166
0 - 10 bar
BA187Y17
ø60,3
90
ø6
73
87
0 - 10 bar
BA187Y19
Figure 2.9
• Mounted with bracket on
vertical piping
PMC 731 B = 19 mm
PMP 731
Flush-mounted diaphragm
B = 14 mm
PMP 731
Internal diaphragm
B = 39 mm
2 Installation Cerabar S
12 Endress+Hauser

2.4 Mounting position
Positioning the housingAfter the Cerabar S has been mounted, the housing can be positioned so that:
•the terminal connection compartment can be accessed easily,
•the display can be seen optimally,
•the cable entry and cover of the Z/S keys are protected from water.
The housing can turned through 270°:
•To turn the housing undo the screw below the connection compartment
•Turn the housing
•Tighten the screw again
0 - 10 bar
BA187Y20
loosen
tighten
ZS
BA187Y21
Vertical mounting
Cable points
downwards
Figure 2.10
Mounting of the Cerabar S
• cable points downwards
• The cover for the Z/S keys is on the side of the
instrument
Cerabar S 2 Installation
Endress+Hauser 13

2.5 Electrical connection
Screened twisted pairs are recommended for the instrumentation cable.
Supply voltage:
Non Ex area: 11.5…45 VDC
Ex area: 11.5…30 VDC, Ex [ia]: 13…30 VDC
Internal protection circuits protect against reverse polarity, HF interference and
overvoltage peaks (see TI 241F "EMC Guidelines").
A test signal can be measured using Terminals 1 and 3 or using Terminal 1 and the
terminal plug for instruments with the CSA certificate without interrupting the process
measurement.
Cable connection •Unscrew the cover of the connection compartment
•Insert the cable through the cable entry
•Connect the cable wires as shown in the connection diagram.
•Screw down the cover
Observe all local regulations for applications in EEx ia and EEx d areas!
123
+
4…20 mA Non Ex: 11.5…45 VDC
Ex: 11.5…30 VDC
BA187Y75
Figure 2.11
Electrical connection of the
Cerabar S
left:
For all versions with 4…20 mA
right:
For versions with flameproof
enclosures
Structure
PM
* ***
- I ❑ ❑ ❑ ❑ ❑ ❑ ❑ ❑ ❑
123
+
EEx d[ia] IIC T6 Control
room
BA187Y23
Field
Internal
connection
– Pole
Terminal 2
is grounded Ground
terminal on
housing
for
power supply
13…30 VDC
U/V
R/Ω
0
1560
1000
860
790
500
11,513 30 45 20
1560
860
U/V
R/Ω
0
1000
500
11,5 30 45
20
Standard
Cerabar PMC Cerabar PMP
EEx ia IIC T4/T6
EEx d IIC T4/T6
EEx d [ia] IIC T6
BA187Y24
when Imax = 21.4 mA
4...20 mA 0000
Text 123
+
CSA CSA XP: 11.5…45 VDC
CSA IS: 11.5…30 VDC
BA187Y22
Figure 2.12
Electrical connection of Cerabar S
for versions with the CSA certificate,
Structure
PM
* ***
- U ❑ ❑ ❑ ❑ ❑ ❑ ❑ ❑ ❑
PM
* ***
- S ❑ ❑ ❑ ❑ ❑ ❑ ❑ ❑ ❑
2 Installation Cerabar S
14 Endress+Hauser

Connecting handheld
terminals
•For protection EEx d do not connect handheld terminals in the explosion hazardous
area.
•Do not replace the battery of the handheld terminal in the explosion hazardous area.
•For the Cerabar S with FM or CSA certificate: Electrical connections as shown in
“Installation drawing” (enclosed in the packing with the Cerabar S).
•For correct transmission of the communication signal, a minimum resistance of
250 Ωmust be present between the connection points and the power supply.
Connecting the
Commubox FXA 191 for
operating via
Commuwin II
The Commubox FXA 191 connects intrinsically safe Smart transmitters with a HART or
INTENSOR protocol to the RS 232 C serial interface of a personal computer. This enables
the transmitter to be remotely operated with the Endress+Hauser Commuwin II operating
program. The Commubox FXA 191 is used for intrinsically safe signal circuits.
4...20 mA
min. 250 Ω
IO
FMD230:LIC0001
Online
1>Group S elect
2 PV 20 mbar
HELP
IO
FMD230:LIC0001
Online
1>Group S elect
2 PV 20 mbar
HELP
4...20 mA 0000
Text 123
+
BA187Y25
any device
Figure 2.13
Handheld terminals can be
connected anywhere along the
4…20 mA cable
4…20 mA
4...20 mA 0000
Text123
+
PC with Commuwin II
Commubox
FXA 191 minimum line
resistance
250 Ω
Cerabar S
BA187Y26
Figure 2.14
The Commubox can be
connected anywhere along the
4…20 mA cable
Cerabar S 2 Installation
Endress+Hauser 15

3 Operation
3.1 Local operation
Operating elements Four push buttons are used for local operation. These enable the lower range and upper
range values to be set. The functions of the push buttons are shown in the table below.
Display module A display module is optionally available. Two display modes are available.
•Display in measurement mode: This is shown as standard
•Display in calibration mode: This is shown after pressing one of the push buttons +Z,
–Z, +S, –S once. Returns automatically to measurement mode after 2 seconds.
Function keys
+Z increases the lower range value by +1 digit *
–Z lowers the lower range value by –1 digit *
+S increases the upper range value by +1 digit *
–S lowers the upper range value by –1 digit *
Push button combinations (Pressing the push buttons simultaneously)
Push button Function
Calibration
+Z and –Z The pressure acting is adopted as the lower range value (4 mA)
+S and –S The pressure acting is adopted as the upper range value (20 mA)
Bias pressure
2-times +Z and +S Any pressure acting is adopted as the bias pressure**
1-time +Z and +S The bias pressure** is shown
2-times –Z and –S The bias pressure** is deleted
Securing the measuring point by locking/unlocking
+Z and –S Locking the measuring point
–Z and +S Unlocking the measuring point
The procedure for commissioning the measuring point with local operation is described
in Section 4.
Table 3.1
Function keys
* Note: Pressing once activates
the display, only by pressing
again does the display begin to
count.When first pressing the
push button the values slowly
change and then increase in
speed.
** If the display for process pres-
sure does not show zero after
zero point calibration at zero (de-
pending on position), it can be ad-
justed to zero by adopting the
bias pressure. This does not af-
fect the current output.
-0.1...0.3 bar
-0.1...0.3 bar g
-0.1...0.3 bar g
– –
++
ZS
– –
++
ZS
ZS
+Z
-Z
+S
-S
z
➂
➀
➁
➅
➃
➄

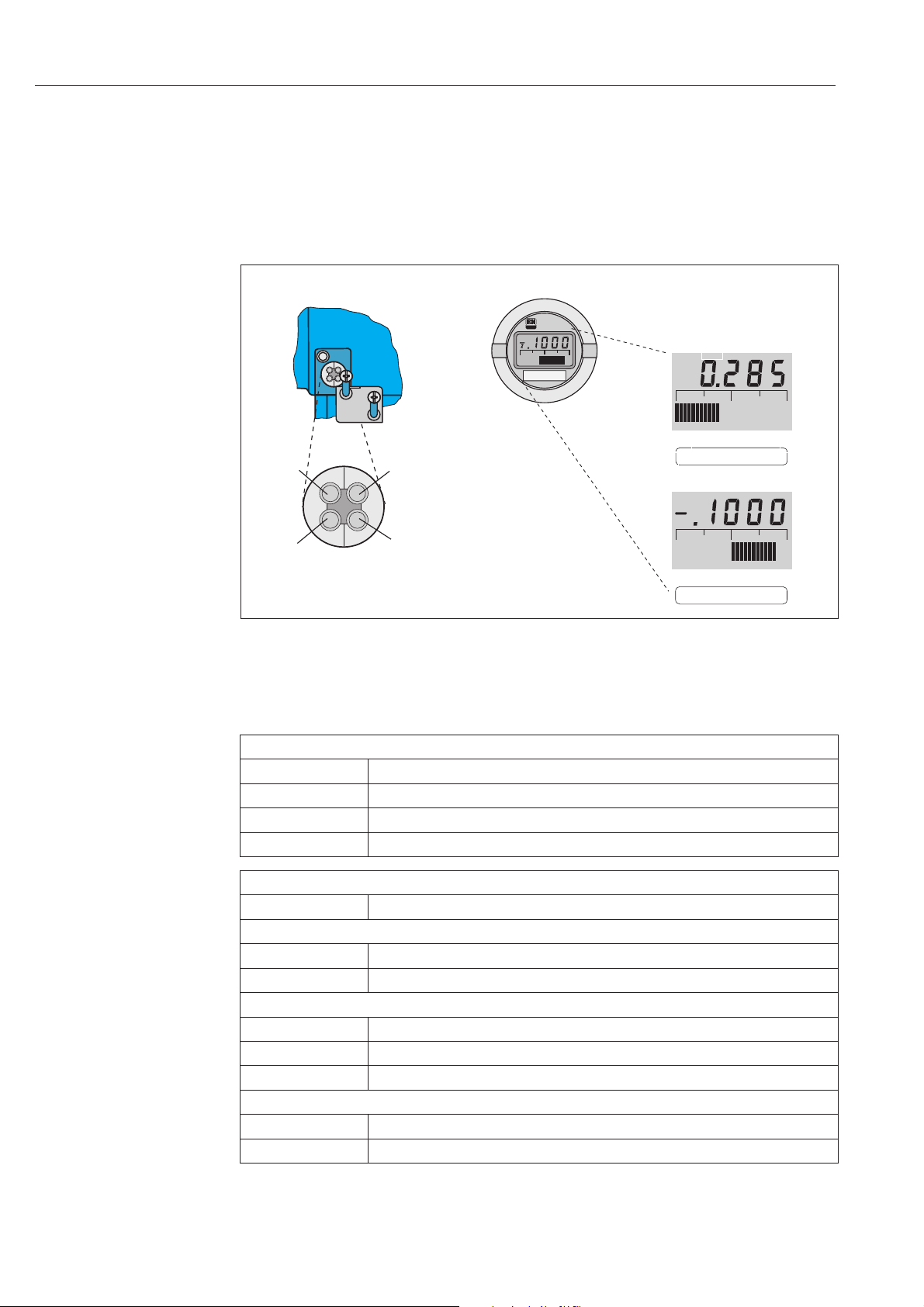

Push buttons for local operation
BA187Y27
Display module
➆
Display in
measurement mode
Display in calibration mode
Figure 3.1
Operating interface of the
Cerabar S, with optional display
module
Display in measurement mode
➀ 4-character display of
measured values and input
parameters
➁ Bargraph of
measured value
➂ Lower range value
➃ Upper range value
➄ Nominal measuring range
With display in
in calibration mode
➅ Display of the calibration point
(Z=Zero, S=Span)
➆ Set measuring range within
the limits of the measuring cell
3 Operation Cerabar S
16 Endress+Hauser

3.2 Operating with the HART protocol via the Universal HART
Communicator DXR 271
Connecting the handheld terminal is described in Section 2.5, page 15.
The procedure for commissioning the measuring point with the Universal HART
Communicator DXR 275 is described in Section 5 "Pressure Measurement" and
Section 6 "Level Measurement".
3.3 Operating with the INTENSOR protocol via Commulog VU 260 Z
Connecting the handheld terminal is described in Section 2.5, page 15.
The procedure for commissioning the measuring point with the Commulog VU 260 Z
handheld terminal is described in Section 5 "Pressure Measurement" and Section 6
"Level Measurement".
LIC103 PMC631
20mbar
MEASUREDVALUE 00
LC display with
– parameter
– VH position
– bargraph
Push buttons
– "Diagnosis"
– "Home"
– "Entry"
Push buttons for
selecting the matrix and
entering parameters
BA187Y30
Cerabar S with INTENSOR protocol
is calibrated with the Commulog VU 260 Z
(Version 1.7 and above)
(see also BA 028F).
H
VH
02
12.50
H
BA187Y31
•Select matrix field with,,,
•Call up entry mode with
•Enter parameters with , , , ,
•On error calls up the error message
in plain text
IO
PMC 631:LIC0001
Online
1 >Group Select
2 PV 20 mbar
HELP
LC display
with menu text
Function keys
Push buttons for
selecting the
menu
Push buttons for
entering parameters
BA187Y28
When operating with the HART protocol an
interactive menu operation is used derived
from matrix
(see also the operating manual for the
handheld terminal).
F1 F4F2 F3
PMC 631: LIC0001
Online
2PV 20mbar
HELP
1->Group Select
F1 F4F2 F3
PMC 631: LIC0001
2 Additional Functions
3 Transmitter Info
4 Linearization
5 User Information
Group Select
1->Calibration
HOME
F1 F4F2 F3
PMC 631: LIC0001
3 Transmitter Info
4 Linearization
5 User Information
Group Select
1->Calibration
2 Additional Functions
HOME
BA187Y29
•The menu "Group Select" calls up
the matrix.
•The bar lines display the menu
headings.
•Parameters are set using
submenus.
Cerabar S 3 Operation
Endress+Hauser 17

3.4 Operating with the HART or INTENSOR protocol via
Commuwin II
When using the Commuwin II display and operating program (if possible from Version
1.5 upwards) the Cerabar S is calibrated and operated via either :
•an operating matrix or
•the graphic operating mode
The appropriate server (e.g. HART or ZA 672) must therefore be activated. A description
of the Commuwin II operating program is found in the operating manual BA 124F.
Operating matrix The advanced functions of the Cerabar S can be accessed in this operating mode from
the menu.
•Each row is assigned to a function group.
•Every field displays one parameter.
The calibrating parameters are entered in the appropriate fields.
Graphics operation In this operating mode the calibration parameters for specific configuration procedures
are entered in the appropriate box.
V Basic calibration0
V4
V5
V6
V Sensor data7
V Linearisation3
V Diagnosis2
V1
80,3 %
MEASURED VALUE 0 SET 4 MA VALUE
0
DIAGNOSIS CODE
2
OPERATING MODE 0
4 MA DISP.AFTER LIN. 100
20 MA DISP.AFTER LIN.
0
LAST DIAGN. CODE xxxx
DEVICE + SOFTW NO.
100
SET 20 MA VALUE
ZA 672 PIC 004 PMC 731
BA187E33
Field
Row
Figure 3.2
Menu of instrument data in
Commuwin II
Graphic support - status
TAG NO.
PIC 004
XXXX
DIAGNOSIS CODE
0
MEASURED VALUE
Endress+Hauser Cerabar S
80.3%
DEVICE+SOFTW.
BA187E32
Figure 3.3
Menu of instrument data in
Commuwin II
3 Operation Cerabar S
18 Endress+Hauser

4 Local Operation
4.1 Commissioning the measuring point
ContentsThis section contains the following information:
•General description of operation with push buttons
– Setting lower and upper range values: Calibration without reference pressure
– Adjusting lower and upper range values: Adjustment with reference pressure
– Adjusting lower and upper range values: Reference pressure is near the lower range
and upper range values
– Adjustment for the position of the display
•Setting damping (integration time)
•Locking the measuring point
Further information is available over the operating matrix. Instructions on operating
the handheld terminal or operating matrix are given in Section 3 and Sections 5
"Pressure Measurement" and 6"Level Measurement".
Lower and upper range
values:
calibration without
reference pressure

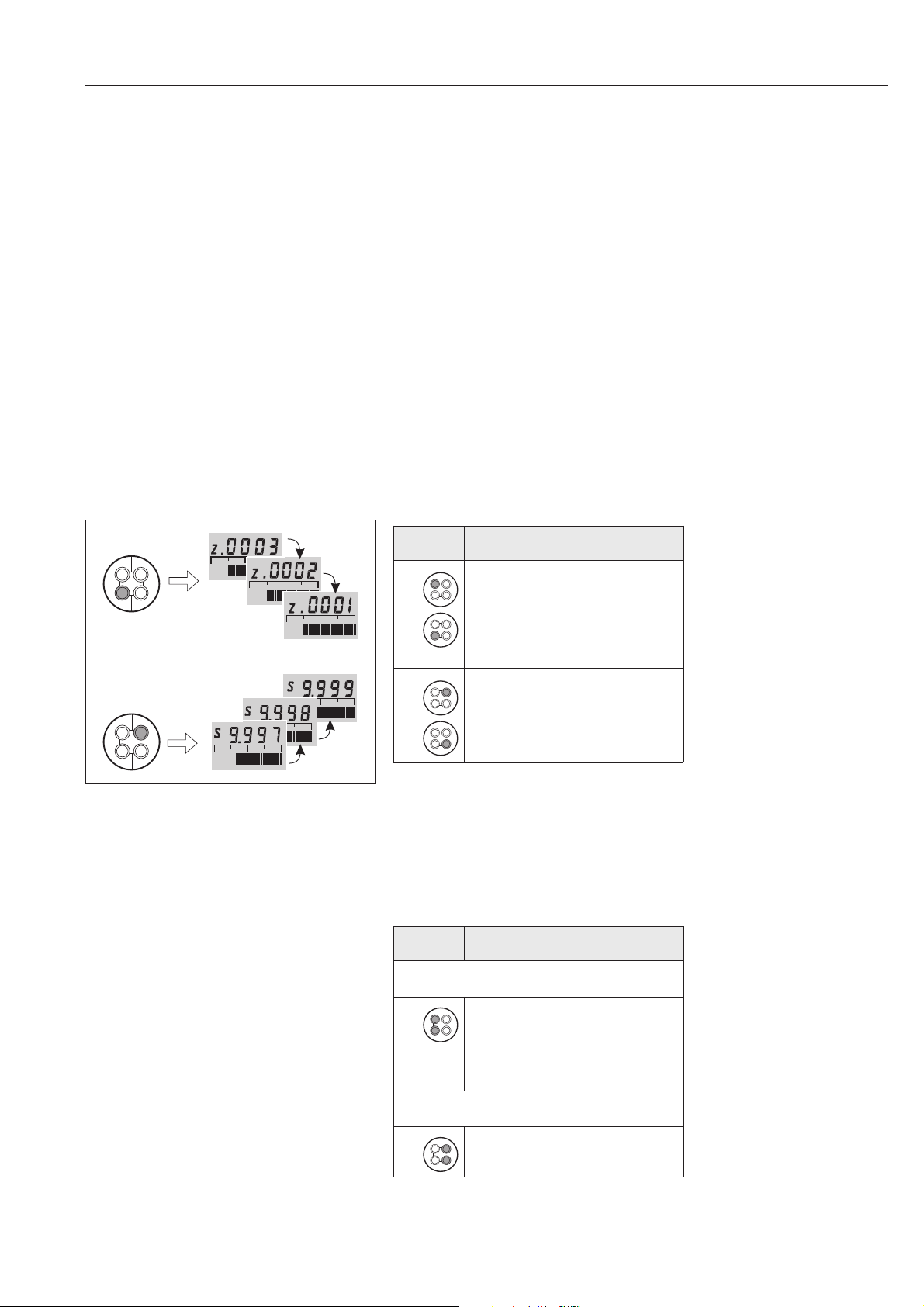

The lower and upper range values required are set with push buttons.
# Push-
button Entry
1 Set the lower range value by
repeatedly pressing the +Z and –Z
push buttons
(As the span remains constant, the
upper range value is shifted to the
same extent as the lower range
value.)
2 Set the upper range value by
repeatedly pressing the +S and –S
push buttons
(The lower range value is unaffected.)
Lower and upper range
values:
calibration with
reference pressure
A reference pressure is available that corresponds exactly to the lower range and upper
range values required.
#Push-
button Entry
1 Entering the exact pressure for the lower
range value
2 Simultaneously press +Z and -Z
once
(As the span remains constant, the
upper range value is shifted to the
same extent as the lower range
value.)
1 Entering the exact pressure for the upper
range value
4 Simultaneously press +S and -S
once
(The lower range value is unaffected.)
––
++
ZS
––
++
ZS
––
++
ZS
––
++
ZS
––
++
ZS
––
++
ZS
––
++
ZS
––
++
ZS
BA187Y34
Cerabar S 4 Local Operation
Endress+Hauser 19

Lower and upper range
values:
– reference pressure is
near the lower range and
upper range values
A reference pressure is available that is near to the lower and upper range values. The
appropriate current must be calculated using to the following formula:
I – current value
p – reference pressure near the lower
and upper range values
pLRV – pressure of lower range value
pURV – pressure of upper range value
#Push-
button Entry
1 Entering the pressure near to the lower range
value e.g. 0.1 bar
2 Setting the 4 mA current value by
repeatedly pressing the +Z or –Z
push buttons
3 Entering the pressure near to the upper range
value e.g. 0.9 bar
4 Calculating the current value for the
difference between the two reference
pressures e.g. 0.8 bar = 16.8 mA
5 Setting the 16.8 mA current value for
the difference for the two reference
pressures by repeatedly pressing the
+S or –S push buttons
3 Keeping the pressure near to the upper
range value e.g. 0.9 bar
7 Calculating the current value for the pressure
near to the upper range value
0.9 bar = 18.4 mA
8 Setting the 18.4 mA current value by
repeatedly pressing the +Z or –Z
push buttons
Calibrating for position
of the display
(bias pressure)
If the display does not show zero after zero point adjustment (due to position), then this
can be corrected to zero by entering a bias pressure or by adopting the bias pressure
acting (depending on position). This does not affect the current output.
––
++
ZS
––
++
ZS
––
++
ZS
+
123
+
Test
4…20 mA
Rimax.7 W
11.5…45 V
BA187Y43
#Push-
button Entry
1Correcting the display
Simultaneously pressing twice +Z
and +S: The bias pressure acting is
adopted
2Displaying the bias pressure
Simultaneously pressing once +Z
and +S: The bias pressure entered is
shown briefly.
3Deleting the bias pressure
Simultaneously pressing twice –Z
and –S: The bias pressure entered is
deleted.
––
++
+
ZS
––
++
+
ZS
––
++
+
ZS
I4=+ •−
−
mA 16 mA (p p )
(p p )
URV
LRV URV
0...2 bar g
p
pBias
p+pBias
pe=0
BA 187Y72
4 Local Operation Cerabar S
20 Endress+Hauser
