Endress+Hauser RMA42 User manual

BA287R/09/en/13.10
71099181
SW version
1.01.xx
Operating Instructions
RMA42
Process transmitter with control unit

RMA42
2Endress+Hauser
Brief overview
For quick and easy commissioning:
Block circuit diagram
a0010175-en
Fig. 1: Block circuit diagram
Safety instructions →ä4
Æ
Installation →ä7
Æ
Wiring →ä10
Æ
Display and operating elements →ä13
Æ
Commissioning →ä19
Device configuration - explanation and use of all configurable device
functions with the associated value ranges and settings.

RMA42 Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5 Notes on safety conventions and icons . . . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . . 7
3 Installation . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Incoming acceptance, transport, storage . . . . . . . . . . 7
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.4 Installation procedure . . . . . . . . . . . . . . . . . . . . . . . 8
3.5 Post-installation check . . . . . . . . . . . . . . . . . . . . . . . 9
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 10
4.1 Connecting the device . . . . . . . . . . . . . . . . . . . . . . 10
4.2 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 12
5 Operating elements and display . . . . . 13
5.1 Operating elements . . . . . . . . . . . . . . . . . . . . . . . . 13
5.2 Display and device status indicator/LED . . . . . . . . 14
5.3 Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.4 Quick guide to the operating matrix . . . . . . . . . . . . 16
6 Commissioning. . . . . . . . . . . . . . . . . . 19
6.1 Post-installation check and switching on the device 19
6.2 General information on the device configuration . . 19
6.3 Notes on setup access protection . . . . . . . . . . . . . . 19
6.4 Configuring the device . . . . . . . . . . . . . . . . . . . . . 20
6.5 In operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7 Maintenance. . . . . . . . . . . . . . . . . . . . 36
8 Accessories. . . . . . . . . . . . . . . . . . . . . 36
9 Troubleshooting . . . . . . . . . . . . . . . . . 37
9.1 Troubleshooting instructions . . . . . . . . . . . . . . . . . 37
9.2 Process error messages . . . . . . . . . . . . . . . . . . . . . 37
9.3 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.5 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
10 Technical data . . . . . . . . . . . . . . . . . . . 41
11 Appendix. . . . . . . . . . . . . . . . . . . . . . . 49
11.1 Further explanations on the differential pressure
application at level measurement . . . . . . . . . . . . . . 49
11.2 Display menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
11.3 Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
11.4 Diagnostics menu . . . . . . . . . . . . . . . . . . . . . . . . . 58
11.5 Expert menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Index . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Safety instructions RMA42
4Endress+Hauser
1 Safety instructions
Safe operation of the device is only guaranteed if these Operating Instructions have been read and
the safety instructions they contain have been observed.
1.1 Designated use
The process transmitter evaluates analog process variables, converts signals and shows them on its
multicolored display. Using the unit's outputs and limit relays, processes can be monitored and
controlled. The device is equipped with a wide range of software functions for this purpose.
Power can be supplied to 2-wire sensors with the integrated transmitter power supply system.
– The device is seen as an associated apparatus and may not be installed in hazardous areas.
– The manufacturer accepts no liability for damages resulting from incorrect use or use other than
that designated. The device may not be converted or modified in any way.
– The device has been designed for use in an industrial environment and may only be operated in
an installed state.
1.2 Installation, commissioning and operation
This device is designed to meet state-of-the-art safety requirements and complies with applicable
standards and EU regulations. The device can be a source of application-related danger if used
improperly or other than intended.
Installation, wiring, commissioning and maintenance of the device must only be carried out by
trained technical personnel. The technical personnel must have read and understood these
Operating Instructions and must strictly follow the instructions they contain. The information in the
electrical wiring diagrams (see Operating Instructions, Section 4 'Wiring') must be observed closely.
1.3 Operational safety
Technical improvement
The manufacturer reserves the right to adapt technical details to the most up-to-date technical
developments without prior notice. Contact your sales center for current information and updates
to these Operating Instructions.
1.4 Return
For a return, e.g. in case of repair, the device must be sent in protective packaging. The original
packaging offers the best protection. Repairs must only be carried out by your supplier's service
organization.
!Note!
Please enclose a note describing the fault and the application when sending the unit in for repair.

RMA42 Safety instructions
Endress+Hauser 5
1.5 Notes on safety conventions and icons
The safety instructions in these Operating Instructions are indicated by the following safety icons
and symbols:
"Caution!
This symbol indicates an action or procedure which, if not performed correctly, can result in the
incorrect operation or destruction of the device.
#Warning!
This symbol indicates an action or procedure which, if not performed correctly, can lead to personal
injury, a safety hazard or the destruction of the device.
!Note!
This symbol indicates an action or procedure which, if not performed correctly, can have
an indirect effect on operation or trigger an unexpected response on the part of the device.

Identification RMA42
6Endress+Hauser
2 Identification
2.1 Device designation
2.1.1 Nameplate
The right device?
Compare the nameplate on the device with the following diagram:
a0011757
Fig. 2: Nameplate of the process transmitter (example)
1 Order code, serial number and ID number of the device
2 Power supply
3 Power consumption
4 Approval (if applicable)
5 Temperature range
6 Firmware version
2.2 Scope of delivery
The scope of delivery of the process transmitter comprises:
• Process transmitter for top-hat rail mounting
• Hard copy of Brief Operating Instructions and Ex documentation (XA)
• Operating Instructions and additional documentation on CD
!Note!
Please note the device accessories in Section 8 ’Accessories’ of the Operating Instructions.

RMA42 Installation
Endress+Hauser 7
2.3 Certificates and approvals
CE mark, Declaration of Conformity
The process transmitter is designed to meet state-of-the-art safety requirements, has been tested and
left the factory in a condition in which it is safe to operate. The device meets the relevant standards
and directives as per EN 61 010-1 "Safety requirements for electrical equipment for measurement,
control and laboratory use".
Thus, the device described in these Operating Instructions meets the legal requirements of the EU
directives. The manufacturer confirms successful testing of the device by affixing to it the CE mark.
An overview of all the certificates and approvals available can be found in Section 10 "Technical
data".
3 Installation
3.1 Incoming acceptance, transport, storage
The permitted ambient and storage conditions must be observed. The precise specifications can be
found in Section 10 "Technical data".
3.1.1 Incoming acceptance
On receipt of the goods, check the following points:
• Are the packaging or contents damaged?
• Is anything missing from the delivery? Compare the scope of delivery with the information you
specified in the order.
3.1.2 Transportation and storage
Note the following points:
• Pack the device so that is protected against impact for storage and transportation. The original
packaging provides optimum protection.
• The permitted storage temperature range is -40 to +85°C (-40 to +185 °F); it is possible to store
the device in the limit temperature ranges for a limited period (maximum 48 hours).
3.2 Installation conditions
The process transmitter is designed for use on the top-hat rail (IEC 60715 TH35).
Connections and outputs are provided on the top and underside of the device. Inputs are located
on the top, while outputs and the power supply connection are located on the underside of the
device. The wires are connected by means of labeled terminals.
Operational temperature range:
-20 to 50 °C (-4 to 122 °F)
"Caution!
• To avoid heat accumulation, always make sure the device is sufficiently cooled.
• If the device is operated in the upper temperature limit range, this reduces the operating life of
the display.
3.2.1 Orientation
Vertical.

Installation RMA42
8Endress+Hauser

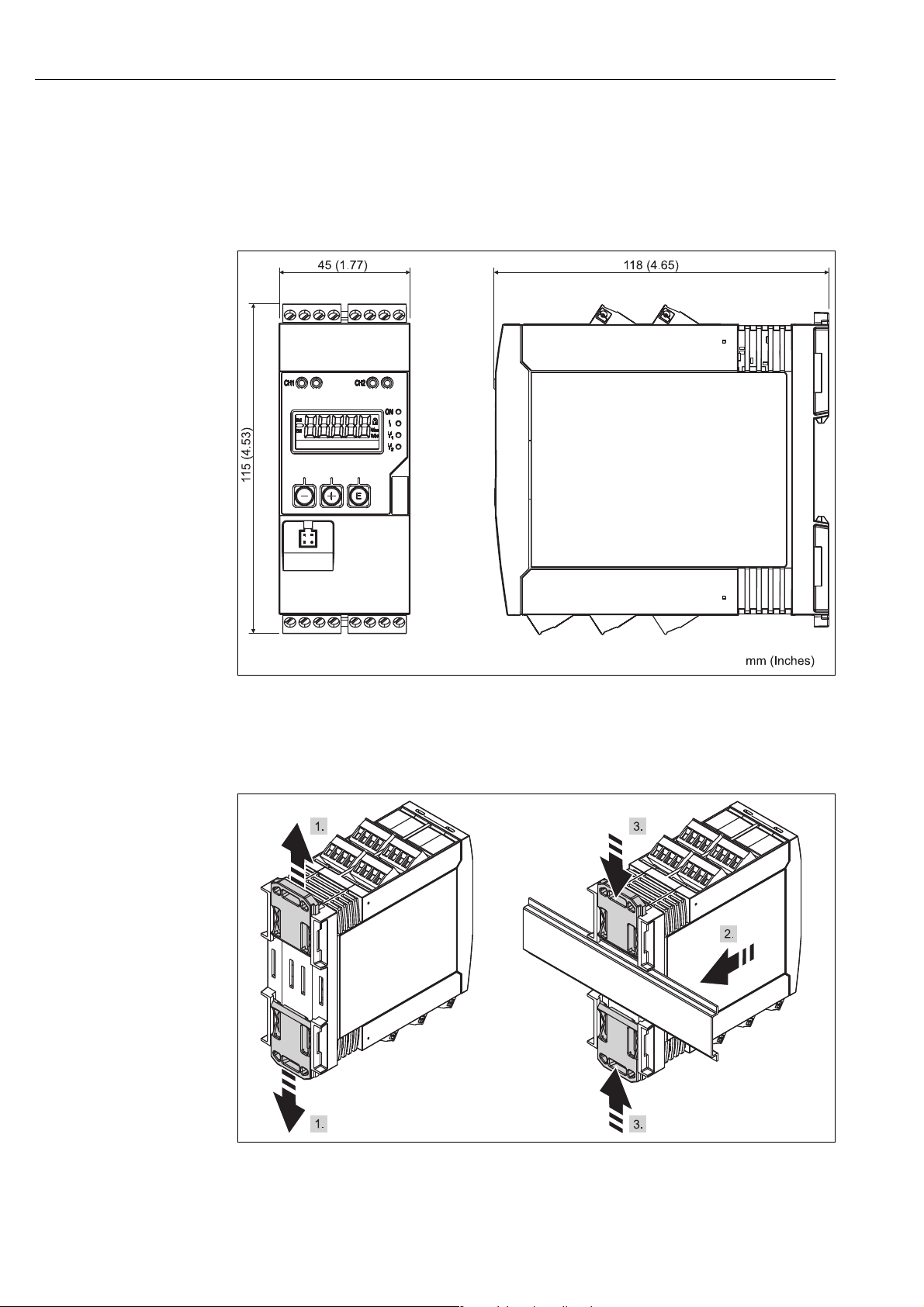

3.3 Dimensions
Note the width of the device: 45mm (1.77 ").
• Maximum depth incl. top-hat rail clip 118 mm (4.65").
• Maximum height incl. terminals 115 mm (4.53").
• Housing width 45 mm (1.77").
a0011792
Fig. 3: Dimensions of the process transmitter
3.4 Installation procedure
a0011766
Fig. 4: Mounting on the top-hat rail

RMA42 Installation
Endress+Hauser 9
1. Push the upper top-hat rail clip upwards and the lower clip downwards until the clips engage
in position.
2. Position the device on the top-hat rail from the front.
3. Slide the two top-hat rail clips together until they engage in position.
To disassemble the device push the top-hat rail clips upwards or downwards (see 1.) and remove
the device from the top-hat rail. Also only one clip can be opened and the device can be tilted
accordingly to remove it from the top-hat rail.
3.5 Post-installation check
• Is the top-hat rail clip engaged?
• Is the device securely fixed to the top-hat rail?
• Are all the plug-in terminals securely locked in place?
• Are the temperature limits observed at the installation location (see Section 3.2)?

Wiring RMA42
10 Endress+Hauser
4 Wiring
#Warning!
Make sure that no voltage is supplied when wiring the device.
"Caution!
• Prior to commissioning, make sure the supply voltage matches the specifications on the
nameplate.
• Provide a suitable switch or power-circuit breaker in the building installation. This switch must
be provided within easy reach of the device and be labeled as a disconnector.
• An overcurrent protection unit (nominal current = 10 A) is required for the power cable.
!Note!
• Observe the terminal designation on the rear of the device.
• It is permitted to connect a mixture of safety extra low voltage and voltage which poses a shock
hazard to the relays.
4.1 Connecting the device
A loop power supply system (LPS) is provided for every input. The loop power supply system is
primarily provided to supply power to 2-wire sensors and is galvanically isolated from the system
and the outputs.
a0011800-en
Fig. 5: Terminal assignment of the process transmitter

RMA42 Wiring
Endress+Hauser 11
Overview of possible connection options at the device
Inputs / loop power supply (top side of device)
Terminal assignment of analog inputs, channel 1 and 2
a0011916
Connection of the analog input
RTD/Resistance 2-wire RTD/Resistance 3-wire RTD/Resistance 4-wire
a0011917 a0011918 a0011919
Thermocouple U ≤1V U>1V
a0011920
a0011921 a0011922
Current
a0011923
Connection of the loop power supply
2-wire 4-wire
a0011925 a0011926
Power supply (underside of device)
24 to 230 V AC/DC (-20 % / +10 %) 50/60 Hz
a0011805

Wiring RMA42
12 Endress+Hauser
"Caution!
If long signal cables with high-energy transients can be expected, we recommend fitting a suitable
surge arrester upstream.
4.2 Post-connection check
Outputs (underside of device)
Connection of the relays
Relay 1 Relay 2
a0011801 a0011802
Connection of the analog output
Analog output 1 Analog output 2
a0011803 a0011804
Connection of the digital output
Digital output / Open Collector
a0011806
Interface for configuring with the
PC software
HART®connection sockets
a0012418 a0012403
Device condition and specifications Notes
Are the device or cables damaged? Visual inspection
Electrical connection Notes
Does the supply voltage match the specifications on the
nameplate?
24 to 230 V AC/DC
(-20 % / +10 %) 50/60 Hz
Are all of the terminals firmly engaged in their correct slots? Is the
labeling on the individual terminals correct?
-
Are the mounted cables strain-relieved? -
Are the supply voltage and signal cables connected correctly? See connection diagram on the
housing.

RMA42 Operating elements and display
Endress+Hauser 13
5 Operating elements and display
The easy operating concept of the device makes it possible for users to commission the device for
many applications without a printed set of Operating Instructions.
The FieldCare operating software is a quick and convenient way of configuring the device. Brief
explanatory (help) texts provide additional information on individual parameters.
5.1 Operating elements
5.1.1 Local operation at the device
The device is operated by means of the three keys integrated in the front part of the device
You can always exit items/submenus at the end of the menu by selecting "x Back".
Leave the setup directly without saving the changes by pressing the ‘-’ and ‘+’ keys simultaneously
for over 3 seconds.
5.1.2 Configuration via interface & FieldCare Device Setup PC
configuration software
"Caution!
The device can assume undefined states while configuring with FieldCare! This can result in the
undefined switching of outputs and relays.
To configure the device with the FieldCare Device Setup software, connect the device to your PC.
You need a special interface adapter for this purpose, e.g. the Commubox FXA291.
The 4-pin connector of the interface cable must be plugged into the corresponding socket on the
rear of the device and the USB connector must be plugged into a free USB slot on the PC.
To establish a connection with the device, please follow the FieldCare Operating Instructions.
To then configure the device itself, follow these Operating Instructions for the device. The entire
Setup menu, i.e. all the parameters listed in these Operating Instructions, can also be found in the
FieldCare Device Setup.
!Note!
In general, it is possible to overwrite parameters with the FieldCare PC software and the appropriate
device DTM even if access protection is active.
If access protection by means of a code should be extended to the software, this function should be
activated in the extended device setup.
For this purpose, select:
Menu ÉSetup / Expert ÉSystem ÉOverfill protect ÉGerman WHG and confirm.
• Open the configuration menu
•Confirmanentry
• Select a parameter or submenu offered in the menu
Within the configuration menu:
• Scroll step-by-step through the parameters/menu items/characters offered
• Change the value of the selected parameter (increase or decrease)
Outside the configuration menu:
• Display enabled and calculated channels, as well as min. and max. values for all the active channels.

Operating elements and display RMA42
14 Endress+Hauser
5.2 Display and device status indicator/LED
The process transmitter provides an illuminated LC display which is split into two sections. The
segment section displays the value of the channel and additional information and alarms.
In the dot matrix section, additional channel information, such as the TAG, unit or bar graph, is
displayed in the display mode. Operating text in English is displayed here during operation.
The parameters for configuring the display are explained in detail in Section 6.4.
a0011767
Fig. 6: Display and oprtating elements of the process transmitter
1: HART®connection sockets
2: Display
3: Operating keys
4: Connection socket for PC interface
5: Green LED; on - supply voltage applied
6: Red LED; on - error/alarm
7: Yellow LED; on - relay 1 energized
8: Yellow LED; on - relay 2 energized
a0011765
Fig. 7: Display of the process transmitter
1: Channel indicator: 1: analog input 1; 2: analog input 2; 1M: calculated value 1; 2M: calculated value 2
2: Measured value display
3: Dot matrix display for TAG, bar graph and unit
4: Limit value indicators in the bar graph
5: "Operation locked" indicator
6: Minimum/maximum value indicator
In the event of an error, the device switches automatically between displaying the error and
displaying the channel, see Section 6.5.3 and Section 9 ‘Troubleshooting’.

RMA42 Operating elements and display
Endress+Hauser 15
5.3 Icons
5.3.1 Display icons
In the event of an error:
The display shows: , the measured value is not displayed
Underrange/overrange:
The display shows:
!Note!
In the dot matrix section, the error and channel name (TAG) are specified.
5.3.2 Icons in the editing mode
The following characters can be used to enter user-defined text:
‘0-9’, ‘a-z’, ‘A-Z’, ‘+’, ‘-’, ‘*’, ‘/’, ‘\’, ‘%’, ‘°’, ‘2’, ‘3’, ‘μ’, ‘.’, ‘,’, ‘;’, ‘:’, ‘!’, ‘?’, ‘_’, ‘#’, ‘$’, ‘"’, ‘´’, ‘(’,
‘)’, ‘~’
For numerical entries, the numbers ‘0-9’ and the decimal point are available.
Furthermore, the following icons are used in the editing mode:
Device is locked/operating lock; the device setup is locked against changes to parameters, the display can be
modified.
1 Channel one (Analog in 1)
2 Channel two (Analog in 2)
1M First calculated value (Calc value 1)
2M Second calculated value (Calc value 2)
Max Maximum value/value of the maximum indicator of the channel displayed
Min Minimum value/value of the minimum indicator of the channel displayed
Symbol for the setup
Symbol for the Expert setup
Symbol for diagnostics
Accept entry.
If this icon is selected, the information entered is accepted at the position and the user exits the editing mode.
Reject entry.
If this icon is selected, the information entered is rejected and the user exits the editing mode. The text configured
beforehand remains unchanged.
Move one position to the left.
If this icon is selected, the cursor moves one position to the left.
Delete back.
If this icon is selected, the character to the left of the cursor is deleted.
Delete all.
If this icon is selected, all the information entered is deleted.

Operating elements and display RMA42
16 Endress+Hauser
5.4 Quick guide to the operating matrix
The following tables show all menus and the operating functions.
Display menu Description
FAI1 Min-max-reset* Reset the min/max values for Analog in 1
OAI2 Min-max-reset* Reset the min/max values for Analog in 2
OCV1 Min-max-reset* Reset the min/max values for Calc value 1
OCV2 Min-max-reset* Reset the min/max values for Calc value 2
OAnalog in 1 Display setting for Analog in 1
OAnalog in 2 Display setting for Analog in 2
OCalc value 1 Display setting for Calc value 1
OCalc value 2 Display setting for Calc value 2
OContrast Display contrast
OBrightness Display brightness
OAlternating time Switchover time between values chosen to be displayed
OBack Return to main menu
*) Is only displayed if "Allow reset" = "Yes" is set in the "Expert" menu for the corresponding channel.
Setup menu Description
FApplication Application selection
1-channel 1-channel application
2-channel 2-channel application
Diff-pressure Difference pressure application
OAI1 Lower range* Lower measuring range limit for Analog in 1
OAI1 Upper range* Upper measuring range limit for Analog in 1
OAI2 Lower range* Lower measuring range limit for Analog in 2
OAI2 Upper range* Upper measuring range limit for Analog in 2
OCV Factor* Factor for calculated value
OCV Unit* Unit for calculated value
OCV Bar 0%* Lower limit for bargraph of calculated value
OCV Bar 100%* Upper limit for bargraph of calculated value
OLinearization* Linearization of calculated value
No lin points Number of linearization points
X-value X-values for linearization points
Y-value Y-values for linearization points

RMA42 Operating elements and display
Endress+Hauser 17
OAnalog in 1 Analog input 1
Signal type Signal type
Signal range Signal range
Connection Connection type (only for Signal type = RTD)
Lower range Lower limit of measuring range
Upper range Upper limit of measuring range
Tag Designation of analog input
Unit Unit of analog input
Offset Offset of analog input
Ref junction Reference junction (only for Signal type = TC)
Reset min/max Reset min/max value for analog input
OAnalog in 2 Analog input 2
See Analog in 1
OCalc value 1 Calculated value 1
Calculation Type of calculation
Tag Designation of calculated value
Unit Unit of calculated value
Bar 0% Lower limit for bargraph of calculated value
Bar 100% Upper limit for bargraph of calculated value
Factor Factor for calculated value
Offset Offset for calculated value
No lin points Number of linearization points
X-value X-values for linearization points
Y-value Y-values for linearization points
Reset min/max Reset min/max values
OCalc value 2 Calculated value 2
See Calc value 1
OAnalog out 1 Analog output 1
Assignment Assignment for analog output
Signal type Signal type of analog output
Lower range Lower range limit of analog output
Upper range Upper range limit of analog output
OAnalog out 2 Analog output 2
See Analog out 1
ORelay 1 Relay 1
Assignment Assignment of value to be monitored with relay
Function Operating function for relay
Set point Set point for relay
Set point 1/2 Set points 1 and 2 for relay (only, if Function = Inband, Outband)
Time base Time base for gradient evaluation (only, if Function = Gradient)
Hysteresis Hysteresis for relay
ORelay 2 Relay 2
See Relay 1
Setup menu Description

Operating elements and display RMA42
18 Endress+Hauser
OBack Return to main menu
*) Is only displayed if "Application" = "Diff pressure" is configured.
Diagnostics menu Description
FCurrent diagn Current diagnostic
OLast diagn Last diagnostic
OOperating time Operating time of the device
ODiagnost logbook Diagnostics logbook
ODevice information Device information
OBack Return to main menu
Expert menu Description
FDirect access Direct access to an operting function
OSystem System settings
Access code Protection of operating menu by means of access code
Overfill protect Overfill protection
Reset Device reset
Save user setup Save settings made in the setup
OInput Inputs
The following parameters are available in addition to the parameters from the Setup menu:
Analog in 1 / 2 Analog input 1 / 2
Bar 0% Lower limit for bargraph of analog input
Bar 100% Upper limit for bargraph of analog input
Decimal places Decimal place for analog input
Damping Damping
Failure mode Failure mode
Fixed fail value Fixed value in the event of an error (only, if Failure mode = Fixed
value)
Namur NE43 Error limits according Namur
Allow reset Allow reset of min/max values via Display menu
OOutput Outputs
The following parameters are available in addition to the parameters from the Setup menu:
Analog out 1 / 2 Analog output 1 / 2
Fail mode Failure mode
Fixed fail value Fixed value in the event of an error (only, if Fail mode = Fixed value)
Relay 1 / 2 Relay 1/2
Time delay Switching delay time
Operating mode Operating mode
Failure mode Behavior in the event of an error
Setup menu Description

RMA42 Commissioning
Endress+Hauser 19
6 Commissioning
6.1 Post-installation check and switching on the device
Make sure that all post-connection checks have been carried out before you commission your
device:
• ‘Post-installation check’ checklist in Section 3.5
• ‘Post-connection check’ checklist in Section 4.2
Once the operating voltage is applied, the display lights up and the green LED indicates that the
device is operational.
When you commission the device for the first time, you program the setup in accordance with the
descriptions provided in these Operating Instructions in the following sections.
When commissioning a device already configured or preset, measuring is immediately started as per
the settings. The values of the channels currently activated appear on the display. Changes to the
display can be made in the Display menu item (→Chap. 6.4.7 ‘Step 7: Configuring the display
functions’).
!Note!
Remove the protective foil from the display as this restricts display legibility otherwise.
6.2 General information on the device configuration
You can commission/configure your device locally using the three integrated keys, or by PC. You
require the Commubox FXA291 to connect the device to a PC (see ‘Accessories’ section).
Advantages of configuring the device using FieldCare Device Setup:
• The device data are saved in the FieldCare Device Setup and can be called up at any time.
• Entries can be made more quickly using the keyboard.
6.3 Notes on setup access protection
Access to the setup is enabled when the device leaves the factory. Access can be locked via the
setup.
Proceed as follows to lock the device:
1. Press ‘E’ to get to the configuration menu
2. Press ‘+’ , ‘Setup’ is displayedÉ, press ‘E’
3. Press ‘+’ again until ‘System’ is displayed, press É‘E’
4. ‘Access code’ is displayed, press É‘E’
5. Set the code: the desired numerical value is configured by pressing the ‘+’ and ‘-’ keys. The
access code is a four-digit number. The corresponding position of the number is displayed in
plain text.
To confirm the value entered and to go to the next position, press ‘E’.
6. Confirm the last position of the code to exit the menu. The code is displayed in full. Press ‘+’
to scroll to the last point of the ‘x Back’ submenu and confirm this point. As a result, the value
is accepted and the user returns to the level of the ‘Setup’ item. Also exit this submenu via the
last ‘x Back’ parameter to get back to the measured value/channel display.
!Note!
The ‘x Back’ point can be found at the end of every picklist/menu item. If you confirm this
parameter, you go from the submenu to the higher-order menu, or you exit the setup.

Commissioning RMA42
20 Endress+Hauser
6.4 Configuring the device
Configuration steps:
1. Select the application conditions (only for 2-channel devices) (→Chap. 6.4.1)
2. Configure the universal input(s) (→Chap. 6.4.2)
3. Configure the calculations (→Chap. 6.4.3)
4. Configure the analog output(s) (→Chap. 6.4.4)
5. Configure relays (if option selected); assign and monitor limit values (→Chap. 6.4.5)
6. Advanced device configuration (access protection/operating code; saving the current setup/
user setup) (→Chap. 6.4.6)
7. Configure the display functions (→Chap. 6.4.7)
The following section provides a detailed account of how to set up the two-channel device and the
differential pressure application package (brief overview of the configuration →ä22, only
available in the two-channel version). If you want to configure a single-channel device, please
proceed as explained in Section 6.4.2.
6.4.1 Step 1: Selecting the application conditions/number of active
input channels
Application conditions of a two-channel device
Call up the Setup menu after performing the post-installation check.
Press ‘E’ Épress ‘+’ É‘Setup’ is displayed, press É‘E’.
Select your application conditions in the first point of the setup. The following options are available:
1. Differential pressure (‘Diff pressure’): application package; parameters are automatically
preconfigured for you.
2. Single channel (‘1-channel’): universal input 2 (‘Analog in 2’) is deactivated (‘off’) from the
software side. The second channel can always be activated at a later stage via
‘Setup’É‘Analog in 2’ (→Chap. 6.4.2).
3. Two channels (‘2-channel’): universal input 1 (‘Analog in 1’) and universal input 2 (‘Analog
in 2’) are preconfigured with the following values:
– Signal type (‘Signal type’): ‘Current’
– Signal range (‘Signal range’): ‘4-20mA’
The following section provides a detailed description of the "Differential pressure" application
package.
To set up the device in single-channel/two-channel applications, please proceed with the device
setup as explained in Section 6.4.2 (analog input 1 (‘Analog in 1’)).
!Note!
If the application or the parameter selected are subsequently changed, parameters already
configured are retained (e.g. if the differential pressure application is changed to two-channel É
‘Calc value 1’ remains at the Difference parameter).
