ENFORCER Enforcer SD-927PKC-NEQ User manual

®
SD-927PKC-NEQ
Indoor No-Touch Request-To-Exit Sensor
Manual
Features:
•
Dual voltage, 12~2 VAC/VDC
•Range adjustable from 23/8"-8" (6~20 cm)
•Stainless steel single-gang plate
•3A relay, adjustable from 0.5
~30 sec, toggle,
or as long as hand is near the sensor
•
Quick connect screw-less terminal block
•LED illuminated sensor area for easy
identification
•Selectable LED colors (turns from red to
green or green to red) when activated
The ENFORCER No-Touch Request-To-
Exit Sensor uses IR technology to request egress from a
protected area or activate a device with the simple wave of a hand. Since it is No-
Touch, this
sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to
reduce the risk of contamination),
schools, factories, or offices.
Also available with Spanish (SD-927PKC-NSQ) or French (SD-927PKC-NFQ) faceplates.

ENFORCER Indoor No-Touch Request-To-Exit Sensor
2SECO-LARM U.S.A., Inc.
1.
Run four wires through the wall to a single
-
gang back
-
box.
2. Connect the four wires from the back-box to the quick
connect screw-less terminal according to Fig. 1.
3. Screw the plate into the back-box, taking care not to crimp
the wires.
. Remove clear protective film from the sensor before use.
Adjusting the LED C l r:
1. The LED color factory default setting is red (standby) and
green (triggered).
2. To reverse the LED color visual indicator to green (standby)
and red triggered), remove the jumper located at the right
side of the terminal block as shown in Fig. 2.
Adjusting the Sens r Range and Output Timer
1. To adjust the sensor's range, turn the trimpot
counterclockwise (decrease) or clockwise (increase).
2. To adjust the output time, turn the trimpot
counterclockwise (decrease) or clockwise (increase). To
set to toggle, turn the trimpot all the way counterclockwise.
Operating voltage
12~2 VAC/VDC
Current draw (max.)
120mA@12VDC
Relay type
Form C dry contact, 3A@2 VDC
Response time
10m
s
LEDS
Standby
Red*
Triggered
Green*
Output time
Adjustable,
0.5
~30
sec.
, toggle,
or as long
as sensor is triggered
Sensing range
Adjustable, 2
3
/
8
"~8" (6
-
2
0
cm)
Operating t
emperature
-
°~
131
° F (
-
20
°~
55
° C)
Weight
3
-
oz (85g)
Specificati ns:
1x
No
-
Touch Sensor
2x
Mounting
screws
1x
Manual
Parts List:
Installati n:
*Default, reversible by jumper
Fig.
1
Connections
(under back cover)
COM
NO
NC
Power Input
Relay output
(3A max.)
(
–
)
(
+
)
Sensor
range
potentiometer
Terminal block
Fig.
2
Output Time and Sensor
Range Potentiometers
LED Color
adjustment jumper
1
1
/
8
"
(29mm)
2
1
/
8
"
(55mm)
Output
time
potentiometer

ENFORCER Indoor No-Touch Request-To-Exit Sensor
SECO-LARM U.S.A., Inc. 3
(–) (
+
)
12
~2
VAC/
VDC
Power input
Relay output
COM
NO
NC
Relay output
(
–
)
(
+
)
12
~2 VAC/
VDC
Power input
COM
N
C
NO
NC
1.Installation with Electromagnetic Lock (Fail-Safe)
2. Installation with Electric Door Strike (Fail-Secure)
3. Installation with Electromagnetic Lock and Keypad
(
+
)
Access Control
Power Supply
ENFORCER
Series
Electromagnetic Lock
Access Control
Power Supply
ENFORCER
Series
Electric Strike
(
+
)
(
+
)
Access Control Power Supply
SK
-
1011
-
S
D
Q
Digital Keypad
Tamper
Output (N.C.)
EGRESS
NO
COM
NC
ENFORCER
Series
Electromagnetic Lock
(–) (+)
12
~2 VAC/
VDC
Power input
Relay output
COM
NO
NC
(+)
Sample
Installati n
s
:

ENFORCER Indoor No-Touch Request-To-Exit Sensor
4SECO-LARM U.S.A., Inc.
The SD
-
927P
KC
Series is designed for
indoor
use to match most interiors. The sensor require
s
special care to ensure reliability and a long operating life.
1. Use a soft, clean cloth for cleaning.
2. Be careful not to spray liquids directly on the unit.
3. When cleaning, spray the cleaning solution onto the cleaning cloth instead of the unit.
. Be sure to wipe off any excess liquid from the sensor. Wet spots or areas may affect the
sensor’s performance.
NOTICE
:
The SECO
-
LARM policy is one of
continual development and improvement. For that reason, SECO
-
LARM
reserves the right to change specifications without notice. SECO-LARM is also not responsible for misprints. All t
rademarks
are the property of SECO-LARM U.S.A., Inc. or their respective owners. Copyright © 2019 SECO-LARM U.S.A.,
Inc. All
rights reserved.
WARRANTY:
This SECO
-
LARM product is
warranted against defects in material and workmanship while
used in normal
service for one (1) year from the date of sale to the original customer. SECO-
LARM’s obligation is limited to the repair or
replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if
damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair or alteration,
improper or abnormal usage, or faulty installation, or if for any other reason SECO-
LARM determines that such equipment
is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of
SECO-LARM and the purchaser’s exclusive remedy, shall be limited to the replacement or repair only, at SECO-LARM
’s
option. In no event shall SECO-
LARM be liable for any special, collateral, incidental, or consequential personal or property
damage of any kind to the purchaser or anyone else.
WARNING
:
Incorrect
mounting which leads to exposure to rain or moisture inside the enclosure could cause a
dangerous electric shock, damage the device, and void the warranty.
Care and Cleaning f r the SD
-
927P
KC
Series N
-
T uch:
SECO-LARM® U.S.A., Inc.
168 2 Millikan Avenue, Irvine, CA 92606
Website:
www.seco
-
larm.com
Phone: (9 9) 261
-
2999 | (800) 662
-
0800
Email: sales@seco
-
larm.com
PICPN3
MI_SD
-
927PKC
-
NEQ_190502.docx

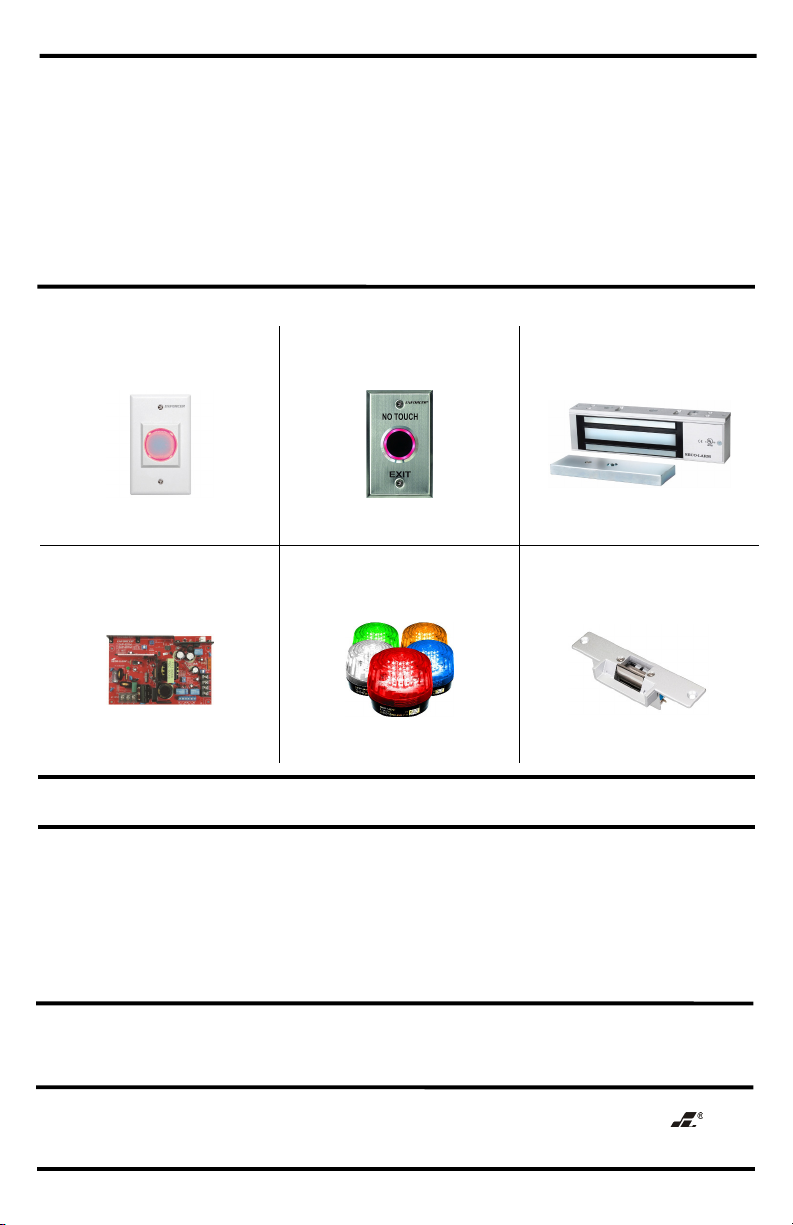

Als Available fr m
