Entrematic Ditec HA8 LP Service manual

DITEC HA8-LP LOW ENERGY
SWING OPERATOR
Installation & Instruction Manual
Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS CAREFULLY!
FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE!
Before Installation:
•Install only on a properly operating and balanced door. A door that is operating improperly could cause severe
injury. Have qualied service personnel make repairs to cables, spring assemblies, and other hardware before
installing the operator.
• Remove all pull ropes and remove, or make inoperative, all locks (unless mechanically and/or electrically
interlocked to the power unit) that are connected to the door before installing the operator.
•If the operator has exposed moving parts, ensure it is out of reach from pedestrians.
• Do not connect the door operator to the source of power until instructed to do so. Connection of the high voltage
supply should be done by a qualied professional and within the guidelines of the enforced local electrical codes.
• For products having a manual release, instruct the end user on the operation of the manual release.
•The technician must test all safety features before turning over the equipment to the customer.
HA8-LP Manual V. 1.3

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 3
HA8-LP Manual V. 1.3
Table of Contents
1.1 Replacement Parts
1.2 General Information
1.3 Technical Specications & Required Tools
1.4 Door Handings
1.5 Consideration of Surrounding
1.6 Electrical
2.1 Pre-Mounting Header Box Instructions
2.2 Operator Layout and Handing - Push and Pull
2.3 Handing Modication - Left to Right (and vice versa)
2.4 Double Egress Header
2.5 Gearbox Installation
3.1 Arm Components and Congurations
3.2 Push Arm Installation
3.3 Pull Arm (Z-arm) Installation
3.4 Universal Arm Installation
4.1 Back Check and Latch Adjustment
4.2 Spring Tension Adjustment
1.0 BEFORE INSTALLATION 6
8.0 CONTROL BOARD PROGRAMMING 46
2.0 OPERATOR INSTALLATION 11
3.0 ARM INSTALLATION 21
9.0 TROUBLESHOOTING 50
4.0 OPERATOR TUNING 33
10.0 ADA ADJUSTMENTS 51
7.0 CONTROL BOARD SETTING 40
11.0 INSTALLATION WRAP UP 52
5.0 TESTING WITH OBSTRUCTION 38
12.0 MANUFACTURER INFORMATION 55
6.0 DOOR OPERATING MODE 39
6.1 Basic Operation
6.2 Operation Switch
7.1 Digital Board Diagram
7.2 Digital Board Wiring Diagram
7.3 Digital Board Specication
7.4 Analog Board Diagram
7.5 Analog Board Wiring Diagram
7.6 Analog Board (Potentiometer) Specication
8.1 Programming Specication (Digital Board)
11.1 Additional Components:
Sensor(s) / Knowing Act Device
11.2 Header Cover Installation
11.3 Safety Decals

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 4
HA8-LP Manual V. 1.3
1.0 BEFORE INSTALLATION
Step 1: Remove
Header Cover
(Section 2.1)
Step 2: Locate
& Drill Power
(Section 2.1)
Step 3: Mount
Header
(Section 2.1 - 2.2)
Step 4: Install
Operator
(Section 2.2 - 2.3)
Step 5: Place
Control Board
(Section 2.4)
Step 6: Install Arm
(Section 3.0)
Step 7: Electronics
Tuning
(Section 4.0 - 8.0)
Step 8: Clean/close
Header
(Section 11.0)
Step 9: Place
AAADM Stickers
(Section 11.2)
Step 10:
Install Sensor(s) /
Knowing Act Devices
(Section 11.1)

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 5
HA8-LP Manual V. 1.3
1.0 BEFORE INSTALLATION
Completed/Typical Automatic Door Installation
HINGE STILE
HEADER COVER
BACKING MATERIAL
(REINFORCEMENT)
LOW PROFILE
OPERATOR
ARM
HEADER BODY
CONTROL BOARD
DOOR MOUNTED
SENSORS HERE
(OPTIONAL)
AAADM STICKERS
KNOWING ACT
DEVICE
INSIDE AND
OUTSIDE
(FOR LOW ENERGY ONLY)
STRIKE STILE
SWING DOOR
DOOR FRAME

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 6
HA8-LP Manual V. 1.3
1.0 BEFORE INSTALLATION
1.1 Replacement Parts
3
2
6b
6a
4
5
7
8
9
10
1
HOLD OPEN
OFF
AUTOMATIC
Replacement Parts
Item Category Part No. Description
1Operator WL-PA03 LP Operator (Non-Handed)
2Control Board W7-150 Analog Control Board
W7-160 Digital Control Board
3Fuse W5-421 Fuse 3AMP Analog Board
W5-422 Fuse 3AMP Digital Board
4Push Arm W7-200 Complete Push Arm-Clear
W7-205 Complete Push Arm-Bronze
5Z-Arm
(Pull)
W5-506C Z-Arm RH - Clear
W5-505C Z-Arm LH - Clear
W5-506B Z-Arm RH - Bronze
W5-505B Z-Arm LH - Bronze
W5-508C Extended Z-Arm RH - Clear
W5-507C Extended Z-Arm LH - Clear
W5-508B Extended Z-Arm RH - Black
W5-507B Extended Z-Arm LH - Black
Replacement Parts
Item Category Part No. Description
6a
Pull Arm Track
- Short
(for Z-arm)
W5-550 Pull Track Assembly - Clear
W5-555 Pull Track Assembly - Bronze
6b
Pull Arm Track
- Long
(for Universal Arm/
Center Spindle)
W5-551 Pull Track Assembly Long
- Clear
W5-556 Pull Track Assembly Long
- Bronze
7Universal Arm W5-512C Universal Arm - Clear
W5-512B Universal Arm - Bronze
8Centre Spindle
Arm
W5-510C Center Spindle RH - Clear
W5-511C Center Spindle LH - Clear
W5-510B Center Spindle RH - Bronze
W5-511B Center Spindle LH - Bronze
9Rocker Switch
WL-
Rocker
Switch
ON/ OFF/ HOLD OPEN
3 position switch
10 Power Supply Kit WL-
PWRKIT
RS-25-24
Power Supply Kit

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 7
HA8-LP Manual V. 1.3
1.2 General Information
The HA8-LP Operator is a complete swinging door solution for push, pull, surface applied installations. The header contains
the Driving system (Motor), Torque production (Gearbox), and a Control system to interlink the two.
The HA8-LP Operator ensures all-around safety. It can be combined with the full range of safety units, such as presence
and motion sensors. It is easy to install for both new construction and retrot applications.
Templating Information
• Before installation, verify door frame is properly reinforced and is well anchored in the wall.
• Concealed electrical conduit, and concealed switch or sensor wires should be pulled to the frame before proceeding.
Suggested Fasteners for Frame
• #14 x 2-3/4” (70mm) long sheet metal screws for wood.
Suggested Fasteners for Door
• #12, #14, Wood screws, Sheet Metal screws, Self-tapping screws of varying lengths depending on applications.
Shipping inspection
Verify that the order was shipped complete and correct, including model number, door swing, color, and header width.
•All wiring must conform to standard wiring practice in accordance with national and local wiring codes.
• Door must swing freely through the entire opening and closing cycle before beginning of installation.
Typically, doors are hung on hinges 5” (127mm) max. width or 3/4” (19mm) offset pivots.
• An incorrectly installed or improperly adjusted door operator can cause property damage or personal injury.
These instructions should be followed to avoid the possibility of misapplication or maladjustment.
• All dimensions are given in inches (millimeters), unless otherwise noted.
1.0 BEFORE INSTALLATION
•If any of the above items are not correct, do not attempt to install until all conditions are correct
•Report any incorrect items to the general contractor immediately.
NO CLAIMS FOR SHORTAGE WILL BE ALLOWED UNLESS REPORTED WITHIN
24 HOURS OF RECEIPT OF SHIPMENT.
The fastener components listed above are merely suggestions. A technician should use their best
discretion to determine what components they’ll need to complete the job.

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 8
HA8-LP Manual V. 1.3
Safety Precautions
• Do not climb or put weight on any door or header parts
• Do not let children play with the operator or the electrical board
• Keep remote controls away from children
• Keep all power off to the unit, when performing any work or maintenance
To avoid bodily injury, material damage and malfunction of the product, the instructions contained in this manual must be
strictly observed during installation, adjustment, repairs and service etc. Training is needed to carry out these tasks safely.
Only Entrematic-trained technicians should be allowed to carry out these operations.
Compliance Codes and Standards
The operator complies with the following codes and standards:
• UL STD.325 & ANSI/BHMA STD. A156.19; Fire rated UL STD. 10 (b); UL STD. 10(c); NFPA STD. 252
• CAN/CSA STD. C22.2 NO. 247 & CAN/ULC STD. S104
1.0 BEFORE INSTALLATION
It is the responsibility of the nal installer and/or installation company, to certify that the nal completed
operator is installed in accordance with local building codes and applicable laws.
1.3 Technical Specications & Required Tools
Model Ditec HA8 LP
Dimensions 4.125” W x 5.125”H
Weight Approx. 45 lbs
Power Supply 115 ± 5VAC, 60Hz, 3A
Consumption DC16V/ 3 AMP
Motor 1/8 hp, 16VDC, 3A (Standard)
1/4 hp, 16VDC, 3A (Optional)
Rated Operation Continuous opening and closing cycles
Manual Opening/Closing Force
- during power failure 15 lbs
Door Opening/Closing Speed & Force Adjustable, see section 10.0 ADA ADJUSTMENTS
Operation - during power failure Low resistance when opened by hand. Door closes by spring.
Hold Open Pulsed Energy to Motor. No overheating. Continuous hold open
Operating Environment
Ambient temperature -4F to +120F (-20C to +50C) No condensation or icing
Ambient humidity 30% to 85% RH
(No hazardous materials must be present in the atmosphere)
Required Tools for installation:
• Allen Wrench Set
• Power Drill and Drill Bits
• Level
• Tape Measure
• Wire Stripper
• Screwdrivers: Flat, Philip, 5/16” Hex. Nut
• Additional Fasteners Depending Surface
• Shims
• Hand Saw/ Power Saw

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 9
HA8-LP Manual V. 1.3
1.4 Door Handings
The handing and types of each operator are shown in the gure below; the black dot indicates the spindle location.
The HA8-LP Operator can be used for pull side and push side installation, on the top door jamb and in header applications.
1.0 BEFORE INSTALLATION
1.5 Consideration of Surroundings
Floor Space Requirements for Wheel Chair Maneuvering - Americans with Disabilities Act (ADA)
The owner may request the activation device location; however, the press switch must be in view of the door and not directly
on the door or frame. Please refer to ANSI 117.1 Safety Code for further guidelines on switch requirements.
External and Internal Factors
Door Condition Door must move easily open and close (latch) without excessive force; weather stripping and
threshold must not interfere with door movement.
Reveal For out swing (Push) doors, the reveal must be within the range of 0” to 14”. For in swing (Pull)
doors, 0” to 4” for special reveals is allowed – for all others consult factory.
Wind When installing on a door in a strong wind condition area, special adjustments should be made
to the arm and doorstop position, to increase the spring tension.
Power/Control Wires
Check that the electrical feed, all conduits, and electrical junction boxes (for push plates or
other activation devices, if required) are correctly located in accordance with nal approved
shop drawings and within the guidelines of the enforced local electrical codes.
Activation switches shall be at minimum height of
36” and maximum height of 48” from nished oors.
Individual who uses wheelchair needs a minimum of
48” clearance to the door swing for doors in series.
Position# 1
Minimum Two Feet (2’)
from door latch
Position# 2
Minimum Five Feet (5’)
from door face
Left-Push SurfaceRight-Push Surface
Left-Pull SurfaceRight-Pull Surface
Left-Center Spindle Right-Center Spindle
Left-Center Hung Right-Center Hung

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 10
HA8-LP Manual V. 1.3
THE GROUND WIRE FOR THE INCOMING 115±5VAC POWER AND THE SYSTEM GROUND WIRE
CANNOT SHARE THE SAME GROUNDING STUD. GROUND THE INCOMING 115±5VAC ACCORDINGLY.
• Installation of any extra wiring for controls or accessories into the header unit shall be secured and away
from any moving parts.
• If the motor is not plugged into the circuit board, there is no resistance against the spring when manually
opening the door. The door or arm will close very quickly if opened.
• If an electrical access hole is added or knocked-out of the end plates, code approved electrical transfers
must be used. Hole cannot be knocked out and unlled.
1.0 BEFORE INSTALLATION
1.6 Electrical
The 115±5VAC supply lines are connected to the black primary wires coming from the transformer and the ground wire is
attached to the operator header box. Mount the ON/OFF/HOLD OPEN switch in the header end plates to the latch side of
the unit (or closest to the control board).
The control board settings have been pre-set prior to shipment. It will be necessary for the door operator to be functional
while adjustments and settings are made. A black push actuator is mounted on the upper left corner of the circuit board to
ease in the adjustment process. Power up the unit, push an activating device and check to make sure that the spline pinion
drive rotates in the correct direction. Keep all wires away from moving parts and sharp edges that may cut into the outer
casing of the wires.

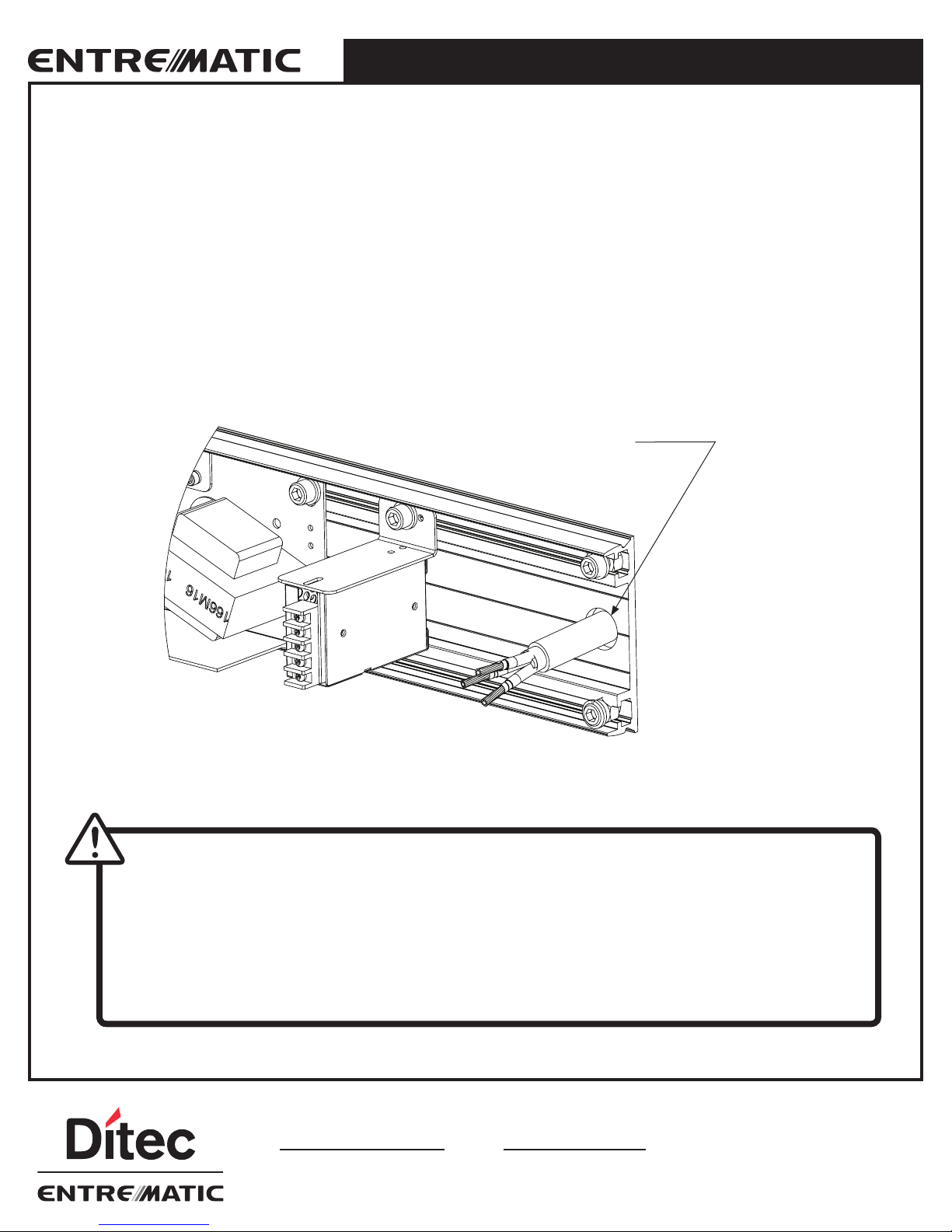

Installation of L-16 CONNECTOR
for armor (Bx) cable/ incoming
power (to secure line to header)
IS RECOMMENDED

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 11
HA8-LP Manual V. 1.3
2.0 OPERATOR INSTALLATION
Remove the motor/gearbox and control board from the back plate. Make through holes on the back plate for mounting
header where appropriate.
2.1 Pre-Mounting Header Box Instructions
Disassemble parts for installation
Remove the cover from the assembly by gently prying with a screwdriver. Once the snaps are clear, pull the cover outwards
with minimal effort. Carefully set the cover in a location where it will not be damaged.
Power supply may be pulled into the header at the same time the header assembly is positioned. Make sure all power is
turned off before handling the supply wires. This should be done by a certied electrician and within the guidelines of the
enforced local electrical codes.
Be sure there is proper support in the wall to secure the header at the vertical jambs, and behind the header at intervals
between the vertical jambs. Secure the header box to the top of the door frame with the appropriate fasteners as indicated
below.

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 12
HA8-LP Manual V. 1.3
STEPS
1Verify that the operator is the correct orientation. Left Push, Right Push, Left Pull or Right Pull
2 Holes are provided for the high voltage wires. Hold the back plate in position and mark the wall. If the hole is not at a
convenient location, you can drill the backer plate to suit.
3 Anchor the back plate to the wall with minimum of six (6) - #14 x 1” Pan Quad Type A screws (provided). You may need
to provide other screws if your installation requires it.
4 Use two (2) screws to fasten the back plate directly to the doors vertical jambs on the hinge side.
2.0 OPERATOR INSTALLATION
DOOR FRAME
HEADER ANCHORING HOLES
PRE-DRILLED INCOMING POWER WIRE HOLE
(TYPICALLY LATCH SIDE)
PRE-DRILLED UPPER HEADER ANCHORING HOLES
HOLES CAN BE MADE ANYWHERE IN HEADER TO SECURE.
ALL HOLES MUST BE DRILLED INTO SUBSTANTIAL SUPPORT
(STUDS, BLOCKS, FRAMING, ETC.). THIS MAY NOT REFLECT YOUR
INSTALLATION.
Holes can be made anywhere in header to secure. All holes MUST be drilled into substantial support
(studs, blocks, framing, etc.). This diagram may not reect your installation.
TYPICAL THROUGH-HOLE INSTALLATION

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 13
HA8-LP Manual V. 1.3
2.0 OPERATOR INSTALLATION
5 Add additional screws to fasten the header back plate to the door frame approximately 12” to 16” apart.
The header needs to be strong enough to support 200 lbs.
6 When installing a support plate for the full width of the door frame, fasten an additional two (2) screws to the vertical
jambs on the strike side of the door.
7 Install the Spindle into the motor/gearbox.
8• Once the header back plate is in place, install the motor/gearbox and control board to the header back plate
(see Section 3.0).
• Slide the nuts (supplied with the operator) to hold the motor/gear box and control board along the 2 parallel tracks
on the back plate.
• Fasten the bolt to hold the motor/gear box and control board. The motor/gearbox needs to be installed so that the
center of the spindle is 5” (12.70 mm) from the end plate
HINGE PIVOT
APPROACH SIDE
HORIZONTAL SECTION
VERTICAL SECTION
HEADER LENGTH DOOR WIDTH
+ 3”
PUSH-STYLE OPERATOR PULL-STYLE OPERATOR
SWING SIDE
HINGE PIVOT
SWING SIDE
HEADER LENGTH DOOR WIDTH
+ 3”
APPROACH SIDE
FILLER PLATE
AS REQUIRED,
BY OTHERS
REINFORCEMENT
BY OTHERS
5 1/8 in
[130.2mm]
4 1/8 in
[102.2mm]
3 7/8 in
[98.4mm]
HA8-LP
OPERATOR
& HEADER
FLUSH
FILLER PLATE
AS REQUIRED
BY OTHERS
REINFORCEMENT
BY OTHERS
5 1/8 in
[130.20mm]
4 1/8 in
[102.20mm]
1 3/8 in
[34.9mm]
HA8-LP
OPERATOR
& HEADER
VERTICAL SECTION

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 14
HA8-LP Manual V. 1.3
2.2 Operator Layout and Handing
2.0 OPERATOR INSTALLATION
HINGE PIVOT
APPROACH SIDE
HORIZONTAL SECTION
VERTICAL SECTION
HEADER LENGTH DOOR WIDTH
+ 3”
PUSH-STYLE OPERATOR PULL-STYLE OPERATOR
SWING SIDE
HINGE PIVOT
SWING SIDE
HEADER LENGTH DOOR WIDTH
+ 3”
APPROACH SIDE
FILLER PLATE
AS REQUIRED,
BY OTHERS
REINFORCEMENT
BY OTHERS
5 1/8 in
[130.2mm]
4 1/8 in
[102.2mm]
3 7/8 in
[98.4mm]
HA8-LP
OPERATOR
& HEADER
FLUSH
FILLER PLATE
AS REQUIRED
BY OTHERS
REINFORCEMENT
BY OTHERS
5 1/8 in
[130.20mm]
4 1/8 in
[102.20mm]
1 3/8 in
[34.9mm]
HA8-LP
OPERATOR
& HEADER
For Universal Arm application, please see section 3.3
PULLPUSH
FILLER
FLUSH
1.375in 34.93mm
FILLER
HORIZONTAL SECTION
VERTICAL SECTION
PUSH HEADER PULL HEADER
PUSH HEADER PULL HEADER

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 15
HA8-LP Manual V. 1.3
2.0 OPERATOR INSTALLATION
Push Header
The Header Box on push installations is mounted ush to the bottom of the doorjamb header. It may require solid backing
material to compensate for the thickness of the door frame. Before fastening Header Box to the door frame, ensure that
your access holes for high and low voltage wires match. Header box should be referenced to the hinge side of the door.
For most applications, the header is equal to door opening plus 3”. This allows for a 1-½” space on either side of the
Header Box to anchor the Header Box properly to the frame. The Header Box should be anchored with a minimum of
six (6) - #14 x 1” Pan Quad Type A screws (provided.)
• 2 screws use at either end (1/2” in from end plate) to fasten directly to the doors vertical jambs.
• 2 screws fasten the Header Body to the bottom of the door frame approximately 10” in from either end.
The header should support 200lbs.
Header MUST be installed 1.5 inches from hinge side for all Push/ Pull installation.
4in
106mm
HOUSING LENGTH = DOOR OPENING WIDTH + 3in 76.2mm
14in
355.6mm
DOOR OPENING WIDTH
1.5in 38.1mm CRITICAL
~2in or ~3in ~51mm or ~76mm
DEPENDING ON OPTION
PUSH ARM DOOR SHOE
HINGE STILE
STRIKE STILE
PUSH ARM OPTION 2: DOUBLE EGRESS CONFIGURATION
PUSH ARM OPTION 1: STANDARD CONFIGURATION
NOTE:
HEADER MUST BE INSTALLED 1.5 IN FROM HINGE SIDE,
REGARDLESS OF WHETHER HEADER IS SIZED APPROPRIATELY TO DOOR OPENING
1.5in
38.1mm
FLEXIBLE PUSH
ROD JOINT
FLEXIBLE PUSH ROD JOINT
FLUSH
(BOTTOM OF HEADER
AND DOOR JAMB)
SLEEVE AND ROD
BELOW MAIN HANDLE
GUIDELINE DIMENSION
3.159in 80.84mm
5in 128mm
4in
104mm
2.605in 66.17mm
GUIDELINE DIMENSION
FLEXIBLE PUSH
ROD JOINT
FLEXIBLE PUSH ROD JOINT
FLUSH
SLEEVE AND ROD
ABOVE MAIN HANDLE
(BOTTOM OF HEADER
AND DOOR JAMB)
5in 128mm
4in
104mm
2.605in
66.17mm
2.159in 54.84mm
OPTION 1USED WHEN
CLEARANCE BETWEEN
TOP JAMB AND PUSH
ROD IS NOT AN ISSUE
OPTION 2PROVIDES AN
EXTRA INCH OR SO FOR
INSTALLATIONS WHERE
CLEARANCE IS AN ISSUE
TO MOUNT/REMOUNT GEARBOX,
REMOVE THESE SCREWS & WASHERS IN
NUMERICAL ORDER.
DISTANCE BETWEEN HEADER END CAP
AND BOTTOM GEARBOX BRACKET
2.89in 73.41mm
LP GEARBOX MOUNTING DISTANCE
LP GEARBOX INSTALLATION/REMOVAL
LP GEARBOX FASTENER DETAILS
RH PUSH/ PULL GEARBOX ORIENTATION
(”SPINDLE OPENING ROTATION” LABEL FACING UP)
LH PUSH/ PULL GEARBOX ORIENTATION
(”SPINDLE OPENING ROTATION” LABEL FACING DOWN)
M8x18 SOCKET CAP SCREW
HOLDS GEARBOX TO HEADER.
TWO (2) 5/16” LOCK WASHERS
MUST BE USED AS SHOWN.
(1, 2 & 3)
M8x12 SOCKET CAP SCREW
HOLDS OTHER COMPONENTS TO HEADER
WITH ONE (1) 5/16” LOCKER WASHER EACH.
M8X1 HEX NUT ANCHORED ALL
COMPONENTS TO HEADER.
(See section 2.5)

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 16
HA8-LP Manual V. 1.3
2.0 OPERATOR INSTALLATION
2.3 Handing Modication - Left to Right (and vice versa)
Prepare the Operator, Arm and Spindle
1Invert the entire operator assembly 180 degrees
2 Remove drive shaft (spindle) from motor gear box assembly (See changing position of drive shaft)
3 Re-attach drive shaft (spindle) to opposite side of motor gearbox assembly
4Detach wire connections from operator to control board
5Remove control assembly from the base and rotate 180 degrees
6 Replace control and socket screws
7 Connect wire harness (see wiring)
8Fully tighten all bolts
9 Insert spline shaft on the operator (depended on push or pull application and spindle rotation)
LEFT HAND RIGHT HAND
Left Hand Installation
(Label is down, facing the oor)
Right Hand Installation
(Label is up, facing the ceiling)
Pull Header
Ensure before fastening Header box to the door frame that your holes for high and low voltage wires match. Header box
should be referenced to the hinge side of the door and 1 3/8” above the bottom of the door frame (see gure below).
For most applications, the header is equal to the door opening plus 3”.
This allows for a 1 1/2” space on either side of the Header Box to anchor the Header box properly to the frame. The Header
box should be anchored with a minimum of 6 -#14 x 1” Pan Quad Type A screws (provided), but will also depends on what is
being screwed into.
• 2 screws use at either end (1/2” in from end plate) to fasten directly
to the doors vertical jambs
• 2 screws fasten the Header body to the bottom of the door frame
approx. 10” in from either end. The header should support 200lbs.
Header on pull applications must be mounted so the main drive
pinion safety washer and machine screw are above the top of the
door. This is to ensure the spindle does not obstruct the swing
path of the door.
PULLPUSH
FILLER
FLUSH
1.375in 34.93mm
FILLER
1.375 in [34.23mm]

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 17
HA8-LP Manual V. 1.3
Operator placement
Before you begin, note that direction of the Open/Back Check arrow will indicate the direction the unit will open when
activated. As mentioned earlier, if the operator label is facing down to the oor, then the handing is Left hand Push/Pull.
If the operator label is facing up to the ceiling, the handing is Right hand Push/Pull.
Handing Modication Steps
1Remove gear box assembly from mounting plate.
2 Disconnect wire harnesses and switch wiring from control (see wiring).
3Re-attach gear box to opposite side of mounting plate and rotate mounting plate. The arrow should be pointing upward.
This indicates the handling is Left Hand Pull.
4 Connect wire harness and switch wiring (see wiring).
5Fully tighten all bolts.
Must have arm to
complete transition
HINGE
SIDE
HINGE
SIDE
LEFT HAND PUSH
(”SPINDLE OPENING ROTATION” LABEL FACING DOWN)
RIGHT HAND PUSH
(”SPINDLE OPENING ROTATION” LABEL FACING UP)
HINGE
SIDE
HINGE
SIDE
LEFT HAND PUSH
(”SPINDLE OPENING ROTATION” LABEL FACING DOWN)
RIGHT HAND PUSH
(”SPINDLE OPENING ROTATION” LABEL FACING UP)
Spindle Opening
Rotation Label
2.0 OPERATOR INSTALLATION
LEFT HAND PULL
(”SPINDLE OPENING ROTATION” LABEL FACING DOWN)
RIGHT HAND PULL
(”SPINDLE OPENING ROTATION” LABEL FACING UP)
HINGE
HINGE
LEFT HAND PULL
(”SPINDLE OPENING ROTATION” LABEL FACING DOWN)
RIGHT HAND PULL
(”SPINDLE OPENING ROTATION” LABEL FACING UP)
HINGE
HINGE
CLOSE LATCH
OPEN
BACK CHECK
-com
-black
-red
-com
1-877-348-6837
switch
AUTO.
OFF
ON
HOLD OPEN
OFF
ON
White
Black
Red Low Profile
WL-PA03
Date:

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 18
HA8-LP Manual V. 1.3
2.4 Double Egress Header
Double Egress Operators has PULL type and PUSH type operator in the same housing, the header must be mounted
1 3/8” above the door frame. For PUSH type operator, arm clearance issues may arise. To ensure the arm clears any
existing doorstops, mount the arm according to the diagram below marked Push Cong.
See Section 3.1 to change the Push arm conguration.
2.0 OPERATOR INSTALLATION
LENGTH ‘L’ = DOOR WIDTH + 3”

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 19
HA8-LP Manual V. 1.3
2.0 OPERATOR INSTALLATION
2.5 Gearbox Installation
Place the board in the header, beside the motor of the gearbox. The control board will be on the opposite side of the
gearbox motor. For example, in a Right Hand (Push) operator, the control box is left of the gearbox motor.
TO MOUNT/REMOUNT GEARBOX,
REMOVE THESE SCREWS & WASHERS IN
NUMERICAL ORDER.
DISTANCE BETWEEN HEADER END CAP
AND BOTTOM GEARBOX BRACKET
2.89in 73.41mm
LP GEARBOX MOUNTING DISTANCE
LP GEARBOX INSTALLATION/REMOVAL
LP GEARBOX FASTENER DETAILS
RH PUSH/ PULL GEARBOX ORIENTATION
(”SPINDLE OPENING ROTATION” LABEL FACING UP)
LH PUSH/ PULL GEARBOX ORIENTATION
(”SPINDLE OPENING ROTATION” LABEL FACING DOWN)
M8x18 SOCKET CAP SCREW
HOLDS GEARBOX TO HEADER.
TWO (2) 5/16” LOCK WASHERS
MUST BE USED AS SHOWN.
(1, 2 & 3)
M8x12 SOCKET CAP SCREW
HOLDS OTHER COMPONENTS TO HEADER
WITH ONE (1) 5/16” LOCKER WASHER EACH.
M8X1 HEX NUT ANCHORED ALL
COMPONENTS TO HEADER.

Entrematic Canada Inc. Entrematic USA Inc.
Toll Free: 1-877-348-6837 Toll Free: 1-866-901-4284
[email protected] [email protected]
www.ditecentrematic.ca www.ditecentrematic.us
Pg. 20
HA8-LP Manual V. 1.3
2.0 OPERATOR INSTALLATION
TO MOUNT/REMOUNT GEARBOX,
REMOVE THESE SCREWS & WASHERS IN
NUMERICAL ORDER.
DISTANCE BETWEEN HEADER END CAP
AND BOTTOM GEARBOX BRACKET
2.89in 73.41mm
LP GEARBOX MOUNTING DISTANCE
LP GEARBOX INSTALLATION/REMOVAL
LP GEARBOX FASTENER DETAILS
RH PUSH/ PULL GEARBOX ORIENTATION
(”SPINDLE OPENING ROTATION” LABEL FACING UP)
LH PUSH/ PULL GEARBOX ORIENTATION
(”SPINDLE OPENING ROTATION” LABEL FACING DOWN)
M8x18 SOCKET CAP SCREW
HOLDS GEARBOX TO HEADER.
TWO (2) 5/16” LOCK WASHERS
MUST BE USED AS SHOWN.
(1, 2 & 3)
M8x12 SOCKET CAP SCREW
HOLDS OTHER COMPONENTS TO HEADER
WITH ONE (1) 5/16” LOCKER WASHER EACH.
M8X1 HEX NUT ANCHORED ALL
COMPONENTS TO HEADER.
