Entrematic Ditec BOX User manual

Ditec BOX
Balanced up and over doors
(original instructions)
www.ditecentrematic.com
IP1529EN
Technical Manual

24
IP1529EN - 2015-06-12
All the rights concerning this material are the exclusive property of Entrematic Group AB. Although the con-
tents of this publication have been drawn up with the greatest care, Entrematic Group AB cannot be held
responsible in any way for any damage caused by mistakes or omissions in this publication.
We reserve the right to make changes without prior notice. Copying, scanning and changing in any way are
expressly forbidden unless authorised in writing by Entrematic Group AB.

25
IP1529EN - 2015-06-12
Index
Caption
Subject Page
1. General safety precautions 26
2. Declaration of incorporation of partly completed machinery 27
2.1 Machinery Directive 27
3. Technical data 28
3.1 Operating instructions 28
4. Standard installation 29
5. Dimensions 30
6. Main components 30
7. Installation 31
7.1 Preliminary checks 31
7.2 Base plate fastening 31
7.3 Geared motor installation 33
7.4 Left geared motor installation 36
7.5 Manual release 37
8. Electrical connections 38
9. Automation closure 38
10. Routine maintenance plan 38
Operating instructions 39
i
This symbol indicates instructions or notes regarding safety issues which require particular
attention.
This symbol indicates informations which are useful for correct product function.

26
IP1529EN - 2015-06-12
1. General safety precautions
This installation manual is intended for qualified personnel only.
Installation, electrical connections and adjustments must be performed by qualified person-
nel, in accordance with Good Working Methods and in compliance with the current regulations.
Read the instructions carefully before installing the product.
Bad installation could be dangerous.
The packaging materials (plastic, polystyrene, etc.) should not be discarded in the environ-
ment or left within reach of children, as they are a potential source of danger.
Before installing the product, make sure it is in perfect condition.
Do not install the product in explosive areas and atmospheres: the presence of inflammable
gas or fumes represents a serious safety hazard.
Before installing the motorisation device, make all the necessary structural modifications to
create safety clearance and to guard or isolate all the crushing, shearing, trapping and general
hazardous areas.
Make sure the existing structure is up to standard in terms of strength and stability. The mo-
torisation device manufacturer is not responsible for failure to observe Good Working Methods
when building the frames to be motorised, or for any deformation during use.
The safety devices (photocells, safety edges, emergency stops, etc.) must be installed taking into
account: applicable laws and directives, Good Working Methods, installation premises, system
operating logic and the forces developed by the motorised door or gate.
The safety devices must protect against crushing, cutting, trapping and general danger areas
of the motorised door or gate.
Display the signs required by law to identify hazardous areas.
Each installation must bear a visible indication of the data identifying the motorised door
or gate.
When necessary, connect the motorised door or gate to an effective earthing system that com-
plies with the current safety standards.
During installation, maintenance and repair operations, cut off the power supply before opening
the cover to access the electrical parts.
The automation protection casing must be removed by qualified personnel only.
The electronic parts must be handled using earthed antistatic conductive arms. The manu-
facturer of the motorisation declines all responsibility if component parts not compatible
with safe and correct operation are fitted.
Only use original spare parts for repairing or replacing products.
The installer must supply all information concerning the automatic, manual and emergency op-
eration of the motorised door or gate, and must provide the user with the operating instructions.
Failure to respect the information given in this manual
may cause personal injury or damage to the device.
Keep these instructions for future reference

27
IP1529EN - 2015-06-12
2. Declaration of incorporation of partly comple-
ted machinery
2.1Machinery Directive
(Directive 2006/42/EC, Annex II-B)
The manufacturer Entrematic Group AB, with headquarters in Lodjursgatan 10, SE-261 44 Land-
skrona, Sweden, declares that the automation for balanced up and over door type Ditec BOX:
- is designed to be installed on a manual gate to form a machine pursuant to Directive 2006/42/
EC. The manufacturer of the motorised gate must declare conformity with Directive 2006/42/
EC (annex II-A) prior to initial machine start-up;
- conforms to the applicable essential safety requirements indicated in ANNEX I, Chapter 1 of the
Directive 2006/42/EC;
- conforms to the Low Voltage Directive 2006/95/EC;
- conforms to the Electromagnetic Compatibility Directive 2004/108/EC:
- conforms to the R&TTE Directive 1999/5/EC;
- the technical documentation conforms to Annex VII-B of the Directive 2006/42/EC;
- the technical documentation is managed by Marco Pietro Zini with headquarters in Via Mons.
Banfi, 3 - 21042 Caronno Pertusella (VA) - ITALY;
- a copy of technical documentation will be provided to national competent authorities, following
a suitably justified request.
Landskrona, 13-01-2013 Marco Pietro Zini
(Entrance Automation President)
Pursuant to Machinery Directive (2006/42/EC) the installer who motorizes a door or gate has
the same obligations as the manufacturer of machinery and as such must:
- prepare the technical file which must contain the documents indicated in Annex V of the
Machinery Directive;
(The technical file must be kept and placed at the disposal of competent national authorities
for at least ten years from the date of manufacture of the motorized door);
- draw up the EC Declaration of Conformity in accordance with Annex II-A of the Machinery
Directive and deliver it to the customer;
- affix the EC marking on the motorized door in accordance with point 1.7.3 of Annex I of the
Machinery Directive.
Ma
r
c
o P
o P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
P
o
o
P
P
P
P
P
P
P
P
P
iet
et
iet
iet
ie
ie
i
i
i
i
e
e
i
i
i
i
e
e
i
i
i
i
e
e
e
i
i
i
i
e
e
e
e
i
i
i
i
e
e
e
e
e
e
ro
ro
r
r
r
r
r
r
r
r
r
r
r
r
r
Zin
in
Zin
n
n
in
n
n
n
n
n
in
n
n
n
n
in
n
Zin
n
n
n
n
n
n
n
n
n
n
n
n
n
in
n
n
n
in
n
n
i
n
n
i
i
in
n
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
i
(
Ent
ran
r
ra
r
r
ra
r
r
r
ra
r
r
r
r
r
ra
a
r
r
r
r
r
r
r
r
r
ra
r
r
r
r
r
r
r
r
r
ra
a
ce
Aut
u
ut
Aut
ut
ut
t
u
u
ut
ut
Aut
ut
u
ut
t
t
u
ut
u
t
t
t
t
t
u
ut
ut
t
t
u
u
u
u
ut
t
t
t
t
u
u
u
u
Au
t
t
u
u
ut
t
t
Aut
u
u
ut
u
t
t
t
u
u
t
t
ut
u
t
t
u
u
t
Au
u
ut
u
t
t
u
u
u
u
u
t
u
u
u
u
u
u
u
u
u
u
u
u
u
u
A
u
u
u
u
u
t
oma
oma
m
m
m
m
oma
oma
oma
oma
oma
ma
m
m
m
om
oma
ma
oma
m
m
m
m
m
o
om
oma
m
m
m
ma
o
o
ma
m
m
m
m
om
om
o
o
m
m
om
m
oma
o
o
m
m
m
m
o
o
o
o
o
m
m
m
a
a
o
oma
oma
o
ma
m
m
a
o
oma
o
o
o
oma
m
m
m
a
o
o
o
o
a
o
o
o
o
o
o
a
o
o
o
o
o
o
o
a
a
a
o
o
o
o
o
o
oma
a
a
a
a
a
o
o
o
o
o
o
a
a
a
a
a
a
a
o
o
o
o
o
a
a
a
a
a
a
a
tio
t
t
tio
ti
t
t
t
t
t
t
ti
t
t
t
ti
t
t
t
tio
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
n
n P
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
res
es
es
e
e
e
e
e
e
s
s
es
res
res
es
e
e
e
e
s
s
es
es
s
s
es
es
e
e
e
e
res
es
es
es
s
s
es
s
s
s
e
e
s
es
s
s
es
s
s
e
e
es
s
s
res
e
e
e
e
e
e
e
e
re
e
e
e
e
e
e
e
e
e
re
e
e
ide
ide
ide
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
e
n
n
n
n

28
IP1529EN - 2015-06-12
3. Technical data
BOX3EH
Power supply 24 V
Absorption 8 A
Torque 300 Nm
Opening time 15÷30 s
Weight 11,40 kg
Service class 3 - FREQUENT
Intermittence S2 = 30 min
S3 = 50%
Temperature min -20° C max +55° C
Degree of protection IP44
IP40 (with E1HBOX)
Control panel E1HBOX
Applications
H = door height
L = door width
1x BOX
2x BOX
5 m
H
4 m
3 m
2 m
1 m
L
1 m 2 m 3 m 4 m 5 m
3.1 Operating instructions
Service class: 3 (minimum 30 cycles a day for 10 years or 60 cycles a day for 5 years).
Use: FREQUENT (For vehicle or pedestrian accesses to town houses or small condominiums with
frequent use).
- Performance characteristics are to be understood as referring to the recommended weight
(approx. 2/3 of maximum permissible weight). A reduction in performance is to be expected
when the access is made to operate at the maximum permissible weight.
- Service class, running times, and the number of consecutive cycles are to be taken as merely
indicative having been statistically determined under average operating conditions, and are
therefore not necessarily applicable to specific conditions of use. During given time spans
product performance characteristics will be such as not to require any special maintenance.
- The actual performance characteristics of each automatic access may be affected by independent
variables such as friction, balancing and environmental factors, all of which may substantially
alter the performance characteristics of the automatic access or curtail its working life or parts
thereof (including the automatic devices themselves). When setting up, specific local conditions
must be duly borne in mind and the installation adapted accordingly for ensuring maximum
durability and trouble-free operation.

29
IP1529EN - 2015-06-12
4. Standard installation
3
2
4
A
5
6
1
Ref. Code Description
1 BOX3EH DC irreversible actuator with control panel incorporated
2 SOF Safety edge
3 GOL4 Transmitter
4 LAMP
LAMPH
Flashing light
5 XEL5
GOL4M
Key selector
Codified via radio control keyboard
6 XEL2
LAB4
Photocells
Photocells IP55
AConnect the power supply to an approved omnipolar switch with an opening
distance of the contacts of at least 3mm (not supplied).
The connection to the mains must be made via an independent channel,
separated from the connections to command and safety devices.

30
IP1529EN - 2015-06-12
5. Dimensions

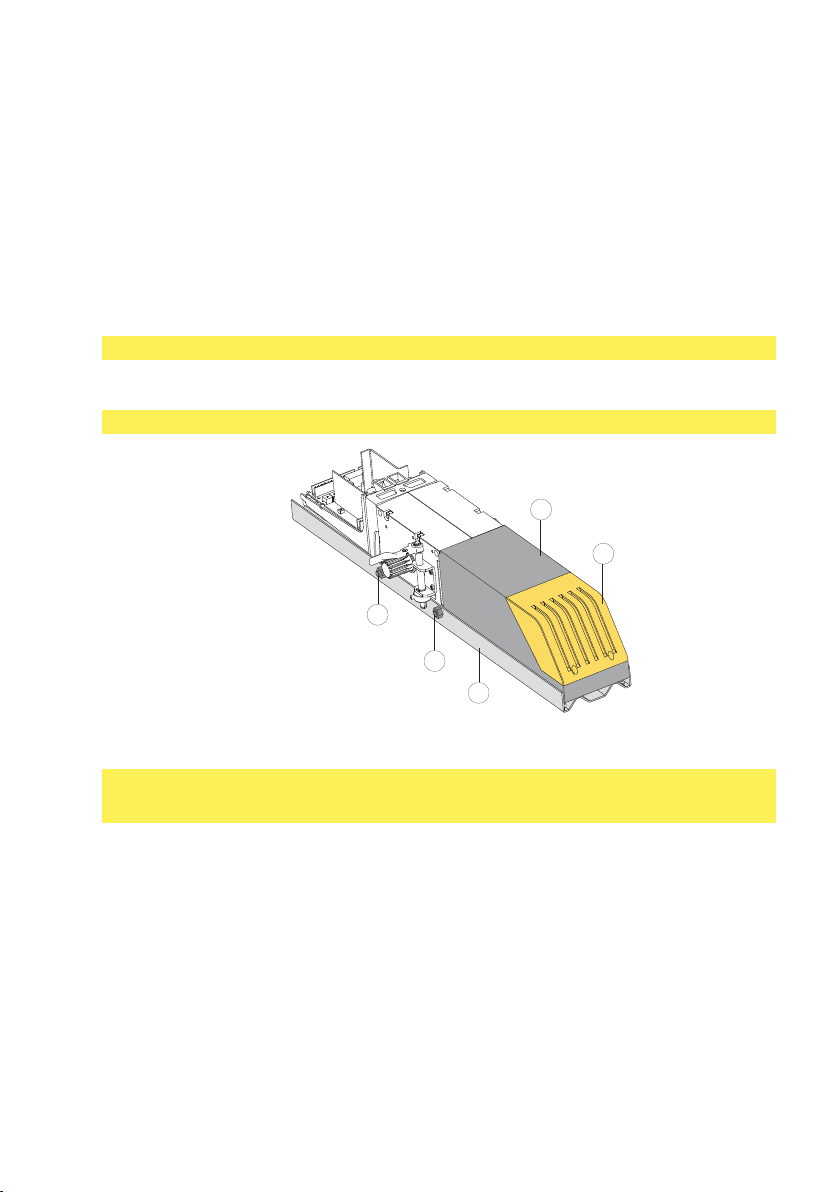

6. Main components
180 100120
660
Ref. Code Description
7Gearmotor
8Courtesy light
9Casing
10 Bottom casing
11 Manual release
12 Gearmotor shaft
13
BOXSL
Base plate
Base platee L=2500
14 E1HBOX BOX3EH’s control panel
15 Control panel support
16 Control panel casing
7
10
9
11 12
13
8
9
7
11
12
13
14
15
16
8
9

31
IP1529EN - 2015-06-12
7. Installation
7.1Preliminary checks
7.2Base plate fastening
The given operating and performance features can only be guaranteed with the use of DITEC
accessories and safety devices.Unless otherwise specified, all measurements are expressed in
millimetres (mm).
Check the dimensions, balancing and condition of the door, the type of installation, the use limits
of the gearmotor and the necessary accessories.
- Remove the automation from its packaging.
- Remove the courtesy light plastic [8] and the casing [9] and separate the gearmotor from the
base plate [13] by unscrewing the screws A.
- Fix the base plate [13] to the door, respecting the measurements indicated on page 10.
ATTENTION: arrange a solid fastening surface for the gearmotor at the height of the frame of the
up and over door.
ATTENTION: the bulb is not fixed in position. Handle with care.
ATTENTION: the plastic parts are inserted but not fixed.
If using the BOXSL base plate:
- fix the BOXSL on the up and over door;;
- insert the gearmotor with the base plate [13] on the BOXSL and fasten it with the 2 screws
supplied.
13
A
A
8
9

32
IP1529EN - 2015-06-12

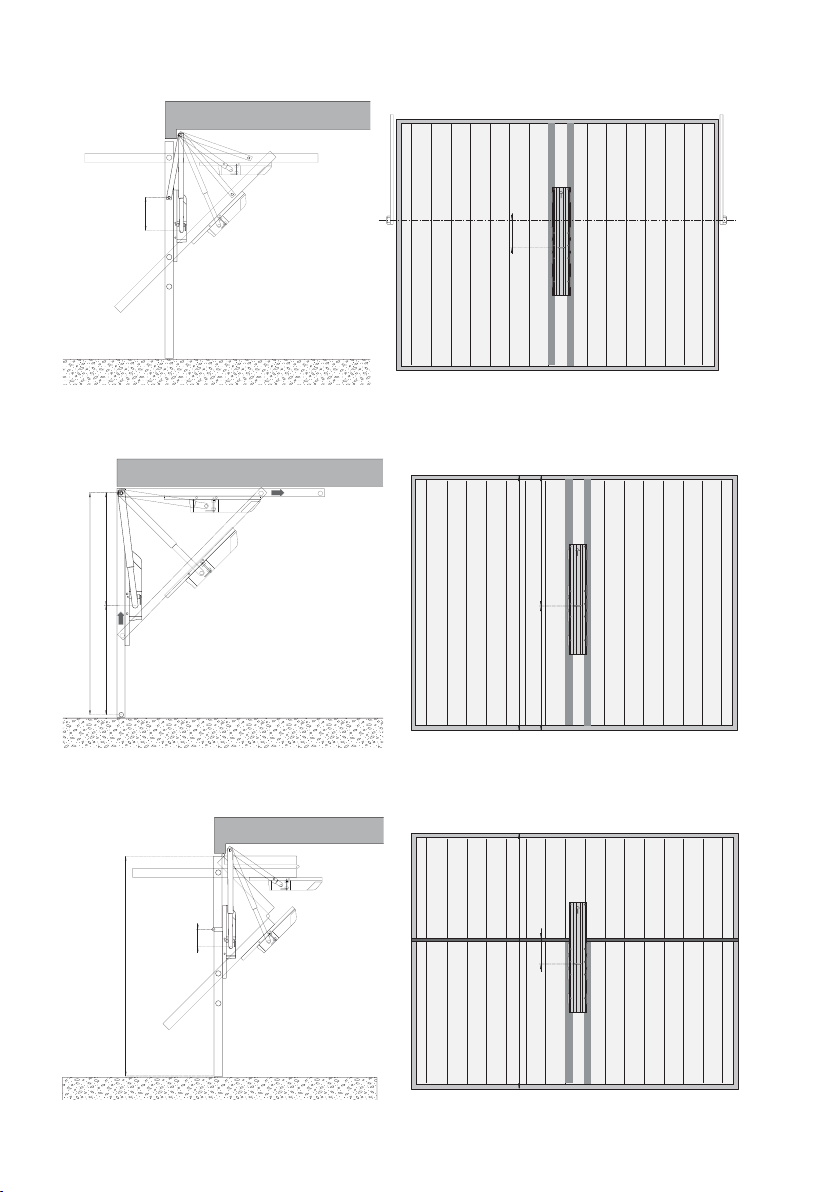

Standard balancing door
Totally concealing balancing door
Articulated panel balancing door
110
110
H
H/2H/2
H
H/2H/2
H
120
H
120

33
IP1529EN - 2015-06-12
3400 max
Box3EH
BoxB2D
BoxB2C
BoxRCG BoxRCG
Box3EH
BoxB2D
BoxB2C
BoxRL
Box3EH
BoxB2D
BoxB2C
Box3EH
BoxB2D
BoxB2C
- Fix the gearmotor to the base plate and the accessories as shown in the examples.
7.3Geared motor installation

34
IP1529EN - 2015-06-12
2700 max
Box3EH
BoxB2D
BoxB2C
BoxRL
For up and over doors with L>2700mm, it is necessary to extend the transmission shaft,
using the accessories BOXA (pole) and BOXG (coupling for poles).
If the arms are not long enough, use the extensions BOX2P.
i

35
IP1529EN - 2015-06-12

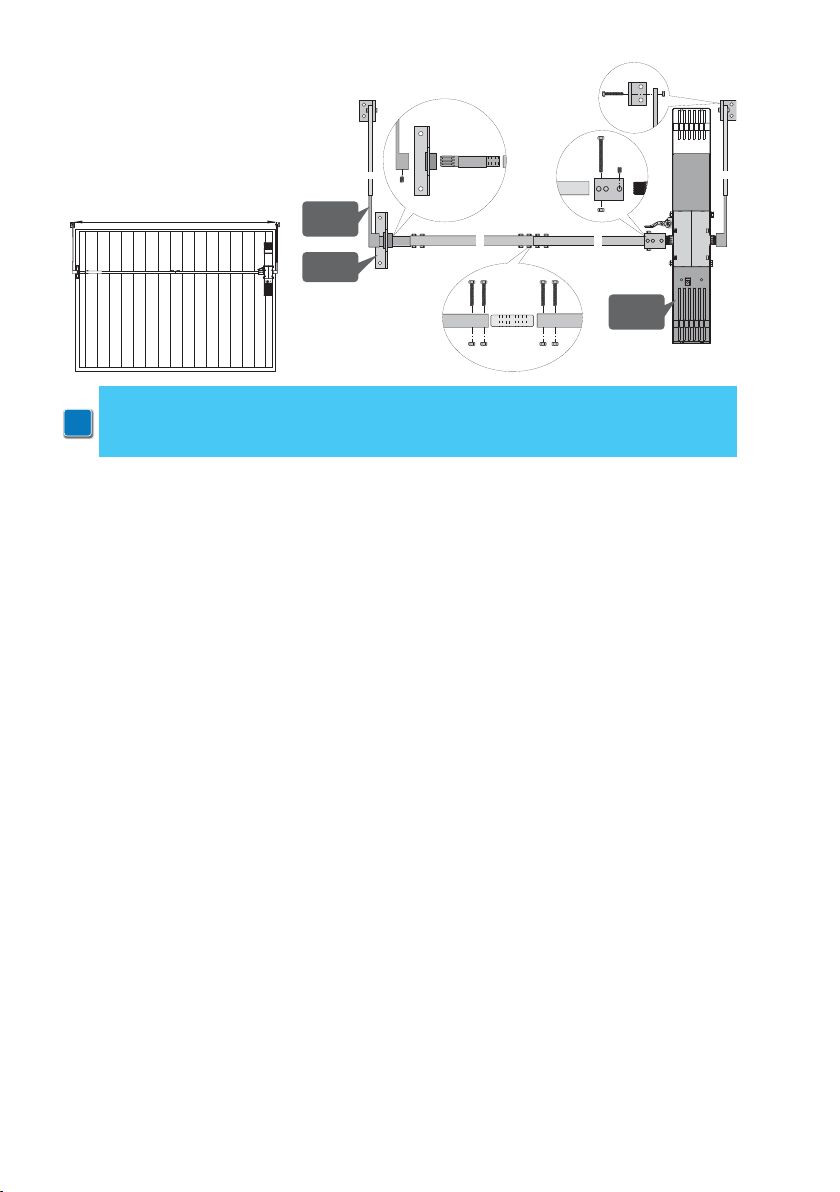

[1] Fix the corner-joint [A] onto the upper frame of the up and over door, in line with the motor arm.
[2] If the corner-joint [A] cannot be fixed onto the upper frame of the door, respect the dimensions
shown in the figure.
0÷60 ~60
~60
0÷60
min 100
min 100
12
AA
WARNING: the dimensions of the poles, the position of the transmissions and the wall
coupling for the corner-joint [A] must be calculated so that the motor arms do not collide
with the support arms of the door.
WARNING: check that when the door is open, the BoxB2C curved arms do not protrude and
touch the ceiling.
If the BoxB2D straight arms collide with the support arms of the door, use the BoxB2C
curved arms.
i
After installing the motor(s) on the up and over door, release the motor and check the door can
be easily moved by hand.
If the door is unbalanced, the weight of the counterweights must be increased/reduced until the
frame is fully balanced.

36
IP1529EN - 2015-06-12
7.4Installing the left-hand gearmotor
In the event of left-hand side assembly, it is necessary to rotate the gearmotor 180° so that the
release shaft is pointing towards the centre of the up and over door.
180°
123
[1] Disassemble the snap ring, unthread the lever and disassemble the upper bracket.
[2] Rotate the gearmotor 180°.
[3] Thread the lever (also rotated 180°) back on, then fasten the snap ring back on and reassemble
the upper bracket.
WARNING: The BOX3H geared motor is supplied for left side mounting together with the
BOX3EH geared motor.
i

37
IP1529EN - 2015-06-12
7.5Manual release

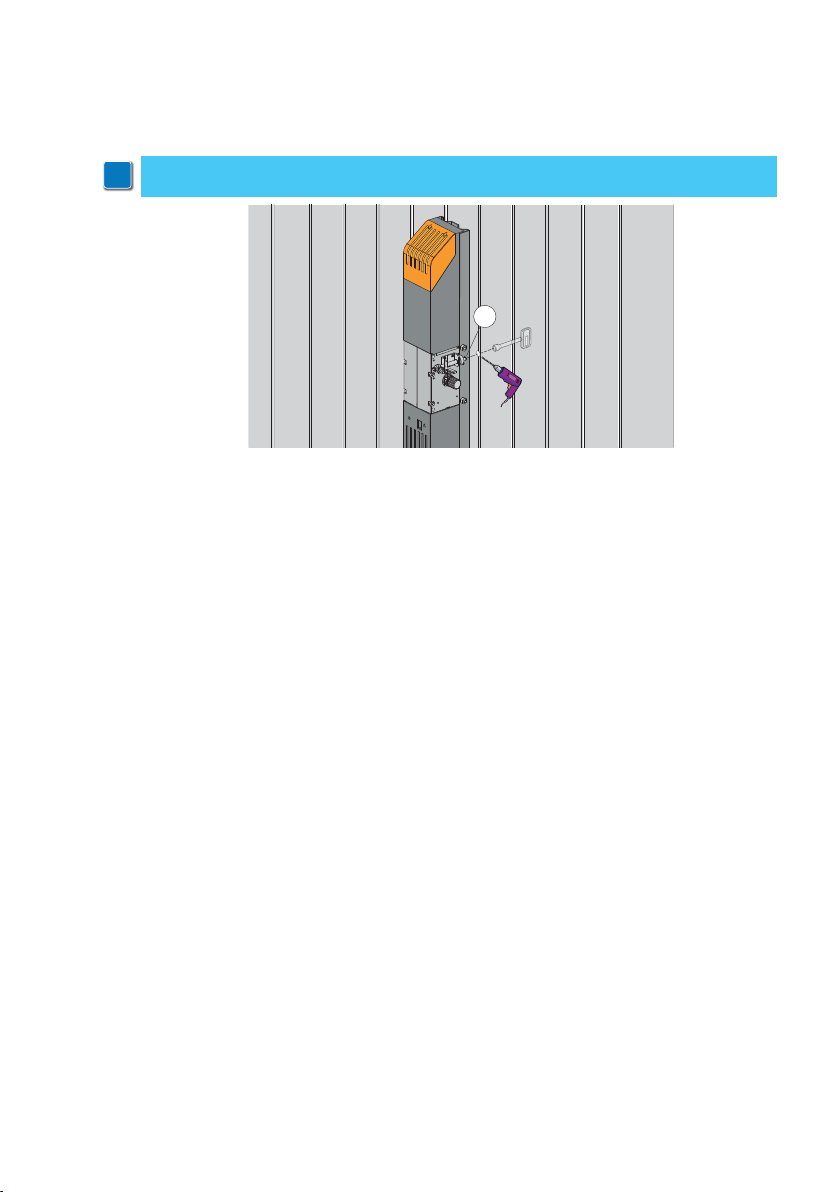

To release the gearmotor from the outside, drill a Ø13 hole in the tilting door in line with the release
pin A and release using the supplied key.
Ø13
A
NOTE: The gearmotor can also be released using the BoxSBC-BoxSBI accessories.
For more information, refer to the relevant installation manuals.
i

38
IP1529EN - 2015-06-12
Before connecting the power supply, make sure the plate data correspond to that of the mains
power supply. An omnipolar disconnection switch with minimum contact gaps of 3 mm must
be included in the mains supply. Check that upstream of the electrical installation there is an
adequate residual current circuit breaker and a suitable overcurrent cutout.
- Insert the casing [9] and fix it using the supplied
screws.
- Screw the bulb into the bulb support.
- Fix the courtesy light casing [8] using the supplied
screws.
- Drill a hole in the control panel casing for the wiring.
Fix the cable gland fastening bracket.
- Fix the casing [16] to the control panel.
8. Electrical connections
9. Automation closure
10. Routine maintenance plan
Box3EH-3H
Control panel E1HBOX
Perform the following operations and checks every 6 months according to intensity of use of the
automation.
Without power supply and batteries if present:
- Clean and lubricate the moving parts, using neutral grease.
- Check the stability of the automatic system and make sure that all screws are correctly tightened.
- Check the resistance of the fixing points.
- Check the value of the capacity of the motor condenser.
Reconnect the 230 V~ power supply and batteries if present:
- Check the power adjustment.
- Check that all commands and safety functions (photocells) are operating correctly.
- Check the batteries are working (continuously) if present, by removing the power supply and
making a series of operations. Once performed, turn on power supply again.
WARNING: For spare parts, see the spares price list.
The electrical connections and starting of the gearmotor are illustrated in the control panel
installation manual.
i
i
16
8
9

39
IP1529EN - 2015-06-12
Operating instructions
General safety precautions for the user
DETACH AND DELIVER TO THE CUSTOMER
These precautions are an integral and
essential part of the product and must
be supplied to the user.
Read them carefully since they contain
important information on safe installation,
use and maintenance.
These instructions must be kept and for-
warded to all possible future users of the
system.
This product must only be used for the specific purpose for which it was
designed. Any other use is to be considered improper and therefore
dangerous.
The manufacturer cannot be held responsible for any damage caused
by improper, incorrect or unreasonable use.
Avoid operating in the proximity of the hinges or moving mechanical
parts. Do not enter within the operating range of the motorised door
or gate while it is moving.
Do not obstruct the motion of the motorised door or gate, as this may
cause a dangerous situation.
The motorised door or gate may be used by children over the age of 8
and by people with reduced physical, sensorial or mental abilities, or
lack of experience or knowledge, as long as they are properly supervised
or have been instructed in the safe use of the device and the relative
hazards.
Do not allow children to play or stay within the operating range of the
motorised door or gate.
Keep remote controls and/or any other command devices out of the
reach of children, to avoid any accidental activation of the motorised
door or gate.
In the event of a product fault or malfunction, turn off the power supply
switch. Do not attempt to repair or intervene directly, and contact only
qualified personnel.
Failure to comply with the above may
cause a dangerous situation.
Any repair or technical intervention
must be carried out by qualified
personnel.
Cleaning and maintenance work

40
IP1529EN - 2015-06-12
DETACH AND DELIVER TO THE CUSTOMER
must not be carried out by children unless they are supervised.
To ensure that the system works efficiently and correctly, the manufac-
turer’s indications must be complied with and only qualified personnel
must perform routine maintenance on the motorised door or gate. In
particular, regular checks are recommended in order to verify that the
safety devices are operating correctly.
All installation, maintenance and repair work must be documented and
made available to the user.
Only lock and release the door wings when the motor is switched off.
Do not enter within the operating range of the wing.
To dispose of electrical and electronic equipment correctly, users
must take the product to special “recycling centres” provided by
the municipal authorities.

41
IP1529EN - 2015-06-12
C
B
D

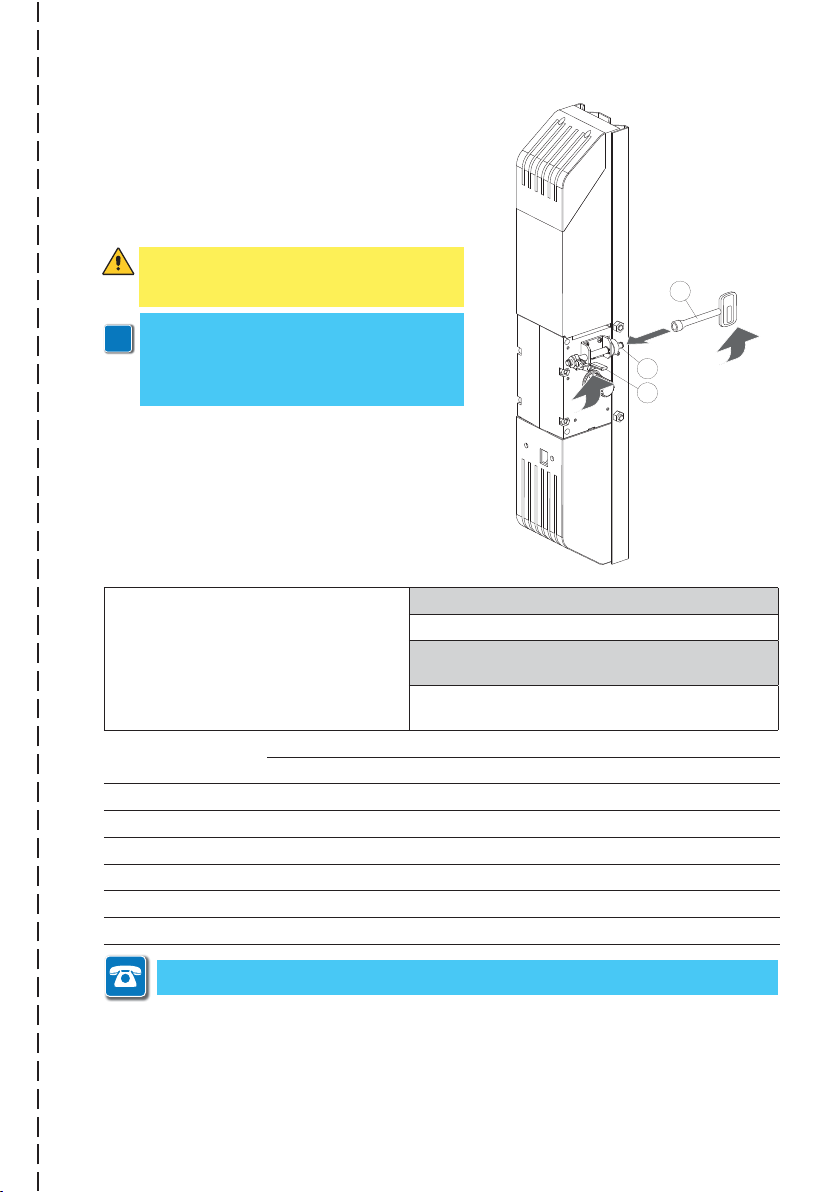

In the event of a fault or an interruption in the po-
wer supply, insert the key supplied [C] and turn it
anticlockwise, or move the lever [D] as shown in
the figure.
Move the tilting door manually.
To block the up and over door again, bring the lever
[D] back to its original position.
Manual release instructions
WARNING: the door wing block and release
operations must be performed with the mo-
tor idle.
N.B.: The gearmotor can also be released
using the BoxSBC-BoxSBI accessories.
For more information, refer to the relevant
installation manuals.
i
Installer's stamp Operator
Date of intervention
Technician's signature
Customer's signature
Intervention performed
For any problems and/or information, contact the Technical Service.
Entrematic Group AB
Lodjursgatan 10
SE-261 44, Landskrona
Sweden
www.ditecentrematic.com
DETACH AND DELIVER TO THE CUSTOMER

IP1529EN - 2015-06-12
Entrematic Group AB
Lodjursgatan 10
SE-261 44, Landskrona
Sweden
www.ditecentrematic.com
