Entrematic Ditec DAS200HD User manual

Ditec DAS200
DAS200HD-DAS200RF-DAS200RG
Sliding doors automation
(Original instructions)
www.entrematic.com
IP2266EN • 2019-06-14
Technical manual

2
IP2266EN
EN
Contents
Key
i
This symbol indicates instructions or notes regarding safety, to which special atten-
tion must be paid.
This symbol indicates useful information for the correct functioning of the product.
Subject Page
1. General safety precautions 3
Declaration of incorporation of partly completed machinery 4
2. Technical data 5
2.1 Operating instructions 5
3. Standard installation 6
4. Main components 7
5. Installing the automation 8
5.1 Installing / Removing the cover 8
5.2 Installation/removal of the cover if installed side presence sensor 9
6. Fastening of box using supplied wing anchoring brackets 10
6.1 Examples with DAS11M8 11
6.2 Examples with DAS18M8 12
6.3 Example with DAS35M8 13
6.4 Example with DAS40M8 14
6.5 Example with ACV 14
7. Preparation of the glass door wing 15
7.1 Installing and adjusting the door wings 16
7.2 Installing the floor guides 18
7.3 Checking and adjusting the belt tension 19
7.4 Sensor positioning on the cover 19
7.5 External sensor cable fixing 19
8. Electrical connections 20
8.1 Electrical connections 21
8.2 Control panel commands 23
8.2.1 Commands 23
8.3 DAS902MP plus module (optional) 25
8.4 DAS902MP commands 26
9. Adjustment and selection of control functions 28
9.1 Display test 29
9.2 Status indication on the display 29
10. Start up 30
11. Parameters 32
11.1 Configuration parameters according to function 32
11.2 Main control board parameters 36
12. Example of connection 46
13. Troubleshooting 48
13.1 Active error indication 49
14. Routine maintenance plan 53

3
IP2266EN
EN
1. General safety precautions
This assembly and installation manual is intended exclusively for the use of qualified personnel.
Installation, electrical connections and adjustments must be performed by qualified personnel, in
accordance with Good Working Methods and in compliance with the current regulations.
Read the instructions carefully before installing the product.
Incorrect installation could be dangerous.
The packaging materials (plastic, polystyrene, etc.) should not be discarded in the environment
or left within reach of children, as they are a potential source of danger.
Before installing the product, make sure it is in perfect condition.
Do not install the product in explosive areas and atmospheres: the presence of inflammable gas
or fumes represents a serious safety hazard.
Before installing the motorisation device, make all the necessary structural modifications to
create safety clearance and to guard or isolate all the crushing, shearing, trapping and general
hazardous areas.
Make sure the existing structure is up to standard in terms of strength and stability. The motori-
sation device manufacturer is not responsible for failure to observe Good Working Methods when
building the frames to be motorised, or for any deformations during use.
The safety devices (photocells, safety edges, emergency stops, etc.) must be installed taking into
account the applicable laws and directives, Good Working Methods, installation premises, system
operating logic and the forces developed by the motorised door or gate.
The safety devices must protect against crushing, cutting, trapping and general danger areas of
the motorised door or gate.
Display the signs required by law to identify hazardous areas.
Each installation must bear a visible indication of the data identifying the motorised door or gate.
When necessary, connect the motorised door or gate to an effective earthing system that complies
with the current safety standards.
During installation, maintenance and repair operations, cut off the power supply before
opening the cover to access the electrical parts.
The automation protection casing must be removed by qualified personnel only.
The electronic parts must be handled using earthed antistatic conductive arms. The manufac-
turer of the motorisation device declines all responsibility if component parts not compatible
with safe and correct operation are fitted.
Only use original spare parts when repairing or replacing products.
The installer must supply all information concerning the automatic, manual and emergency ope-
ration of the motorised door or gate, and must provide the user with the operating instructions.
Failure to respect the information given in this manual
may cause personal injury or damage to the device.
Keep these instructions for future reference

4
IP2266EN
EN
Declaration of incorporation of partly completed
machinery
We:
Entrematic Group AB
Lodjursgatan 10
SE-261 44 Landskrona
Sweden
declare under our responsibility that the following types of equipment:
Ditec DAS200, Ditec DAS200HD, Ditec DAS200RF, Ditec DAS200RG
comply with the following directives:
2014/30/EU Electromagnetic Compatibility Directive (EMCD)
2006/42/EC Machinery Directive (MD) for the following essential health and safety require-
ments: 1.1.2, 1.2.1, 1.2.2, 1.2.3, 1.2.4.2, 1.2.6, 1.3.9, 1.4.3, 1.7.2, 1.7.4, 1.7.4.1, 1.7.4.2
Technical documentation for safe integration supplied.
Harmonised European standards which have been applied:
EN 60335 -1:2012+A13:2017 EN ISO 13849 -1:2015 EN 61000 -6-2:2005
EN 60335-2-103:2015 EN 16005:2012/AC:2015 EN 61000 -6-3:2007+A1:2011
Other standards or technical specifications, which have been applied:
IEC 60335-1: 2010 ed.5 IEC 60335-2-103:2006+A1:2010 AutSchR: 1999
DIN 18650-1:2010 DIN 18650-2:2010
The production process aims to guarantee that the equipment complies with the technical
documentation.
The production process is regularly assessed by an independent body.
The equipment must not be put into service until the final door system installed has been
declared compliant with the Machinery Directive 2006/42/EC by the installer.
Person in charge of technical data sheet:
Matteo Fino E-mail: [email protected]om
Entrematic Group AB
Lodjursgatan 10
SE-261 44 Landskrona
Sweden
Place Date Signature Position
Landskrona 2018-06-14 Matteo Fino Entrance Automation President
g
Mat
Mat
Mat
Ma
Mat
M
Mat
Mat
Mat
Ma
Mat
Ma
Mat
Mat
Mat
M
Ma
M
Mat
Mat
Mat
Mat
Mat
Mat
Mat
Mat
M
M
t
Mat
M
t
Ma
Mat
t
M
t
teo
t
t
t
t
t
t
t
tt
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
Fi
no
no
n
n
no
n
n
n
no
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n

5
IP2266EN
EN
2. Technical data
2.1 Operating instructions
Service class: 5 (minimum 5 years of working life with 600 cycles per day).
Applications: HEAVY DUTY (for entrances with very intense pedestrian use).
• The performance characteristics refer to the recommended weight (approx. 2/3 of the ma-
ximum weight allowed). When used with the maximum permissible weight a reduction in
the above mentioned performance can be expected.
• The service class and number of consecutive cycles should be taken merely as a rough
indication. having been statistically determined under average operating conditions, and
are therefore not necessarily applicable to specific conditions of use.
• Each automatic entrance has variable elements such as: friction, balancing and envi-
ronmental factors, all of which may substantially alter the performance characteristics of
the automatic entrance or curtail its working life or parts thereof (including the automatic
devices themselves). The installer should adopt suitable safety conditions for each parti-
cular installation.
Ditec DAS200 Ditec DAS200HD
Ditec DAS200RF Ditec DAS200RG
Power supply 110V~ / 240V~
50/60Hz
110V~ / 240V~
50/60Hz
110V~ / 240V~
50/60Hz
Power supply rated
power (PS) 75W 150W 150W
Max Opening speed
(2 door wings) 1,3m/s 1,4m/s 1,4m/s
Maximum load 120kg (1 wing)
200kg (2 wings)
150kg (1 wing)
DAS200HD 280kg (2 wings)
DAS200RF 240kg (1 wing)
150kg (1 wing)
280kg (2 wings)
Service class 5
(HEAVY DUTY)
5
(HEAVY DUTY)
5
(HEAVY DUTY)
Intermittence S3=100% S3=100% S3=100%
Temperature
-20°C +50°C -20°C +50°C -20°C +50°C
Degree of protection IP20
(FOR INTERNAL USE ONLY)
IP20
(FOR INTERNAL USE ONLY)
IP20
(FOR INTERNAL USE ONLY)
Control panel
(MCU/MCU-ER) 1DAS20QE 1DAS20HDQE 1DAS20RGQE
Accessories power
supply 24V 0,64A 24V 1A 24V 1A
Durability test 1.000.000 cycles 1.000.000 cycles 1.000.000 cycles

6
IP2266EN
EN
3. Standard installation

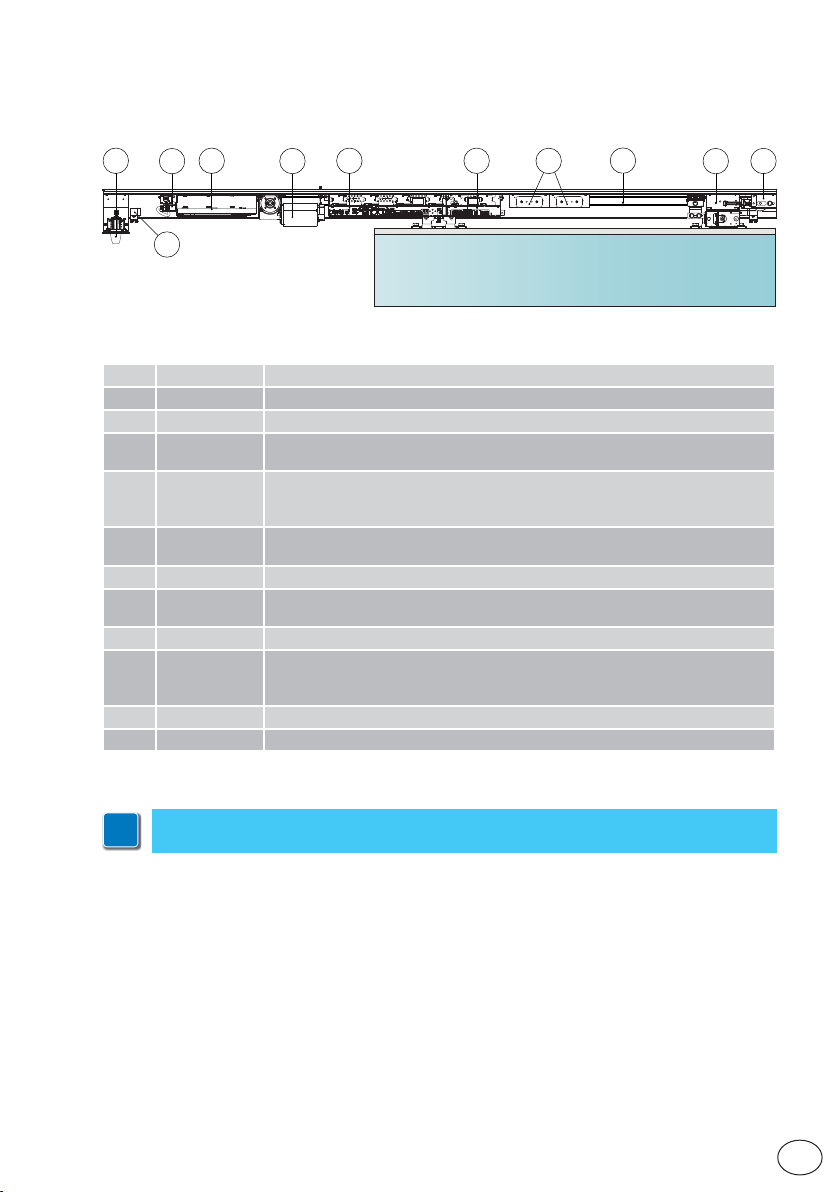

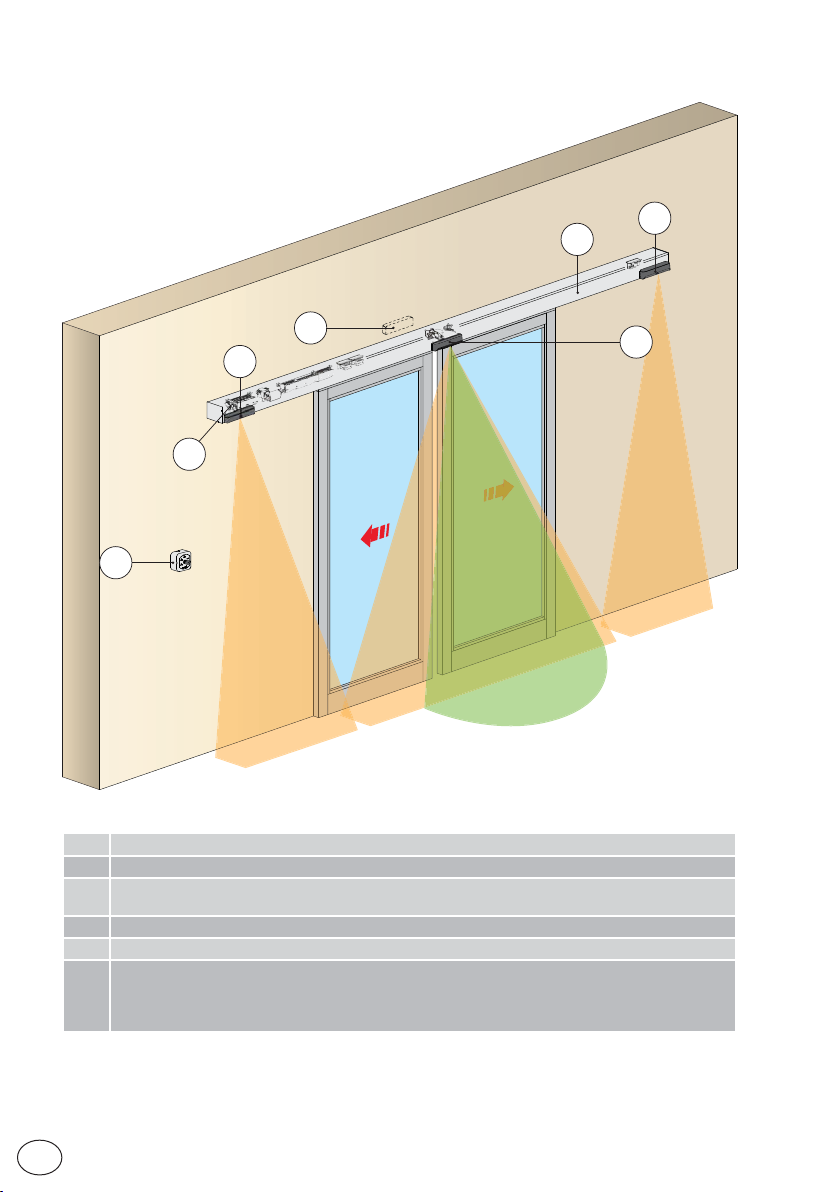

Ref. Description
1Automation for sliding doors
2
3Combined opening and safe closing sensor
4Safe opening sensor
5Safety photocell
AConnect the power supply cable to a type-approved omnipolar switch with category III insulation and
a contact opening distance of at least 3 mm.
The connections to the mains and low voltage wires must be made on an independent channel se-
parated from the connections to the command and safety devices (SELV = Safety Extra Low Voltage).
1
32
A
5
4
4

7
IP2266EN
EN
4. Main components
i
NB: the given operating and performance features can only be guaranteed with the
use of DITEC Entrematic accessories and safety devices.
Ref. Code Description
6 DASLOKSB Built-in manual release device (optional)
7- Mains power supply
81DAS20AL
1DAS20HAL
75W power supply unit (PS)
150W power supply unit (PS)
9
1DAS20MR
1DAS20HMR
1DAS20RGMR
DAS200 gearmotor
DAS200HD gearmotor
DAS200RG gearmotor
10 1DAS20QE
1DAS20RGQE
DAS200-DAS200HD-DAS200RF (MCU) control panel
DAS200RG control panel (MCU-ER)
11 DAS902MP DAS902MP plus module
12 DAS901BAT1
DAS902BAT2
12V batteries
24V batteries
13 DAS802B50 Drive belt
14
DAS802LOK
DAS802LOKA
DAS802LOKB
Standard lock. Locked with power - LD
Anti-panic lock. Locked without power - LDP
Bi-stable lock-LDB
15 - Belt transmission
16 - Mechanical stops
78912
10 11 13 14
16
615

1
2
3
500
CLICK
8
IP2266EN
EN
5. Installing the automation
5.1 Installing / Removing the cover

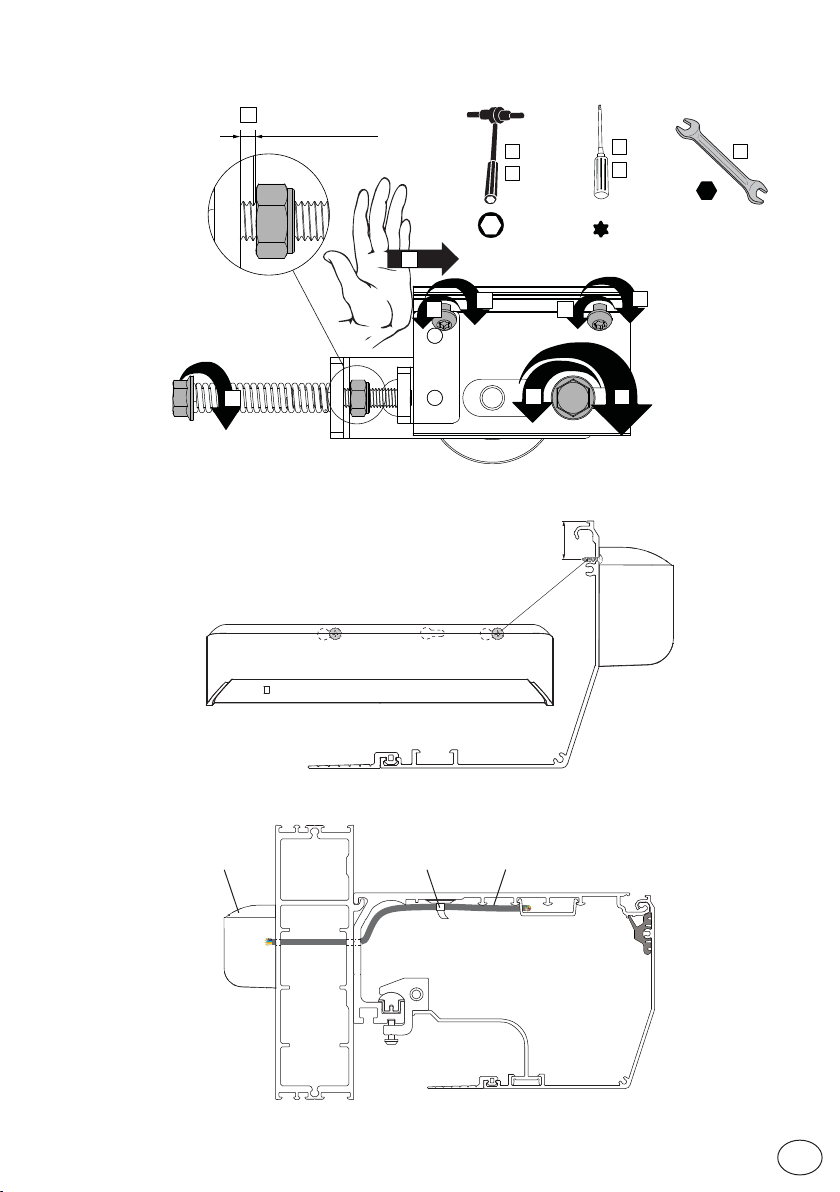

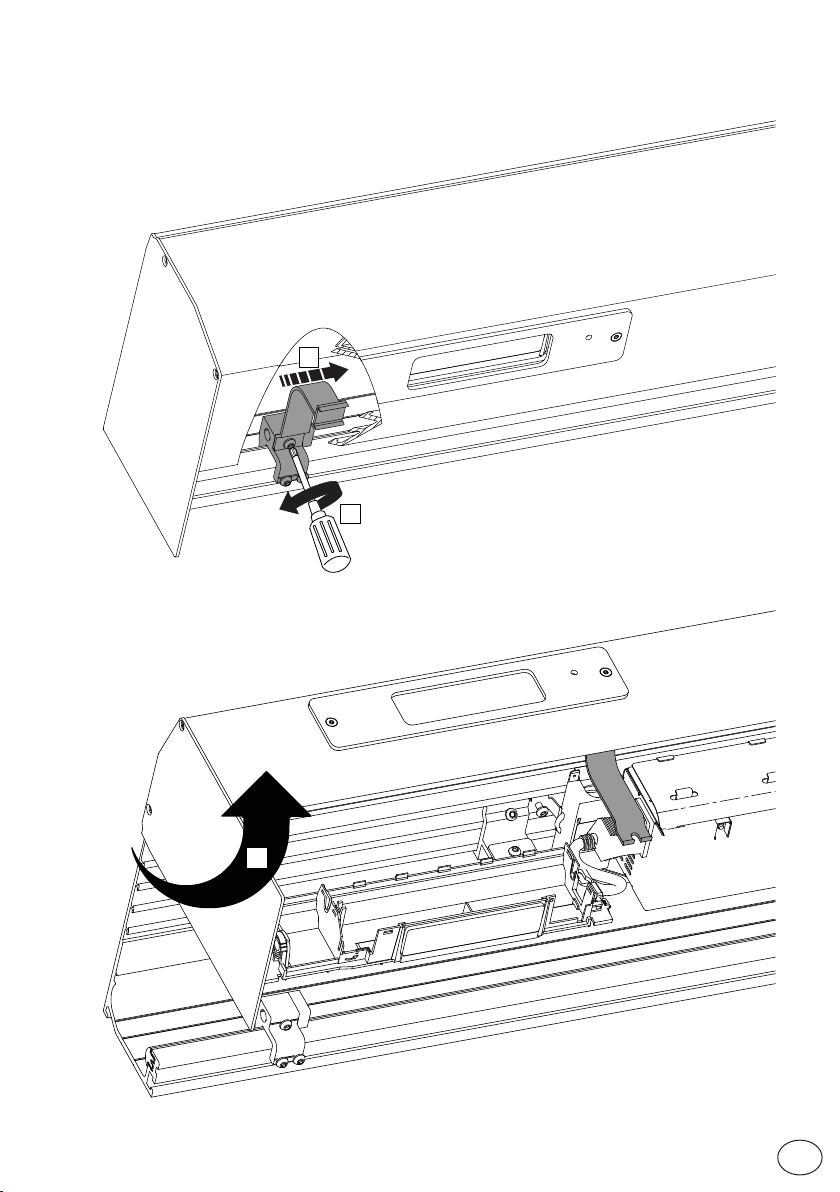

• Secure and unsecure the open cover as shown below.

9
IP2266EN
EN
5.2 Installation/removal of the cover if installed side presence
sensor
1
2
3

10
IP2266EN
EN
Unless otherwise specified, all measurements are expressed in millimetres (mm).

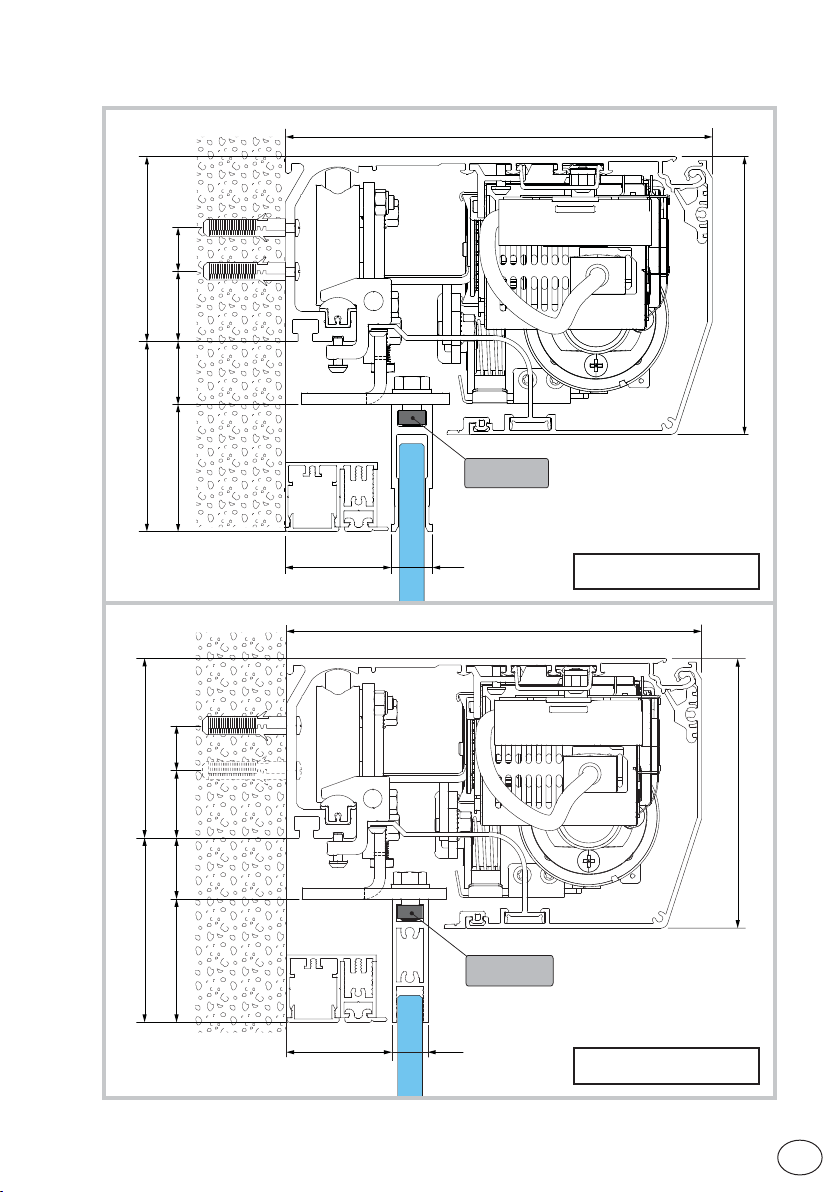

The figure shows the measurements for fastening the automation to the wall, considering that the
automation door wings are made using profiles not manufactured by us.
If the door wings are made with DITEC profiles in the ALU/PAM series: refer to the measurements
given in the relative manuals.
Drill a hole in the box using the reference line on the back and fasten it with M6 Ø12 steel plugs
or 6MA screws (not supplied).
Distribute the fixing points approx. every 400 mm.
Make sure the box is positioned evenly, with its back surface perpendicular to the floor and not
deformed lengthwise by the shape of the wall. If the wall is not straight and smooth, iron plates
must be fixed to it and then the box in turn fixed to the plates.
WARNING: the fastening of the box to the wall must be sufficient to sustain the door wing weight.
WARNING: do not damage the wheel guide during assembly. Clean the guide thoroughly before
installing the wings.
6. Fastening of box using supplied wing ancho-
ring brackets
80H
HM= H-37
19 27 2030
10
120
185
50
16
80

11
IP2266EN
EN

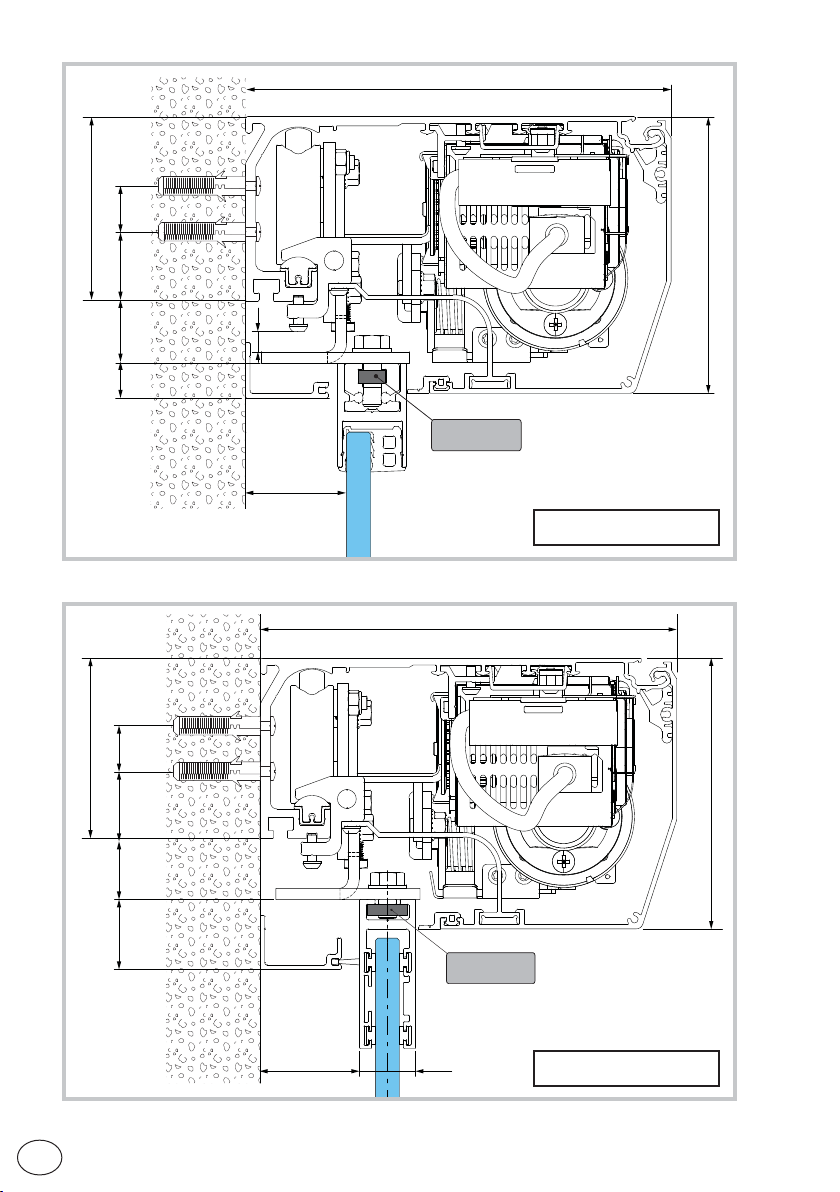

6.1 Examples with DAS11M8
DAS11M8
185
8082
47 16
20302755
185
46 18
8082
2030
185
120
DAS11M8
2755
DAS200-PAM16
DAS200-AC1356

185
44 25
120
80
31 27 2030
DAS18M8
185
55
120
80
15 27 2030
9
DAS11M8
12
IP2266EN
EN
6.2 Examples with DAS18M8
DAS200-AC4255
DAS200-PAM30

120
185
80
31 27 2030
DAS18M8
44 25
16 60
120
185
80
14 27 2030
DAS35M8
13
IP2266EN
EN
6.3 Example with DAS35M8
DAS200-AC4870
DAS200-PAMH60

185
22 48
120
80
13 27 2030
DAS40M8
185
22
120
80
31 27 2030
14
IP2266EN
EN
DAS200-ALU48
DAS200-ACV
6.4 Example with DAS40M8
6.5 Example with ACV

15
IP2266EN
EN
7 Preparation of the glass door wing
The diagram indicates the process measurements of the aluminium profile AC1356 and glass.
Ø10 through holes are required on the aluminium profile and Ø15 on the glass for fastening. The
number of holes and related distance between centres are based on the door wing width. Silicon
should ideally be used between the edge of the glass and the internal base of the profile.
With AC4255 or AC4870 glass wing attachment applications, see the respective ma-
nual.
i
Ø10 Ø10 Ø10
100
100100
100
L≤1000
L≤1000
11
11
100 100 100 100
L>1000
Ø15
Ø15
30 30
100100
3030
L≤1000
Ø15
L>1000
L>1000
100 100 100 100
100 100 100 100
10
12
Ø15 Ø15
Ø15

16
IP2266EN
EN
Make sure that the central wheel [D] is adjusted as illustrated in the picture.
Fix the door wing to the carriage with screws (A).
The door wing can be adjusted as shown in the figure.
• Loosen the screws [B] and adjust the height by turning the screws [C];
• Adjust the side position of the door wing by turning the screws [A];
• Move the door wings manually and make sure they move smoothly and freely and that all
the wheels rest on the guide.
WARNING: for all-glass door wings without seals, leave a gap of at least 10 mm in the closed position
to avoid contact between the glass sheets.

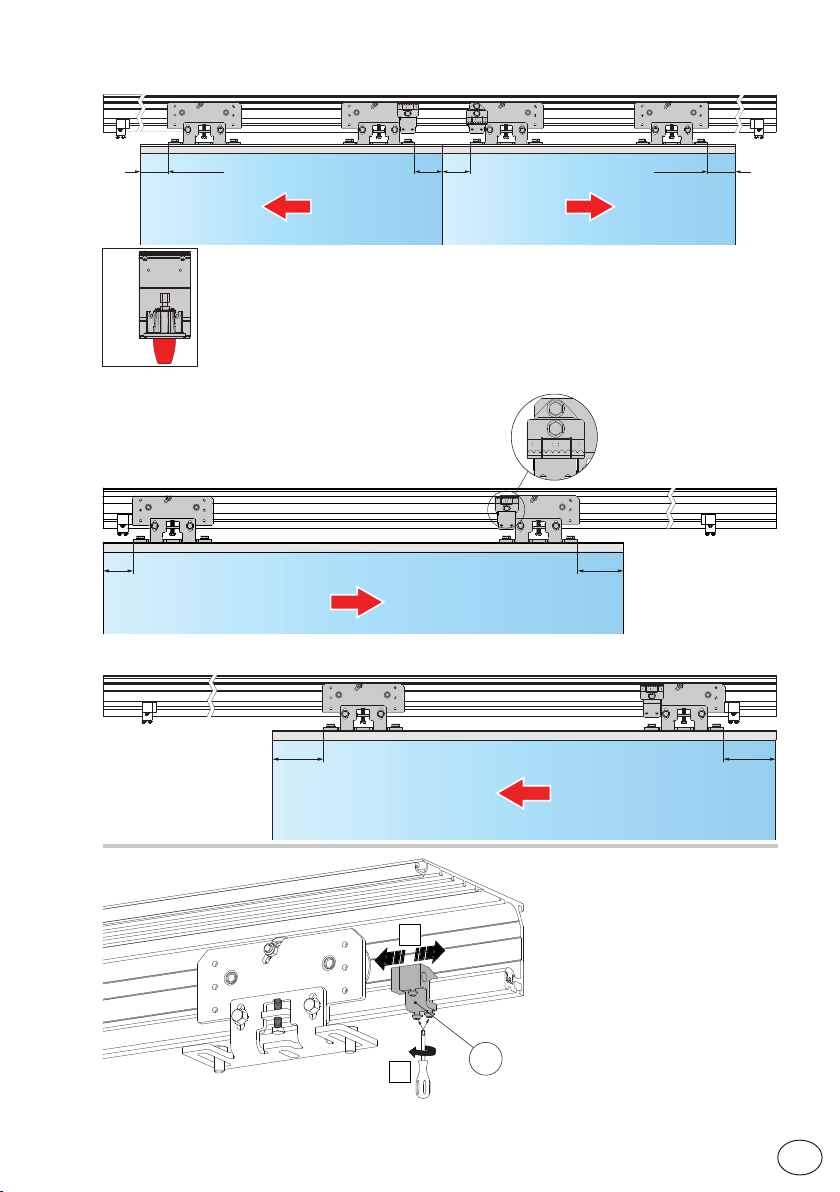

7.1 Installing and adjusting the door wings
D
C
B
B
A
B
A
A
+/- 8
+/- 19
10
13
CB
10
D
0,5

17
IP2266EN
EN
100
se
if
si
ob
si
se
DAS200RG
60
Place the end stops (16) on the
opening and closing positions.
For the 2 wing automations, a
third end stop is provided which
must be placed near the end of
the box which is used as a stop for
the cover support.
*se
*if
*si
*ob
*si
*se
Automation with one door wing with right-hand
opening
Automation with one door wing with left-hand opening
Automation with two door wings
60 (100*) 60 (100*)
60 60
100100
16
1
2

KAMC16KP369
KP515AB
KP48
K4345
50 min 21
max 40
10
22
10
HM
46
18
IP2266EN
EN

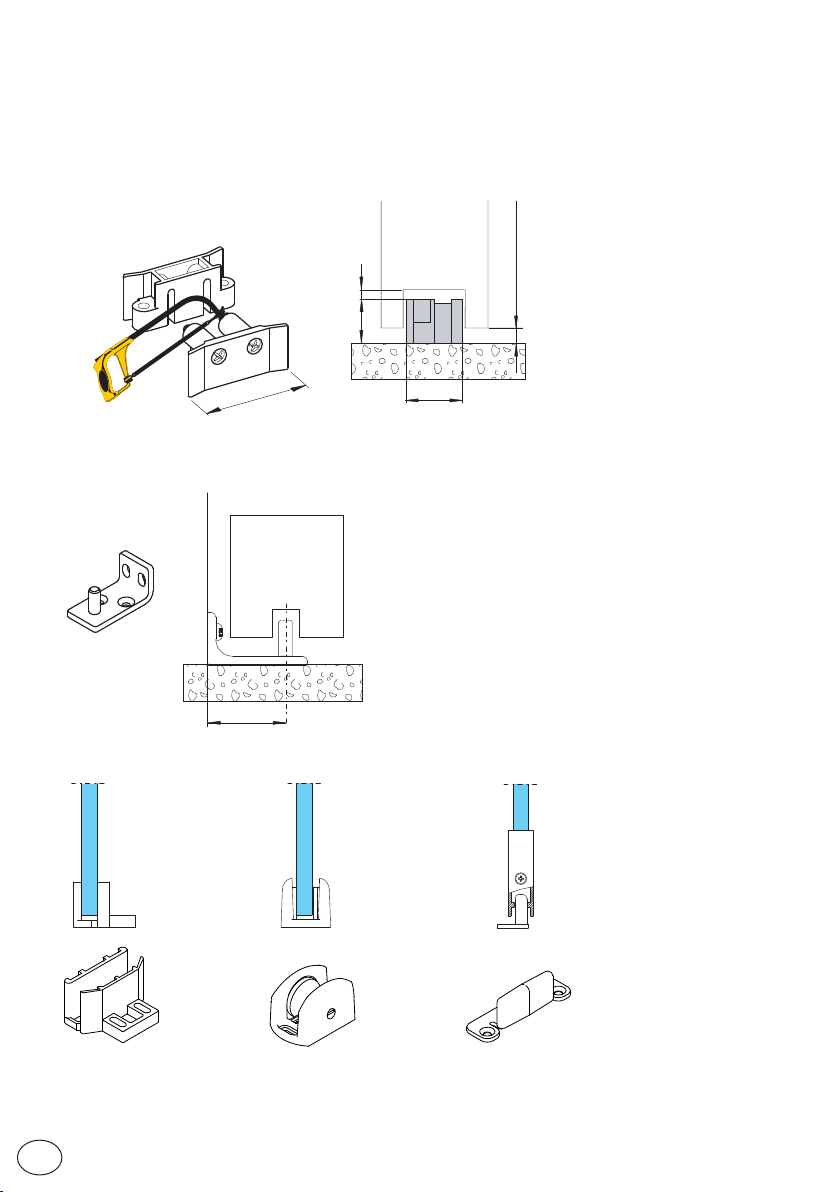

7.2 Installing the floor guides
The floor guides must be made of an anti-friction material such as PVC, NYLON or TEFLON.
The length of the floor guide should be no greater than the overlap between the fixed and mobile
door wings, and should not enter the passage opening.
Examples of floor guides

LT ≤ 3000 = 2 mm
LT > 3000 = 3 mm
16
5
24
4
5
2
3
12
6
5
4
T20
10
10
≥18
19
IP2266EN
EN
7.3 Checking and adjusting the belt tension
7.4 Sensor positioning on the cover
7.5 External sensor cable fixing
cable fixingexternal sensor cable tie

LN
2
3
4
5
6
1
20
IP2266EN
EN
8. Electrical connections
Connect the automation to an efficient earthing system that complies with current safety
standards.
During installation, maintenance and repair operations, cut off the power supply before opening
the cover to access the electrical parts.
The automation protection casing must be removed by qualified personnel only.
An omnipolar disconnection switch with a contact opening distance of at least 3 mm must be fitted
on the mains supply.
Check there is an adequate residual current circuit breaker and overcurrent cutout upstream of
the electrical system.
Install an electric switch next to the automatic system.
Make sure there are no sharp edges that may damage the power supply cable.
If the power cable is damaged, have it replaced by the manufacturer or qualified personnel.
• Use a H05RN-F 3G1,5 or H05RR-F 3G1,5 type electric cable.
• Remove the protective cover [1].
• Connect the power cable [2] to the terminal board [4], locking it in place with the cable fastener [3].
• Replace the protective cover [1].
• Connect the connection cable [5] to the power supply unit [6].
