Epson Stylus Color 200 User manual

EPSON TERMINAL PRINTER
EPSON/Stylus Color 200
EPSON/Stylus 200
SERVICE MANUAL
EPSON
Rev.A
4006645

NOTICE
All rights reserved. Reproduction of any part of this manual in any form whatsoever without SEIKO
EPSON’s express written permission is forbidden.
The contents of this manual are subjects to change without notice.
All efforts have been made to ensure the accuracy of the contents of this manual. However, should any errors
be detected, SEIKO EPSON would greatly appreciate being informed of them.
The above notwithstanding SEIKO EPSON can assume no resoinsibility for any errors in this manual or the
consequence thereof.
Epson and Epson’s ESC/P are registered trademark of Seiko Epson Corporation.
General Notice: Other product names used herein are for identication purpose only and may be trademark of
their respective companies.
+Copyright 1995 by SEIKO EPSON CORPORATION Nagano, Japan
-i-

PRECAUTIONS
Precautionary notations throughout the text are categorized relative to 1) personal jnjuury and 2) damage to
equipment.
DANGER Signals a precaution which, if ignored, could result in serious or fatal personal injury.
Great caution should be exercised in performing procedures preceded by DANGER
Headings.
WARNING Signals a precaution which, if ignored, could result in damage to equipment.
The precautionary measures itemized below should always be observed when performing repair/
maintenance procedures.
DANGER
1. ALWAYS DISCONNECT THE PRODUCT FROM THE POWER SOURCE AND PERIPHERAL
DEVICES PERFORMING ANY MAINTENANCE OR REPAIR PROCEDURE.
2. NOWORK SHOULD BE PERFORMED ON THE UNIT BY PERSONS UNFAMILIAR WITH
BASIC SAFETY MEASURES AS DICTATED FOR ALL ELECTRONICS TECHNICIANS IN
THEIR LINE OF WORK.
3. WHEN PERFORMING TESTING AS DCTATED WITHIN THIS MANUAL, DO NOT CONNECT
THE UNIT TO A POWER SOURCE UNTIL INSTRUCTED TO DO SO. WHEN THE POWER
SUPPLY CABLE MUST BE CONNECTED, USE EXTREME CAUTION IN WORKING ON
POWER SUPPLY AND OTHER ELECTRONIC COMPONENTS.
WARNING
1. REPAIRS ON EPSON PRODUCT SHOULD BE PERFORMED ONLY BY AN EPSON CERTIFIED
REPAIR TECHNICIAN.
2. MAKE CERTAIN THATTHE SOURCE VOLTAGES IS THE SAME AS THE RATED VOLTAGE,
LISTED ON THE SERIAL NUMBER/RATING PLATE. IF THE EPSON PRODUCT HAS A
PRIMARY AC RATING DIFFERENT FROM AVAILABLE POWER SOURCE, DO NOT
CONNECT IT TO THE POWER SOURCE.
3. ALWAYS VERIFY THAT THE EPSON PRODUCT HAS BEEN DISCONNECTED FROM THE
POWER SOURCE BEFORE REMOVING OR REPLACING PRINTED CIRCUIT BOARDS
AND/OR INDIVIDUAL CHIPS.
4. IN ORDER TO PROTECT SENSITIVE MICROPROCESSORS AND CIRCUITRY, USE STATIC
DISCHARGE EQUIPMENT,SUCH AS ANTI-STATIC WRIST STRAPS, WHEN ACCESSING
INTERNALCOMPONENTS.
5. REPLACE MALFUNCTIONING COMPONENTS ONLY WITH THOSE COMPONENTS BY THE
MANUFACTURE; INTRODUCTION OF SECOND-SOURCE ICs OR OTHER NONAPPROVED
COMPONENTS MAY DAMAGE THE PRODUCT AND VOID ANY APPLICABLE EPSON
WARRANTY.
-ii-

PREFACE
This manual describes functions, theory of electrical and mechanical operations, maintenance, and repair of
Epson Stylus Color 200 /Epson Stylus 200.
The instructions and procedures included herein are intended for the experience repair technician, and
attention should be given to the precautions on the preceding page. The chapters are organized as follows:
CHAPTER 1. PRODUCT DESCRIPTION
Provides a general product overview, lists specifications, and illustrates the main components of the printer.
CHAPTER 2. OPERATING PRINCIPLES
Describes the theory of printer operation.
CHAPTER 3. DISASSEMBLY AND ASSEMBLY
Includes the step-by-step guide for product disassembly and assembly
CHAPTER 4. ADJUSTMENTS
Includes a step-by-step guide for adjustment.
CHAPTER 5. TROUBLESHOOTING
Provides Epson-approved techniques for adjustment.
CHAPTER 6. MAINTENANCE
Describes preventive maintenance techniques and lists lubricants and adhesives required to service the
equipment.
APPENDIX
Describes connector pin assignments, circuit diagrams, circuit board component layout and exploded
diagram.
The contents of this manual are subject to change without notice.
-iv-

REVISION SHEET
Revision Issue Date Contents
Rev.-A July 15,1996 1st issue
-v-

TABLE OF CONTENTS
CHAPTER 1. PRODUCT DESCRIPTION
CHAPTER 2. OPERATION PRINCIPLES
CHAPTER 3 DISASSEMBLY AND ASSEMBLY
CHAPTER 4. ADJUSTMENT
CHAPTER 5. TROUBLESHOOTING
CHAPTER 6. MAINTENANCE
APPENDIX
-vi-

Chapter 1 Product Description
Table of Contents
1.1 OVERVIEW 1-1
1.2 SPECIFICATIONS 1-2
1.2.1 Printing Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1.2.2 Paper Handling Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1.2.3 Paper Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1.2.4 Ink Cartridge Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
1.2.5 Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1.2.6 Environmental Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1.2.7 Reliability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1.2.8 Safety Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1.2.9 Acoustic Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1.2.10 Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1.3 INTERFACE SPECIFICATIONS 1-9
1.3.1 Parallel Interface Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
1.3.2 Parallel Interface (Reverse channel). . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
1.4 OPERATIONS 1-12
1.4.1 Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
1.4.2 Panel Operation and Built-in Function. . . . . . . . . . . . . . . . . . . . . . . . . 1-12
1.4.3 Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
1.4.3.1 Default Settings Items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
1.4.3.2 Changing the Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
1.4.4 Error Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
1.4.5 Printer Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
1.4.5.1 Power-On Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
1.4.5.2 Sofware Initialization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
1.4.5.3 Panel Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
1.5 MAIN CONPONENTS 1-17
1.5.1 Main Control Board(C199 Main Control Board) . . . . . . . . . . . . . . . . . 1-17
1.5.2 Power Supply Board(C160 PSB/PSE Board). . . . . . . . . . . . . . . . . . . . 1-18
1.5.3 C160 I/F Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
1.5.4 Printer Mechanism((M-4C11). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
1.5.5 Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
Rev. A 1-i

List of Figures
Figure 1-1. Exterior View of EPSON Stylus Color 200. . . . . . . . . . . . . . . . . . 1-1
Figure 1-2. Nozzle Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Figure 1-3. Printable Area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Figure 1-4. Paper Select Lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Figure 1-5. Temperature / Humidity of Range . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Figure 1-6. Data Transmission Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Figure 1-7. Control Panel Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Figure 1-8. C199 Main Control Board Component Layout . . . . . . . . . . . . . 1-17
Figure 1-9. C160 PSB/PSE Board Component Layout . . . . . . . . . . . . . . . . 1-18
Figure 1-10. C160 I/F Board Component Layout . . . . . . . . . . . . . . . . . . . . . 1-18
Figure 1-11. M-4C11 Printer Mechanism. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
Figure 1-12. Housing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
List of Tables
Table 1-1. Print Speed and Printable Columns . . . . . . . . . . . . . . . . . . . . . . . 1-2
Table 1-2. Character Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Table 1-3. Paper Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Table 1-4. Adjust Lever Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Table 1-5. Paper Select Lever Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Table 1-6. Black I/C Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Table 1-7. Color I/C Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Table 1-8. Rated Electrical Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
Table 1-9. Acceptable Environmental Conditions. . . . . . . . . . . . . . . . . . . . . 1-7
Table 1-10. Siganal and Connector Pin Assignment for Parallel I/F. . . . . 1-10
Table 1-11. Pin Assignment for Reverse channel. . . . . . . . . . . . . . . . . . . . 1-11
Table 1-12. Panel Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Table 1-13. Built-in Functions on the Panel. . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Table 1-14. Button Operatins in Default Setting Mode. . . . . . . . . . . . . . . . 1-13
Table 1-15. Error Indications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Table 1-16. Default Setting Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14
Table 1-17. Default Setting Items(Con.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
Table 1-18. Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
1-ii Rev. A

1.1 FEATURES
The Epson Stylus Color 200/Epson Stylus 200 printer are color ink jet dot matrix printers that come with a
64-nozzle black printhead and a 60-nozzle CMY color printhead, either of which can be installed in the
printer. The Epson Stylus 200 version comes standard with only the 64-nozzle black printhead; however, the
CMY color printhead can be purchased as an optional upgrade. Whenever this manual mentions the Epson
Stylus Color 200, its descriptions are equally applicable to the Epson Stylus 200. The major printer features
are:
❏High-quality color print
-720 dpi printing
-720 dpi printing on plain paper
-720, 360 dpi printing on special coated paper
(Use the monochrome head only with plain paper)
❏High-speed print(10CPI)
Monochrome head: 125cps (LQ)
167cps(HS)
CMY head: 200cps(LQ/one-pass printing)
Note: The CMY head prints 360 dpi printing in three passes.
❏Built-in auto sheet feeder
-Cut sheets
-Transparency films (A4 and letter)
-Envelopes (10 sheets)
-Plain papers (100 sheets,64g/m2)
❏Built-in I/F
-Parallel I/F only (8-bit parallel: IEEE P1284 mode)
❏Easy setup
-No DIP switches
❏3 scalable fonts and 3 LQ fonts standard
-Roman T, Sans Serif H, Roman, Sans Serif (scalable)
-Roman, Sans Serif, Courier, ( bitmapLQ)
❏Character tables
-9 character tables (standard version)
-15 character tables (NLSP version)
❏Low running cost
The figure below shows the EPSON Stylus Color 200.
Figure 1-1. Exterior Viewing of EPSON Stylus Color 200
Epson Stylus Color 200 /Epson Stylus 200 Product Description
Rev. A 1-1

1.2 SPECIFICATIONS
This section provides statistics and other detailed information for the printer.
1.2.1 Printing Specifications
Print system: On-demand ink jet system
Nozzle configuration: 64 nozzles (10 ×2 + 11 ×4 standard ): monochrome
60 nozzles (20 ×3 standard): color
Printing direction: Bidirectional with logic-seeking
Table 1-1. Print Speed and Printable Columns
Character
Pitch
Printable
Columns
Printing Speed (cps)
Monochrome
(Normal) Monochrome (Draft) CMY
10 cpi (Pica) 80 125 167 200
12 cpi (Elite) 96 150 200 240
15 cpi 120 188 250 300
17 cpi (Pica condensed) 136 214 285 342
20 cpi (Elite condensed) 160 250 333 400
#1 #1 #1
#2 #2 #2
#19
#20
#19
#20 #20
#19
#1 #2 #3
#4
#5
#6
#64
#61
#59 #62 #63
#60
(Row M) (Row C) (Row Y)
(A) (B) (C) (D) (E) (F)
120 dpi 360 dpi
120 dpi

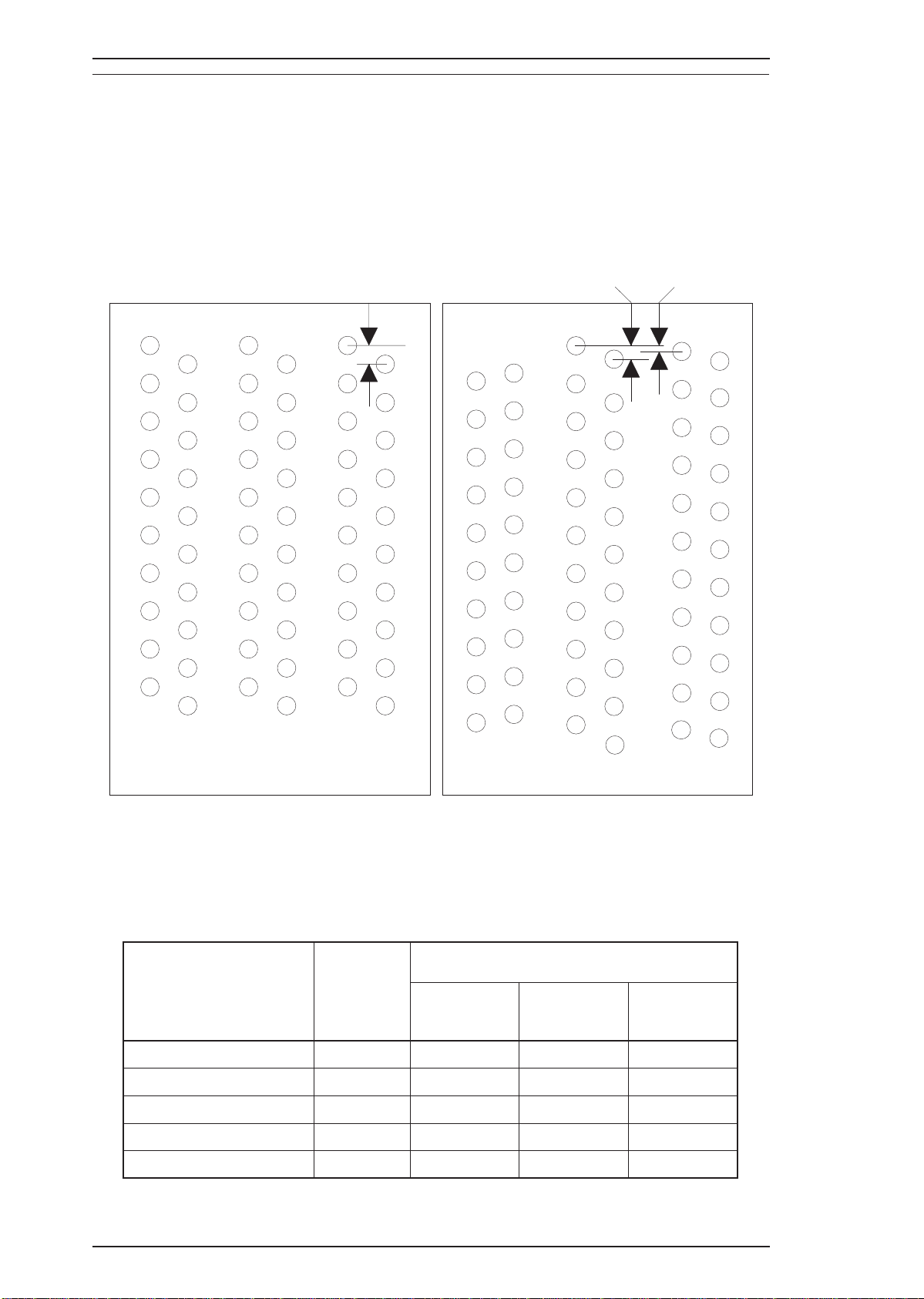

Figure1-2. Nozzle Configuration
Product Description Epson Stylus Color 200 /Epson Stylus 200
1-2 Rev. A

Character tables: Legal and 14 international sets
Table 1-2. Character Tables
Character Tables
Bitmap Fonts Scalable Fonts
EPSON Roman
EPSON Sans Serif
EPSON Courier
EPSON Roman
EPSON Sans
Serif
EPSON Roman T
EPSON Sans Serif H
Standard
Italic
Supported Supported Supported
PC437 (U.S./Standard Europe)
PC850 (Multilingual)
PC860 (Portuguese)
PC861 (Icelandic)
PC863 (Canadian-French)
PC865 (Nordic)
Abicomp
BRASCII
NLSP
Italic Supported Supported Supported
PC437 (U.S./Standard Europe)
PC850 (Multilingual)
PC437 (Greek)
Supported Supported Not supported
PC852 (East Europe)
PC853 (Turkish)
PC855 (Cyrillic)
PC857 (Turkish)
PC866 (Russian)
PC869 (Greek)
MAZOWIA (Poland)
Code MJK (Czecho/Slovakia)
ISO 8859-7 (Latin/Greek)
ISO Latin 1T (Turkish)
Bulgaria (Bulgaria)
Fonts: Bitmap LQ fonts
- EPSON Roman (10 cpi/12 cpi/15 cpi/Proportional)
- EPSON Sans Serif (10/12/15/Proportional)
- EPSON Courier (10/12/15)
Scalable fonts
- EPSON Roman 10.5 points, 8 ∼32 points (in units of 2 points)
- EPSON Sans Serif 10.5 points, 8 ∼32 points (in units of 2 points)
- EPSON Roman T 10.5 points, 8 ∼32 points (in units of 2 points)
- EPSON Sans Serif H10.5 points, 8 ∼32 points (in units of 2 points)
Control codes: ESC/P 2 and expanded raster graphics codes
Input data buffer: 2.5Kbyte to 15Kbyte
Epson Stylus Color 200 /Epson Stylus 200 Product Description
Rev. A 1-3

1.2.2 Paper Handling Specifications
Feeding method: Friction feed paper is fed from the built-in auto sheet feeder (ASF).
Line spacing: 1/6 inch feed or programmable in 1/360 inch minimum increments.
Paper path: Cut sheets are fed from the built-in auto sheet feeder (ASF).
Top in and front out.
Feeding speed: 102 msec. (at 1/6-inch feed pitch).
1.2.3 Paper Specifications
Table 1-3. Paper Specifications
Cut Sheets Envelopes +
^Transparencies ^
^A4 Letter Legal No. 10 DL
PW Width 210 mm 216 mm 216 mm 240 mm 220 mm
PL Length 297 mm 279 mm 358 mm 104 mm 110 mm
LM Left margin 3 mm or
more 3 mm or more 3 mm or more 3 mm or more 3 mm or more
RM Right margin 3 mm or
more 3 mm or more 10 mm or more 33.8 mm or more 13.8 mm or more
TM Top margin 3 mm or
more 3 mm or more 3 mm or more 3 mm or more 3 mm or more
BM Bottom margin 14 mm or
more 14 mm or more 14 mm or more 14 mm or more 14 mm or more
LM
PW
RM
PL
BM
TM
Figure 1-3. Printable Area
Product Description Epson Stylus Color 200 /Epson Stylus 200
1-4 Rev. A

The adjust lever on the upper case must be set to the proper position for the paper
thickness, as shown in Table 1-4.
Table 1-4. Adjust Lever Settings
Paper Lever Position Paper Thickness
Cut Sheets Front
(0 position) 0 mm
Envelops Rear
(+position) 0.62 mm
Also the paper select lever on the upper case must be set to the proper position for
the paper varieties shown in Table 1-5.
Table 1-5. Paper Select Lever Settings
Specifications for
the Medium +
PF Mode Cut Sheets Envelopes
Postcards
^Lever Position ^
ASF Feed Thick paper (Rear) NO OK
^Thinner paper (Front) OK NO
Manual Feed Thick paper (Rear) OK OK
^Thinner paper (Front) NO NO
Note: “OK” means paper can be used and “NO” means paper cannot.
Paper In Paper Out
Manual Feed
Auto Feed
Hopper
Paper Select Lever
Thicker Paper
Thinner Paper
Figure 1-4. Paper Select Error
Epson Stylus Color 200 /Epson Stylus 200 Product Description
Rev. A 1-5

1.2.4 Ink Cartridge Specifications
Table 1-6. Black I/C Specifications
Item Specifications
Type Exclusive cartridge
Color and Weight Approximately 54 g (internal ink weight is 36 g ±
0.5 g)
Ink Life Black, High-quality ink produces 800 thousand characters
Validity 2 years (sealed in package) / 6 months (out of package)
Storage Temperature ❏
–30 to 40 ° C (-22 ∼ 104 ° F) (Storage: a month or less at 40 ° C (104 ° F))
❏ –20 to 40 ° C (-15 ∼ 104 ° F) (Transit: a month or less at 40 ° C (104 ° F))
❏– 30 to 60 ° C (-22 ∼ 140 ° F) (Transit: 120 hours or less at 60 ° C (140 ° F))
Dimensions 30.0 (W) ×
58.0 (D) × 38.5 ± 0.3 (H) mm
Table 1-7. Color I/C Specifications
Item Specifications
Type Exclusive cartridge
Color and Weight Cyan, Magenta, Yellow. Approximately 75 g (internal ink weight is 12.8 g ±
0.5 g)
Ink Life 100% solid pattern: A4 — 16 sheets / each color
Validity 2 years (sealed in package) / 6 months (out of package)
Storage Temperature ❏
–30 to 40 ° C (-22 ∼ 104 ° F) (Storage: a month or less at 40 ° C (104 ° F))
❏ –20 to 40 ° C (-15 ∼ 104 ° F) (Transit: a month or less at 40 ° C (104 ° F))
❏– 30 to 60 ° C (-22 ∼ 140 ° F) (Transit: 120 hours or less at 60 ° C (140 ° F))
Dimensions 42.9 (W) ×
56.5 (D) × 38.5 ± 0.3 (H) mm
Product Description Epson Stylus Color 200 /Epson Stylus 200
1-6 Rev. A

1.2.5 Electrical Specifications
Table 1-8. Rated Electrical Ranges
Specification 120 V Version 220 - 240 V Version
Rated voltage 120 VAC 220 - 240 VAC
Input voltage range 103.5 ∼
132 V 198 ∼ 264 V
Rated frequency range 50 ∼
60 Hz 50 ∼ 60 Hz
Input frequency range 49.5 ∼
60.5 Hz 49.5 ∼ 60.5 Hz
Rated current 0.5 A 0.3 A
Power consumption Approx. 15 W
(self-test with 10-cpi LQ characters) Approx. 15 W (self-test with 10-cpi LQ characters)
Insulation resistance 10 MΩ,
minimum
(applying 500 VDC between AC
line and chassis)
10 MΩ , minimum
(applying 500 VDC between AC line
and chassis)
Dielectric strength 1000 VAC rms for 1 minute or
1200 VAC rms for 1 second
(between AC line and chassis)
1500 VAC rms for 1 minute
(between AC line and chassis)
1.2.6 Environmental Conditions
Table 1-9. Acceptable Environmental Conditions
Condition Operating Non Operating
Temperature 10 ∼
35 ° C (50 ∼ 95 ° F)
*1
− 20 ∼ 60 ° C ( − 4 ∼ 122 ° F)
*2
Humidity 20 ∼
80% RH
*1, 3
5∼ 85% RH
*2, 3
Shock resistance 1G (within 1 msec.) 2G (within 2 msec.)
*2
Vibration resistance 0.15 G 0.50 G
*2
*1 : For printer operation, conditions must be in the range shown in the figure below.
*2
: These conditions are applicable when the printer is in its shipping container.
*3
: Without condensation.
80%
55%
20%
Humidity
(% RH) Guaranteed Range
(Degrees)
10 27 35
Figure 1-5. Temperature/Humidity of Range
Epson Stylus Color 200 /Epson Stylus 200 Product Description
Rev. A 1-7

1.2.7 Reliability
Total print volume: 25,000 pages (A4, letter)
MTBF: 4000 POH (Duty 7%)
MCBF: 1 million pass ( except print head)
Printhead life: 1000 million dots/nozzle (color and monochrome)
1.2.8 Safety Approvals
Safety standards: 120 V version: UL1950 with D3,
CSA C22.2 # 950 with D3
220-240 V version: EN 60950 (TÜV, SEMKO, DEMKO,
NEMKO, SETI)
Radio frequency interference (RFI): 120 V version: FCC Part 15 Subpart B Class B
220-240 V version: Vfg.243 (VDE0878 part 3, part 30)
EN55022 (CISPR PUB. 22) class B
CSA C108.8
1.2.9 Acoustic Noise
Level: Approximately 45 dB (A) (Per ISO 7779)
1.2.10 Physical Specifications
Dimensions (W ×D×H): 396.7 mm (W) ×205.6 mm (D) ×149.0 mm (H)
Weight: About 3.9 kg (8.6 lb.), excluding head and ink cartridge
Product Description Epson Stylus Color 200 /Epson Stylus 200
1-8 Rev. A

1.3 INTERFACE SPECIFICATIONS
The EPSON Stylus Color 200/EPSON Stylus 200 is standard-equipped with an 8-bit parallel and serial
interface.
1.3.1 Parallel Interface Specifications (Forward Channel)
Data format: 8-bit parallel
Synchronization: By STROBE pulse synchronization
Handshaking: By BUSY and ACKNLG signals
Signal level: TTL compatible level (IEEE-1284 level 1 device)
Adaptable connector: 36-pin 57-30360 (Amphenol) or equivalent
Data transmission timing: See Figure 1-6.
Note:
Transition time (rise time and fall time) of every input signal must be less than 0.2 µs.
Parameter Minimum Maximum
tsetup 500 nsec ——
thold 500 nsec ——
tstb 500 nsec ——
tready 0 ——
tbusy —— 500 nsec
treply —— ——
tack 500 nsec 10 us
tnbusy 0 ——
tnext 0 ——
ttout* —— 120 nsec
ttin** —— 200 nsec
* Rise and fall time of output siganls
** Rise and fall time of input signals

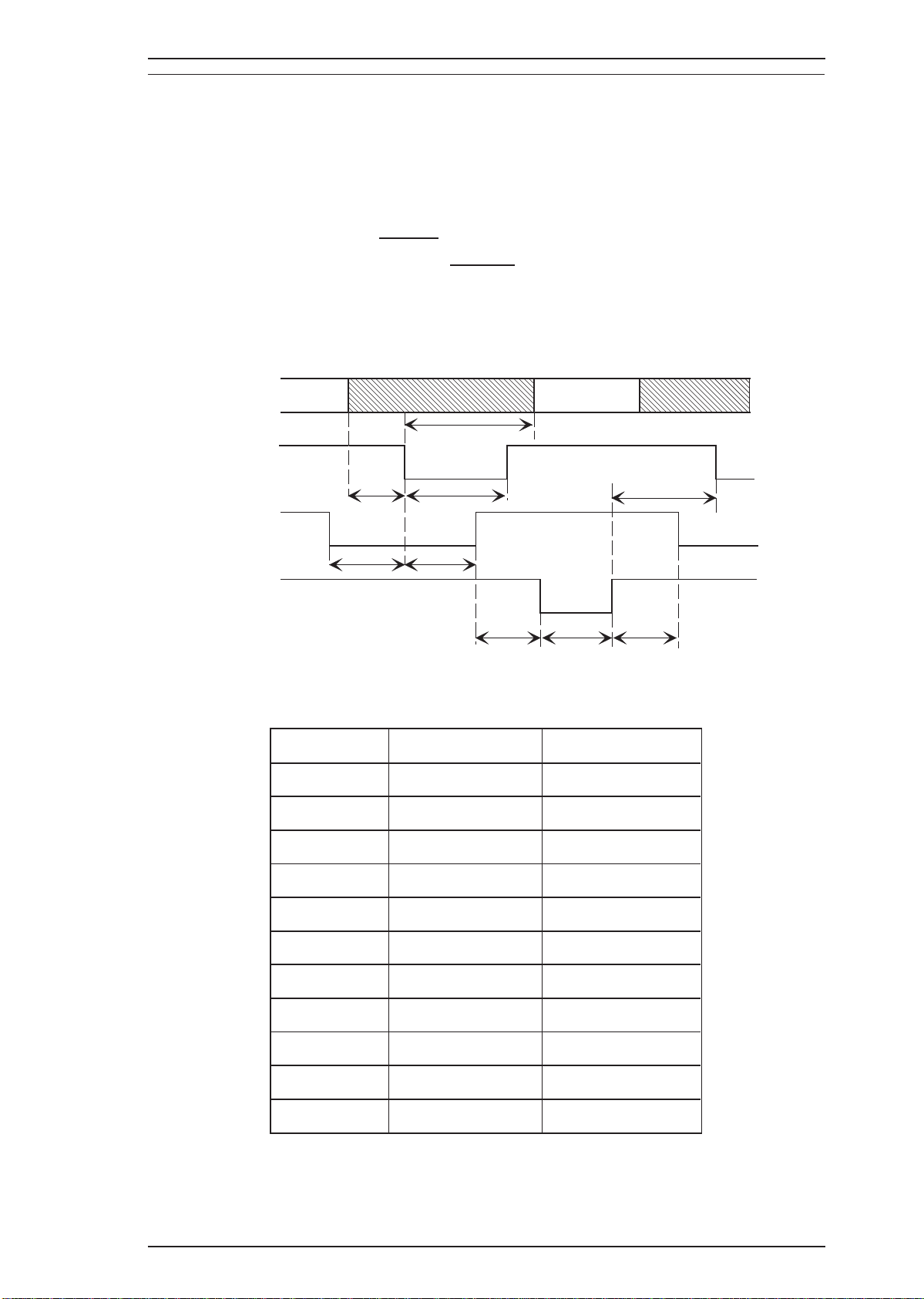

data byte n data byte n+1
t hold
t setup
t stb
t next
t ready
t busy
t reply t ack t nbusy
DATA
STROBE
BUSY
ACKNLG
Figure 1-6. Data Transmission Timing
Epson Stylus Color 200 /Epson Stylus 200 Product Description
Rev. A 1-9

Table 1-10 and 1-11 shows the connector pin assignments and signal functions of the 8-bit parallel interface.
Table 1-10. Signal and Connector Pin Assignments for Parallel Interface
Pin No. Signal Name I/O* Description
1 -STROBE I Strobe pulse. Input data is latched at falling edge of the signal.
2-9 DATA 1-8 I Parallel input data to the printer. bit 0:LSB
10 -ACKNLG O This signal (negative pulse) indicates that the printer has
received data and is ready to accept next one.
11 BUSY O This signal’s high level means that the printer is not ready to
accept data.
12 PE O This signal’s hugh level means that the printer is in a state of
paper-out error.
13 SLCT O Always at high level when the printer in powered on.
14 -AFXT I Not used
31 -INIT I This signal’s negative pulse initializes printer.
32 -ERROR O This signal’s low level means the printer is in a state of error.
35 +5 V — Pulled up to +5 V through 1.0 KΩresistor in the printer.
36 -SLIN In Not used.
17 CHASSIS —- Chassis ground
18 Logic H O Pulled up to +5V through 3.9 KΩresistor.
16,33
19-30 GND — Signal ground.
15,34 NC —- Not connected.
* The I/O column indicates the direction of the signal as viewed from the printer.
The busy signal is active (HIGH) under the following conditions:
-During data reception(See Figure 1-6)
-When the input buffer is full
-When the-INIT input signal is active (low level)
-During the hardware initialization
-When the-ERROR or PE signal is active
- During the self-test mode
-During the default setting mode
The -ERROR signal is active(LOW) under the following conditions:
-When a paper-out error occurs
-When a no ink catridge error occurs
-When a fatal error occurs
The PE signal is active (HIGH) under the following conditions:
-When a paper-out error occurs
Product Description Epson Stylus Color 200 /Epson Stylus 200
1-10 Rev. A

1.3.2 Parallel Interface (Reverse channel)
Transmission mode IEEE-1284 nibble mode
Adapatable connector 57-30360 (Amphenol) or equivalent
Snynchronization Refer to the IEEE-1284 specification
Handshaking Refer to the IEEE-1284 specification
Signal level TTL-compatible (IEEE-1284 level 1 device)
Data transmission timing Refer to the IEEE-1284 specificatin
Extensibility request The printer responds to the extensibility request in the affirmative,
when the request is 00Hor 04H, which mean;
00H: Request nibble mode of reverse channel transfer
04H: Request device ID in nibble mode of reverse channel transfer
Device ID Standardcolor version
[00H] [3BH].....MFG: EPSON, CMD: ESCPL2-00
MDL: Stylus[SP] COLOR[SP]200, CLS: Printer
Standard monochrome version
[00H] [35H]......MFG:EPSON, CMD: ESCPL2-00
MDL:Stylus [SP}200, CLS: Printer
Table1-11. Pin Assignment for Reverse channel
Pin No. Signal Name I/O* Description
1 HostClk I Host clock signal
2-9 DATA 1-8 I Parallel Input data to the printer. bit 0:LSB
bit 7:MSB
10 PtrClk O Printer clock signal.
11 PtrBusy /
DataBit-3,7 O Printer busy signal and reverse channel transfer data bit 3or7.
12 AckDataReq /
DataBit-2,6 OAcknowledge data request signal and reverse channel
transfer data bit 2 or 6.
13 Xflag /
DataBit-1,5 O X-flag signal and reverse channel transfer data bit 1 or 5.
14 HostBusy I Host busy signal
31 -INIT I Not used
32 -Data Avail /
DataBit-0,4 OData available signal and reverse channel transfer data bit 0 or 4.
36 1284-Active I 1284 active signal.
18 Logic-H O This line is pulled up to +5 V through 3.9 KΩresistor.
35 +5V O This line is pulled up to +5V through 1.0 KΩresistor.
17 Chassis —- Chassis GND.
16,33
19-30 GND — Signal ground.
15,34 NC —- Not connected.
* In/Out refers to the direction of signal flow from the printer’s point of view.
Epson Stylus Color 200 /Epson Stylus 200 Product Description
Rev. A 1-11

1.4 OPERATIONS
This section describes the basic operations of the printer.
1.4.1 Control Panel
The control panel for this printer has 2 non-lock-type push buttons, and 3 LED indicators for easy operation
of the various printer functions.
1.4.2 Panel Operation and Built-in Function
You can activate the following modes by doing the procedure in table 1-11 and 1-12.
Table 1-12. Panel Operation
Button Operations +
^Single Button
Operations +
^Pressed and released Held down 3 seconds
Cleaning Cleaning head No Function
Load/Eject Load/Eject
Exits from Ink Cartrige
changing mode
Enters to Ink Cartrige
changing mode
Power
Load / Eject
Inkout
Paperout
Cleaning
Light
Button
Figure1-7. Control Panel Appearance
Product Description Epson Stylus Color 200 /Epson Stylus 200
1-12 Rev. A
