Epson ELPLL02 User manual

9
User’s Manual for ELPLL02 Long-Focal Length Zoom Lens
•This long-focal length zoom lens is designed for use only with EPSON
multimedia projectors.
•It makes it possible to increase the distance between the projector and
the screen.
•Please read this manual completely before use to assure maximum per-
formance.
•Note that illustrations may differ slightly from your actual product.
•Specifications are subject to change without notice.
Safety Precautions
To assure that this product is used safely, and to help prevent dam-
age or injury, the following symbols are used in the manual.Please
read this manual thoroughly before use to ensure safety and opti-
mum performance.
Warning
Ignoring this warning, or implementing the content in-
correctly, could result in injury or even death.
Memo Important information, such as additional
explanations, key points to remember, and
things to avoid doing.
02LTZLDTPE.pm6 01.2.15, 4:20 PMPage 9 AdobePageMaker6.0J/PPC

10
1. Before mounting the zoom lens
1-1 Safety precautions
Warning
Be sure to screw the Long-Focal Length lens and
adapter ring down completely.Unless they are securely
screwed on, they could fall off and cause damage or
injury (especially when the projector is ceiling-mounted).

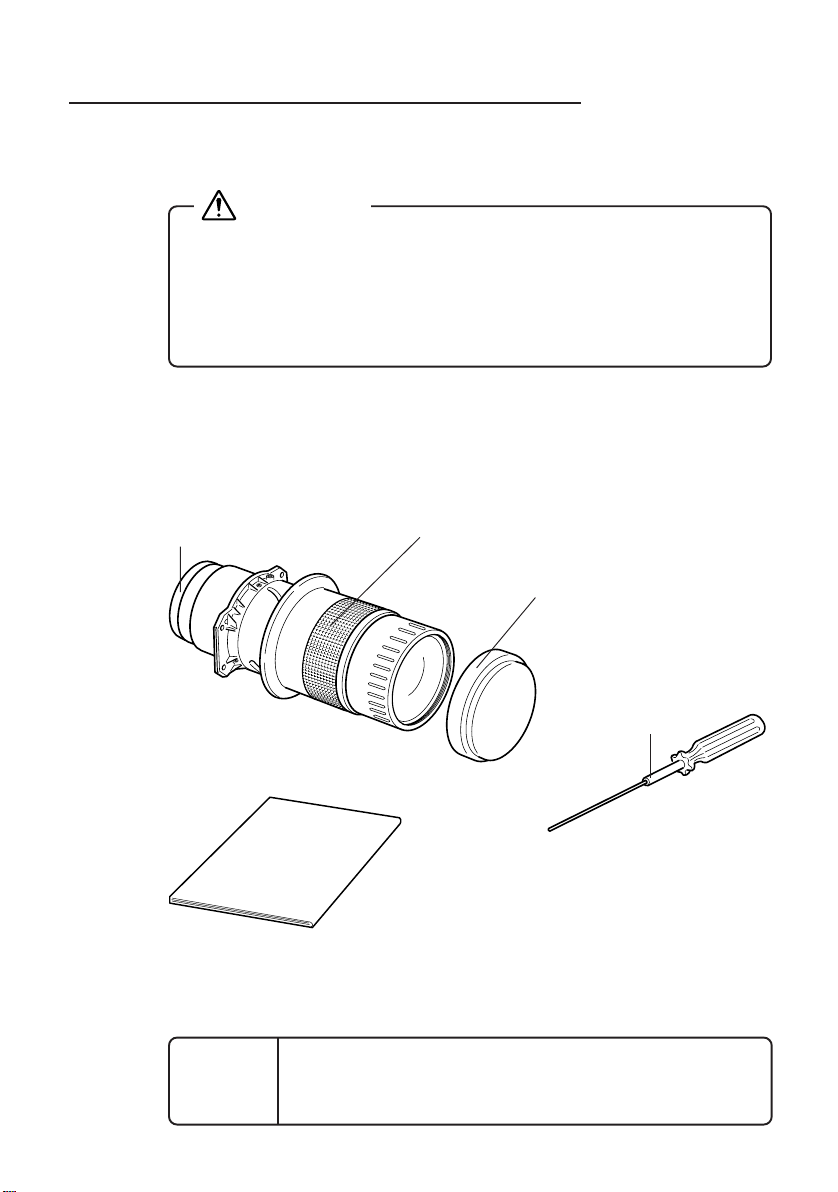

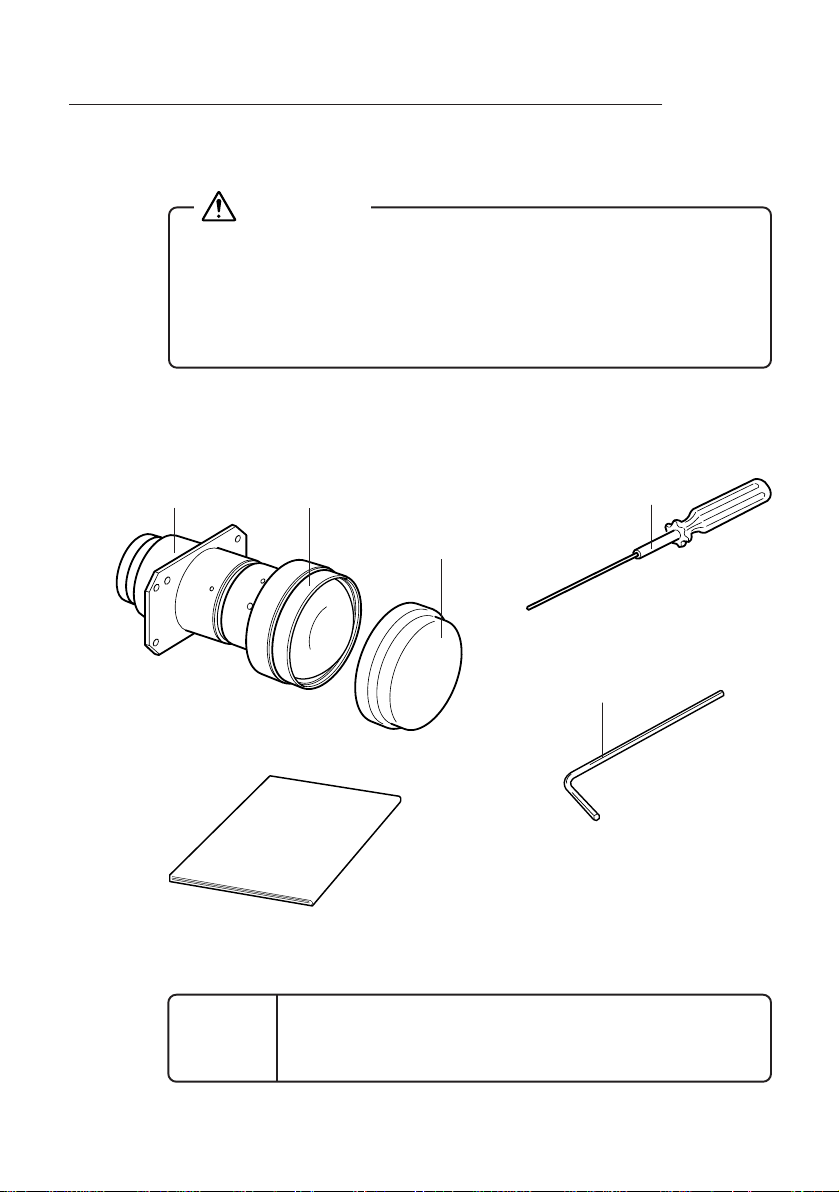

1-2 Check product contents
•Make sure that you have all the parts, as shown below, before starting.
•In addition to the included screwdriver, you will also need a Phillips
screwdriver, and various other common tools.
Memo Be sure to use a Phillips screwdriver that fits
the screws properly.
Zoom lens
Front lens cap
Rear lens cap
Used to tighter/remove
mounting screws
Screwdriver
User’s manual (this document)
02LTZLDTPE.pm6 01.2.15, 4:20 PMPage 10 AdobePageMaker6.0J/PPC

11
2. Mounting the zoom lens
Warning
Be sure to disconnect the power cable before installa-
tion, because there is danger of electrical shock.
Memo Always mount and dismount the lens in a
clean room, to minimize the amount of dust.
Excessive dust inside the lens could cause
damage.
•Note that the illustrations below may not match your par-
ticular projector model.
Front case
Screws (two)

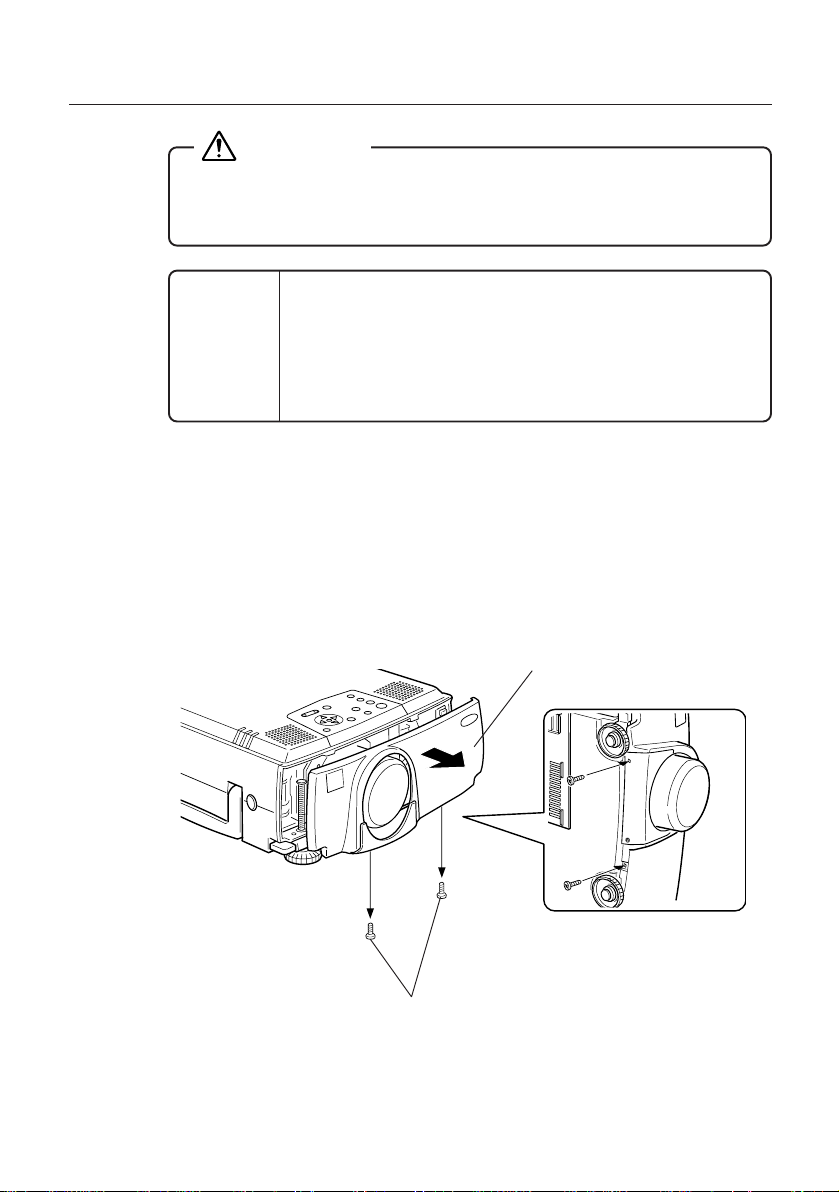

2-1 Removing the current lens
(1) Remove the front case.
1. Remove the two mounting screws, and pull off the front case.
02LTZLDTPE.pm6 01.2.15, 4:20 PMPage 11 AdobePageMaker6.0J/PPC

12

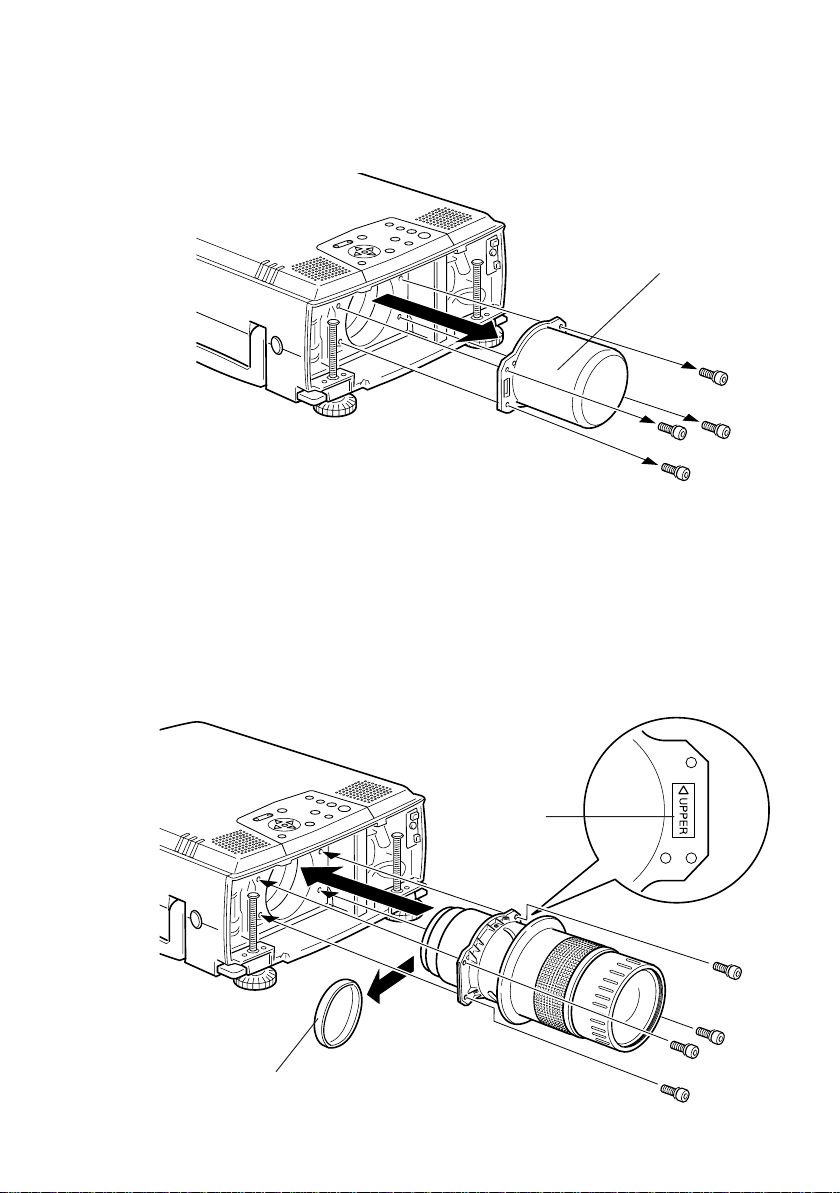

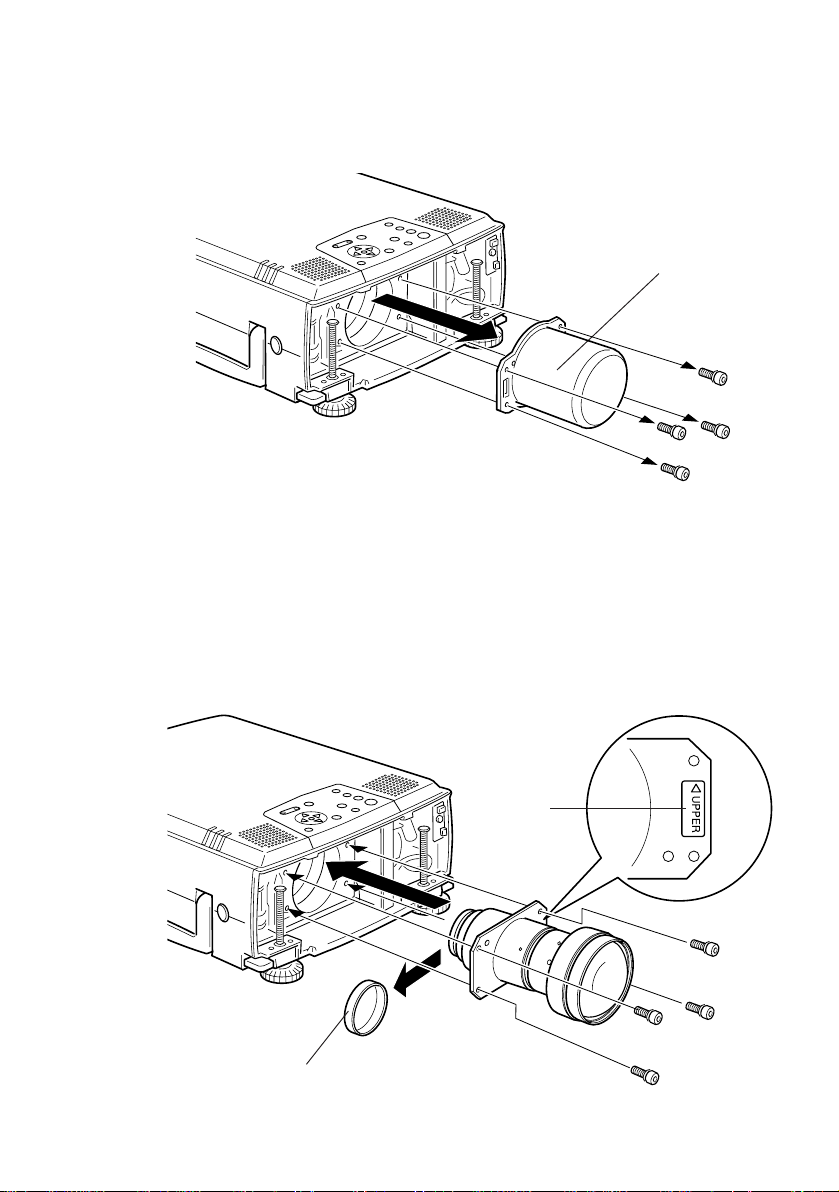

(2) Remove the current lens.
1. Use the enclosed screwdriver to remove the four mounting
screws, and dismount the current lens.
2-2 Mounting the zoom lens
(1) Mounting the zoom lens
1. Remove the rear lens cap.
2. Use the enclosed screwdriver to mount the zoom lens with the
four mounting screws. Be sure that the seal reading “UPPER”
is on top.
Current lens
Seal
Rear lens cap
02LTZLDTPE.pm6 01.2.15, 4:20 PMPage 12 AdobePageMaker6.0J/PPC

13

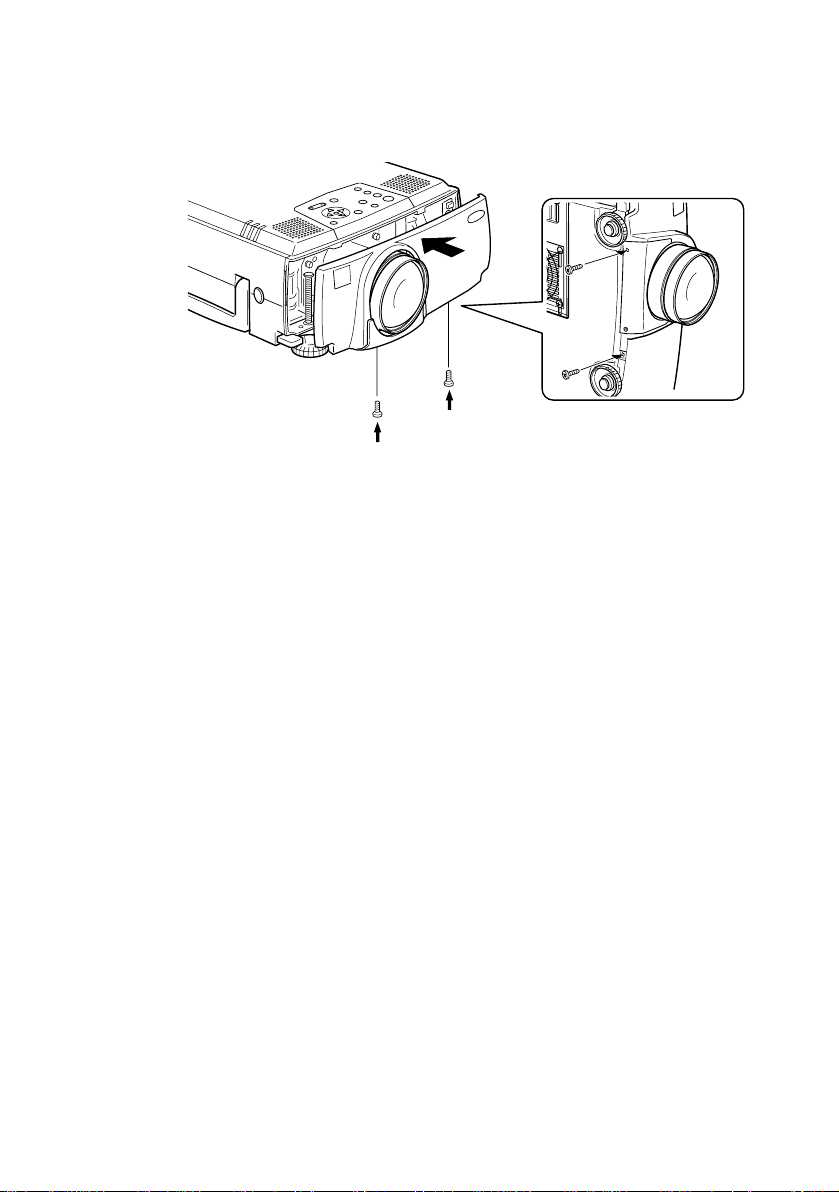

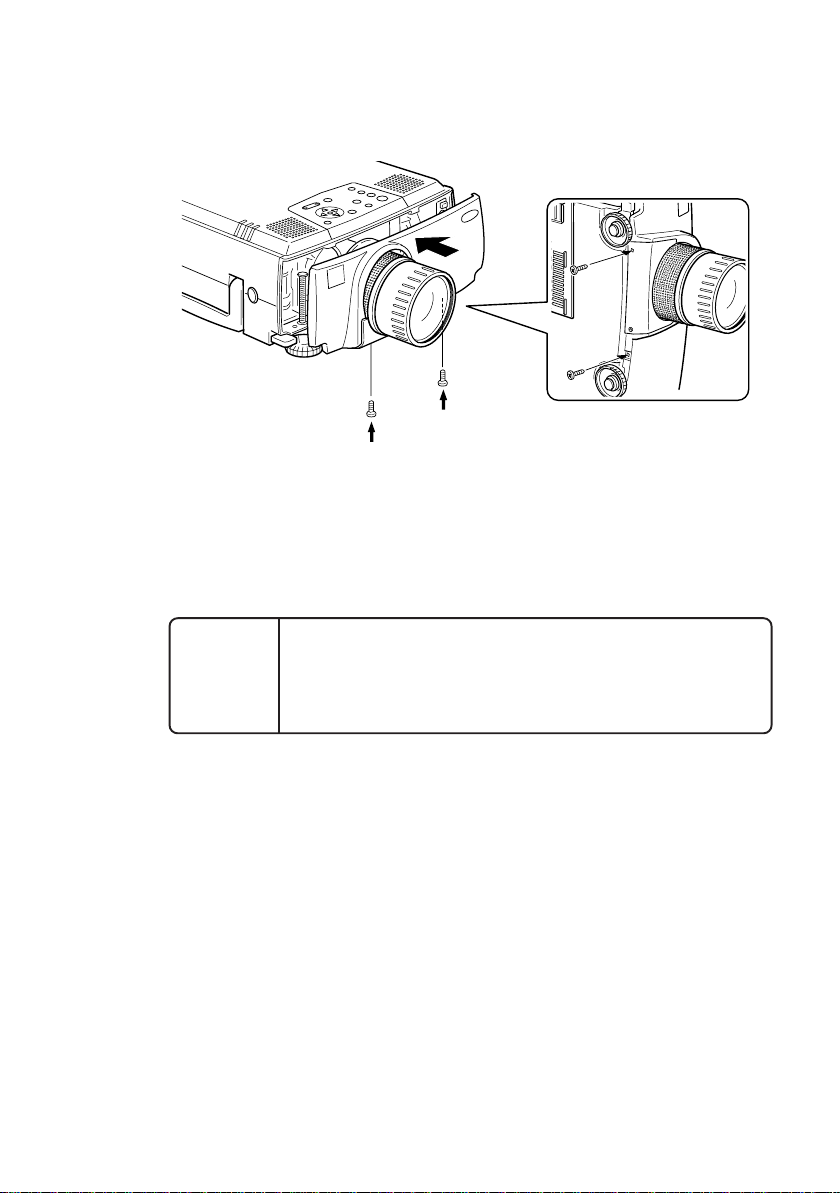

(2) Mounting the front case
1. Set the front case into position and tighten the two screws.
This completes installation.
•Turn on the power and verify that the projector operates nor-
mally.
Memo Be sure to remove the front lens cap before
turning on the power, or it may melt from the
heat.
02LTZLDTPE.pm6 01.2.15, 4:20 PMPage 13 AdobePageMaker6.0J/PPC

15
4. Zoom lens specifications
4-1 Lens specifications
1. Focal length 68.3 to 116.2 mm
2. Zoom ratio 1.7 x
3. f number 2.14 to 2.98
4. Projection size 60 to 300 inches
5. Mass 2100 g

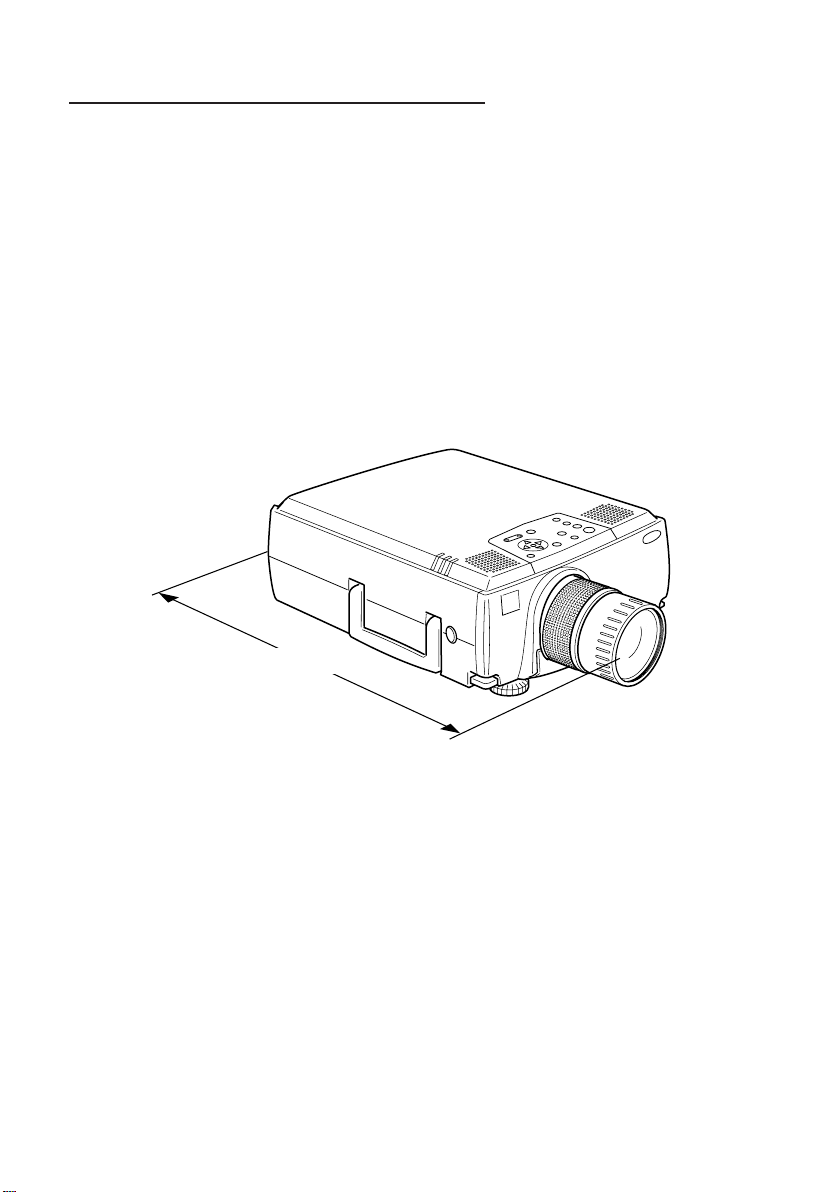

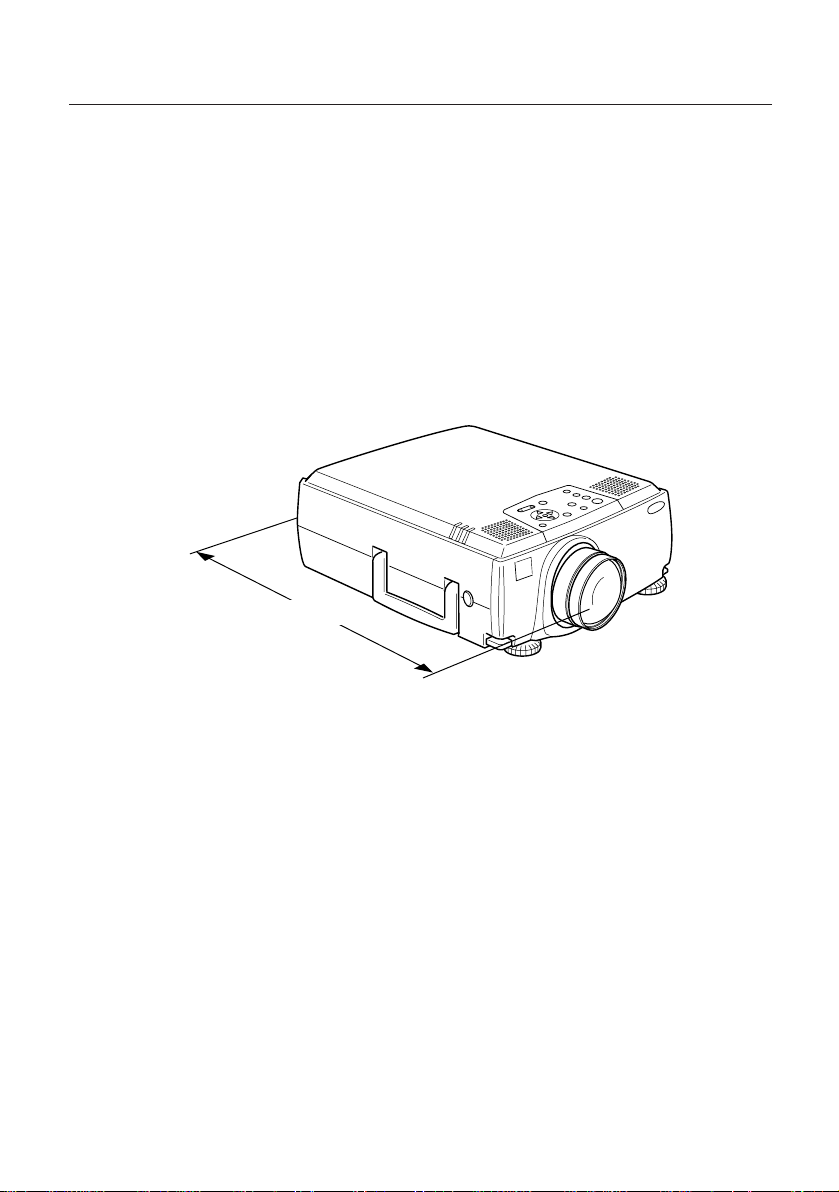

4-2 Appearance with zoom lens mounted
About 505mm
02LTZLDTPE.pm6 01.2.15, 4:20 PMPage 15 AdobePageMaker6.0J/PPC

9
User’s Manual for LongThrow Zoom Lens ELPLL03
•This long throw zoom lens is designed for use only with EPSON multi-
media projectors.
•It makes it possible to increase the distance between the projector and
the screen.
•Please read this manual completely before use to assure maximum per-
formance.
•Note that illustrations may differ slightly from your actual product.
•Specifications are subject to change without notice.
Safety Precautions
To assure that this product is used safely, and to help prevent dam-
age or injury, the following symbols are used in the manual.Please
read this manual thoroughly before use to ensure safety and opti-
mum performance.
Warning
Ignoring this warning, or implementing the content in-
correctly, could result in injury or even death.
Memo Important information, such as additional
explanations, key points to remember, and
things to avoid doing.
02LTZLDTPE.pm6 01.2.15, 4:23 PMPage 9 AdobePageMaker6.0J/PPC

10
1. Before mounting the zoom lens
1-1 Safety precautions
Warning
Be sure to screw the Long throw zoom lens and adapter
ring down completely.Unless they are securely screwed
on, they could fall off and cause damage or injury (es-
pecially when the projector is ceiling-mounted).
1-2 Check product contents
•Make sure that you have all the parts, as shown below, before starting.
•In addition to the included screwdriver, you will also need a Phillips
screwdriver, and various other common tools.
Memo Be sure to use a Phillips screwdriver that fits
the screws properly.
Zoom lens
Front lens cap
Rear lens cap
Used to tighter/remove
mounting screws
Screwdriver
User’s manual (this document)
02LTZLDTPE.pm6 01.2.15, 4:23 PMPage 10 AdobePageMaker6.0J/PPC

11
2. Mounting the zoom lens
Warning
Be sure to disconnect the power cable before installa-
tion, because there is danger of electrical shock.
Memo Always mount and dismount the lens in a
clean room, to minimize the amount of dust.
Excessive dust inside the lens could cause
damage.
•Note that the illustrations below may not match your par-
ticular projector model.
Front case
Screws (two)
2-1 Remove the current lens
(1) Remove the front case.
1. Remove the two mounting screws, and pull off the front case.
02LTZLDTPE.pm6 01.2.15, 4:23 PMPage 11 AdobePageMaker6.0J/PPC

12
(2) Remove the current lens.
1. Use the enclosed screwdriver to remove the four mounting
screws, and dismount the current lens.
2-2 Mounting the zoom lens
(1) Mounting the zoom lens
1. Remove the rear lens cap.
2. Use the enclosed screwdriver to mount the zoom lens with the
four mounting screws. Be sure that the seal reading “UPPER”
is on top.
Current lens
Seal
Rear lens cap
02LTZLDTPE.pm6 01.2.15, 4:23 PMPage 12 AdobePageMaker6.0J/PPC

13
(2) Mounting the front case
1. Set the front case into position and tighten the two screws.
This completes installation.
•Turn on the power and verify that the projector operates nor-
mally.
Memo Be sure to remove the front lens cap before
turning on the power, or it may melt from the
heat.
02LTZLDTPE.pm6 01.2.15, 4:23 PMPage 13 AdobePageMaker6.0J/PPC

15
4. Zoom lens specifications
4-1 Lens specifications
1. Focal length 144.1 to 194.5mm
2. Zoom ratio 1.35 x
3. f number 2.60 to 3.27
4. Projection size 80 to 300 inches
5. Mass 2100 g
4-2 Appearance with zoom lens mounted
About 505mm
02LTZLDTPE.pm6 01.2.15, 4:23 PMPage 15 AdobePageMaker6.0J/PPC

11
User’s Manual for ELPLR01 Rear Projector wide Lens
•This wide-angle lens is designed for use only on EPSON multimedia
projectors.
•This lens is designed for use only on rear projection and rear projection
box systems.
•Please read this manual completely before use to assure maximum per-
formance.
•Note that illustrations may differ slightly from your actual product.
•Specifications are subject to change without notice.
Safety Precautions
To assure that this product is used safely, and to help prevent dam-
age or injury, the following symbols are used in the manual.Please
read this manual thoroughly before use to ensure safety and opti-
mum performance.
Warning
Ignoring this warning, or implementing the content in-
correctly, could result in injury or even death.
Memo Important information, such as additional
explanations, key points to remember, and
things to avoid doing.
02RPWLDTPE.pm6 01.2.15, 4:17 PMPage 11 AdobePageMaker6.0J/PPC

12
1. Before mounting the wide-angle lens
1-1 Safety precautions
Warning
Be sure to screw the Rear Projector wide lens and
adapter ring down completely.Unless they are securely
screwed on, they could fall off and cause damage or
injury (especially when the projector is ceiling-mounted).
1-2 Check product contents
•Make sure that you have all the parts, as shown below, before starting.
•In addition to the included screwdriver, you will also need a Phillips
screwdriver, and various other common tools.
Memo Be sure to use a Phillips screwdriver that fits
the screws properly.
Zoom lens
Front lens cap
Rear lens cap
Used to tighter/remove
mounting screws
Screwdriver
User’s manual (this document)
Hex wrench
Used to loosen and tighten
the ring mounting screws.
02RPWLDTPE.pm6 01.2.15, 4:17 PMPage 12 AdobePageMaker6.0J/PPC

13
2. Mounting the rear-projection wide-angle lens
Warning
Be sure to disconnect the power cable before installa-
tion, because there is danger of electrical shock.
Memo Always mount and dismount the lens in a
clean room, to minimize the amount of dust.
Excessive dust inside the lens could cause
damage.
•Note that the illustrations below may not match your particu-
lar projector model.
Front case
Screws (two)
2-1 Removing the current lens
(1) Remove the front case.
1. Remove the two mounting screws, and pull off the front case.
02RPWLDTPE.pm6 01.2.15, 4:17 PMPage 13 AdobePageMaker6.0J/PPC

14
Rear lens cap
(2) Remove the current lens.
1. Use the enclosed screwdriver to remove the four mounting
screws, and dismount the current lens.
2-2 Mounting the rear-projection wide-angle lens
(1) Mounting the rear-projection wide-angle lens
1. Remove the rear lens cap.
2. Use the enclosed screwdriver to mount the rear projector wide
lens with the four mounting screws. Be sure that the seal read-
ing “UPPER” is on top.
Current lens
Seal
02RPWLDTPE.pm6 01.2.15, 4:17 PMPage 14 AdobePageMaker6.0J/PPC

15

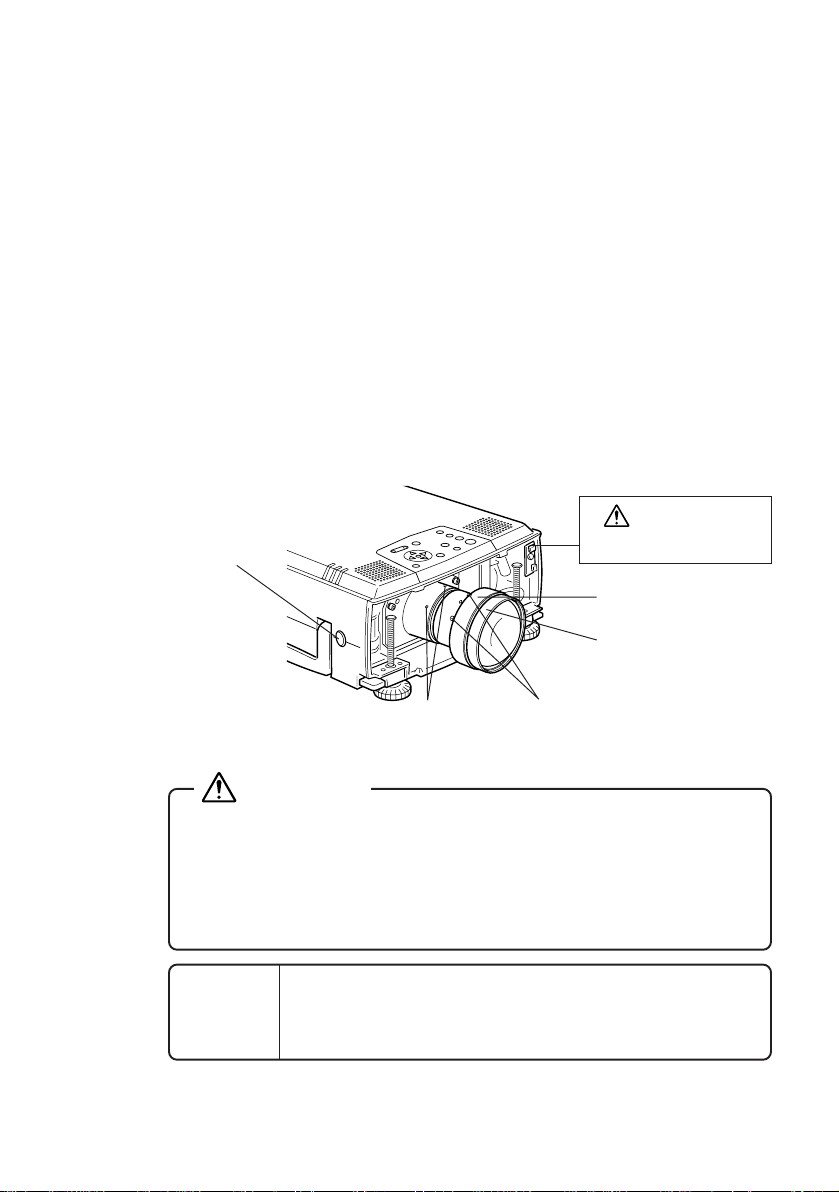

(2) Adjusting the wide lens for a rear projector
•This lens must be adjusted to match the screen size. Adjust the
lens as follows, before installing the front case.
1. Turn the lens shift button to move the lens all the way down.
2. Loosen the 2 focus ring mounting screws by using the hex wrench
that came in the same package.
3. Loosen the 2 resolving plane correction ring mounting screws
with the hex wrench.
4. Turn on the projector power.
5. Rotate the two rings to adjust the image to the optimum appear-
ance. The resolving plane correction ring should provide a sharp
image across the entire screen area.
6. Use the hex wrench to retighten the four ring mounting screws.
7. Turn off the power, and disconnect the power cable.
Warning
Turn the power only when adjusting the lens. Always
disconnect the power cable at other times.
When adjusting the lens, take care not to touch any
other parts of the projector or lens, as there is a danger
of electric shock with the front case open.
Memo Be sure to remove the front lens cap before
turning on the power, or it may melt from the
heat.
WARNING
DO NOT TOUCH!
Lens shift button
Resolving plane
correction ring
Resolving plane correction ring
mounting screws
Focus ring mounting screws
Focus ring
02RPWLDTPE.pm6 01.2.15, 4:17 PMPage 15 AdobePageMaker6.0J/PPC

16
(3) Mounting the front case
1. Set the front case into position and tighten the two screws.
This completes installation.
•Turn on the power and verify that the projector operates nor-
mally.
02RPWLDTPE.pm6 01.2.15, 4:17 PMPage 16 AdobePageMaker6.0J/PPC

18
4. Rear-projection wide-angle lens specifications
4-1 Lens specifications
1. Focal length 27mm
2. f number 2.3
3. Projection size 60 to 100 inches
4. Mass 1600 g
4-2 Appearance with rear projector wide lens mounted
About 455mm
02RPWLDTPE.pm6 01.2.15, 4:17 PMPage 18 AdobePageMaker6.0J/PPC

9
User’s Manual for ELPLS01 Standard Lens
•This standard lens is designed for use only with EPSON multimedia pro-
jectors.
•Please read this manual completely before use to assure maximum per-
formance.
•Note that illustrations may differ slightly from your actual product.
•Specifications are subject to change without notice.
Safety Precautions
To assure that this product is used safely, and to help prevent dam-
age or injury, the following symbols are used in the manual.Please
read this manual thoroughly before use to ensure safety and opti-
mum performance.
Warning
Ignoring this warning, or implementing the content in-
correctly, could result in injury or even death.
Memo Important information, such as additional
explanations, key points to remember, and
things to avoid doing.
02SLDTPE.pm6 01.2.15, 4:19 PMPage 9 AdobePageMaker6.0J/PPC
