Euro Video EVD-16/400A16MN Guide

User’s Manual
EVD-16/400A16MN -1- www.eurovideo-cctv.com
INSTALLATION/OPERATION
REALTIME
DIGITALVIDEO RECORDER
(MPEG4 –16 CHANNEL)

User’s Manual
EVD-16/400A16MN -2- www.eurovideo-cctv.com
WARNING: To prevent a risk of fire of electric shock, do not expose this product to rain or moisture.
• This installation should be made by a qualified service person and should conform to all local codes.
• This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Copyright This manual is the intellectual property of Manufacturer and is
protected by copyright. All rights are reserved. No part of this
document may be reproduced or transmitted for any purpose,
by whatever means, be they electronic or mechanical, without
the express written permission of Manufacturer.
Edition : Dec.2007
Copyright 2007 Manufacturer
Note This Manual was compiled with the greatest of care and all information
double checked. At the time of printing the description was complete and
correct. Because of the further development of products, the content of the
manual might change without prior notice. Manufacturer will not be liable
for damage which is directly or indirectly due to errors, incompleteness, or
discrepancies the manual and the product described.
Trade marks All names used in this manual for hardware and software are very probably
registered trade marks and must be treated as such.

User’s Manual
EVD-16/400A16MN -3- www.eurovideo-cctv.com
Contents
FOR THE SAFETY OF CUSTOMERS…………………...………………………….…………………………4
DESCRIPTION OF PARTS AND FUNCTION…………...…………………………………………………....7
COMPOSITION OF UNIT…………………………………...……………………………………………………7
FEATURES …………………………………………………..……………………………….……………….....8
DESCRIPTION OF PARTS AND FUNCTION ………………..…………….…………..……..……………….. 9
Front Panel……………………………………………………..………………………………..…………........9
Rear Panel………………………………………………………..………………………………………… …11
Connection diagram………………………………………………………………………………………….13
OSD Description.................................................................................................................................................15
MENU………………………………………………………………...………………………………………......16

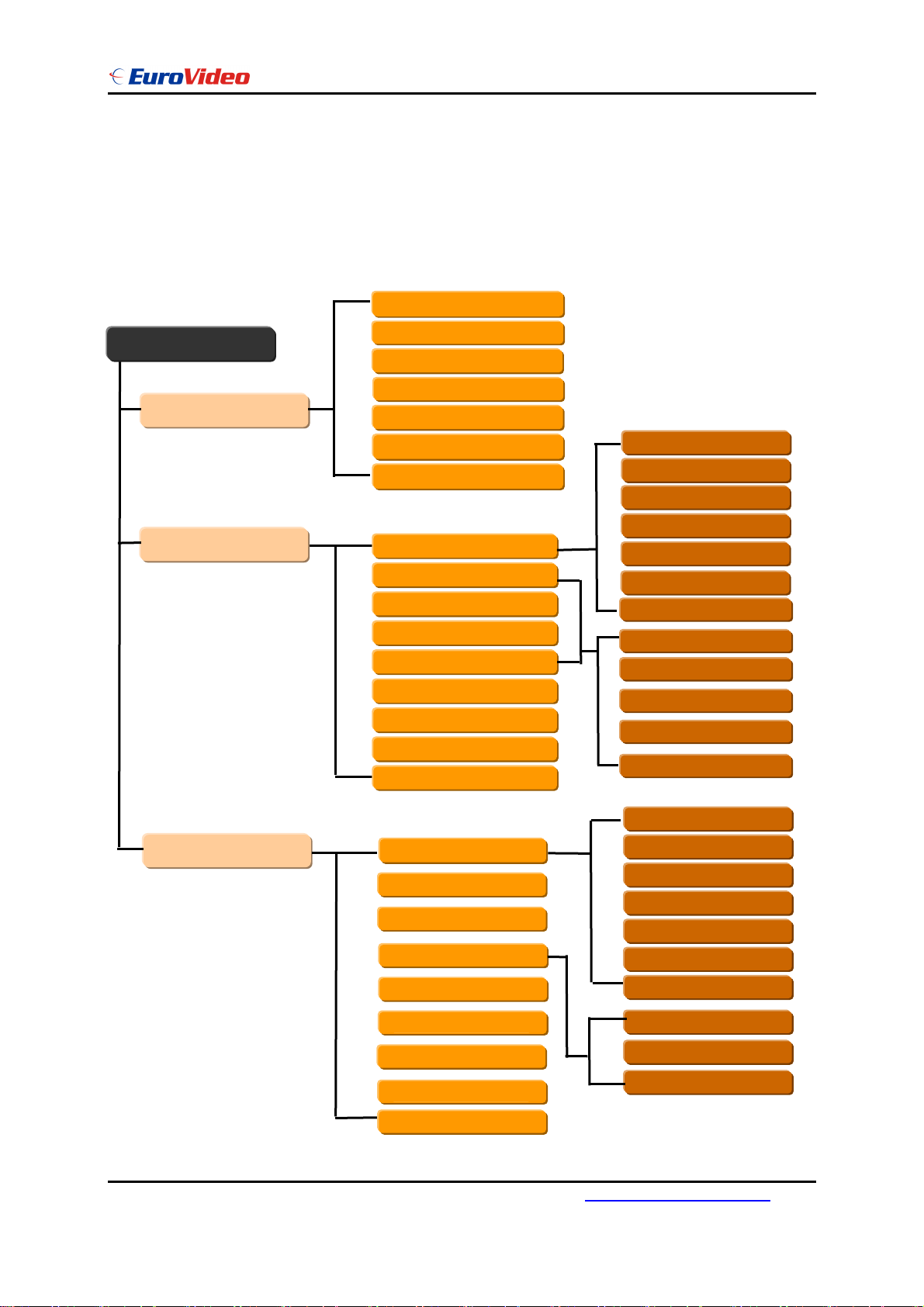

MENU TREE…………………………………………………………..…………………………………………16
Main Menu.…………………………………………………………..………………………………………..18
Display………………………………………………………………..………………………………………..18
Recording……………..………..……………………………………..………………………………………..22
System ….……………………………………………………………..……………………………………….26
Network …………………………………………………………………..…………….……………………..32
Event ….……………………………….…………………………..…………………………….….34
Search………………………………………….……………………………………………………….………35
Search……………………………….…………………………………………………….………35
BackUp……….……………………………………………………………………………….………39
Log……….……….……………………….……………………………………………………….………41
Client Program…………………………………………………………………………………........................42
Q & A……………….………………………………………………………………………………….…………68
Appendix 1…...……………………………………………………………………….........…………………….70
Appendix 2...………………………………………………………………………….........…………………….73
Appendix 3…...........………………………………………………………………….........…………………….77
Appendix 4…...........………………………………………………………………….........…………………….80
Appendix 5…...........………………………………………………………………….........…………………….82
Appendix 6 (Specification) ………….…………………………………………….........…………………….89
Product Warranty……………………………………………………………………………………………….91

User’s Manual
EVD-16/400A16MN -4- www.eurovideo-cctv.com
1. FOR THE SAFETY OF CUSTOMERS
Caution before use
Please read this manual for proper use.
The caution described in this manual contains very important information for the safe use, so, please
follow the instruction.
Please keep it whether you could reach after read.
For the safety and proper use, it marked various symbol. So, please read it to prevent your physical or
financial loss.
Tips for installation
Please avoid water which could be the reason of firing or electric shock.
Clean the plug and socket.
Please keep the socket and plug clean so that you could avoid the fire. The plug should be tightly
connected to the wall socket.
Do not put the unit on an unstable place.
Do not put the unit on an unstable place like rugged table or slope place.
Be careful for the installation position.
Don’t put the device in humid, direct sunlight, dusty, hot, greasy condition.

User’s Manual
EVD-16/400A16MN -5- www.eurovideo-cctv.com
Caution for proper usage
During use
In following cases, please turn off the power and remove the plug then, please contact technical
support.
If you use it continually, it could be a reason for a fire or electric shock.
If smoke comes out of the device or when you smell something burning.
If a alien substance is split into the device.
If the device is dropped or the case is damaged.
If the power cable has been damaged ( ex. slipped etc.)
No picture being displayed.
Don’t open the case or modify.
There is the high voltage sector inside the unit so, if you open the case
or modify it, it could cause the fire or electric shock.
Don’t put a cup containing water or juice and small material on the device
If you spilt water or alien substance into the device, it could cause the fire or electric shock.
Don’t put any alien substance .
..
.
Don’t put alien substance through the fan.
Don’t touch when lightning .
..
.
When the lightning starts, don’t touch the plug or cable. It could cause the electric shock.
Don’t touch the power plug with wet hand .
..
.
Don’t unplug with wet hands. It could cause a electric shock.
Don’t pull out the power cable.
Use the designated HDD

User’s Manual
EVD-16/400A16MN -6- www.eurovideo-cctv.com
Please use the designated HDD. Otherwise, recording may be operated improperly.
Maker HDD Capacity
Western Digital
Seagate
80,160.250.500,750GB each. And Total 3TB is supported.
Up to 4pcs of HDD are available.
*
**
* Manufacturer guarantee the combination of same HDD capacity only.
(Ex. It is fine with 320GBx2pcs but it isn’t guaranteed with 250GB+80GB.)
Don’t pull out the cable when plug out from the wall socket.
It could damage the cable and cause the fire.
Please pull out holding the plug.
When you move, please remove plug .
..
.
If you move the device while the plug is in the socket, it could cause a fire by damaging the cable.
Don’t block the ventilation window.
When the ventilation window is blocked, it could cause the fire by the generation of Internal heat.
Don’t put a heavy item on the device .
..
.
When it looses the balance and falls down, the customer could be hurt.
Keep the plug and socket clean.
Regarding the cleaning, please contact your Installer.
If there is too much dust inside the device, it could cause the fire or internal short.
Clean the plug and socket.
Please keep the socket and plug clean to avoid fire. The plug should be tightly connected to the wall
socket.
Caution when you don’t use the device for a long time.
If you don’t use the device for a while, please switch off and unplug.

User’s Manual
EVD-16/400A16MN -7- www.eurovideo-cctv.com
2
2. . D DE ES SC CR RI IP PT TI IO ON N O OF F P PA AR RT TS S A AN ND D F FU UN NC CT TI IO ON N
2-1 COMPOSITION OF UNIT
Standard
When you have received a product “without HDD” , the accessories
1) stand for HDD installing 2) fixing screws will be supplied.
2-2 FEATURES
※Accessories are subject to change without notice.
Power Cable
Digital Video Recorder System
Please read this manual before using
User Manual
Remote Controller
Battery

User’s Manual
EVD-16/400A16MN -8- www.eurovideo-cctv.com
● Convenience
- User-friendly GUI( Graphic User Interface)
- Easy-to-use menu composition
- Easy-to-use recorded data search (Time, Date, Motion,Alarm)
- Easy-to use menu with USB Mouse.
●Stability
- Auto restart after power interruption
-DB structure offers data stabilization and best storage utilization
●Expandability
-Various remote multi DVR’s can be controlled by Web browser (PC Client System)
●Technology
-Embedded LINUX OS
-Totally maximum recording rate 400fps
-High-resolution & high-quality MPEG-4 algorithm
-Using Water marking & scrambling technologies,
-Strong protection recorded data
-MPEG-4 : 1 ~ 2 Kbytes per image with resolution 360x240
●Functionality
- Variable recording function (normal, alarm, motion, schedule, audio, Time Lapse,)
- Full channel real-time monitoring
- Live monitoring, recording, playback, backup, remote access at the same time
- Multi channel playback
- Variable events notification to e-mail, buzzer or PC Client system
2-3 DESCRIPTION OF PARTS AND FUNCTIONS
2-3-1 Front Panel

User’s Manual
EVD-16/400A16MN -9- www.eurovideo-cctv.com
(1) MENU
- Display on the menu on the screen
(2) P/T/Z/ SELECTION
- P/T/Z selection of the channel that a user wants to control
(3) CHANNEL DIVISION
- Screen split that a user wants to set
(4) LED (POWER/REC/NET/HDD)
- PWR : System Power On/Off (When power is on, the green light is lit up)
- REC : Recording status (When recording is on, the red light is blinking)
(5) PAN/TILT/ZOOM/FOCUS
- Control on PAN/TILT/ZOOM/FOCUS of the channel that a user selects
(6) SELECTION BUTTON
- Menu selection
(7)ARROW KEY
- Course shifting on the menu
(8) SEARCH
- Entering search mode directly
(9) STOP& EJECT ( )
- To stop playback and go back to live mode
- To eject CD-RW

User’s Manual
EVD-16/400A16MN -10- www.eurovideo-cctv.com
(10) PAUSE ( )
- To freeze picture on playback mode and live mode
(11) REWIND (◀
◀◀
◀)⊳
⊳⊳
⊳
- Playback on the reverse
(12) PLAY ▶(▶)
▶(▶)▶(▶)
▶(▶)
- Playback on the recorded data
- One more button on play mode, fast-forward will be executed
(13) REC (●
●●
●)
))
)
- It manually starts & stops recording of relevant camera in a full screen live mode
(14) POWER BUTTON
- System Power On/Off
(15) USB 2.0 PORT
- USB 2.0 connector
(16) NUMERIC & CHARACTER
- Input for numeric & character

User’s Manual
EVD-16/400A16MN -11- www.eurovideo-cctv.com

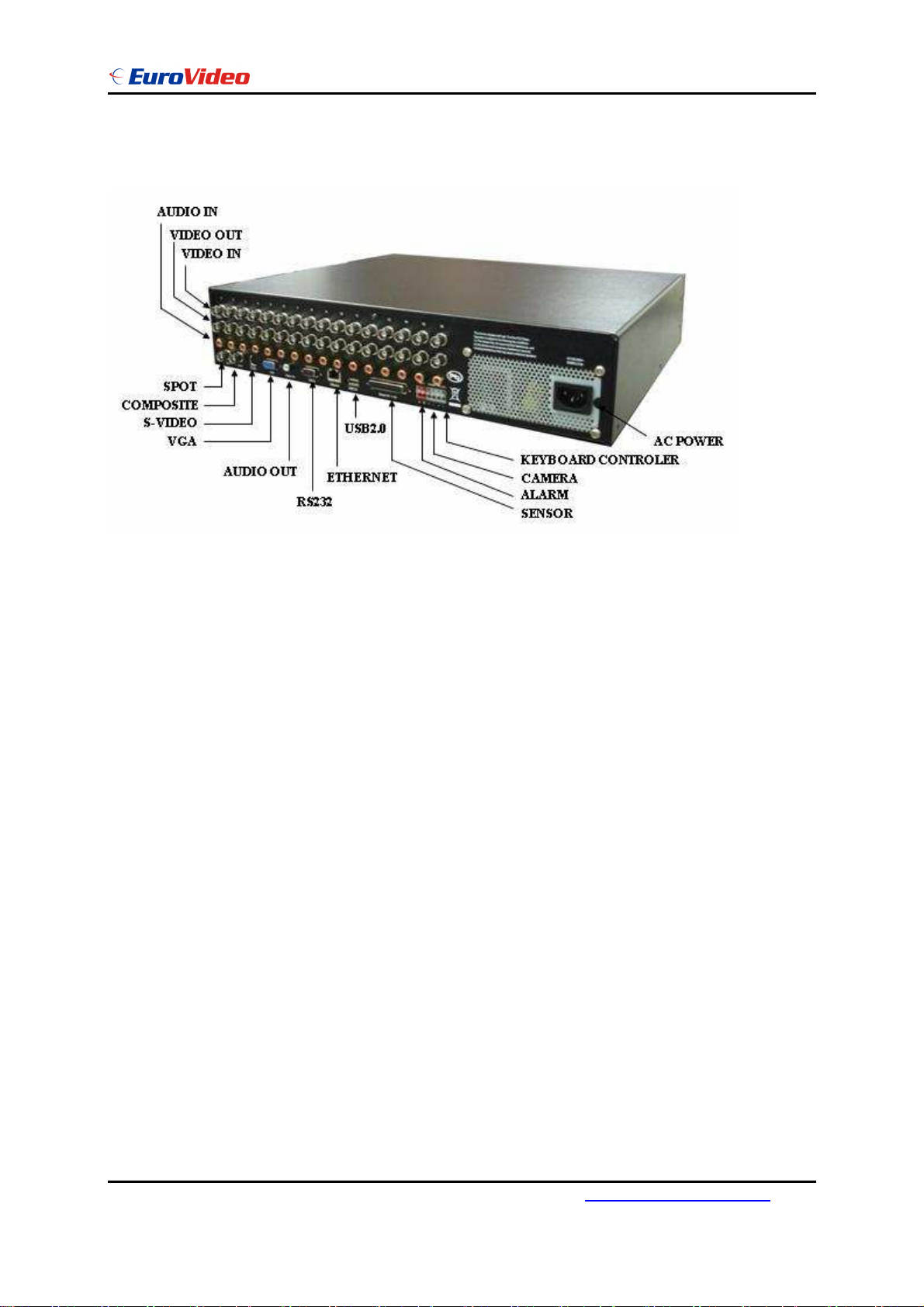

2-3-2 Rear Panel
(1) VIDEO IN (BNC)
- 16 Camera input (1.0v p-p, 75 Ω)
(2) VIDEO OUT
- 16 LOOP/ SPOT / Composite / S-VIDEO / VGA
(3) LINE AUDIO INPUT
- 16Audio input through line
(4)AUDIO OUTPUT
- 1Audio output
(5) RS232
- 1 Serial Communication
(6) Network Port (RJ-45)
- Available to monitor live screen and recorded data on the HDD through Internet or LAN
(7) USB 2.0
-USB 2.0 connector

User’s Manual
EVD-16/400A16MN -12- www.eurovideo-cctv.com
(8)ALARM / SENSOR
-ALARM / 16 SENSOR INPUT / 1 OUTPUT PORT
(9) CAMERA/ KEYBOARD CONTROLER
- 1 Serial Communication for Pan / Tilt Camera
- 1 Serial Communication for P/T/Z Control Keyboard
(10)AC POWER
-AC 110~240 V (Free Voltage)
ATTENTION
When the video format is changed, the system should be re-booted
The video format should be selected before booting
Default Passwords
“00000000” i.e. 8x Zero’s. Password is required if you need to
down-power or stop recording, prompt will be displayed asking
for password.
Web Client
User ID “admin” (not case sensitive). Admin ID
cannot be changed this is full administrator ID.
Password “00000000” i.e. 8x Zero’s

User’s Manual
EVD-16/400A16MN -13- www.eurovideo-cctv.com

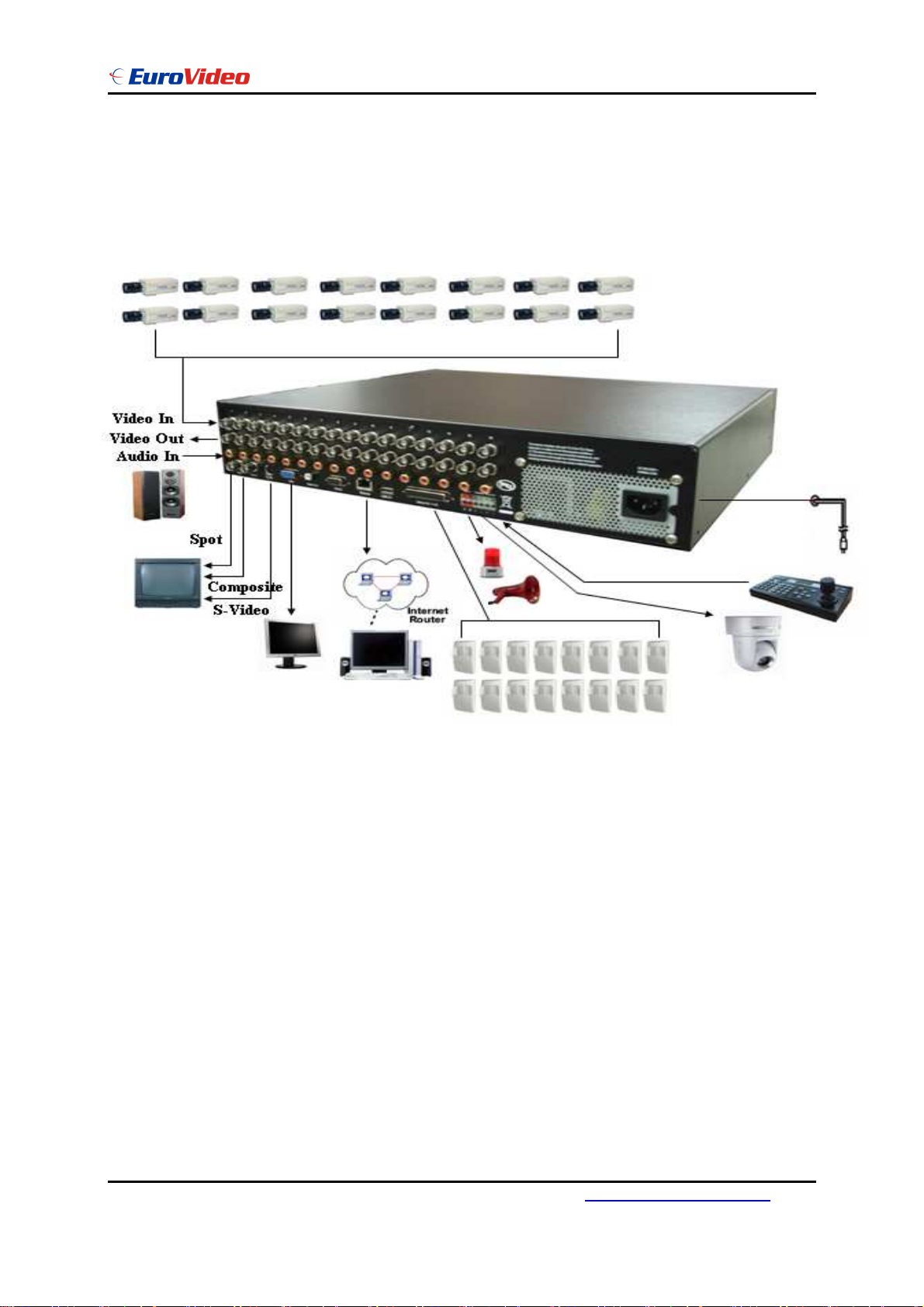

2-3-3 System Connection Diagram

User’s Manual
EVD-16/400A16MN -14- www.eurovideo-cctv.com

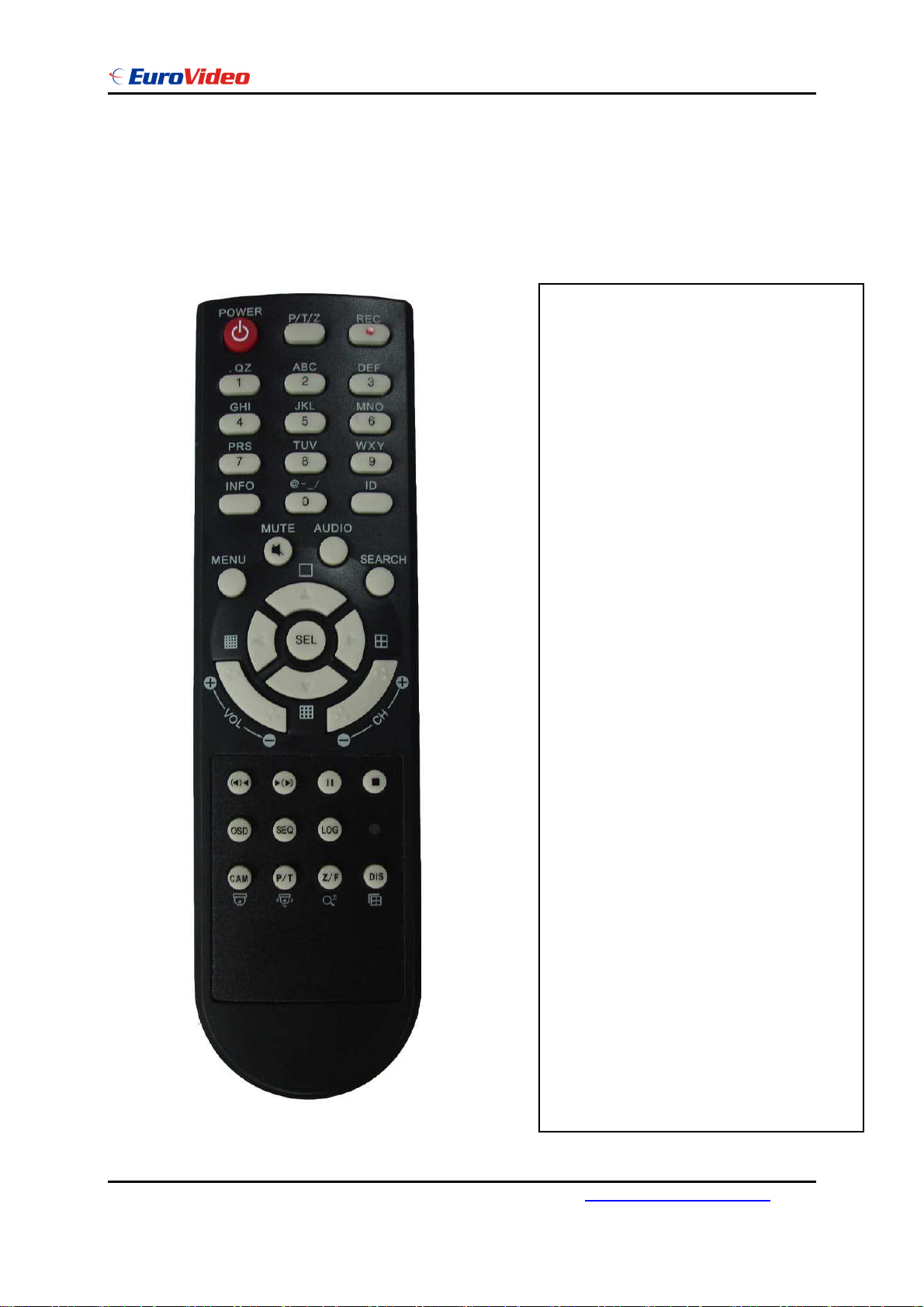

2-3-4. IR Remote Controller
1.Power : Power ON/OFF
2. Rec : Start & Stop Recording
3.ⓞ~⑨:Key for figure and character
4. P/T/Z: Entering PTZ menu directly
5. OSD : Operating OSD ON/OFF
6. SEQ : Key for SEQ operation
Access to main Menu(240/200fps)
Hot key for Spot(480/400fps)
7. LOG : Direct access Log list
8. INFO: Direct access system Info.
9. ID : Reserved.
10. MUTE : Audio Mute
11. AUDIO : Available audio switching when
user select this key
12. MENU : Entering system menu
13. SEARCH : Entering search
14. ARROW & SPLIT : Key moving left,
right, up and down. Also, Screen split display
shows
15. VOL”+,-“ : Up, down volume
16. CH “+,-“ : Up, down channel(s)
17. ▶(▶) : Play(or fast forward)
18. ◀(◀) : Reverse play
19 II : Pause
20. █: Stopping playback
21. Cam : Changing PTZ icon
22. P/T : Pan &Tilt
23. Z/F : Zoom/ & Focus

User’s Manual
EVD-16/400A16MN -15- www.eurovideo-cctv.com
2-3-5. OSD Description
:
Status Bar is shown HDD capacity, Event, Network
connection, Time, etc using by icons.
-HDD Capacity : 1.7GB is used out of 298.0GB
-Event(i.e. Power Fail ) : Power Fail, Video loss, etc
will be shown when it is occurred.
-Network connection : It is shown that admin or user
is connected.
-Date/Time
*Others :
-Backup
-Mute
-
USB Stick:
It shows PTZ controlling, as
CH2 is Speed Dome input. It
is able using by arrow keys.
Record Standby:
It is shown when
recording is not
activated.
PTZ icon

User’s Manual
EVD-16/400A16MN -16- www.eurovideo-cctv.com
3
3. . M ME EN NU U
3-1. Menu tree
Display
Recording
System
Camera Setting
Camera Covert
Camera Name
OSD Setting
Post Duration
Quality
Global
Resolution
Basic
Disk Format
Password Change
Client Account
Program Update
Main Menu
Watermark
HDD Overwrite
Language
Sensor
Pre FPS
Pre Duration
P.T.Z Controller
Spot Setting
P.T.Z Setup
Event Clear
Normal
Alarm
Motion
Schedule
Audio Event
Time Lapse
Priority
Apply
Apply
Apply
Frame rate
Recording Quality
Sound On/Off
Setup Motion
Setup Schedule
Auto Delete Mode
Date Format
Time/DST Set
Video Type
System ID
Live Resolution
User Name
New Password
Confirm PW

User’s Manual
EVD-16/400A16MN -17- www.eurovideo-cctv.com
Network Set
DDNS
IP SET
E-Mail Registration
Event
Video Loss
DDNS
User ID
User Password
Domain
Dynamic IP
IP
GateWay
Netmask
DNS Server
DSL ID
DSL PW
DVR Port
Web Port
NTP
E-Mail Out
Beep Out
Alarm Out
Apply
Alarm
Motion
Power Loss
Search
Menu
Backup
Log
All
Power
Record
Operation
Client
Event
Search
Date/Time
Event
Calendar
Apply
All
Power
Internal
External
Preview

User’s Manual
EVD-16/400A16MN -18- www.eurovideo-cctv.com
3-2 Main Menu
NOTE
Before usage, be sure to setup the unit properly.
When ‘MENU” button is pressed, “Password” is required first. Then, below menu shows on the screen.
Display
-Camera Setting : Bright, Saturation, Contrast, Hue, default
Please use UP() / DOWN() or Numeric buttons on the front panel to move to next menu. To move
to the submenu, use the “SELECT” button. It will applied instantly without “Apply”.

User’s Manual
EVD-16/400A16MN -19- www.eurovideo-cctv.com
- Camera Covert
It allows hidden Camera, which mean, even live monitoring screen isn’t shown on the screen(black
screen), however, the recording( if recording is “on” condition) is activating.
- Camera Name
Camera title can be written on the screen in both System(DVR) and Client(Network). It will be
available up to 30 characters, if the monitor couldn’t show it in 1 line, it will be shown as ___ …. For
example, ‘FIRST MEETING ROOM’-> ‘FIRST MEETIN…’

User’s Manual
EVD-16/400A16MN -20- www.eurovideo-cctv.com
- Spot Setting
<Single Screen> <Quad Screen>
<9 Channel Division> <16 Channel Division>
Spot output is used when user would like to see event channel instantly. For example, if you want to
see ‘Motion’ event channel, please set as ‘Motion’ in the ‘Mode’ section then, select duration. Spot
Mode is available from ‘Single/Quad/9Channel/16Channel/Alarm/Motion/Audio.
- OSD Setting
User can select OSD
On/Off, Time and details
for Event on/off, Camera
Name and Blending as
well. New setting value
will be applied instantly
without pressing “Apply”.
