Euroscreen LEONARDO FR37 User manual

This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
INSTALLATION MANUAL
FRAME SCREEN
LEONARDO FR37
ORIGINAL INSTRUCTIONS IN ITALIAN LANGUAGE
Translation into English language
RELEASE ER2023_04_03

Mod. LEONARDO FR37Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
1.0 GENERAL INFORMATION
1.1 Frame screen description
1.2 Manufacturer’s rights
1.3 Contents and map of this manual
1.4 Warnings
1.5 Warranty - General information
1.6 Screen labels
2.0 FRAME SCREEN DESCRIPTION
2.1 General description
3.0 ASSEMBLY
3.1a Leonardo FR37with Oyster surface packaging content
3.1b Leonardo FR37with others projection surfaces packaging content
3.2 Structural frame assembly
3.3 Projection cloth mounting
3.3a Oyster surface mounting
3.3b Other projection surfaces mounting (different from Oyster)
3.4 Thin bezel assembly
4.0 INSTALLATION
4.1 Wall mounting
INDEX
In order to guarantee the best performances of your screen, please
READ CAREFULLY this installation manual.
RELEASE ER2023_04_03

Mod. LEONARDO FR37Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
1.1 FRAME SCREEN DESCRIPTION
1.0 GENERAL INFORMATION
This installation manual contains the description of “frame screen” as it
is produced by the manufacturer. This manual contains information about
installation, use and maintenance of the screen.
It also contains the information about the technical features and safe use of the
product.
The installation manual is composed from:
1.0 General information
2.0 Frame screen description
3.0 Assembly
4.0 Installation
1.2 MANUFACTURER’S RIGHTS
Copyrights of this installation manual are exclusively of:
EUROSCREEN SRL
Via Stiria 45/16
33100 Udine - Italy
Tel. [phone]
Fax [phone]
[email protected]
www.screenint.com
1.3 CONTENTS AND MAP OF THIS MANUAL
The frame screen LEONARDO FR37 is entirely manufactured in Italy, with high
quality materials and projection cloths that guarantee to your system excellent
quality performances in compliance with CE legislation.
The screen is designed specically for home cinema or professional projections.
The LEONARDO FR37 screen is available in different formats and with different
projection surfaces.
RELEASE ER2023_04_03

Mod. LEONARDO FR37Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
Before assembling and installing the frame screen read carefully the installation
manual. Please, store this installation manual so that you can consult it whenever
necessary.
When opening the screen packaging, USE VERY CAREFULLY EVENTUAL
CUTTERS OR SHARP TOOLS that can damage its content. It is recommended
to wear working gloves during the opening of the packaging and the installation
of the product.
According to the weight of the product it has to be handled by two or three or more
people, based on the relation KG/PERSON: MALE 25 kg. - FEMALE 15 kg.
Install the screen in a location with a temperature between 20°C and 24°C.
The manufacturer does not take responsibility for any damage to property or
personal injury if the screen is used outside of recommended specications or in
case of incorrect/poor quality installation.
This projection screen is guaranteed 2 years from the purchase date for
manufacturing defects.
Responsibility is limited to repairing or substitution of the defected components
and without any other charge at our expense.
Warranty is ofcially voided if the screen has been dismantled or it is returned with
collision damage or defective due to incorrect installation. Repairs must be carried
out by an Approved ScreenInt Certied Engineer.
Warranty is ofcially voided if (all the following cases are including but not limited):
1) defects not due to deciencies in the material or workmanship;
2) amendments, alterations, repairs or disassembling of the Product not previously
authorized in writing by Screenint;
3) installation, use or maintenance of the Product not in compliance with Screenint
‘s instructions as set forth in this Installation Manual and/or in any other technical
documentation supplied together with the Product;
4) bad and/or improper and/or not in compliance installation, maintenance,
negligence, improper use;
5) use of non-original spare parts or not authorized in writing by Screenint;
6) normal wear and tear;
7) the screen has been damaged in transit;
8) the sticker regarding the serial number of the product has been altered, deleted,
removed or tampered.
DO NOT install this screen nearby or over heating or air conditioning systems,
because PVC is a plastic material which dilates and remains damaged if it is
subjected to heat and/or cool air.
DO NOT install this screen either facing direct sun light or blocking a window as
PVC could be damaged and make waves for the explanations given above.
The PVC cloth is very sensitive to temperature range. We advise to mount the
screen in environments with an ambient temperature in the range of 20°-25°C.
1.4 WARNINGS
1.5 WARRANTY - GENERAL INFORMATION
RELEASE ER2023_04_03

Mod. LEONARDO FR37
MANUFACTURED BY
EUROSCREEN SRL-ITALY
MADE IN ITALY
SERIAL N.
,
“A”
“B”
“D”
“C”
Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
We advise you to WAIT 3 HOURS for the SCREEN to ACCLIMATISE BEFORE
MOUNTING the screen after delivery, especially if screen arrives from a cold
temperature.
THE SCREEN HAS TO BE STOCKED AND TRANSPORTED ALWAYS IN
HORIZONTAL POSITION, otherwise there could appear waves on the projection
cloth.
DO NOT WASH the projection surface with alcohol or solvent nor with commercial
cleaners. Every now and then dust the surface with a dry and clean duster.
Please, be very careful because any kind of stain on projection surfaces is
inerasable.
When the screen is not completely rolled down (as by factory setting), atness of
the cloth is NOT guaranteed and therefore not covered by warranty.
DO NOT HANG TO THE SCREEN and DO NOT HANG ANY OBJECT to it. Please
take care that children DO NOT PLAY with the screen as they can get severely
injured.
The manufacturer will not accept returns of screens for repair without manufacturer’s
authorization (RMA number) and without a suitable packaging.
This screen is equipped with product identication labels that indicate its essential
technical specications.
1.6 SCREEN LABELS
1.6.2 Label position
Looking at the screen from the
front it. The label is sticked on
the rear side of the frame, on the
bottom corner.
1.6.1 Label n. 01
It provides the following
information:
A) Serial number
B)* Motor power
C)* Operating frequency
D)* Power consumption
* Not applicable to frame
screens.
RELEASE ER2023_04_03

Mod. LEONARDO FR37
37 37
37 37
106106
106 106
H
Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited

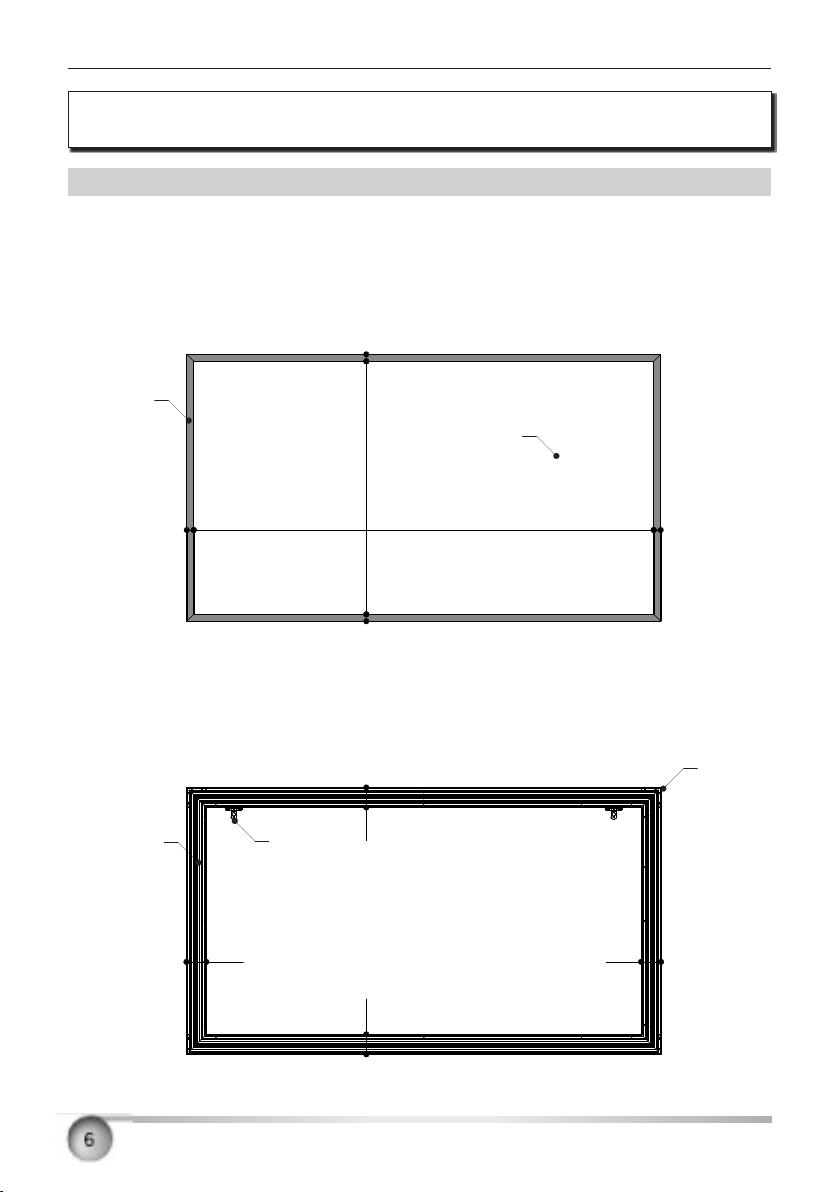

2.0 FRAME SCREEN DESCRIPTION
The gures below describe the main elements of the product.
Front view
Rear view
2.1 GENERAL DESCRIPTION
Structural
frame
Mounting brackets
Thin bezel
Velvet covered
thin bezel
Projection
surface
W
RELEASE ER2023_04_03

Mod. LEONARDO FR37
58
37
3
8
9
126
105
15 18
7
20
60
30
= =
18
ø18
ø6
Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited

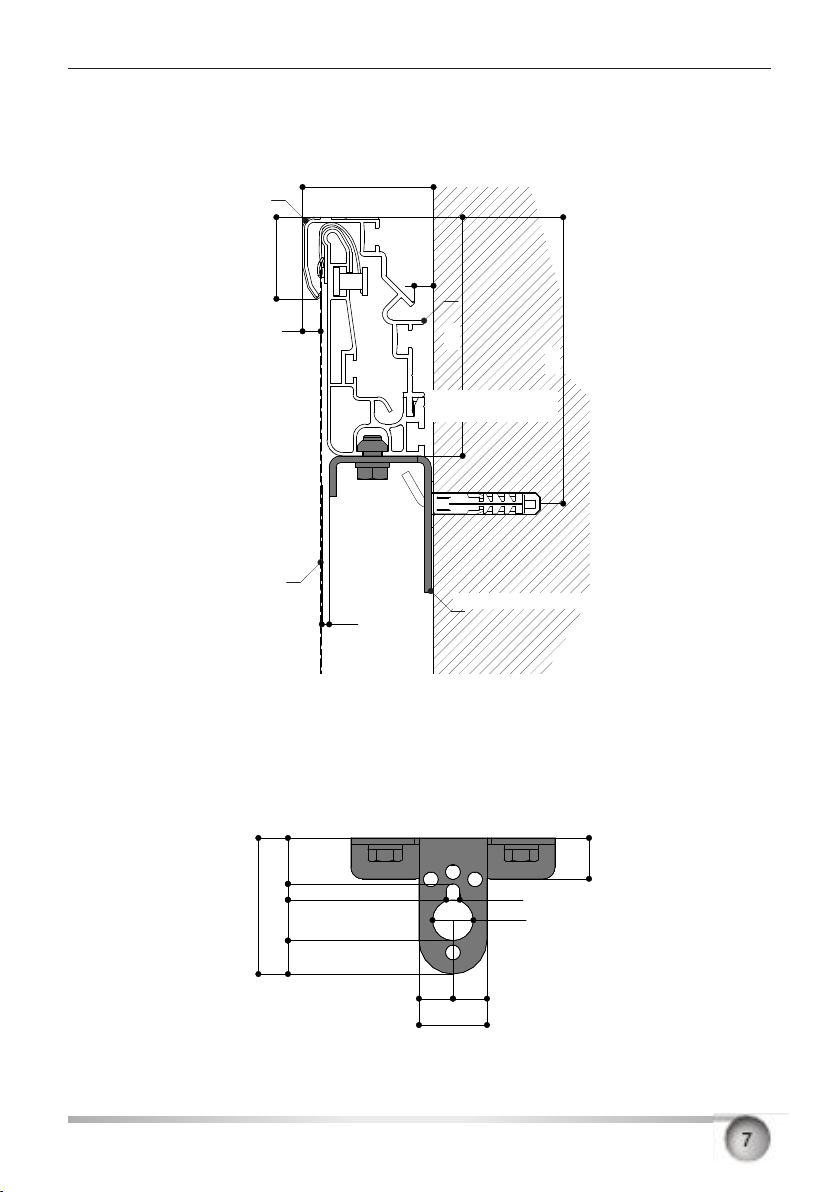

Proles combination
Thin bezel covered with
velvet
Structural frame
aluminum prole
Projection
surface
Mounting bracket
Rear view mounting bracket
RELEASE ER2023_04_03

Mod. LEONARDO FR37Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
Structural frame segments (A)
Metal corners (C) Projection surface (D)
Rubber bands (E)
Thin bezel segments (B)
Screws + wall plugs (G)
Pcs. 04
Pcs. 16
Pcs. 2
Pcs. 01
Pcs. 04

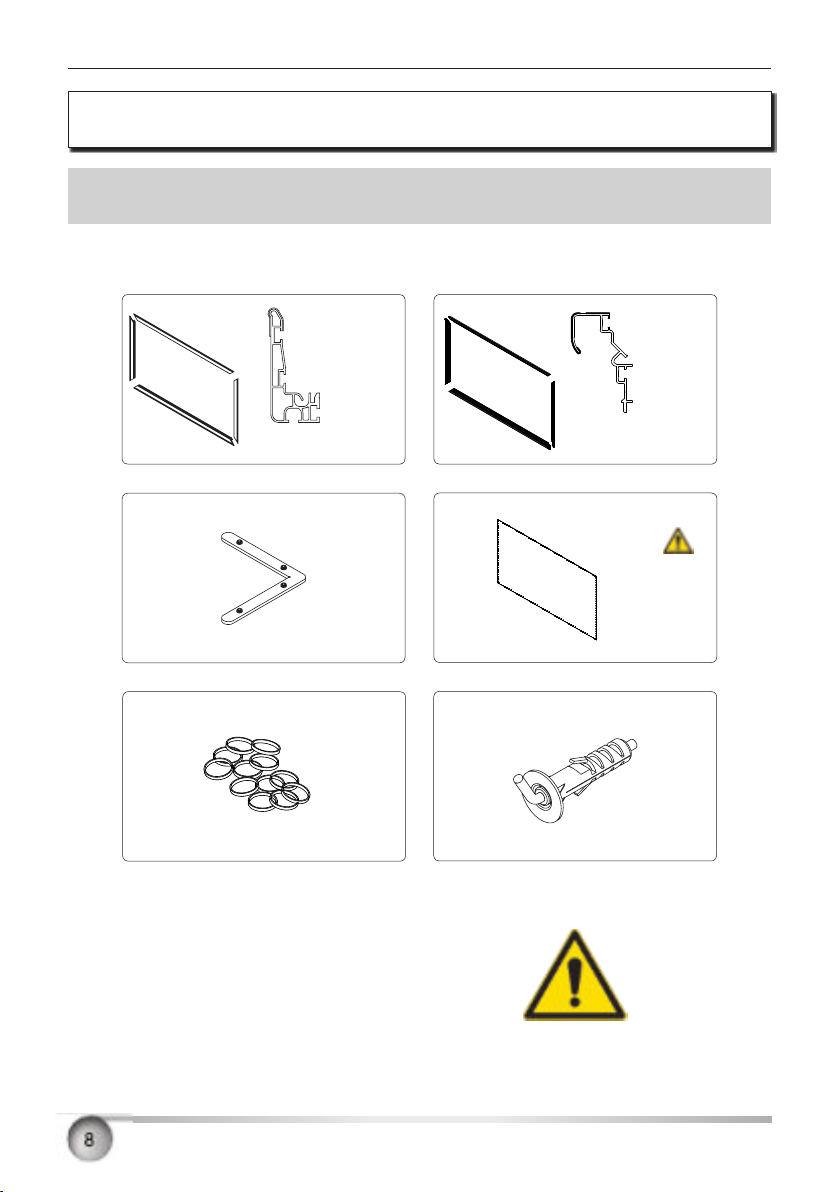

3.0 ASSEMBLY
3.1a LEONARDO FR37 WITH OYSTER SURFACE
PACKAGING CONTENT:
Inside the packaging, there will be the following components.
The manufacturer declares
that the projection surface
Oyster cannot be mounted
in environment with 70%
or more of humidity rate,
because humidity can cause
waves on the cloth.
RELEASE ER2023_04_03

Mod. LEONARDO FR37Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
Structural frame segments (A)
Metal corners (C) Projection surface (D)
Rubber bands (E)
Protective cloth
Galvanized rods (E)
Thin bezel segments (B)
Screws + wall plugs (G)
Pcs. 04
Pcs. 16
Pcs.04
Pcs. 01
Pcs. 02Pcs. 01
Pcs. 04

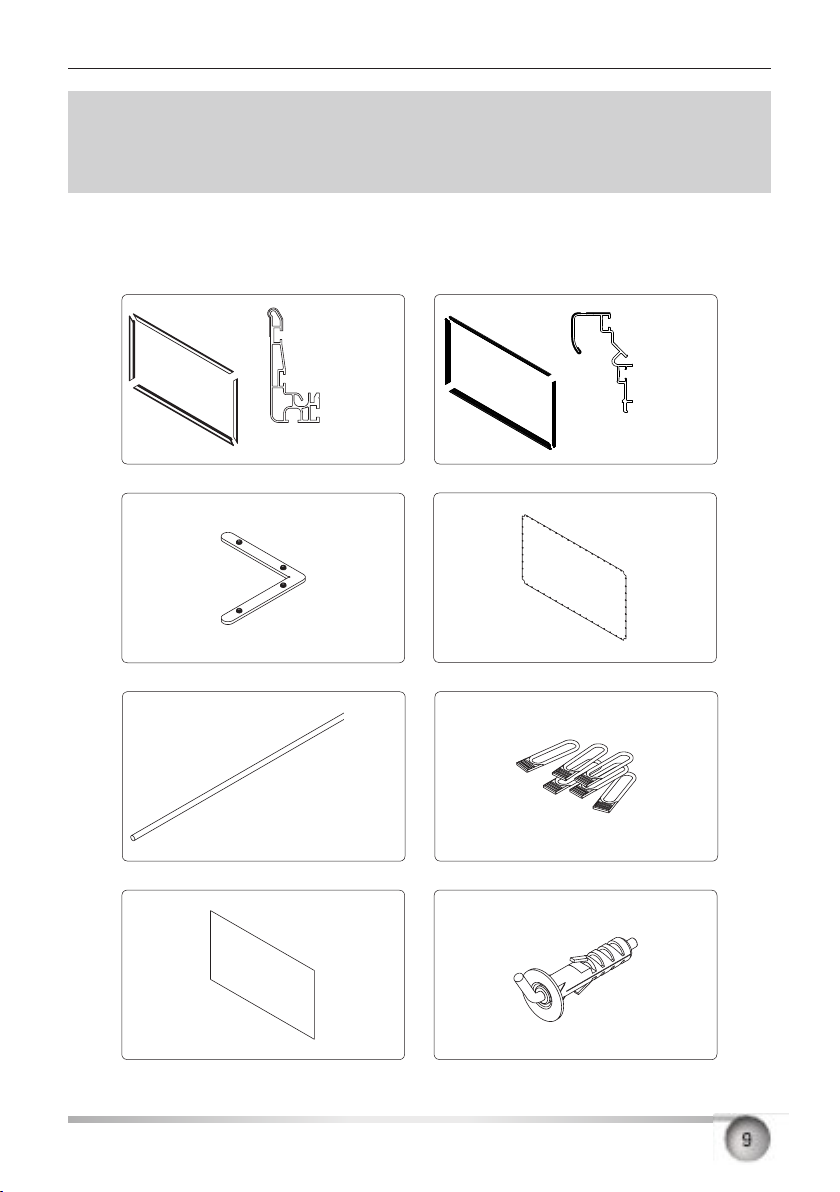

3.1b LEONARDO FR37 WITH OTHER PROJECTION
SURFACES (DIFFERENT FROM OYSTER)
PACKAGING CONTENT:
Inside the packaging, there will be the following components.
RELEASE ER2023_04_03

Mod. LEONARDO FR37
X
X
11
22
33
Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
The rst step of Leonardo FR37 screen installation consists in assembling the
structural frame.
OYSTER Surface
The slots to be
used to insert the
metal corners (C)
are
n. 1 and n. 2 as
shown in the
drawing on the
right.
Do not use slot n. 3
because this is for
the cursors only.
PVC Surface
The slots to be
used to insert the
metal corners (C)
are
n. 1 and n. 3 as
shown in the
drawing on the
right.
Do not use slot n. 2
because this is for
the cursors only.
Step 1a
Step 1b
Place the metal corners (C) near the slots of one long structural
frame segment (A).
Insert the metal corners (C).
3.2 STRUCTURAL FRAME ASSEMBLY
RELEASE ER2023_04_03

Mod. LEONARDO FR37Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
Put the short structural frame segments (A) close to the metal corners (C).
Insert the short structural frame segments (A).
Step 2a
Step 2b
RELEASE ER2023_04_03

Mod. LEONARDO FR37Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited

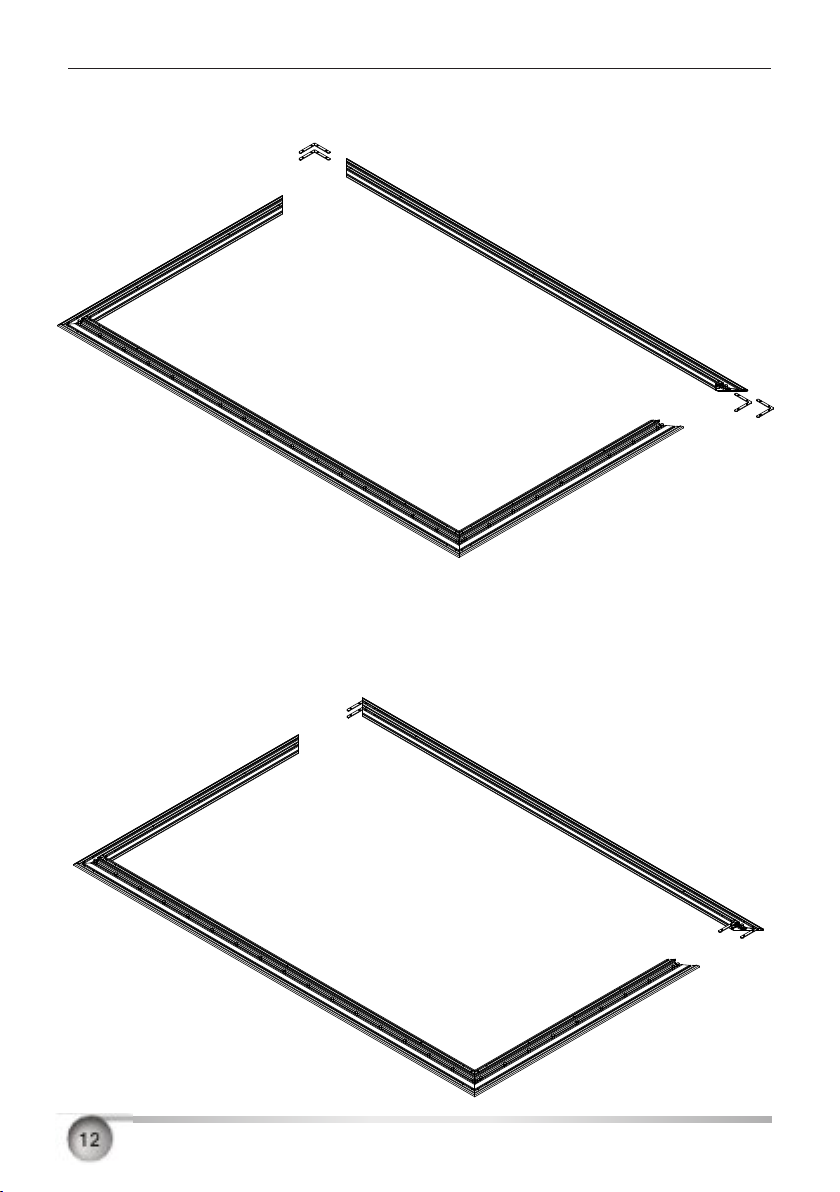

Step 3b
Step 3a
Insert the metal corners (C) to this frame segment.
Place the remaining metal corners (C) close to the remaining long structural
frame segment.
RELEASE ER2023_04_03

Mod. LEONARDO FR37
L2
L1 = L2
L1
Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
Before tightening all the dowels, in order to perfectly close the metal corners to
the structural frame segments, check that the measurements L1 and L2 are the
same. The maximum tolerance is 2 mm.
Step 4b
Step 4a
Insert the long remaining structural frame segment, in order to complete
mounting of the frame.
RELEASE ER2023_04_03

Mod. LEONARDO FR37Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited

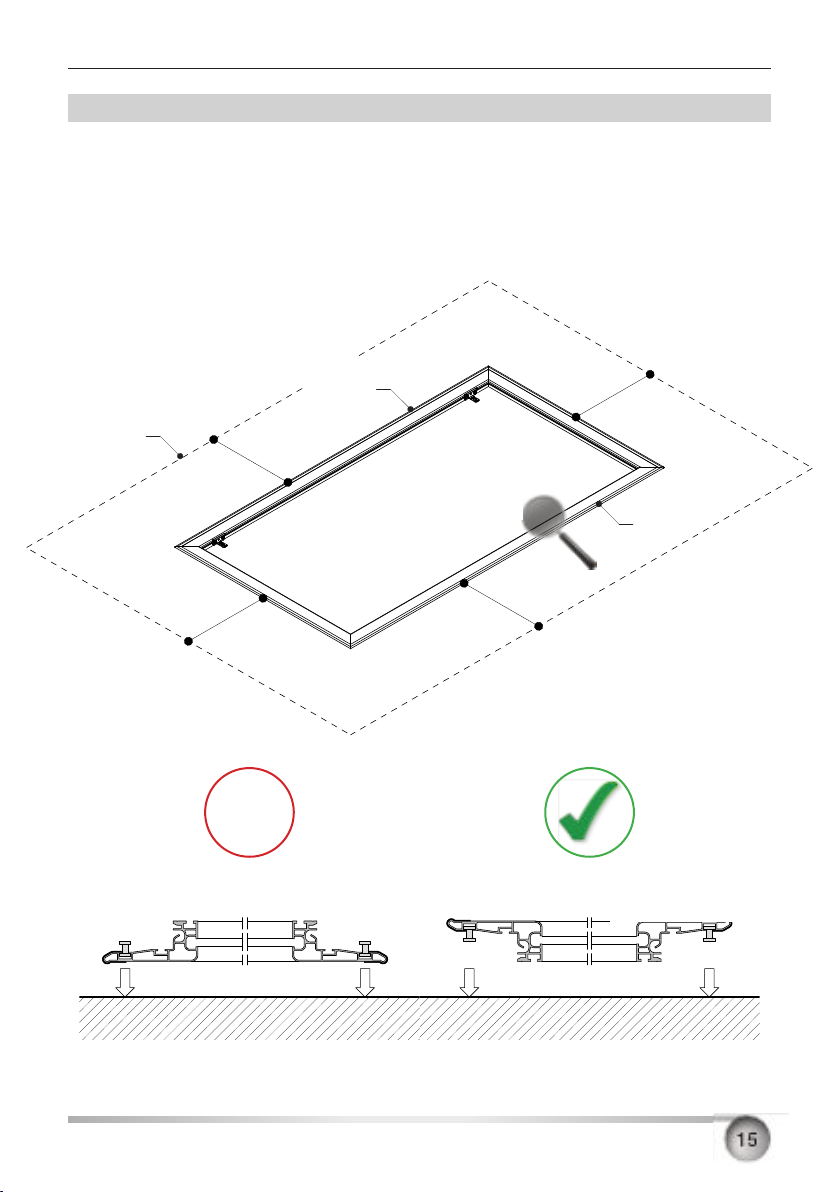

Check carefully as above and proceed with tightening the dowels on each
corner.

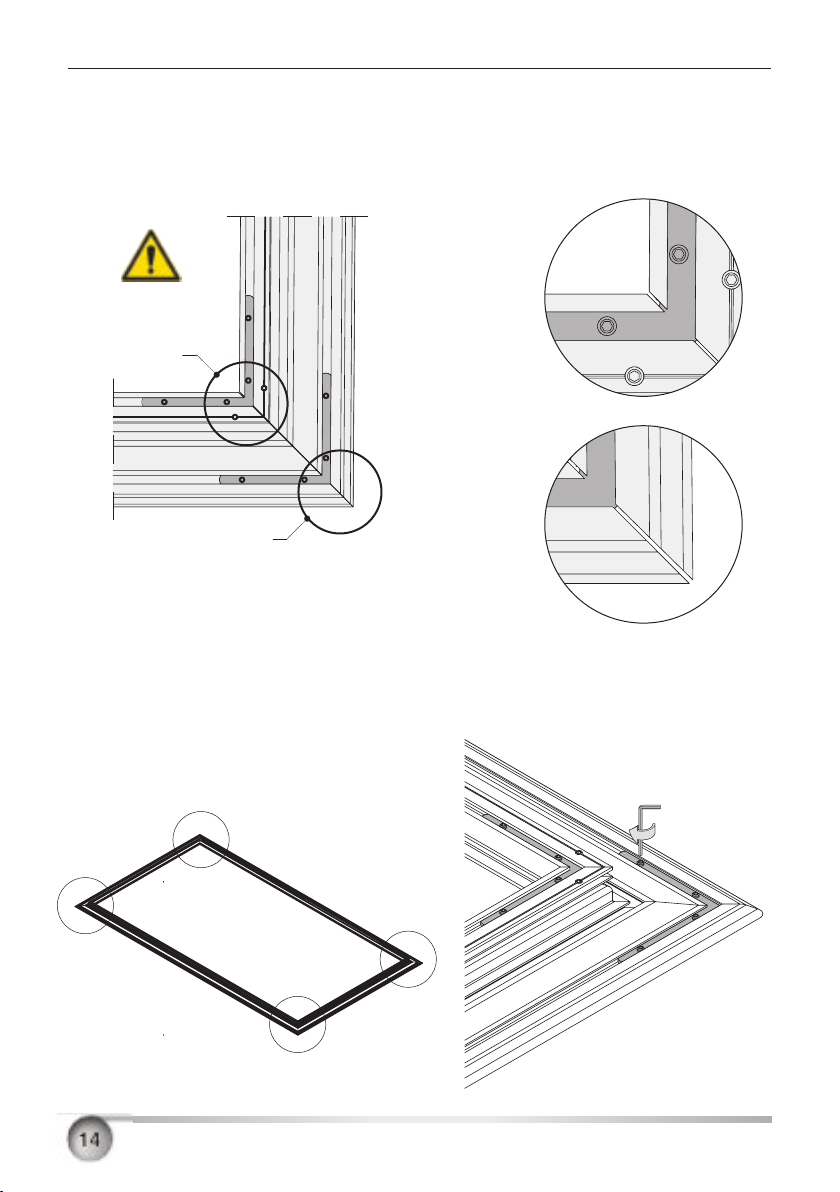

For a perfect assembly, it is necessary to check carefully the xing of the
metal corners (C), because, as shown in the gures below, mistakes will
COMPROMISE the whole installation, causing permanent damages to the cloth.
Mistake B
Outside the
structural frame
Mistake A
Inside the
structural frame
Mistake A
Internal corner
OPEN
Mistake B
External corner
OPEN
RELEASE ER2023_04_03

Mod. LEONARDO FR37
1MT 1MT
1MT 1MT
X
Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
3.3 PROJECTION SURFACE MOUNTING
Before xing the cloth, make sure to have enough moving space for all the
operations, as indicated by the gure below. Before laying the projection surface
down, make sure that the oor where you will lay the surface is perfectly
clean and smooth. It is mandatory to lay a protective cloth on the oor, before
laying on it the projection surface.
3.3a OYSTER SURFACE MOUNTING
Projection side
Check the surface on which
the projection cloth is lying.
Moving
limit
Check that
the velvet cover
is perfectly clean.
Structural
aluminum prole
Correct position
cursors facing upwards
Wrong position
cursors facing downwards
RELEASE ER2023_04_03

Mod. LEONARDO FR37
1°
1°
1°
2°
3°
4°
5°
1°
2°
3°
1°
2°
2°
3°
3°
2°
3°
Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited

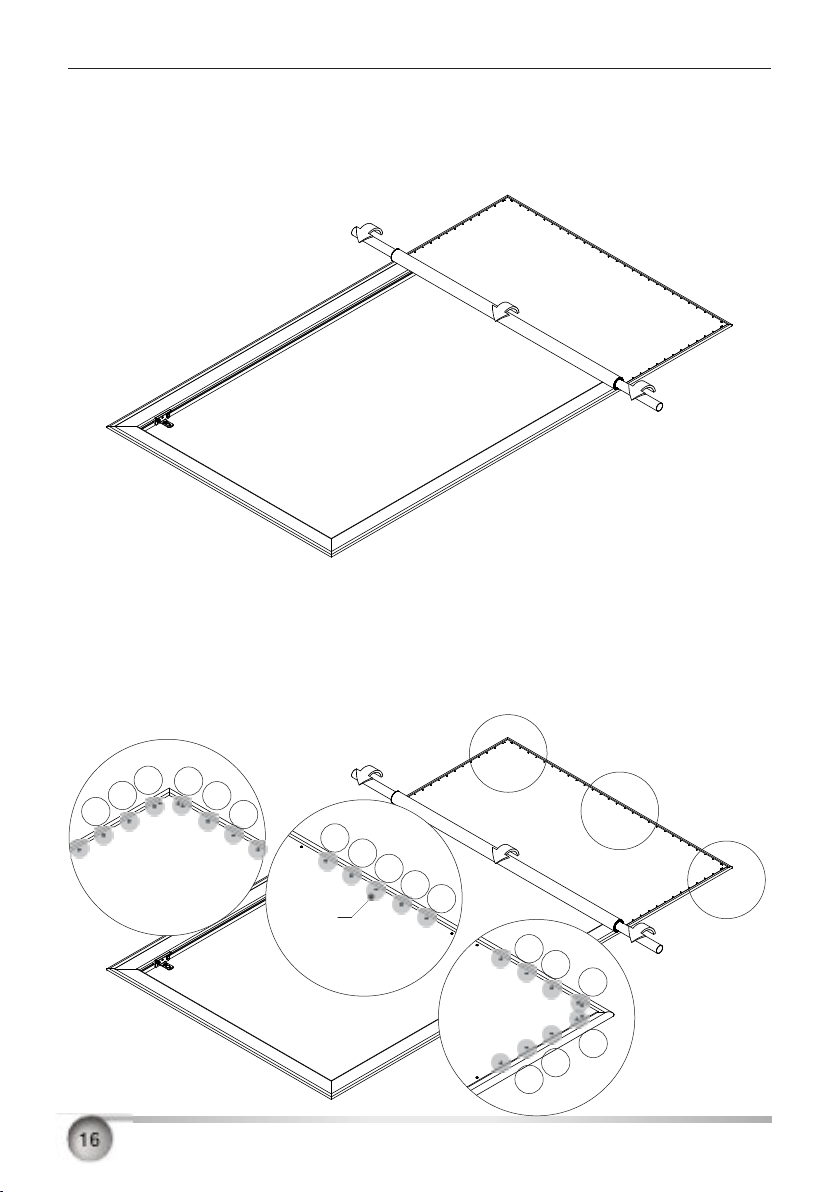

DO NOT UNROLL THE PROJECTION SURFACE COMPLETELY. Before doing
that, x some rubber bands in order to avoid that the surface collapses in
the middle of the structural aluminum frame. As shows the drawing below,
we advise to x n. 3 rubber bands for each corner and n. 5 rubber bands in the
middle of each short vertical frame part.
DO NOT FIX ALL THE RUBBER BANDS on each side but alternate xing on the
different sides, in order to better center the projection surface the most precisely
possible.
Handling of the projection surface has to be carried out by at least two
people. The surface has to be layed down with the projection side facing
upward. We advise to check that, while laying down the projection surface, this
one is layed at least at 1 cm. from the structural aluminum prole.
RELEASE ER2023_04_03

Mod. LEONARDO FR37
1
1
1
1
2
2
2
2
3
3
3
3
20 free holes
20 free holes
Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited

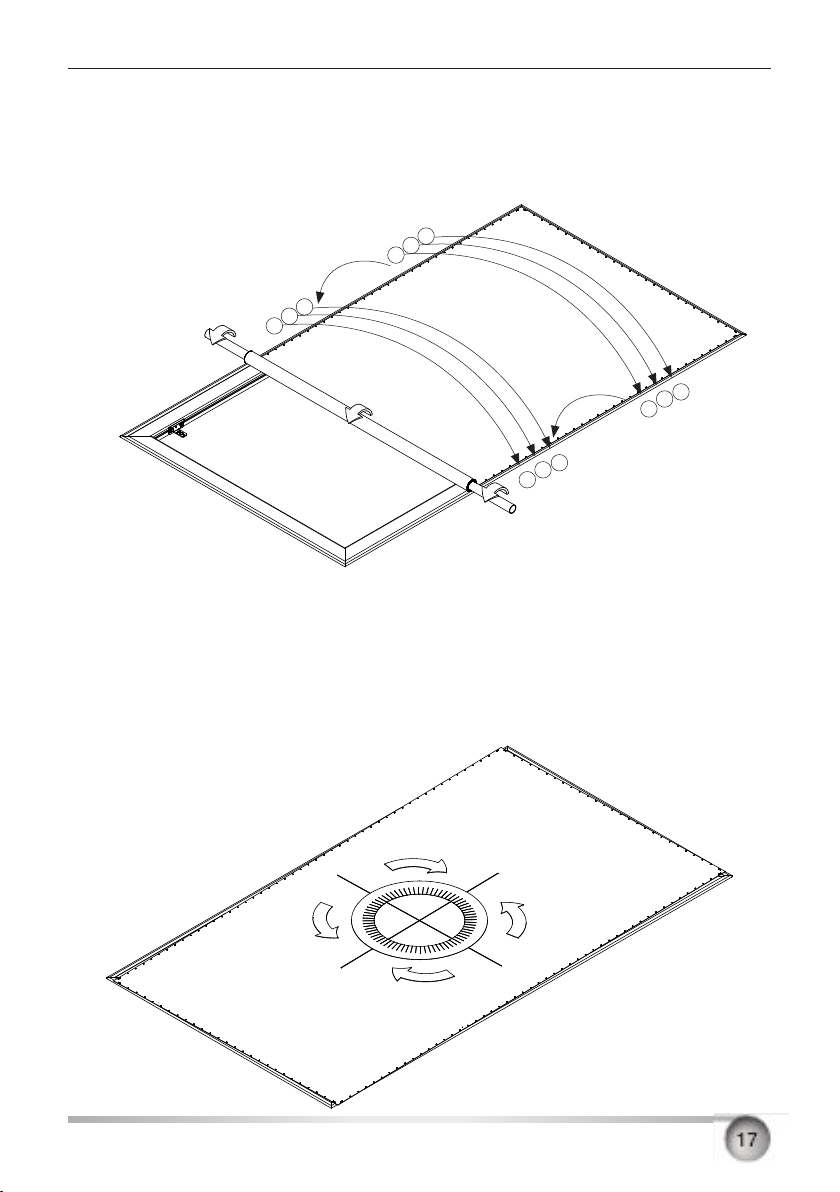

Fixed centre indicator
Keep unrolling the surface leaving 20 holes free and xing 3 rubber bands for
each long frame side till the surface is completely unrolled. Now, x n. 3 rubber
bands for each corner and n. 5 rubber bands for each short frame side, starting
from the middle of the frame (see drawing at p. 16).
Now you can proceed centering the projection surface in the most precisely way.
In case it is difcult to center the surface, remove some rubber bands in order to
release a bit the tension on the surface.
RELEASE ER2023_04_03

Mod. LEONARDO FR37
Step 01
Step 04 Step 05
Step 02 Step 03
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
Step 2

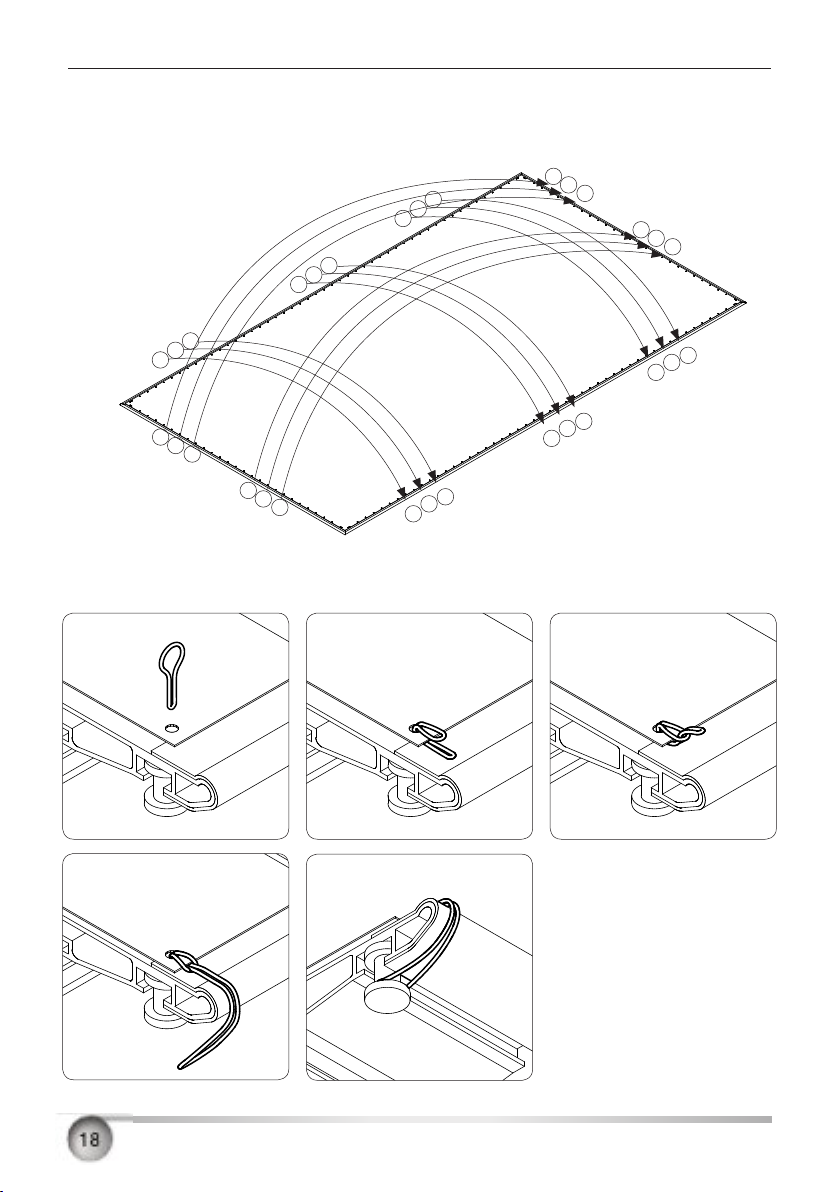

After having centered the surface, x all the remaining rubber bands keeping in
mind to x them alternatively on each side, as shown in the drawing below.
In the drawings below, it is shown how the rubber bands have to be xed to the
cursors.
RELEASE ER2023_04_03

Mod. LEONARDO FR37Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
Before proceeding with the bezel assembly, it is important to wait for about 10
minutes. During this time, both the screen and the bands have time to settle.
This time is necessary because, after the bezel is mounted on the structural
frame, it is not possible to make adjustments on the rubber bands any more.
Proceed to chapter 3.4 at page 26.
Check for
possible waves
After having xed the cloth to the structural frame, lift the screen in vertical
position, as shown by the gure below and check that there are not waves or
folds on the projection surface. If there are waves it is enough to detach and x
again the rubber bands.
WARNING: DO NOT DRAG THE
FRAME ONCE IT IS IN VERTICAL
POSITION IN ORDER TO AVOID DA-
MAGES TO THE RUBBER BANDS.
RELEASE ER2023_04_03

Mod. LEONARDO FR37
1MT 1MT
1MT 1MT
Installation manual
This document is property of Euroscreen Srl.
Any reproduction without authorization is prohibited
Check the surface on which
the projection cloth is lying.
Moving
limit
Protective cloth
dimensions limit
Protective
cloth
Check that the area
where you are laying
the projection cloth is
perfectly clean.
Projection
surface
Protective cloth
Projection side
3.3 b OTHER PROJECTION SURFACES MOUNTING
Before xing the cloth, make sure to have enough moving surface for all the
operations, as indicated by the gure below. Before laying the projection cloth
down, make sure that the oor where you will lay the surface is perfectly
clean and smooth. It is mandatory to lay a protective cloth on the oor, before
laying on it the projection surface.
Handling of the projection surface has to be carried out by at least two people.
The surface has to be layed down with the projection side facing downward.
Do not move the projection surface once it is layed down.
RELEASE ER2023_04_03
