Event Lighting M1S75W User manual

SPOT MOVING HEAD
M1S75W
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au V1.2

1
www.event-lighting.com.au
Safety Instructions
WARNING
•Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.
•Do not look at the light source when the device is on.
•CAUTION: This unit's housing may be hot during and after operation.
•Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.
•Do not leave any flammable material within 50 cm of this unit while operating or connected to power.
•Use a safety chain when mounting this device overhead.
•Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
•Do not operate this device if the housing, lenses, or cables appear damaged.
•Do not connect this device to a dimmer or rheostat.
•ONLY connect this device to a grounded and protected circuit.
•ONLY use the hanging bracket to carry this device.
•In case of a serious operating problem, stop using immediately.
•The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.
Power Input & Power Linking
This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.
Link up to the maximum 8A. DO NOT exceed this.
Fuse Replacement
If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing and fix it.
Product Installation
This device can be mounted in many orientations provided each
individual device is secured by the use of correct mounting bracket.
Use a safety chain when mounting this device overhead.

2
www.event-lighting.com.au

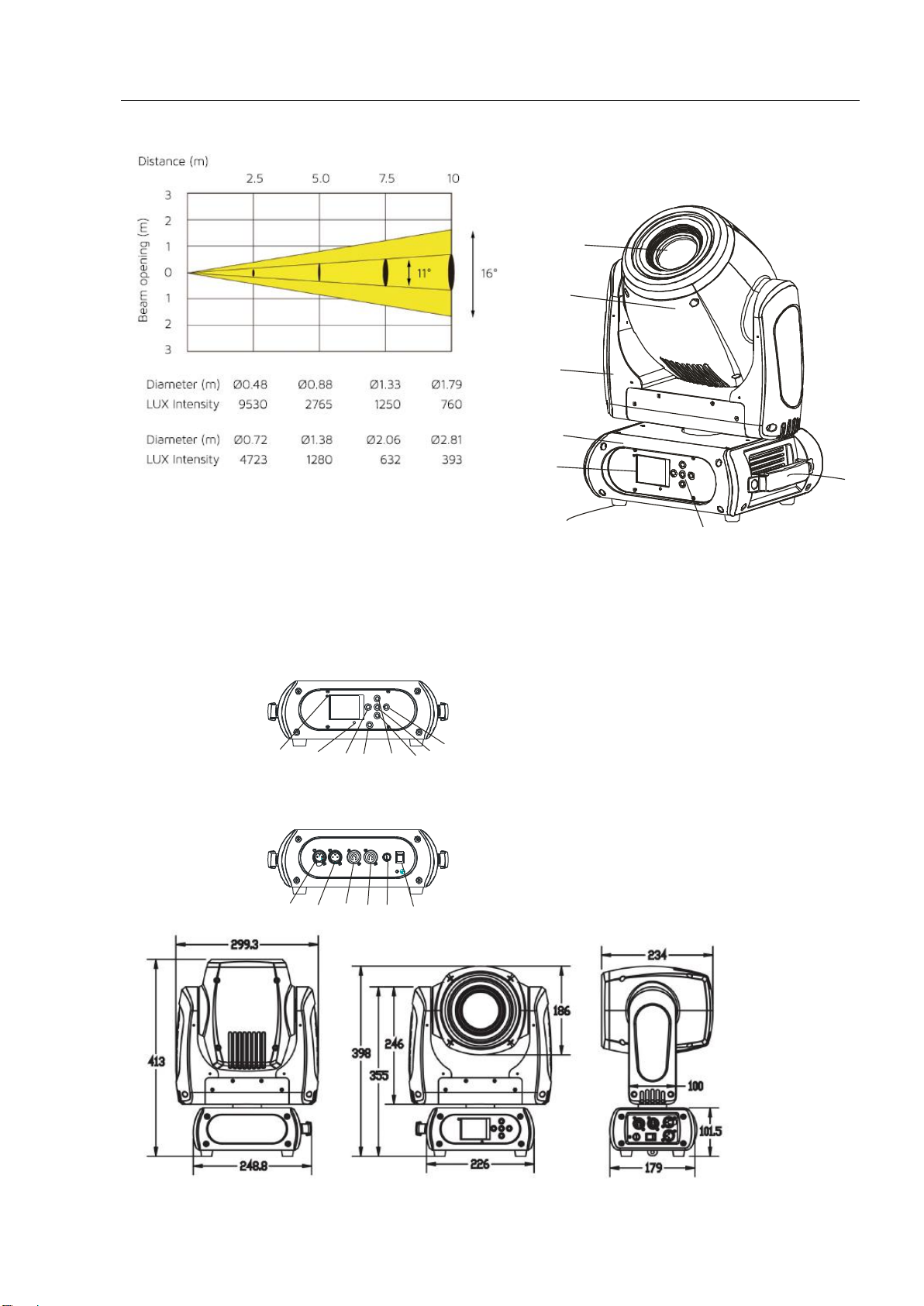

Product appearance, LUX chart, Dimensions
1. Project lens
2. Head
3. Arm
4. Base 9. Wireless indicator
5. Display 10. Mic
6. Foot stand 11. Left Button
7. Operation button 12. Battery indicator
8. Handle 13. Up button
14. Down button
15. Enter button
16. Right button
17. 3-pin DMX in
18. 3-pin DMX out
19. Powercon in
20. Powercon out
21. Fuse
22. Power switch
1
2
3
4
5
67
8
910 11 12131415
16
17 1819202122

3
www.event-lighting.com.au

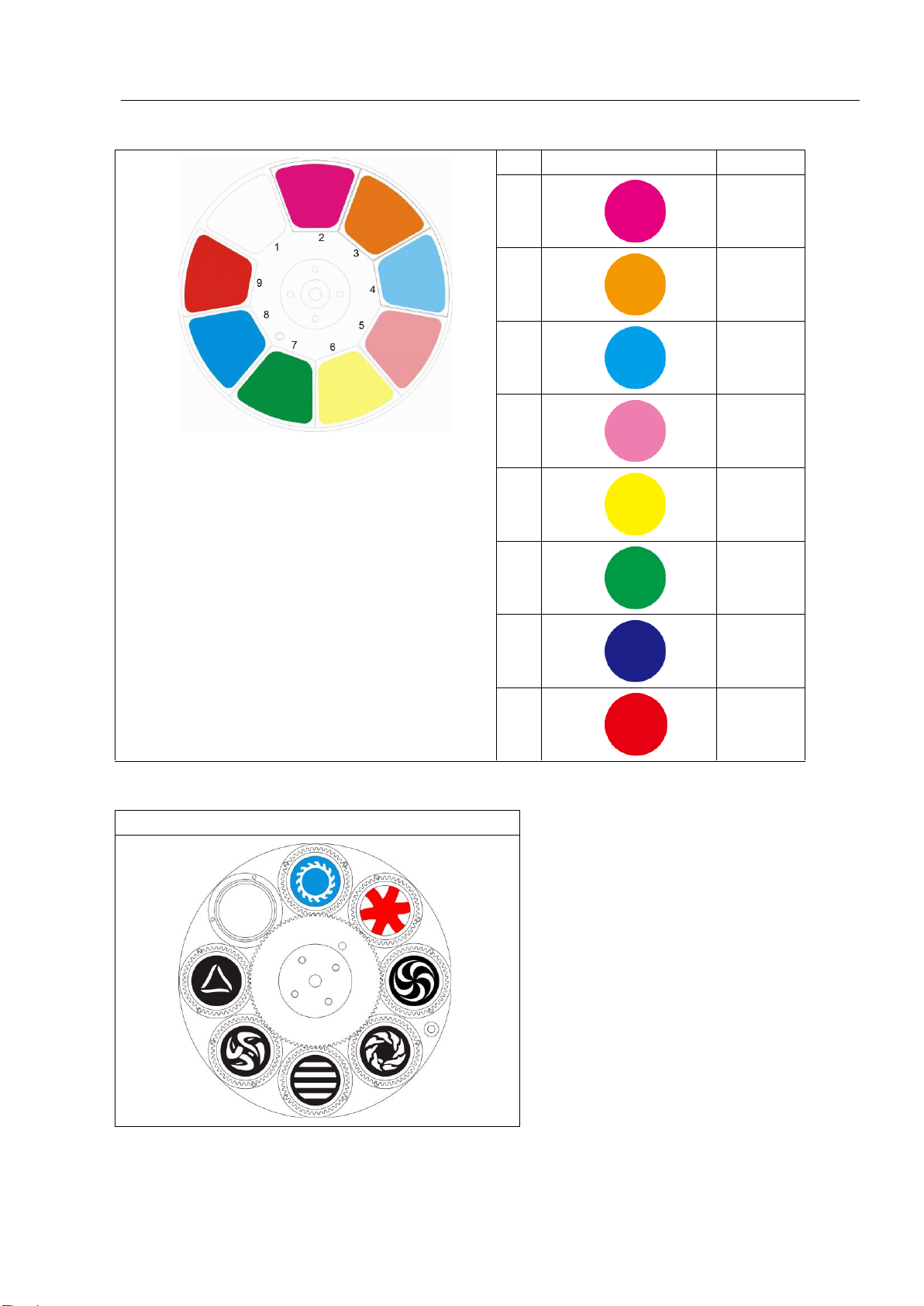

Color Wheel
1
Open
2
Magenta
3
Orange
4
Sky blue
5
Pink
6
Yellow
7
Green
8
Blue
9
Red
Gobo Wheel
Rotating gobo wheel (slot-in-out gobos)

4
www.event-lighting.com.au
Rotating gobo wheel
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8

5
www.event-lighting.com.au
Menu operation
Description of icons in the menu
CONNECT
LIGHT
INFOMATION
SET
PROGRAM
Menu
Default setting shadowed. Mark with ①can be basic reloaded, ②be program reloaded, ③can be private reloaded.
CONNECT
DMX Address①
XXX
DMX address setting
Wireless①
Wireless Enabled
LIGHT
Max Temperature①
80~139℃, 80℃(176~282℉, 176℉)
Lamp will switch off when
temperature continuously
over max temperature for
5 minutes
Lamp Adjust①
Adjust value of each
channels
INFORMATION
Time Info.
Current XXXX(Hours)
Fixture Life XXXX(Hours)
Fixture boot time
Fixture total run time
Temperature
Near Lamp Temp (depends on fixture)
Temperature Sensors
Fans Speed
Near Lamp Fan (depends on fixture)
Fan speed Sensors
Channel Value
Display value of channel
Error Message
Error channels
Fixture Model
M1S150W
Display brand and model
Software Ver
1U01 V1.0.00
Version of each IC
SET
Reset
All
Pan&Tilt
Colors
Gobos
Others
Reset all
Reset Pan&Tilt
Reset Colors
Reset Gobos
Reset Others
Movement
Pan Reverse①
Tilt Reverse①
Pan Degree①
Encoders①
Pan/Tilt Mode①
ON/OFF
ON/OFF
630°/540°
ON/OFF
Stand/Smooth
Pan Reverse
Tilt Reverse
Choose Pan Degree
Encoder wheel on/off
Choose pan/tilt mode
UI Set
Mic Sens. ③
No Signal①
Temperature. C/F①
Fans Mode①
Hibernation①
Backlight①
Flip Display①
Display Bright③
0~99%,60%
Close/Hold/Auto/Music
Fahrenheit/Celsius
Auto / High Speed
OFF, 01M~99M，15M
02~60m 02m
ON/OFF
00~31 10
Sensitivity of Mic
Mode when no signal
Temperature at ℃/℉
Fans mode
Sleeping mode
Show backlight time
Display 180°reverse
Display Brightness

6
www.event-lighting.com.au
Brand Show①
Key Lock①
Language①
ON/OFF
ON/OFF
En/简/繁/Fr/Sp
Show brand or not
Key lock on/off
Language Select
Users
User Mode①
Standard
Extended
Basic-8bit
Basic-16bit
User
Standard mode
Extended mode
Basic mode-8bit
Basic mode-16bit
User program mode
Edit User③
Max Channel = XX
PAN = CH01
:
Edit users mode
Calibration③
-Password-
Color
:
=XXX
=XXX
:
Password: 050
Calibrate channel value
Fixture ID③
Name
-Password-
PID Code
Name
Password: 050
Set PID of RDM
Wireless Set①
DMX On Cable
Reset Connect
ON/OFF
ON/OFF
DMX Send Out
Reset Connect
Reload Default
Basic Reload(①)
Program Reload(②)
---Password---
Private Reload(③)
All Reload
ON/OFF
ON/OFF
XXX
ON/OFF
ON/OFF
Basic Reload
Program Reload
Password: 050
Private Reload
All Reload
PROGRAM
Play①
DMX Receive
Slave Receive
Sequence
Music
Slave Receive 1,2,3
Master / Alone
Master / Alone
DMX Receive
Choose slave position
Run Sequence
Music mode
Select Chase②
Chase Part 1
Chase Part 2
Chase Part 3
Chase 1 ~ 8 Chase 1
Chase 1 ~ 8 Chase 2
Chase 1 ~ 8 Chase 3
Select and run auto
program
Edit Chase②
Chase 1
:
:
Chase 8
Chase Test
Step 01
:
Step 64
=SCxxx
:
=SCxxx
Test
Beginning scene
:
Ending scene
Edit Scenes②
Edit Scene 001
~ Edit Scene 250
Pan,Tilt,……
Fade Time--
Secne Time--
DMX Input
=xxx
=xxx
=xxx
Input manual scene
Modify manually fading time
Modify manually scene time
Input scene from exterior
controller
Scenes Record
ScXX=>ScXX
Auto Input scenes

7
www.event-lighting.com.au
DMX Chart
Channel
name
function
Min
DMX
Max
DMX
St
Ex
Ba1
Ba2
1
1
1
1
Pan
Pan Coarse
0
255
2
2
Pan fine
Pan Fine
0
255
2
3
2
3
Tilt
Tilt Coarse
0
255
4
4
Tilt fine
Tilt Fine
0
255
3
5
3
5
Movement Speed
fastest to Slowest
0
255
4
Movement
Function
Normal
0
15
Movement With Blackout
16
31
TBD
32
255
4
7
Shutter Function
Normal Shutter Functions
0
15
Pulse-effect Forward
16
31
Pulse-effect Reverse
32
47
Random Strobe
48
63
TBD
64
255
5
8
Normal Shutter Functions
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Pulse-effect Forward
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Pulse-effect Reverse
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Random Strobe
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
4
6
Shutter
Shutter closed
0
31
No function (shutter open)
32
63
Strobe effect slow to fast
64
95
No function (shutter open)
96
127
Pulse-effect in sequences
128
159
No function (shutter open)
160
191
Random strobe effect slow to fast
192
223
No function (shutter open)
224
255

8
www.event-lighting.com.au
6
9
5
7
Dimmer
Dimmer(Close to Open)
0
255
7
10
Color Function
Indexed
0
15
Indexed With Blackout
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Color Bounce
80
111
TBD
112
255
8
11
Color
Indexed & Indexed With Blackout & Color Bounce
Open
0
13
Between Open and Red
14
27
Red
28
41
Between Red and Blue
42
55
Blue
56
69
Between Blue and Green
70
83
Green
84
97
Between Green and Yellow
98
111
Yellow
112
125
Between Yellow and Pink
126
139
Pink
140
153
Between Pink and Sky Blue
154
167
Sky Blue
168
181
Between Sky Blue and Orange
182
195
Orange
196
209
Between Orange and Magenta
210
223
Magenta
224
237
Between Magenta and Open
238
255
Forward Spin
Stop to fastest
0
255
Reverse Spin
Stop to fastest
0
255
Continuous
Positioning from 0-360 degrees
0
255
6
8
Color
Indexed
Open
0
2
Between Open and Red
3
5
Red
6
8
Between Red and Blue
9
11
Blue
12
14
Between Blue and Green
15
17
Green
18
20
Between Green and Yellow
21
23
Yellow
24
26
Between Yellow and Pink
27
29

9
www.event-lighting.com.au
Pink
30
32
Between Pink and Sky Blue
33
35
Sky Blue
36
38
Between Sky Blue and Orange
39
41
Orange
42
44
Between Orange and Magenta
45
47
Magenta
48
50
Between Magenta and Open
51
53
Indexed With Blackout
Open
54
56
Between Open and Red
57
59
Red
60
62
Between Red and Blue
63
65
Blue
66
68
Between Blue and Green
69
71
Green
72
74
Between Green and Yellow
75
77
Yellow
78
80
Between Yellow and Pink
81
83
Pink
84
86
Between Pink and Sky Blue
87
89
Sky Blue
90
92
Between Sky Blue and Orange
93
95
Orange
96
98
Between Orange and Magenta
99
101
Magenta
102
104
Between Magenta and Open
105
106
Indexed With Bounce
Open
107
119
Red
120
132
Blue
133
145
Green
146
158
Yellow
159
171
Pink
172
184
Sky Blue
185
197
Orange
198
210
Magenta
211
223
Forward Wheel Spin
Stop to Fastest
224
239
Reverse Wheel Spin
Stop to Fastest
240
255
9
12
Rot Gobo
Function
Indexed
0
15
Indexed With Blackout
16
31
Forward Spin
32
47

10
www.event-lighting.com.au
Reverse Spin
48
63
Continuous
64
79
Shake
80
95
TBD
96
255
10
13
Rot Gobo
Indexed & Indexed With Blackout & Shake
Position 1 (Open)
0
31
Position 2
32
63
Position 3
64
95
Position 4
96
127
Position 5
128
159
Position 6
160
191
Position 7
192
223
Position 8
224
255
Forward Wheel Spin
Stop to fastest
0
255
Reverse Wheel Spin
Stop to fastest
0
255
Continuous
Positioning from 0-360 degrees
0
255
7
9
Rot Gobo
Indexed
Position 1 (Open)
0
5
Position 2
6
11
Position 3
12
17
Position 4
18
23
Position 5
24
29
Position 6
30
35
Position 7
36
41
Position 8
42
47
Indexed With Blackout
Position 1 (Open)
48
53
Position 2
54
59
Position 3
60
65
Position 4
66
71
Position 5
72
77
Position 6
78
83
Position 7
84
89
Position 8
90
97
Indexed With Shake
Position 2
98
118
Position 3
112
132
Position 4
133
153
Position 5
154
174
Position 6
175
195
Position 7
196
216

11
www.event-lighting.com.au
Position 8
217
237
Forward Wheel Spin
Stop to fastest
224
239
Reverse Wheel Spin
Stop to fastest
240
255
11
14
Gobo Rot
Function
Continuous
0
15
Forward Spin
16
31
Reverse Spin
32
47
Forward Animate Rotate
48
63
Forward Animate Rotate With Blackout
64
79
Reverse Animate Rotate
80
95
Reverse Animate Rotate With Blackout
96
111
TBD
112
255
12
15
Gobo Rot
Continuous
Positioning from 0-360 degrees
0
255
Forward Spin
Stop to fastest
0
255
Reverse Spin
Stop to fastest
0
255
Forward Animate Rotate & Forward Animate Rotate With
Blackout
Stop to fastest
0
255
Reverse Animate Rotate & Reverse Animate Rotate With
Blackout
Stop to fastest
0
255
8
10
Gobo Rot
Continuous
Positioning from 0-360 degrees
0
191
Forward Animate Rotate
Stop to fastest
192
207
Reverse Animate Rotate
Stop to fastest
208
223
Forward Spin
Stop to fastest
224
239
Reverse Spin
Stop to fastest
240
255
13
16
9
11
Prism &
Prism Rot
Prism
Position 1 (Open)
0
3
Prism Rot Forward Spin
Stop to fastest
4
127
Prism Rot Reverse Spin
Stop to fastest
128
255
14
17
10
12
Focus
Continuous
Focus In to Focus Out
0
255
Normal
0
7

12
www.event-lighting.com.au
15
18
11
13
Control
Reset All
8
15
Pan & Tilt Reset
16
23
Color Reset
24
31
Gobo Reset
32
39
TBD
40
47
Other Reset
48
55
Display Off
56
63
Display On
64
71
TBD
72
87
Hibernation
88
95
TBD
96
255
- The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive
instructions from the external controller. For independent control, each fixture must be assigned its unique address
control channels. For example, this device has four channel modes: 15/18/11/13, if we set the mode at standard 18
channels mode, and there are several models need to be independently controlled, we just simply address first
fixture at 1, and second fixture at 19, third one at 37, etc.
- If the devices have the same address, they will behave synchronically.
- Display is flashing when no DMX signal is received.
More functions
- RDM. RDM stands for “Remote Device Management”, with this function, users can realize remote control of the
device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as
temperature, power consumption, fan speed. Etc. Every single device has a unique RDM code programmed at
manufacture to distinguish from each other. It is not recommended for users to change this code.
- Software upgrade function via DMX cable. If there is any new firmware for this device, it can be upgraded simply via
a software upgrade box, no need to change any mechanical parts. The upgrade box is not included in the package,
if need any further assistance please just contact your authorized dealer.
- Hibernation. The device will enter sleeping mode if activated after a period of disconnecting DMX signal to save the
power consumption, and will return immediately as soon as the DMX signal is sent again.
- Display back-up communication IC. There is a back-up communication IC installed in the display PCB, so users
could replace at once if the original one is broken.
- Display flip. By press up and down button for more than 3 seconds, the display will flip automatically, this function is
useful to read menu conveniently when device is hanged.

13
www.event-lighting.com.au
Technical Specifications
- Input Voltages: 100V~240V AC, 50/60Hz
- Power Consumption: 160W
- Light source: advanced 75W white LED module
- Power Connection: Neutrik® Powercon input and output connection
- LED life: 60,000 hours
- Lux: 6400 lumen, 9530 lux on @2.5M at 11°, 4723 lux on @2.5M at 16°
- Beam angle: 11° to 16°
- PWM: 1,200Hz
- Colors: 1 color wheel with 8 colors + open
- Gobos: 1pc 7 + open interchangeable rotating gobo wheel (outside Ø23mm, inside Ø18mm).
- Effect: 3 facets prism
- Dimmer: 0-100% dimmer
- Strobe: 0.5 - 26 Hz
- Focus: linearly focusing controlled by DMX
- Zoom: manual zoom from 11° to 16°
- Head movement: Pan: 630°(4.0 sec) or 540°(3.58 sec), Tile 265°(2.8 sec).16-bit resolution, auto repositioning
- Control: DMX512, 3-pin XLR interfaces, 15/18/11/13 channel mode
- Other function: wireless DMX is available
- 2.4 inch colour LCD display with back-up power.
- Thermostat Controlled, variable speed fan
- RDM and software upgrade via DMX.
- Net weight: 10Kg
- Overall Size: 299x252x413mm
- Rigging: 1pc omega brackets with 1/4 –turn quick locks
- Road case available
