PELLET STOVES
Instruction Manual
LUCREZIA IDRO
LUCREZIA STEEL
Read these instructions carefully before installation, use and maintenance.
The instruction booklet is an integral part of the product.

Page
2
Congratulations! You are now t e owner of an EXTRAFLAME stove!
The EXTRAFLAME pellet stove is an ideal heating solution. It utilises the most advanced
technology and is manufactured to the highest standards with a contemporary design,
allowing you to enjoy the ambience and warmth of a natural flame in complete safety.
This manual tells you how to use your stove correctly. Please read the entire manual
carefully before using your stove.
IMPORTANT
ake sure that the dealer completes the following box with the details of the authorised
specialist who will help you if you have any problems in using your new pellet stove
AUTHORISED SPECIALIST
COMPANY________________________________________________________________
NAME _______________________________________________________________
ADDRESS _____________________________________________________________
POST CODE ____________ CITY ____________________________________________
TEL. ________________________ FAX _______________________________________
All Extraflame products are manufactured according to the following directives:
• 89/106 EEC (CPD) construction materials
• 73/23 EEC (LVD) electrical safety
• 98/37 EEC machinery
• 2004/108 EEC (EMC) electromagnetic compatibility
And the following standards:
• EN14785
• EN60335.1 EN50165 EN50366
• EN292 EN294
EN55014.1 EN55014.2 EN61000-3-2 EN61000-3-3

Page
3
Contents
1 WARNINGS AND SAFETY
4
2 TECHNICAL SPECIFICATIONS
5
3 WHAT ARE PELLETS?
8
3.1 Pellet storage
8
3.2 Pellet loading
8
4 SAFETY DEVICES
9
4.1 Breakdown flue gas extractor
9
4.2 Breakdown of pellet load motor
9
4.3 Failed ignition
9
4.4 Temporary power cut
9
4.5 Electrical safety device
9
4.6 Flue gas exhaust safety device
9
4.7 Pellet temperature safety device
9
4.8 System pressure safety device
9
4.9 Boiling water safety device
9
4.10 External devices
9
4.11 Installation and safety devices
9
4.12 Safety devices for open tank systems
10
4.13 Safety devices for closed tank systems
10
5 ASSEMBLY AND INSTALLATION INSTRUCTIONS
11
5.1 Glossary
11
5.2 Installation
12
5.2.1 Connection to the flue gas evacuation system
13
5.2.2 Chimney or flue
14
5.2.3 Connecting the appliance to the flue and evacuation of combustion products
16
5.2.4 Chimney
16
5.2.5 Connection to external air inlets
17
5.2.6 Insulation, trims, facings and safety recommendations
17
5.2.7 National, regional, provincial and municipal regulations
17
6 CONTROL PANEL
18
7 LANGUAGE SELECTION
19
8 CURRENT DAY AND TIME SETTINGS
19
9 OPERATING MODES
20
9.1 External thermostat operation in STBY-TOFF mode (to be used also for remote actuator)
23
10 USE
24
11 IGNITION
24
12 STOVE OPERATION
25
12.1 Normal operation
25
12.2 Shutdown
25
12.3 Remote control
25
13 REGULATING THE WATER TEMPERATURE
26
14 USER PARAMETERS
27
14.1 Weekly programmer
28
14.2 Pellet load adjustment
30
14.3 Automatic cleaning schedule for springs
31
15 CLEANING
32
15.1 Chimney connection
33
16 FIRST IGNITION OPERATIONS
34
16.1 Fitting the tiles
34
16.2 Brazier bracket
36
16.3 Brazier positioning
36
17 WIRING DIAGRAM
37
18 TABLE OF DISPLAY MESSAGES
40
19 WARRANTY
42
20 QUALITY CONTROL
45
21 COMPATIBILITY WITH RoHS AND WEEE DIRECTIVES
46

Page
4
1. WARNINGS AND SAFETY
The stoves manufactured in our factory are built with the
maximum dedication to the individual components so as
to protect both the user and the installer from accidents.
Authorized personnel are therefore advised to pay special
attention to the electrical connections after any servicing
operation on the product, especially with regard to the
stripped part of the wires, which must not protrude in
any way from the terminal block to prevent possible
contact with the live parts of the wire.
Installation must be carried out by aut orized
personnel, w o must issue t e purc aser a
declaration of compliance of t e system. T e
purc aser s all assume responsibility for t e
definitive installation and consequent proper
operation of t e product installed. It is necessary
to bear in mind all t e national, regional,
provincial and municipal laws and regulations
present in t e country in w ic t e appliance is
installed.
Extraflame S.p.A. may not be eld responsible in
t e event of failure to observe t ese precautions.
This instruction manual constitutes an integral part of the
product. It must always accompany the appliance, also
when it is transferred to another owner or user or moved
to another location. If the manual gets damaged or lost,
ask your local service centre for another copy.
This stove must only be used for the applications for
which it was expressly designed.
The manufacturer declines any responsibility,
contractually or extra-contractually, for any damage
caused to persons, animals or property by errors in
installation, adjustment, and maintenance, or by
improper use.
After removing the packaging, check to make sure that
the contents are intact and complete.
If this is not the case, contact the vendor from whom the
appliance was purchased.
The electrical components of the stove must only be
replaced with original spare by an authorized service
centre.
General stove maintenance must be carried out at least
once a year, scheduled sufficiently in advance with the
service centre.
T e following safety precautions must be
observed:
Do not allow the stove to be used by children or
unassisted disabled persons.
Do not touch the stove if you are bare-footed or if parts
of your body are wet or damp.
odifying the safety or adjustment devices without the
manufacturer’s approval or instructions is forbidden.
Never pull, detach, or twist the electrical cables coming out
of the stove, even if it is disconnected from the electrical
power.
Do not plug or reduce the size of the air vents of the room
in which the stove is installed.
The air vents are critical for correct combustion.
Keep the packaging materials out of the reach of children
and unassisted disabled persons.
Prior to installation, we recommend that you thoroughly
clean all the piping of the system to remove any residues
that could jeopardise the efficient operation of the
appliance.
During installation, the user should be informed that:
a. In the event of water leakage, the water supply must be
closed off and the service centre must be notified promptly.
b. The operating pressure of the system must be checked
periodically. When the stove is not used for an extended
period of time, we recommend asking the technical service
to carry out at least the following operations:
- Put the master switch in position 0.
- Close the water taps on both the heating and plumbing
systems.
- Empty the heating and plumbing systems if there is a risk
of freezing
During normal functioning of the product the door of the
furnace must always be closed.
Avoid direct contact with parts of the appliance, which tend
to heat up during functioning.
Check for the presence of any obstructions before switching
the appliance on following a long standstill period.
The stove has been designed to function in any climatic
conditions (even critical), in particularly adverse conditions
(strong wind, ice) safety systems may intervene, which
switch the stove off.
If this happens, contact the after-sales service and do not
disable the safety systems in any case.
If the flue should catch fire use adequate systems to
suffocate the flames or request help from the fire brigade.

Page
5
2. TECHNICAL SPECIFICATIONS
Features Unit
Lucrezia Idro
Lucrezia Steel
Weight kg 265 230
Height mm
1330 1317
Width mm
544 561
Depth mm
646 646
Flue gas exhaust pipe diameter mm
120 120
Air extraction pipe diameter mm
60 60
ax. overall thermal power kW 25.0 25.0
ax. useful thermal power kW 23.0 23.0
- output air power kW 3.4 3.4
- output water power kW 19.6 19.6
in. useful thermal power kW 4.5 4.5
- output air power kW 0.5 0.5
- output water power kW 4.0 4.0
in. hourly fuel consumption kg/h
1.0 1.0
ax. hourly fuel consumption kg/h
5.0 5.0
Tank capacity kg ~ 43 ~ 43
Recommended chimney draught Pa ~ 10 ~ 10
Chimney draught at max useful power Pa 12 12
Chimney draught at min useful power Pa 10 10
Rated electrical power W 350 350
Rated voltage Vac 230 230
Rated frequency Hz 50 50
Water inlet/outlet pipe diameter “ 1 1
Automatic discharge pipe diameter “ 1/2 1/2
Pump head m 4 4
ax accepted working water power bar 1.5 1.5
CO measured at max useful power % 0.011 0.011
CO measured at min useful power % 0.042 0.042
Efficiency at max useful power % 92.5 92.5
Efficiency at min useful power % 89.8 89.8
Exhaust gas temp. at max useful power °C 148.3 148.3
Exhaust gas temp. at min useful power °C 84.8 84.8
ass of gases emitted at max useful power g/s 16.43 16.43
ass of gases emitted at min useful power g/s 11.23 11.23
Tests using wooden pellets as fuel, with heating power equal to 4.9 kWh/kg.
The data stated above is a reference and not binding. The manufacturer reserves the right to carry
out any modifications in order to improve the performance of the product.

Page
6

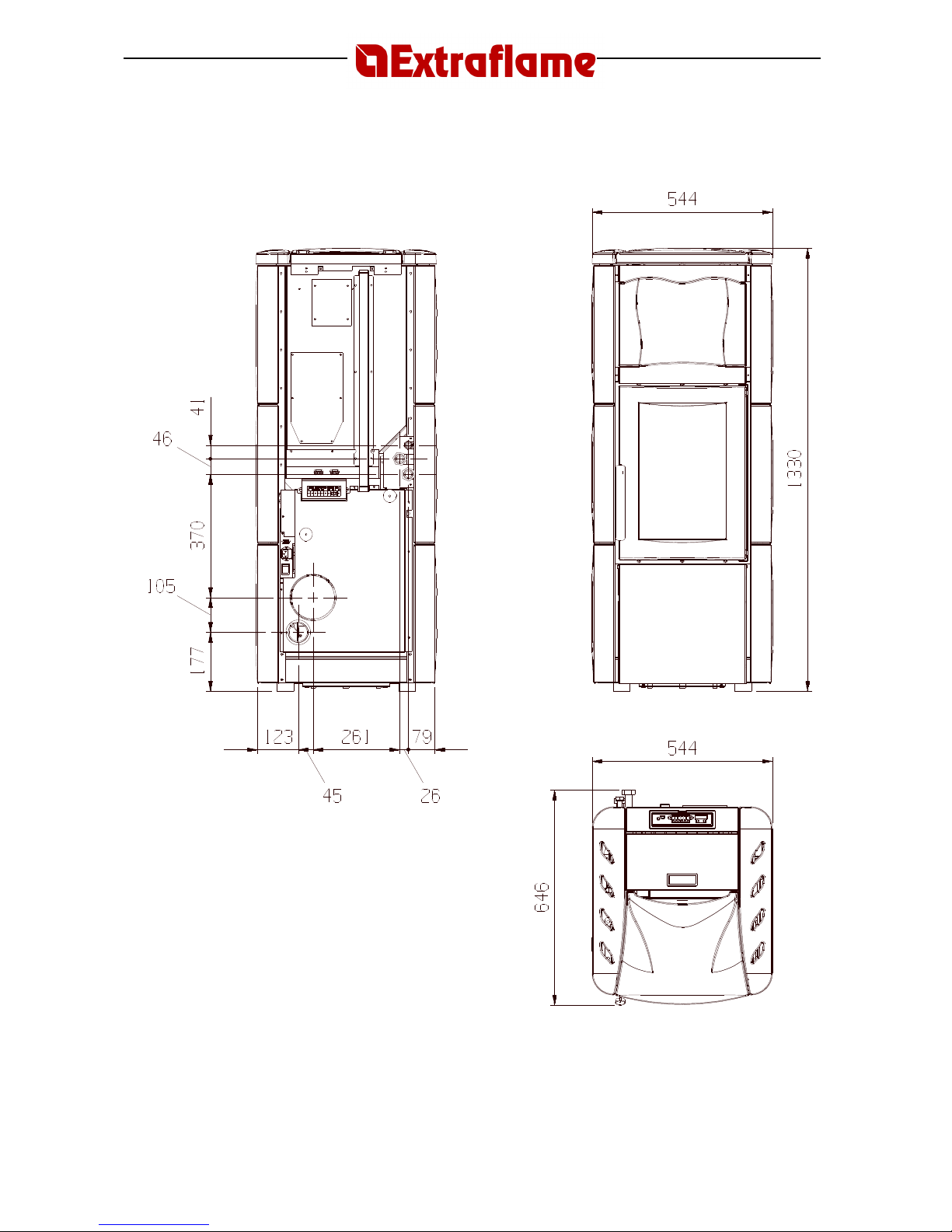

LUCREZIA IDRO

Page
7

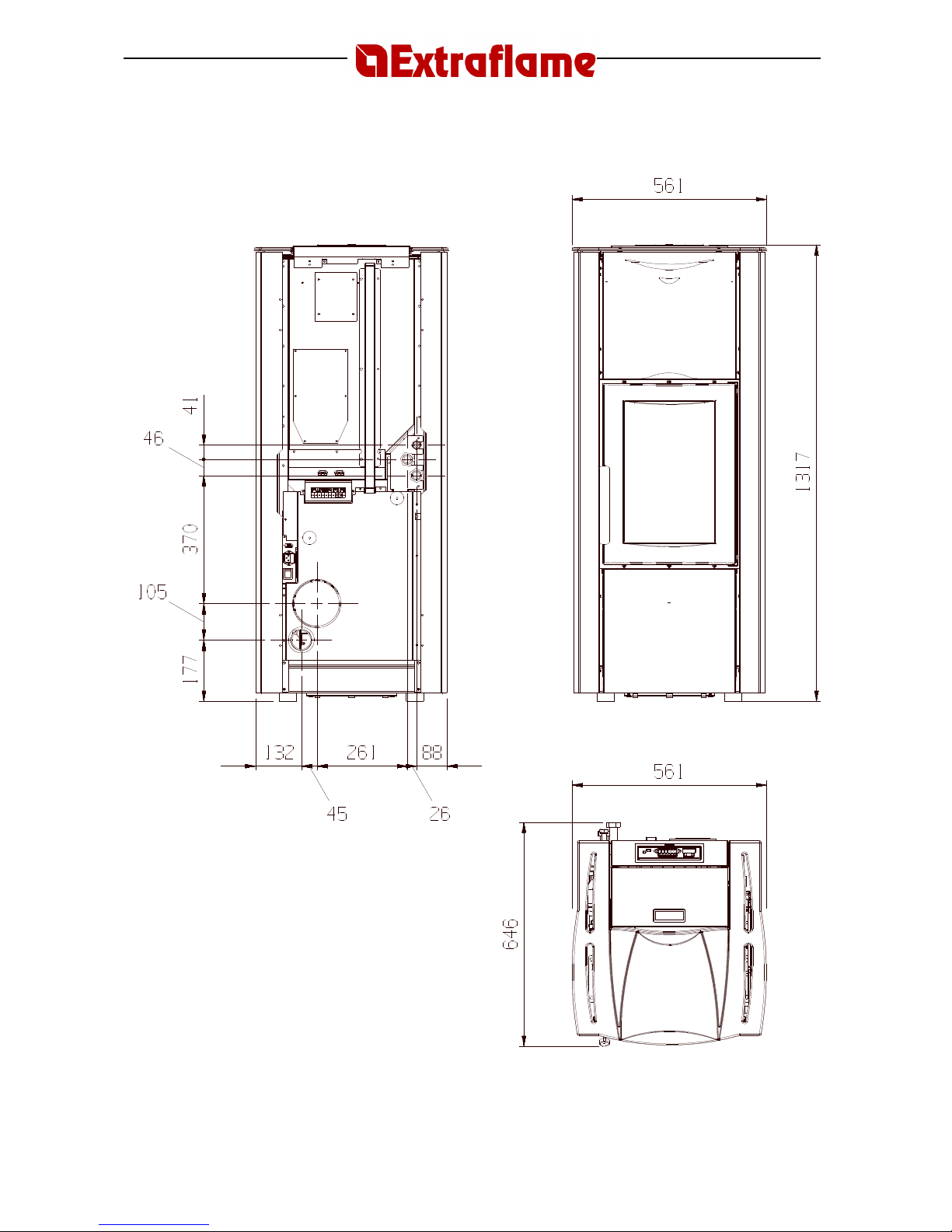

LUCREZIA STEEL

Page
8
3. WHAT ARE PELLETS?
The pellets are made by applying very high pressure to sawdust, that is pure timber waste
(without paint), produced by sawmills, carpentry works and other activities associated with the
working and transformation of timber.
This type of fuel is completely environmentally friendly as no binders of any kind are used to keep
it compact. In fact, the compactness of the pellets over time is guaranteed by a natural substance
found in the wood itself: the lignite.
As well as being environmentally friendly, as the wood residues are exploited to the maximum,
pellets also have technical advantages.
While wood has a calorific power of 4.4
kW/kg. (with 15% humidity, after about 18 months seasoning) the power of pellets is 5.3 kW/kg.
The density of the pellet is 650kg/m3 and the water content is 8% of its weight. For this reason,
the pellets do not need to be seasoned to obtain an adequate calorific yield.
The pellet used must conform to the characteristics of the following regulations:
•Ö-Norm 7135
•DIN plus 51731
•UNI CEN/TS 14961
Extraflame recommends always using 6 mm pellets for its products.
3.1 Pellet storage
To guarantee problem-free combustion, the pellet must be stored in a dry place.
3.2 Pellet loading
To load the pellets, open the tank cover positioned on the upper part of the stove and empty the
bag of pellets, paying attention not to let them escape.
WARNING
THE USE OF POOR QUALITY PELLETS OR OF ANY OTHER ATERIAL AY DA AGE THE
FUNCTIONING OF YOUR STOVE AND LEAD TO THE INVALIDATION OF THE WARRANTY
AND ASSOCIATED RESPONSIBILITIES
OF THE ANUFACTURER.

Page
9
4. SAFETY DEVICES
4.1 Breakdown of flue gas extractor
If the extractor stops, the electronic unit immediately prevents pellet feeding.
4.2 Breakdown of pellet load motor
If the motor stops, the stove continues to operate until the minimum cooling level is reached.
4.3 4 Failed ignition
If no flame develops during the ignition phase, the appliance automatically attempts a new ignition, this
time, though, without loading pellets.
If, after this attempt, the stove still has no flame, the stove display shows “FAILED IGNITION”. If you
attempt to light the stove again, the display shows “COOLING WAIT” which means “WAIT”. T is function
reminds you t at before lig ting t e stove, you must be sure t at t e brazier is free of dirt and
debris.
4.4 Temporary power cut
The appliance will re-light automatically after a brief power failure. When the power goes off, the stove may
emit a minute quantity of smoke inside the house for a period of 3 to 5 minutes.
THIS DOES NOT POSE ANY SAFETY RISK.
4.5 Electrical safety device
The stove is protected against violent changes in power by a master fuse on the rear of the stove (2A 250V
delayed).
4.6 Flue gas ex aust safety device
If the exhaust system fails, an electronic pressure switch stops the stove and an alarm is signalled.
4.7 Pellet temperature safety device
In case of overheating inside the pellet tank, this safety device blocks stove operation; resetting is manual
and must be performed by an authorised technician.
4.8 System pressure safety device
A mechanical pressure switch blocks any over-pressure in the system.
Resetting is manual and must be carried out by an authorised technician.
4.9 Boiling water safety device
In the event of a lack or minimum quantity of water, this device blocks the pellet feed. Reset is manual and
must be carried out by an authorised technician.
4.10 External devices
During stove installation, it is ANDATORY to adapt the system with a pressure gauge for viewing the water
pressure and an automatic discharge valve calibrated at 3 bar pressure.
4.11 Installation and safety devices
The installation and respective system connections, the start-up and final testing for correct operation must
be carried out with all due diligence by authorised professional technicians (Italian Law no. 46 of 5 arch
1990), in full respect for the regulations in force, both national and regional, as well as for the instructions
given in this manual.
Extraflame S.p.A. declines any responsibility for damage to objects and/or persons caused by
t e system.

Page
10
4.12 Safety devices for open expansion tank system
According to the UNI 10412-2 (2006) regulation, in force in Italy, systems with open expansion tank must be
equipped with:
•Open expansion tank
•Safety tube
•Loading tube
•Thermostat for circulator control (excluded for systems with natural circulation)
•Circulation system (excluded for systems with natural circulation)
•Device for acoustic alarm activation
•Acoustic alarm
•Temperature indicator
•Pressure indicator
•Automatic cut-out switch (cut-out thermostat)
The temperature safety sensors must be on-board the heat generator or at a distance no greater than 30 cm
from the delivery connection.
If the heat generators are not equipped with all the devices, the missing ones can be installed on the
delivery piping of the generator, at a distance of no more than 1 m from it.
4.13 Safety devices for closed tank system
According to the UNI 10412-2 (2006) regulation, in force in Italy, systems with closed expansion tank must
be equipped with:
•Safety valve
•Circulator control thermostat
•Acoustic alarm activation thermostat
•Temperature indicator
•Pressure indicator
•Acoustic alarm
•Automatic thermal adjustment switch
•Automatic thermal cut-out switch (cut-out thermostat)
•Circulation system
•Expansion system
•Safety dissipation system incorporated into the generator with the blowdown valve (self-operated),
if the appliance is not equipped with a self-regulating temperature system
The temperature safety sensors must be on-board the heat generator or at a distance no greater than 30 cm
from the delivery connection.
If the generators are not equipped with all the devices, the missing ones can be installed on the delivery
piping of the generator, at a distance of no more than 1 m from the machine.
Domestic type automatic loading heating appliances must be equipped with a fuel blocking thermostat or a
cooling circuit provided by the manufacturer of the appliance, activated by a thermal safety valve in order to
guarantee that the temperature limit imposed by the regulation is not exceeded. The connection between
the power supply unit and the valve must not have interceptions. The pressure upstream from the cooling
circuit must be at least 1.5 bar.

Page
11
5. ASSEMBLY AND INSTALLATION INSTRUCTIONS
The installation must comply with:
UNI 10683 (2005) heat generators fed with wood and other solid fuels: installation.
The chimneys must comply with:
UNI 9731 (1990) chimneys: classification according to thermal resistance.
EN 13384-1 (2006) calculation method of the thermal and fluid-dynamic features of the chimney
UNI 7129 point 4.3.3 provisions, local rules and prescriptions of the fire brigade.
UNI 1443 (2005) chimneys: general requirements.
UNI 1457 (2004) chimneys: internal ducts in terracotta and ceramics.
5.1 Glossary
CLOSED HEARTH DEVICE
Heat generator that can only be opened to load fuel during use.
BIOMASS
aterial of organic origin, excluding the material incorporated in geological formations and
fossilised.
BIOFUEL
Fuel produced directly or indirectly from biomass.
FLUE or CHIMNEY
Vertical duct for collecting and expelling combustion products from a single appliance at a suitable
height from the floor.
EXHAUST PIPE or FITTING
Pipe or connecting element between the heat generating device and the chimney for extracting
the combustion products.
INSULATION
The series of measures taken and materials used to prevent heat transmission through a wall
dividing rooms at different temperatures.
CHIMNEY CAP
Device located at the top of the chimney that facilitates dispersion of the combustion products in
the atmosphere.
CONDENSATE
Liquid products that form when the temperature of the combustion gas is lower than or equal to
the dew point of the water.
HEAT GENERATOR
Device that permits the production of thermal energy (heat) by the rapid transformation of the
chemical energy of the fuel by means of combustion.
AIR LOCK
echanism for modifying the dynamic resistance of the combustion gasses.

Page
12
FLUE GAS VENTING SYSTEM
A system for flue gas exhaust venting that is independent from the appliance, composed of a pipe
or channel, chimney or single flue, and chimney cap.
FORCED DRAUGHT
Air circulation by means of a fan driven by an electric motor.
NATURAL DRAUGHT
Draught resulting in a chimney/flue due to the difference in the volume mass existing between the
(hot) fumes and the surrounding atmospheric air, without any mechanical suction aid installed
inside or on top of it.
RADIANCE AREA
Area immediately adjacent to the hearth in which the heat produced by combustion is diffused;
this area must not contain any objects made of combustible material.
REFLUX AREA
Area in which the combustion products come out from the appliance towards the room in which it
is installed.
5.2 Installation
Before carrying out installation, it is necessary to check the positioning of the chimneys, flues or
exhaust terminal ducts of the appliance, bearing in mind the following:
•Installation prohibitions
•Legal clearances
•Limitations set out by local administrative regulations or specific regulations of the
authorities.
•Common limitations deriving from building regulations, and easement or contract
regulations.
Admissible installations
In the room in which the heat generator is to be installed, any existing or installed appliances must
be airtight to the room and must not cause depression in the room with respect to the external
environment.
Appliances used for cooking foods and the related hoods without extractor can only be installed in
rooms used as kitchens.
Pro ibited installations
The room in which the heat generator is to be installed must not contain any of the following
devices, either pre-existing or installed:
- Hoods with or without extractor;
- Ventilation ducts of the collective type.
Should these devices be located in adjacent rooms communicating with the installation room, it is
forbidden to use the heat generator simultaneously where there is the risk that one of the two
rooms may be subject to depression with respect to the other.

Page
13
5.2.1 Connection to t e flue gas venting system
Ex aust pipe or fitting
For the assembly of the exhaust pipes it is imperative to use non-flammable materials that are
resistant to combustion products and any condensates.
It is forbidden to use flexible metal pipes and asbestos cement for connecting the stove to the
flue, also for pre-existing exhaust channels.
There must be continuity between the exhaust pipe and the flue so that the flue does not lean on
the stove.
The exhaust pipes must not pass through rooms in which the installation of combustion devices is
forbidden.
The assembly of the exhaust pipes must be carried out in such a way as to ensure that they are
airtight for the operating conditions of the appliance, as well as to limit the formation of
condensates and prevent them from being conveyed towards the appliance.
The assembly of horizontal sections must be avoided where possible.
Where roof or wall exhaust outlets have to be reached that are not coaxial in relation to the
exhaust outlet from the appliance, the direction changes must be made using open elbows no
greater than 45° (see figures below).
For heat generating devices equipped with an electric exhaust fan, i.e. all products made by
Extraflame, it is necessary to observe the following instructions:
•Horizontal sections must have a minimum slope of 3% upwards.
•The length of the horizontal section must be as short as possible, and in any case no
greater than 3 metres.
•No more than four direction changes may be used, including the one resulting from the use
of the “T”-element. (When four bends are used, use double wall piping with a 100 mm
diameter.)
In any case, exhaust pipes must be sealed in relation to combustion products and condensates, as
well as insulated, if they pass outside the installation room.
It is forbidden to use elements in counter-slope.
The exhaust channel must allow soot recovery and cleaning using a swab.
The exhaust channel must have a constant cross-section. Any changes in cross-section are allowed
only at the flue connection.
45°
45°
Insulation
Flue
Inspection

Page
14
It is forbidden to run other air feed channels or piping for utilities inside the exhaust channels,
even if they are oversized. It is also forbidden to fit manual draught adjustment devices on the
forced draught appliance.
5.2.2 C imney or single flue
The chimney or flue must meet the following requirements:
- be sealed to combustion products, waterproof and properly insulated according to the usage
conditions;
- be made of materials suitable to resist normal mechanical stress, as well as heat and the action
of combustion products and any condensates;
- have a predominantly vertical layout with deviations from the axis no greater than 45°;
- be situated at a proper distance from combustible or flammable materials by means of an air gap
or suitable insulation material;
REFERENCES Flammable
objects
Non-flammable
objects
A 200 100
B 1500 750
C 200 100
- preferably have a round internal section: square or rectangular sections must have rounded
edges with radius no less than 20 mm;
- have a constant, free and independent internal section;
- have rectangular sections with a maximum ratio between sides of 1.5.
The exhaust pipe should be equipped with a chamber for the collection of solid materials and any
condensates located below the mouth of the exhaust pipe, so that it is easy to open and inspect
from the airtight hatch.
A
Minimum
80 cm²
Floor protection
B
20 cm
C

Page
15

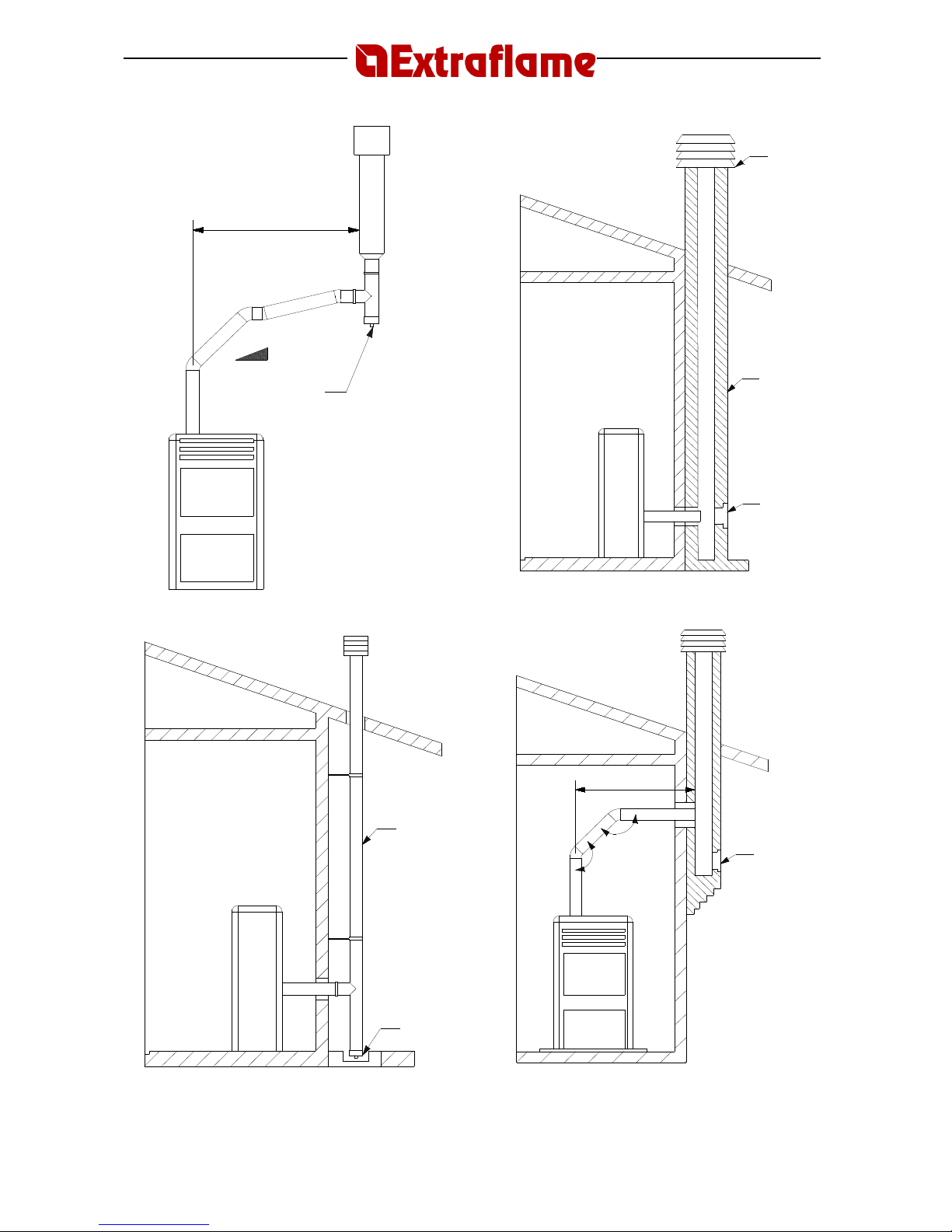

Maximum 3 m
cm
3
–
5 %
Inspection
Windproof
c imney cap
Flue
Inspection
External
insulated duct
Inspection
Maximum 3 m
cm
45°
Inspection

Page
16
5.2.3 Connecting t e appliance to t e flue and evacuation of combustion products
The flue must receive exhaust from a single heat generator.
Direct discharge towards enclosed areas, even when roofless, is forbidden.
Direct discharge of combustion products must take place on the roof and the exhaust pipe must
have the features set out in the section “Chimney or single flue” .
5.2.4 C imney cap
The chimney cap must meet the following requirements:
- have an internal section equivalent to that of the chimney;
- have a useful outlet section no less than twice the internal section of the chimney;
- be constructed in such a way as to prevent the penetration of rain, snow and foreign bodies into
the chimney, as well as to assure the discharge of the combustion products also in the presence of
winds coming from any direction and at any angle.

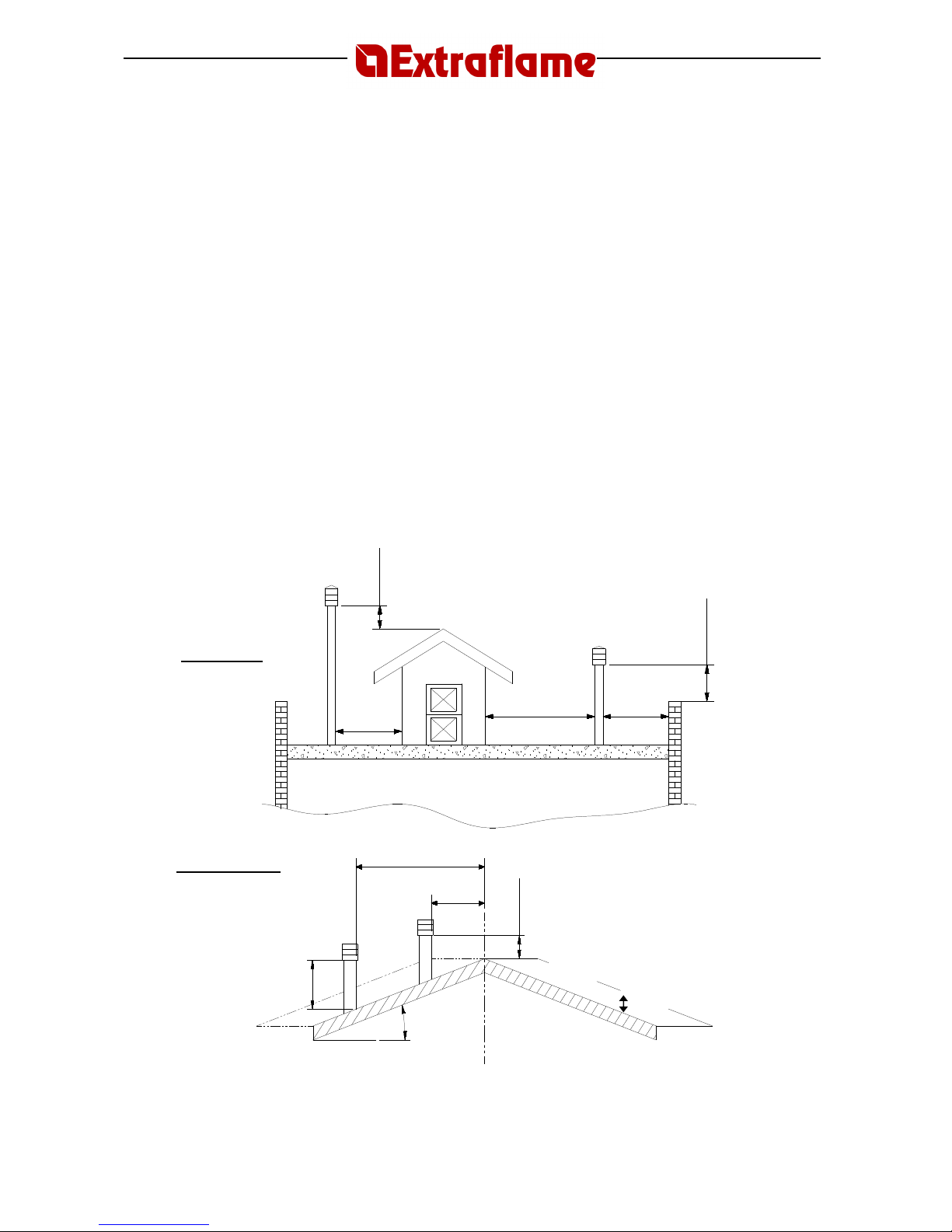

- be positioned in such a way as to assure proper dispersion and dilution of the combustion
products and, in any case, outside the reflux area in which the formation of counter-pressure is
most likely to occur. This area has different sizes and shapes depending on the slope of the roof;
therefore, it is necessary to use the minimum heights indicated in the figures below.
The chimney cap must not have any mechanical suction devices.
50 cm
> 5 m
< 5 m
50 cm
< 5 m
FLAT ROOF
SLOPED ROOF
Distance
> A
Distance
> A
50 cm beyond t e ridge beam
H min
β
REFLUX AREA
Reflux area eig t

Page
17
CHIMNEYS, DISTANCES AND POSITIONING
Roof pitc Distance between t e
crown and t e c imney
Minimum eig t of t e c imney
(measured from t e outlet)
β A (m) H (m)
15° < 1.85 0.50 m beyond the crown
> 1.85 1.00 m from the roof
30° < 1.50 0.50 m beyond the crown
> 1.50 1.30 m from the roof
45° < 1.30 0.50 m beyond the crown
> 1.30 2.00 m from the roof
60° < 1.20 0.50 m beyond the crown
> 1.20 2.60 m from the roof
5.2.5 Connection to external air inlets
To ensure correct operation, the appliance must have sufficient air available by means of external
air inlets, which must meet the following requirements:
a) They must have a total free section of at least 80 cm².
b) They must be protected by a grate, metal mesh, or other suitable protection provided that it
does not reduce the minimum section as per point a) and that it is positioned in such a way as to
prevent the intakes from being obstructed.
If the combustion air is collected directly from the outside by means of a pipe, it is necessary to fit
a downward bend or a wind hood on the outside. In addition, no grating or similar device should
be positioned. (Extraflame S.p.A. suggests creating an air intake directly communicating with the
installation room, even if air is collected from outside by means of a pipe). Air inflow can also be
obtained from a room adjacent to the installation room, provided that the flow can occur freely
through permanent openings communicating with the outside.
The adjacent room must not be subject to depression with respect to the outside as a result of the
opposing draught caused by the presence of another utility device or suction device in this room.
In the adjacent room, the permanent openings must meet the requirements described above.
The adjacent room cannot be used as a garage, storage area for combustible material, or for
activities involving fire hazards.
5.2.6 Insulation, trims, facings, and safety precautions
The facings, no matter what type of material they are made of, must constitute a self-bearing
structure with reference to the heating assembly and not in contact with it.
The beam and the trims in wood or combustible materials must be positioned outside of the
radiant area of the hearth or be properly insulated.
If the space above the heat generator has coverings made of combustible or heat-sensitive
material, a protective membrane made of non-combustible insulating material must be placed
between it and the generator.
All elements made of combustible or flammable material, such as wooden furnishings, curtains,
etc., which are directly exposed to the radiance of the hearth, must be placed at a safe distance.
The installation of the appliance must guarantee easy access for cleaning the appliance itself, of
the exhaust gas pipes and the flue.
5.2.7 National, regional, provincial and municipal laws
All the national, regional, provincial ad municipal laws of the country where the appliance has been
installed must be taken into consideration.

Page
18
6. CONTROL PANEL
1  ON/OFF BUTTON
The stove can be turned on and off automatically by pressing button 1.
2-3  WATER TEMPERATURE SETTING
Buttons 2 and 3 are used to adjust the water temperature inside the house.
4-5 

 OPERATING POWER
Buttons 4 and 5 are used for adjusting the heating power, which ranges from a minimum
of 4.5 kW/h to a maximum of 23 kW/h.
Displays D1 and D2 for showing the various messages.
RE OTE CONTROL SENSOR
D1
D2

Page
19
7. LANGUAGE SELECTION
To select the language, proceed as follows:
1. Switch the power supply to the stove off and then on again using the master switch or the
power cable.
2. The display will show the following items in sequence, before arriving at “OFF”:
•icroprocessor version (EXTRAH2O_2 or later)
•ode selection (WINTER –factory-set)
•Language (LANGUAGE)
•Current day and time adjustment (CLOCK)
•Level (LEVEL – setting reserved for an authorised technician)
3. When the word “LANGUAGE” appears, press button 5 to access the language selection
function.
4. Display D1 will show the language currently selected; D2 will show “LANG”: use buttons 2
and 3 to select the desired language: ITALIANO – ENGLISH – DEUTSCH – FRANCAIS
5. When you have made your selection, press button 1 to confirm and exit.
8. CURRENT DAY AND TIME SETTINGS
To set the current time, proceed as follows:
1. Switch the power supply to the stove off and then on again using the master switch or the
power cable.
2. The display will show in sequence, before arriving at “OFF” , the following items:
•icroprocessor version (EXTRAH2O_2 or later)
•ode selection (WINTER factory-set)
•Language (LANGUAGE)
•Current day and time adjustment (CLOCK)
•Level (LEVEL – setting reserved for an authorised technician)
3. When the word “CLOCK” appears, press button 5 to access the setting mode.
4. Display D1 will show a day of the week (from DAY1 to DAY7): use the buttons 2 and 3 to
set the current day, and confirm with button 5.
Display D1 Meaning
DAY 1 onday
DAY 2 Tuesday
DAY 3 Wednesday
DAY 4 Thursday
DAY 5 Friday
DAY 6 Saturday
DAY 7 Sunday
5. On display D1, the hour is flashing, whereas the minutes are stable. Enter the current hour
using buttons 2 and 3. Confirm with button 5.
6. On display D1, the hours are now stable and the minutes are flashing. Enter the current
minutes using buttons 2 and 3.
To go back to hour setting, press button 4; otherwise confirm and exit with button 1.

Page
20
9. OPERATING MODES
The stove is factory-set to receive a number of external supplementary thermostats that make it
possible to adapt and regulate operation in relation to the system needs.
In support of this function, the stove has three operating modes strictly tied to the use of external
thermostats, where used. This means that the selection of one mode over another without the use
of supplementary devices does not modify the stove in any way.
The external thermostats have to be connected to the terminal board located on the back of the
stove.
The installer must verify that supplementary device applied to the stove is suitably earthed; if
necessary, provide for an additional earth. Pay particular attention that the cables are not in
contact with heated parts.
On the back wall of the tank, just above the terminal board, there are four holes for attaching the
cable terminals that you will find in the bag of accessories.
The table below shows some examples of possible connections for external thermostats.
ING1  input connection between terminals ING1 and CO of the terminal board
ING2  input connection between terminals ING2 and CO of the terminal board
ING1 has priority over ING2
OUT3 and OUT4 are outputs of the supplementary board controlled by the status of input ING1.
The status of the outputs indicated in the table below are to be considered valid only when the
pump is working.
N.B.: Stove s utdown always as a delay of 15 minutes.
Operation wit standard factory-set configuration
Status of terminals Status of outputs Stove status
ING1 and ING2 closed OUT4 always active (230 V, 50 Hz)
(jumpered as from the factory) OUT3 always deactivated (0 V) Stove on
Operation wit t e use of an external contact
Status of terminals Status of outputs Stove status
ING1 connected external contact
ING1 closed
ING2 disconnected/open OUT4 active (230 V, 50 Hz)
OUT3 deactivated (0 V)
Stove on
ING1 open
OUT4 deactivated (0 V)
OUT3 active (230 V, 50 Hz)
Stove off
ING1 connected external contact
ING1 closed
ING2 closed (jumpered) OUT4 active (230 V, 50 Hz)
OUT3 deactivated (0 V)
ING1 open
OUT4 deactivated (0 V)
OUT3 active (230 V, 50 Hz)
Stove on
ING1 disconnected/open ING2 closed Stove on
