FabiaTech FP8082 Series User manual

FabiaTech Corporation
IPC Solution
Website: http://www.fabiatech.com
Email: [e-mail]
Panel PC
FP8082 Series
User’s Manual
JUL 2013
Version: 1.1
Part Number: FP8082

Copyright
Copyright © 2011 FabiaTech Corporation, The content of this publication may not
be reproduced in any part or as a whole, transcribed, stored in a retrieval system,
translated into any language, or transcribed in any form or by any means,
electronic, mechanical, and magnetic… or otherwise without the prior written
permission of FabiaTech Corporation.
Disclaimer
FabiaTech makes no representation of warranties with respect to the contents of
this publication. In an effort to continuously improve the product and add features,
FabiaTech reserves the right to revise the publication or change specifications
contained in it from time to time without prior notice of any kind from time to time.
FabiaTech shall not be reliable for technical or editorial errors or omissions, which
may occur in this document. FabiaTech shall not be reliable for any indirect,
special, incidental or consequential damages resulting from the furnishing,
performance, or use of this document.
Trademarks
Trademarks, brand names and products names mentioned in this publication are
used for identification purpose only and are the properties of their respective
owners.
Technical Support
If you have problems or difficulties in using the system or setting up the relevant
devices, and software that are not explained in this manual, please contact our
service engineer for service, or send email to sup[email protected].
Returning Your Board For Service & Technical Support
If your board requires servicing, contact the dealer from whom you purchased the
product for service information. You can help assure efficient servicing of your
product by following these guidelines:
A list of your name, address, telephone, facsimile number, or email address
where you may be reached during the day
Description of you peripheral attachments
Description of your software (operating system, version, application
software, etc.) and BIOS configuration
Description of the symptoms (Extract wording any message)
For updated BIOS, drivers, manuals, or product information, please visit us
at www.fabiatech.com
ii

Table of Contents
FP8082 Panel PC User’s Manual.........................................................................................i
Chapter 1 Introducing the FP8082 Panel PC............................................................................. 1
Overview..................................................................................................................................1
Series Comparison Table.......................................................................................................2
Layout.......................................................................................................................................3
Specifications..........................................................................................................................4
Packing List..............................................................................................................................6
Chapter 2 Hardware Installation ............................................................................................... 7
Before Installation...................................................................................................................7
Removing Covers –Installing Hardware...........................................................8
I/O Peripheral Connectors Panel...................................................................14
Connecting the DC Power and Power Button ............................................17
Chapter 3 BIOS Setup............................................................................................................... 19
Overview................................................................................................................................19
BIOS Functions ...................................................................................................20
Keyboard Convention ..............................................................................................21
Main Setup ............................................................................................................................22
Advanced Setup..................................................................................................................23
CPU Configuration............................................................................................23
IDE Configuration..............................................................................................24
SuperIO Chipset - Configuration Win627 Super IO Chipset........................27
Hardware Health Configuration.....................................................................30
Advanced ACPI Settings.................................................................................31
APM Configuration...........................................................................................33
USB Configuration.............................................................................................35
PCIPnP Setup.........................................................................................................................37
Boot Setup.............................................................................................................................39
Boot Setting Configuration..............................................................................40
Boot Device.......................................................................................................42
Hard Disk Drives.................................................................................................43
Removable Drives.............................................................................................43
iii

Security setup........................................................................................................................44
Chipset Setup........................................................................................................................46
North Bridge Configuration.............................................................................47
South Bridge Configuration.............................................................................49
Chapter 4 Software Installation ............................................................................................... 51
System Driver.........................................................................................................................51
WIN 2000/XP Driver.....................................................................................................51
VGA Driver.............................................................................................................................52
WIN 2000/XP Driver.....................................................................................................52
Audio Driver...........................................................................................................................52
WIN 2000/XP Driver.....................................................................................................52
LAN Driver (RTL 8111C).........................................................................................................53
WIN 2000/XP Driver.....................................................................................................53
Touch Screen Driver (FP8082T)............................................................................................53
USB Device Driver for WIN2000/XP...........................................................................53
BIOS Flash Utility.....................................................................................................................53
Watchdog Timer...................................................................................................................54
Watchdog Timer Setting...........................................................................................55
Watchdog Timer Enabled ........................................................................................56
Watchdog Timer Trigger ...........................................................................................56
Watchdog Timer Disabled........................................................................................57
Programming RS-485............................................................................................................58
Send out one character (Transmit).........................................................................59
Send out one block data (Transmit – the data more than two characters) ...59
Receive data..............................................................................................................59
Basic Language Example.........................................................................................59
Chapter 5 Technical Reference .............................................................................................. 61
Trouble Shooting...................................................................................................................61
Post Beep and Error Messages.................................................................................61
Touch Screen..............................................................................................................64
LCD Display is unstable.............................................................................................64
Technical Reference............................................................................................................65
Physical and Environmental.....................................................................................65
Real-Time Clock and Non-Volatile RAM ................................................................65
iv

CMOS RAM Map........................................................................................................67
Serial Ports ...................................................................................................................68
Appendix................................................................................................................................... 72
Dimension..............................................................................................................................72
v

vi

FabiaTech Corporation
Chapter1IntroducingtheFP8082PanelPC
Overview
The FP8082 is 8.4-inch TFT Panel PC, this panel PC with Intel® Atom™ N270 low-
power CPU module inside and touch screen device, this user’s manual provides
information on the physical features, installation, and BIOS setup of the FP8082.
Built to unleash the total potential of the Intel® Atom™ N270 Processor, Able to
support 1.6 GHz CPU, this system supports one 10/100/1000M Base –TX LAN ports, 1
So-DIMM socket supports up to 2GB DDR2 RAM, PCIe mini card socket for wireless
LAN, six USB2.0 ports, audio and a dual display VGA controller.
Each FP8082 has six ports for I/O communication. One RS232/RS422/RS485 port and
five RS232 ports are available.
The FP8082is perfect for ATM machines, KIOSK, point-of-sales/point-of- information,
gaming and infotainment, measurement technology, lotteries, banking and Thin
Client and small Embedded Control. The unit is only 60mm (D) X250mm (W)
X180mm (H).
1

FabiaTech Corporation
SeriesComparisonTable
Model FP8082T
System Processor Intel ® Atom™ N270 1.6GHZ
N+S-Chipset Intel 945GSE+
8280GBM(ICH7M)
Memory
1*200 Pin - DIMM (Max.)
DDR2 400/533
1GB/2GB
Storage HDD One CF and SATA
Watchdog Timer Yes
Multi I/O One RS232/RS422/RS485 and
Five RS232
USB 2.0 Six USB ports
Audio Ear-Phone And MIC-In
RJ45 LAN port
One PCIE RTL8111C 10/100/1000Mbps
PCIe Mini-Card Socket One
Panel Display Type 8’4 TFT LED LCD
Max. Resolution 800X600
Max. Colors 262K(RGB 6-Bit)
Luminance(cd/ ㎡ ) 450 cd/
㎡
Dot Size(mm) 0.213*0.213
Viewing Angle(H/V) 160°/140°
Lamp Life 50,000Hrs
Touch Screen (w/T) 4 Wire, Analog Resistive
Resolution 800X600
Light Transmission 80%±%5
Life Time 10 Million Activations
Operating Temperature 0~+50℃(32~122℉)
Storage Temperature -20~+60℃(4~140℉)
Dimensions (Unit: mm) 60(D) x 250(W) X 180(H)
2

FabiaTech Corporation
3

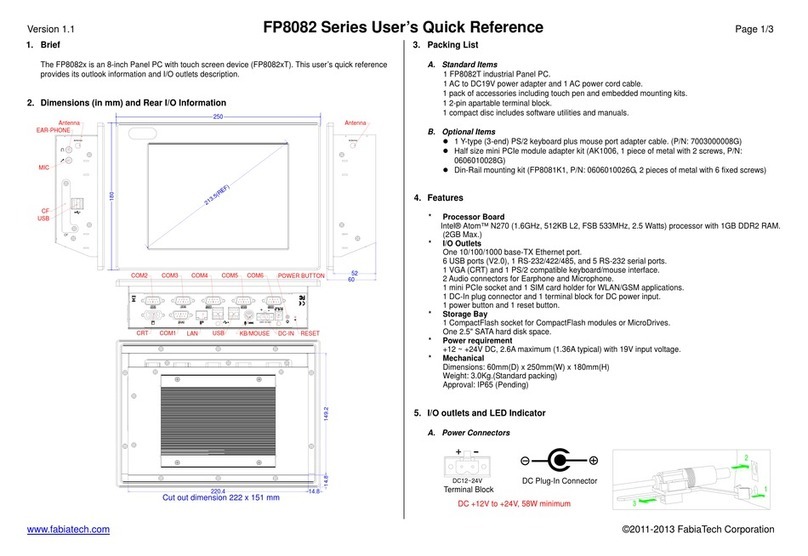

Layout
USB
CF
MIC
EAR-PHONE
COM5
CRT COM1 USB
LAN
COM2 COM3 COM4
DC-IN
KB/MOUSE RESET
POWER BUTTON
COM6
Antenna Antenna
32
1
654
DC12~24V
+
/
-
CF
Antenna
FP8082

FabiaTech Corporation
Specifications
Processor Board –
I Intel ® Atom™ N270 1.6GHZ Low Power Processor with 1GB DDR2-RAM
I/O Outlets –
One PCIe 10/100/1000 base-TX Ethernet LAN ports and Six USB ports (2.0)
One RS-232/RS422/RS485 port and five RS232 ports with DB9
One VGA (CRT) and one PS/2 compatible keyboard/mouse interfaces
Two audio connectors for Earphone and Microphone-in
One PCIe Mini card socket modules, especially for WLAN/GPRS module
One DC-In plug connector and one terminal block for DC power input
One power push button and one reset button
Storage Bay-
Compact Flash socket for Compact Flash modules or MicroDrives
One 2.5" SATA hard disk space
LCD Display-
Front panel with 8.4-inch color LVDS TFT LED LCD panel
Supports up to SVGA 800X600 64K colors
Resistive Touch screen –(Only For FP8082T)
4-wire analog resistive touch screen device with USB interface
The USB interface Software support Windows 2000/XP
Temperature
Operating temperature 0~50℃(32~122℉)
Storage temperature -20~60℃(-4~140℉)
4

FabiaTech Corporation
Power requirement –
+12V ~ +24V DC, 2.6A Maximum (1.36A typical) with DC19V Input
Dimensions –
60.0mm (D) x 250.0mm (W) x 180.0mm (H)
5

FabiaTech Corporation
PackingList
Upon receiving the package, verify the following things. Should any of the
mentioned happens, contact us for immediate service.
•Unpack and inspect the FP8082 package for possible damage that may
occur during the delivery process.
•Verify the accessories in the package according to the packing list and see
if there is anything missing or incorrect package is included.
•If the cable(s) you use to install the FP8082is not supplied from us, please
make sure the specification of the cable(s) is compatible with the
FP8082system.
Note: After you install the FP8082, it is recommended that you keep the diskette or
CD that contains drivers and document files, and keep the document
copies, or unused cables in the carton for future use.
The following lists the accessories that may be included in your FP8082package.
Some accessories are optional items that are only shipped upon order.
•One FP8082x industrial Panel PC.
•One AC to DC19V power adapter and one AC power code cable.
•One pack of 2.5’ SATA HDD installing with 2 screws
•One pack of panel Mount kit with 4 screws.
•One compact disc includes touch screen driver software.
Optional:
•One Y type( 3-end) PS2 keyboard and mouse cable(PN: 7003000008G)
•AK1006-Half size mini PCIe module adapter kit(PN: 0606010028G)
•FP8081K1 DIN Rail Mounting Kit with 6 fixed screws. (PN: 0606010026G)
6

FabiaTech Corporation
Chapter2HardwareInstallation
This chapter introduces the system connectors and guides you to apply them for
field application.
BeforeInstallation
Before you install the system, make sure you follow the following descriptions.
1. Before removing the cover, shut down the operation System and disconnect
power switch to off and unplug AC cable.
2. Install or unplug any connector, PCIe mini card, Compact Flash, and hard disk
be sure that the power is disconnected or power switch to off from the system.
If not, this may damage the system.
3. The ESD (Electricity Static Discharge) may be created from human body that
touches the board. It may do damage to the board circuit.
4. When using the screwdriver on screws, before make sure the screws size and
type, if uses the not correct unscrews or screws of system, the screwdriver may
break the screws.
7

FabiaTech Corporation
8
Removing Covers –Installing Hardware
If you are installing hardware option, you can remove the right side or back side
cover. The following figure will guide you how to install Compact Flash modules,
2.5" SATA HDD inside, PCIe mini card module, DDR2-RAM module to the FP8082,
and how to install the FP8082 fixers. (Please see the spots circled.)
a. Unscrew Right Side Cover: Installing Compact
b. Unscrew and Separate the Covers
The following figure will guide you separate the FP8082 covers then installing
hardware devices.
b1. Unscrews the Back Side Cover
Note: The Compact Flash socket supports 3.3V Compact Flash and Micro Drives.
M3X8
M3 X2
M3X2

FabiaTech Corporation
9
b2. Unscrews the Right Side Metal Frame
b3. Unscrews the Bottom Side I/O Metal Frame
b4. Unscrews and Separate the Main Board
PAD 2t PAD 3t
Caution:Please do not touch the surface of thermal pads and avoid removing
them from chipset.
M3X3
M3X3
X14
M3X5

FabiaTech Corporation
c. Fasten Screws the SATA HDD into the HDD Metal Frame
d. Installing Memory:
You may extend additional memory to FP8082, See as following figure and rear
pictures.The So-DIMM socket supports 1GB to 2GB of DDR2-400/533 RAM modules.
Note: 1. Remove the inverter board before installing hard disk.
2. Use caution when handling the hard disk to prevent damage to SATA
connector as you inserted hard disk. Be careful with the orientation when
installing connectors.
M3X2
10

FabiaTech Corporation
e. Installing PCIe Mini Card
You may extend additional PCIe mini card WLAN module or SIM card to FP8082
by removing the covers. Connect the antenna cable from right side antenna
hole to PCIe Mini card WLAN (the auxiliary board).
e1. Installing PCIe Mini Card and SIM card
M2X2
Note: 1. When installing PCIe GPRS Mini card on FP8082 system these is need
the installing the SIM Card to system board.
2. Open the cover with SIM socket then insert SIM card into the SIM card
hold. Make sure that the SIM card is properly inserted and that golden
contact area on the card is facing downwards.
e2. Installing Half Size Mini PCIe module kit (Optional)
M2X4
11

FabiaTech Corporation
12
f. Installing the universal fixers on FP8082
Please refer to the back side figure for installing the FP8082with universal fixers.
f1. FP8082 - Panel Mounting Kit with VESA 75/100 mm Standards
f2. Embedded Wall mounting
Step 1 Step 2
Cut out dimension 222 x 151 mm
WALL
M4X4
M3X4

FabiaTech Corporation
f3. FP8081K1 - DIN RAIL mounting kit
M3X6
13

FabiaTech Corporation
14
I/O Peripheral Connectors Panel
View from the bottom and right side, If you are connecting the monitor, keyboard,
mouse, LAN, audio, COM and USB to the FP8082. See following figure and a side
pictures.
a. Bottom Side of FP8082Panel PC
COM5
CRT LAN COM1 USB
COM2 COM3 COM4
DC-INKB/MOUSE RESET
POWER BUTTON
COM6
2 3
1
4 5 6
/
-
+
DC12~24V
b. Right Side of FP8082 Panel PC
MIC
USB
CF
EAR-PHONE
Antenna
CF
Antenna
