Fantini Cosmi CH130ARR User manual

CH130ARR
ROOM THERMOSTAT FOR FAN-COILS
(AUTO VERSION WITH ACTUATOR)

2
Thermostat configuration .................................10
Technical features of the thermostat ......................15

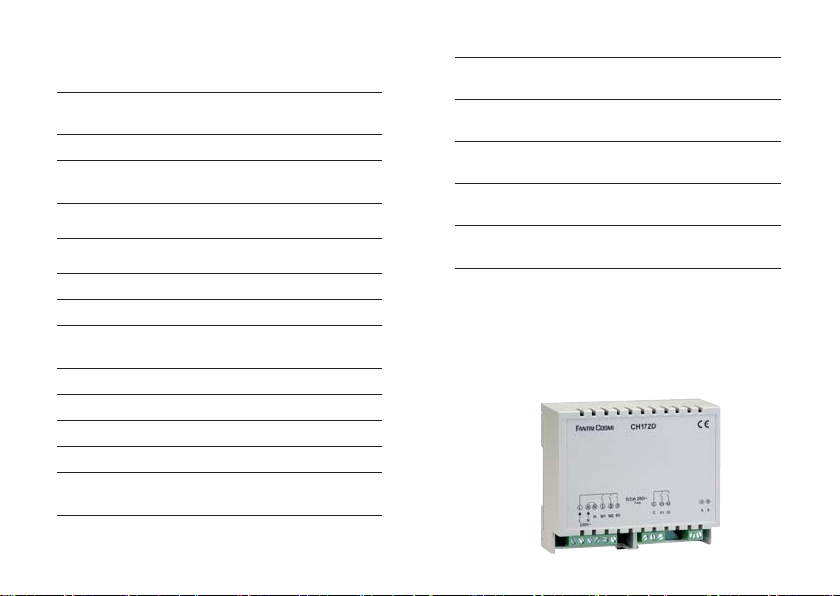

DIN bar CH172D actuator .....................................15
Application and use .........................................15
Fastening and connecting ...............................16
Electric connections ........................................17
Connecting several actuators with a thermostat
.........................................................................17
Technical features of the actuator ..........................18
TABLE OF CONTENTS
Introduction ..............................................................3
Controls and signals ................................................4
Controls .............................................................4
Signals ...............................................................4
User’s manual .........................................................5
“Summer / Winter” selection ..............................5
Operating modes ...............................................6
“Comfort” operating mode .................................6
“Economy” operating mode ...............................6
“OFF” function (OFF) .........................................7
Fan speed selection ..........................................7
Maintenance ............................................................8
Installation ...............................................................8
Fastening the socket .........................................8
Electric connections ..........................................9
Fastening the thermostat onto the socket .......10

3
Introduction
This fan-coil thermostat control kit CH130ARR
is made up of a CH130AR thermostat and a
DIN bar CH172D actuator.
The CH130AR model is a fan-coil 4- or 2-pipe
thermostat that allows you to control the ambi-
ent temperature both in the heating and cool-
ing mode. These commands are sent to a
CH172D actuator connected to the CH130AR
by means of a two-pole cable.
The CH130AR is powered directly by the ac-
tuator and is able to drive two valves and also
control a 3-speed fan-coil motor, either in man-
ual or automatic mode.
The thermostat measures the ambient tem-
perature either through an internal probe or an
external sensor. It keeps the set-point by act-
ing on the ventilation speed.
The wide display shows the measured tem-
perature, the fan speed, the program being run
and the selected season.
The settings and data are store in a permanent
memory that will retain them even when the
thermostat is not connected to the CH172D.

4

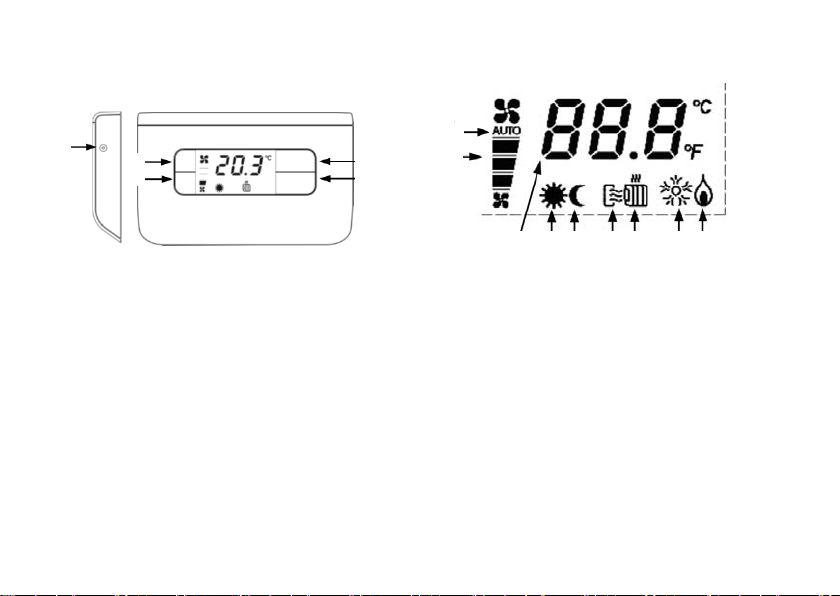

Signals
6
1 2 3 4 5 8 9
1. Measured temperature
2. “Comfort” symbol
3. “Economy” symbol
4. “Summer” symbol
5. “Winter” symbol
6. Fan speed symbols
7. “Automatic” symbol
8. System “ON” in summer operation
9. System “ON” in winter operation
Controls and signals
Controls
5
1
23
4
1. Fan speed increase button
2. Fan speed decrease button
3. Selected program temperature value
increase button
4. Selected program temperature value
decrease button
5. Thermostat reset button
Button combinations (press simultan.)
1+2 Summer/Winter switch
3+4 Comfort/Economy switch
2+4 Celsius/Fahreneit switch
7

5
User’s manual
To start the thermostat after the same has
been installed, proceed as follows:
1. Select the Summer / Winter operation;
2. Select the operating mode;
3. Select the fan speed.

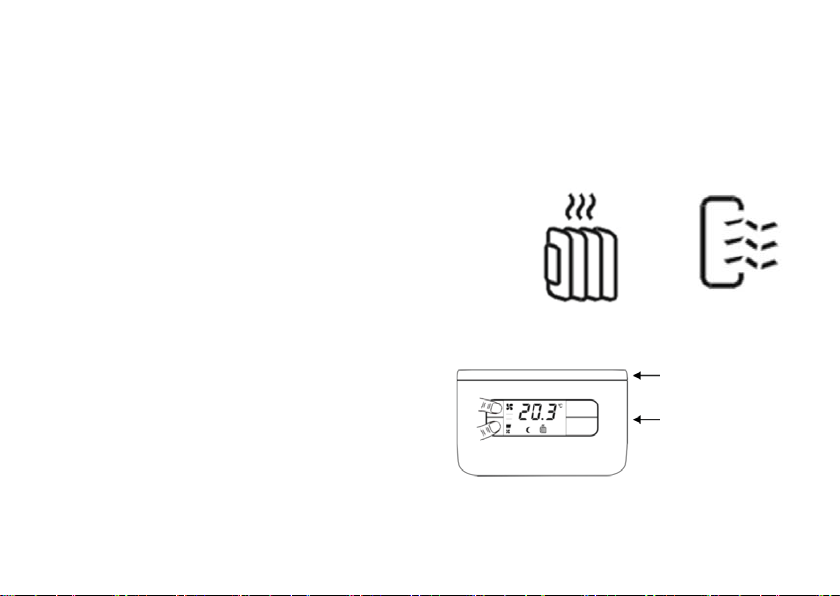

“Summer / Winter” selection
To switch from the “Winter” operation (i.e. heat-
ing system) to the “Summer” operation (i.e.
cooling system), and vice versa, press the 1+2
button combination. The selected operation
will be indicated on the display by the “Winter”
or “Summer” icons.
Winter Summer
THERMOSTAT
FRONT
TOP
COVER

6
“Economy” operating mode
With the “Economy” operating mode, the ther-
mostat regulates the heating or cooling system
operation in order to always keep the same
economy temperature set. To switch from
“Comfort” to “Economy”, press buttons “3” and
“4” simultaneously.
The temperature level can be modified during
operation by means of buttons “3” and “4”. The
temperature can be changed from 2°C to 40°C
by 0.1°C steps.
Operating modes
The CH130AR thermostat features three dif-
ferent manual operating modes: “Comfort”,
“Economy”, and the “OFF” function (OFF).
“Comfort” operating mode
With the “Comfort” operating mode, the ther-
mostat regulates the heating or cooling sys-
tem operation in order to always keep the
same comfort temperature set. To switch from
“Economy” to “Comfort”, press buttons “3” and
“4” simultaneously.
The temperature level can be modified during
operation by means of buttons “3” and “4”. The
temperature can be changed from 2°C to 40°C
by 0.1°C steps.

7
“OFF” function (OFF)
The “OFF” function can be achieved by setting
the fan speed to zero: in this case, the thermo-
stat will carry out no heat regulation, not even
the antifreeze one.
The system will switch off automatically, and
the “OFF” message will appear on the display.
Fan speed selection
The fan speed can be set to three fixed levels
(minimum, medium, maximum) or automati-
cally, by pressing buttons “1” and “2”.
The “Auto” mode allows you to automatically
change the fan speed depending on the ambi-
ent temperature.

8
Fastening the socket
The thermostat is supplied complete with a
socket suitable for mounting both on the wall
and to rectangular or round built-in 3-seat
boxes (503).
Remove the thermostat top cover.
Separate the thermostat socket and front by
removing the screw by means of a suitable tool
and taking the front part off.
Fasten the socket to the desired surface by
means of the special fastening holes; make
sure that the socket is properly engaged, with
no deformation, and that the connecting multi-
pole connector is located in the right bottom
corner.
DRILLING CENTERS
SCREWS
SOCKET
FASTENING
HOLES
MULTI-POLE CON-
NECTOR
Maintenance
The thermostat should be cleaned by using
a soft cotton cloth. No detergent should be
used.
Installation
The thermostat installation involves carrying
out the following operations:
• Fastening the socket;
• Making the electric connections;
• Fastening the thermostat onto the socket;
• Configuring the thermostat parameters.
Warning! The thermostat shall be installed only
by qualified personnel, in strict compliance with
the law regulations in force.
60.0
83

9
Actuator connection
Connect the power supply wires running from
the CH172D actuator with terminals A and B,
as illustrated in the figure.
The terminals take flexible conductors having
a maximum section of 2.5 mm2.
To ensure correct operation, the socket shall
be placed at a height of approximately 1.5 me-
tres from the floor, far from heat sources (direct
sunlight, etc.) and doors/windows.
Electric connections
Lower the terminal protection door prior to
making the connections.

10

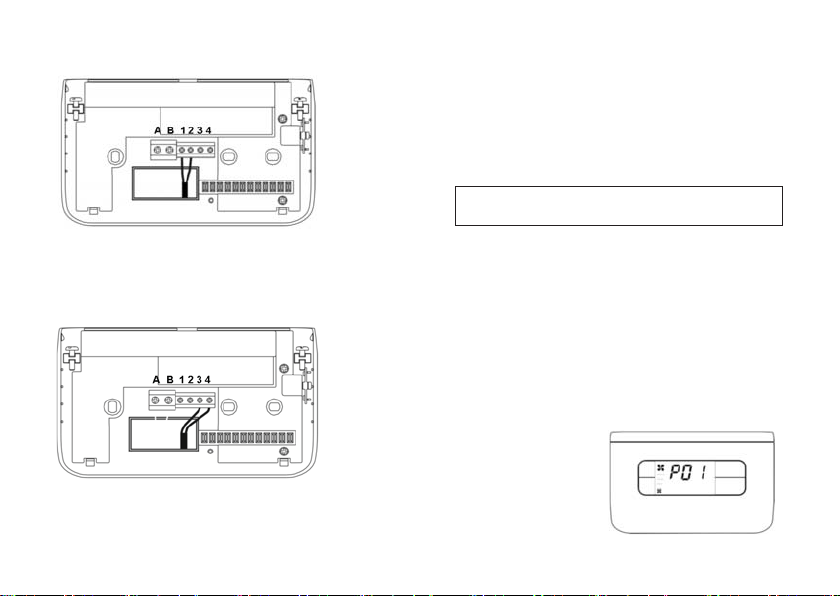

Auxiliary input connection
Connect the two auxiliary input wires with
screwed terminals “1” and “2”, as illustrated in
the figure.
External probe connection
Connect the two external probe wires with
screwed terminals “3” and “4”, as illustrated in
the figure.
Fastening the thermostat onto the socket
Insert and screw the thermostat down to the
socket (make sure that the multi-pole connec-
tor is engaged correctly). Fit the battery top
cover back into place.
Thermostat configuration
The thermostat configuration allows you to
customize the device operation parameters.
To access the configuration program, proceed
as follows:
1. Press the “Reset” button and also button 3
(with the thermostat ON).
2. Release the “Reset” button, then keep but-
ton “3” depressed for at least 3 seconds.
3. Release button “3”.
Warning! The configuration shall be performed
only by qualified personnel.

11
The configuration parameters are represented
by an index (P01, P02…) on the display and
by pressing buttons “1” and “2”, the parameter
indexes will be scrolled through. Press button
“3” to enter the displayed parameter.
To modify the current parameter, press buttons
“1” and “2”. To exit the parameter, press button
“3”. Once all parameters have been set, press
button “1” until the “END” message appears,
then press button “3”. Now the thermostat will
save the modified parameters and will auto-
matically exit the parameter menu.
N.B. The thermostat will send the switch-on/-off
controls for the three fans and the two valves
to the actuator to a fixed rate of 1 minute.
Index Parameter Values Preset
P01 Type of system 1-2 1
P02 External probe 1-2-3-4-5 5
P03 Display
visualization
1-2 1
P04 “Summer” valve
type
1-2 2
P05 “Winter” valve
type
1-2 2
P06 Auxiliary input 1-2-3 3
P07 Ambient
temperature
correction
-4°C –+ 4°C
(step 0.1°C)
0
P08 “Winter” lower
limit set-point
temperature
2 °C – 40°C
(step 1°C)
2,0 °C
P09 “Winter” upper
limit set-point
temperature
2 °C – 40°C
(step 1°C)
40,0 °C

12
Index Parameter Values Preset
P10 “Summer” lower
limit set-point
temperature
2 °C – 40°C
(step 1°C)
5,0 °C
P11 “Summer” upper
limit set-point
temperature
2 °C – 40°C
(step 1°C)
30,0 °C
P12 Changeover lower
threshold
0-24 °C 24,0 °C
P13 Changeover
upper threshold
26-48 °C 48,0 °C
P14 Differential
adjustment
±0.3 - ±2°C ±0.3 °C
END Thermostat
saving and reset
P01: Type of system
1two-tube system: the thermostat will drive
only the valve (ON/OFF type) used for heat-
ing both during the heating and the cooling: in
fact, the valve will control both hot water and
cold water.
2four-tube system: the thermostat will drive
one valve (ON/OFF type) used for heating,
plus one additional valve (ON/OFF type) used
for cooling, depending on the needs of the en-
vironment.
P02: External probe
1 resumption: instead of the probe incorporat-
ed into the thermostat, an external probe can
be used to read the ambient temperature and
carry out heat regulation. Typically, this probe
will be positioned under the fan-coil where air
is sucked.
2 changeover: the external temperature probe
can be placed on the fan-coil delivery tube of a
2-tube system to perform automatic changeo-
ver between the “Summer” operation and the
“Winter” operation. To achieve this, you will
have to set the two actuation thresholds P12
and P13. Please note that either the ambient
temperature (P03 set to 1) or the set-point (P03

13
set to 2) will be shown on the display, yet the
changeover temperature will not be shown.
3minimum window/thermostat contact: when
the contact is open, the thermostat will carry
out heat regulation; when it is closed, the heat
regulation will not be carried out.
4inverted minimum window/thermostat con-
tact: the window contact will operate with an
inverted logic with respect to the statements
made in previous step 3.
5none: the external probe input will not be
controlled by the thermostat.
P03: display visualization
1ambient temperature: the ambient tempera-
ture will be shown on the display.
2set-point: the current set point will be shown
on the display.
P04: “Summer” valve type
1 normally open: in this case, the water flow
is normally open and will be closed when the
valve is fed.
2normally closed: when the valve is energized,
it will open the water flow.
P05: “Winter” valve type
1normally open: in this case, the water flow
is normally open and will be closed when the
valve is fed.
2normally closed: when the valve is energized,
it will open the water flow.
P06: auxiliary input configuration
1ON/OFF: in the event that several thermo-
stats have been installed, you may decide
either to drive all of them in the normal opera-
tion condition (ON) or take advantage of the
OFF function (see page 5) by making use of
one single control through a central point. The
thermostat will be configured to OFF (OFF
function) when the input is powered with 24 V
(d.c. with no polarity obligation or a.c.); on the
contrary, it will remain active when the input is
free from voltage.
2 Summer/Winter: as with the previous case,
the thermostat will be configured to “Summer”
when the input is powered with 24 V (d.c. with
no polarity obligation or a.c.); on the contrary,
it will remain in the “Winter” mode active when
the input is free from voltage.
3none: the thermostat will carry out no opera-
tion, whatever the input status.

14
P07: ambient temperature correction
It can be adjusted from –4.0 to 4.0°C. This pa-
rameter is used to correct the acquired ambient
temperature. As a matter of fact, the ambient
temperature reading may, on some instal-
lations, not be satisfying, owing to the probe
location (i.e. internal or resumption). With this
parameter, a constant value upon reading can
be added to or subtracted from.
P08: “Winter” lower limit set-point tempera-
ture
It can be adjusted from 2.0 to 40.0°C. It rep-
resents the lower limit for all the set-points
(“Comfort” and “Economy”) in the heating
mode.
P09: “Winter” upper limit set-point tem-
perature
It can be adjusted from 2.0 to 40.0°C. It rep-
resents the upper limit for all the set-points
(“Comfort” and “Economy”) in the heating
mode.
P10: “Summer” lower limit set-point tem-
perature
It can be adjusted from 2.0 to 40.0°C. It repre-
sents the lower limit for all the set-points (“Com-
fort” and “Economy”) in the cooling mode.
P11: “Summer” upper limit set-point tem-
perature
It can be adjusted from 2.0 to 40.0°C. It rep-
resents the upper limit for all the set-points
(“Comfort” and “Economy”) in the cooling
mode.
P12: changeover lower threshold
It can be adjusted from 0 to 24°C. It defines
the changeover function lower threshold. Be-
low this temperature, the thermostat will be set
to the cooling mode, if P02 is set to configura-
tion 2.
P13: changeover upper threshold
It can be adjusted from 26 to 48°C. It defines
the changeover function upper threshold.
Above this temperature, the thermostat will be
set to the heating mode, if P02 is set to con-
figuration 2.
P14: differential adjustment
It can be set staring from ±0.3°C (value suit-
able for slow-inertia systems) to ±2°C (value
suitable for very reactive systems).

15
Technical features of the thermostat
Power supply By means of the
CH172D actuator
Outputs Actuator controls
Inputs Auxiliary input, external
probe input
Electric connections Screwed terminals
Protection degree IP20 (normal pollution)
Setting memorization Non-volatile memory
Software Class A
Temperature adjust-
ment range
2 °C – 40 °C
Max. temperature T45
Local signalling LCD display
Local controls 5 buttons
Dimensions (L x H x D) 135 X 83 X 21
External temperature
probe distance
10 m max.
Reference temperature
gradient
4 K/h
Actuator cable max.
length
100m
Conforming to the
directives
2006/95/CE, 2004/108/
CE, 1993/68/CE
Complying with the
standards
EN60730-1, EN60730-
2-9
ErP classification: ErP Class IV; 2% (EU Reg.
811/2013 - 813/2013)
DIN bar CH172D actuator
Application and use
One single CH130AR thermostat can be con-
nected with several actuators, so as to simulta-
neously control several fan-coils by using only
two cables (see below).

16
Fastening and connecting
The unit has been designed to be built in (in-
side fan-coils, special panels or other suitable
housings).
The unit shall be installed by qualified person-
nel in accordance with the EN regulations in
force.
The distance between the actuator and the
transmitter shall not exceed 100 m.
Connect the wires to the socket terminal block
in accordance with the diagrams illustrated be-
low.
If a two-tube system is available, connect only
valve “1” (contact between terminals “C” and
“V1”). In case of a four-tube system, valve “1”
is dedicated to heating, whereas valve “2” (be-
tween “C” and “V2”) is dedicated to cooling.
WARNING! Prior to carrying out any operation
on the unit, make sure that you have discon-
nected the mains connecting cables.
Operation check
Refer to the specific user manual for the in-
struction on how to use the CH130AR thermo-
stat.
• Make sure that the actuator is correctly con-
nected with the thermostat.
• Power the actuator by connecting the same
with the electric mains.
• Switch over, on the thermostat, the fan mo-
tor speed (3 relays) and the valve control (2
relays), then verify that they have actually
switched over.

17
Electric connections
CH130R
V p. supply
E.V. A
V p. supply
E.V. B
Motor
230 Vca
Connecting several actuators with a ther-
mostat
A CH130AR is able to control up to five fan-
coils at the same time, by making use of only
two cables to get connected with the actuators.
One of such actuators shall be a CH172D,
whereas the others (four at most) shall be
CH172DS.
The units shall be connected in accordance
with the diagram below:
CH130AR
CH172DS CH172DS
CH172DS
CH172DS
CH172D
A B A B A B
B A
B AB A

18
Fantini Cosmi S.p.A. reserve the right to make
any necessary technical and construction
modification without any obligation to give prior
notice.
Technical features of the actuator
Power supply 230V 50 Hz
Absorbed power 2VA
Input Thermostat controls
Relay output fea-
tures
5(3)A250 V~
Voltage-free switch-
ing contacts
2 valve outputs
Network voltage
switching contacts
3 motor contact outputs
Container IP00 (pollution degree 2)
Software class A
Max. temperature T45
Disconnection type 1B (micro-disconnection)
Pulse voltage 4000V
Type of assembling DIN bar
Dimensions DIN bar 6 module contai-
ner (106 x 93 x 42 mm)
Conforms with the
directives
2006/95/CE,
2004/108/CE, 1993/68/CE
Complying with the
standards
EN60730-1

DISPOSAL OF PRODUCTS
The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of
separately from household waste. Integrated batteries and accumulators can be disposed of with the
product. They will be separated at the recycling centres. The black bar indicates that the product was
placed on the market after August 13, 2005. By participating in separate collection of products and
batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent
potential negative consequences for the environment and human health. For more detailed information
about the collection and recycling programmes available in your country, please contact your local city
office or the shop where you purchased the product.

GB79336E
FANTINI COSMI S.p.A.
Via dell’Osio, 6 20090 Caleppio di Settala, Milano - ITALY
Tel. [phone]
|
Fax [phone]
|
| [e-mail]
EXPORT DEPARTMENT
Ph [phone]
|
[e-mail]
www.fantinicosmi.com
