Fantini cosmi Ch150rf User manual

RADIO WAVE WEEKLY PROGRAMMABLE THERMOSTAT

CH150RF

voltar.com.ua

Displaying the temperature detected by the

separate probe ................................................15

Statistical data .................................................15

Setting the desired humidity level ....................16

Maintenance ..........................................................17

Replacing the batteries ....................................17

Installation .............................................................18

Installing the batteries .....................................18

Conﬁguring the programmable thermostat ......18

Actuator registration ........................................23

Fastening the socket .......................................25

Electric connections ........................................26

Securing the programmable thermostat to the

socket ..............................................................27

Technical features ..................................................27

INDEX

Introduction ..............................................................3

Controls and indications ..........................................4

Controls .............................................................4

Indications .........................................................5

User manual ............................................................6

Setting the date and time ..................................6

Summer/Winter selection ..................................7

Operating modes ...............................................7

“Manual” operating mode ..................................7

“Automatic” operating mode ..............................8

“Holiday” operating mode ................................10

“Jolly” operating mode .....................................10

“OFF” function .................................................12

Preset programs ..............................................13

Programmable thermostat programming .........13

voltar.com.ua

Introduction

The CH150RF/151RF/152RF programmable

thermostat measures the ambient temperature

and controls the heating (conditioning) system

through a radio connection with an actuator. A

humidistat can also be driven. The operating

mode can be either chosen from among the

preset ones or customized to one’s own needs.

The large display shows the temperature pro-

ﬁle – i.e. the relationship between the time ta-

ble and the temperature to be kept – as well as

the measured temperature, relative humidity,

calculated perceived temperature, time and

day of the week.

The programmable thermostat is battery pow-

ered. Both the settings and the data are stored

in a non-volatile memory capable of keeping

them even when the batteries are down.

The following external interfaces are available

for the CH150RF programmable thermostat:

• Radio actuator

• Separate temperature probe

• Telephone actuator for ﬁxed telephone lines,

which makes it possible to perform remote

control through the DTMF keypad (multi-tone)

• Telephone actuator with GSM modem, used

for remote control by means of SMS mes-

sages.

Both telephone actuators allow you to:

• remotely interrogate the programmable ther-

mostat, to be informed about the ambient tem-

perature or the heating / cooling system status;

• remotely manage the programmable thermo-

stat operating modes.

The programmable thermostat comes in three

colours: white, silver (CH151RF series) and

anthracite black (CH152RF series).

voltar.com.ua

7. Rotary selector for temperature correction:

T1, Manual temperature, Jolly temperature,

and

Antifreeze temperature *

8. Rotary selector for correcting temperature

T2 or the Jolly operating mode duration *

9. Rotary selector for correcting temperature

T3 or the Jolly operating mode duration

10. Summer/Winter switching button

11. Programmable thermostat reset button

* The function associated with the button or se-

lector depends on the current operating mode.

It is highlighted by the icon placed above.

Controls and indications

Controls

1 2 3 4 5 6

1. Button used to select the “Manual” operating

mode or increase a value (▲) *

2. Button used to select the “Automatic” oper-

ating mode or decrease a value (▼) *

3. Button used to select the “Holiday” operat-

ing mode or go back to the previous data item

(◄) *

4. Button used to select the “Jolly” operating

mode or go to the next data item (►) *

5. Button used for the “OFF” or “Enter” func-

tions *

6. Button used for the “Programming” or “Copy”

or “Statistical data displaying” functions *

voltar.com.ua

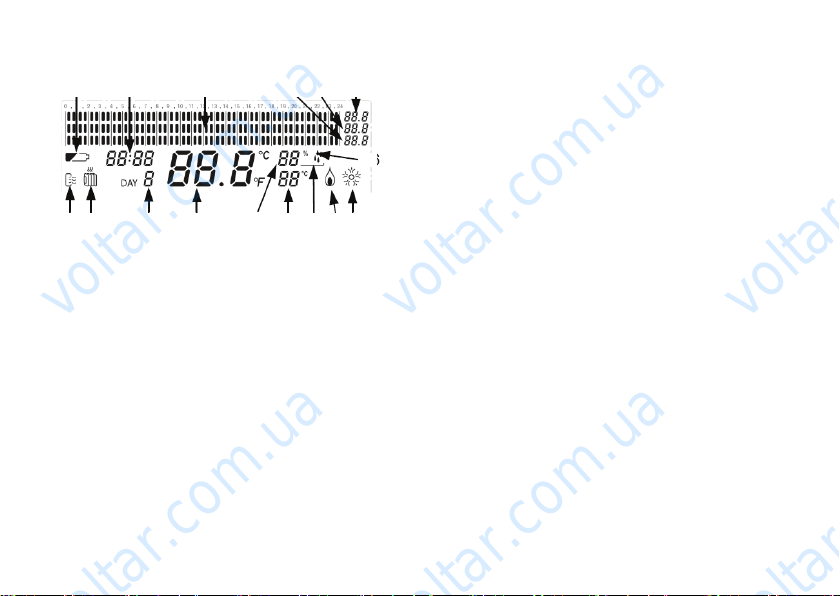

Indications

14 12345

6715

98101113 12

1. Time

2. Temperature proﬁle

3. Temperature value T1 or “Jolly” operating

mode duration (days)

4. Temperature value T2 or “Jolly” operating

mode duration (hours)

5. Temperature value T3

6. System ON in Summer operation

7. System ON in Winter operation

8. Relative humidity percentage

9. Perceived temperature (displayed by the

degree)

10. Ambient/external temperature

11. Current day (1 = Monday … 7 = Sunday;

8 = Holiday)

12. Winter operation

13. Summer operation

14. Battery charge level

15. Humidistat enable

16. Humidistat ON

voltar.com.ua

User manual

To operate the programmable thermostat after

it has been installed, proceed as follows:

1. Set the date and time.

2. Select the Summer/Winter operation.

3. Select the operating mode.

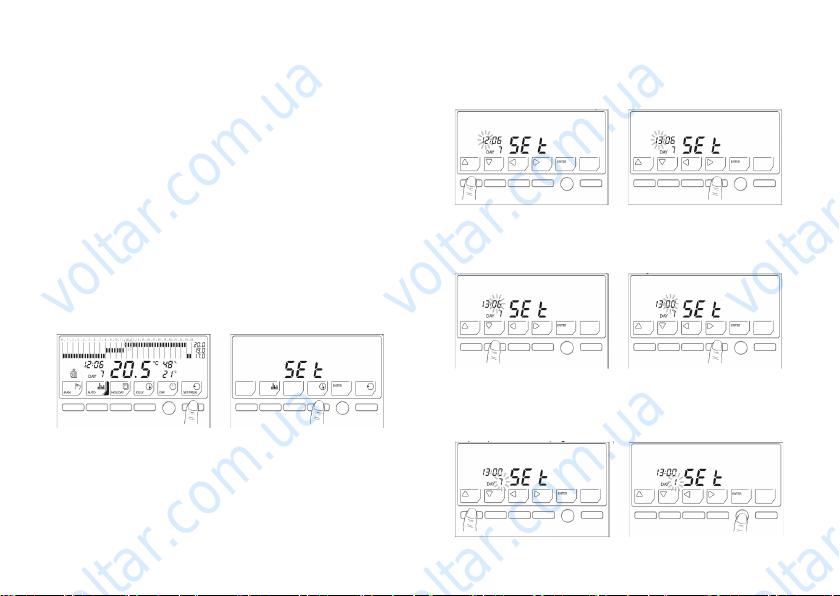

Setting the date and time

To set the current time and date, proceed as

follows:

1. Enter the programming menu main page.

The operating mode currently used will be in-

terrupted temporarily. Choose the time setting

function.

2. Modify the hour setting by means of the ▲

and ▼buttons, then go to the minute setting

by means of the ►button.

3. Modify the minute setting by means of the

▲and ▼buttons, then go to the day setting

by means of the ►button.

4. Modify the day setting by means of the ▲

button, then press ENTER to go back to the

main page of the programming menu.

voltar.com.ua

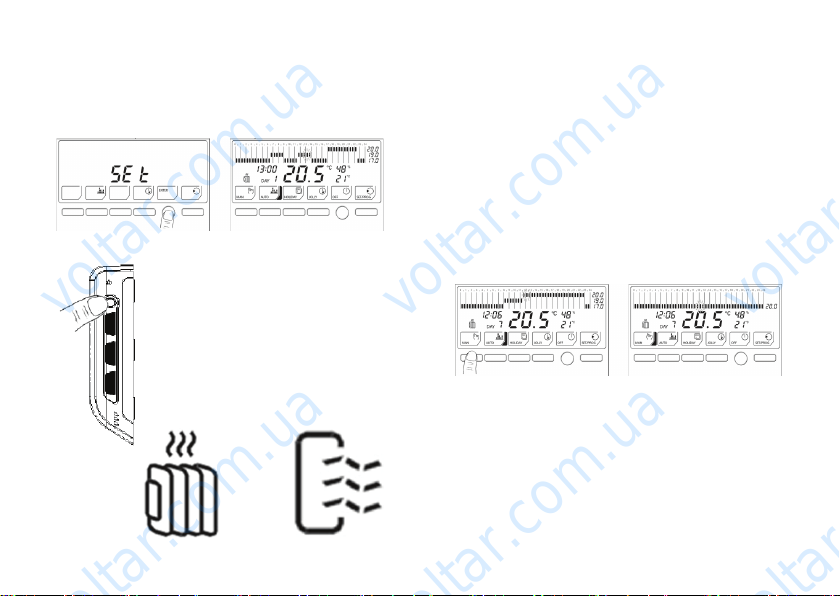

5. Press ENTER again to exit the program-

ming menu. The programmable thermostat

operating mode previously interrupted will be

resumed.

Summer/Winter selection

To shift from the Summer opera-

tion (heating system) to the Sum-

mer operation (cooling system),

and vice versa, keep the Sum-

mer/Winter button depressed for

at least 4 seconds. The selected

operation will be shown on the

display by means of the “Winter”

or “Summer” icons.

Winter Summer

Operating modes

The CH150/151/152 programmable thermo-

stat features four different operating modes:

Manual, Automatic, Holiday and Jolly (in addi-

tion to the OFF function).

“Manual” operating mode

With the Manual operating mode, the program-

mable thermostat adjusts the operation of the

heating or cooling system in order to always

keep the same temperature. To select “Manu-

al”, press MAN.

voltar.com.ua

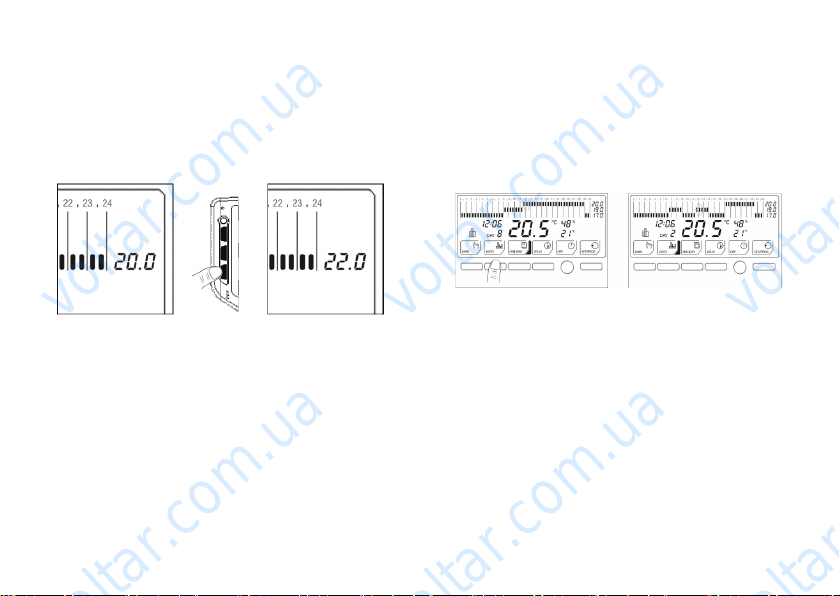

The temperature level can be modiﬁed during

operation by means of the lower rotary selector

located on the right side of the programmable

thermostat. The temperature can be changed

from 2°C to 40 °C by 0.1°C increments.

“Automatic” operating mode

With the “Automatic” operating mode, the pro-

grammable thermostat adjusts the operation

of the heating or cooling system by following

the proﬁles deﬁned for the various days of the

week. To select “Automatic”, press AUTO.

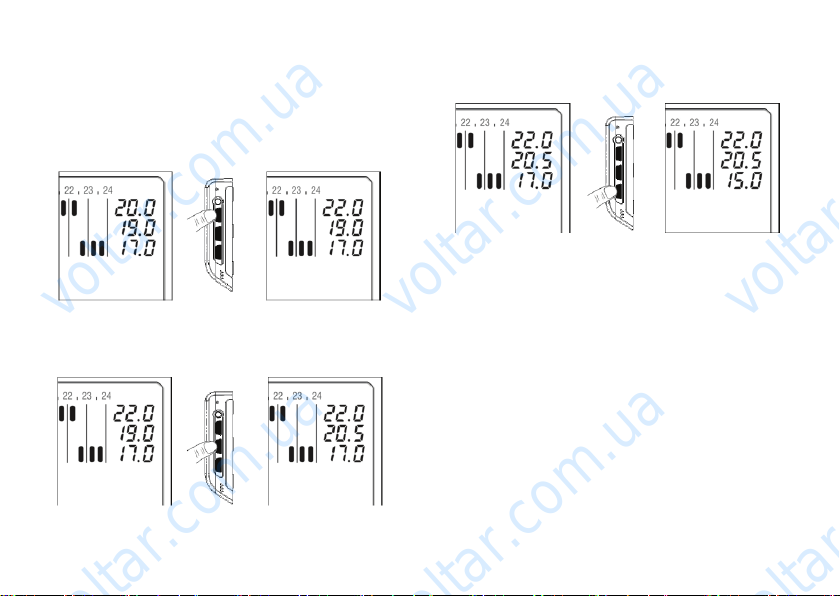

The three temperature levels used can be

modiﬁed during operation by means of the ro-

tary selectors located on the right side of the

programmable thermostat.

voltar.com.ua

Temperature T3 cannot be lower than tem-

perature T2 or higher than 40 °C.

During Summer operation, temperature

T3 features an upper limit of 30°C. When this

value is exceeded, T3 will take the OFF value,

which will involve switching the system off.

Temperature T2 cannot be higher than tem-

perature T3 or lower than temperature T1.

Temperature T1 cannot be higher than tem-

perature T2 or lower than 2 °C.

If no customization has been made, the au-

tomatic operating mode will function with the

stored temperature proﬁles, i.e. the preset

ones (refer to «Preset programs»). To custom-

ize the proﬁles, refer to «Programmable ther-

mostat programming».

voltar.com.ua

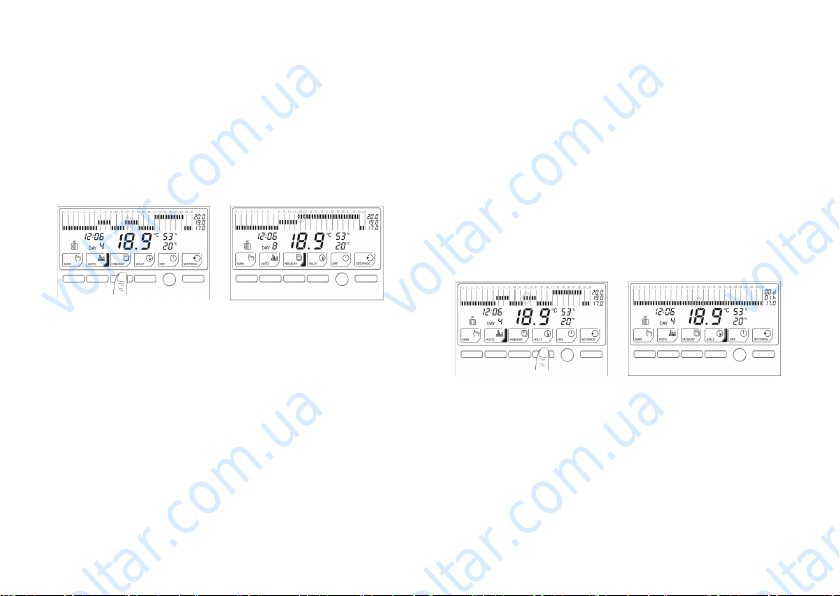

“Holiday” operating mode

With the “Holiday” operating mode, the CH150

programmable thermostat CH150 adjusts the

operation of the heating or cooling system by

following one single temperature proﬁle, which

is valid for all days. To select “Holiday”, press

HOLIDAY.

To modify the temperature levels, refer to

the description of the “Automatic” operating

mode.

When the preset programs are used (refer to

«Preset programs»), the “Holiday” mode will

follow the proﬁle envisaged for Saturdays and

Sundays. To create a customized “Holiday”

program, refer to «Programmable thermostat

programming».

“Jolly” operating mode

With the “Jolly” operating mode, the CH150

programmable thermostat interrupts the cur-

rent operating mode and adjusts the operation

of the heating or cooling system to keep the

“Jolly” temperature during the entire time set

(1 hour to 99 days and 23 hours, by 1 hour in-

crements). After this time – which is displayed

like a countdown – has elapsed, the previous

operation of the programmable thermostat will

be resumed. To select “Jolly”, press JOLLY.

The “Jolly” temperature value and the operat-

ing mode duration can be modiﬁed by means

of the rotary selectors located on the right side

of the programmable thermostat.

voltar.com.ua

Use the lower rotary selector to modify the

temperature level.

The temperature can be modiﬁed from 2°C to

40 °C, by 0.1 °C increments.

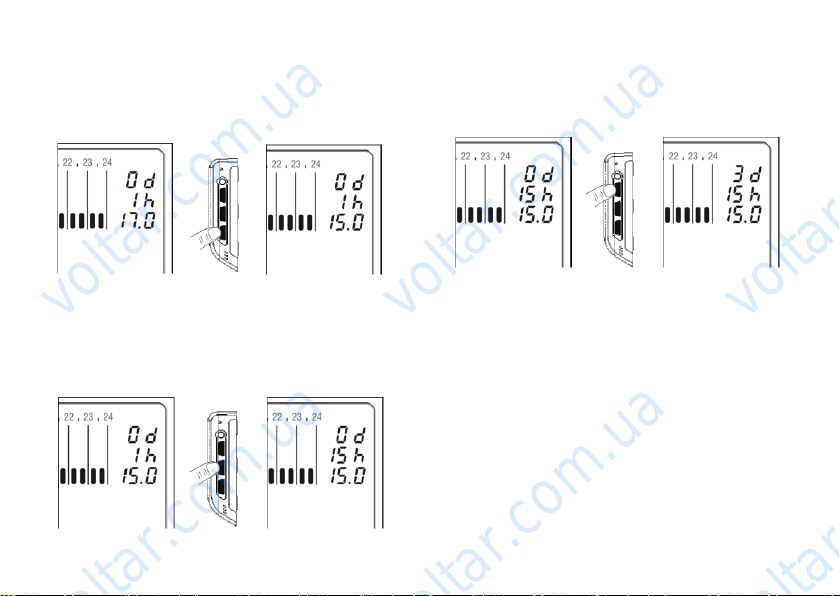

To set the “Jolly” operating mode duration, i.e.

hours («h»), use the central rotary selector.

The hours can range from 0 to 23.

To set the “Jolly” operating mode duration, i.e.

days («d»), use the upper rotary selector. The

days can range from 0 to 99.

You can interrupt the “Jolly” mode at any time,

by selecting any other operating mode.

The “Jolly” operating mode can be used, for

instance, to:

• save energy by lowering the temperature

when the house is not inhabited at the week-

ends or winter vacation, while being sure that

a comfortable temperature will exist when the

house is inhabited again);

• extend the night heating or cooling beyond

the usual time, i.e. when you stay up in the

company of your guests.

voltar.com.ua

“OFF” function

The “OFF” function can be activated by press-

ing OFF.

Winter operation

The system will be fully turned off and the

“OFF” message will appear on the display,

without any temperature proﬁle.

The programmable thermostat adjusts the op-

eration of the heating system to keep the “An-

tifreeze” temperature, in order to reduce the

energy consumption and, at the same time,

avoid any damage caused by extremely low

temperatures.

The “Antifreeze” temperature can be modiﬁed

from 2°C to 7°C (by 0.1°C increments), by us-

ing the lower rotary selector. If a temperature

of less than 2°C is set, the system will be fully

turned off and the antifreeze protection will be

lost.

Summer operation

voltar.com.ua

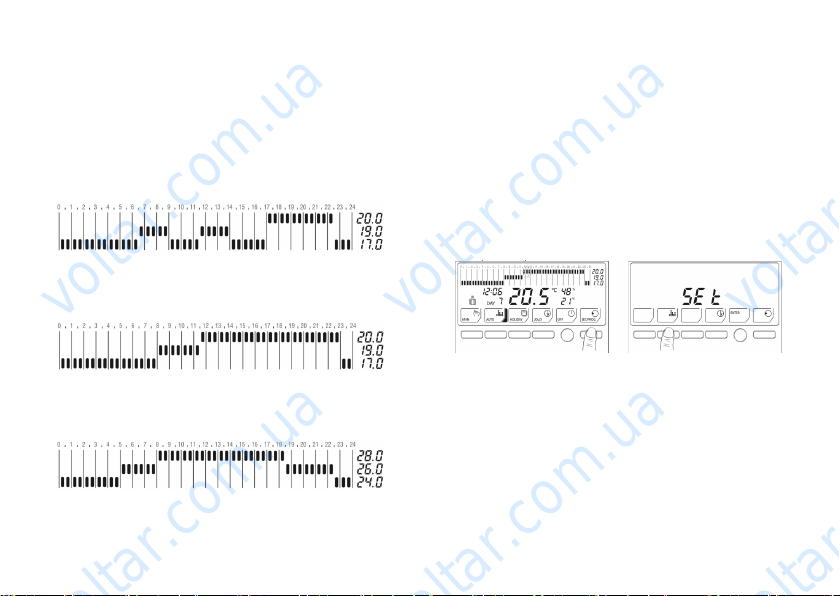

Preset programs

The CH150 programmable thermostat fea-

tures two preset programs (i.e. “Winter” and

“Summer”) for quicker start-up.

Programmable thermostat programming

You can customize the temperature proﬁles for

the “Automatic” and “Holiday” operating modes,

so as to adapt them to your own needs. To set

new temperature proﬁles, proceed as follows:

1. Enter the programming menu main page.

The operating mode currently used will be in-

terrupted temporarily. Choose the temperature

proﬁle customization function.

“Winter” program – working days (Mon-

days through Fridays)

“Winter” program – public holidays (Satur-

days, Sundays and “Holiday” program)

“Summer” program (All days of the week,

plus “Holiday” program)

voltar.com.ua

2. The Monday proﬁle (DAY 1) for “Winter” op-

eration (icon ) will be displayed. Use the

◄and ►buttons to move the bar chart blink-

ing segment to the time at which the tempera-

ture is to be modiﬁed. Each segment equals

half an hour. To modify the “Summer” opera-

tion proﬁle (icon ), press the “Summer/Win-

ter” button on the left side of the programmable

thermostat.

3. Use the ▲and ▼buttons to modify the tem-

perature level (T1, T2 or T3).

4. To directly duplicate the temperature pro-

ﬁle by going to the next day, press COPY (to

customize every single day separately, refer to

step 5 below).

5.Press ENTER to go to the next day, then

repeat the operations described starting from

step 2 for the other days of the week (the “Holi-

day” proﬁle will be indicated as DAY 8). To go

back to the programming menu main page, use

the ENTER button to scroll through the eight

days or keep the ENTER button depressed for

3 seconds.

If no button is pressed within the next three

minutes, the programmable thermostat operat-

ing mode previously used will be resumed.

voltar.com.ua

Preset parameter reset

To resume the preset temperature proﬁles and

values (T1-T2-T3-Temperature used with the

Manual mode, Temperature used with the Jolly

mode, Antifreeze temperature, OFF function),

keep the ▲and ▼buttons depressed simulta-

neously when you are in the temperature pro-

ﬁle programming mode.

Displaying the temperature detected by

the separate probe

To display the temperature detected by the

separate probe (only if the latter has been con-

ﬁgured as an external probe or ﬂoor-mounted

probe), the programmable thermostat must be

conﬁgured (refer to <<programmable thermo-

stat conﬁguration>>) and the probe must be

connected.

To display the temperature value read by the

separate probe, press the button of the oper-

ating mode currently used (the temperature

will blink). To display again the temperature

detected by the programmable thermostat,

press again the button of the operating mode

currently used (the temperature will not blink

any longer).

Statistical data

The CH150 programmable thermostat provides

a set of statistical data concerning the system

operation. To access this data, proceed as fol-

lows:

1. Enter the programming menu main page. The

operating mode currently used will be interrupted

temporarily. Choose the statistical data function.

2. Page 1: number of

hours during which the

system was operated

on the previous day (6

hours in the image).

Use the ►button to go

to the next page.

voltar.com.ua

3. Page 2: total number

of hours during which

the system has been

switched on and operat-

ing since its ﬁrst start-up

(16 hours in the image).

5. Page 4: maximum

temperature reached

on the current day, and

time at which such maxi-

mum temperature was

reached (22.5°C at 09.08

p.m. in the image).

4.Page 3: minimum

temperature reached

on the current day,

and time at which such

minimum temperature

was reached (15.8°C

at 03.15 a.m. in the im-

age). Use the ►button

to go to the next page.

Use the ►button to go to the next page.

Press the ▲and ▼buttons simultaneously to

reset the total system switch-on hours.

Setting the desired humidity level

The CH150RF/151RF/152RF programmable

thermostat allows you to actuate a humidistat

by setting the desired humidity value. To be

able to actuate a humidistat, it is requested

that this function will be enabled through the

technical menu (refer to the <<Programmable

thermostat conﬁguration>> chapter). To set the

desired humidity value, proceed as follows:

1. Enter the programming menu main page.

The operating mode currently used will be in-

terrupted temporarily. Choose the time table

setting function.

6. Press the ENTER button twice to go back to

the operating mode previously used.

voltar.com.ua

2. Use the ►button to move and highlight the

set humidity value.

3. Modify this value by pressing the ▲and ▼

buttons until the desired value is displayed.

Press ENTER to go back to the programming

menu main page.

4. Press ENTER again to exit the program-

ming menu. The programmable thermostat

operating mode previously interrupted will be

resumed.

Maintenance

The programmable thermostat can be cleaned

by using a soft cotton cloth (no detergent must

be used).

Replacing the batteries

When the battery charge level starts to read low,

the symbol will start blinking on the dis-

play. If the batteries are not replaced within 15

days, the programmable thermostat will be auto-

matically turned off and the “OFF” message will

appear on the display instead of the temperature.

The settings and data are kept in the non-volatile

memory.

To remote the programmable thermostat from its

socket, proceed as follows:

• remove the telephone actuator jack connector

(if any);

• pull the programmable thermostat on its left and

right sides, without applying force to the selec-

tors.

If only the “OFF” message appears on the dis-

play when the batteries haven been replaced,

press the round button [button 5] after the pro-

grammable thermostat has been ﬁtted back to

the socket.

voltar.com.ua

Important! The standard battery service life

is more than 1 year. It is recommended that

the batteries should be replaced at the start of

the system operation season, to prevent the

batteries from running out when you are away

from home, e.g. during the summer or Christ-

mas holidays.

The batteries must be properly disposed of in

special containers.

Installation

The programmable thermostat installation in-

volves the following operations:

• Installing the batteries

• Conﬁguring the programmable thermostat pa-

rameters

• Registering the programmable thermostat with

the radio actuators

• Fastening the socket to the wall

• Making the electric connections

• Securing the programmable thermostat onto

the socket.

Installing the batteries

Separate the socket from the programmable

thermostat by levering on the slot found at the

socket bottom by using a suitable tool. Insert two

long-life AA alkaline batteries (1.5 V) into the pro-

grammable thermostat rear (observe the correct

polarity). After installing the batteries, the pro-

grammable thermostat will turn on automatically.

Fasten the socket back again, making sure that

the multi-pole connector is inserted correctly. The

programmable thermostat will click into position.

Conﬁguring the programmable thermostat

By conﬁguring the programmable thermostat, the

device operation parameters can be customized.

To access the conﬁguration program, proceed as

follows:

1. Press the SET / PROG button [button 6]. The

operating mode currently used will be temporarily

interrupted and will be automatically resumed at

the end of programming.

2. Keep the SUMMER / WINTER switching but-

ton [button 10] depressed for approximately 5

secs.

Warning! The unit must be installed only by

qualiﬁed personnel, in compliance with the law

regulations in force. Warning! The programmable thermostat must

be conﬁgured only by qualiﬁed personnel.

voltar.com.ua

In-

dex

Parameter Writing Values Preset

value

1 Type of con-

nected card

COn rEL/ rAd / --- None

2 Heating actuator

registration radio

control

rF t -- - ---

3 Humidity adjust-

ment enable

rH ON/OFF OFF

3A Humidiﬁcation

actuator registra-

tion radio control

rF rH -- - ---

4 Temperature

scale

CELS

or FHAr

°C / °F °C

5 Type of

adjustment

Std or

ProP

Std / ProP Std

5A Thermal

differential

DIFF HI / LO LO

5A Adjustment band bAnd 1 °C – 4 °C

(step 0.1°C)

2 °C

5B Adjustment

period

PEr 5 / 10 / 20

minutes

6 Separate

temperature

probe

conﬁguration

SEct --- / FLO / In

/ Out

---

6A Floor

temperature limit

tFLO 15 °C –

45 °C

27.0 °C

Each conﬁguration parameter, which features

its own preset settings, is identiﬁed on the dis-

play by an index and a writing. To modify the

parameter values, use the ▲[button 1] and ▼

[button 2] buttons. To move across the param-

eters, use the ►[button 4] button.

To go back to the initial page of the program-

ming menu, press the ENTER [button 5] but-

ton, which will store the modiﬁcations into the

memory.

If no button is pressed within 3 minutes, the

programmable thermostat will exit the conﬁgu-

ration program and the operating mode previ-

ously used will be resumed, without saving.

To eliminate the modiﬁcations made and

resume the preset conﬁguration parameter

values, keep the ▲[button 1] and ▼[button 2]

buttons depressed simultaneously for approxi-

mately 4 seconds.

voltar.com.ua

Type of connected card

The programmable thermostat is capable of

verifying whether the socked is connected. If

the socket is not connected, the dashes will be

displayed; it if is, the “rAd” writing will appear.

Heating system actuator registration radio

control

It makes it possible, by pressing the but-

ton, to send the actuator registration radio con-

trol used for the heating system. Refer to the

<<Radio actuator conﬁguration>> chapter for

more information.

Humidity adjustment enable

It makes it possible to operate a humidistat

in order to humidify an environment until the

desired humidity level is reached. Refer to the

<<Setting the desired humidity level>> chapter

for more information.

Humidiﬁcation system actuator registra-

tion radio control

It makes it possible, by pressing the button,

to send the actuator registration radio control

used for the humidiﬁcation system. Refer to

the <<Radio actuator conﬁguration>> chapter

In-

dex

Parameter Writing Values Preset

value

7 Ambient tem-

perature

correction

Corr -4.0 °C to

+4.0 °C

0.0 °C

8 Optimization OPt ON/OFF OFF

8A Optimization

max. duration

(hours)

OPtH 1h – 5h 2h

9 Pump antiscuff Pu ON/OFF OFF

10 Software version

and radio

address

SOFt xxx xxx

voltar.com.ua

Other manuals for CH150RF

This manual suits for next models

Table of contents

Other Fantini Cosmi Thermostat manuals

Fantini Cosmi

Fantini Cosmi CH180WIFI User manual

Fantini Cosmi

Fantini Cosmi CH130ARR User manual

Fantini Cosmi

Fantini Cosmi CH115RF User manual

Fantini Cosmi

Fantini Cosmi C63 User manual

Fantini Cosmi

Fantini Cosmi Intellitherm C76 User manual

Fantini Cosmi

Fantini Cosmi C820RQ User manual

Fantini Cosmi

Fantini Cosmi CH150 User manual

Fantini Cosmi

Fantini Cosmi C68 User manual

Fantini Cosmi

Fantini Cosmi CH120RF User manual

Fantini Cosmi

Fantini Cosmi CH119NFC User manual

Fantini Cosmi

Fantini Cosmi C61 User manual

Fantini Cosmi

Fantini Cosmi O62C User manual

Fantini Cosmi

Fantini Cosmi CH180T3K5 User manual

Fantini Cosmi

Fantini Cosmi CH119NFC User manual

Fantini Cosmi

Fantini Cosmi C01A User manual

Fantini Cosmi

Fantini Cosmi C61 User manual

Fantini Cosmi

Fantini Cosmi Intellitherm C57 User manual

Fantini Cosmi

Fantini Cosmi Intellitherm C58 User manual

Fantini Cosmi

Fantini Cosmi CH180RFWIFI User manual

Fantini Cosmi

Fantini Cosmi EVWC8R User manual

Fantini Cosmi

Fantini Cosmi CH115 User manual

Fantini Cosmi

Fantini Cosmi CH123 User manual

Fantini Cosmi

Fantini Cosmi CH180-230V User manual

Fantini Cosmi

Fantini Cosmi C801 User manual

Popular Thermostat manuals by other brands

Synapse

Synapse CONTROL-485-101 quick start guide

Honeywell

Honeywell CT62A installation instructions

POLA

POLA HP52 Handbook

Verdant

Verdant V8-BB-7S instruction manual

Viega

Viega 15118 Product instructions

Computherm

Computherm Q7 operating instructions

Amana

Amana 2246002 Installation, operation & application guide

Micropelt

Micropelt MLR003 User manual and device specification

Hunter

Hunter 42177 Manual del propietario

Honeywell

Honeywell FocusPRO TH5110D installation guide

ENGO CONTROLS

ENGO CONTROLS SIMPLE quick guide

BEARWARE

BEARWARE 304017 manual

AEG

AEG ATE 50 manual

WarmYourFloor

WarmYourFloor SunTouch P-3285 instructions

Super Sprouter

Super Sprouter 726700 quick start guide

Honeywell

Honeywell TB7220 COMMERCIALPRO Product data

Beijer Electronics

Beijer Electronics X2 extreme 15 CO manual

Roth

Roth EnergyLogic Touchline Guidelines for the electrician

Fantini Cosmi CH150RF User manual

Popular Thermostat manuals by other brands
