Fastwel CPB904 User manual

CPB904
ETX
AMD Geode LX 800 Based
Computer-on-Module
User Manual
Rev. 001 E
March 2008
Preliminary

Product Title: CPB904
Document name: CPB904 User Manual
Manual version: 001 E
Copyright © 2008 Fastwel Co. Ltd. All rights reserved.
Revision Record
Rev. Index Brief Description of Changes Board Index Date of Issue
001 Initial preliminary version CPB904, KIB1282 March 2008
Contact Information
Fastwel Co. Ltd Fastwel Corporation US
Address: 108 Profsoyuznaya st.,
Moscow 117437,
Russian Federation
45 Main Street
Suite 319
New York, 11201 USA
Tel.: [phone] [phone]
Fax: [phone] [phone]
E-mail: [email protected] mailto:[e-mail]
Web: http://www.fastwel.com/

CPB904
Table of Contents
Table of Contents..................................................................................................................................................0-1
List of Tables.........................................................................................................................................................0-2
List of Figures .......................................................................................................................................................0-2
Notation Conventions............................................................................................................................................0-3
General Safety Precautions..................................................................................................................................0-4
Unpacking, Inspection and Handling.....................................................................................................................0-5
Three Year Warranty ............................................................................................................................................0-7
1 Introduction.........................................................................................................................................1-1
1.1 Module Introduction...................................................................................................................................1-1
1.2 CPB904 Versions ......................................................................................................................................1-2
1.3 Delivery Checklist......................................................................................................................................1-3
1.4 Supplementary Information........................................................................................................................1-3
1.4.1 Related Documents ..................................................................................................................1-3
2 Technical Specifications ...................................................................................................................2-1
2.1 General......................................................................................................................................................2-1
2.2 Power Requirements.................................................................................................................................2-2
2.3 Environmental............................................................................................................................................2-3
2.4 Mechanical ................................................................................................................................................2-3
2.5 Dimensions and Weight.............................................................................................................................2-3
2.6 MTBF.........................................................................................................................................................2-3
3 External Connections ........................................................................................................................ 3-1
3.1 Safety Regulations.....................................................................................................................................3-1
3.2 Connection of Peripheral Devices..............................................................................................................3-2
3.3 Software Installation ..................................................................................................................................3-2
4 Functional Description ...................................................................................................................... 4-1
4.1 Structure and Layout .................................................................................................................................4-1
4.2 Address Mapping.......................................................................................................................................4-4
4.2.1 Memory Addressing..................................................................................................................4-4
4.2.2 I/O Addressing..........................................................................................................................4-4
4.2.3 Interrupt settings.......................................................................................................................4-5
4.2.4 DMA Channels..........................................................................................................................4-6
4.3 Functional Description...............................................................................................................................4-6
4.3.1 Microprocessor.........................................................................................................................4-6
4.3.2 SDRAM Memory.......................................................................................................................4-6
4.3.3 PCI and ISA Buses...................................................................................................................4-6
4.3.4 Reserved Flash BIOS...............................................................................................................4-7
4.3.5 UIDE Interface..........................................................................................................................4-7
4.3.6 NAND Flash..............................................................................................................................4-7
4.3.7 MiniSD Socket..........................................................................................................................4-7
4.3.8 Video Controller and Connection of Monitors ...........................................................................4-8
4.3.9 Audio Controller........................................................................................................................4-8
4.3.10 Watchdog Timer and Power Votage Monitoring .......................................................................4-8
4.3.11 PS/2 Keyboard and Mouse Interface........................................................................................4-8
4.3.12 USB Interface ...........................................................................................................................4-8
CPB904 User Manual
0-1
©2008 Fastwel v. 001 E

CPB904
4.3.13 Fast Ethernet Interface .............................................................................................................4-9
4.3.14 Serial Ports...............................................................................................................................4-9
4.3.15 FDD/LPT Port...........................................................................................................................4-9
4.3.16 RTC and Serial FRAM..............................................................................................................4-9
4.3.17 LED Indicator............................................................................................................................4-9
4.3.18 Discrete Input/Output..............................................................................................................4-10
4.3.19 Power Supply Connector........................................................................................................4-10
4.3.20 ETX Connectors .....................................................................................................................4-10
4.4 Overall and Mounting Dimensions...........................................................................................................4-13
5 General Software® BIOS ...................................................................................................................5-1
5.1 BIOS Setup Program. Introduction ............................................................................................................5-1
List of Tables
Table 1.1: CPB904 Versions ......................................................................................................................................1-2
Table 1.2: CPB904 Supplied Set................................................................................................................................1-3
Table 1.3: Related Publications..................................................................................................................................1-3
Table 4.1: Memory Address Mapping.........................................................................................................................4-4
Table 4.2: I/O Address Space.....................................................................................................................................4-4
Table 4.3: Interrupt Settings .......................................................................................................................................4-5
Table 4.4: DMA Request Map ....................................................................................................................................4-6
Table 4.5: X1 ETX Connector Pinout........................................................................................................................4-10
Table 4.6: X2 ETX Connector Pinout........................................................................................................................4-11
Table 4.7: X3 ETX Connector Pinout........................................................................................................................4-11
Table 4.8: X4 ETX Connector Pinout........................................................................................................................4-12
List of Figures

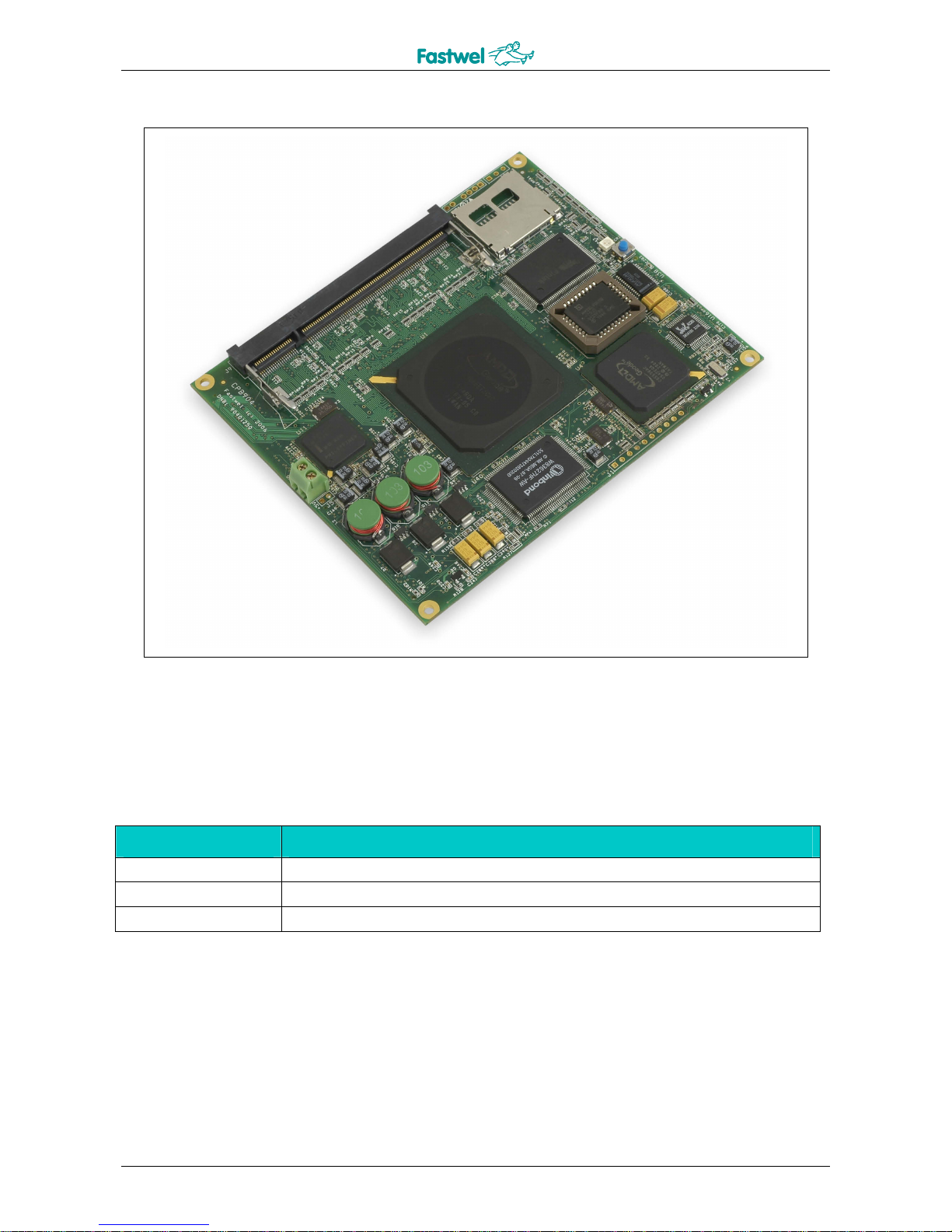

Figure 1.1: CPB904 Module Appearance....................................................................................................................1-2

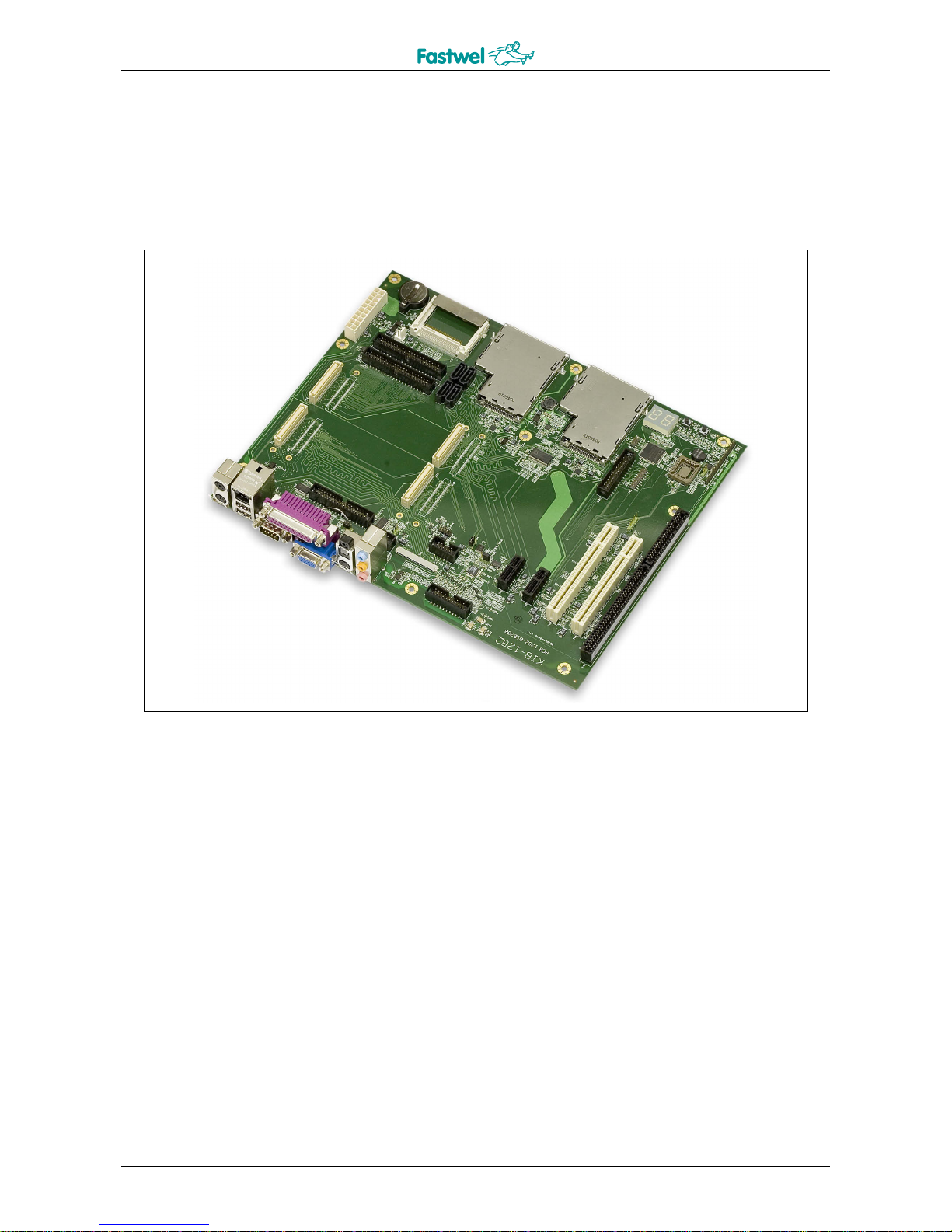

Figure 3.1: KIB1282 Baseboard Appearance ..............................................................................................................3-2

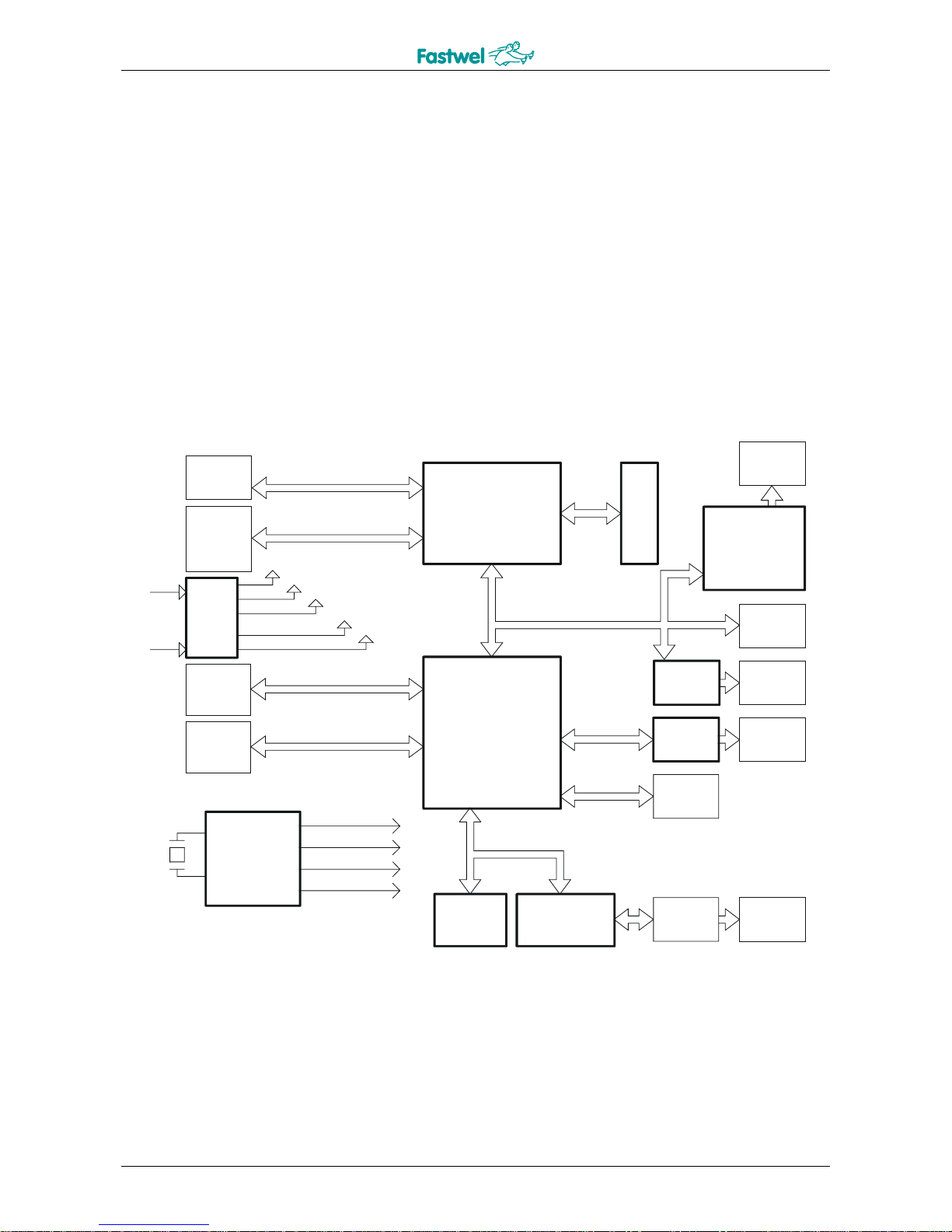

Figure 4.1: CPB904 Block Diagram.............................................................................................................................4-1
Figure 4.2: Top Side: Connectors and Main Components Layout ...............................................................................4-3
Figure 4.3: Bottom Side: Connectors and Main Components Layout..........................................................................4-3
Figure 4.4: CPB904 Top Side: Overall and Mounting Dimensions ............................................................................4-13
All information in this document is provided for reference only, with no warranty of its suitability for any specific purpose. This
information has been thoroughly checked and is believed to be entirely reliable and consistent with the product that it describes.
However, Fastwel accepts no responsibility for inaccuracies, omissions or their consequences, as well as liability arising from
the use or application of any product or example described in this document.
Fastwel Co. Ltd. reserves the right to change, modify, and improve this document or the products described in it, at Fastwel's
discretion without further notice. Software described in this document is provided on an “as is” basis without warranty. Fastwel
assumes no liability for consequential or incidental damages originated by the use of this software.
This document contains information, which is property of Fastwel Co. Ltd. It is not allowed to reproduce it or transmit by any
means, to translate the document or to convert it to any electronic form in full or in parts without antecedent written approval of
Fastwel Co. Ltd. or one of its officially authorized agents.
Fastwel and Fastwel logo are trademarks owned by Fastwel Co. Ltd., Moscow, Russian Federation. Ethernet is a registered
trademark of Xerox Corporation. IEEE is a registered trademark of the Institute of Electrical and Electronics Engineers Inc.
Intel is a trademark of Intel Corporation. Geode is trademark of AMD. ETX and ETXexpress are trademarks or registered
trademarks of Kontron Embedded Modules GmbH. Microsoft is a trademark of the Microsoft corporation. In addition, this
document may include names, company logos and trademarks, which are registered trademarks and, therefore,
are property of their respective owners.
Fastwel welcomes suggestions, remarks and proposals regarding the form and the content of this Manual.
CPB904 User Manual
0-2
©2008 Fastwel v. 001 E

CPB904
Notation Conventions
Warning, ESD Sensitive Device!
This symbol draws your attention to the information related to electro static sensitivity of your
product and its components. To keep product safety and operability it is necessary to handle
it with care and follow the ESD safety directions.
Warning!
This sign marks warnings about hot surfaces. The surface of the heatsink and some
components can get very hot during operation. Take due care when handling, avoid
touching hot surfaces!
Caution: Electric Shock!
This symbol warns about danger of electrical shock (> 60 V) when touching products or
parts of them. Failure to observe the indicated precautions and directions may expose your
life to danger and may lead to damage to your product.
Warning!
Information marked by this symbol is essential for human and equipment safety.
Read this information attentively, be watchful.
Note...
This symbol and title marks important information to be read attentively for your own benefit.
CPB904 User Manual
0-3
©2008 Fastwel v. 001 E

CPB904
General Safety Precautions
This product was developed for fault-free operation. Its design provides conformance to all related
safety requirements. However, the life of this product can be seriously shortened by improper
handling and incorrect operation. That is why it is necessary to follow general safety and
operational instructions below.
Warning!
All operations on this device must be carried out by sufficiently
skilled personnel only.
Warning!
When handling this product, special care must be taken not to hit
the heatsink (if installed) against another rigid object. Also, be
careful not to drop the product, since this may cause damage
to the heatsink, CPU or other sensitive components as well.
Please, keep in mind that any physical damage to this product
is not covered under warranty.
Note:
This product is guaranteed to operate within the published
temperature ranges and relevant conditions. However, prolonged
operation near the maximum temperature is not recommended by
Fastwel or by electronic chip manufacturers due to thermal stress
related failure mechanisms. These mechanisms are common to all
silicon devices, they can reduce the MTBF of the product by
increasing the failure probability. Prolonged operation at the lower
limits of the temperature ranges has no limitations.
Caution, Electric Shock!
Before installing this product into a system and before installing
other devices on it, always ensure that your mains power is switched
off.
Always disconnect external power supply cables during all handling
and maintenance operations with this module to avoid serious
danger of electrical shock.
CPB904 User Manual
0-4
©2008 Fastwel v. 001 E

CPB904
Unpacking, Inspection and Handling
Please read the manual carefully before unpacking the module or mounting the device into your
system. Keep in mind the following:
ESD Sensitive Device!
Electronic modules and their components are sensitive to static
electricity. Even a non-perceptible by human being static discharge
can be sufficient to destroy or degrade a component's operation!
Therefore, all handling operations and inspections of this product
must be performed with due care, in order to keep product integrity
and operability:
 Preferably, unpack or pack this product only at EOS/ESD safe workplaces. Otherwise, it is
important to be electrically discharged before touching the product. This can be done by
touching a metal part of your system case with your hand or tool. It is particularly important
to observe anti-static precautions when setting jumpers or replacing components.
 If the product contains batteries for RTC or memory back-up, ensure that the module is not
placed on conductive surfaces, including anti-static mats or sponges. This can cause short-
circuit and result in damage to the battery and other components.
 Store this product in its protective packaging while it is not used for operational purposes.
Unpacking
The product is carefully packed in an antistatic bag and in a carton box to protect it against
possible damage and harmful influence during shipping. Unpack the product indoors only at a
temperature not less than +15°C and relative humidity not more than 70%. Please note, that if the
product was exposed to the temperatures below 0°Сfor a long time, it is necessary to keep it at
normal conditions for at least 24 hours before unpacking. Do not keep the product close to a heat
source.
Following ESD precautions, carefully take the product out of the shipping carton box. Proper
handling of the product is critical to ensure correct operation and long-term reliability. When
unpacking the product, and whenever handling it thereafter, be sure to hold the module preferably
by the front panel, card edges or ejector handles. Avoid touching the components and connectors.
Retain all original packaging at least until the warranty period is over. You may need it for
shipments or for storage of the product.
Initial Inspection
Although the product is carefully packaged, it is still possible that shipping damages may occur.
Careful inspection of the shipping carton can reveal evidence of damage or rough handling. Should
you notice that the package is damaged, please notify the shipping service and the manufacturer
as soon as possible. Retain the damaged packing material for inspection.
After unpacking the product, you should inspect it for visible damage that could have occurred
during shipping or unpacking. If damage is observed (usually in the form of bent component leads
or loose socketed components), contact Fastwel's official distributor from which you have
purchased the product for additional instructions. Depending on the severity of the damage, the
product may even need to be returned to the factory for repair. DO NOT apply power to the product
if it has visible damage. Doing so may cause further, possibly irreparable damage, as well as result
in a fire or electric shock hazard.
CPB904 User Manual
0-5
©2008 Fastwel v. 001 E

CPB904
If the product contains socketed components, they should be inspected to make sure they are
seated fully in their sockets.
Handling
In performing all necessary installation and application operations, please follow only the
instructions supplied by the present manual.
In order to keep Fastwel’s warranty, you must not change or modify this product in any way, other
than specifically approved by Faswel or described in this manual.
Technical characteristics of the systems in which this product is installed, such as operating
temperature ranges and power supply parameters, should conform to the requirements stated by
this document.
Retain all the original packaging, you will need it to pack the product for shipping in warranty cases
or for safe storage. Please, pack the product for transportation in the way it was packed by the
supplier.
When handling the product, please, remember that the module, its components and connectors
require delicate care. Always keep in mind the ESD sensitivity of the product.
CPB904 User Manual
0-6
©2008 Fastwel v. 001 E

CPB904
Three Year Warranty
Fastwel Co. Ltd. (Fastwel), warrants that its standard hardware products will be free from defects
in materials and workmanship under normal use and service for the currently established warranty
period. Fastwel’s only responsibility under this warranty is, at its option, to replace or repair any
defective component part of such products free of charge.
Fastwel neither assumes nor authorizes any other liability in connection with the sale, installation
or use of its products. Fastwel shall have no liability for direct or consequential damages of any
kind arising out of sale, delay in delivery, installation, or use of its products.
If a product should fail through Fastwel's fault during the warranty period, it will be repaired free of
charge. For out of warranty repairs, the customer will be invoiced for repair charges at current
standard labor and materials rates.
Warranty period for Fastwel products is 36 months since the date of purchase.
The warranty set forth above does not extend to and shall not apply to:
1. Products, including software, which have been repaired or altered by other than
Fastwel personnel, unless Buyer has properly altered or repaired the products in
accordance with procedures previously approved in writing by Fastwel.
2. Products, which have been subject to power, supply reversal, misuse, neglect,
accident, or improper installation.
Returning a product for repair
1. Apply to Fastwel company or to any of the Fastwel's official representatives for the
Product Return Authorization.
2. Attach a failure inspection report with a product to be returned in the form, accepted by
customer, with a description of the failure circumstances and symptoms.
3. Carefully package the product in the antistatic bag, in which the product had been
supplied. Failure to package in antistatic material will VOID all warranties. Then
package the product in a safe container for shipping.
4. The customer pays for shipping the product to Fastwel or to an official Fastwel
representative or dealer.
CPB904 User Manual
0-7
©2008 Fastwel v. 001 E

Introduction CPB904
1 Introduction
This document presents general information on CPB904 processor module, the details of its proper
and safe installation, configuration and operation.
1.1 Module Introduction
CPB904 is an ETX computer-on-module (COM), highly integrated and compact single board
computer for use in systems requiring low power consumption and wide operating temperature
range. All I/O signals as well as full realization of ISA and PCI buses are mapped to four standard
high density, low profile connectors on the bottom side of the module. CPB904 is designed for use
in applications being mounted on an ETX baseboard.
CPB904 is based on low power AMD Geode LX800 CPU and AMD CS5536AC I/O companion.
Dynamic Memory interface supports 64-bit DDR SDRAM via SODIMM socket and soldered 128 or
256 MB memory bank.
All key components including CPU, chipset, memory, and periphery controllers are soldered
on-board providing excellent vibration stability and increased efficiency of protective conformal
coating.
CPB904 offers wide variety of data display capabilities. It allows simultaneous operation of
standard VGA interface, 24-bit LVDS interface, and 18-bit interface for TFT or DSTN LCD panels
connection. In addition TV output is available.
Data storage subsystem is based on single-channel IDE controller, that is able to drive up to two
IDE devices: two external hard drives, CompactFlash card.
For data exchange, CPB904 uses one independent Fast Ethernet port, three COM ports, four USB
2.0 ports, IrDA port, and parallel port combined with FDD and with 17 programmable discrete
input/output lines.
System control and management capabilities of CPB904 include watchdog timer, reserved BIOS,
and possibility to save system configuration and emergency parameters in FRAM chip.
CPB904 is manufactured in three versions: CPB904-01 (256 MB of soldered system memory),
CPB904-02 (512 MB soldered), and CPB904-03 with SODIMM socket for up to 512 MB DDR
SDRAM.
CPB904 is designed for operation within industrial temperature range from –40 C to +85°C.
CPB904 supports wide range of operating systems – Fastwel DOS (MS DOS-compatible),
Windows XP embedded, QNX 4.25 and 6.3x, Linux 2.4, and Windows CE.NET 4.2.
CPB904 User Manual
1-1
©2008 Fastwel v. 001 E

Introduction CPB904
Figure 1.1: CPB904 Module Appearance
The appearance may vary for different versions of the module.
1.2 CPB904 Versions
At the present time the CPB904 module is manufactured in three versions differing in system
memory size.
Table 1.1: CPB904 Versions
Version Decimal ID
CPB904-01 256 MB DDR SDRAM soldered memory
CPB904-02 512 MB DDR SDRAM soldered memory
CPB904-03 SODIMM socket for DDR SDRAM, no soldered memory
CPB904 User Manual
1-2
©2008 Fastwel v. 001 E

Introduction CPB904
1.3 Delivery Checklist
Table 1.2: CPB904 Supplied Set
Code Description Note
CPB904-01
CPB904-02
CPB904-03
Processor module –
CD ROM with documentation and service software
Antistatic bag and consumer carton box
Note:
Keep the antistatic bag and the original package at least until the warranty period
is over. It can be used for future storage or warranty shipments.
1.4 Supplementary Information
1.4.1 Related Documents
Information related to this product and its components can be found in the following documents:
Table 1.3: Related Publications
Product Publication
CompactFlash cards CF+ and CompactFlash Specification Revision 1.4
Processor AMD Geode™ LX Processor Reference Schematic
AMD Geode™ LX Processors Data Book
AMD Geode™ CS5536 Companion Device Preliminary Data Book
AMD Geode™ LX Processor and CS5535/CS5536 Companion Devices
Layout Recommendations
Super I/O Winbond W83627HF SuperIO Data sheet
CPB904 User Manual
1-3
©2008 Fastwel v. 001 E

Technical Specifications CPB904
2 Technical Specifications
2.1 General
 CPU: AMD Geode LX800 500 MHz
 32-bit x86/x87 compatible core
 64-bit coprocessor
 64-bit memory bus, up to 400 MHz
 64 KB L1, 128 KB L2 cache
 Integrated FPU supports the Intel MMX™ and AMD 3DNow!™ Technology
instruction sets
 System memory
 256 or 512 MB soldered SDRAM
 DDR333
 Up to 512 MB in SODIMM socket (for CPB904-03)
 Flash BIOS
 2x512 KB, reserved
 In-system modification
 Storage:
 Support for up to two UltraDMA-100 IDE devices
 Solid state disk: soldered, 64 MB NAND flash, with
MS DOS-compatible Fastwel file system
 MiniSD socket on board
 CompactFlash (via KIB1282)
 Serial ports
 Three serial ports
 High speed 16C550 compatible
 COM1, COM2: RS232, 9 wires, up to 115.2 Kb/s
 COM3: RS232, TX/RX, for remote PC connection
 USB
 Four USB 2.0 channels
 Ethernet
 One Fast Ethernet port 10/100 Mb/s
CPB904 User Manual
2-1
©2008 Fastwel v. 001 E

Technical Specifications CPB904
 Video controller
 2D accelerator
 Video memory 64 MB shared with system
 LCD (TFT or DSTN) panels support, resolution up to 1600×1200 at 60 Hz
 18-bit color via TFT interface, 24-bit color via LVDS
 Analog display support,
resolution 1600×1200 at 100 Hz, 1920×1440 at 85 Hz, 32-bit
 LVDS interface
 Discrete I/O
 17 discrete I/O lines, shared with LPT port
 Watchdog timer
 Fixed timeout period 1.6 s
 Safety
 System configuration settings stored in CMOS+SFRAM
 Saving essential user data in SFRAM in case of power failure
 CPU temperature and voltages monitoring
 RTC
 On-board real time clock with Li battery on baseboard
 PS/2
 PS/2 keyboard and mouse interface
 FDD
 Floppy disk interface
 Parallel port
 SPP/ECP/EPP compatible. Lines, shared with FDD controller
 Expansion Buses
 32-bit PCI
 16-bit ISA
 X1-X4 ETX headers
 Software Support:
 General Software® BIOS
 Fastwel DOS, Windows XP Embedded, QNX®4.25 and 6.3x, Linux® 2.4,
Windows CE.NET 4.2
2.2 Power Requirements
The module is powered via X1-X4 ETX connectors by an external DC power source providing the
following characteristics:
 Voltage: +5 V ±5% (from +4.75 V to +5.25 V)
 Consumption current (without external devices): 1.2 A
Note:
+5 V SB voltage is used in testing mode. +5 V voltage may be
supplied via J6 connector while testing the module
CPB904 User Manual
2-2
©2008 Fastwel v. 001 E

Technical Specifications CPB904
2.3 Environmental
 Operating temperature range from: -40°C to +85°C
 Storage temperature: -55°C to +90°C
 Relative humidity: 5% to 95% at 25°С, noncondensing
2.4 Mechanical
 Vibration – TBD;
 Single shock, peak acceleration – TBD;
 Multiple shock, peak acceleration – TBD.
2.5 Dimensions and Weight
 Dimensions, not more: 114 × 95 × 11.4 mm (4.5” × 3.7” × 0.45”)
 Weight, not more: ~0.1 kg (TBD later)
(without SODIMM memory module and MiniSD card)
2.6 MTBF
 MTBF for CPB904 is 200000 hours
The value is calculated according to: Telcordia Issue 1 model, Method I Case 3, for continuous operation
at a surface location, at normal environmental conditions (Russian State Standard GOST 15150-69,
"UHL4" climatic parameters) and at ambient temperature 30
° С.
CPB904 User Manual
2-3
©2008 Fastwel v. 001 E

External Connections CPB904
3 External Connections
The following precautions must be observed to ensure proper installation and to avoid damage to
the module, other system components, or harm to personnel.
3.1 Safety Regulations
The following safety regulations must be observed when installing or operating the module.
Fastwel assumes no responsibility for any damage resulting from infringement of these rules.
Warning!
When handling or operating the module, special attention should be
paid to the heatsink, because it can get very hot during operation.
Do not touch the heatsink when installing or removing the module.
Moreover, the module should not be placed on any surface or in any
kind of package until the module and its heatsink have cooled down
to ambient temperature.
ESD Sensitive Equipment!
This product comprises electrostatically sensitive components.
Please follow the ESD safety instructions to ensure module's
oparability and reliability:
 Use grounding equipment, if working at an anti-static
workbench. Otherwise, discharge yourself and the tools
in use before touching the sensitive equipment.
 Try to avoid touching contacts, leads and components.
Extra caution should be taken in cold and dry weather.
CPB904 User Manual
3-1
©2008 Fastwel v. 001 E

External Connections CPB904
3.2 Connection of Peripheral Devices
External devices, except for MiniSD cards, are connected to CPB904 via KIB1282 ATX carrier
board for ETX/XTX computer modules.
Figure 3.1: KIB1282 Baseboard Appearance
The appearance may vary for different versions of the module.
KIB1282 baseboard provides access to the following interfaces and connectors:
VGA (D-Sub connector), S-Video, LVDS, FastEthernet 10/100-BaseT (one RJ45 connector),
two x1 PCI Express connectors, one 16-bit ISA and two PCI headers, USB 2.0 (four Type A
connectors), IDE UltraATA, four standard SATA connectors, CF Type I/II socket with IDE interface,
two RS232 COM ports, LPT and FDD standard connectors, two PS/2 connectors, two
ExpressCard™ slots, Audio line in/out, HD (5+1 out) Audio Codec, two MIC, IrDA, LPC interface,
SMBUS, PLCC, fan connector, control&signalling interfaces and LEDs, ATX power supply header.
3.3 Software Installation
Operating system is loaded from the on-board NAND Flash memory by default. Operating system
on this flash-disk is FDOS supplemented with utilities.
The installation of the peripheral drivers is described in the accompanying information files. For
details on installation of an operating system, please refer to the relevant software documentation.
CPB904 User Manual
3-2
©2008 Fastwel v. 001 E

Functional Description CPB904
4 Functional Description
4.1 Structure and Layout
Functional diagram of the CPB904 module is shown in Figure 4.1.
Figure 4.1: CPB904 Block Diagram
Flash BIOS
Primary IDE
48 MHz
ISA
Out to
ETX CON
USB 2.0 & OTG
PCI Bus (33MHz or 66MHz)
VCC3SB (3.3 V)
VCORE (1.2 V)
CRT
COM3
(SST FWH)
Clock
Synthesizer
(MK1491-09F)
PCI (33/66 MHz)
Crystal
LPC Bus
ETX_VCC3 (3.3 V)
VCORE SB
ATA-66
+5VSB
66 MHz
AC97
Codec Audio
In/Out to
ETX CON
Memory
Bus
IDE
Out to
ETX CON
USB x 4
Out to
ETX CON
DC/DC
VCCMEM (2.5 V)
PCI
Out to
ETX CON
14.318
M
Hz
+5V
REFCLK
Ethernet
Out to
ETX CON
10/100 Mb/s
Ethernet
TFT
Out to
ETX CON
COM 1,2
LPT/FDD
KB/MS
TFT LCD
(18-bit)
Out to
ETX CON
CRT
Out to
ETX CON
South Bridge
(CS5536)
Geode
Companion
Device
(W83627HF)
AMD Geode
LX800
Processor
SUPER I/O
PCI to ISA
(IT8888)
256/512 MB DDR DRAM
SODIMM200 DDR
CPB904 User Manual
4-1
©2008 Fastwel v. 001 E

Functional Description CPB904
CPB904 includes the following main functional units:
 AMD Geode LX 800 500 MHz microprocessor including 32-bit x86 core,
64-bit coprocessor, 64-bit SDRAM memory bus;
 256/512 MB soldered DDR SDRAM system memory,
up to 512 MB in SODIMM socket (for CPB904-03);
 Flash memory based reserved BIOS, in-system modification;
 Onboard NAND flash-disk, 64 MB;
 IDE port with support for two UltraDMA/100 devices;
 MiniSD socket;
 Serial ports:
 COM1, COM2: RS232, full control, maximum exchange rate – 115.2 Kbit/s;
 COM3: RS232, TX/RX, for remote PC connection
 One Fast Ethernet channel 10/100 Mbit/s;
 Four USB 2.0 channels;
 Watchdog timer;
 CMOS+SFRAM for BIOS configuration storage;
 Real time clock with Li battery backup;
 PS/2 keyboard/mouse port;
 IrDA port;
 17 programmable discrete I/O channels share lines with FDD/LPT ports.
Universal parallel port supports EPP and ECP modes;
 Integrated graphics controller:
 Video memory up to 64 MB, shared with system;
 LCD (TFT or DSTN) panels support, resolution up to 1600x1200;
 Analog RGB display support;
 LVDS interface
Layouts of main CPB904 components and connectors on top and bottom sides are presented in
Figures 4.2 and 4.3 respectively.
CPB904 User Manual
4-2
©2008 Fastwel v. 001 E

Functional Description CPB904
Figure 4.2: Top Side: Connectors and Main Components Layout
COM3RS232(J4)
SODIMM(J9)
EthernetController
AuxPower
5Vto5VSB(J5)
A
MDGeodeLX800CPU
SuperI/O
RGB/TVConverter
ServiceConnector(J1)
AudioCodec
PCItoISABridge
CS5536
MiniSDSocket(J2)
ServiceConnector(J3)
PrimaryBIOS
PCIArbiter
ResetButton(SW1)
LEDIndicator
The layout may slightly differ for various versions of the board.
Figure 4.3: Bottom Side: Connectors and Main Components Layout
X3ETXConnecto
r
Clock
GeneratorLVDS
Transmitter/
Converter
X4ETXConnecto
r
DDRSDRAM
FRAM
ReserveBIOS
X1ETXConnector
CPLD
FastwelFlashDisk
X2ETXConnector
The layout may slightly differ for various versions of the board.
CPB904 User Manual
4-3
©2008 Fastwel v. 001 E
