Felton HALO HRHWMC User manual

For technical assistance please ring: 0800 743 358 or [phone]
Felton Industries Limited www.felton.co.nz8 Farmhouse Lane, Glen Innes, Auckland 1072 New Zealand
130319KG
Warranty, Maintenance and Care YOUR COPY TO KEEP
Felton Industries Limited guarantees these mixers to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase.
This warranty is effective for 5 years from the date of purchase and covers supply of replacement parts only, not including installation. You must retain proof of purchase of the Mixer
(such as an invoice or receipt) and provide this to Felton on request. This warranty is for manufacturing defects only and does not cover any damage to product due to abuse,
negligence or improper installation. This warranty is given on the understanding that the product is installed and operated according to Felton’s installation guide and the
Australian/New Zealand standard AS/NZS3500. This warranty is provided to persons who are a “consumer” under the Consumer Guarantees Act 1993 only and for use in
domestic/residential dwellings only (not for commercial use).
At no stage should plated surfaces be cleaned with cleaning agents that contain a corrosive acid or a scouring additive. Plated surfaces should be cleaned with liquid
detergent or soap and water. Any damage caused through the use of an unsuitable cleaner will not be covered by warranty.
This warranty is subject to any other rights or remedies that you may have under the Consumer Guarantees Act 1993 (or any other applicable legislation) and to Felton’s
Terms of Trade.
Please fill in the details below, attach your receipt to this installation guide and keep as your proof of purchase.
Purchased at: ...............................................................................................................................................................................................................................................................................................
Date of purchase: .......................................................................................................................................................................................................................................................................................
Installed by: ...................................................................................................................................................................................................................................................................................................

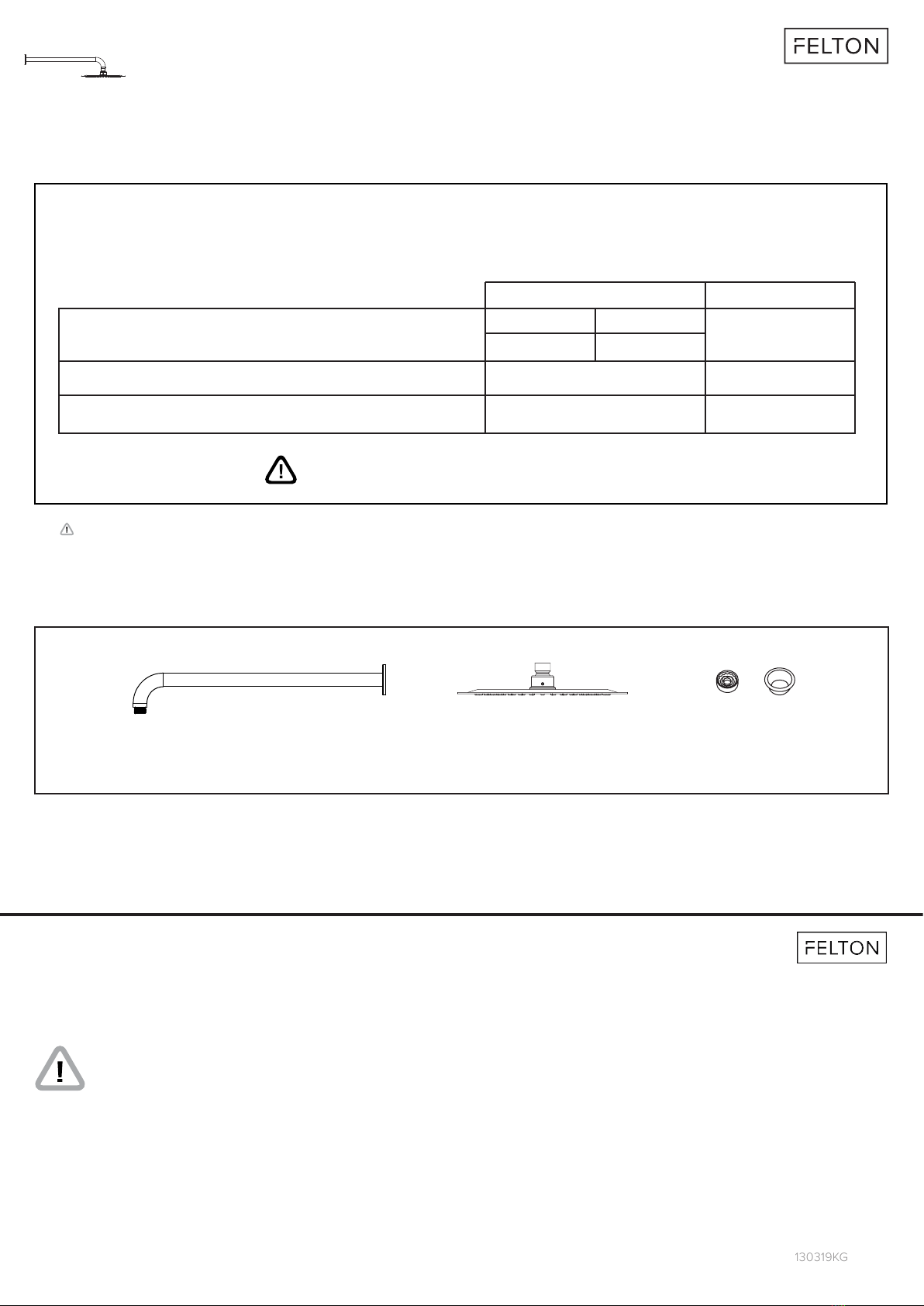

INSTALLATION GUIDE
HALO RAIN HEAD WALL MOUNTED (450MM) HRHWMC
WHAT IS IN THE PACK
1 x Flow Restrictor
& Sleeve
SYSTEM REQUIREMENTS
To ensure the optimum performance and customer satisfaction please adhere to the following:
• Flush out all pipe work prior to installation.
• Installation should comply with relevant local authority requirements.
Failure to comply with the above will void warranties
1 x Horizontal Arm & Flange
AS/NZS 3500.1 states that pressures above 500kPa can cause damage from water hammer, reduce the life of appliances, taps & fittings,
cause excessive noise in the system and recommend that a pressure limiting valve (PLV) be fitted.
Operating Pressures
Operating Hot Water Temperatures
Operating Cold Water Temperatures
MINIMUM MAXIMUM
70kPa (10.2psi) 70kPa (10.2psi) 500kPa (72.1)
55° C 60° C
5° C N/A
Hot Cold
1 x Rain Head
(450mm)
(Pre-fitted to rainhead )

HOW TO INSTALL
INSTALLING INTO STUD/NOG... (RECOMMENDED)
1. Ensure the wingback when fitted is parallel
and square to the finished wall lining as
shown
2. Cut and fit 1/2” BSP with atleast 15mm
protuding from the finished wall. Use
seal tape when threading into wingback.
PARALLEL
WINGBACK
90°
10-20mm
FRONT OF WALL
ATLEAST 15MM
PROTUDING
A
B
3A. Apply seal tape to exposed 1/2” BSP
and then thread arm onto 1/2” until
flush with wall and aligned.
3B. Apply silcone to underside of flange and
fit until contact on wall.
4. Flush supply lines.
6. Turn on water supply and check for leaks.
5. FOR MAIN PRESSURE -
Fit as supplied.
FOR LOW PRESSURE -
Remove rubber mesh filter and remove the
flow restrictor and sleeve. Refit the rubber
mesh filter and then screw rain head onto the arm.
RUBBER MESH
FILTER
FLOW
RESTRICTOR
RESTRICTOR
SLEEVE
REMOVE FOR
LOW PRESSURE
