Ferax BCS-1400 User manual

lnstruktionsbok

Manual


Code no. 19694-0407

36
ENGLISH
Original instructions
CONTENTS
1. Introduction..........................................36
2. Technical specifications.......................36
3. Product information .............................36
4. Unpacking ............................................37
5 Safety instructions................................37
5.1 Electrical safety....................................37
5.2 Danger..................................................38
5.3 Causes and operator prevention of
kickback................................................38
5.4 Safety instructions lower guard............39
5.5 Before using the circular saw, check the
following points....................................39
5.6 Safety tips for the laser beamer............40
5.7 Using the machine ...............................40
5.8 Switch off the machine immediately
when you discover ...............................40
6 Assembly and adjusting instructions ......40
6.1 Setting the sawing angle (bevel)..........40
6.2 Fitting the rip fence..............................40
6.3 Setting the cut depth ............................40
6.4 Exchanging or cleaning the saw blade..40
7 Operation..............................................41
7.1 Switching on/off...................................41
7.2 Operation..............................................41
7.3 Laser beamer in use .............................41
7.4 Troubleshooting ...................................41
8 Maintenance.........................................42
8.1 Cleaning................................................42
8.2 Lubrication...........................................42
8.3 Malfunctions .........................................42
8.4 Environment..........................................42
8.5 Guarantee .............................................42

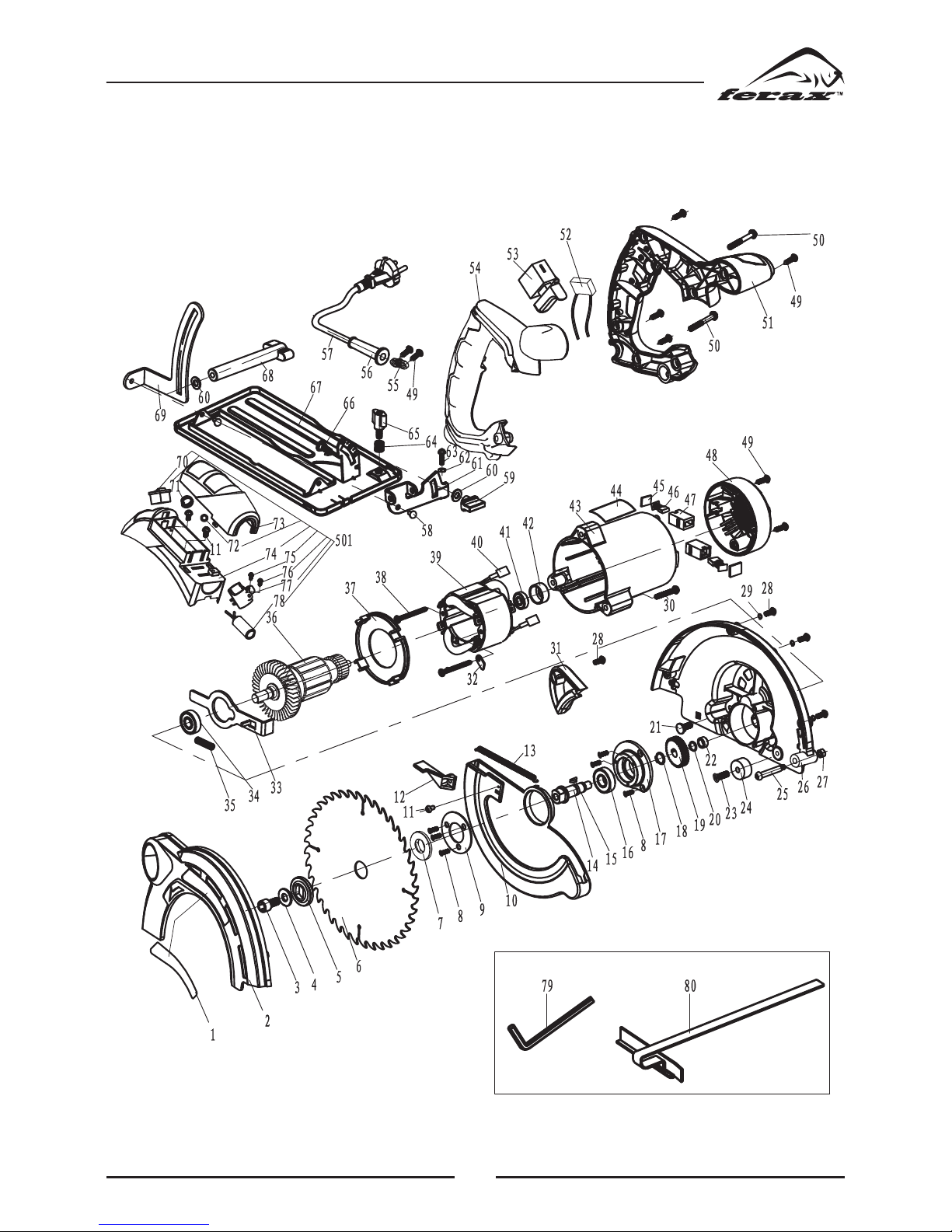

Spare parts list...............................................67
EC conformity declaration............................68
1. INTRODUCTION
Read this operators guide carefully,
before using the machine. Ensure that
you know how the machine works,
and how it should be operated.
Maintain the machine in accordance with the
instructions, and make certain that the machine
functions correctly. Keep this operator’s guide
and other enclosed documentation with the
machine.
2. TECHNICAL SPECIFICATIONS
Voltage ......................................V 230
Frequency................................ Hz 50
Power input..............................W 1300
No load speed ..................... r/min 5000
Saw blade dimensions........... mm 185× 16
Number of teeth ........................... 24
Max sawing depth @ 90°..........mm 65
Max sawing depth @ 45° .......mm 44
Weight......................................kg 4.4
3. PRODUCT INFORMATION
3
2
4
1
10
7
11
13
12
9
5
8
6
Fig. 1

37
1. Handgrip
2. Protractor
3. On/off switch
4. Power cord
5. Saw blade safety guard
6. Hexagon screw
7. Soleplate
8. Retaining ring
9. Saw blade
10. Rip fence
11. Rip fence clamping knob
12. Sawing angle clamping knob
- Shaft locking knob
13. Laser switch
4. UNPACKING
The circular handsaw is shipped with:
1 Rip fence
1 TCT Saw blade Ø 185 mm
1 Allen key
1 Set of carbon brushes
2 Batteries
1 Dust extraction adapter
Check first whether or not the product has been
damaged by transport and/or whether all the
parts are present.
5. SAFETY INSTRUCTIONS

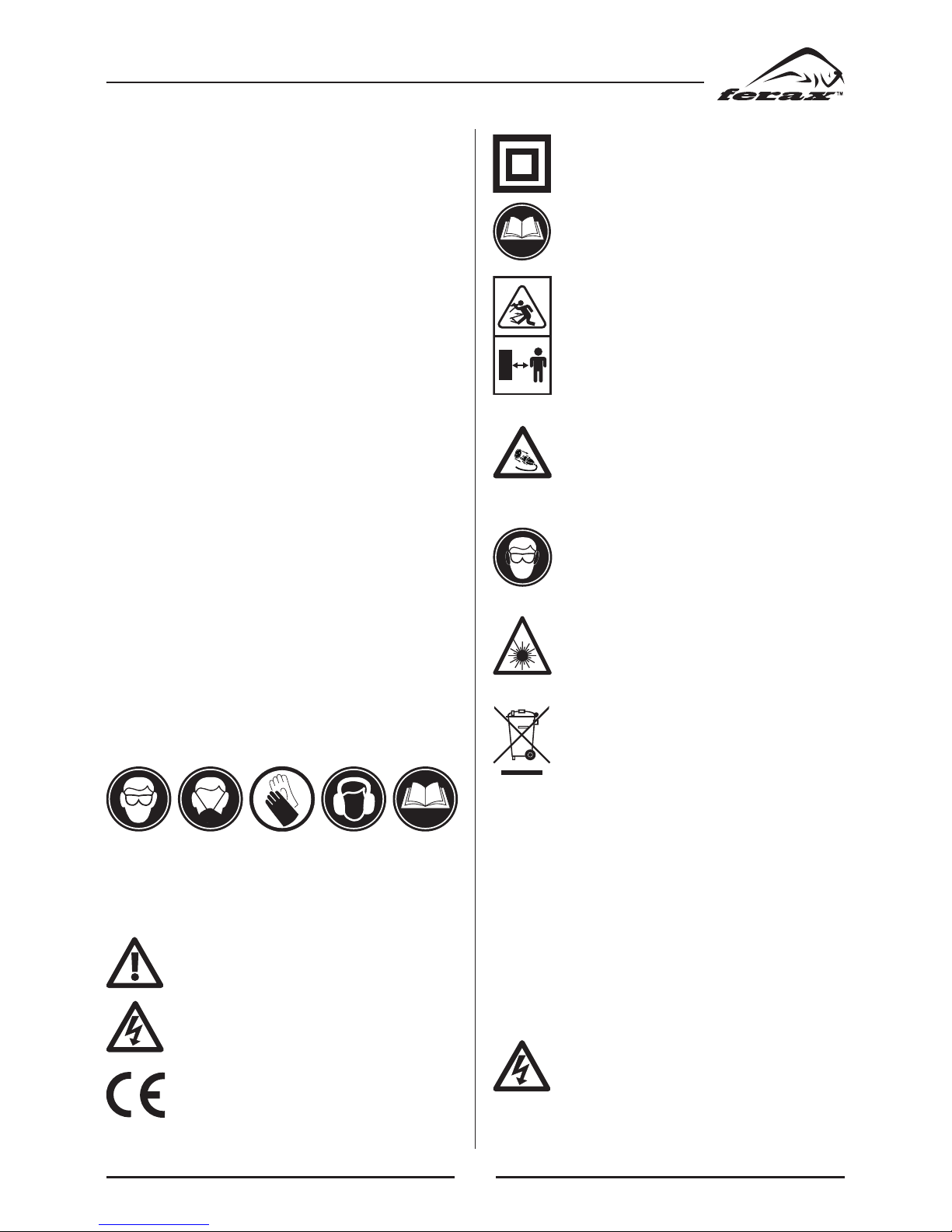

The following pictograms are used in these
instructions for use:
Danger of bodily injury or material
damage.
Indicates electrical shock hazard.
In accordance with essential appli
cable safety standards of European
directives
Class II equipment – double insulated
– the plug does not have to be earthed
Read the instructions
Keep bystanders at a distance
Immediately unplug the plug from
the mains electricity in the case that
the cord gets damaged and during
maintenance
Wear eye and ear protectors
Caution! Laser beam! Never look into
the light beam and never aim the laser
at a person when it is switched on.
Electrical or electronic devices and
machines, which are damaged and/or
are to be discarded, must be delivered to
the recycling stations provided by local
regulations.
5.1 Electrical safety
When using electric machines always obser-
ve the safety regulations applicable in your
country to reduce the risk of fire, electric
shock and personal injury. Read the following
safety instructions and also the enclosed safety
instructions. Keep these instructions in a safe
place!
Always check that the power supply
corresponds to the voltage on the
rating plate.

38
Class II equipment – double insula-
ted – the plug does not have to be
earthed.
• Replacingcablesorplugs
If the mains cable becomes damaged, it
must be replaced with a special mains cable
available from the manufacturer or the
manufacturer’s customer service. Dispose of
old cables or plugs immediately after repla-
cing them with new ones. It is dangerous to
connect the plug of a loose cable to a socket.
• Usingextensioncables
Only use an approved extension cable suita-
ble for the power input of the machine. The
minimum conductor size is 1.5 mm2. When
using a cable reel always unwind the reel
completely.
5.2 Danger
• Keephandsawayfromcuttingareaandthe
blade. Keep your second hand on auxiliary
handle, or motor housing. If both hands are
holding the saw, they cannot be cut by the
blade.
• Donotreachunderneaththeworkpiece.The
guard cannot protect you from the blade
below the workpiece.
• Adjustthe cutting depth to the thickness of
the workpiece. Less than a full tooth of the
blade teeth should be visible below the work-
piece.
• Neverholdpiecebeingcutinyourhandsor
across your leg. Secure the workpiece to a
stable platform. It is important to support the
work properly to minimize body exposure,
blade binding, or loss of control.
• Holdpowertoolbyinsulatedgrippingsurfa-
ces when performing an operation where the
cutting tool may contact hidden wiring or its
own cord. Contact with a ”live” wire will also
make exposed metal parts of the power tool
”live” and shock the operator.
• When ripping always use a rip fence or
straight edge guide. This improves the
accuracy of cut and reduces the chance of
blade binding.
• Always use blades with correct size and
shape (diamond versus round) of arbour
holes. Blades that do not match the mounting
hardware of the saw will run eccentrically,
causing loss of control.
• Neverusedamagedorincorrectbladewash-
ers or bolt. The blade washers and bolt were
specially designed for your saw, for optimum
performance and safety of operation.
5.3 Causes and operator prevention of
kickback
• Kickbackisasuddenreactiontoapinched,
bound or misaligned saw blade, causing an
uncontrolled saw to lift up and out of the
workpiece toward the operator.
• Whenthebladeispinchedorboundtightly
by the kerf closing down, the blade stalls
and the motor reaction drives the unit rapidly
back toward the operator.
• If the blade becomes twisted or misaligned
in the cut, the teeth at the back edge of the
blade can dig into the top surface of the wood
causing the blade to climb out of the kerf and
jump back toward the operator.
Kickback is the result of saw misuse and/or
incorrect operating procedures or conditions
and can be avoided by taking proper precau-
tions as given below.
• Maintainafirmgripwithbothhandsonthe
saw and position your arms to resist kickback
forces. Position your body to either side
of the blade, but not in line with the blade.
Kickback could cause the saw to jump back-
wards, but kickback forces can be controlled
by the operator, if proper precautions are
taken.
• Whenbladeisbinding,orwheninterrupting
a cut for any reason, release the trigger and

39
hold the saw motionless in the material until
the blade comes to a complete stop. Never
attempt to remove the saw from the work or
pull the saw backward while the blade is in
motion or kickback may occur. Investigate
and take corrective actions to eliminate the
cause of blade binding.
• Whenrestartingasawintheworkpiece,cen-
tre the saw blade in the kerf and check that
saw teeth are not engaged into the material.
If saw blade is binding, it may walk up or
kickback from the workpiece as the saw is
restarted.
• Supportlargepanelstominimisetheriskof
blade pinching and kickback. Large panels
tend to sag under their own weight. Supports
must be placed under the panel on both sides,
near the line of cut and near the edge of the
panel.
• Do not use dull or damaged blades.
Unsharpened or improperly set blades pro-
duce narrow kerf causing excessive friction,
blade binding and kickback.
• Blade depth and bevel adjusting locking
levers must be tight and secure before making
cut. If blade adjustment shifts while cutting,
it may cause binding and kickback.
• Use extra caution when making a ”plunge
cut” into existing walls or other blind areas.
The protruding blade may cut objects that can
cause kickback.
5.4 Safety instructions lower guard
• Checklowerguardforproperclosingbefore
each use. Do not operate the saw if lower
guard does not move freely and close instant-
ly. Never clamp or tie the lower guard into
the open position. If saw is accidentally
dropped, lower guard may be bent. Raise the
lower guard with the retracting handle and
make sure it moves freely and does not touch
the blade or any other part, in all angles and
depths of cut.
• Check the operation of the lower guard
spring. If the guard and the spring are not
operating properly, they must be serviced
before use. Lower guard may operate slug-
gishly due to damaged parts, gummy depo-
sits, or a build-up of debris.
• Lower guard should be retracted manually
only for special cuts such as ”plunge cuts”
and ”compound cuts.” Raise lower guard by
retracting handle and as soon as blade enters
the material, the lower guard must be relea-
sed. For all other sawing, the lower guard
should operate automatically.
• Always observe that the lower guard is
covering the blade before placing saw down
on bench or floor. An unprotected, coasting
blade will cause the saw to walk backwards,
cutting whatever is in its path. Be aware of
the time it takes for the blade to stop after
switch is released.
5.5 Before using the circular saw, check-
the following points
• Does the voltage of the motor correspond
with the mains voltage. (appliances for a
mains voltage of 230 V)
• Arethemainsleadandthemainsplugina
good condition: solid, without any loose ends
or damage.
• Isthesawblademissinganyteethorshowing
any cracks, if so, it must be replaced imme-
diately.
• Makesurethebladeissecure.
• Use this circular saw only to saw wood or
wood-like products.
• Do not use circular saw blades which are
deformed or damaged.
• DonotuseHSSblades.
• Onlyusebladesmeetingtherequireddimen-
sions (as well as) data and descriptions.
• Neverapply anyblades ofwhichthe thick-
ness is greater than that of the riving knife.
• Do not stop the blade of a circular saw by
pressing the blade from the side.
• Checkthatthebladeguardcanfreelymove
and fully closes.
• Neverlock-uptheguardintheopenposition.

40
• Never put sideward pressure on the blade.
This may cause the blade to break.
• Be careful when cutting wood with knots,
nails or cracks in it and/or dirt on it, as these
can cause the blade to get stuck.
• Neverleavethecircularsawunattended.
5.6 Safety tips for the laser beamer
• Neverlookintothelightbeamofthelaser.
• Never point the light beam of the laser at
humans or animals.
• Do not point the light beam of the laser at
strongly reflecting material. Hazard from
reflected light.
• Onlyhaverepairsmadetothelaserbeamer
by qualified personnel / professional repair
specialists.
• Donotinsertanyhardobjectsintothelaser
optics.
• Cleanthelaseropticswithasoft,drybrush.
5.7 Using the machine
• Useclampsoravicetoholdthework.
• Neverremovewoodchipsandsawdustthat
is close to the saw blade with your hands. If
there are small pieces of wood left between
the fixed and the movable parts, the circular
saw will have to be stopped. The plug needs
to be removed from the socket, before any
left piece can be removed.
• Checkthatthebladeissuitableforthespind-
le speed of the circular saw. Do not attempt
to cut before the circular saw has reached full
speed. Make sure the circular saw runs wit-
hout load (i.e. is not in contact with the work)
when you switch it on. The circular saw must
have reached its full speed first.
• Nevercutwoodthatisthickerthanthedepth
of the saw blade.
• When cutting in wooden walls or floors,
check if there is no wiring or piping where
you intend to cut.
• Switchoffthe tool andwaituntil the blade
has stopped completely before moving the
saw away from the work or putting it down.
Hearing protection should be worn when
using the circular saw.
5.8 Switch off the machine immediately
when you discover
• Adefectivemainsplugormainslead.
• Adefectiveswitch.
• Overheatingofthecircularsaw.
• Smokeorodeurcausedbyscorchedinsula-
tion.
6. ASSEMBLY AND ADJUSTING
INSTRUCTIONS
Before adjusting the saw, make sure
the plug is removed from the socket.
6.1 Setting the sawing angle (bevel)
(Fig. 1)
• Loosenbothknobs(11).
• Rotate the soleplate to the correct position
(0° - 45°), and tighten the knobs. The sawing
angle (bevel) can be read on the protractor.
6.2 Fitting the rip fence (Fig. 1)
• Loosenknob(12).
• Insert the rip fence into the slots provided
(10).
• Setthecorrectcutwidthandtightentheknob
(12).
6.3 Setting the cut depth (Fig. 1)
• Loosenknob.
• Movethesoleplate(7)downwards.
• Thecutdepthofthesawbladecanbereadoff
on the side of the safety guard.
• Tightentheclampingknoboncethecorrect
depth is set.
6.4 Exchanging or cleaning the saw
blade (Fig. 1)
• Use the shaft locking knob to prevent the
shaft from rotating.
• Nextloosenthehexagonscrew(6)inthecentre
of the saw blade, using the Allen keyprovided.

41
• Turnthesafetyguardtotherear,andholdit
there with the aid of the knob (11).
• Withdraw the retaining ring and the saw
blade, and clean the saw blade, or replace it
with a new one.
• Againplacethesawbladebackontheshaft.
• Allowthesafetyguardtoreturnoverthesaw
blade by releasing the knob (11).
• Presstheshaftlockingknobbackin,refitthe
retaining ring (8) and tighten the hexagon
screw firmly once more.
7. OPERATION
Use of hearing protection is recom-
mended while operating the circular
saw.
7.1 Switching on/off (Fig. 2)
A
B
Fig. 2
• Depressknob(B)withyourright-handthumb
and keep it depressed.
• Depressknob(A)tostartthesaw.
• Releaseknob(A)tostopthesaw.
7.2 Operation
• Holdtheworkusingclampsoravicetohave
both hands free to operate the saw.
• Switchonthesawandplacethebottomplate
on the work.
• Slowlymovethesawtowardsthepreviously
drawn cutting line and slowly press the tool
forward.
• Firmly press the bottom plate on the work,
otherwise the circular saw may start to vibra-
te, causing the blade to break more easily.
Let the saw do the job. Do not put
undue pressure on the circular saw.
7.3 Laser beamer in use
The leading beam of the laser beamer makes
sawing in straight lines much easier:
• Alongadrawnline,or
• Byaligningittoafixedpointmarkedonthe
workpiece.
The range of the laser beam, depending on the
environmental light, is about 65 cm.
7.4 Troubleshooting
Below we have listed a few probable causes and solutions to which you can refer if your circular
saw does not function properly.
•Thetemperatureoftheelectric
motor exceeds 70°C.
• The motor has been overloa-
ded by working it too hard.
•Themotorisdefective.
•Cutmoreslowlyandallowthe
motor to cool down.
• Contact your local dealer to
have the tool inspected and/
or repaired.
•Thetooldoesnotworkwhen
switched on.
•Damagedcordand/orplug.
•Defectiveswitch.
•Checkcordand/orplug.
• Contact your local dealer to
have the switch inspected and/
or repaired.

42
• When cutting it is very diffi-
cult to move the work forward
in a straight line and the cut is
not clean.
•Thebladeisbentorblunt. •Replacetheblade.
• The circular saw makes a lot
of noise and/or does not run
smoothly.
•Thecarbonbrushesareworn. • Replace the carbon brushes
(Fig. 2)
8. MAINTENANCE
Make sure that the machine is not
live when carrying out maintenance
work on the motor.
This equipment was manufactured for long-
term operations with minimal maintenance.
Continuous and satisfactory operations depend
on a correct care and regular cleaning of your
equipment.
8.1 Cleaning
• Regularlyremovesawdust.
• Operate the saw with an attached vacuum
cleaner.
• Ifthedirtdoesnotcomeoffuseasoftcloth
moistened with soapy water. Never use sol-
vents such as petrol, alcohol, ammonia water,
etc. These solvents may damage the plastic
parts.
8.2 Lubrication
The machine does not require any additional
lubrication.
8.3 Malfunctions
If any malfunctions should occur, for instance
through wear and tear of a component, then
please contact the service centre indicated on
your guarantee card. This manual contains a
detailed overview of those components that
can be ordered.
8.4 Environment
This machine is delivered in robust packaging
to prevent transport damages. This packaging
largely consists of recyclable materials.
Do use all available possibilities for recycling
the packaging. When disposing of the machine,
do not throw it into your trash container!
Electrical or electronic devices and
machines, which are damaged and/or
to be discarded, must be delivered to
the recycling stations provided by
local regulations. We would like to
ask you to support us with your active
contribution to protect the environ-
ment, by delivering equipment that is
to be discarded to your local recyc-
ling station.
8.5 Guarantee
Warranty conditions and product liability apply
according to national legislation.

67
BCS- 1400 DIAGRAM
Accessory:

68
BCS- 1400 PART LIST
No. Description Specication Qty
1 Name plate 1
2 Head cover body 1
3 Hex screw M8× 16 1
4 Big wahser 8 1
5 Press plate 1
6 Saw blade 1
7 Clamping flage 1
8 Screw M4× 10 6
9 Flage for lower guard 1
10 Lower guard 1
11 Screw M4×8 1
12 Spanner for lower guard 1
13 Spring Ø3.8× 0.7× 98 1
14 Output shaft 1
15 Semi-circle Key 3×10 1
16 Bearing 6001-2RS 1
17 Front cover 1
18 Shaft circlip 12 1
19 Big gear 1
20 Shaft circlip 10 1
21 Bolt M6× 18 1
22 Oil bearing 8C7× 14× 8 1
23 Screw M6× 18 1
24 Positioning circlip Ø22× 12 1
25 Pin screw M5× 40 1
26 Head cover 1
27 Nut M5 1
28 Screw M4× 12 4
29 spring circlip 4 3
30 Screw M5× 35 1
31 Cover 1
32 Windshield 1
33 Self-locking pin 1
34 Bearing 6000- 2RS 1
35 Spring Ø5.9× 0.7× 10 1
36 Rotor 1
37 Wind loop 1
38 Screw ST4.2× 60 2
39 Stator 1
40 Square shape connect 8.5 2
pieces
No. Description Specication Qty
41 Bearing 607- 2RS 1
42 bearing jacket 1
43 Housing 1
44 Rating lable 1
45 Carbon brush cover 2
46 Carton brush 2
47 Carbon brush holder 2
48 Rear cover 1
49 Screw ST4.2× 16-F 8
50 Screw M5× 50 2
51 Left handle 1
52 Capacitance 1
53 Switch 1
54 Right handle 1
55 Cable clamp 1
56 Cable jacket 1
57 Cable 1
58 Screw 5× 7 2
59 Locking knob 1
60 Flat washer Ø6× Ø14× 1.5 2
61 Angle frame 1
62 Nut M 4 1
63 Screw M4×10 1
64 spring Ø8.2 ×0.8× 3 1
65 Pressing lock 1
66 Bolt M6× 14 1
67 Plate 1
68 Depth adjusting lock rod 1
69 Depth adjusting frame 1
70 Laser switch 1
71 Battery insert 2
72 Battery spring 2
73 Lahser housing cap 1
74 Lahser housing 1
75 Screw ST2.9× 10- F 1
76 Screw ST2.9× 6- F 1
77 Lahser base 1
78 lasher head 1
79 Hex key 6 1
80 Guide 1
501 Lasher acce. 1


�TM
ARETE S UPP LIES S . L .
www.aretesupplies.co m
Circular saw
BCS-1400
