Ferno ScoopEXL Operating instructions

User and
maintenance manual
ScoopEXL atraumatic stretcher (PIN and no PIN)
Rel.31102023
English (UK)
Read this manual
carefully and keep it
for future reference

2© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
© Copyright Ferno S.R.L. All rights reserved.
ScoopEXL Serial number:___________________
Placement: Back of the body section on the right-hand
side (operator view).
Ferno Technical Support
Customer Service and Technical Support are important aspects of
every Ferno product. Before contacting us, note the serial number
of the product and specify it in all written communications. For all
queries concerning technical support, contact Ferno S.R.L.:
E-mail [email protected]
Website dedicated to support - Ferno SOS www.fernosos.it
Phone [phone]
Phone (toll-free for Italy only) 800.501.711
Fax [phone]
Ferno S.R.L. is authorised to carry out preventive and corrective
maintenance (repairs) on all Ferno products in exclusivity.
Any corrective action MUST necessarily be carried out by FERNO
personnel and the operations must be carried out using original
spare parts. In this way, the warranty is also extended to the
components involved in the operation.
Any corrective action carried out by non Ferno personnel will
automatically cancel any Civil Liability insurance and any
guarantee.
Ferno Customer Service
For further details, please contact Ferno S.R.L.'s Customer Service:
MANUFACTURER
Ferno S.R.L., Via Benedetto Zallone 26
40066 - Pieve di Cento (BO) - ITALY
Phone (toll-free for Italy only) 800.501.711
Phone [phone]
Fax [phone]
Website www.ferno.it
Limitation of liability
This manual contains general instructions on the use and
maintenance of the product. The instructions do not cover all
possible applications and operations. The user is solely responsible
for proper and safe use of the product. Safety information is
provided as an aid to the user.
Any other safety measure implemented by the user must comply
with applicable regulations. Before using the product, it is strongly
recommended that staff be trained in its correct usage. Retain
this manual for future reference. In case of change of ownership,
ensure that the manual remains with the product. Additional free
copies can be downloaded online at www.ferno.it.
Intellectual property declaration
The information in this manual is the property of Ferno S.R.L. -
Via Benedetto Zallone 26, 40066 Pieve di Cento (Bologna) Italy.
All patent rights, design, construction, reproduction, use and
sale rights relating to any item covered in this manual are the
condential and exclusive property of Ferno S.R.L., except for
rights expressly transferred to third parties or not attributable to
parties owned by the supplier. It is prohibited to reproduce this
manual, either in full or in part, without the prior consent of Ferno
S.R.L.
Limited warranty
Ferno products are covered by a 24-month warranty against
manufacturing defects. For the full terms and conditions of
warranty and liability, see Chapter Warranty.
Reporting accidents
In the event of a serious accident occurring in relation to
the device, contact Ferno S.r.l. and the competent authority
of the member state in which the user has its main ofce.
E-mail eu-regulatory[email protected]
Website dedicated to support - Ferno SOS www.fernosos.it
Phone [phone]
Fax [phone]
USER AND MAINTENANCE MANUAL
Further free copies of the instruction
manual visit the website
www.ferno.it

3
© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
TABLE OF CONTENTS
Chapter/Section Page Chapter/Section Page
Ferno Customer Service _______________________ 2
Ferno Technical Support _______________________ 2
Intellectual property declaration _________________ 2
Limitation of liability _________________________ 2
Limited warranty _____________________________ 2
Reporting accidents ___________________________ 2
1 - Safety information ___________________________ 4
1.1 Warning________________________________ 4
1.2 Important_______________________________ 4
1.3 Blood-borne diseases _____________________ 4
1.4 Load capacity ___________________________ 4
1.5 Glossary of symbols ______________________ 5
1.6 Information and safety labels _______________ 5
2 - Operator training and skills ___________________ 6
2.1 Skills __________________________________ 6
2.2 Training________________________________ 6
3 - The stretcher _______________________________ 6
3.1 Description and intended use _______________ 6
3.2 MRI safety information____________________ 6
3.3 EC Conformity __________________________ 8
3.4 - Components (Stretcher) ___________________ 9
3.5 General specications ____________________ 10
4 - Conguration of the stretcher ________________ 11
4.1 Length adjustment_______________________ 11
4.2 Twin Safety Lock (TSL) System_____________ 12
4.3 How to fold the stretcher__________________ 13
4.4 How to extend the stretcher _______________ 13
4.5 Lifting handles _________________________ 14
4.6 Side holes _____________________________ 14
4.7 Pin ___________________________________ 14
4.8 Compatibility of ScoopEXL and restraints ____ 15
5 - Use of the stretcher _________________________ 15
5.1 Before putting the stretcher into service ______ 15
5.2 Instructions for Use______________________ 16
5.3 Positioning on ScoopEXL_________________ 16
5.4 Restraint arrangement ____________________ 18
5.5 Restraint application ______________________ 19
5.6 Semi-verticalisation procedure _____________ 23
5.7 “H”-shaped restraint application _____________ 21
5.8 Lifting and transport ______________________ 26
5.9 Additional help _________________________ 27
6 - Bariatric transport _________________________ 28
6.1 General guidelines ______________________ 28
6.2 Use of the TSL Expander Kit ______________ 28
7 - Maintenance _______________________________ 29
7.1 Periodic maintenance and preventive checks ___ 29
7.2 Disinfection _____________________________ 29
7.3 Cleaning _______________________________ 29
7.4 Inspection ______________________________ 30
7.5 Lubrication ____________________________ 31
7.6 Checking and locking the TSLs ____________ 31
7.7 Storage _______________________________ 32
7.8 Disposal________________________________ 32
8 - Accessories ________________________________ 32
8.1 ScoopEXL Stretcher accessories ___________ 32
8.2 Patient restraints _________________________ 34
9 - Technical support___________________________ 34
9.1 Technical Support Service ________________ 34
10 - Warranty ________________________________ 35
10.1 Warranty terms and conditions _____________ 35
10.3 Warranty claims_________________________ 35
10.4 Complaints ____________________________ 35
10.5 Return authorisation _____________________ 35
Training record _______________________________ 36
Recording of preventive inspections ______________ 38

4© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
1.4 Load capacity
Observe the load capacity of the ScoopEXL stretcher. Refer
to section General specications.
1  SAFETY INFORMATION
Read this user manual carefully. It is an integral part of the
device and must always be stored close at hand. For your
personal safety and for that of patients, please observe the
following points:
– Before every use, make sure that there are no signs of wear,
damage and/or malfunctioning. Refer to section Inspection.
– In order to avoid infections and/or bacterial contaminations,
follow the indications in sections Disinfection and Cleaning.
1.1 Warning
The danger symbols draw attention to potentially dangerous
situations that, if disregarded, may result in accidents,
damage and/or injury.
WARNING
Untrained users may injure themselves, cause damage and/or
physical harm. Allow only trained and qualied sta to use the
ScoopEXL stretcher.
Improper use of the stretcher may cause damage and/or injury. Use
the ScoopEXL stretcher as described in this manual.
Unauthorised modications of the ScoopEXL stretcher could cause
serious damage, injury and/or unforeseeable operating problems.
Do not modify or alter the stretcher in any way.
Any damage to the components of the stretcher or to the entire
system may aect its performance and safety. Inspect the ScoopEXL
stretcher frequently, especially before and after each use. Place the
stretcher out of service if it shows signs of wear or damage.
An unassisted patient is at risk of injury. Never leave the patient
alone while tied to the stretcher. Assist the patient throughout all
rescue operations.
Any improper use of the restraints can cause the patient to fall and
endanger their safety. Always use the patient restraints as described
in this manual.
Failure to comply with the instructions in this manual for the
application of the stretcher restraints could cause accidents, damage
and/or injury.
Occasional assistants may cause damage and/or physical harm,
or injure themselves. Do not allow occasional assistants to carry
out the preparation of the stretcher. Take extreme care during all
operations.
Improper maintenance may cause serious accidents and/or damage.
Perform maintenance as instructed in this user manual.
The use of improper and/or unauthorised devices may cause
accidents, damage, and/or injury. Use only devices that have been
approved and authorised by Ferno S.R.L.
1.2 Important
Boxes labelled "Important" contain important
information on use and/or maintenance of the device.
Important
1.3 Blood-borne diseases
To reduce risks of exposure to infectious diseases that may
be transmitted by blood, such as HIV-1 or Hepatitis, follow
the instructions on disinfection and cleaning in this manual
carefully.
WARNING
Unauthorised repairs, and repairs carried out by technicians
not authorised by Ferno S.R.L., will render all warranties null
and void and may compromise the safety of the stretcher.
Non-original spare parts and inadequate repairs may cause
damage and/or injury. Use only original Ferno spare parts and
refer exclusively to Ferno S.R.L.'s Customer Support.

5
© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
Main Label
Load capacity (in kilos, pounds and stones)
1.6 Information and safety labels
The information and safety labels contain important information that the user needs to know.
Read and follow the label instructions. Replace worn and damaged labels immediately. To obtain replacement labels, contact
Ferno S.R.L.'s Customer Service.
The Manufacturer's references, CE mark and serial number can be found on the back of the stretcher (on the right-hand side of
the body section, operator view).
1.5 Glossary of symbols
The symbols used in this manual and/or on the label on the stretcher are dened below. The CE mark is present on the stretcher
and in this manual.
Read the user manual
carefully
This product meets
European Union
Standards
Load capacity
(in kilos,
pounds and stones)
Do not wash with high
pressure water
The stretcher
requires at least two
qualied operators
2
227 kg
500 lb
36 st
227 kg
500 lb
36 st
Never exceed the load capacity of the ScoopEXL stretcher. Inspect the
stretcher if the load capacity has been exceeded (see section Inspection).
QR Code
Do not lubricate LubricateUnlocked Locked
Medical DevicePart number (abbreviated
with PN, P/N, part no.,
or part #) unambiguously
identies a specic part of
the design.
A catalogue
number indicates
the manufacturer's
catalogue number in
order to identify the
medical device.
A serial number
indicates the
manufacturer's serial
number in order to
identify a specic
medical device.
A lot code indicates
the manufacturer's
lot code in order to
identify the lot.
Conditions for
MR Safety

6© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
2  OPERATOR TRAINING AND SKILLS
2.1 Skills
Operators who use the stretcher must:
● Attend a suitable training course on the use of the
device.
● Possess the appropriate skills to assist the patient.
2.2 Training
Operators are required to:
● Carefully read and understand all information in this
manual.
● Attend a suitable training course on the use of the
stretcher.
● Practice with the stretcher before using it in real
situations with patients.
WARNING
Untrained users may injure themselves, cause
damage and/or physical harm. Allow only trained
and qualied sta to use the ScoopEXL stretcher.
3  THE STRETCHER
3.1 Description and intended use
The ScoopEXL atraumatic stretcher (more simply referred to
as “stretcher” in this manual) is a device intended for rescue,
movement restriction and patient transport. The stretcher
must be used by trained and qualied operators. Additional
assistance may be required to handle bariatric patients and/
or when the situation demands it and should always be
provided according to local healthcare regulations.
The stretcher can be adjusted in length according to the
patient's height up to 2100 mm. It is foldable by placing the
foot section inside the body section and can be divided into
two parts for storage (see section Storage).
The stretcher is available in PIN and NO PIN versions in the
following colours: Yellow, Red, Green, Black.
3.2 MRI safety information
From serial number S/N: 30001 the ScoopEXL stretcher has
been constructed with components with non-ferromagnetic
behaviour, which allow it to be used within magnetic elds
with values not exceeding 1.5 T.
● Log the training sessions. An example of a form for
logging the training sessions can be found in the
section Training record.
Important
Operators must be able to ensure the safety of
both themselves and their patients while using the
stretcher. They must be able to determine the number
of assistants required to handle the patient according
to the laws in force.
MRI (MAGNETIC RESONANCE IMAGING) SAFETY
STATEMENT
In accordance with Ministerial Decree of 14 January 2021
of the Ministry of Health, the components of the ScoopEXL
stretcher are MR-conditional.
Non-clinical tests have shown that the ScoopEXL stretcher
has conditional compatibility for MR.
Clinical hydrogen proton imaging system (cylindrical
tunnel/horizontal eld). Static magnetic eld strengths
at 1.5 T. Normal operating mode must be adhered to
for the entire active scanning session (whole-body
average SAR ≤ 2.0 watts/kilogram (W/kg); head SAR
≤ 3.2 W/kg). Spatial gradient not exceeding 15 mT/m
(150 G/cm).

7
© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
WARNING
The doctor responsible for the clinical safety and
diagnostic ecacy of the MR equipment or their
delegate, having noted the answers provided by the
patient and having carried out all the appropriate
investigations, authorises access to the MR site.
WARNING
The decision to authorise an MRI examination with
the patient on the ScoopEXL stretcher is a medical
decision.
If it is deemed necessary to carry out diagnostics
without the stretcher, the patient should be
transferred to the MRI system bed before
performing an examination. To open the ScoopEXL
stretcher, please refer to the section Twin Safety
Lock (TSL) System.
WARNING
During MRI diagnostic examinations, use only
plastic or nylon restraints with plastic buckles.
Speed-clips or metal buckles could be MR-unsafe.
Any questions or doubts should be claried with the
manufacturer before performing an MRI examination.
YES NO
MRI eld strength Maximum average head SAR Maximum average whole-body SAR
1.5 Tesla (64 MHz) 3.2 W/kg 2.0 W/kg
MRI eld strength 1.5 Tesla (64 MHz)
Maximum spatial eld gradient 15 mT/m (150G/cm)
Continuous MR scan time 60 min
Maximum temperature rises at previously specied
conditions
No noticeable change in the temperature of surfaces in
contact with the patient.
WARNING
Only compatible with closed-loop horizontal proton
scanners.
WARNING
Be sure to always use the updated MRI safety
information in these operating instructions.
WARNING
If the conditions or instructions presented on this
page are not followed, injury to the patient and/or
damage to the ScoopEXL stretcher may occur.

8© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
3.3 EC Conformity
EUROPEAN MEDICAL DEVICE REGULATION
Ferno's products meet the requirements of European Regulation 17/745 MDR concerning medical devices.
For any further information, please visit: www.ferno.it

9
© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
3.4 - Components (Stretcher)
FOOT
SECTION
BODY
SECTION
FOOT END
HEAD END Head end
Twin Safety Lock
Head end lifting handles
(2)
Small side holes (2)
Foot end lifting handles
(2)
PIN (8)NO PIN
Adjustment and locking
levers (2)
Foot end
Twin Safety Lock
Side holes (8)

10 © Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
COMPONENTS OF THE STRETCHER
● Lifting handles (2 on head end and 2 on foot end)
● Side handles (8, 4 on each side): each handle can
have a pin inside for locking snap-hook restraints,
depending on the model.

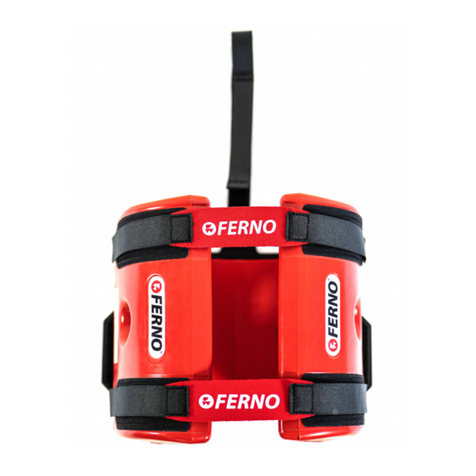

● Small side holes (2) for attaching the “H”-shaped
Velcro strap of the B-lock head immobiliser.
● TSL Twin Safety Lock locking systems (2). Each TSL
is equipped with buttons for opening the stretcher.
● Side locking levers (2) for stretcher length adjustment.
● Snap-hook restraint locking pins, for models featuring
pins. (8)
3.5 General specications
Ferno reserves the right to change the specications without
notice. For further details, please contact Ferno's Customer
Service.
Load capacity
Never exceed the load capacity of the ScoopEXL
stretcher. Inspect the stretcher if the load capacity has
been exceeded (see section Inspection).
WARNING
Untrained users may injure themselves, cause
damage and/or physical harm. Allow only trained
and qualied sta to use the ScoopEXL stretcher.
WARNING
Never exceed the load capacity of the stretcher
specied in this manual.
WARNING
Improper use of the stretcher may cause damage
and/or injury. Use the ScoopEXL stretcher as
described in this manual.
Specications
Load capacity 500 lbs 227 kg
Weight 17.64 in 8 kg
Length
Folded 47.24 in 1200 mm
Position 1 64.84 in 1647 mm
Position 2 69.68 in 1770 mm
Position 3 74.40 in 1890 mm
Position 4 79.13 in 2010 mm
Width
Total 17.28 in 439 mm
Shimming
Open 2.75 in 70 mm
Folded 3.14 in 80 mm
Materials
Structure HDPE
TSL aluminium
WARNING
Never connect lifting devices to the stretcher pins.
The pins are only intended for connecting snap-
hook restraints.
USER AND MAINTENANCE MANUAL
To request additional free copies of the
instruction manual, visit the website
www.ferno.it
227 kg
500 lb
36 st

11
© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
HOW TO ADJUST THE LENGTH
In order to adjust the stretcher length, proceed as follows:
1. Release the locking levers, on both sides of the stretcher,
by placing them facing upwards (Figure 2).
2. Pull the foot section out to the desired length. The
stretcher can be locked in 4 different lengths at the holes of
the tubular element of the foot section (Figure 3A, 3B, 3C,
3D). During adjustment, it is recommended to keep the two
parts that make up the stretcher hooked together.
3. Once the desired length has been reached, lock the levers
on both sides of the stretcher, positioning them facing
downwards (Figure 4). An audible “clack” is emitted at the
correct locking.
4.Ensure that the adjustment has been carried out correctly
and that the stretcher length is appropriately adapted to the
patient's height.
5. Before performing any operation with the stretcher,
make sure that the levers are locked (Figure 4) and that the
stretcher is correctly adjusted to the desired position.
After having properly adjusted the stretcher length, check
that the levers are properly locked. To check for correct
locking, check that the levers are pointing downwards, then
pull the foot section. If the section does not extend, the
levers are locked correctly and the stretcher is locked in the
chosen position.
4  CONFIGURATION OF THE STRETCHER
4.1 Length adjustment
The ScoopEXL stretcher is adjustable in length (4 positions).
This adjustment allows the stretcher to be adapted to the
patient's height.
When preparing the stretcher, adjust its length properly, so
that it ts correctly to the patient's height.
Figure 1 - Length adjustment system
Levers
Figure 2 - Locking lever facing upwards: STRETCHER
UNLOCKED
Figure 4 - Locking lever facing downwards:
LOCKED STRETCHER
Figure 3B - Position 2
Figure 3D - Position 4
Figure 3C - Position 3
Figure 3A - Position 1

12 © Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
4.2 Twin Safety Lock (TSL) System
The stretcher is equipped with two Twin Safety Lock (TSL)
systems, which allow the stretcher to be opened and closed
longitudinally by dividing it into two equal halves (Figure
5).
The two TSL systems are positioned at both ends of the
stretcher (head end and foot end) and each has two buttons
for opening the stretcher.
Figure 5 - Twin Safety Lock (TSL) System
HOW TO OPEN THE STRETCHER
Each TSL consists of two buttons (Figure 5).
In order to open the stretcher, proceed as follows:
1. Grab the head end lifting handles with both hands.
2. Press the two buttons of the TSL system simultaneously
and open the stretcher by separating the two parts (Figure
6). This will separate the two longitudinal parts that make
up the stretcher (Figure 7).
3. Carry out the same operations to open the stretcher at the
foot end Figure 6 - Stretcher opening via TSL
Figure 7 - Open TSL
Buttons
HOW TO CLOSE THE STRETCHER
1. Grab the head end lifting handles with both hands.
2. Close the two ends of the TSL so that the stretcher is
locked. To close it, it is not necessary to press the buttons.
3. Carry out the same operations for the foot end.
4. Check the correct locking of the TSL system. To check the
tightness of the system, grab the handles and try to separate
the two parts that make up the TSL, without pressing the
buttons. If the two parts of the TSL do not separate, they are
correctly locked and the stretcher is closed.

13
© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
4.3 How to fold the stretcher
1. Place the stretcher on a at surface.
2. Place the locking levers in the unlocked position,
facing upwards, on both sides of the stretcher (Figure 8).
Refer to section “Length adjustment”.
3. Fully extend the foot section so that the hinges are fully
visible (Figure 9).
4. Place the foot section on the body section (Figure 11).
5. Place the levers in the locked position, facing downwards,
on both sides of the stretcher (Figure 10).
6. If the stretcher is not in use and is stored folded, ensure
that the levers are in the closed position (facing downwards).
Figure 8 - Locking lever facing upwards
Figure 9 - Positioning the foot section
on the body section
Figure 10 - Locking lever facing downwards
Hinges
4.4 How to extend the stretcher
If the stretcher is folded (Figure 11), proceed as follows to
extend it:
1. Place the stretcher on a at surface.
2. Lift the foot section and place it on the same supporting
surface as the body section.
3. Release the locking levers by turning them upwards (to
unlock the levers, see the section Length Adjustment).
4. Adjust the length of the stretcher and lock it in the desired
position (to correctly adjust the stretcher length, please refer
to the section Length adjustment).
Figure 11 - ScoopEXL folded

14 © Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
4.5 Lifting handles
The stretcher is equipped with 4 lifting handles at the head
end and foot end.
Grab the lifting handles to lift the stretcher.
Lift only the weight that you can safely support. Obtain
additional assistance for heavy loads (see the section
Additional help).
4.6 Side holes
The stretcher is equipped with:
● 2 small side holes for xing the “H”-shaped Velcro
strap of the B-lock head immobiliser. The small holes
are only located at the head end of the stretcher (Figure
12).
● 8 side handles (4 per side). If the stretcher is tted with
pins, each handle has a pin inside for locking the snap-
hook restraints (Figure 12).
Figure 12 - Upper part details
4.7 Pin
Depending on the model, the stretcher can be equipped
with 8 pins for locking the snap-hook restraints. The
pins are located in the side holes of the stretcher (Section
Components (Stretcher)).
Head end
handles
Side holes
Pin

15
© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
5.1 Before putting the stretcher into
service
Staff using the stretcher must have carefully read and
understood the information contained in this manual.
● Before performing any operations with the stretcher,
make sure that all the components are present, that the
device does not show any signs of damage or wear, and
that it is fully operational. Refer to section Inspection.
5  USE OF THE STRETCHER
WARNING
The use of improper and/or unauthorised devices
may cause accidents, damage, and/or injury.
Use only devices that have been approved and
authorised by Ferno S.R.L.
WARNING
Any improper use of the restraints can cause the
patient to fall and endanger their safety. Always use
the patient restraints as described in this manual.
PINNO PINPINNO PIN
4.8 Compatibility of ScoopEXL and restraints
COMPATIBILITY: COMPATIBILITY:COMPATIBILITY:
PIN
TWOPIECE RESTRAINTS
WITH PLASTIC OR METAL
BUCKLE
CODE 430PA2N, 4302N
“SPIDER”770E RESTRAINT
SYSTEM
CODE 770E
TWOPIECE RESTRAINTS
WITH SNAPHOOK
CODE 0314122

16 © Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
5.2 Instructions for Use
● This manual does not provide any medical instructions.
● It is the responsibility of the operators to follow correct
procedures and ensure the safety of both the patient
and themselves.
● This manual explains the use of the stretcher under
ideal conditions and is purely indicative.
● The stretcher must be used by at least two trained and
qualied operators.
● These operators must work together and coordinate
correctly during all operations.
● Follow procedures while complying with standard
regulations for moving the patient in an emergency.
● Lift only the weight that you can safely support.
Obtain additional assistance for heavy loads.
● In any case, always observe local healthcare
instructions and regulations.
● Always assist the patient and never leave them alone
during the operations with the stretcher.
Read the user manual
carefully
Load capacity
At least two qualied
operators
2
WARNING
Never connect lifting devices to the stretcher pins.
The pins are only intended for connecting snap-
hook restraints.
227 kg
500 lb
36 st
WARNING
Improper use of the stretcher may cause damage
and/or injury. Use the ScoopEXL stretcher as
described in this manual.
Figure 13 - Patient alignment Figure 14 - Cervical collar application
5.3 Positioning on ScoopEXL
The movement restriction procedure must be carried out by
at least two trained and qualied operators.
Proceed as follows:
1. Align the patient in a supine position.
2. Align the stretcher parallel to the patient (Figure 13).
3. Apply the cervical collar, if necessary (Figure 14). Refer
to the cervical collar manual for its correct application.
Ferno recommends the use of the Wizloc cervical collar.
4. Apply the head immobiliser (Figure 15). Refer to the
head immobiliser manual for its correct application. Ferno
recommends the use of the B-Lock head immobiliser.
WARNING
Never place the patient on their side when loaded
on the ScoopEXL.
Carrying patients on their side may cause damage
and/or injury.
WARNING
Never leave the patient alone while tied to the
stretcher. Assist the patient throughout all rescue
operations.

17
© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
WARNING
Before placing the patient on the device, ensure
that the stretcher has been previously extended
and locked so that it is suitable for the patient's
height. Do not adjust the ScoopEXL length when
the patient is already positioned on the stretcher.
Figure 15 - Head immobiliser application
4. Place the stretcher next to the patient, adjust the length
of the stretcher so that it ts correctly to the patient’s height
(Figure 16). To adjust the length of the stretcher, please refer
to the section Length adjustment.
It is important to carry out this operation before placing
the patient on the device.
Figure 16 - Stretcher length adjustment
5. Before setting the patient onto the stretcher, align the
patient's jugulum with the small side holes (Figure 17). Take
care when doing this as it enables the patient to be correctly
positioned on the stretcher.
Figure 17 - Patient's jugulum alignment
6. The two operators, placed respectively at the foot end and
head end of the stretcher, open the stretcher by pressing the
buttons of the TSL system, thereby separating the two parts
of the stretcher longitudinally (Figures 18).
Figure 18 - Opening the stretcher
7. Position the two longitudinal parts under the patient,
starting with the head end. If the patient is uncooperative, a
third operator should hold the patient's head.
8. Close the head end rst via the TSL, making sure that the
head immobiliser has been positioned correctly (Figure 19).
Figure 19 - Closing the head end TSL

18 © Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
Figure 20 - Closing the foot end TSL Figure 21 - Completing the patient loading
While the rst operator (head end) maintains control of the patient's head, the second operator completes the procedure for
setting the patient onto the stretcher and closes the foot end via the TSL (Figure 20 and 21).
5.4 Restraint arrangement
TWOPIECE RESTRAINTS WITH PLASTIC
OR METAL BUCKLE
CODE 430PA2N, 4302N
“SPIDER”770E
RESTRAINT SYSTEM
CODE 770E
TWOPIECE RESTRAINTS
WITH SNAPHOOK
CODE 0314122

19
© Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
TWOPIECE RESTRAINTS WITH SNAP
HOOK
CODE: 0314122
Once the patient is positioned on the ScoopEXL, proceed
with the application of the two-piece restraints. 4 restraints
are recommended:
• 2 chest restraints, applied in a criss-cross
conguration.
• 1 leg restraint, applied in transverse conguration.
• 1 foot restraint, applied in 8-shaped conguration.
Important
Snap-hook restraints are the most recommended
restraint system for use with the ScoopEXL stretcher
with pin.
WARNING
The operator on the head end of the stretcher must
always have contact with the patient and check that
the alignment is correct
5.5 Restraint application
Figure 22 - Hole numbering for restraint arrangement
4
2
5
1
3
7
9
6
10
8

20 © Ferno S.R.L. ScoopEXL - Rel.31102023 - ENG
ScoopEXL stretcher
CHEST RESTRAINTS
1. Hook the snap-hook of the rst chest restraint onto
pin 9 (patient's right side). Pass the restraint over the
shoulder and chest of the patient, hooking the second
snap-hook onto pin 4 on the opposite side (patient's left
side). Depending on the patient’s height, the restraint
can be hooked onto pin 3 or 4.
2. Hook the snap-hook of the second chest restraint onto
pin 2 (patient's left side). Pass the restraint over the
shoulder and chest of the patient, hooking the second
snap-hook onto pin 7 (Figure 24) on the opposite
side (patient's right side). Depending on the patient’s
height, the restraint can be hooked onto pin 7 or 8.
3. Properly adjust the restraint tension so that there is
no particular constraint to the patient (Figure 25).
Figure 23 - Snap-hook restraint
Figure 24 - Application of the rst chest restraint
Figure 25 - Adjustment of chest restraints
Figure 26 - Leg restraint application
Figure 27 - Leg restraint adjustment
WAIST RESTRAINT
1. Hook the rst snap-hook to pin 7 (Figure 26).
2. Pass the restraint over the patient's legs.
3. Hook the second snap-hook to pin 4 on the opposite
side.
4. Properly adjust the restraint so that there is no
particular constraint to the patient (Figure 27).
