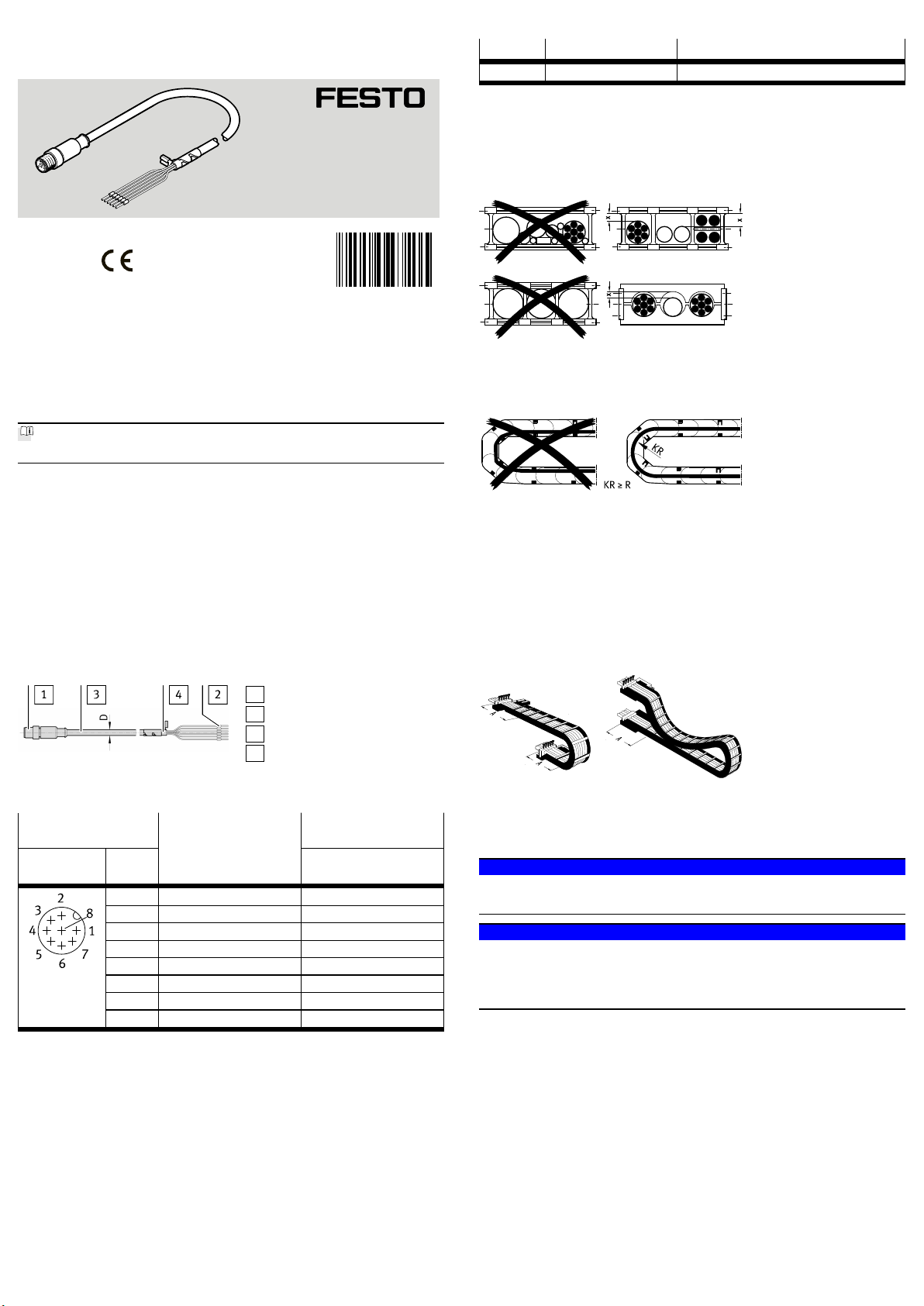

Festo NEBM-SM12G8-E Q5-LE6 Series Assembly instructions

Translation of the original instructions
1 Applicable documents
All available documents for the product èwww.festo.com/pk.
2 Safety
2.1 Safety instructions
– Do not connect or disconnect plug connector when powered.
– Only assemble the product on components that are in a condition to be safely
operated.
– Assembly and installation should only be carried out by qualified personnel.
These personnel have electrical training or a relevant qualification.
2.2 Intended use
Connection of motor EMMS‑ST to suitable controller
3 Configuration
3.1 Product design
1Plug M12, A-coded
2Wire end sleeve (8x)
3Cable
4Screened connection
Fig. 1
3.2 Contact assignment
Electrical connection1
Field device side
Electrical connection2
Controller side
1Plug con-
nector
Pin
Allocation
2Wire ends1)
1 String A WH
2 String A/ BN
3 String B GN
4 String B/ YE
5 Not assigned –
6 Not assigned –
7 Brake +24V GY
8 Brake GND PK
1) Colour code in accordance with IEC60757:1983-01
Tab. 1 Contact assignment
4 Mounting
4.1 Mounting of electrical connection1
1. Align the plug1 to match the socket.
2. Insert the plug1 into the socket.
3. Tighten the screw-type lock of the plug1. Tightening torque: 0.1Nm±20%
4.2 Mounting of electrical connection 2
1. Connect the wires in accordance with the contact assignment.
2. Clamp the screened connection4 into the spring clip of the controller.
4.3 Wiring
Feature Cable characteristic Wiring
-E- Suitable for energy chains In energy chain or flexible
Tab. 2 Wiring
4.4 Mounting in energy chain
1. Lay the chain out lengthwise.
2. Place the cables in the chain, making sure they are not twisted.
3. Separate cables from each other using separators/drill holes.
4. Do not connect cables together.
Fig. 2
5. Maintain spaceX. X>10% of the cable diameterD.
If the chain is suspended vertically: increase the spaceX.
Fig. 3
6. Align chain in the operating position:
– Make sure that the radius is greater than the bending radius R of the
cables.
– Cables can move freely in the bending radiusKR of the energy chain.
ÄCables are not forced through the chain.
7. Mount the energy chain ècorresponding instructions.
8. Fasten cables:
– At both ends of the chain in case of short energy chains
– Only at the driver end in the case of long, sliding energy chains
Fig. 4
9. Do not bend cables all the way to the fastening point.
ÄMounting spaceA between the fastening point and bending movement is
observed.
NOTICE!
Damage to cables if the chain breaks.
• Replace cables after a chain break.
NOTICE!
Malfunction and material damage due to vertically suspended cables.
The cables stretch.
• Regularly check the length of the cables.
• Readjust the cables if required.
8116064
NEBM-SM12G8-E-...-Q5-LE6
Motor cable
8116064
2019-08c
[8116066]
Instructions| Assembly
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
[phone]
www.festo.com

5 Technical data
NEBM-SM12G8-E-...-Q5-LE6
Cable characteristic Suitable for energy chains
Cable composition [mm²] 6x0.34
Shielding Shielded
Cable diameter D [mm] 6.2
Mounting space A [mm] ³124
Operating voltage range
DC UB[V] 0…72
Bending radius
Fixed cable installation R [mm] ³31
Flexible cable installation R [mm] ³62
Ambient temperature
Fixed cable installation [°C] –40…+80
Flexible cable installation [°C] –5…+80
Material
Cable sheath TPE-U(PUR)
Electrical connection1
Function Field device side
Connection type Plug connector
Connection technology M12x1 A-coded to EN61076-2-101
Type of mounting Screw-type lock
Degree of protection IP65 In assembled state
Electrical connection2
Function Controller side
Connection type Cable
Connection technology Open end
Wire ends Wire end sleeve
Tab. 3 Technical data
